  1. CE 578 Highway Traffic Operations AASHTO Grades Michael Dixon

  2. Objectives • Model vehicle operations on grades using the AASHTO Green Book • Classify critical grades Michael Dixon

  3. Vehicle operating characteristics • passenger cars • trucks • RVs Michael Dixon

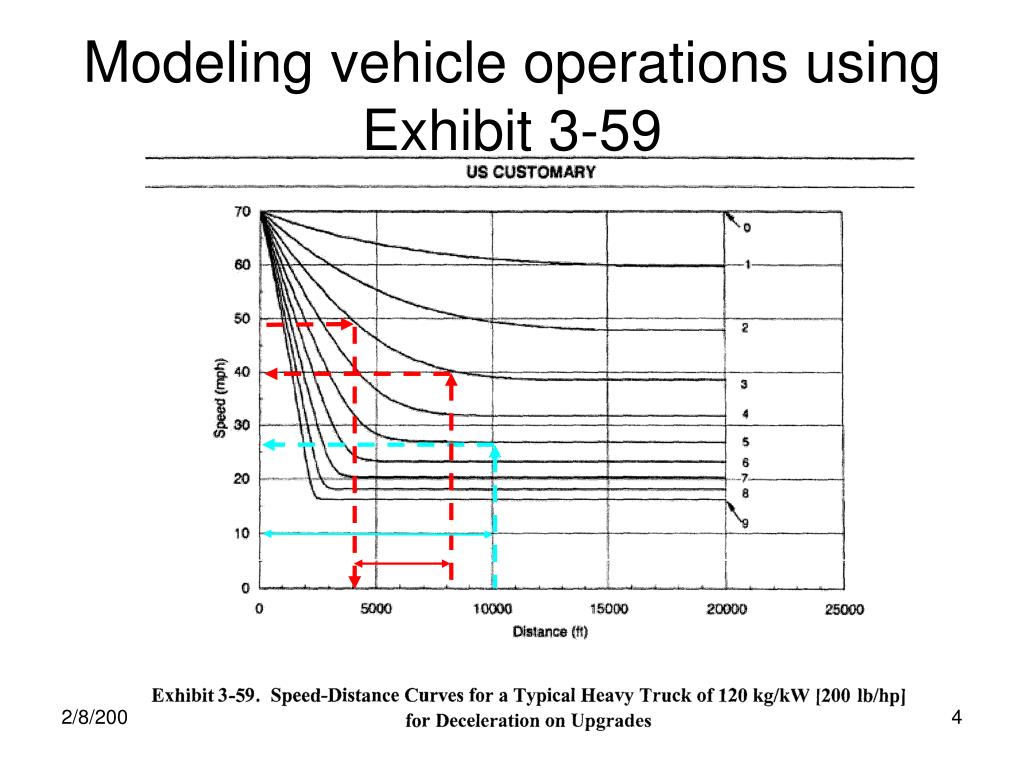

  4. Modeling vehicle operations using Exhibit 3-59 Michael Dixon

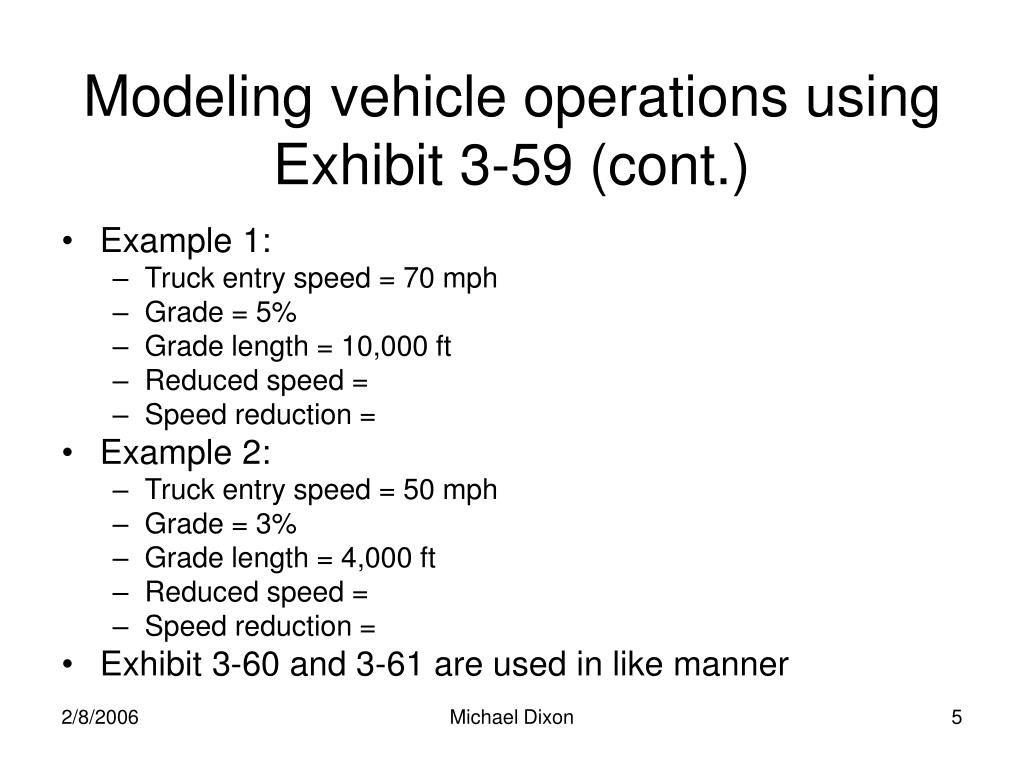

  5. Modeling vehicle operations using Exhibit 3-59 (cont.) • Example 1: • Truck entry speed = 70 mph • Grade = 5% • Grade length = 10,000 ft • Reduced speed = • Speed reduction = • Example 2: • Truck entry speed = 50 mph • Grade = 3% • Grade length = 4,000 ft • Reduced speed = • Speed reduction = • Exhibit 3-60 and 3-61 are used in like manner Michael Dixon

  6. Critical grade lengths The critical grade is the maximum length of a designated upgrade on which a loaded truck can operate without an unreasonable reduction in speed. [pp 242 of the AASHTO Green Book] Michael Dixon

  7. Input data for critical grade length evaluation • Design vehicle • Truck • RV • Grade entrance speed • Level approach • Downgrade approach • Upgrade approach • Minimum acceptable speed Michael Dixon

  8. Minimum acceptable speed or speed reduction • Use your judgment • Base on maximum speed reduction allowed Michael Dixon

  9. Minimum acceptable speed or speed reduction (cont.) Michael Dixon

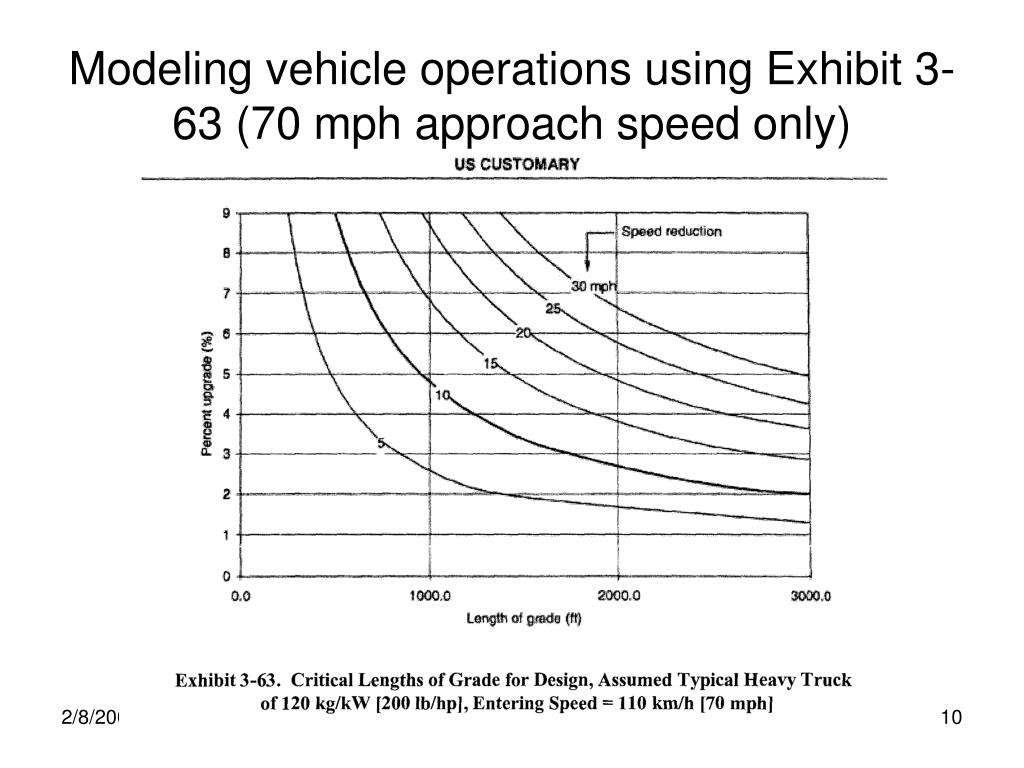

  10. Modeling vehicle operations using Exhibit 3-63 (70 mph approach speed only) Michael Dixon

  11. Modeling vehicle operations using Exhibit 3-63 (70 mph approach speed only) (cont.) • Example 1: • Level approach • Grade entry speed = 70 mph • Grade = 6% • Resulting critical grade length = • Example 2: • Upgrade approach grade = 4% • Grade entry speed = 70 mph • Approach grade length = 1000 ft • Resulting approach grade speed reduction = • Grade = 7% • Resulting critical grade length on the 7% grade = Michael Dixon

  12. Measuring grade length • It is the length of the tangent grade • Incorporate vertical curves Michael Dixon

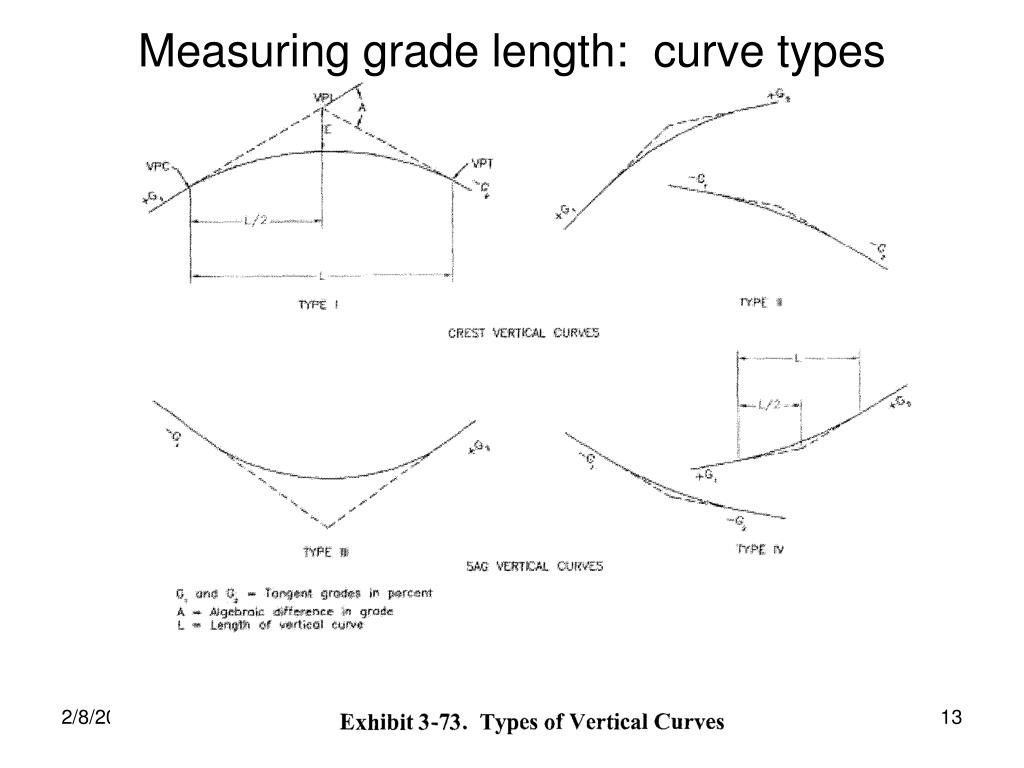

  13. Measuring grade length: curve types Michael Dixon

  14. Other analytical procedures • HCM procedure for two-lane highway specific grades • TWOPAS Michael Dixon

  15. Assignment 7 Verify that the suggested uses for Exhibit 3-63 are valid. Perform your work by comparing the Exhibit 3-63 results to those you obtain using Exhibit 3-59. Repeat Example 2, done in-class, for the following conditions for both of the aforementioned exhibits: Upgrade approach grade = 2% Grade entry speed = 70 mph Approach grade length = 1000 ft Grade = 7% Finally, describe how Exhibits 3-59, 3-60, 3-61, 3-62, 3-63, and 3-64 should be used to evaluate grades for the use of climbing lanes and why the HCM is necessary in some instances. Michael Dixon
