Optimizing Program Performance in Computer Systems

1. Computer Systems Optimizing program performance Computer Systems – optimizing program performance

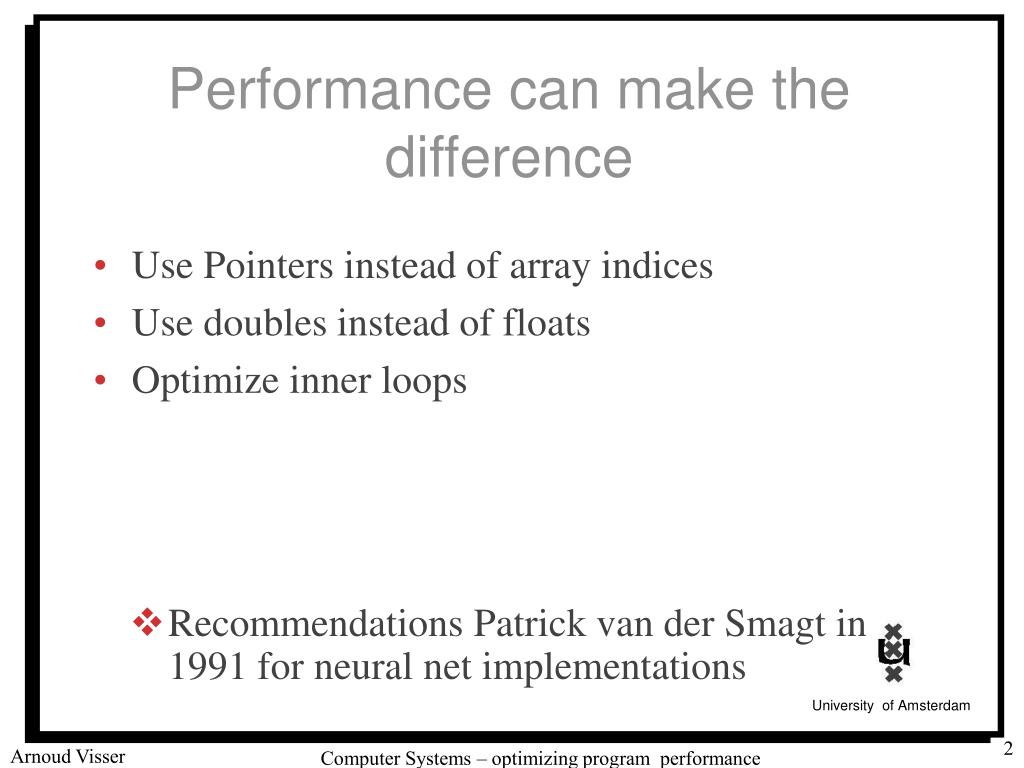

2. Performance can make the difference • Use Pointers instead of array indices • Use doubles instead of floats • Optimize inner loops • Recommendations Patrick van der Smagt in 1991 for neural net implementations Computer Systems – optimizing program performance

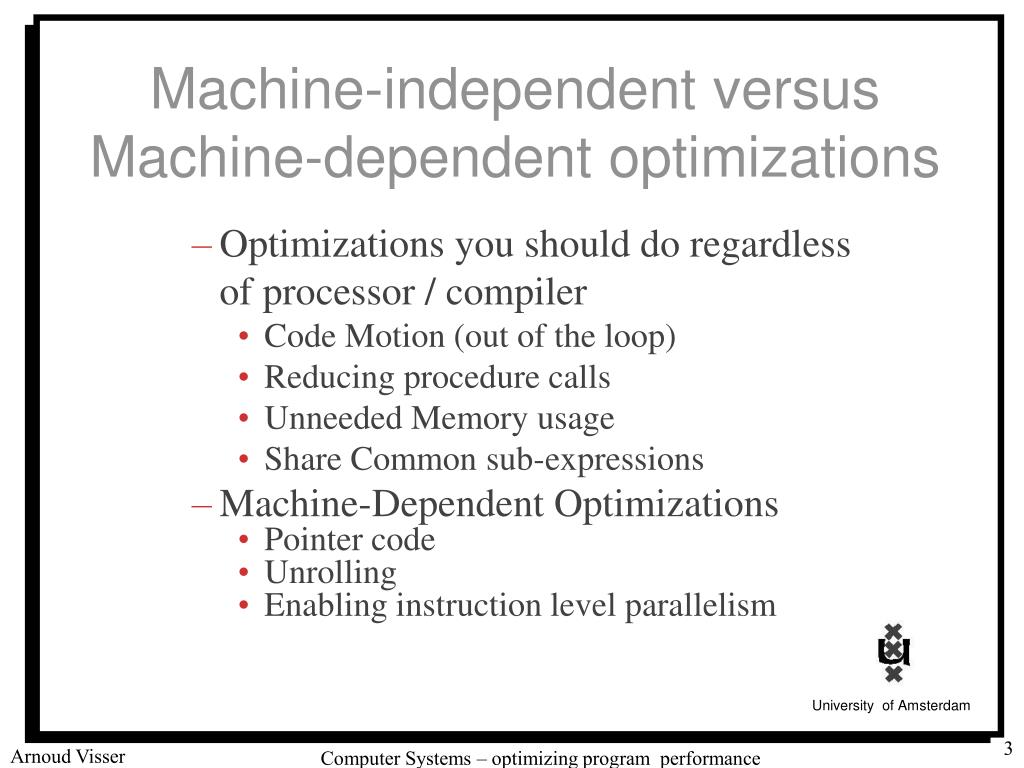

3. Machine-independent versus Machine-dependent optimizations • Optimizations you should do regardless of processor / compiler • Code Motion (out of the loop) • Reducing procedure calls • Unneeded Memory usage • Share Common sub-expressions • Machine-Dependent Optimizations • Pointer code • Unrolling • Enabling instruction level parallelism Computer Systems – optimizing program performance

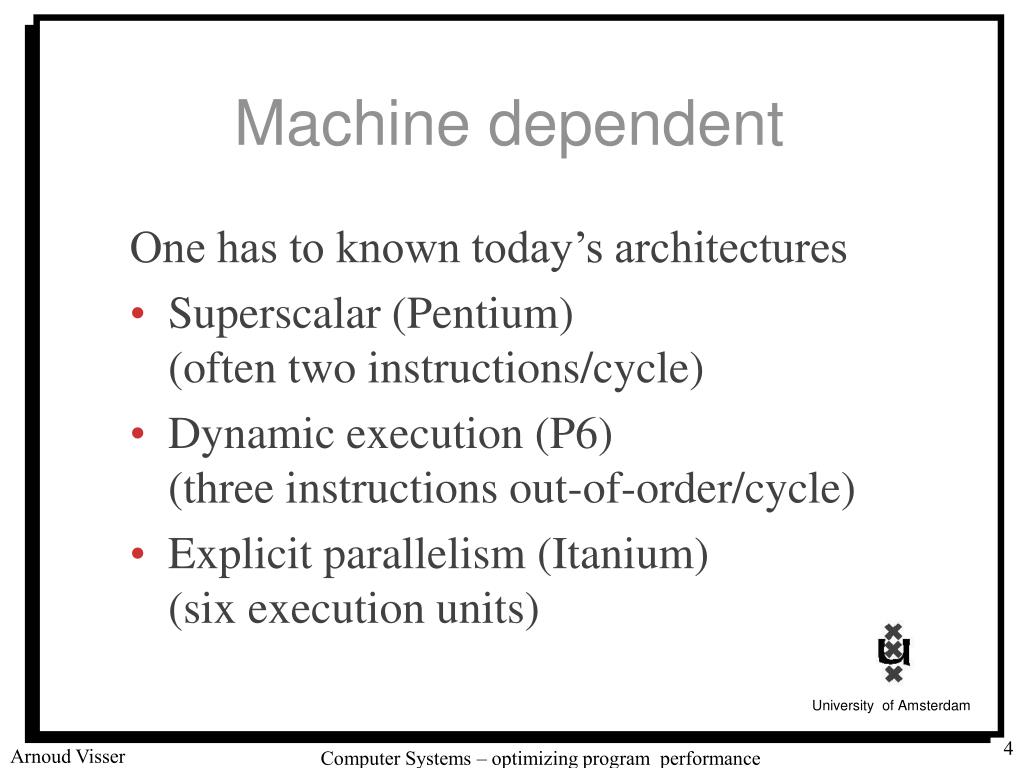

4. Machine dependent One has to known today’s architectures • Superscalar (Pentium)(often two instructions/cycle) • Dynamic execution (P6)(three instructions out-of-order/cycle) • Explicit parallelism (Itanium)(six execution units) Computer Systems – optimizing program performance

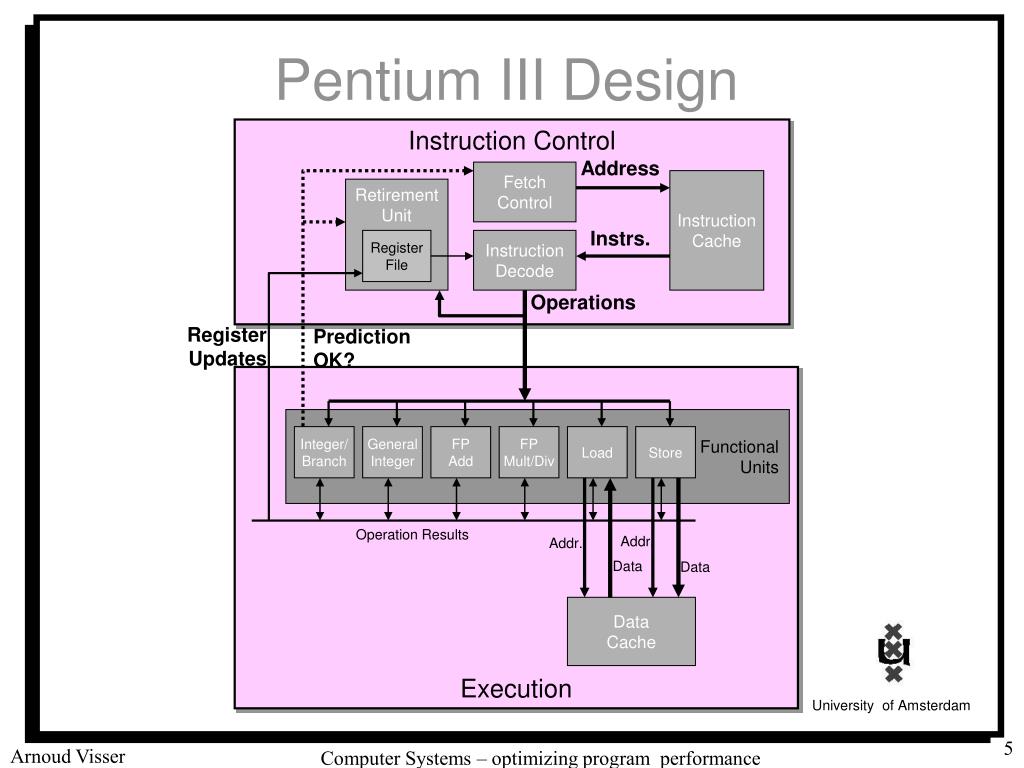

5. Pentium III Design Instruction Control Address Fetch Control Instruction Cache Retirement Unit Instrs. Register File Instruction Decode Operations Register Updates Prediction OK? Execution Functional Units Integer/ Branch General Integer FP Add FP Mult/Div Load Store Operation Results Addr. Addr. Data Data Data Cache Computer Systems – optimizing program performance

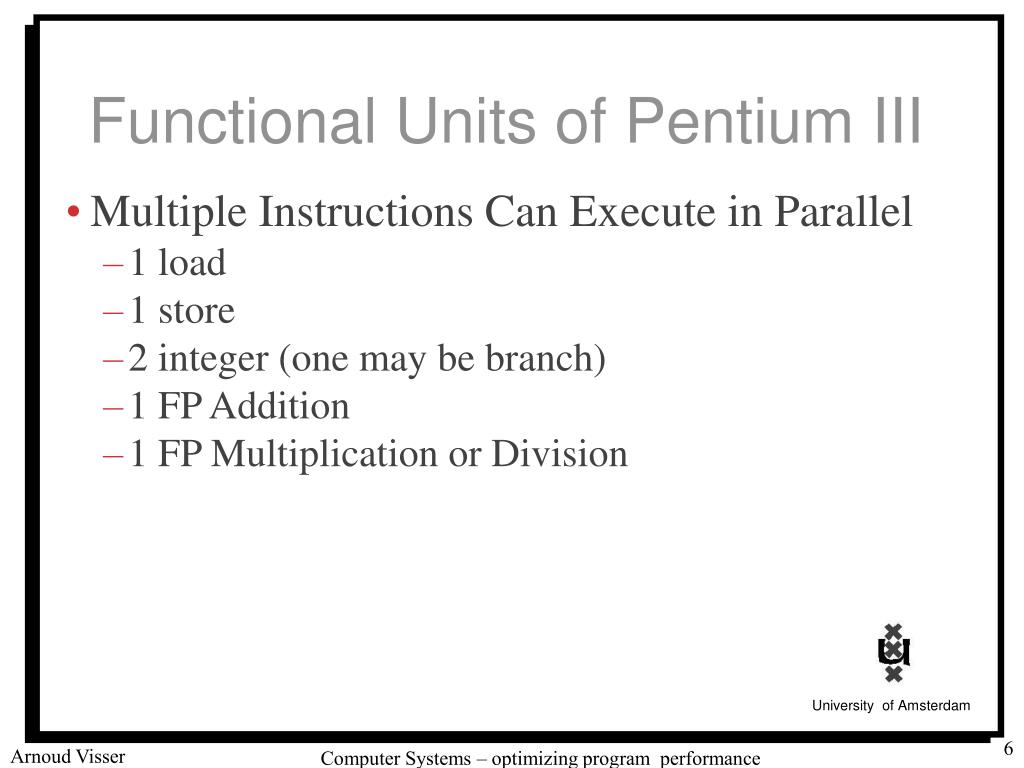

6. Functional Units of Pentium III • Multiple Instructions Can Execute in Parallel • 1 load • 1 store • 2 integer (one may be branch) • 1 FP Addition • 1 FP Multiplication or Division Computer Systems – optimizing program performance

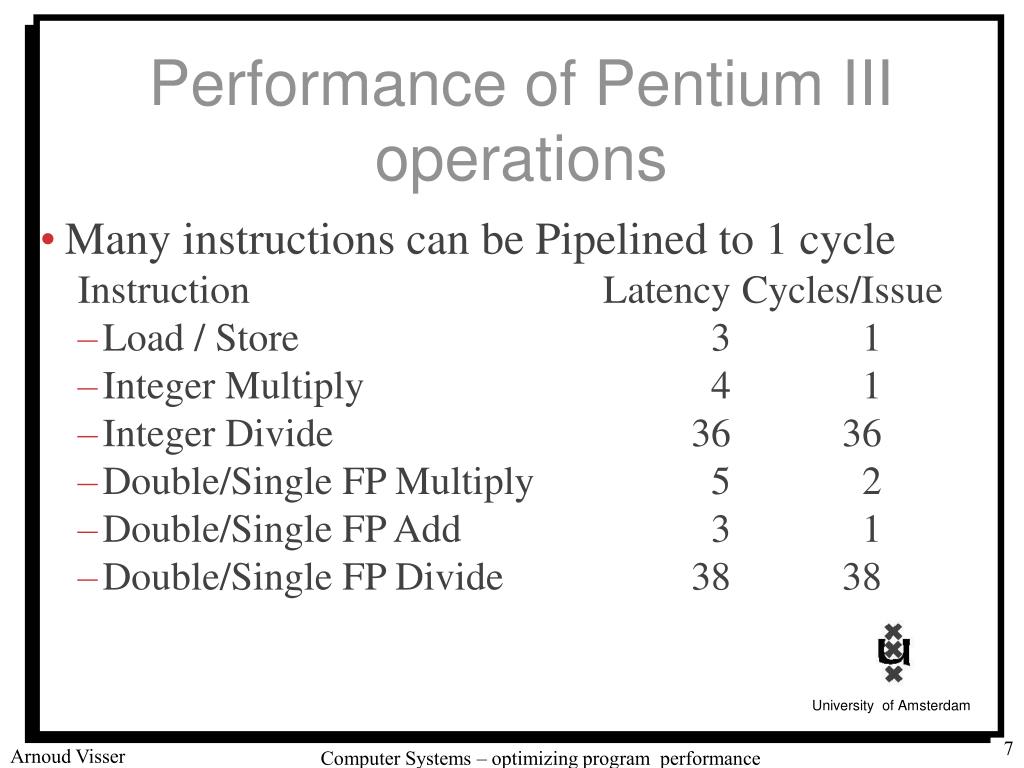

7. Performance of Pentium III operations • Many instructions can be Pipelined to 1 cycle Instruction Latency Cycles/Issue • Load / Store 3 1 • Integer Multiply 4 1 • Integer Divide 36 36 • Double/Single FP Multiply 5 2 • Double/Single FP Add 3 1 • Double/Single FP Divide 38 38 Computer Systems – optimizing program performance

8. Instruction Control Address Fetch Control Instruction Cache Retirement Unit Instrs. Register File Instruction Decode Operations Instruction Control • Grabs Instructions From Memory • Based on current PC + predicted targets for predicted branches • Hardware dynamically guesses (possibly) branch target • Translates Instructions Into Operations • Primitive steps required to perform instruction • Typical instruction requires 1–3 operations • Converts Register References Into Tags • Abstract identifier linking destination of one operation with sources of later operations Computer Systems – optimizing program performance

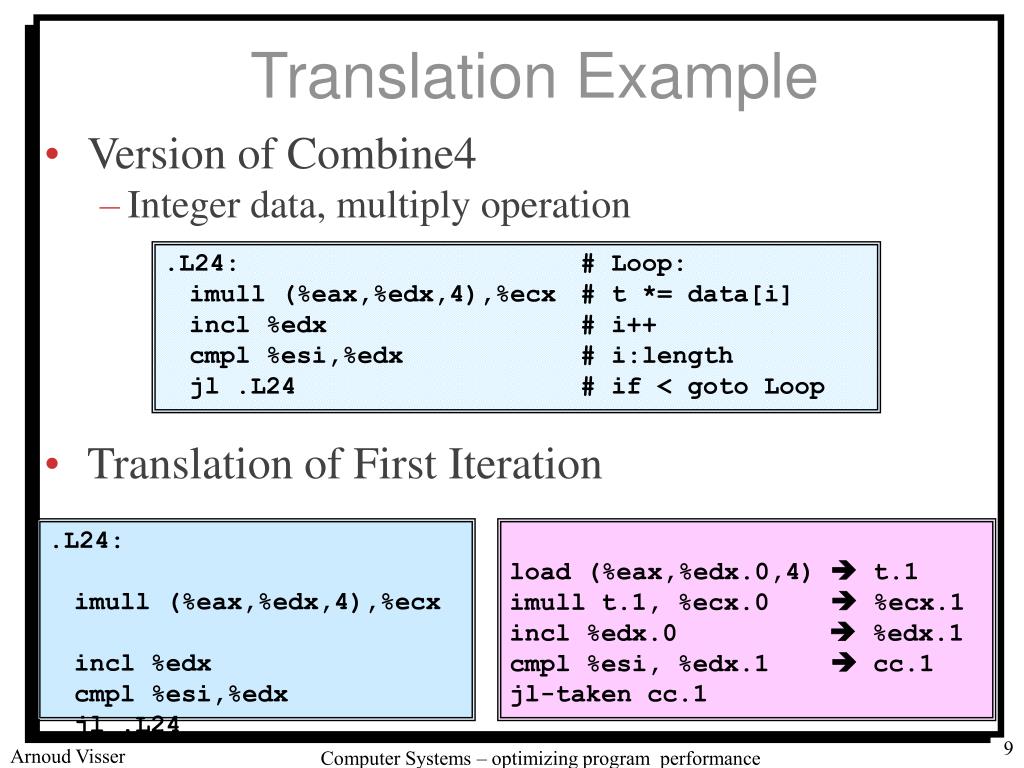

9. Translation Example • Version of Combine4 • Integer data, multiply operation • Translation of First Iteration .L24: # Loop: imull (%eax,%edx,4),%ecx # t *= data[i] incl %edx # i++ cmpl %esi,%edx # i:length jl .L24 # if < goto Loop .L24: imull (%eax,%edx,4),%ecx incl %edx cmpl %esi,%edx jl .L24 load (%eax,%edx.0,4)  t.1 imull t.1, %ecx.0  %ecx.1 incl %edx.0  %edx.1 cmpl %esi, %edx.1  cc.1 jl-taken cc.1 Computer Systems – optimizing program performance

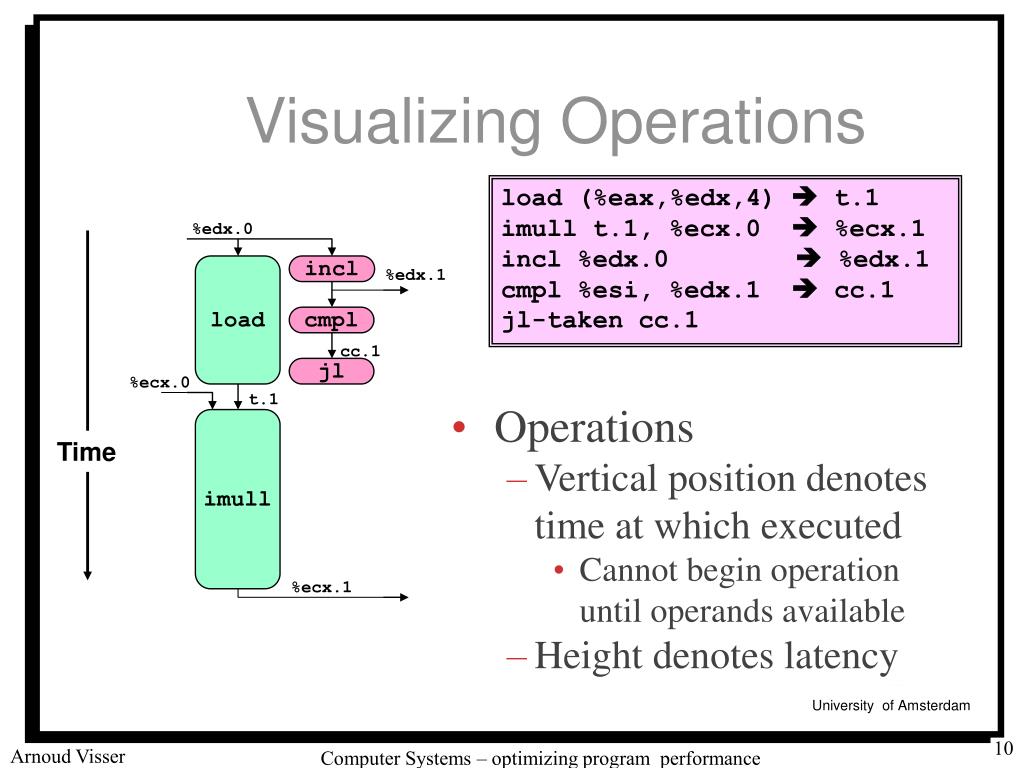

10. %edx.0 load incl %edx.1 cmpl cc.1 jl %ecx.0 t.1 imull Time %ecx.1 Visualizing Operations load (%eax,%edx,4)  t.1 imull t.1, %ecx.0  %ecx.1 incl %edx.0  %edx.1 cmpl %esi, %edx.1  cc.1 jl-taken cc.1 • Operations • Vertical position denotes time at which executed • Cannot begin operation until operands available • Height denotes latency Computer Systems – optimizing program performance

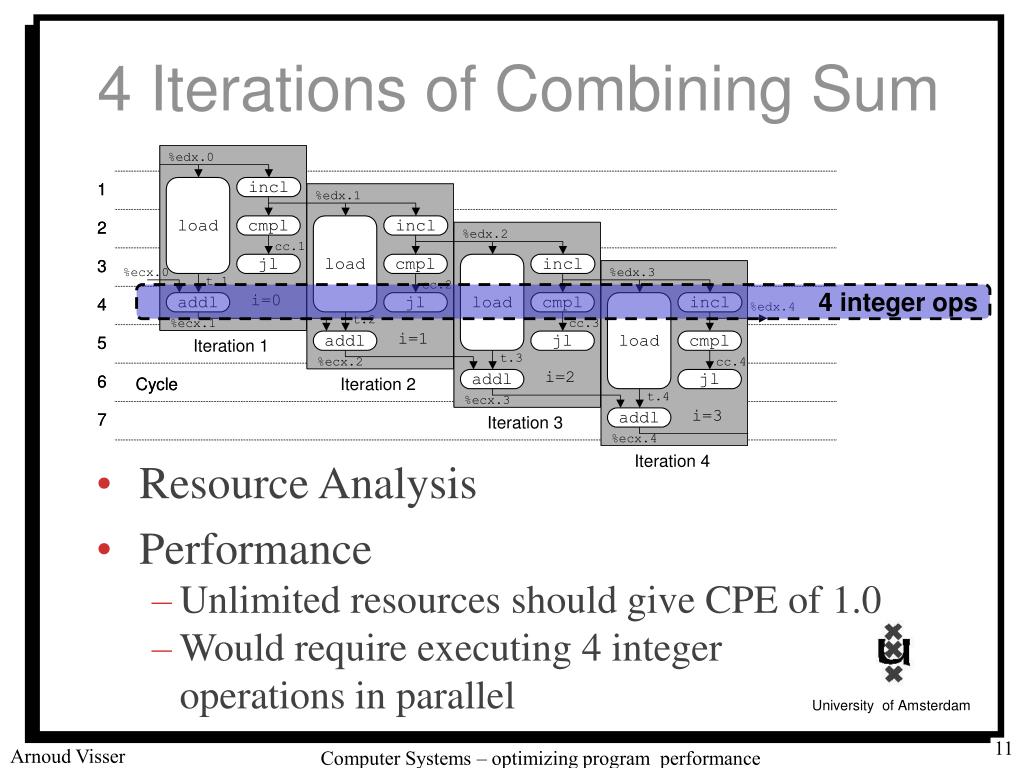

11. 4 Iterations of Combining Sum • Resource Analysis • Performance • Unlimited resources should give CPE of 1.0 • Would require executing 4 integer operations in parallel 4 integer ops Computer Systems – optimizing program performance

12. Pentium Resource Constraints • Only two integer functional units • Set priority based on program order Performance • Sustain CPE of 2.0 Computer Systems – optimizing program performance

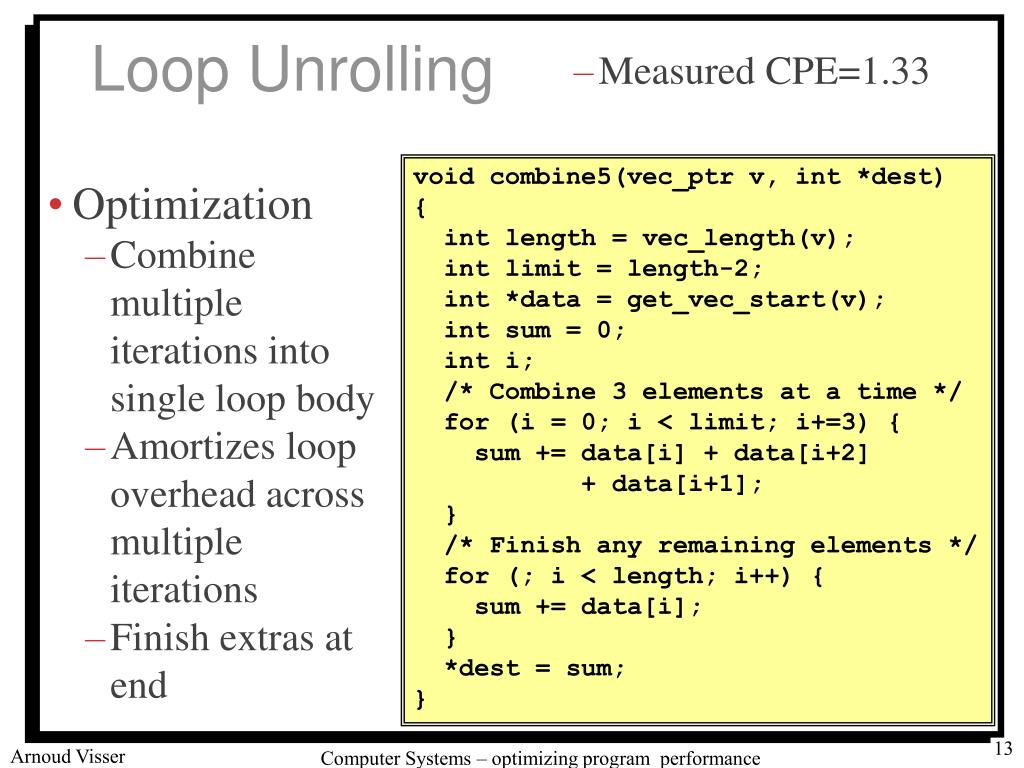

13. Measured CPE=1.33 Loop Unrolling void combine5(vec_ptr v, int *dest) { int length = vec_length(v); int limit = length-2; int *data = get_vec_start(v); int sum = 0; int i; /* Combine 3 elements at a time */ for (i = 0; i < limit; i+=3) { sum += data[i] + data[i+2] + data[i+1]; } /* Finish any remaining elements */ for (; i < length; i++) { sum += data[i]; } *dest = sum; } • Optimization • Combine multiple iterations into single loop body • Amortizes loop overhead across multiple iterations • Finish extras at end Computer Systems – optimizing program performance

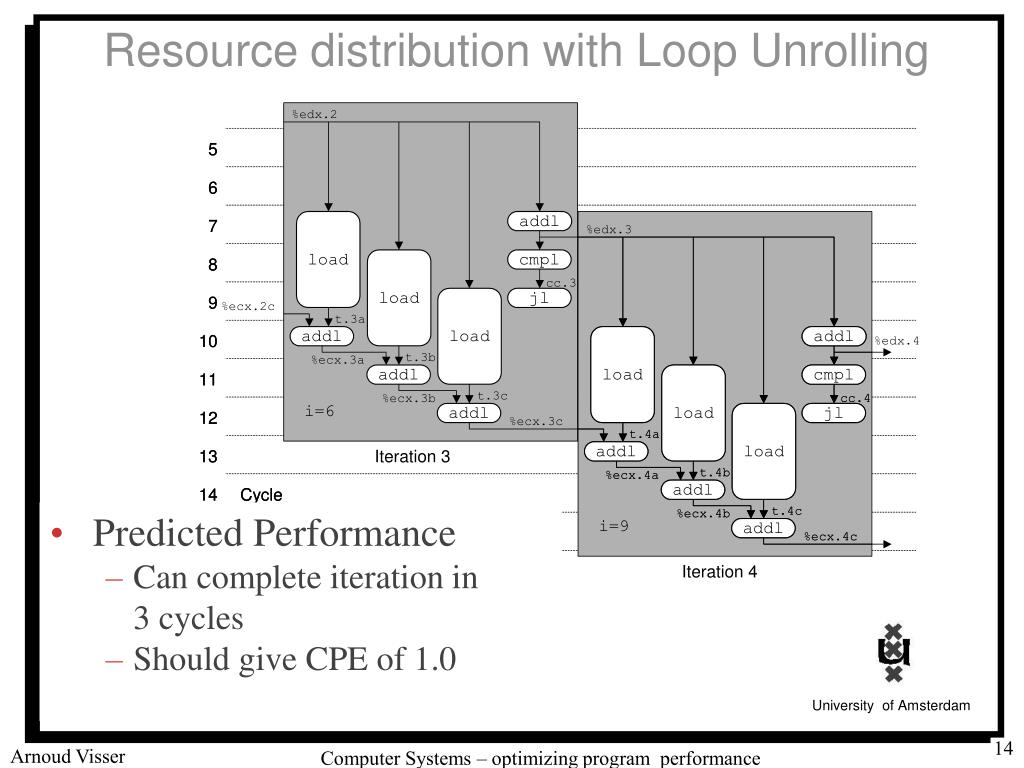

14. Resource distribution with Loop Unrolling • Predicted Performance • Can complete iteration in 3 cycles • Should give CPE of 1.0 Computer Systems – optimizing program performance

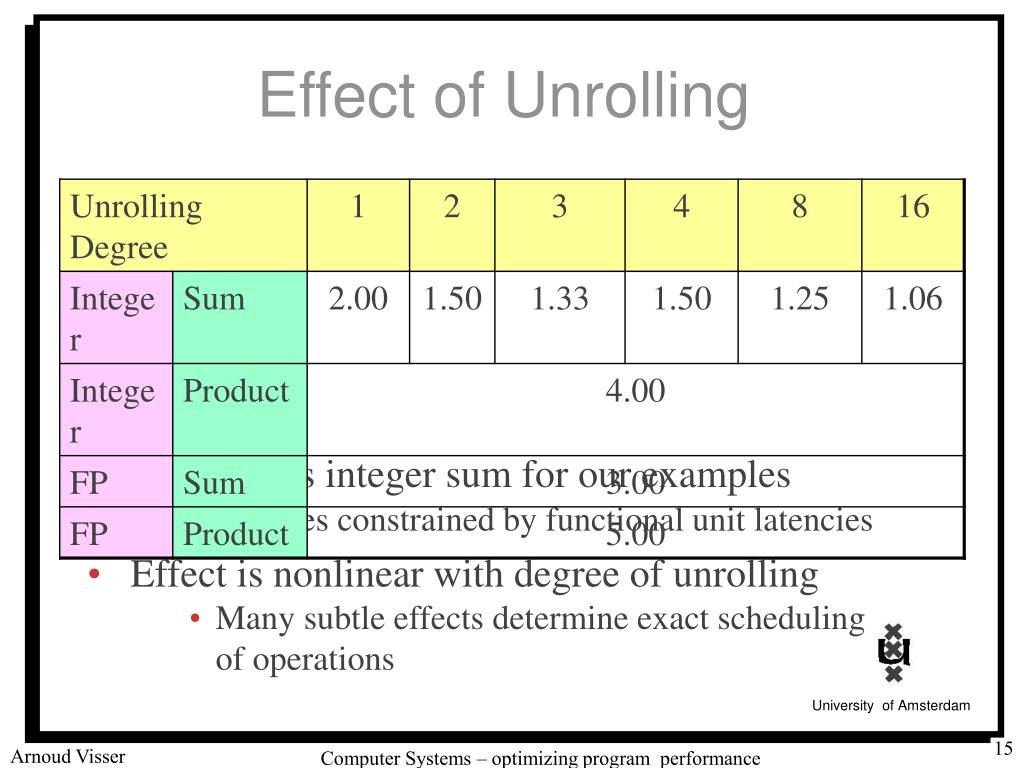

15. Effect of Unrolling • Only helps integer sum for our examples • Other cases constrained by functional unit latencies • Effect is nonlinear with degree of unrolling • Many subtle effects determine exact scheduling of operations Computer Systems – optimizing program performance

16. Unrolling is for long vectors • New source of overhead • The need to finish the remaining elements when the vector length is not divisible by the degree of unrolling Computer Systems – optimizing program performance

17. 3 Iterations of Combining Product • Unlimited Resource Analysis • Assume operation can start as soon as operands available • Performance • Limiting factor becomes latency • Gives CPE of 4.0 Computer Systems – optimizing program performance

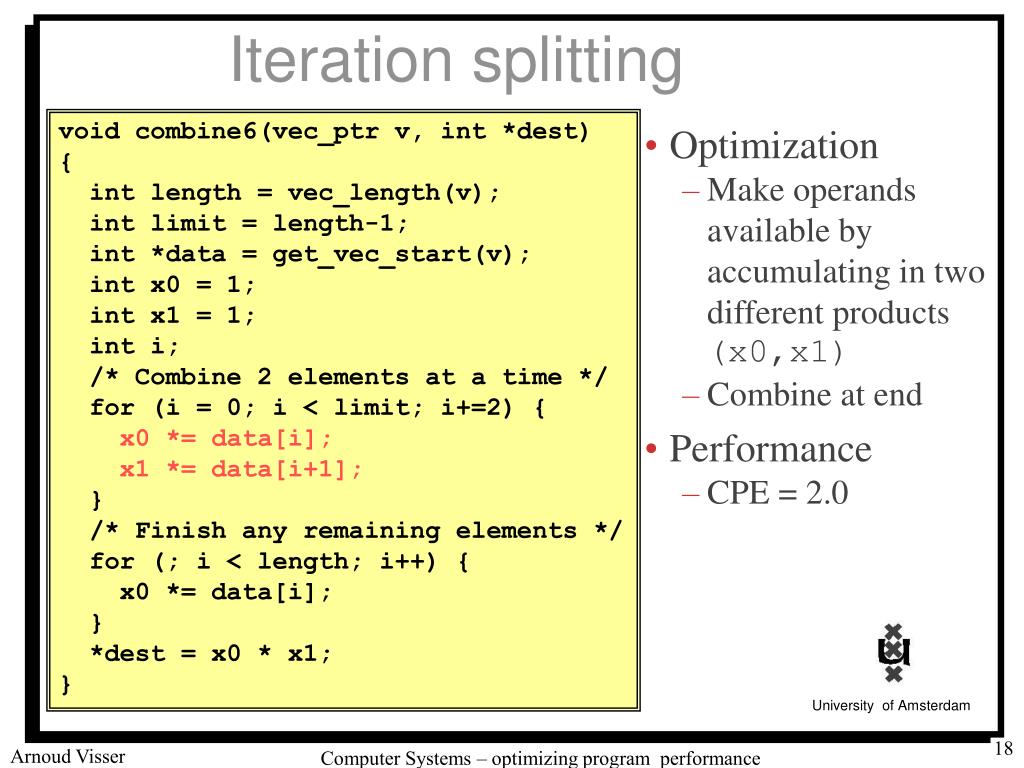

18. Iteration splitting void combine6(vec_ptr v, int *dest) { int length = vec_length(v); int limit = length-1; int *data = get_vec_start(v); int x0 = 1; int x1 = 1; int i; /* Combine 2 elements at a time */ for (i = 0; i < limit; i+=2) { x0 *= data[i]; x1 *= data[i+1]; } /* Finish any remaining elements */ for (; i < length; i++) { x0 *= data[i]; } *dest = x0 * x1; } • Optimization • Make operands available by accumulating in two different products (x0,x1) • Combine at end • Performance • CPE = 2.0 Computer Systems – optimizing program performance

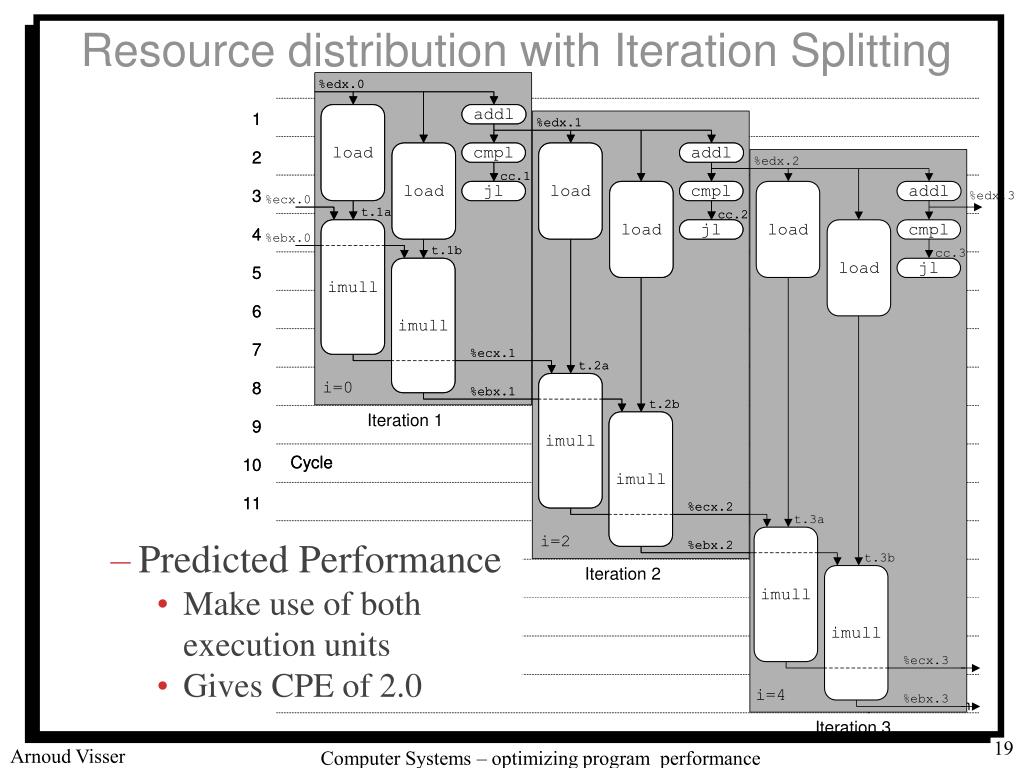

19. Resource distribution with Iteration Splitting • Predicted Performance • Make use of both execution units • Gives CPE of 2.0 Computer Systems – optimizing program performance

20. Results for Pentium III • Biggest gain doing basic optimizations • But, last little bit helps Computer Systems – optimizing program performance

21. Results for Pentium 4 • Higher latencies (int * = 14, fp + = 5.0, fp * = 7.0) • Clock runs at 2.0 GHz • Not an improvement over 1.0 GHz P3 for integer * • Avoids FP multiplication anomaly Computer Systems – optimizing program performance

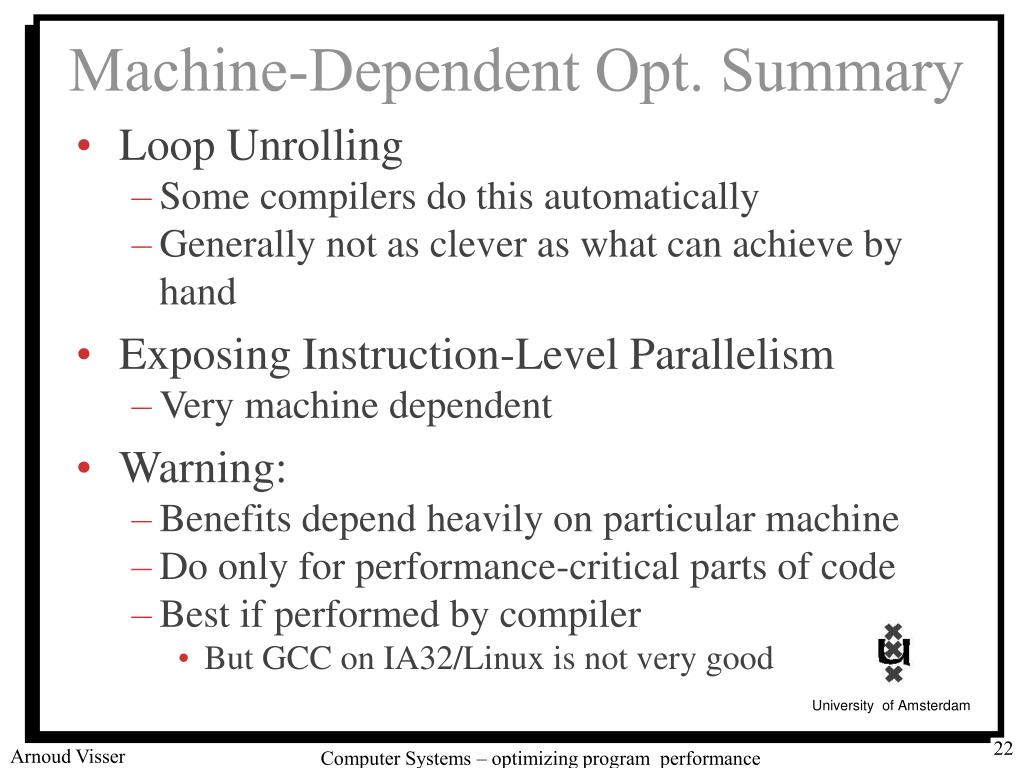

22. Machine-Dependent Opt. Summary • Loop Unrolling • Some compilers do this automatically • Generally not as clever as what can achieve by hand • Exposing Instruction-Level Parallelism • Very machine dependent • Warning: • Benefits depend heavily on particular machine • Do only for performance-critical parts of code • Best if performed by compiler • But GCC on IA32/Linux is not very good Computer Systems – optimizing program performance

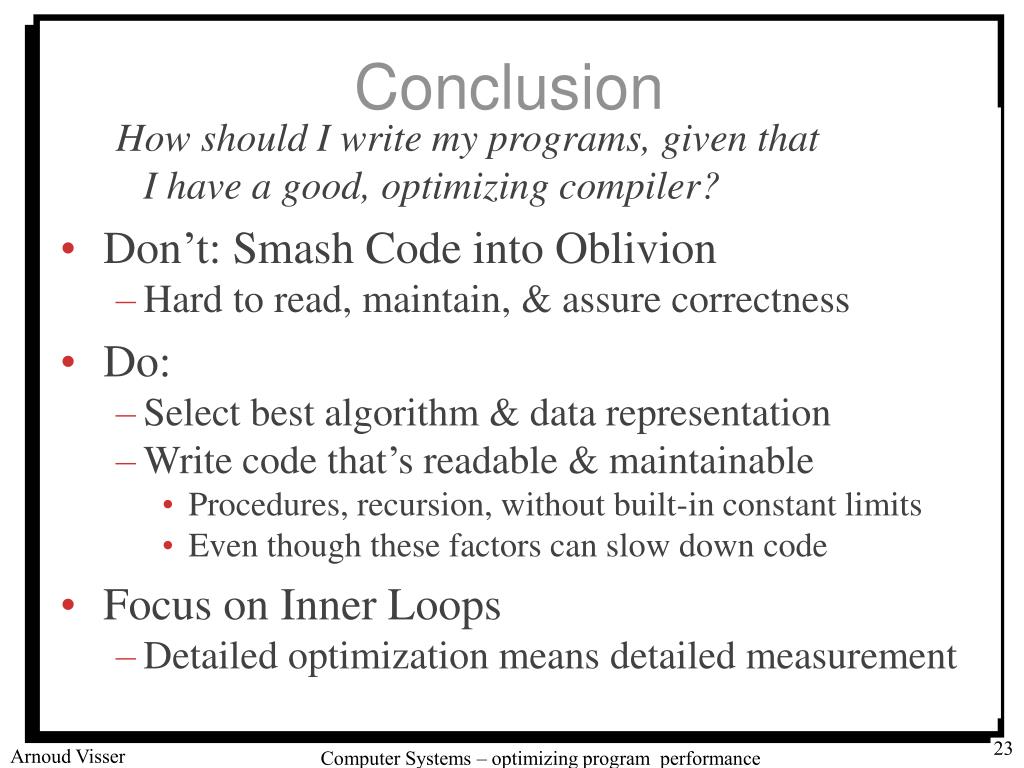

23. Conclusion How should I write my programs, given that I have a good, optimizing compiler? • Don’t: Smash Code into Oblivion • Hard to read, maintain, & assure correctness • Do: • Select best algorithm & data representation • Write code that’s readable & maintainable • Procedures, recursion, without built-in constant limits • Even though these factors can slow down code • Focus on Inner Loops • Detailed optimization means detailed measurement Computer Systems – optimizing program performance

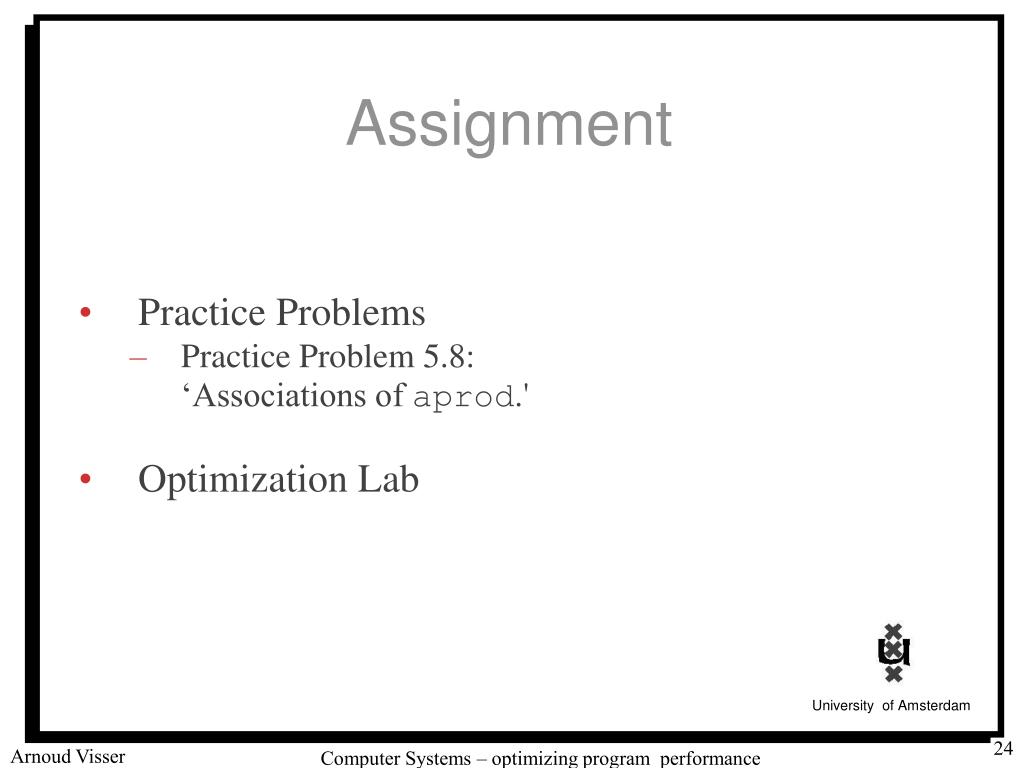

24. Assignment • Practice Problems • Practice Problem 5.8: ‘Associations of aprod.' • Optimization Lab Computer Systems – optimizing program performance

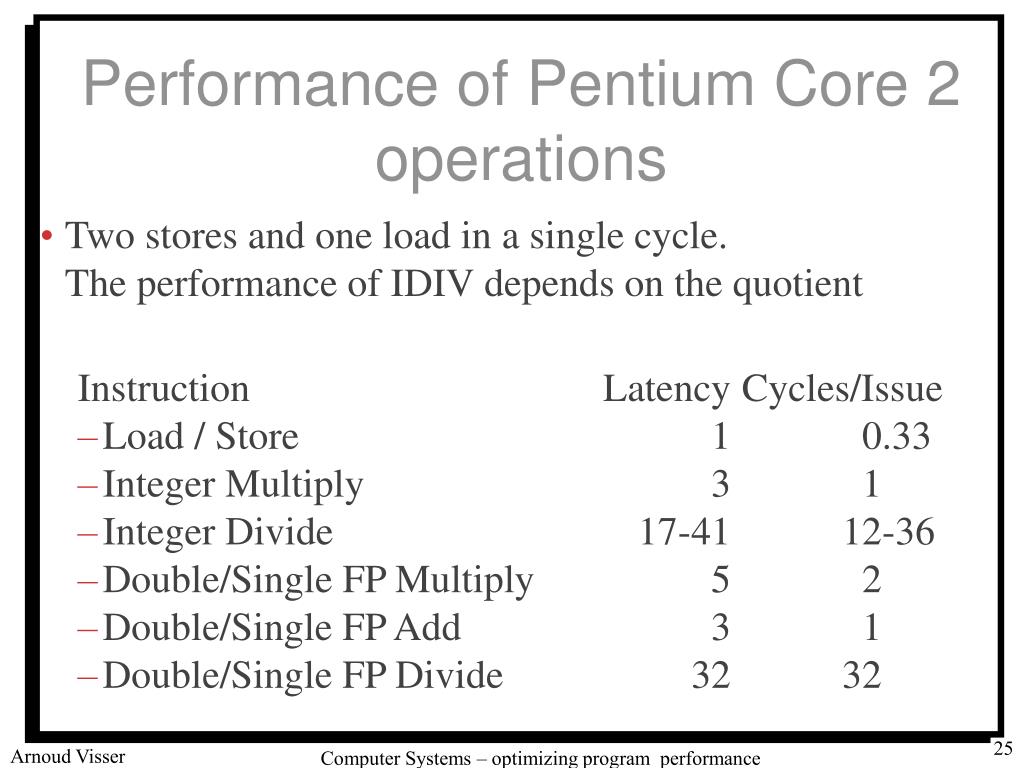

25. Performance of Pentium Core 2 operations • Two stores and one load in a single cycle.The performance of IDIV depends on the quotient Instruction Latency Cycles/Issue • Load / Store 1 0.33 • Integer Multiply 3 1 • Integer Divide 17-41 12-36 • Double/Single FP Multiply 5 2 • Double/Single FP Add 3 1 • Double/Single FP Divide 32 32 Computer Systems – optimizing program performance
