Presentation Transcript

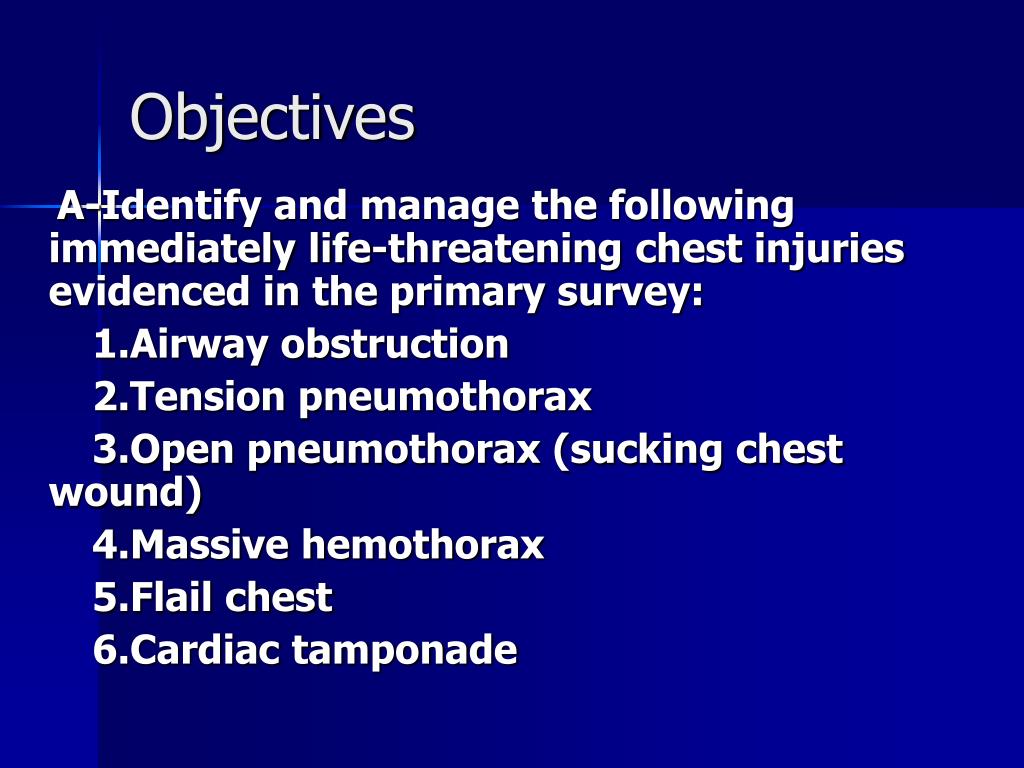

A-Identify and manage the following immediately life-threatening chest injuries evidenced in the primary survey:

1.Airway obstruction

2.Tension pneumothorax

3.Open pneumothorax (sucking chest wound)

4.Massive hemothorax

5.Flail chest

6.Cardiac tamponade

B-Identify and initiate treatment of the following potentially life-threatening injuries assessed during the secondary survey:


2.Aortic disruption

3.Tracheobronchial disruption

4.Esophageal disruption

5.Traumatic diaphragmatic hernia

6.Myocardial contusion

chest trauma 1 out of 4 deaths

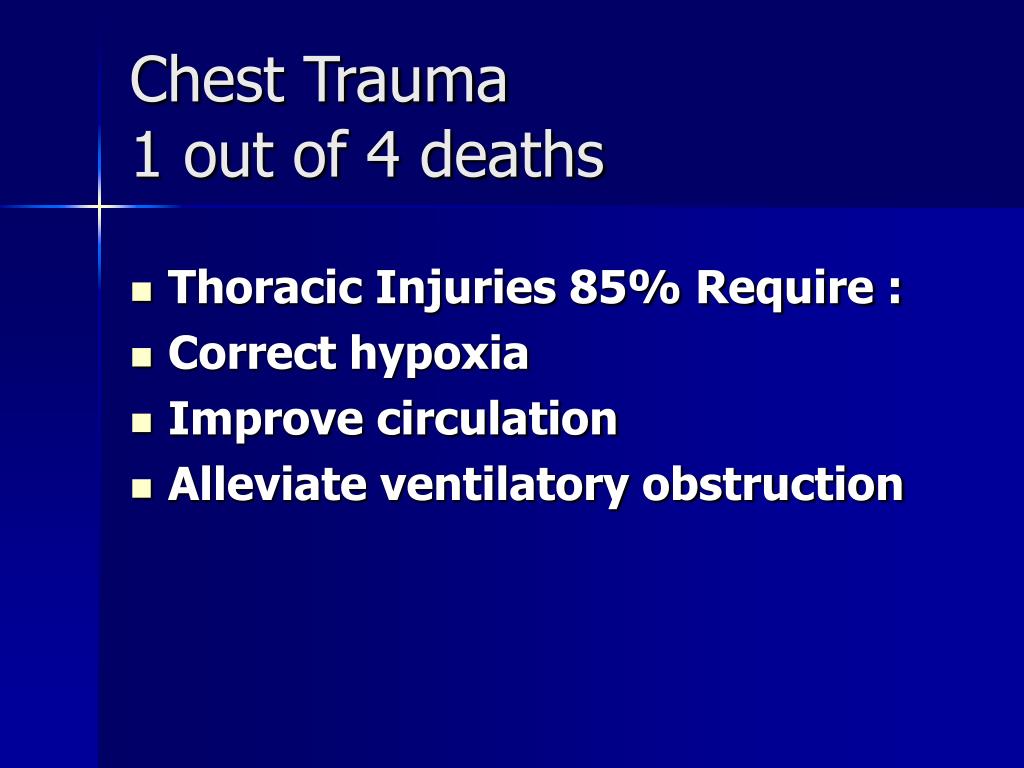

Chest Trauma1 out of 4 deaths
  • Thoracic Injuries 85% Require :
  • Correct hypoxia
  • Improve circulation
  • Alleviate ventilatory obstruction
etiology of hypoxia
Etiology of Hypoxia
  • Hypovolemia tissue hypoxia
  • Perfusion unventilated lung
  • Ventilation of unperfused lung
  • Abnormal pleural airway relationships
primary survey
Primary Survey
  • Life threatening chest trauma




tension pneumothorax

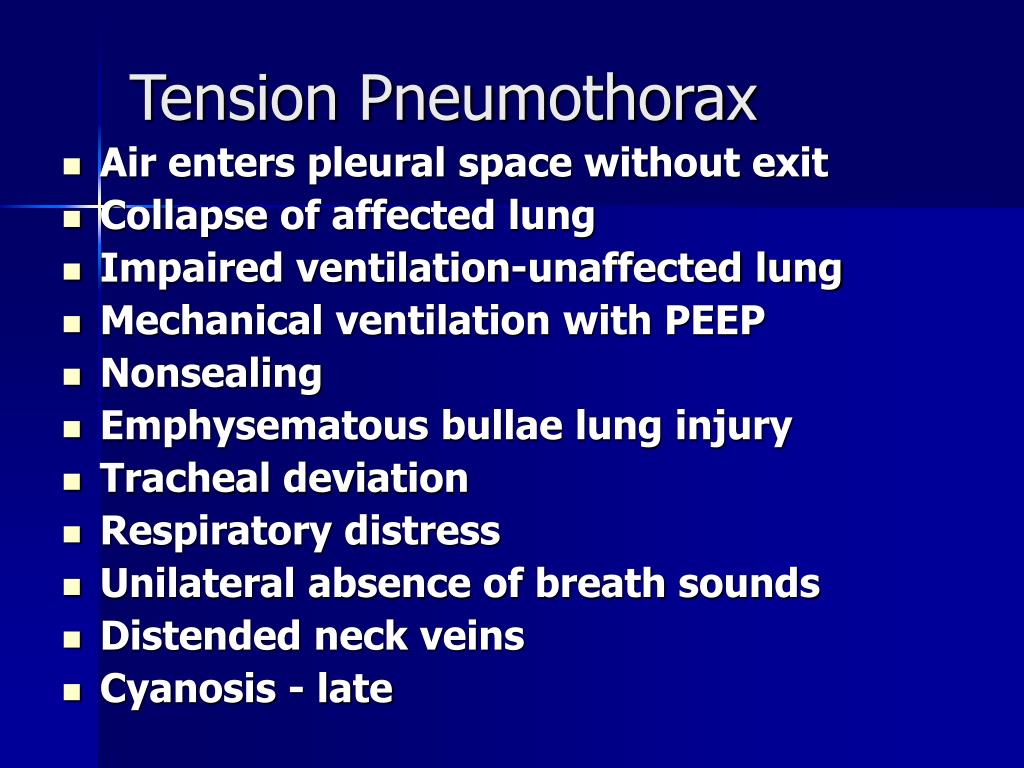

Tension Pneumothorax
  • Air enters pleural space without exit
  • Collapse of affected lung
  • Impaired ventilation-unaffected lung
  • Mechanical ventilation with PEEP
  • Nonsealing
  • Emphysematous bullae lung injury
  • Tracheal deviation
  • Respiratory distress
  • Unilateral absence of breath sounds
  • Distended neck veins
  • Cyanosis - late
  • Immediate decompression
  • Clinical diagnosis not radiologic

Open Pneumothorax Management

  • Immediate covering of defect
  • Chest tube
  • Definitive operation
massive hemothorax

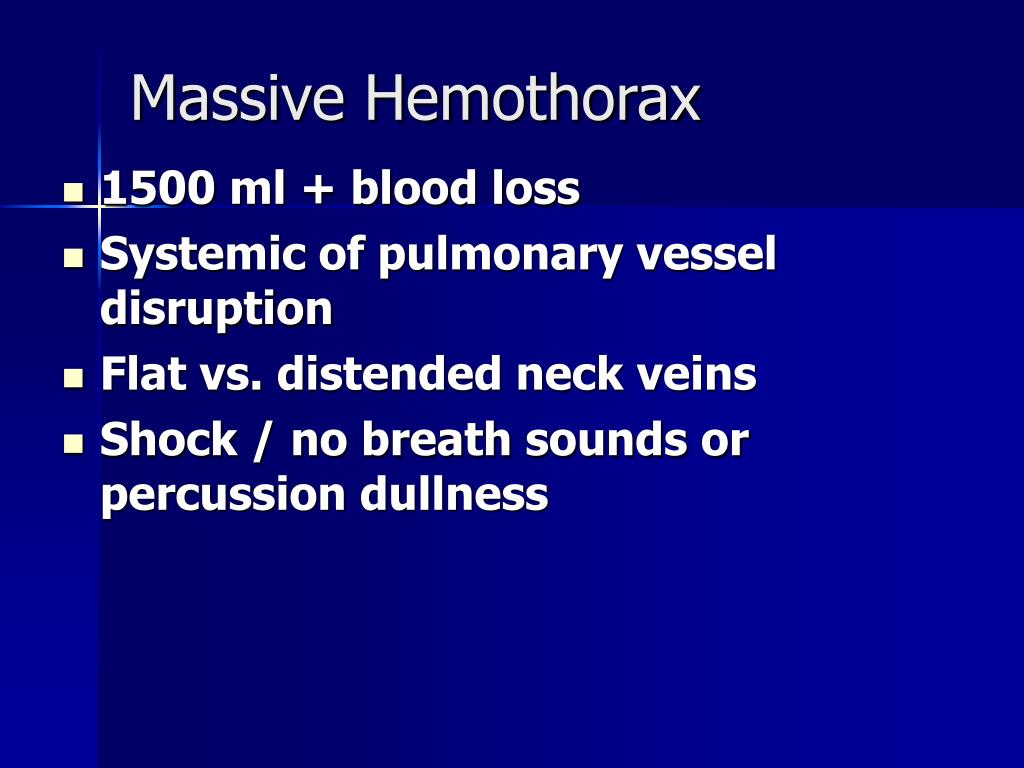

Massive Hemothorax
  • 1500 ml + blood loss
  • Systemic of pulmonary vessel disruption
  • Flat vs. distended neck veins
  • Shock / no breath sounds or percussion dullness
  • Rapid volume restoration
  • Chest decompression & X-ray
  • Auto-transfusion
  • Operative intervention
  • Re-expand lung
  • Oxygen
  • Judicious fluid management
  • Selective intubation
  • Analgesia
Classic Findings
  • Narrowed pulse pressure
  • Elevated CVP
  • Muffled heart sounds
  • Distended neck veins


  • Patient airway
  • IV therapy
  • Pericardiocentesis
  • Open thoracotomy with repair
secondary survey
Secondary Survey
  • In-depth physical exam
  • Upright chest film
  • ABGs
  • ECG
  • Pulmonary contusion
  • Aortic disruption
  • Tracheo-bronchial injury
  • Myocardial contusion
pulmonary contusion

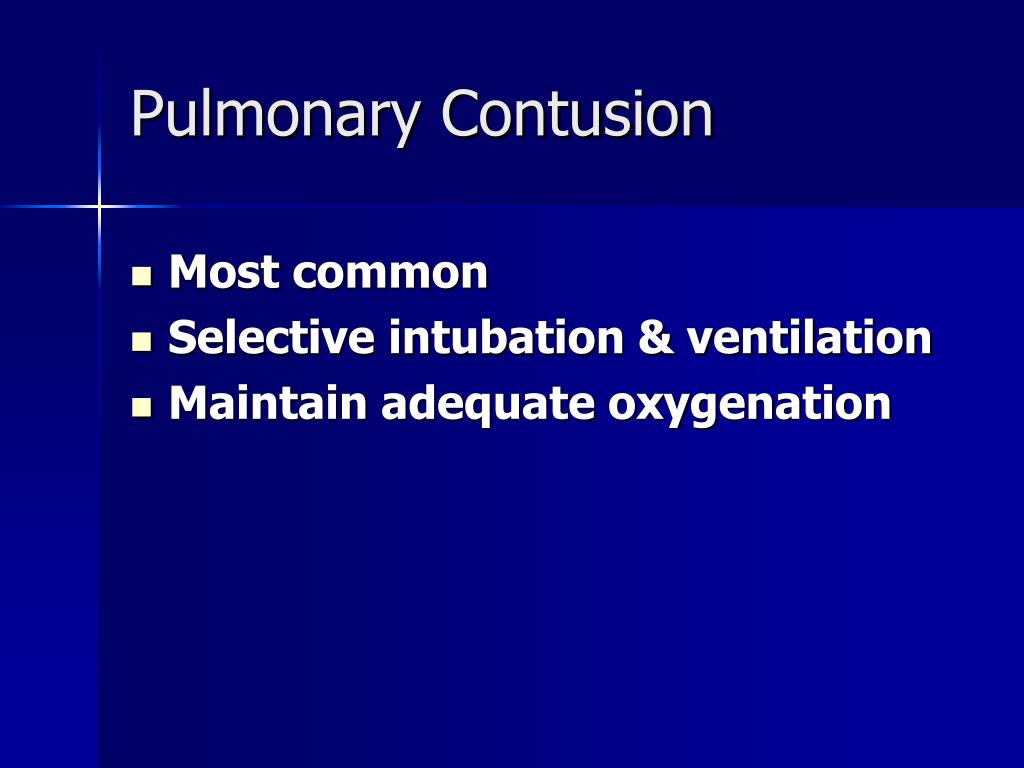

Pulmonary Contusion
  • Most common
  • Selective intubation & ventilation
  • Maintain adequate oxygenation
major intrathoracic vascular injury
Major Intrathoracic Vascular Injury
  • 90% fatal at scene
  • 50% mortality each day treatment delayed
  • Common site: ligamentum arteriosum
widened mediastinum on x ray
Widened Mediastinum On X-ray


  • Direct repair
  • Resection & graft
  • Treatment by qualified surgeon
tracheal injuries

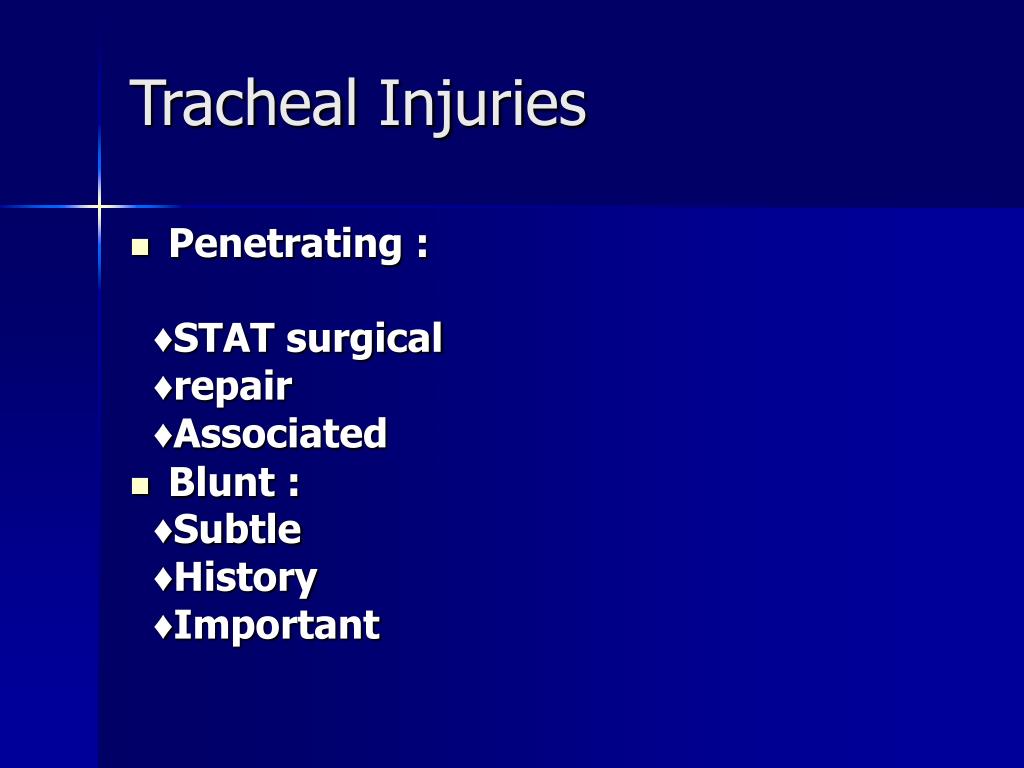

Tracheal Injuries
  • Penetrating :

♦STAT surgical



  • Blunt :




Laryngeal Fractures
  • Hoarseness
  • Subcutaneous emphysema
  • Palpable fracture creptius

Tracheal Injuries

  • Partial vs. complete airway obstruction
  • Endoscopy-diagnostic aid

Bronchial Injury

  • Frequently missed
  • Blunt trauma
  • 50% of deaths in 1 hour

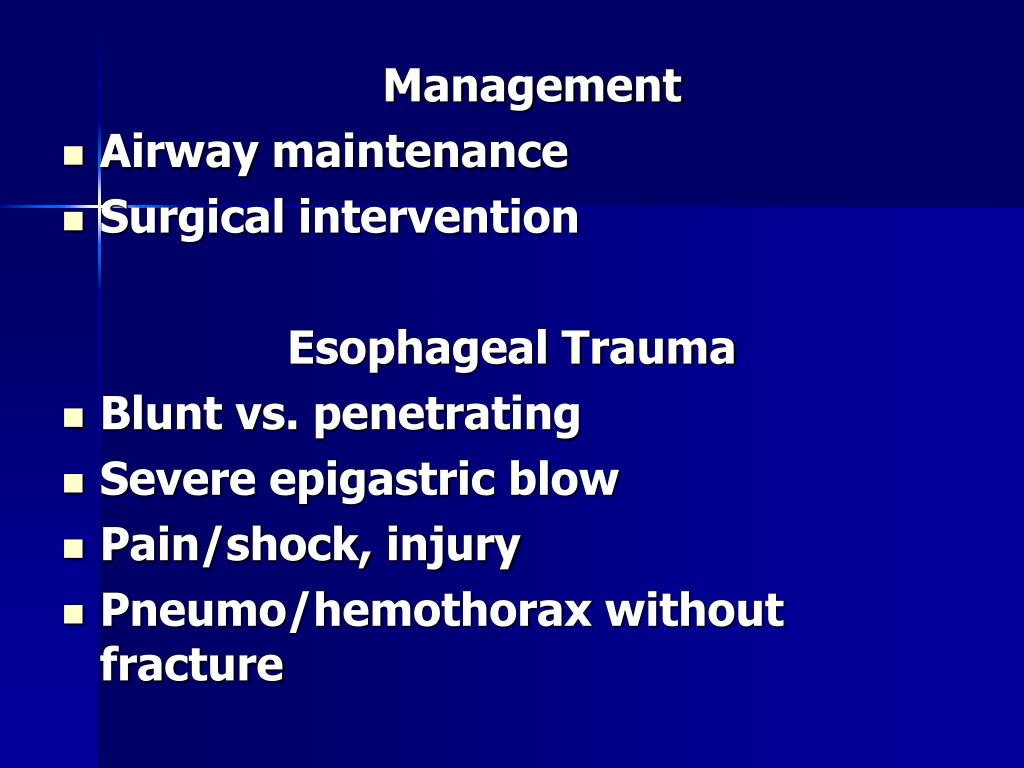

  • Airway maintenance
  • Surgical intervention

Esophageal Trauma

  • Blunt vs. penetrating
  • Severe epigastric blow
  • Pain/shock, injury
  • Pneumo/hemothorax without fracture
esophageal trauma

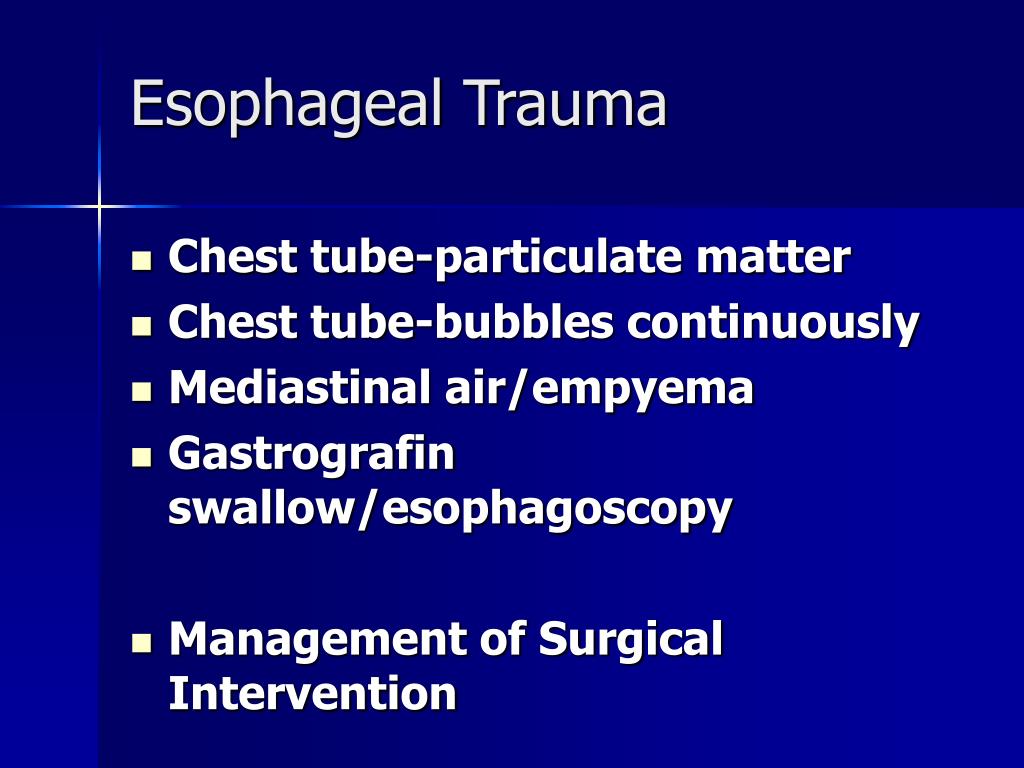

Esophageal Trauma
  • Chest tube-particulate matter
  • Chest tube-bubbles continuously
  • Mediastinal air/empyema
  • Gastrografin swallow/esophagoscopy
  • Management of Surgical Intervention
traumatic diaphragmatic hernia
Traumatic Diaphragmatic Hernia
  • Diagnosed left side
  • Blunt: large tears
  • Penetration: small perforation
  • Misinterpreted X-ray
  • Contrast radiography
Myocardial Contusion
  • Blunt trauma
  • History
  • ECG changes
  • Serial enzyme changes
  • Treatment: observe/monitor

Subcutaneous Emphysema

  • Airway injury
  • Pneumothorax
  • Blast injury
  • Blunt trauma
  • Ventilation/perfusion defect
  • Hyper-resonance
  • Decreased breath sounds
  • Treatment- tube thoracostomy
  • Etiology

♦Lung laceration

♦Vessel laceration

  • Treatment

♦Tube Thoracostomy for continued bleeding

Rib Fractures
  • Pain/splinting
  • Impaired ventilation
  • Increased secretions
  • Atelectasis/pneumonia

Ribs # 1-3

  • Severe force
  • Associated injuries
  • 50% mortality
Ribs # 5-9
  • Majority - blunt trauma
  • Bowing effect
  • Midshaft fracture
  • Intrathoracic


  • Obtain chest X-ray
  • Avoid

♦Systemic analgesics

♦Constrictive devices

indications for chest tube insertion

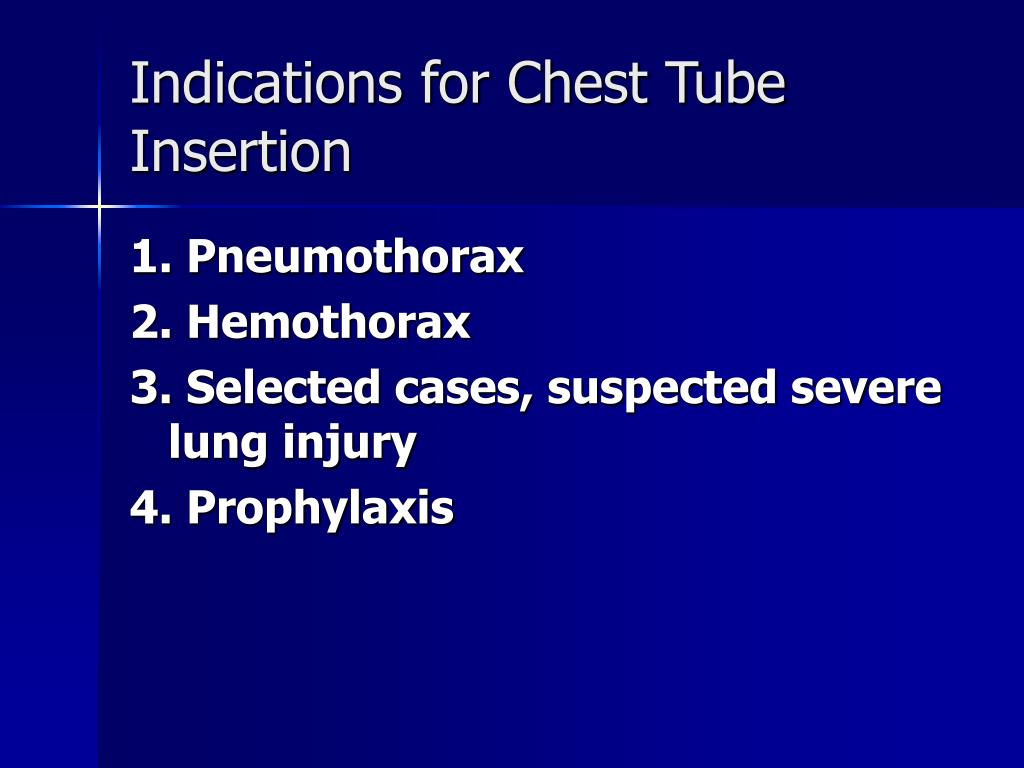

Indications for Chest Tube Insertion

1. Pneumothorax

2. Hemothorax

3. Selected cases, suspected severe lung injury

4. Prophylaxis

  • Common in multiple injured patient
  • Cognitive knowledge to diagnose
  • Develop skills
  • ECG monitoring
pitfalls in thoracic injuries

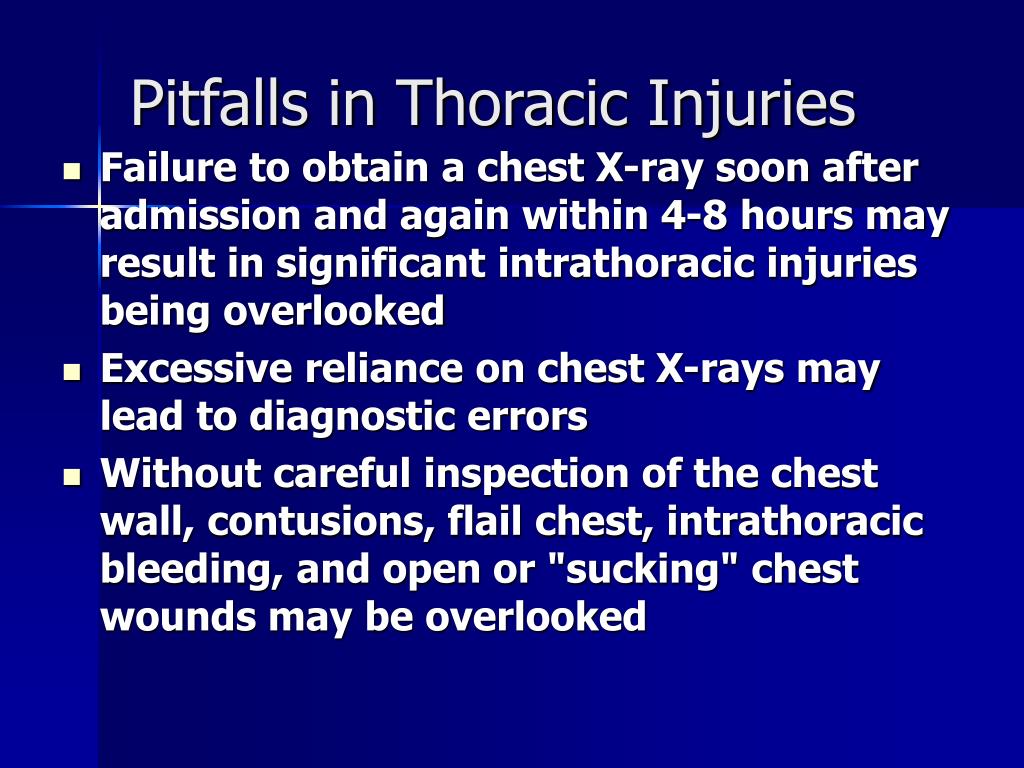

Pitfalls in Thoracic Injuries
  • Failure to obtain a chest X-ray soon after admission and again within 4-8 hours may result in significant intrathoracic injuries being overlooked
  • Excessive reliance on chest X-rays may lead to diagnostic errors
  • Without careful inspection of the chest wall, contusions, flail chest, intrathoracic bleeding, and open or "sucking" chest wounds may be overlooked
A fractured sternum can be easily missed unless the sternum is palpated carefully or special X-ray views are obtained
  • Cardiac arrest may occur suddenly and rapidly if there is any delay in relieving a suspected tension pneumothorax in a hypotensive patient. X-rays are not needed before treatment under such circumstances
  • Inserting a chest tube while the patient is lying flat increases the chances for injury to the diaphragm

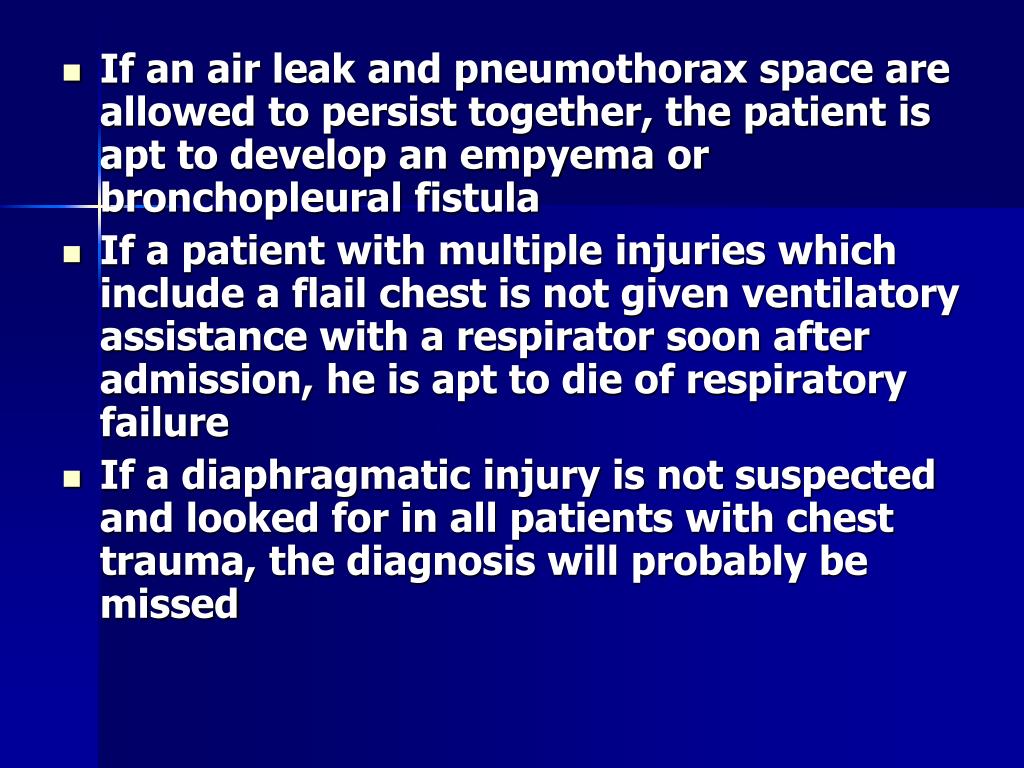

If an air leak and pneumothorax space are allowed to persist together, the patient is apt to develop an empyema or bronchopleural fistula
  • If a patient with multiple injuries which include a flail chest is not given ventilatory assistance with a respirator soon after admission, he is apt to die of respiratory failure
  • If a diaphragmatic injury is not suspected and looked for in all patients with chest trauma, the diagnosis will probably be missed

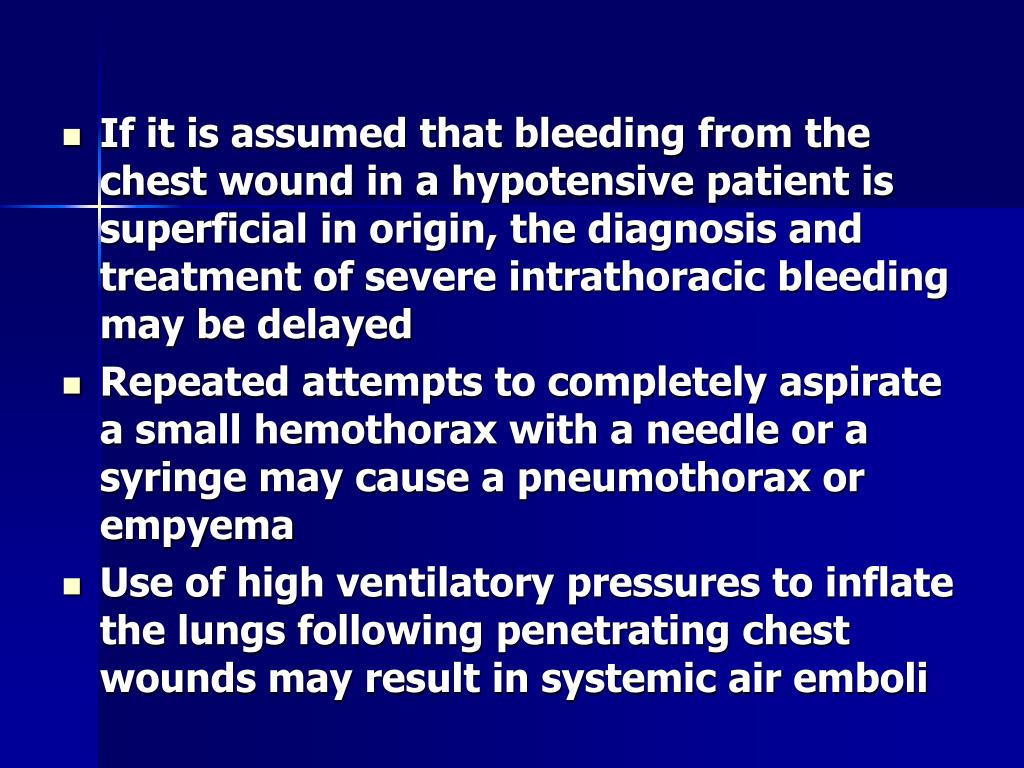

If it is assumed that bleeding from the chest wound in a hypotensive patient is superficial in origin, the diagnosis and treatment of severe intrathoracic bleeding may be delayed
  • Repeated attempts to completely aspirate a small hemothorax with a needle or a syringe may cause a pneumothorax or empyema
  • Use of high ventilatory pressures to inflate the lungs following penetrating chest wounds may result in systemic air emboli

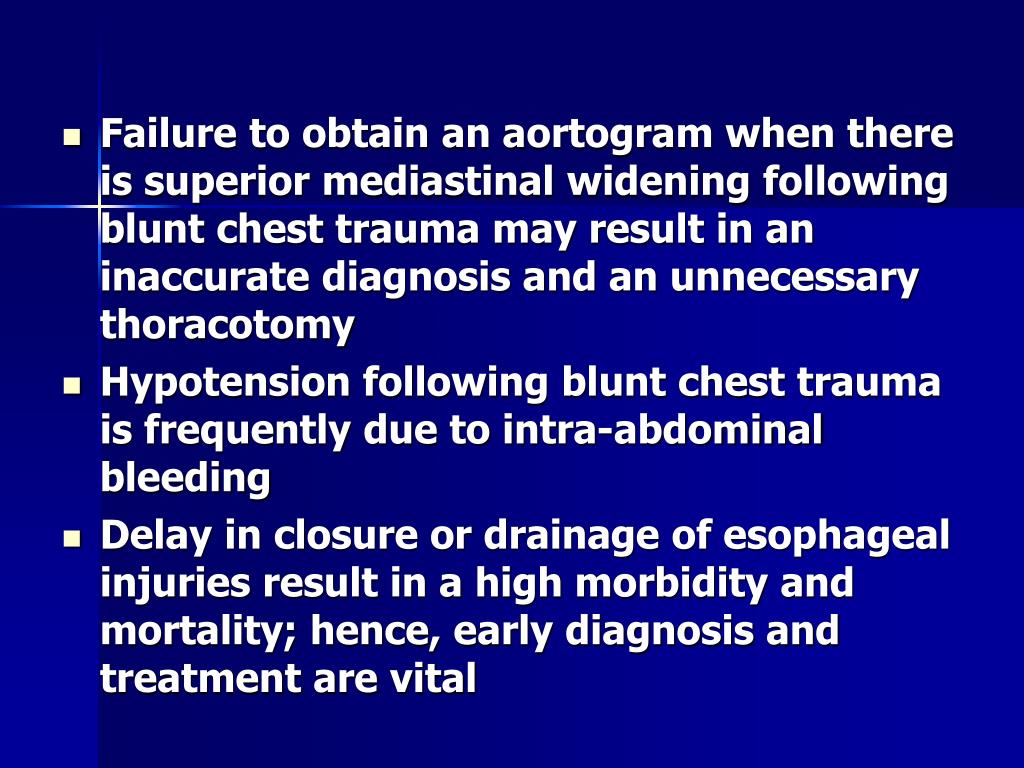

Failure to obtain an aortogram when there is superior mediastinal widening following blunt chest trauma may result in an inaccurate diagnosis and an unnecessary thoracotomy
  • Hypotension following blunt chest trauma is frequently due to intra-abdominal bleeding
  • Delay in closure or drainage of esophageal injuries result in a high morbidity and mortality; hence, early diagnosis and treatment are vital
Any delay in providing adequate ventilatory support greatly increases the risk of irreversible respiratory failure
  • Excessive administration of crystalloids greatly increases the risk of respiratory failure
  • Failure to empty the stomach with a tube soon after chest trauma greatly increases the risk of aspiration and severe ileus
