  1. Real-time GPS in Cascadia and its application to hazards reduction • Tim Melbourne • Marcelo Santillan • Craig Scrivner • Walter Szeliga • CS481 Team Risc (GPS Cockpit) • Frank Webb (JPL) Pacific Northwest Geodetic Array Dept. of Geological Sciences Central Washington University www.panga.org Support:NASA ROSES NNH07ZDA001N and USGS NEHRP

  2. Overview 1. (L1) Cascadia real-time GPS Station Network (PANGA + PBO) 2. (L2) GPS processing (phase+psuedorange data -> position estimates) • (L3) EEW products derived from rtGPS position streams • Example earthquakes as examples – 2010 Sierra El Mayor, 2010 Maule, 2011 Tohoku-Oki • GPS Cockpit Project: Managing rtGPS time series and derived products

  3. Seattle M6-7 crustal faults not well known, <1m EEW M8-9: megathrust, <5m EEW

  4. 450 rtGPS stations: PANGA (~220) + PBO (~230)

  5. Latency: most data arrives in less than 1 secondPANGA telemetered to CWUPBO telemetered to UNAVCO, then to CWU Arrival at CWU Arrival at Boulder

  6. (L2) Real-time processing strategies Relative Positioning Absolute (Point) Positioning Lower absolute precision (improving) Single station-capable Linear wrt station # Requires rt orbit + clock corrections Requires extensive data editing Higher relative precision Requires stable reference station Requires dense network Primarily commercial RTK

  7. 2. PANGA/CWU real-time processing • (1) Relative positioning: Trimble commercial product (joint w/ WSRN and OGRN RTK processing) • (2) Real-time GIPSY Point positioning: • (3) Developing standard GIPSY (not RTG) processing with clock and orbit correction streams from DLR (German Aerospace Center, Munich, Hauschild)

  8. (Method 1) Trimble T4D operated jointly with WSRN & OGRN

  9. Trimble T4D operated jointly with WSRN & OGRN

  10. Method 2: JPL GDGPS RT-GIPSY SYSTEM (Bar-Sever)

  11. Method 3: CWU short-arc real-time processing with GIPSY Requires clock corrections streamed over Ntrip (DLR, IGS

  12. Method 3: CWU real-time processing with GIPSY IGS Final

  13. Method 3: CWU real-time processing with GIPSY -Requires extensive phase-level data QC -Less than 5s latency

  14. ~10cm deviations are common in all methods BREW CNCR CHZZ CABL TRND

  15. 4. Example Earthquakes 2010 Maule Chile M8.8 Mike Bevis, UNAVCO

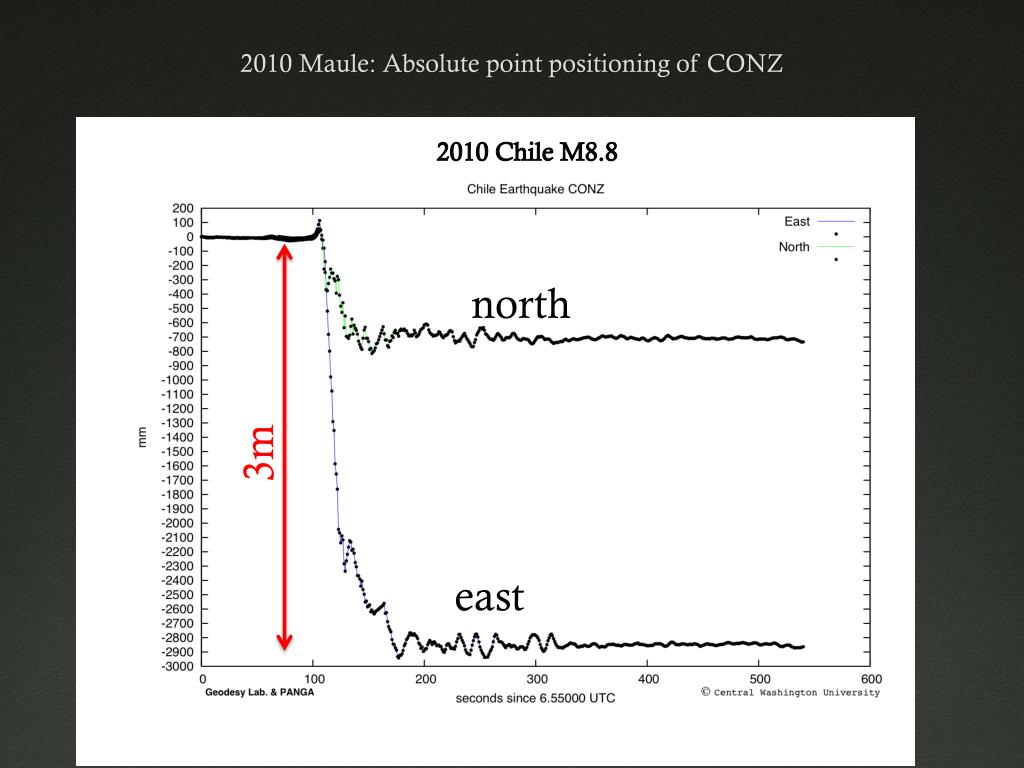

  16. 2010 Maule: Absolute point positioning of CONZ 2010 Chile M8.8 north 3m east

  17. Sierra El Mayor, 4/4/2010

  18. Good agreement between GPS PP and Accelerometer Data

  19. Absolute vs. relative positioning PBO, relative p., 24+24 hr http://supersites.earthobservations.org/baja.php CWU, pp., 5 minutes http://www.panga.cwu.edu/events/baja/

  20. pgDisplacement- 2010 Sierra El Mayor GPS PGD Seismic PGA

  21. 2011 Tohoku-Oki Earthquake GEONET GPS ARRAY

  22. +15s: Seismic Detection JMA: M6.8 NEIC W phase: M9.0 ~20 minutes

  23. 2011 Tohoku-Oki 3d GPS displacements (3x speed)

  24. GPS Moment Estimate +60s: Mw 8.47

  25. GPS Moment Estimate +90s: Mw 8.80

  26. GPS Moment Estimate +120s: Mw 9.04

  27. GPS Moment Estimate +180s: Mw 9.05

  28. JMA: M6.8 +15s: Seismic Detection NEIC W phase: M9.0 ~20 minutes 60s:M8.5 90s:M8.8 120s:M9.04

  29. -Time Series viewer (interactive): negation of false positives -Data Aggregator (Perl, modular, talk to Craig Scrivner) -Many new derived products: -DefMaps -Inversions -GPS ShakeCast -Assimilation into seismic EEW not obvious 5. GPS Cockpit

  30. GPS Cockpit Slip DefMap

  31. GPS Cockpit GPS Cockpit

  32. GPS Cockpit GPS Cockpit

  33. Time for a demo!

  34. Conclusions 1. Cascadia has mature real-time GPS networks (PANGA + PBO) • Data analysis is evolving rapidly • EEW products based on rtGPS position streams are also improving • Recent earthquakes show the importance of rtGPS in hazards monitoring • GPS Cockpit: First release on March 15
