Phase-Field Methods Jeff McFadden NIST. Dan Anderson, GWU Bill Boettinger, NIST Rich Braun, U Delaware John Cahn, NIST Sam Coriell, NIST Bruce Murray, SUNY Binghampton Bob Sekerka, CMU Peter Voorhees, NWU Adam Wheeler, U Southampton, UK.

Download Presentation
## Phase-Field Methods Jeff McFadden NIST

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

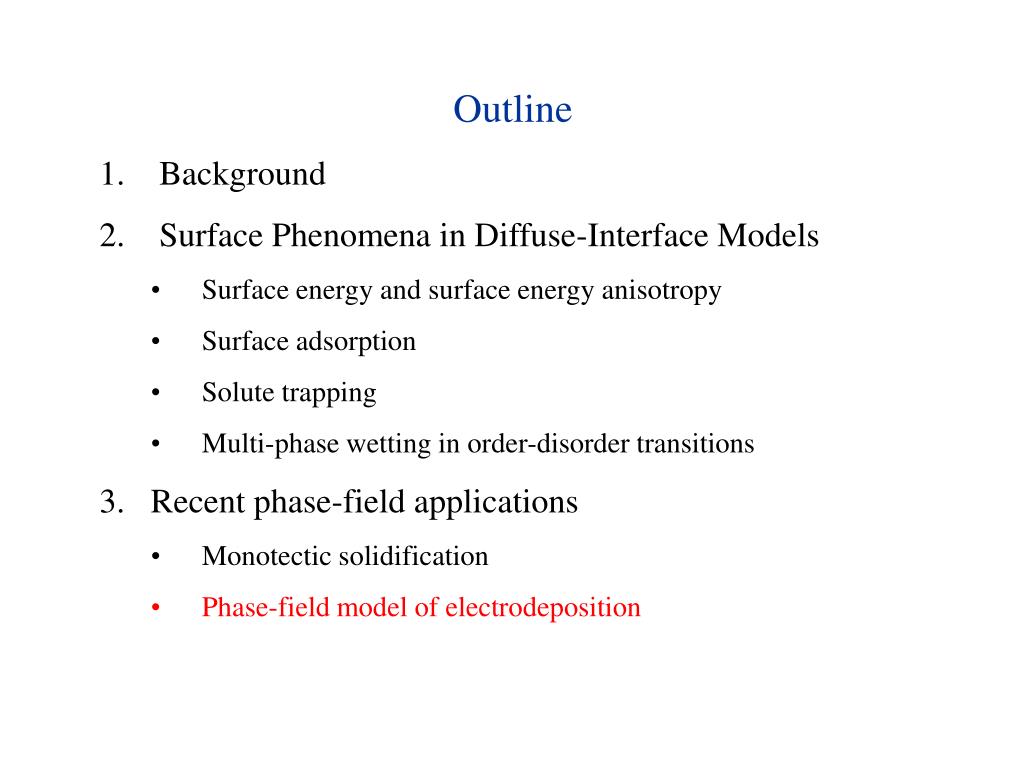

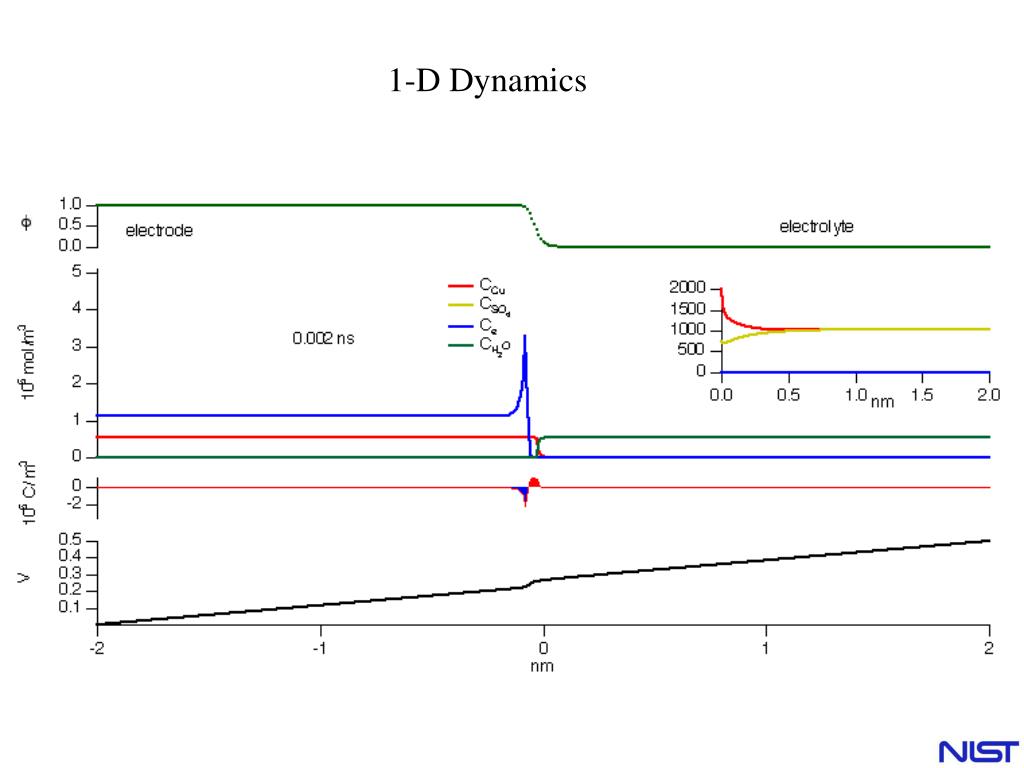

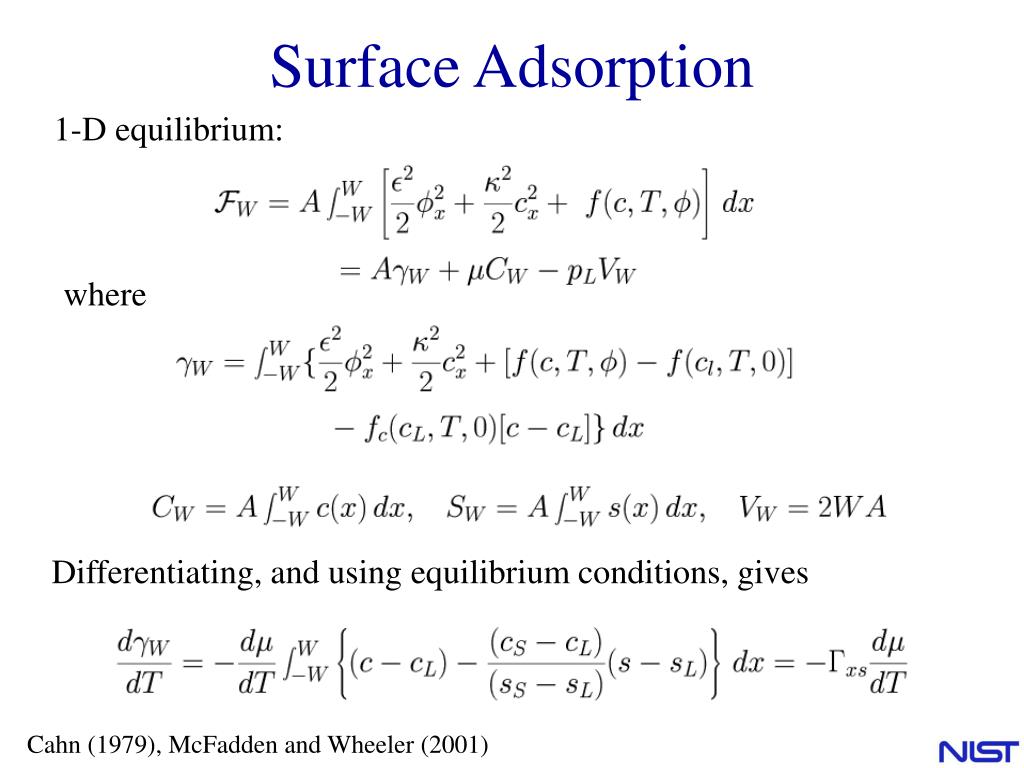

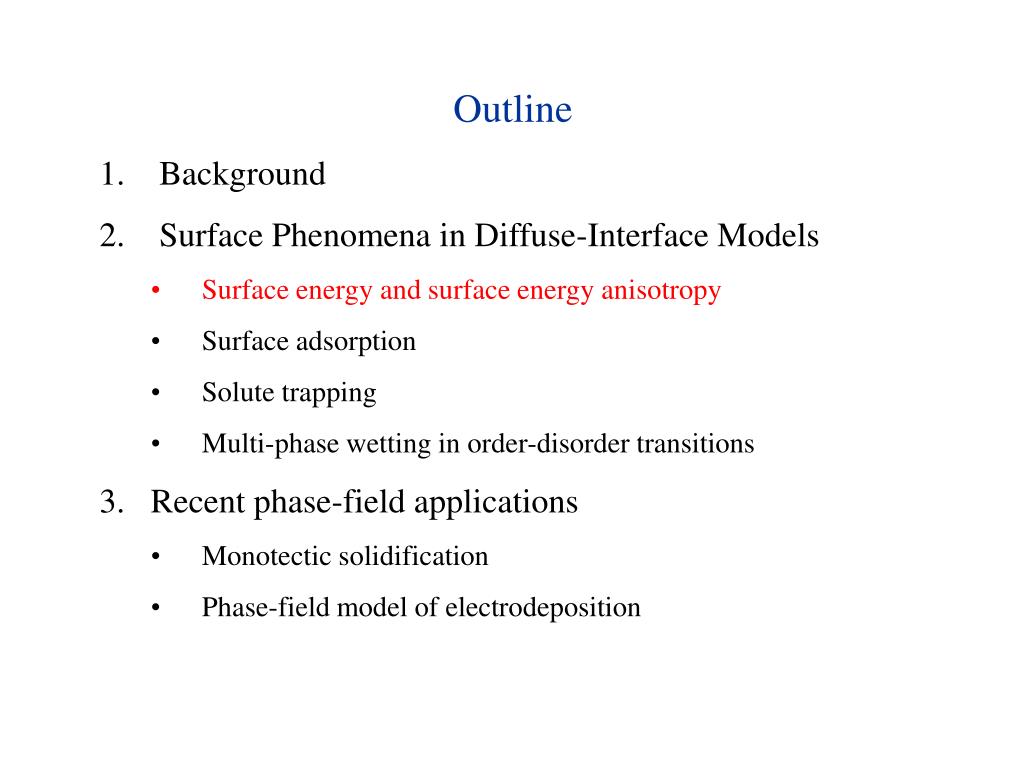

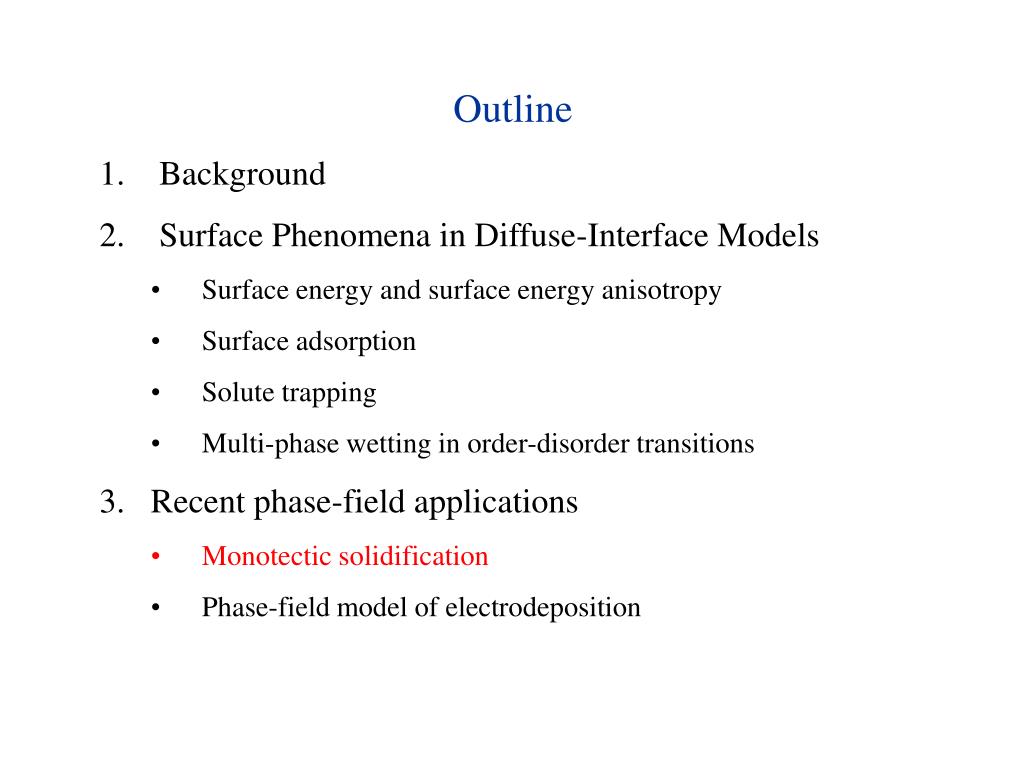

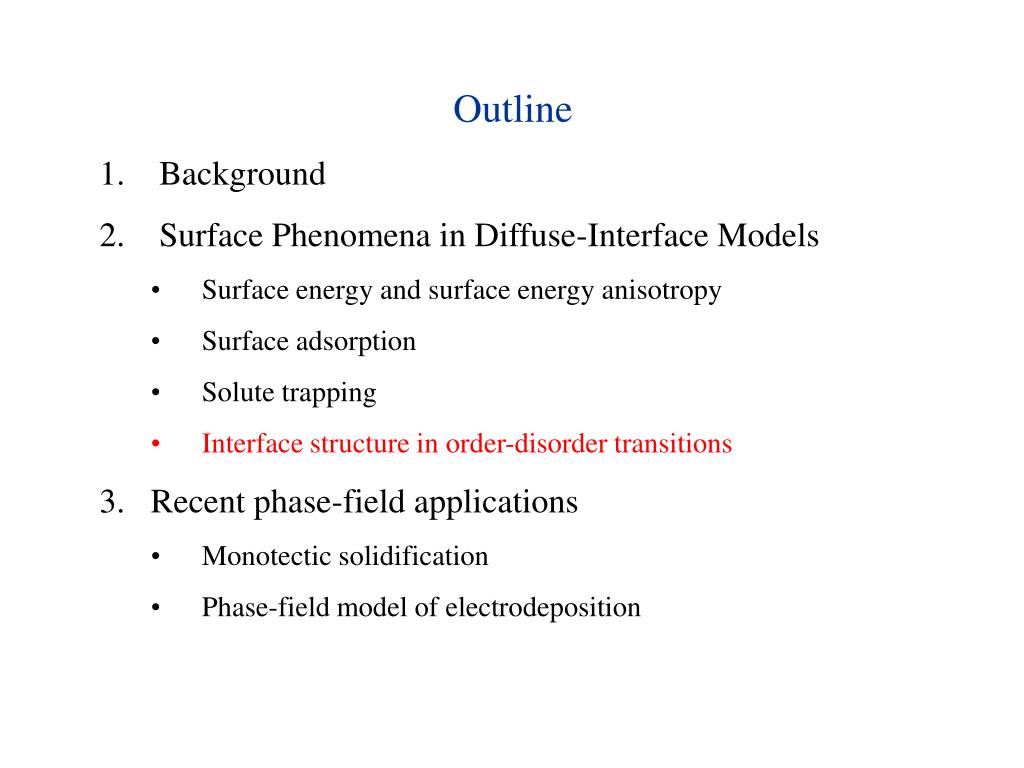

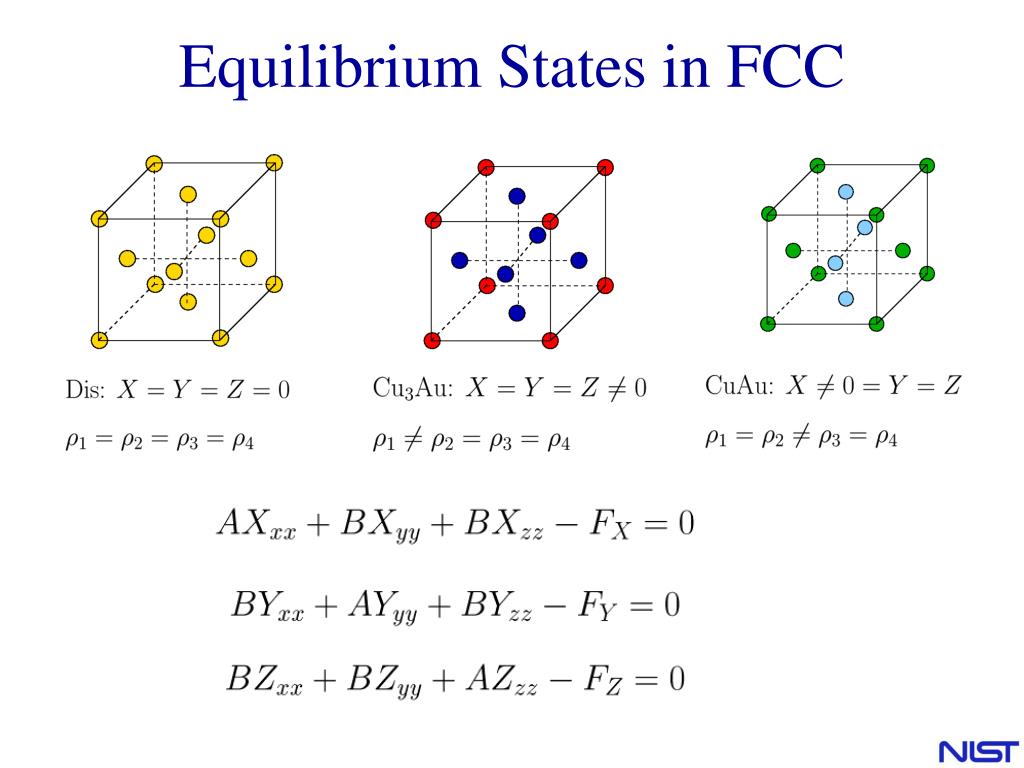

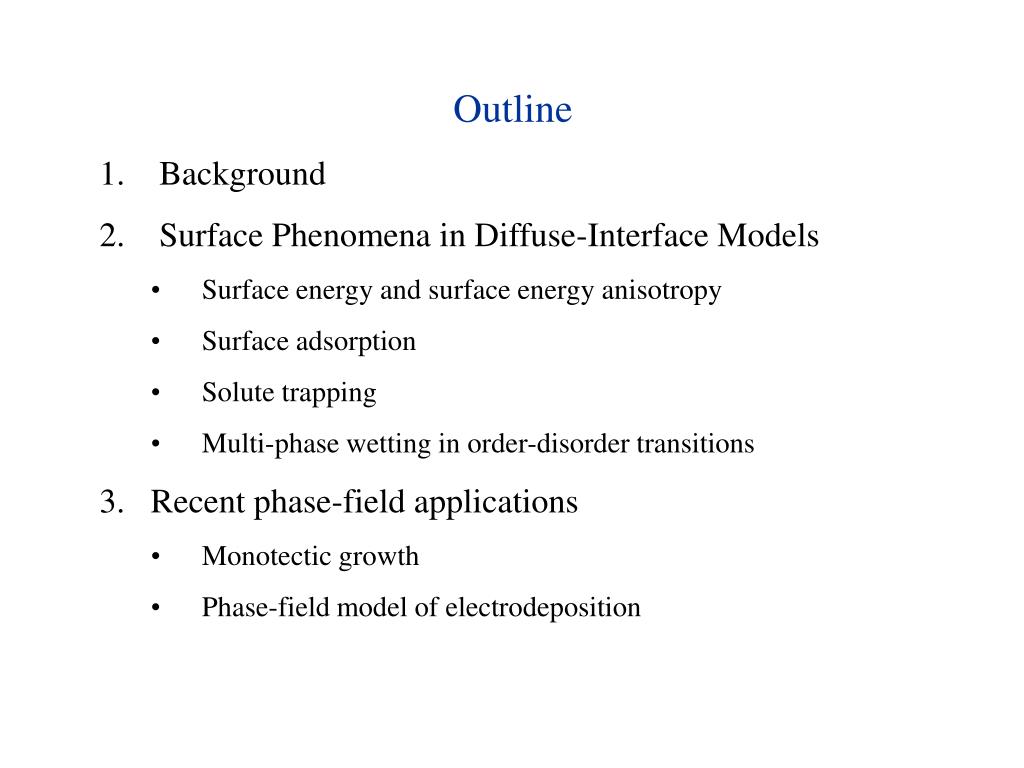

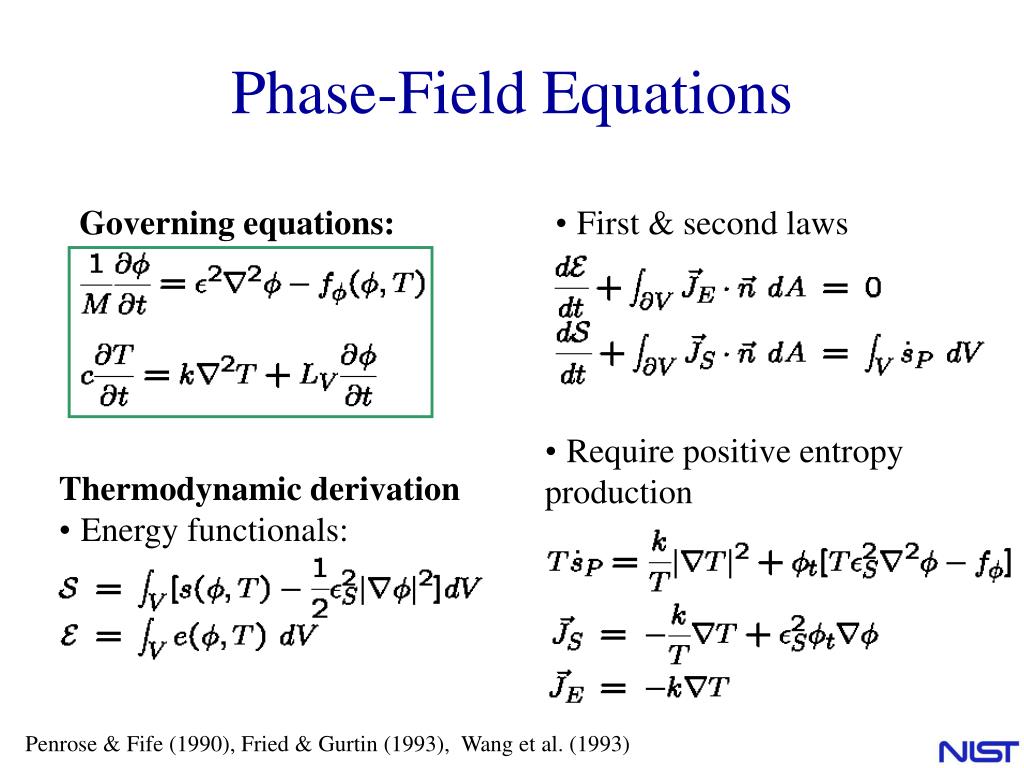

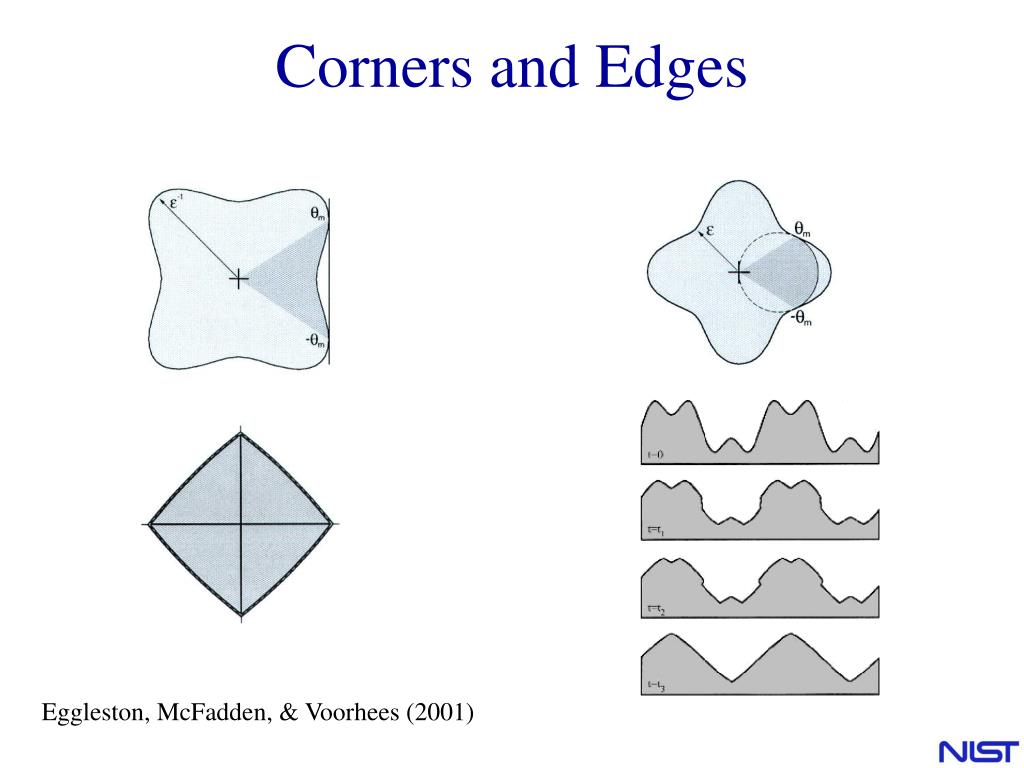

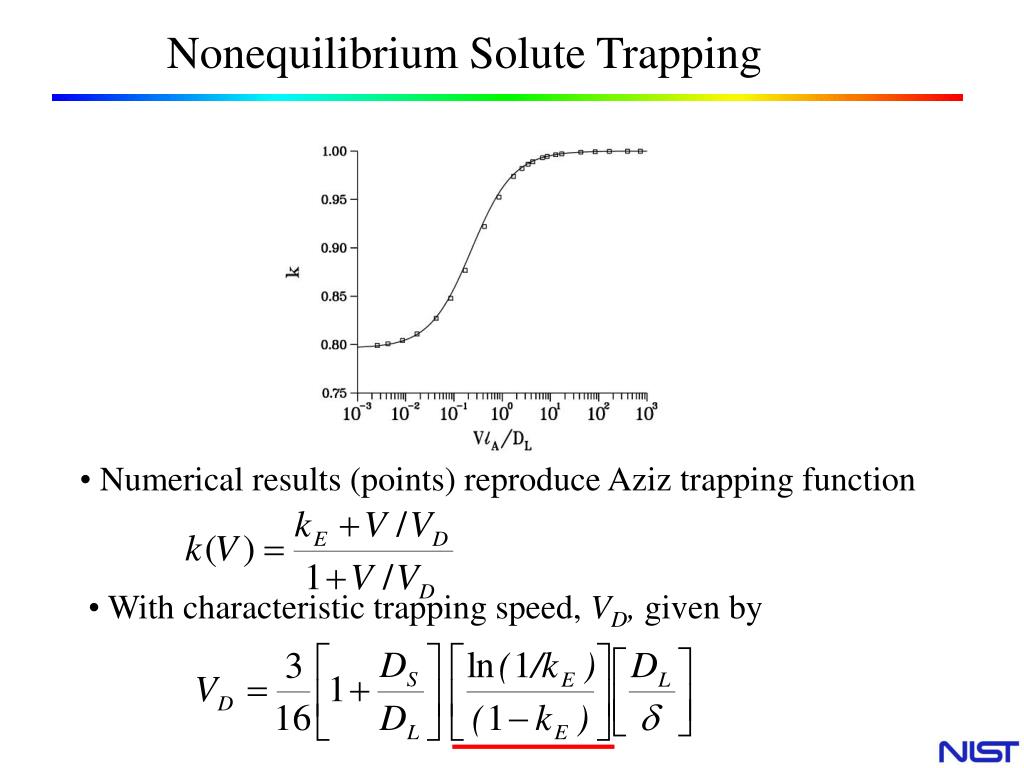

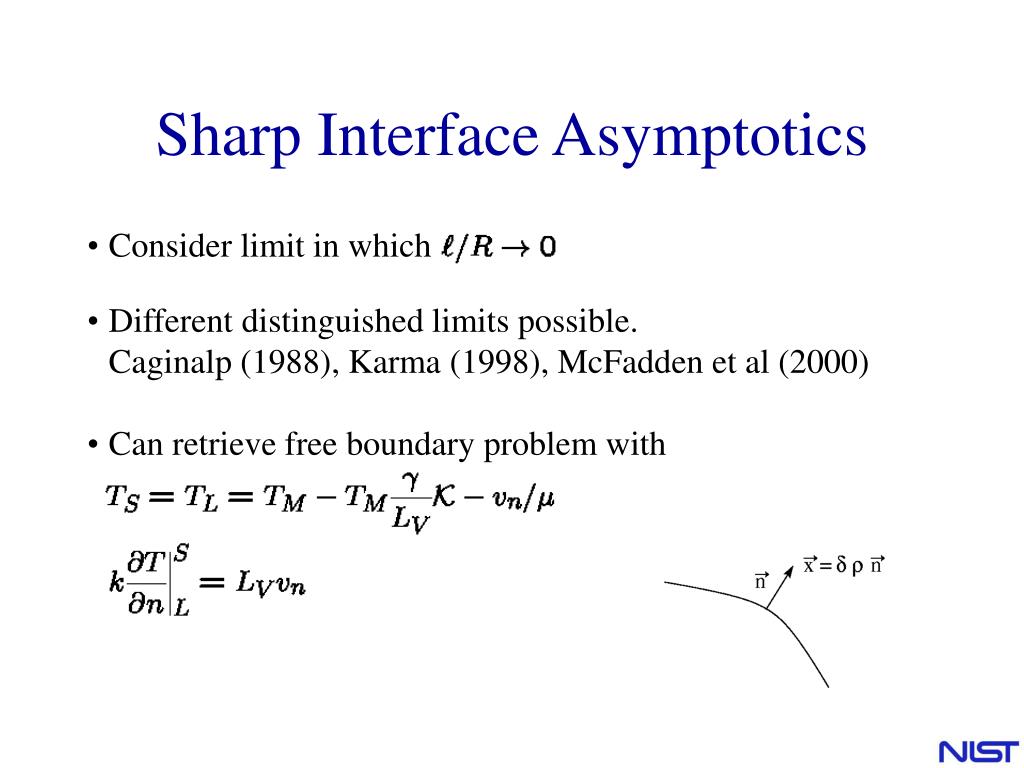

**Phase-Field Methods**Jeff McFadden NIST Dan Anderson, GWU Bill Boettinger, NIST Rich Braun, U Delaware John Cahn, NIST Sam Coriell, NIST Bruce Murray, SUNY Binghampton Bob Sekerka, CMU Peter Voorhees, NWU Adam Wheeler, U Southampton, UK Gravitational Effects in Physico-Chemical Systems: Interfacial Effects July 9, 2001 NASA Microgravity Research Program**Outline**• Background • Surface Phenomena in Diffuse-Interface Models • Surface energy and surface energy anisotropy • Surface adsorption • Solute trapping • Multi-phase wetting in order-disorder transitions • Recent phase-field applications • Monotectic growth • Phase-field model of electrodeposition**Two main issues for a phase-field model:**Bulk Thermodynamics Surface Properties Phase-Field Models Main idea: Solve a single set of PDEs over the entire domain Phase-field model incorporates both bulk thermodynamics of multiphase systems and surface thermodynamics (e.g., Gibbs surface excess quantities).**The Cahn-Allen equation**The enthalpy method (Conserves energy) (Includes capillarity) • Van der Waals (1893) • Korteweg (1901) • Landau-Ginzburg (1950) • Cahn-Hilliard (1958) • Halperin, Hohenberg & Ma (1977) Other diffuse interface theories: Phase-Field Model The phase-field model was developed around 1978 by J. Langer at CMU as a computational technique to solve Stefan problems for a pure material. The model combines ideas from:**Anti-phase boundaries in BCC system**• Motion by mean curvature: • Surface energy: • “Non-conserved” order parameter: M. Marcinkowski (1963) J. Cahn and S. Allen (1977) Cahn-Allen Equation**Parameter Identification**• 1-D solution: • Interface width: • Surface energy: • Curvature-dependence (expand Laplacian):**Introduce the phase-field variable:**• Introduce free-energy functional: • Dynamics Phase-Field Model J.S. Langer (1978)**Governing equations:**• First & second laws • Require positive entropy • production • Thermodynamic derivation • Energy functionals: Phase-Field Equations Penrose & Fife (1990), Fried & Gurtin (1993), Wang et al. (1993)**Sharp Interface Asymptotics**• Consider limit in which • Different distinguished limits possible. • Caginalp (1988), Karma (1998), McFadden et al (2000) • Can retrieve free boundary problem with**Outline**• Background • Surface Phenomena in Diffuse-Interface Models • Surface energy andsurface energy anisotropy • Surface adsorption • Solute trapping • Multi-phase wetting in order-disorder transitions • Recent phase-field applications • Monotectic solidification • Phase-field model of electrodeposition**Anisotropic Equilibrium Shapes**W. Miller & G. Chadwick (1969) Hoffman & Cahn (1972)**Cahn-Hoffman -Vector**Taylor (1992) Phase field**Equilibrium Shape is given by:**Force per unit length in interface: Cahn-Hoffman -Vector Cahn & Hoffmann (1974) Phase field**Diffuse Interface Formulation**Kobayashi(1993), Wheeler & McFadden (1996), Taylor & Cahn (1998)**Steady case: where**• Noether’s Thm: Corners & Edges In Phase-Field • changes type when -plot is concave. • where • interpret as a “stress tensor” Fried & Gurtin (1993), Wheeler & McFadden 97**(force balance)**Corners/Edges • Jump conditions give: • where • and Bronsard & Reitich (1993), Wheeler & McFadden (1997)**Corners and Edges**Eggleston, McFadden, & Voorhees (2001)**Outline**• Background • Surface Phenomena in Diffuse-Interface Models • Surface energy and surface energy anisotropy • Surface adsorption • Solute trapping • Multi-phase wetting in order-disorder transitions • Recent phase-field applications • Monotectic solidification • Phase-field model of electrodeposition**Cahn & Hilliard (1958)**Cahn-Hilliard Equation**{**where Coupled Cahn-Hilliard & Cahn-Allen Equations Phase Field Equations - Alloy Wheeler, Boettinger, & McFadden (1992)**Alloy Free Energy Function**One possibility Ideal Entropy L and S are liquid and solid regular solution parameters**W. George & J. Warren (2001)**• 3-D FD 500x500x500 • DPARLIB, MPI • 32 processors, 2-D slices of data**Surface Adsorption**McFadden and Wheeler (2001)**where**Differentiating, and using equilibrium conditions, gives Surface Adsorption 1-D equilibrium: Cahn (1979), McFadden and Wheeler (2001)**Surface Adsorption**Ideal solution model Surface free energy Surface adsorption**Outline**• Background • Surface Phenomena in Diffuse-Interface Models • Surface energy and surface energy anisotropy • Surface adsorption • Solute trapping • Multi-phase wetting in order-disorder transitions • Recent phase-field applications • Monotectic solidification • Phase-field model of electrodeposition**Solute Trapping**IncreasingV At high velocities, solute segregation becomes small (“solute trapping”) N. Ahmad, A. Wheeler, W. Boettinger, G. McFadden (1998)**Nonequilibrium Solute Trapping**• Numerical results (points) reproduce Aziz trapping function • With characteristic trapping speed, VD, given by**Outline**• Background • Surface Phenomena in Diffuse-Interface Models • Surface energy and surface energy anisotropy • Surface adsorption • Solute trapping • Interface structure in order-disorder transitions • Recent phase-field applications • Monotectic solidification • Phase-field model of electrodeposition**FCC Binary Alloy**Disordered phase CuAu G. Tonaglu, R. Braun, J. Cahn, G. McFadden, A. Wheeler**M. Marcinkowski (1963)**Phase-field model with 3 order parameters R. Braun, J. Cahn, G. McFadden, & A. Wheeler (1998) Wetting in Multiphase Systems Kikuchi & Cahn CVM for fcc APB (Cu-Au)**Adsorption in FCC Binary Alloy**Antiphase Boundaries Interphase Boundaries G. Tonaglu, R. Braun, J. Cahn, G. McFadden, A. Wheeler**Outline**• Background • Surface Phenomena in Diffuse-Interface Models • Surface energy and surface energy anisotropy • Surface adsorption • Solute trapping • Multi-phase wetting in order-disorder transitions • Recent phase-field applications • Monotectic solidification • Phase-field model of electrodeposition**Monotectic Binary Alloy**A liquid phase can “solidify” into both a solid and a different liquid phase. Expt: Grugel et al. Nestler, Wheeler, Ratke & Stocker 00**Incorporationof L2 into the solid phase**Expt: Grugel et al.**Nucleation in L1 and incorporation of L2 into solid**Expt: Grugel et al.**Outline**• Background • Surface Phenomena in Diffuse-Interface Models • Surface energy and surface energy anisotropy • Surface adsorption • Solute trapping • Multi-phase wetting in order-disorder transitions • Recent phase-field applications • Monotectic solidification • Phase-field model of electrodeposition**Superconformal Electrodeposition**• Cross-section views of five trenches with different aspect ratios • filled under a variety of conditions. • Note the bumps over the filled features. D. Josell, NIST**Phase-Field Model of Electrodeposition**J. Guyer, W. Boettinger, J. Warren, G. McFadden (2002)**Conclusions**• Phase-field models provide a regularized version of Stefan problems for computational purposes • Phase-field models are able to incorporate both bulk and surface thermodynamics • Can be generalised to: • include material deformation (fluid flow & elasticity) • models of complex alloys • Computations: • provides a vehicle for computing complex realistic microstructure**Experimental Observation of Dendrite Bridging Process**(c) t = 30 sfs = 0.82 (b) t = 10 sfs = 0.70 (a) t = 0 sfs = 0.00 125 mm Photo: W. Kurz, EPFL (d) t = 75 sfs = 0.94 (e) t = 210 sfs = 0.97 (f) t = 1500 sfs = 0.98
