  1. ALPHA Architecture for fLexible Photonic Home and Access networks SAIRA KANWAL (10-MS-CP-10) HUMA AYUB (11-PhD-CP-22)

  2. PART I HUMA AYUB (11-PhD-CP-22)

  3. ALPHA • OBJECTIVE • ASSOCIATED COMPANIES • CONSORTIUM • KEY ISSUES • TECHNICAL APPROACH • ARCHITECTURE • FUTURE SERVICE • CLASSIFICATION AND SERVICES

  4. OBJECTIVE • ALPHA Project investigates : • innovative architectural and transmission solutions based on the manifold of optical fibers • wireless technology to support both wired and wireless services in a converged network infrastructure. • The focus is on using the newest physical layer achievements, architecture solutions • adequate control and management to reach a yet unprecedented end-to-end provisioned capacity for access and in-building networks at a fraction of the price of today’s technologies • simultaneously include the transport of existing 2G/3G and Beyond 3G (B3G) signals whether they are Internet Protocol (IP) or non-IP-based.

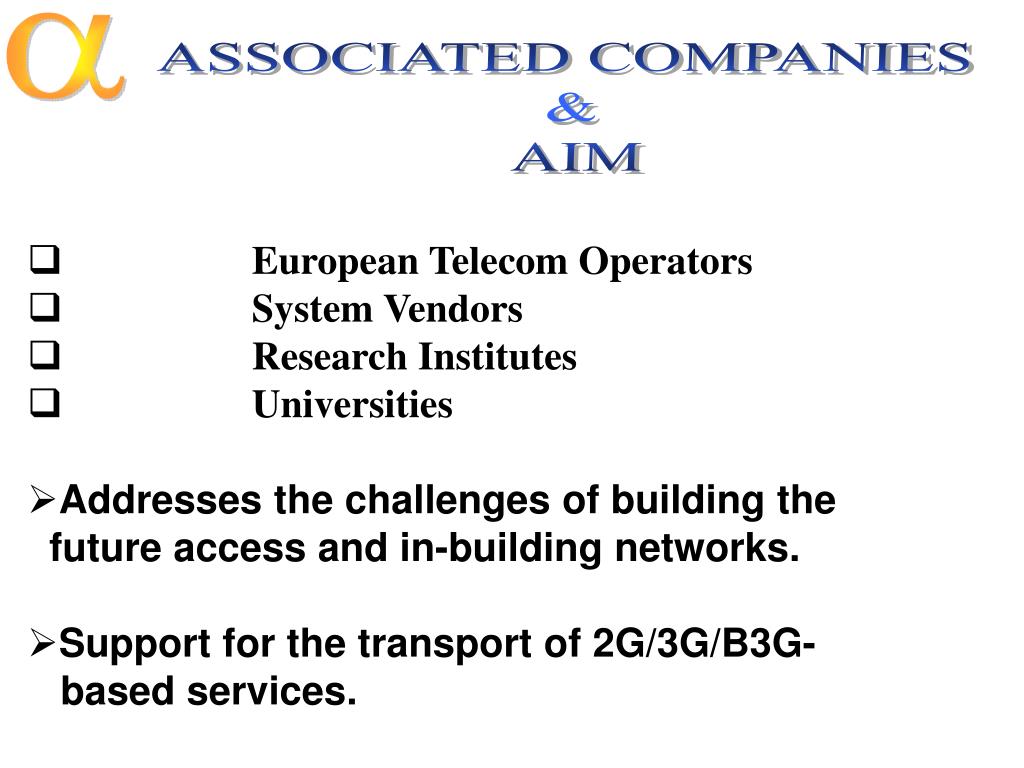

  5. ASSOCIATED COMPANIES & AIM • European Telecom Operators • System Vendors • Research Institutes • Universities • Addresses the challenges of building the future access and in-building networks. • Support for the transport of 2G/3G/B3G- based services.

  6. CONSORTIUM • PROJECT COORDINATOR • Dr. Mikhail Popov • PARTNERS • 17 Partners (Telecom Operators, System Vendors, Component Vendors, Research Institutes • DURATION • JAN 1, 2008 – DEC 31, 2010 • TOTAL COST • 16.5 M

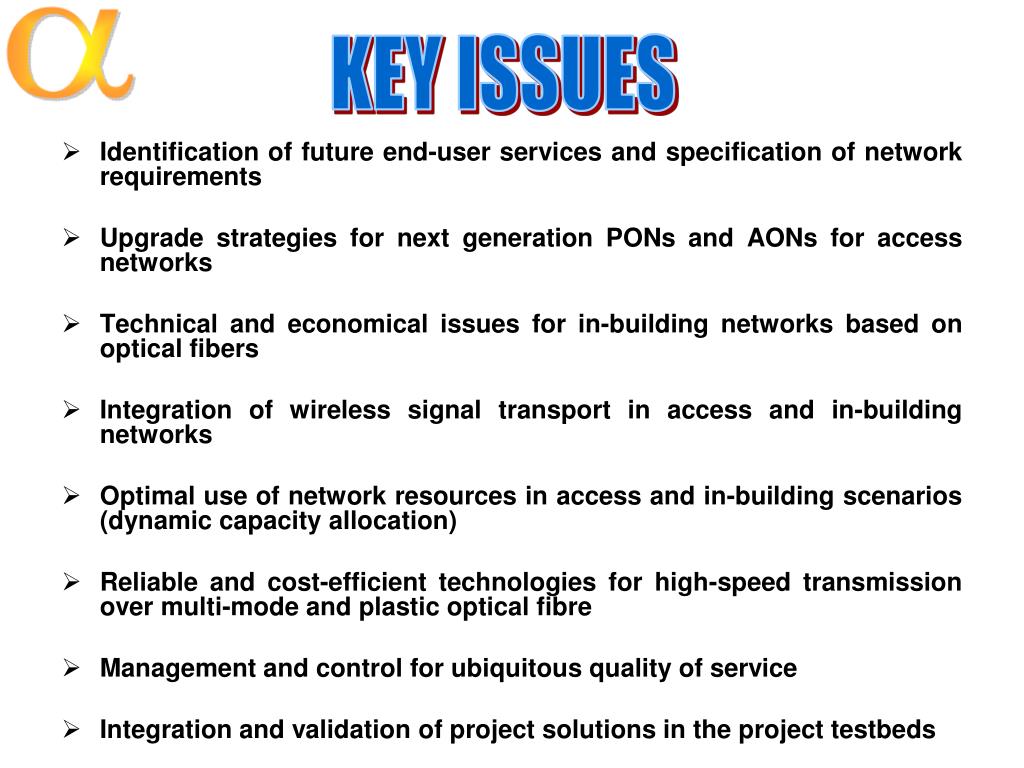

  7. KEY ISSUES • Identification of future end-user services and specification of network requirements • Upgrade strategies for next generation PONs and AONs for access networks • Technical and economical issues for in-building networks based on optical fibers • Integration of wireless signal transport in access and in-building networks • Optimal use of network resources in access and in-building scenarios (dynamic capacity allocation) • Reliable and cost-efficient technologies for high-speed transmission over multi-mode and plastic optical fibre • Management and control for ubiquitous quality of service • Integration and validation of project solutions in the project testbeds

  8. TECHNICAL APPROACH • Starts with analyzing future bandwidth and QoS requirements • Access and in building networks • Optical layer dynamics, compatibility of network types at • the physical layer • Foundations for better QoS provisioning and embedding of 2G/3G and B3G signals into the networks • The project pursues experimental validations of close-to-maturity technologies in laboratory tests and field trials by intensively exploiting the three project test beds. The project also includes long-term research activities targeting to improve the existing technologies, and follows an intensive dissemination and standardization strategy.

  9. ARCHITECTURE

  10. FUTURE SERVICES & NETWORK SPECIFICATION • CLASSICAL SERVICES • Mobile Coverage • Web Browsing • File Sharing • Video and Audio Broadcasting • VOIP • FUTURE SERVICES • HDTV • Local and Global Storage Area Network • HD Video on Demand • Grid Computing Services • High Quality Video Conferencing • Very High Speed File Transfer • Next Generation Gaming • Remote Medical Diagnostic

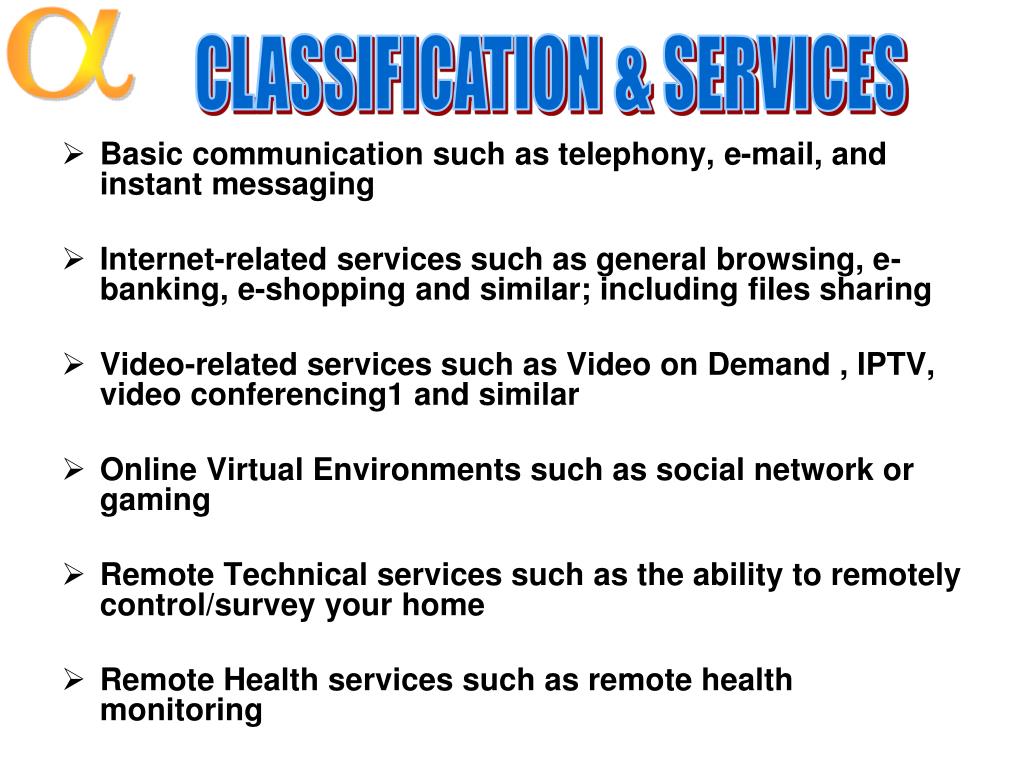

  11. CLASSIFICATION & SERVICES • Basic communication such as telephony, e-mail, and instant messaging • Internet-related services such as general browsing, e-banking, e-shopping and similar; including files sharing • Video-related services such as Video on Demand , IPTV, video conferencing1 and similar • Online Virtual Environments such as social network or gaming • Remote Technical services such as the ability to remotely control/survey your home • Remote Health services such as remote health monitoring

  12. BASIC TELECOMMUNACATION SERVICES

  13. INTERNET BASED SERVICES

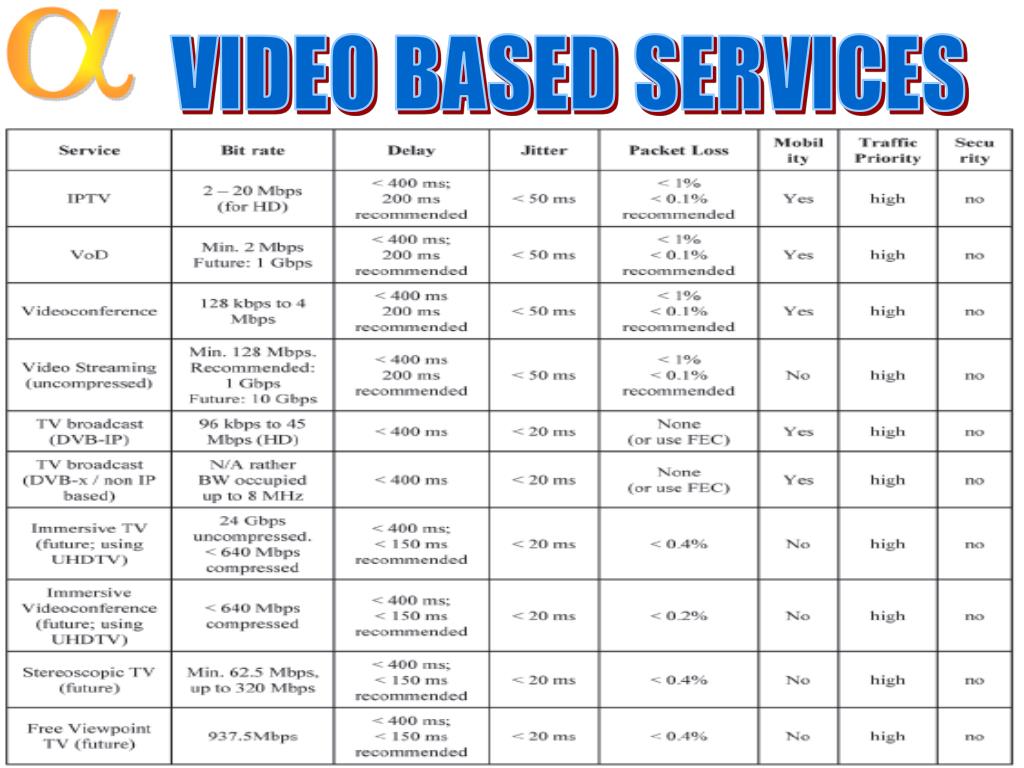

  14. VIDEO BASED SERVICES

  15. ONLINE VIRTUAL ENVIRONMENTS

  16. PART II SAIRA KANWAL (10-MS-CP-10)

  17. ALPHA • Access Network • In building Network • Physical Technology • Modulation Techniques • Demonstration and Field Trials • Project Test Beds • Conclusion

  18. ACCESS NETWORKS • Optical Fiber is used to transport and distribute multi service signals while offering transparency and flexibility • Passive Optical Networks (PON) topologies have been the basic architectures emerging as low cost solutions for optical communication systems • Wavelength Division Multiplexing, Dynamic Wavelength Assignment, Development of agile Optical Component Modules and Survivable Networking have extended the capabilities of basic Broadband Passive Optical Networks • Reallocation of wavelength channels was performed by flexible wavelength router based on Thermo-optic Mach-Zehnder Switches • Dynamic Wavelength Allocation (DWA) has been demonstrated to provide bandwidth sharing across multiple physical PONs

  19. IN-BUILDING NETWORKS • Deploy higher carrier frequencies, implying radio pico-cells and multiple antenna systems (MIMO) • Radio-over-Fibre solutions can help to consolidate signal processing at a central station (CS) and reduce antenna site cost • Next generation user terminals will require multiple Gbit/s data interfaces for fast and reliable data transfer • Aim of ALPHA project is to get a unified and coverage in-building infrastructure, which offers a common platform for all existing and foreseeable future services. • Such infrastructure should be broadband and offer the opportunity to transport services of widely varying signal characteristics and QoS.

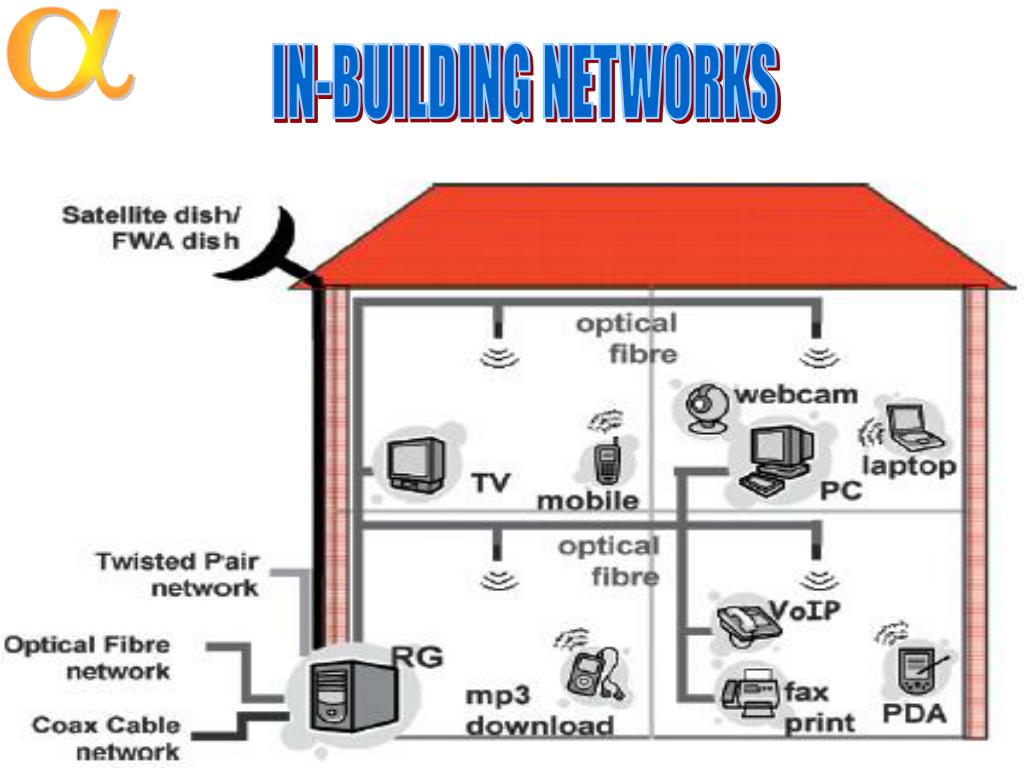

  20. IN-BUILDING NETWORKS

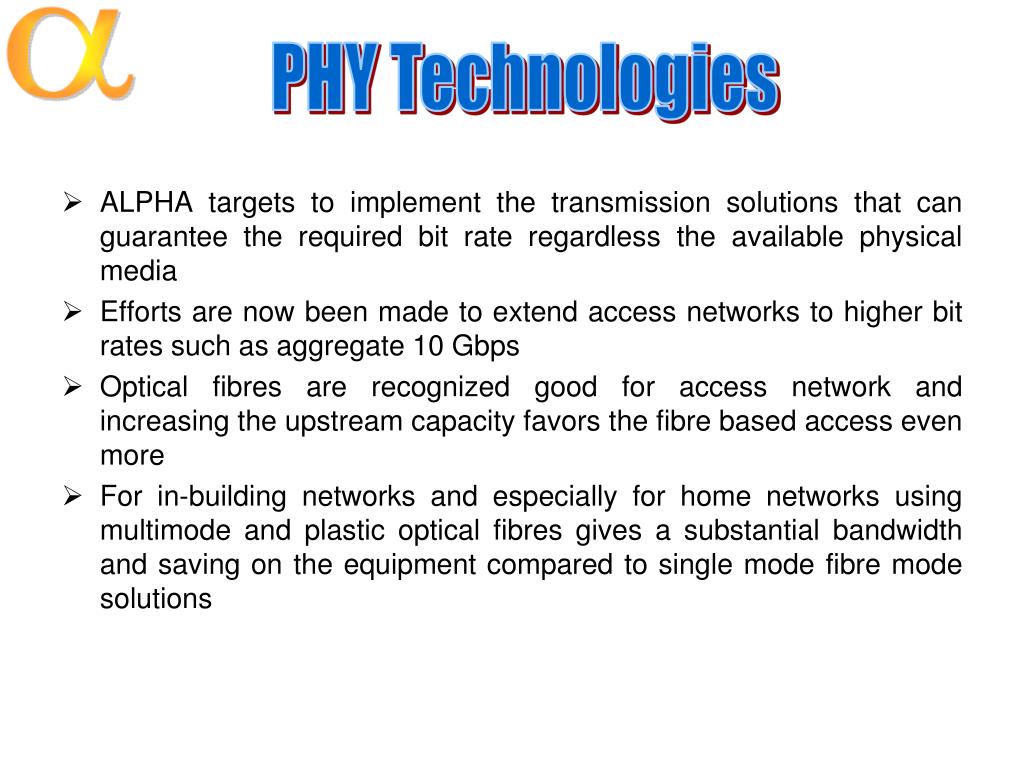

  21. PHY Technologies • ALPHA targets to implement the transmission solutions that can guarantee the required bit rate regardless the available physical media • Efforts are now been made to extend access networks to higher bit rates such as aggregate 10 Gbps • Optical fibres are recognized good for access network and increasing the upstream capacity favors the fibre based access even more • For in-building networks and especially for home networks using multimode and plastic optical fibres gives a substantial bandwidth and saving on the equipment compared to single mode fibre mode solutions

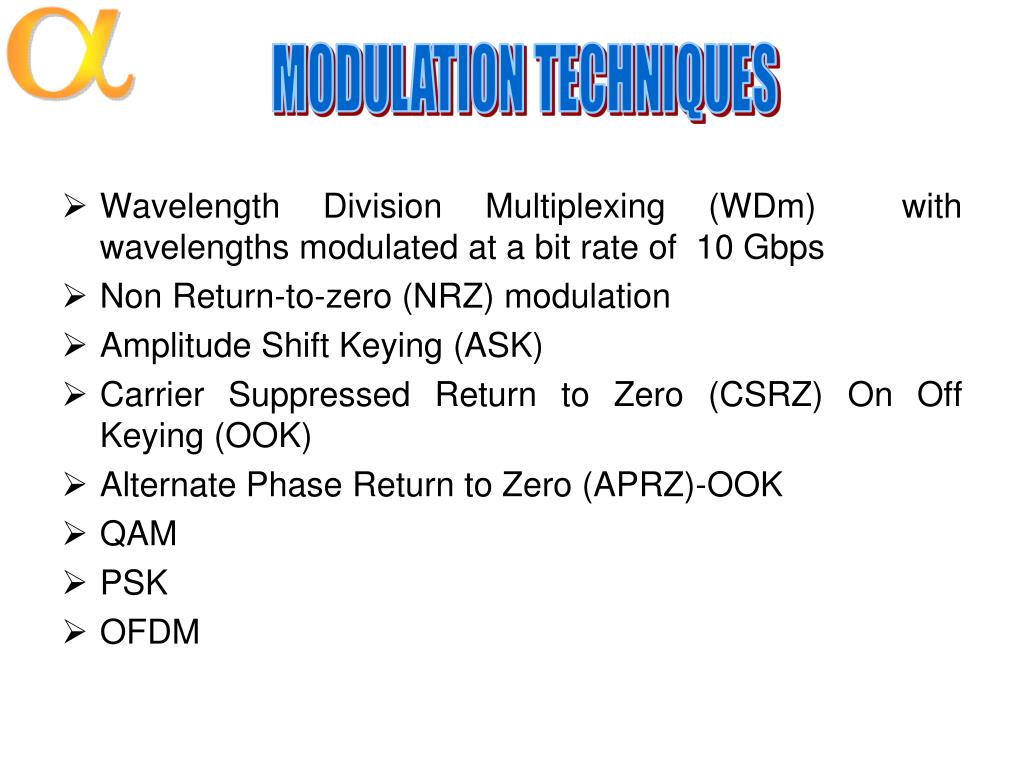

  22. MODULATION TECHNIQUES • Wavelength Division Multiplexing (WDm) with wavelengths modulated at a bit rate of 10 Gbps • Non Return-to-zero (NRZ) modulation • Amplitude Shift Keying (ASK) • Carrier Suppressed Return to Zero (CSRZ) On Off Keying (OOK) • Alternate Phase Return to Zero (APRZ)-OOK • QAM • PSK • OFDM

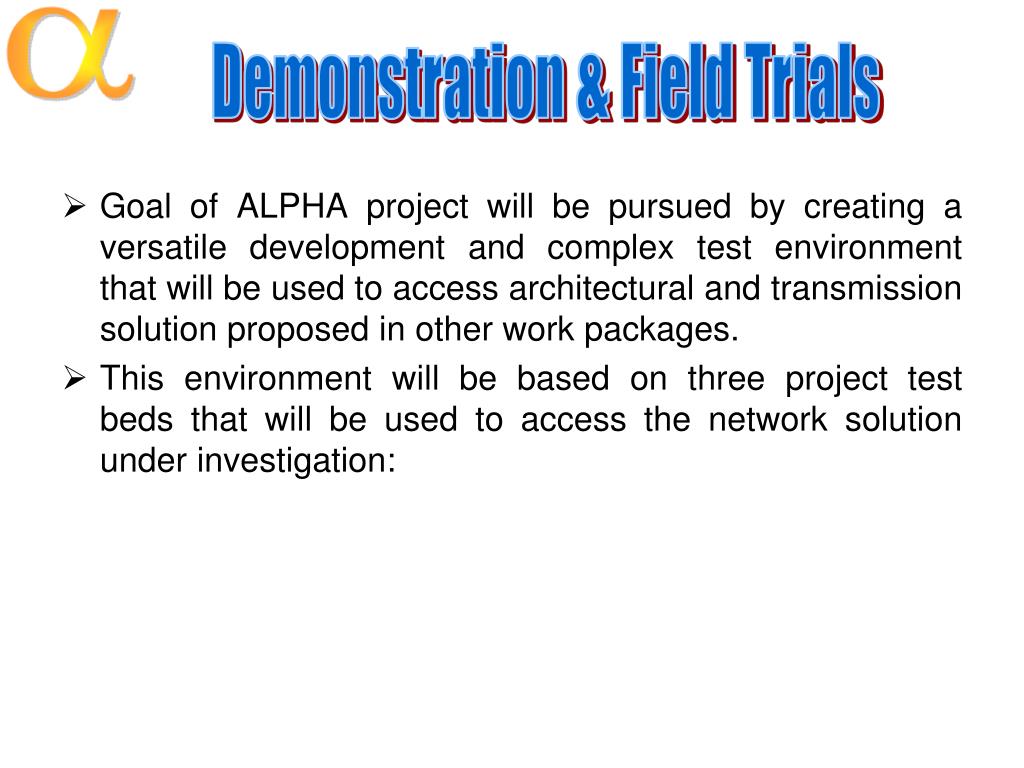

  23. Demonstration & Field Trials • Goal of ALPHA project will be pursued by creating a versatile development and complex test environment that will be used to access architectural and transmission solution proposed in other work packages. • This environment will be based on three project test beds that will be used to access the network solution under investigation:

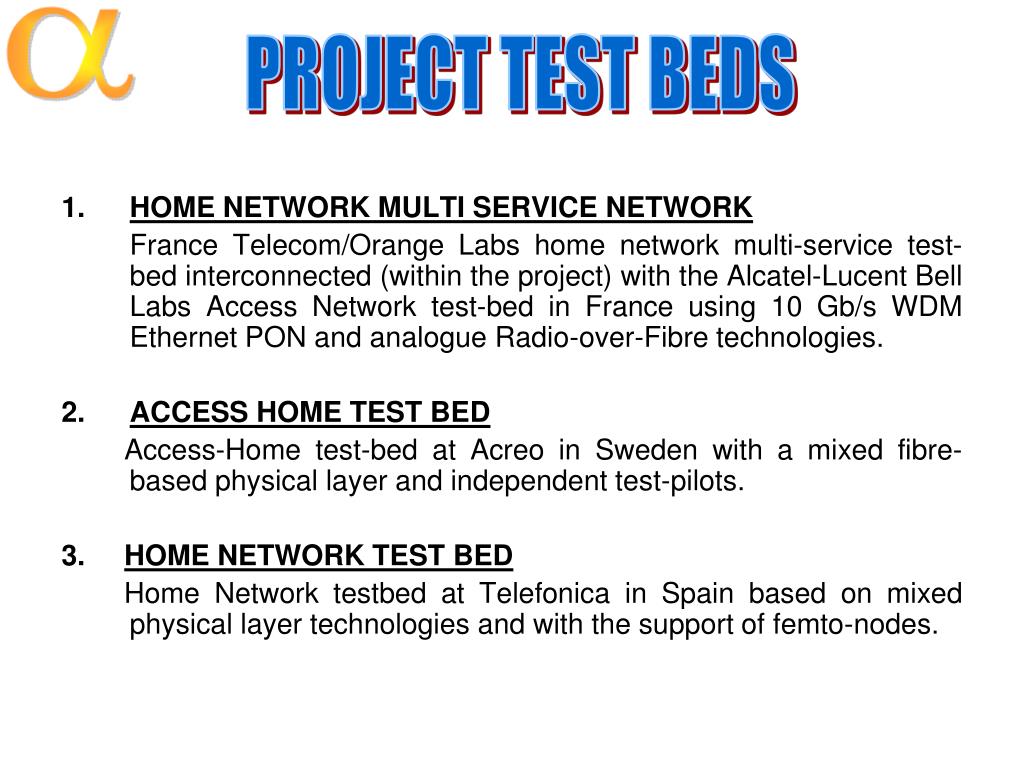

  24. PROJECT TEST BEDS • HOME NETWORK MULTI SERVICE NETWORK France Telecom/Orange Labs home network multi-service test-bed interconnected (within the project) with the Alcatel-Lucent Bell Labs Access Network test-bed in France using 10 Gb/s WDM Ethernet PON and analogue Radio-over-Fibre technologies. • ACCESS HOME TEST BED Access-Home test-bed at Acreo in Sweden with a mixed fibre-based physical layer and independent test-pilots. 3. HOME NETWORK TEST BED Home Network testbed at Telefonica in Spain based on mixed physical layer technologies and with the support of femto-nodes.

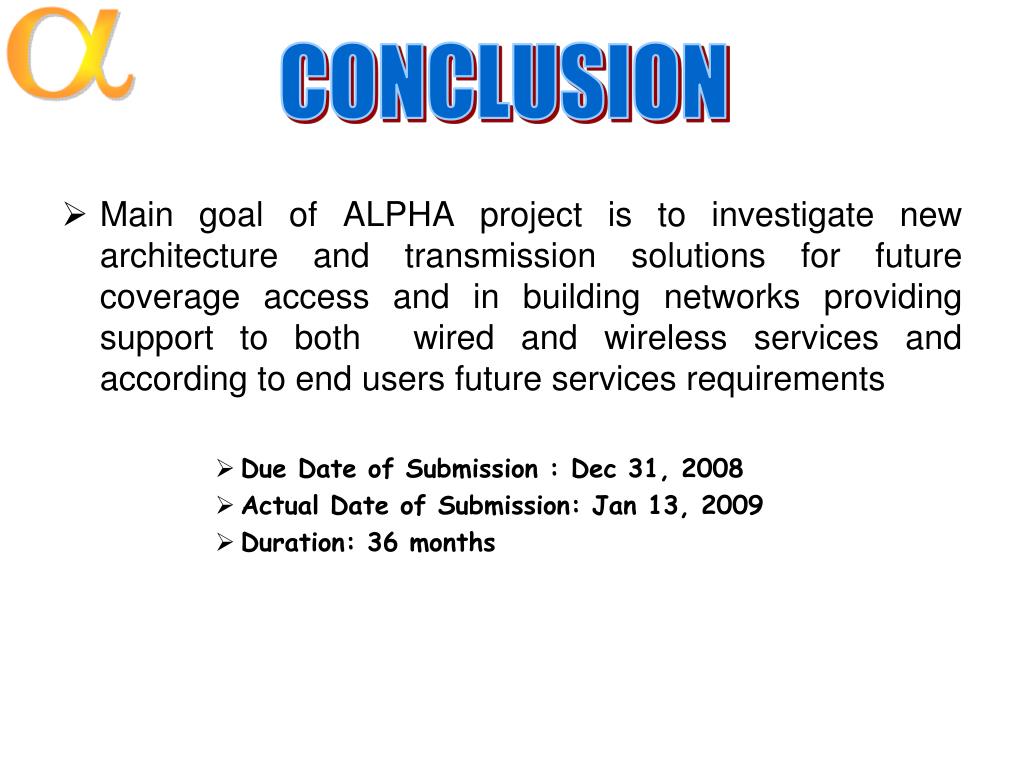

  25. CONCLUSION • Main goal of ALPHA project is to investigate new architecture and transmission solutions for future coverage access and in building networks providing support to both wired and wireless services and according to end users future services requirements • Due Date of Submission : Dec 31, 2008 • Actual Date of Submission: Jan 13, 2009 • Duration: 36 months

  26. THANKS
