Chapter 2

Chapter 2


Attendance requirements
Attendance Requirements

  • Attendance is required for both class and lab. hours

  • Minimum %70 for class attendance

  • Minimum %80 for lab. Attendance

  • This is one and only requirement for taking the final exam.

Text books
Text Books

  • Main text book of the class:

    Programming in F

    T.M.R. ELLIS, Ivor R. PHILLIPS, Addison-Wesley, 1998

  • Auxiliary text book:

    Essential Fortran

    Loren P. Meissner, PWS Publishing, 1997

2 1 data types
2.1 Data types

  • There are five basic data types in fortran

    • 1) INTEGER

    • 2) REAL

    • 3) COMPLEX

    • 4) CHARACTER

    • 5) LOGICAL

Numerical-data types

Strings of characters


data types

Logical data values


  • An Integer is a whole number (positive, negative, or zero) and does not contain commas or a decimal point.

    Examples for valid integer numbers are:





    the followings are the examples for invalid integer number:

    8,675 (Commas are not allowed in numerical constants)

    26.0 (Integer constants may not contain decimal points)

    --5 (Only one algebraic sign is allowed)

    7- (The algebraic sign must precede the string of digits.)


  • A real constant must contain a decimal point, but no commas are allowed. Valid real constants are:




    invalid real constants

    15,627 (commas are not allowed in numerical constants.)

    786 (Real constants must contain a decimal point.)

    a real constant can be represented by an exponential. An exponent written as the letter E with an integer constant following. For example: 6527.4684 may also be written as

    6.5274684E3 which means 6.5274684X103

    or similarly; 65.274684E2

    0.65274684E4 and 65274.684E-1


  • A complex number is represented as a pair of real (i.e., floating point) numbers. The first component of the pair represents the real part of the complex data object, and the second represents the imaginary part. For example;

    Z = a + i b Z = (a,b)

    NOTE: Since you don’t have enough background on complex numbers, you are not fully responsible from complex numbers and its related examples. But, you should now as much as taught.

Character strings
Character strings

  • Character constants, also called strings, are sequences of symbols from the ANSI standard character set for Fortran.

  • The number of a character constant between double quotes is the length of the constant

    For example: ”PDQ123-A” (Character constant of length 8)

    ”John Q. Doe” (Character constant of length 11)

Logical type
Logical type

  • An object of logical type has the value true or false,

    or (0 or 1), or (yes or no).

Arithmetic operators in f
Arithmetic operators in F


+ Addition

- Substraction

* Multiplication

/ Division

** Exponentiation (or ‘rising the power of’)

Arithmetic operator priorities
Arithmetic operator priorities


** High

* and / Medium

+ and - Low






  • How to download and install the F_W95.EXE ?

    1) Web page of the Class

    2) Network neighborhood --> Bim -> Ntserver -> F

    3) ftp://[email protected]

    password is install


    Study pages 38-49 (Ellis & Philips’s book)

Names declarations

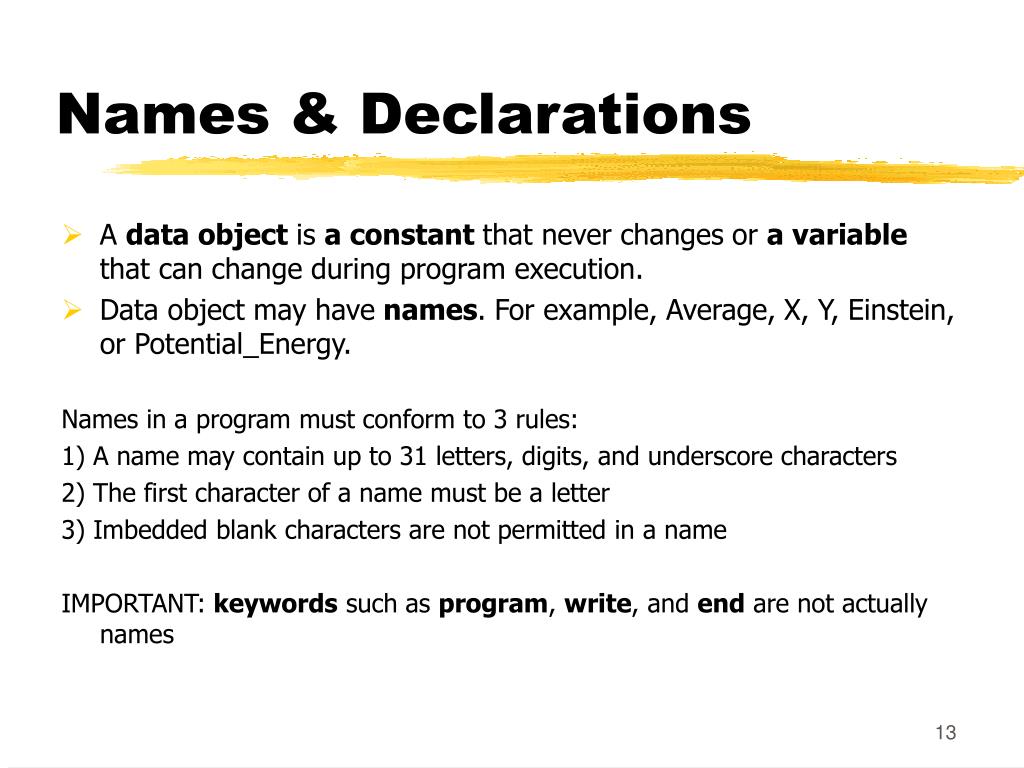

Names & Declarations

  • A data object is a constant that never changes or a variable that can change during program execution.

  • Data object may have names. For example, Average, X, Y, Einstein, or Potential_Energy.

    Names in a program must conform to 3 rules:

    1) A name may contain up to 31 letters, digits, and underscore characters

    2) The first character of a name must be a letter

    3) Imbedded blank characters are not permitted in a name

    IMPORTANT: keywords such as program, write, and end are not actually names

Type declarations
Type Declarations

  • Every variable and named constant must appear in a type declaration

  • The type of a Fortran variable determines the type of value that may be assigned to that variable.

  • In every F program, the specification statement implicit none must immediately follow the program statement

    program Research

    implicit none




    end program Research

    Type Declaration Form

    Type name ::List of names

    Consider the following example

Type declarations1
Type Declarations

implicit none

integer :: Counts, Loop_Index

real :: Current, Resistance, Voltage

Names defined as part of the F language, including keywords and intrinsic function names (such as sin, tan, abs, etc.), must be written in lower case. Names that you invent can use any combination of upper and lower case, but each name must be written consistently.

Type properties kind length
Type properties: Kind & Length

Kind : A variable of any numerical type has a kind type parameter, which designates a subtype or variant of the type.

  • Each type has a default computer representation

  • For each numerical data type, F defines a set of integers to be used as kind type parameter values (i.e., the number 4 for real representation, number 8 for the higher-precision variant)

    Length : A variable of character data type has a string length property.

  • A character type declaration must specify string length

    A type declaration appears in parentheses after the type name. If no

    kind parameter is specified, F selects the default computer representa-


    Type name (Type properties) :: List of names

Type properties kind length1
Type properties: Kind & length

  • Other data attributes may be specified between the type properties and the double colon.

    Type name (Type properties), Attributes :: List of names


    integer, parameter :: ARRAY_SIZE=12, SL=20

    character (Len=SL), save :: Element_Name

    integer, dimension (ARRAY_SIZE) :: chart, list

    Exercise 1:Do exercises 1.2 on page 42 (Meissner’s book)!.


  • A constant in a program may have an explicit form, or it may be represented by a name.


    A constant in a program has a fixed value during the execution of the program. Consider the cases that:

    1) A value may need to be changed before the program is executed again.

    2) A constant in a declaration, such as the size of an array or the length of a character string, may need to be revised.

    Therefore we prefer to use a named constant instead of an explicit constant to prevent searching for all the appearances of a certain constant within the program which is a tedious and an error-prone task.


  • The name of a constant looks like the name of a variable and it must be listed in the type declaration

  • The keyword parameter designates a named constant

  • Houdini Principle: Don’t use magic numbers

    • use a named constant rather than a explicit constant

    • give always explanations ( use !)

Declaration for a named constant
Declaration for a Named Constant

  • Declaration of a named constant is as follows:

    Type name, parameter :: List of initializations

    where each list item has the form

    Name = Value definition

    The value definition is an explicit constant.


    integer, parameter :: LENGTH=12

    real, parameter :: PLANK=6.6260755e-34, PI=3.141593

    real, parameter :: GRAVITY=9.807, AVAGADRO=6.0221367e23, &


    integer, parameter :: A=20, HIGH=30, NEON=67

    character (Len=2), parameter :: units=”Cm”

    ATTENTION: Continuation line with ampersand symbol.



  • Do exercises 1.3 on pages 46-47 (Meissner’s book).

  • Study pages between 49-65 (Ellis & Philips’s book).

Simple input output
Simple Input & Output

Read (unit = *, fmt = *) Input List

Write (unit = *, fmt = *) Output List

  • An asterisk as the unit in a read or write control list designates the default input device (the keyboard) or the default output device (The terminal screen)

  • An asterisk as the format designates list-directed formatting. Input data values for on-line list-directed input are entered at the computer keyboard in free form. Consecutive values must be separated by blanks.

    For example:

    read (unit = *, fmt = *) Radii, I, Current, Top

    can be entered as

    9.75 10 15.32


Simple input output1
Simple Input & Output

  • IMPORTANT: The items in an input list must be variable names.

    write (unit = *, fmt = *) ” Please enter the diameter of a circle”

    read (unit = *, fmt = *) Diameter

    write (unit = *, fmt = *) ” Diameter = ”, Diameter, ”circumference =”, &

    3.1416*Diameter, ”Area = ”, 3.1416*Diameter**2

Number representation


  • There is an increasing demand for high precision

  • Computer hardware representation varies from 8-bit to 128 bit word length

  • Precision requirements should be considered for both different type of computer hardware and problem type we have.

    For example: 9 decimal digits of numerical precision can be satisfied by 1) Single-precision arithmetic if the computer word length is 64 bits, 2) double-precision arithmetic if the word length is 32 bits.

  • A Kind option provides flexible control of integer and real precision and range.

    • 1) Each data type has a default computer representation

    • 2) The kind type parameter of a data object determines its computer representation

Number representation1

  • 3) Each kind is designated by a different integer kind selector value.

  • 4) A kind value may be specified in the type declaration for a variable or named constant.

  • A typical convention is that the kind selector value is the number of bytes (e.g., 4 or 8) occupied by the computer representation.

  • But it is recommended that these processor-dependent values not be used as kind selectors because of the problems that result when a program is moved to a different processor.

  • Therefore use named constants instead of explicit integer constants

    The intrinsic inquiry function selected_real_kind(P) returns the kind value for a processor representation that supplies at least P decimal digits of precision.

  • Number representation2

    Example: selected_real_kind(6) returns a processor kind value that provides at least 6 decimal digits of precision

    A numerical constant may be followed by an underscore and a kind selector:




    The kind selector must be a named constant of integer type


    integer, parameter :: NORMAL = selected_int_kind(9), &

    LOW = selected_real_kind(6), HIGH = selected_real_kind(15)

    integer (kind = NORMAL) :: First, Second

    Number representation3

    real (kind = LOW), parameter :: FOURTH = 12.0


    Do the example 1.4 on page 58 to see the difference in kind selection Meissner’s book.

    Mixed mode assignment
    Mixed-mode assignment

    • Assume that,

      b is a real variable whose value is 100.0, while c and d are integers having the values 9 and 10, respectively.

      a = b*c/d

      result is 90.0

      a = c/d*b

      a gets 0 value.

      This phenomenon is known as integer division

    Application program
    Application program

    • show programlist_directed_inputexample !

    • Compile

    • Run

    Application program1
    Application program

    program list_directed_input

    integer :: int_1, int_2, int_3

    real :: real_1, real_2, real_3

    ! Initialize all variables

    int_1 = -1

    int_2 = -2

    int_3 = -3

    real_1 = -1.0

    real_2 = -2.0

    real_3 = -3.0

    ! Read data

    read *, int_1,real_1,int_2,real_2,int_3,real_3

    ! Print new values

    print *, int_1,real_1,int_2,real_2,int_3,real_3

    end program list_directed_input

    Program style and design

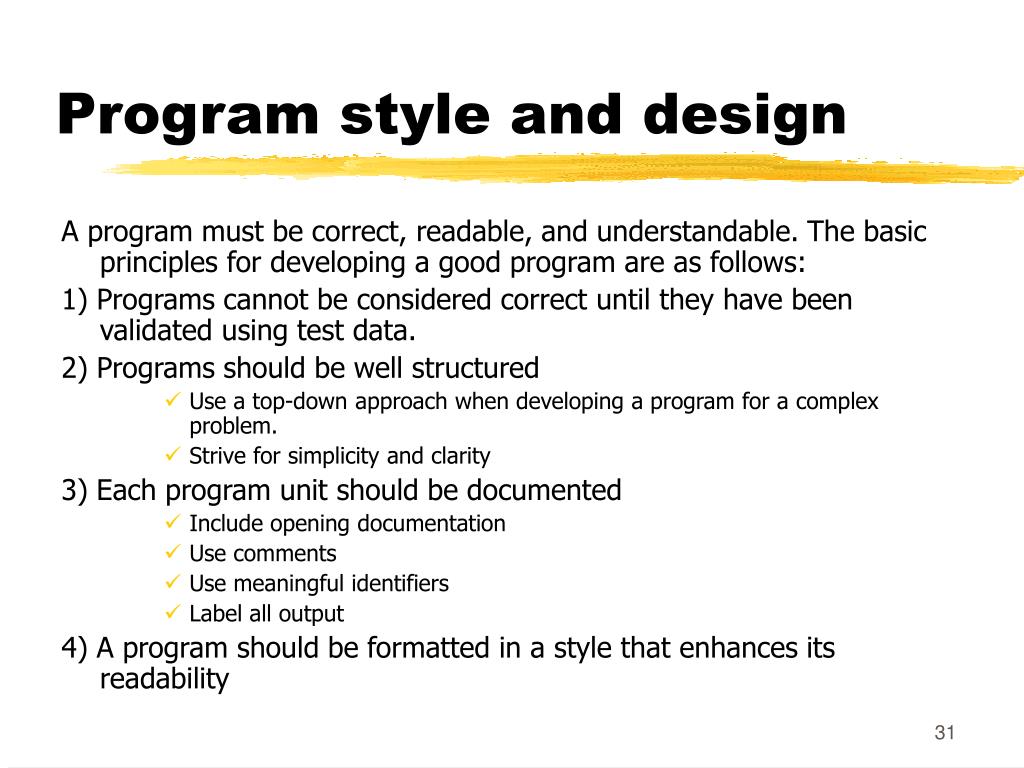

    Program style and design

    A program must be correct, readable, and understandable. The basic principles for developing a good program are as follows:

    1) Programs cannot be considered correct until they have been validated using test data.

    2) Programs should be well structured

    • Use a top-down approach when developing a program for a complex problem.

    • Strive for simplicity and clarity

      3) Each program unit should be documented

    • Include opening documentation

    • Use comments

    • Use meaningful identifiers

    • Label all output

      4) A program should be formatted in a style that enhances its readability

    Program style and design1
    Program style and design

    5) Programs should be readable and understandable

    • Do not use magic numbers

    • Use comments to describe the purpose of a program and variables

      6) Programs should be general and flexible
