inside microsoft windows 2000 7 memory management

Inside Microsoft Windows 20007. Memory Management

System Memory Pools

Apr. 18, 2001

DB Lab 박동철

system memory pools cont
System memory pools(cont.)
  • 2 types
    • Non-paged poolRanges of system virtual address that are guaranteed to reside in physical memory at all times
    • Paged poolRegion of virtual memory in system space that can be paged in and out of the system

7: Memory Management

system memory pools
System memory pools
  • 2 types of non-paged pools
    • General use
    • Emergency use
  • Single-processor system
    • 3 paged pools
  • Multi-processor
    • 5 paged pools

7: Memory Management

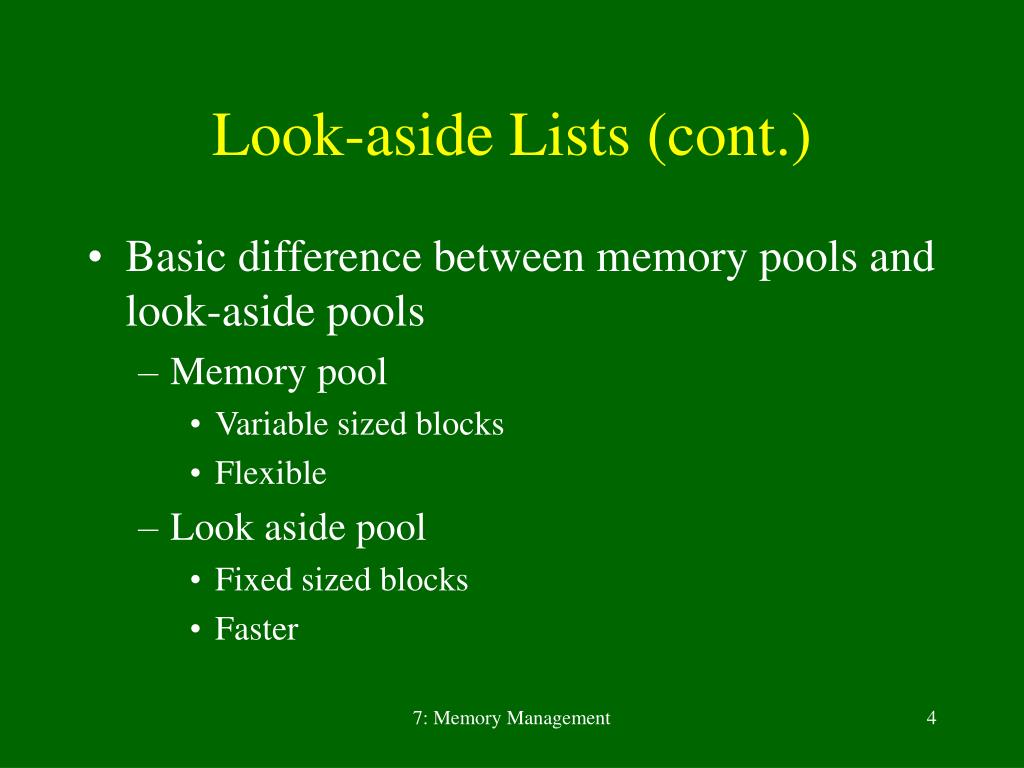

look aside lists cont
Look-aside Lists (cont.)
  • Basic difference between memory pools and look-aside pools
    • Memory pool
      • Variable sized blocks
      • Flexible
    • Look aside pool
      • Fixed sized blocks
      • Faster

7: Memory Management

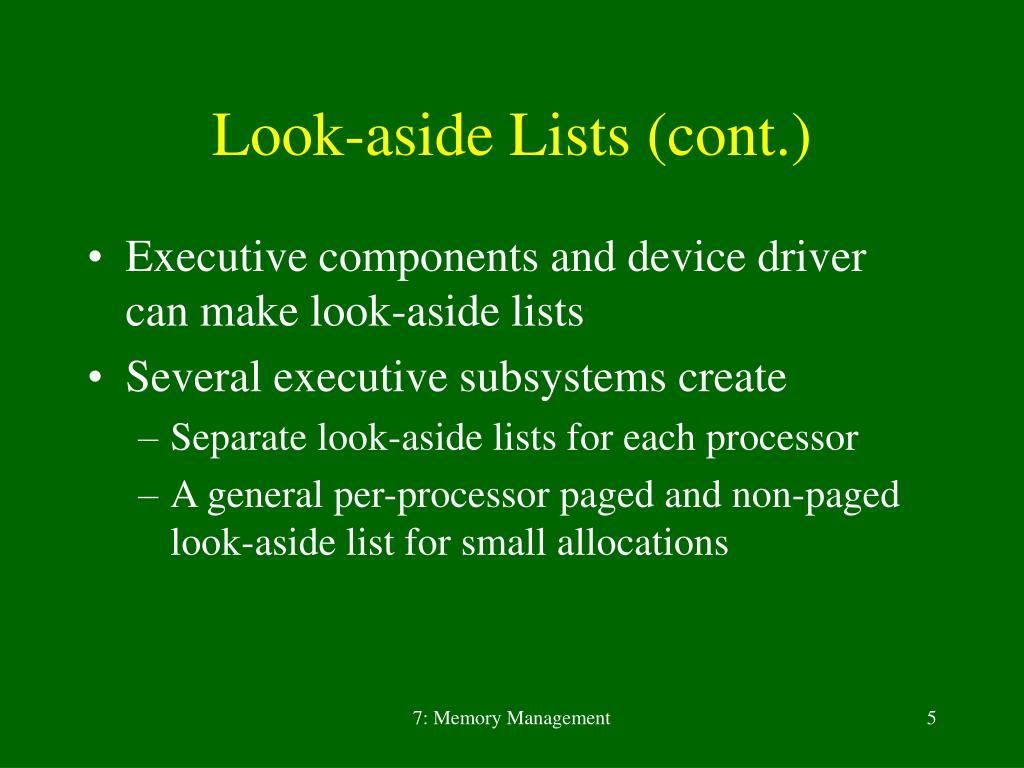

look aside lists cont5
Look-aside Lists (cont.)
  • Executive components and device driver can make look-aside lists
  • Several executive subsystems create
    • Separate look-aside lists for each processor
    • A general per-processor paged and non-paged look-aside list for small allocations

7: Memory Management

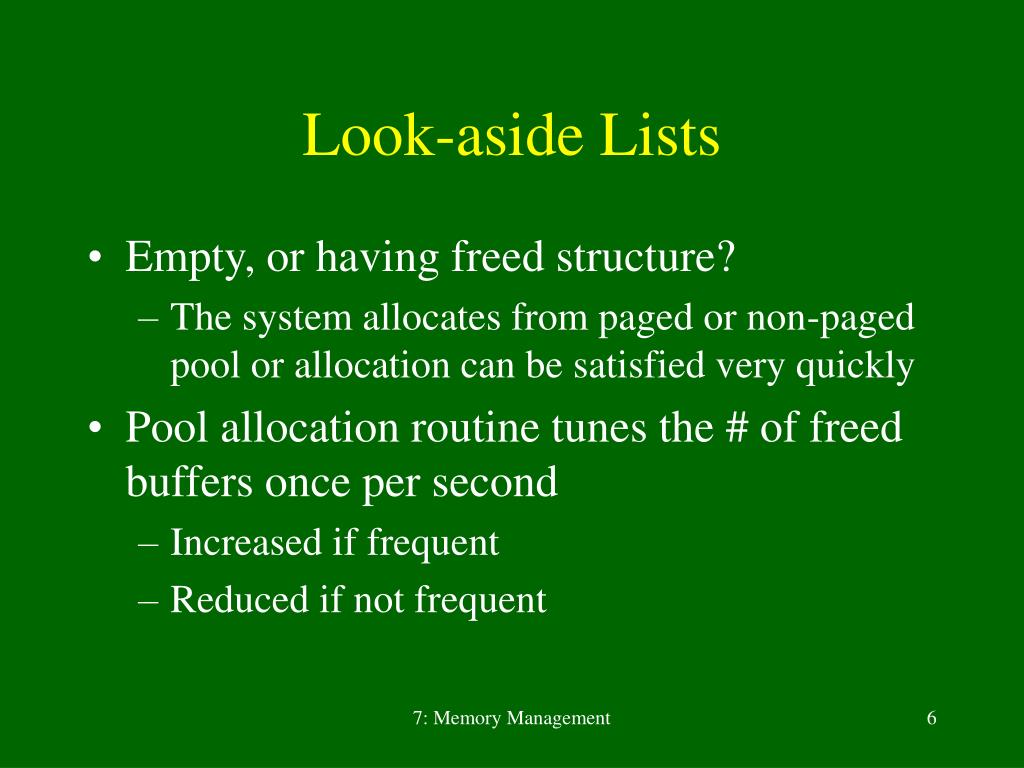

look aside lists
Look-aside Lists
  • Empty, or having freed structure?
    • The system allocates from paged or non-paged pool or allocation can be satisfied very quickly
  • Pool allocation routine tunes the # of freed buffers once per second
    • Increased if frequent
    • Reduced if not frequent

7: Memory Management

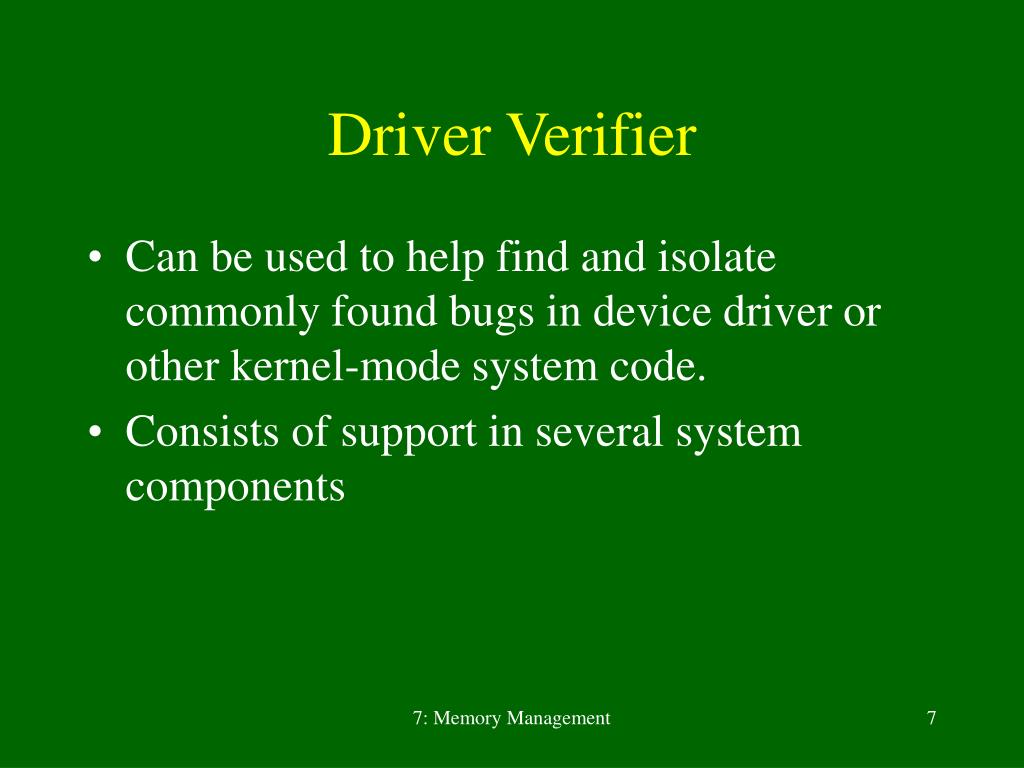

driver verifier
Driver Verifier
  • Can be used to help find and isolate commonly found bugs in device driver or other kernel-mode system code.
  • Consists of support in several system components

7: Memory Management

driver verifier configuration and initialization
Driver Verifier Configuration and Initialization
  • Driver settings are stored in the registry
    • Contains a bitmask for verification types enabling
  • 4 memory-related verification options
    • Special Pool, Pool tracking, force IRQL Checking. Low Resources simulation

7: Memory Management

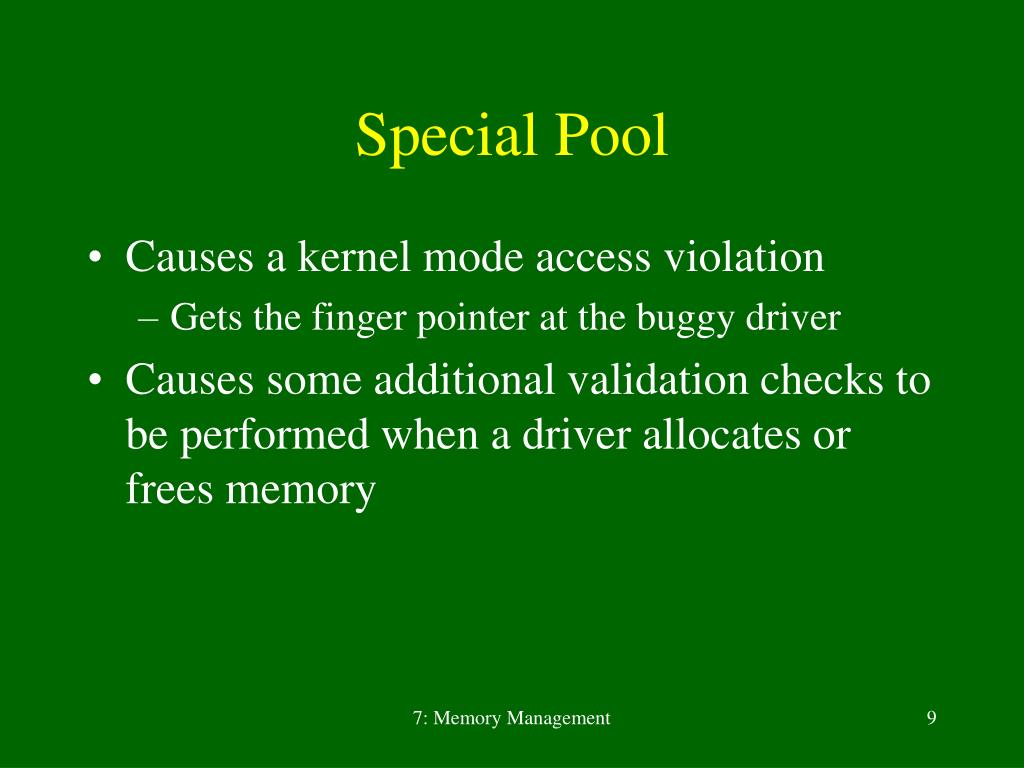

special pool
Special Pool
  • Causes a kernel mode access violation
    • Gets the finger pointer at the buggy driver
  • Causes some additional validation checks to be performed when a driver allocates or frees memory

7: Memory Management

pool tracking cont

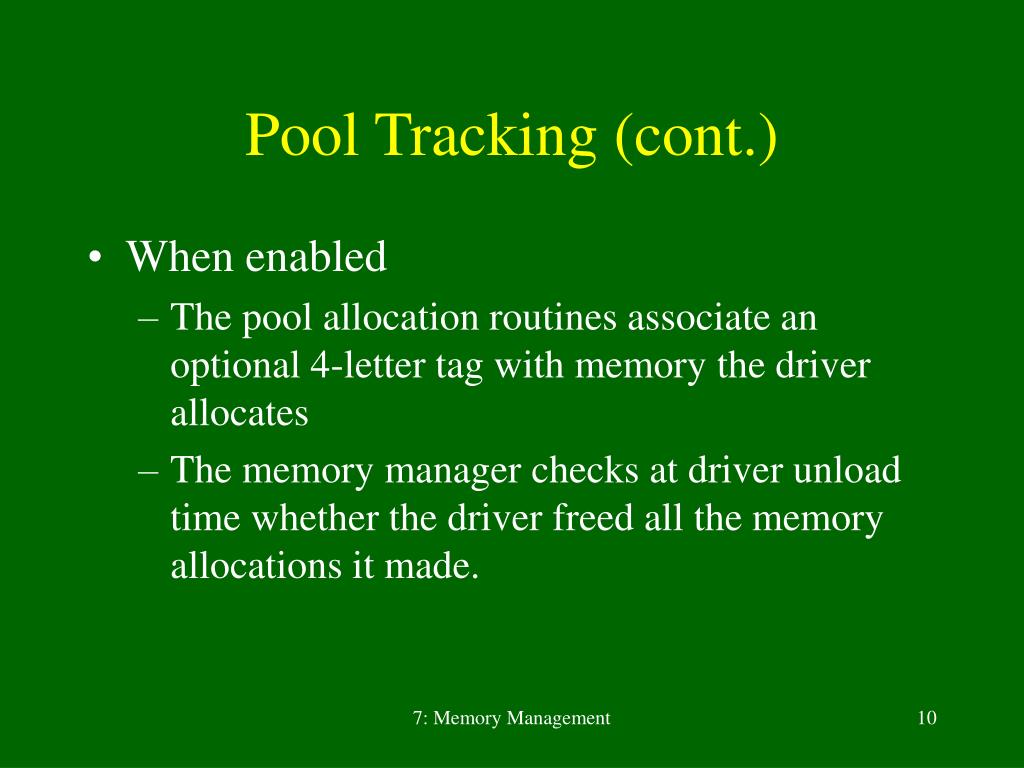

Pool Tracking (cont.)
  • When enabled
    • The pool allocation routines associate an optional 4-letter tag with memory the driver allocates
    • The memory manager checks at driver unload time whether the driver freed all the memory allocations it made.

7: Memory Management

pool tracking
Pool Tracking
  • Usage of monitoring driver memory
    • To detect memory leaks
    • To detect the errors caused by memory de-allocation no longer required

7: Memory Management

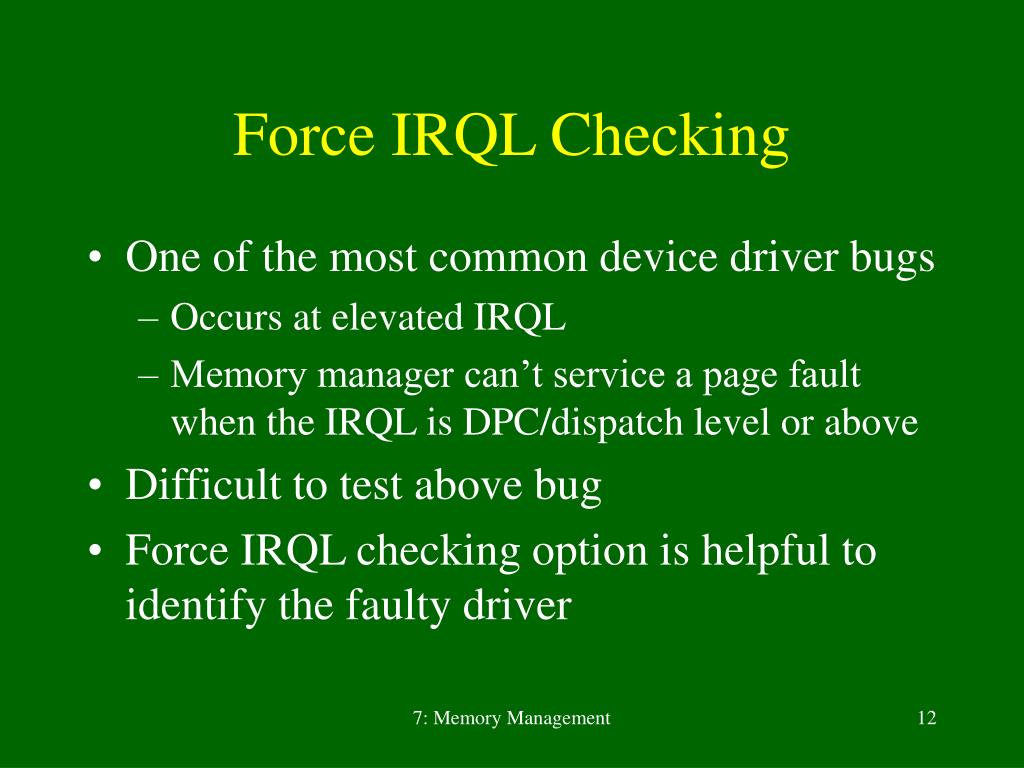

force irql checking
Force IRQL Checking
  • One of the most common device driver bugs
    • Occurs at elevated IRQL
    • Memory manager can’t service a page fault when the IRQL is DPC/dispatch level or above
  • Difficult to test above bug
  • Force IRQL checking option is helpful to identify the faulty driver

7: Memory Management

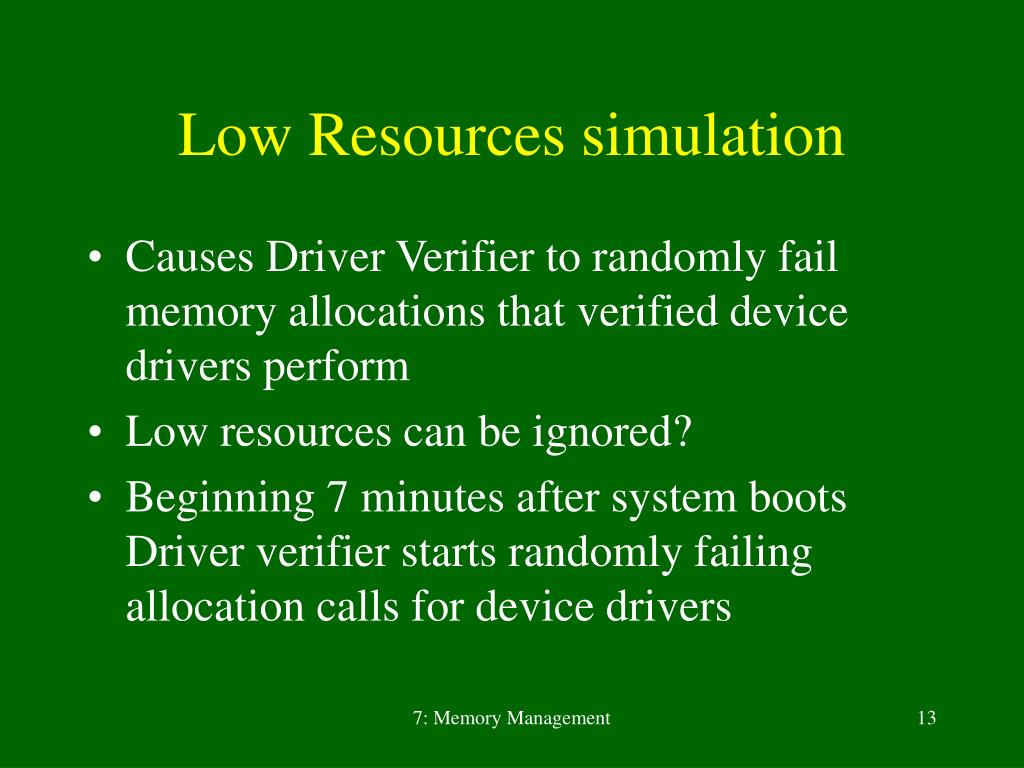

low resources simulation
Low Resources simulation
  • Causes Driver Verifier to randomly fail memory allocations that verified device drivers perform
  • Low resources can be ignored?
  • Beginning 7 minutes after system boots Driver verifier starts randomly failing allocation calls for device drivers

7: Memory Management

address space layout cont
Address Space Layout (cont.)

7: Memory Management

address space layout cont15
Address Space Layout (cont.)
  • Windows 2000
    • 2G or 3GB private address space
  • Windows 2000 Advanced Server, Windows 2000 Datacenter Server
    • 3GB private address space
  • The AWE functions provide better solution to the need for more data

7: Memory Management

address space layout cont16
Address Space Layout (cont.)
  • How can we use full 3GB address space?
    • /LARGEADDRESSAWARE linker flag  IMAGE_FILE_LARGE_ADDRESS_AWARE flag set in the image header
    • use /3GB switch when boot Windows 2000 Advanced Server, Windows 2000 Datacenter Server
  • How about using /3GB on Windows 2000?

7: Memory Management

virtual address space in consumer windows
Virtual Address Space in Consumer Windows
  • A bit different from Windows 2000
    • Application-wide 2-GB private address space
    • System-wide 1-GB system space
    • System-wide 1-GB shared memory sections

7: Memory Management

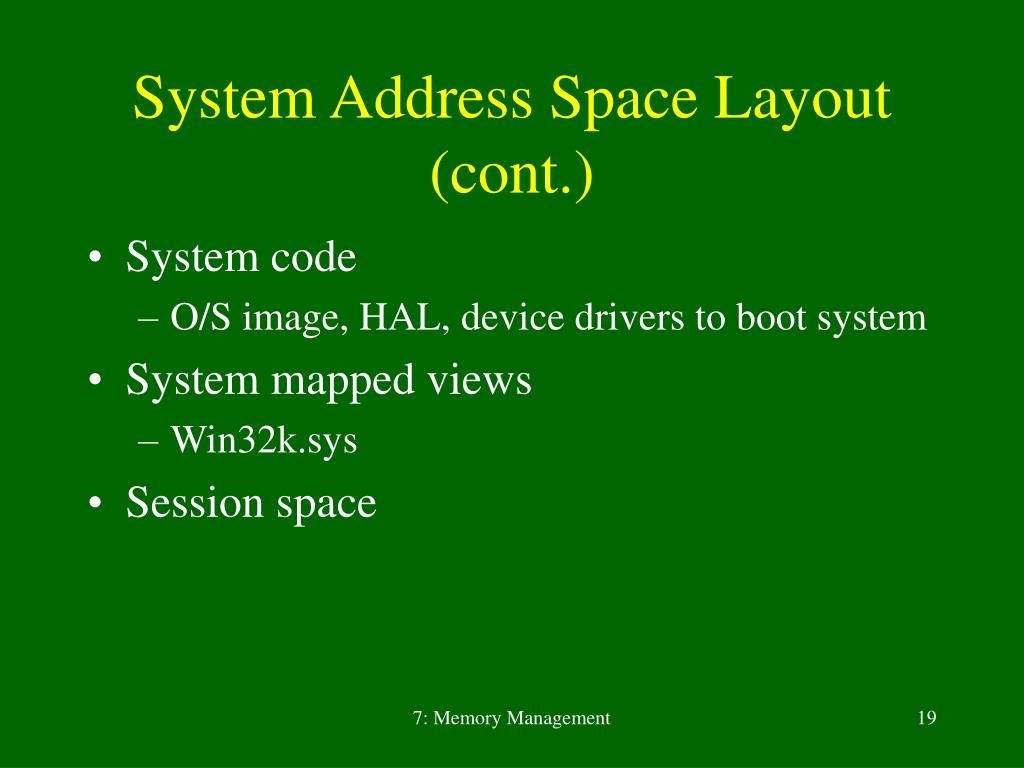

system address space layout cont19
System Address Space Layout (cont.)
  • System code
    • O/S image, HAL, device drivers to boot system
  • System mapped views
    • Win32k.sys
  • Session space

7: Memory Management

system address space layout cont20
System Address Space Layout (cont.)
  • Hyperspace
    • Process working set list and other physical pages
  • System working set list
  • System cache paged pool
    • Pageable system memory heap
  • System page table entries

7: Memory Management

system address space layout cont21
System Address Space Layout (cont.)
  • Non-paged pool
    • Non-pageable system memory heap
  • Crash dump information
  • HAL usage

7: Memory Management

system address space layout cont22
System Address Space Layout (cont.)
  • Session space
    • What is session?
    • Session-specific paged pool area used by the Win32k.sys
    • Win32 subsystem process(csrss.exe)
    • Logon process(winlogon.exe)
    • Session manager process(smss.exe)

7: Memory Management

address translation
Address translation

7: Memory Management
