Presentation Transcript
services classifications types

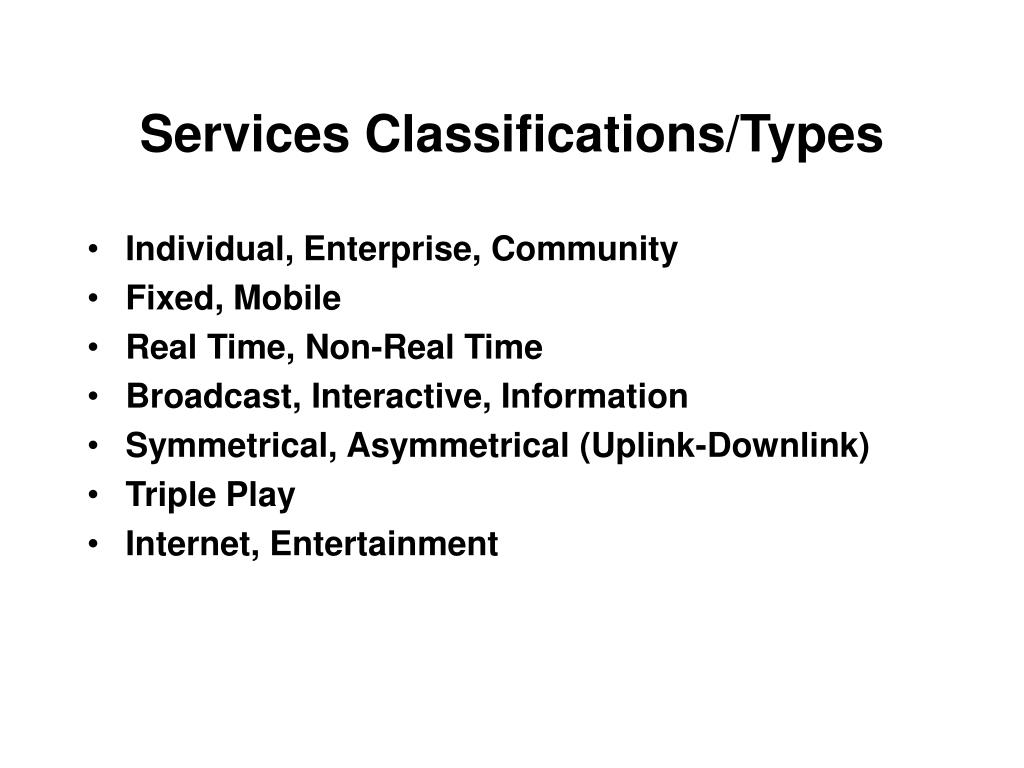

Services Classifications/Types
  • Individual, Enterprise, Community
  • Fixed, Mobile
  • Real Time, Non-Real Time
  • Broadcast, Interactive, Information
  • Symmetrical, Asymmetrical (Uplink-Downlink)
  • Triple Play
  • Internet, Entertainment
slide3

Broadband Services

  • People of Same Household Online Simultaneously
  • Browsing Web, Downloading Information and Updates
  • (Symmetrical & Asymmetrical- Interactive Services)
  • High Speed Streaming Video on Televisions & Computers
  • Internet Access, Cable Television Service, and Wire-line
  • Voice preferably from the same Company
  • Video Chat Rooms for Video Calls, Music Videos, Infomercials, Distance
  • Education, News Clips in Residential Areas
  • Virtual Presence for Interactive Business
  • Virtual Ubiquitous Global Offices for Business
  • Virtual Private Networking, Database Access, e-Commerce
  • Instantaneous Availability of Information from Anywhere to Everywhere
broadband triple play

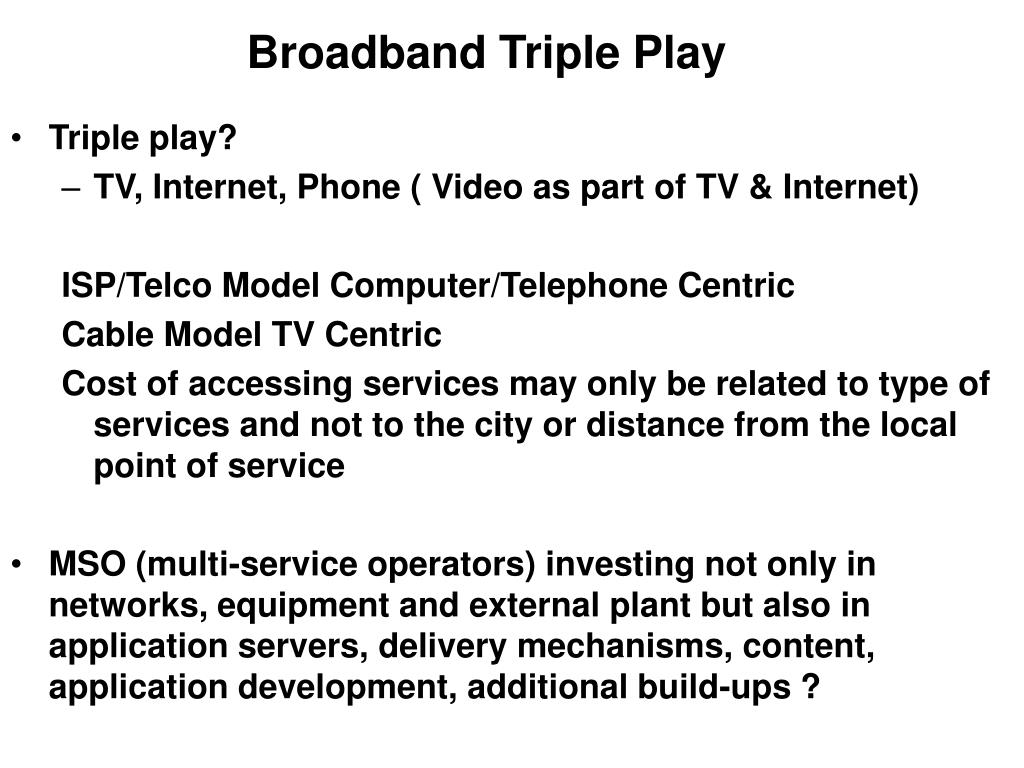

Broadband Triple Play
  • Triple play?
    • TV, Internet, Phone ( Video as part of TV & Internet)

ISP/Telco Model Computer/Telephone Centric

Cable Model TV Centric

Cost of accessing services may only be related to type of services and not to the city or distance from the local point of service

  • MSO (multi-service operators) investing not only in networks, equipment and external plant but also in application servers, delivery mechanisms, content, application development, additional build-ups ?
interesting broadband scenarios
Interesting Broadband Scenarios
  • Hong Kong Population 6.8 million, Household 2.2 million

Broadband connections 1.2 million (1.1 million house hold) 14 DSL lines/100 population; 28 DSL lines per 100 telephone lines

  • In Japan BB driven by content for different age groups
  • In Korea BB driven significantly by local content
  • Access owner- service provider - content provider
  • Revenue as ratio of investment in that order
  • In India BB may be driven by Entertainment: Interactive TV , time-shift TV, video on demand, music on demand, multiplayer gaming, education at home, sky shop rather than internet shopping. Of course net browsing and data transfer.
  • How much symmetrical !
slide6

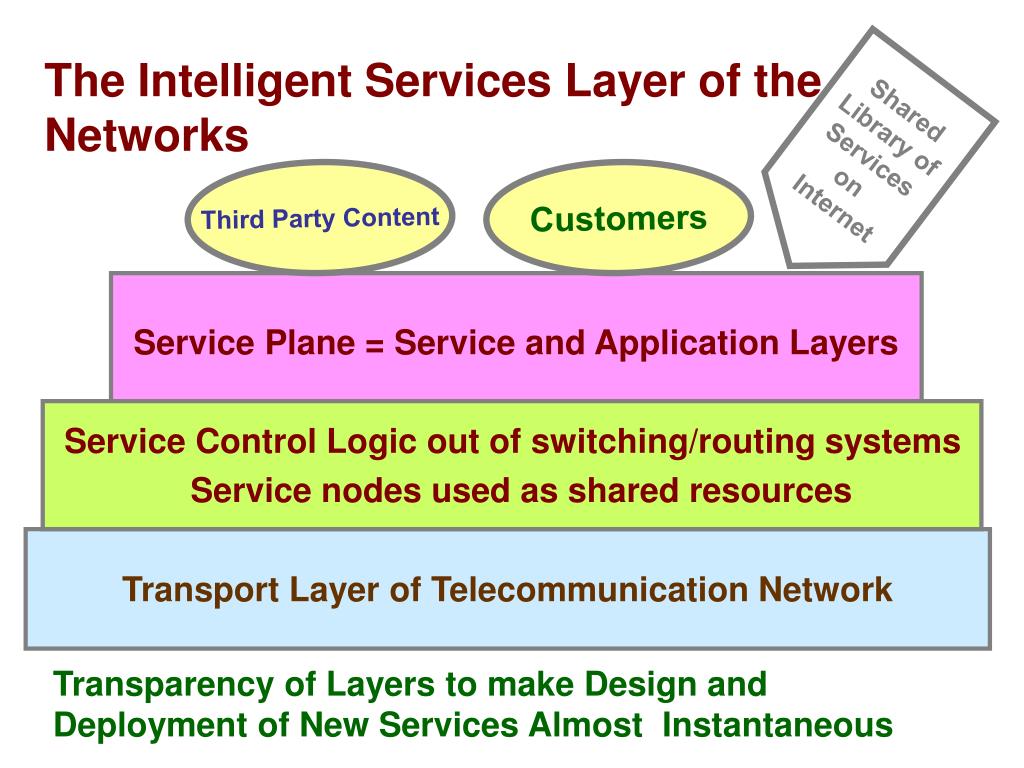

The Intelligent Services Layer of the Networks

Shared

Library of

Services

on

Internet

Third Party Content

Customers

Service Plane = Service and Application Layers

Service Control Logic out of switching/routing systems

Service nodes used as shared resources

Transport Layer of Telecommunication Network

Transparency of Layers to make Design and Deployment of New Services Almost Instantaneous

slide7

Broadband

Access

Packet NW

End point G Way

Infrastructure Gateways

Premise End Points

broadband technologies
Broadband Technologies
  • Cable
  • DSL
  • VDSL
  • FTTX, PON, GPON, EPON, APON, AON
  • PLC
  • Satellite - Return
  • LMDS
  • DTH- Return
  • Licensed Wireless FWA
  • Unlicensed Wireless WiFi, WiMAX
  • 3G Wireless
  • Beyond 3G wireless
slide9

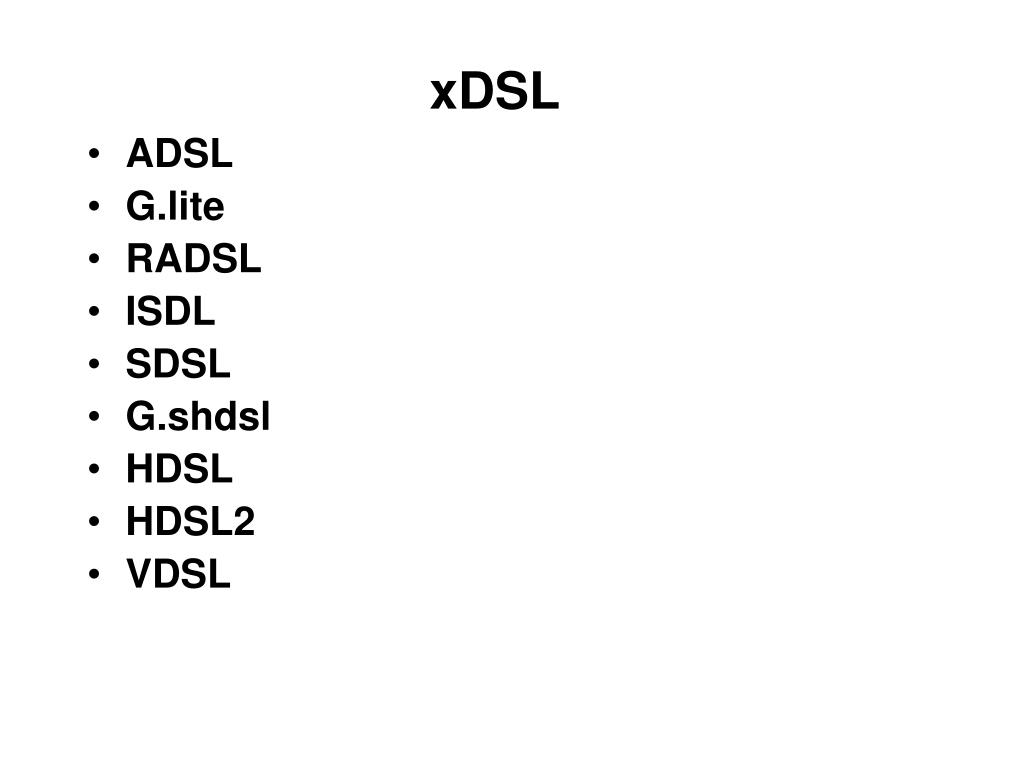

xDSL
  • ADSL
  • G.lite
  • RADSL
  • ISDL
  • SDSL
  • G.shdsl
  • HDSL
  • HDSL2
  • VDSL
slide13

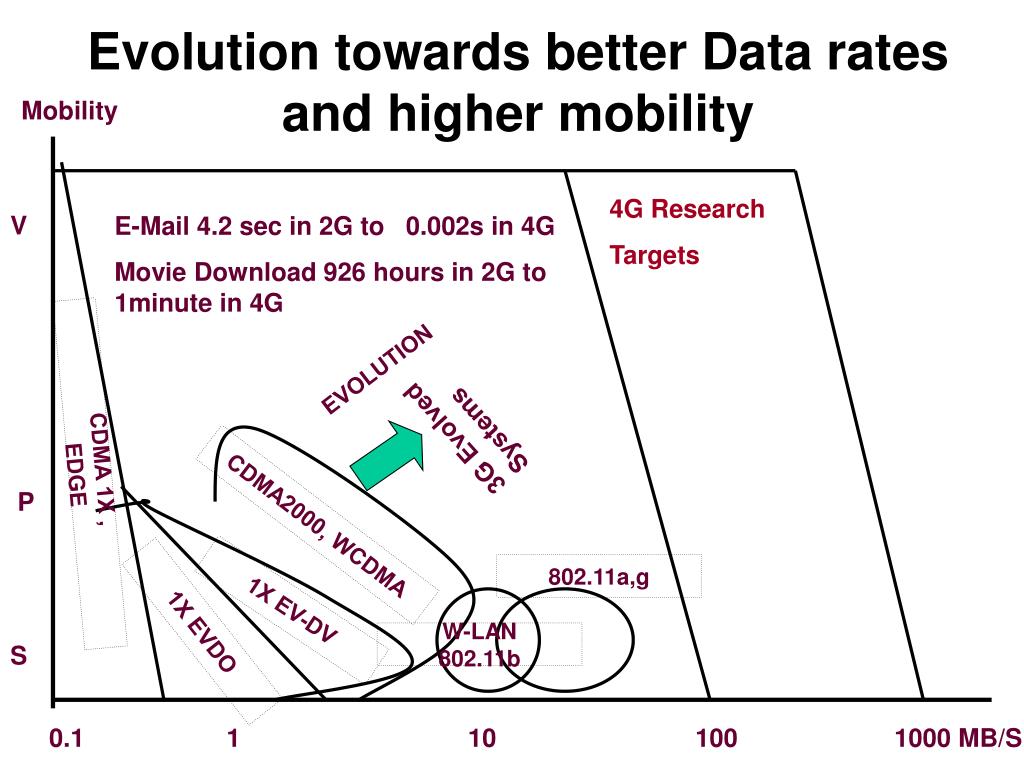

Evolution towards better Data rates and higher mobility

Mobility

V

P

S

4G Research

Targets

E-Mail 4.2 sec in 2G to 0.002s in 4G

Movie Download 926 hours in 2G to 1minute in 4G

EVOLUTION

3G Evolved Systems

CDMA 1X ,

EDGE

CDMA2000, WCDMA

802.11a,g

1X EV-DV

1X EVDO

W-LAN

802.11b

0.1 1 10 100 1000 MB/S

slide14

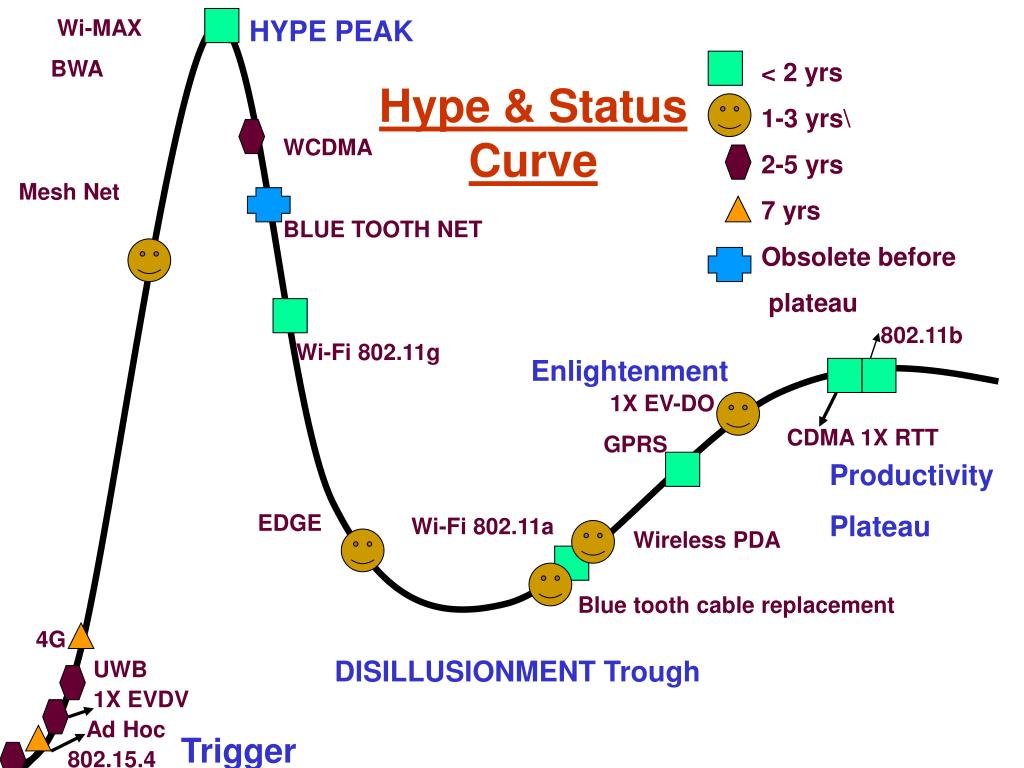

Wi-MAX

BWA

Mesh Net

HYPE PEAK

Hype & StatusCurve

< 2 yrs

1-3 yrs\

2-5 yrs

7 yrs

Obsolete before

plateau

WCDMA

BLUE TOOTH NET

Wi-Fi 802.11g

802.11b

Enlightenment

1X EV-DO

GPRS

Wi-Fi 802.11a

CDMA 1X RTT

Productivity

Plateau

EDGE

Blue tooth cable replacement

Wireless PDA

4G

UWB

1X EVDV

Ad Hoc

802.15.4

DISILLUSIONMENT Trough

Trigger

multimedia broadcasting via satellite

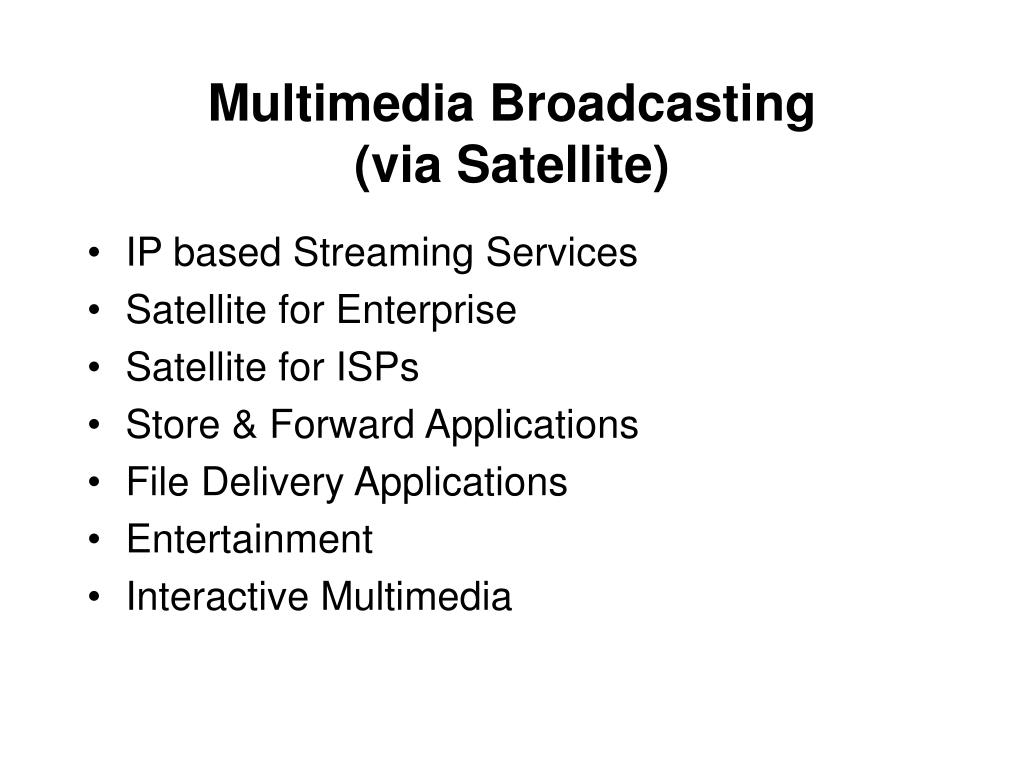

Multimedia Broadcasting(via Satellite)
  • IP based Streaming Services
  • Satellite for Enterprise
  • Satellite for ISPs
  • Store & Forward Applications
  • File Delivery Applications
  • Entertainment
  • Interactive Multimedia
slide17

Enabling Technologies

  • Software Defined Radios
  • All-IP networks and protocols
  • Ultra Wideband , variable power Hardware Radio
  • Smart antennae, MIMOs & mediation devices
  • Open platform architectures
  • High Capacity, Speed, Processing & Functionally
  • Integrated Microprocessors
  • Large Photonic Switches & Cross-Connects
  • Powerful Software Applications Technologies
  • Efficient Methods of Transport in backbone and in
  • back-haul
  • Fast Optical Routers, Generalized MPLS Protocol
slide18

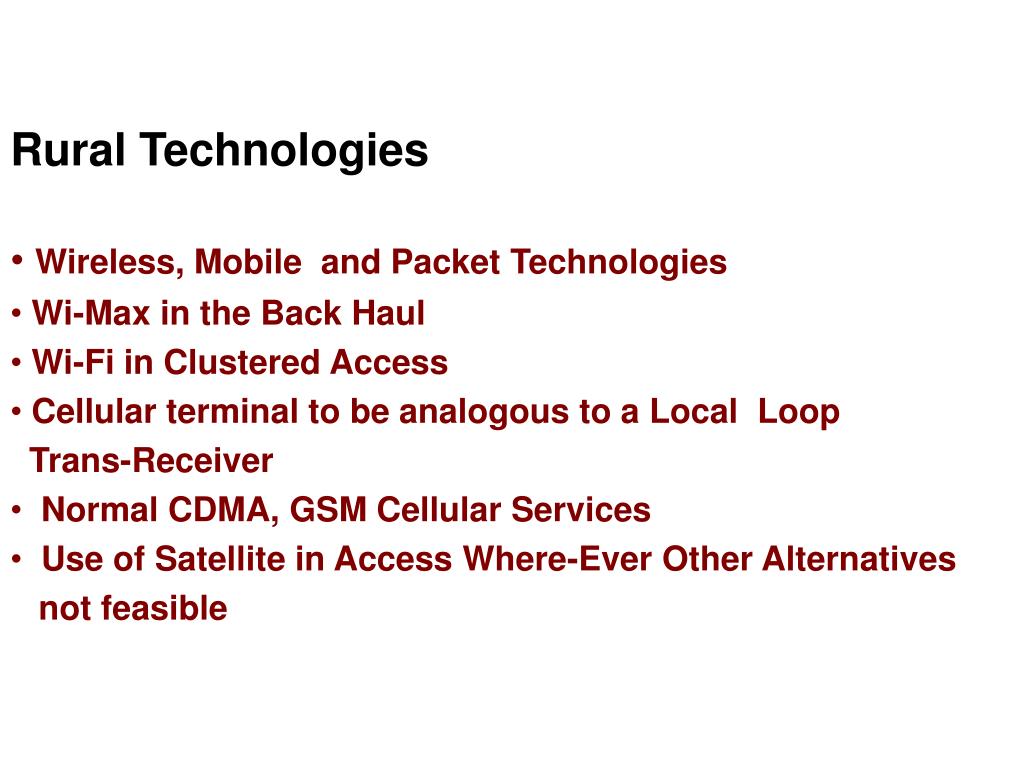

Rural Technologies

  • Wireless, Mobile and Packet Technologies
  • Wi-Max in the Back Haul
  • Wi-Fi in Clustered Access
  • Cellular terminal to be analogous to a Local Loop
  • Trans-Receiver
  • Normal CDMA, GSM Cellular Services
  • Use of Satellite in Access Where-Ever Other Alternatives
  • not feasible
slide19

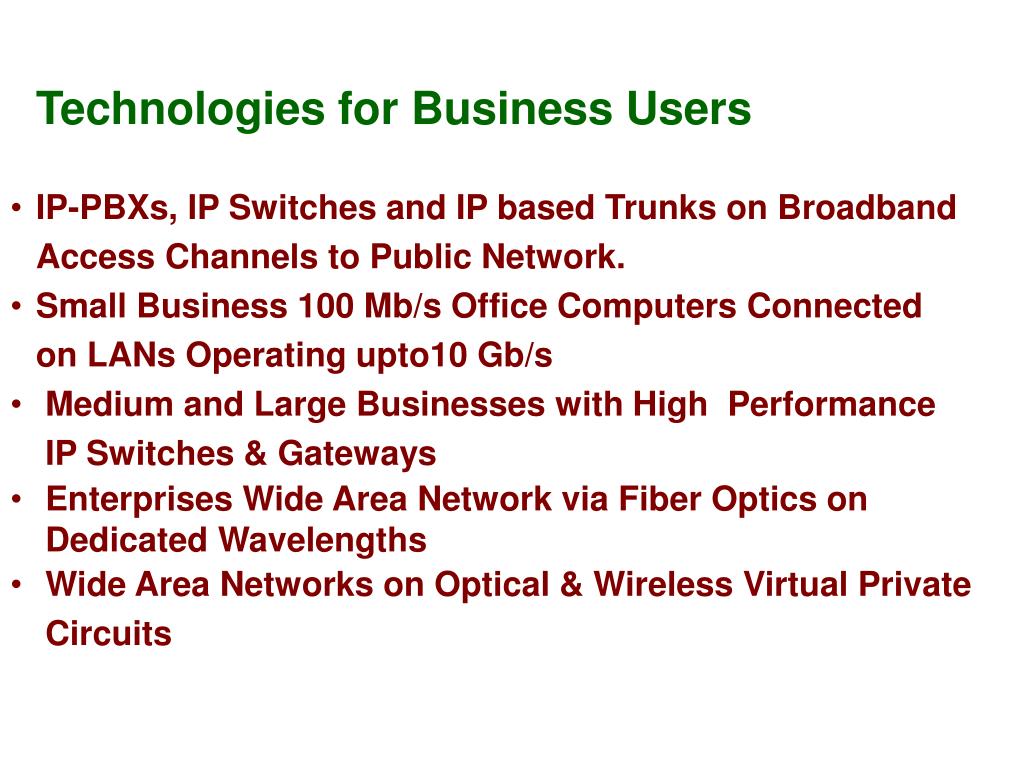

Technologies for Business Users

  • IP-PBXs, IP Switches and IP based Trunks on Broadband
  • Access Channels to Public Network.
  • Small Business 100 Mb/s Office Computers Connected
  • on LANs Operating upto10 Gb/s
  • Medium and Large Businesses with High Performance
  • IP Switches & Gateways
  • Enterprises Wide Area Network via Fiber Optics on
  • Dedicated Wavelengths
  • Wide Area Networks on Optical & Wireless Virtual Private
  • Circuits
issues

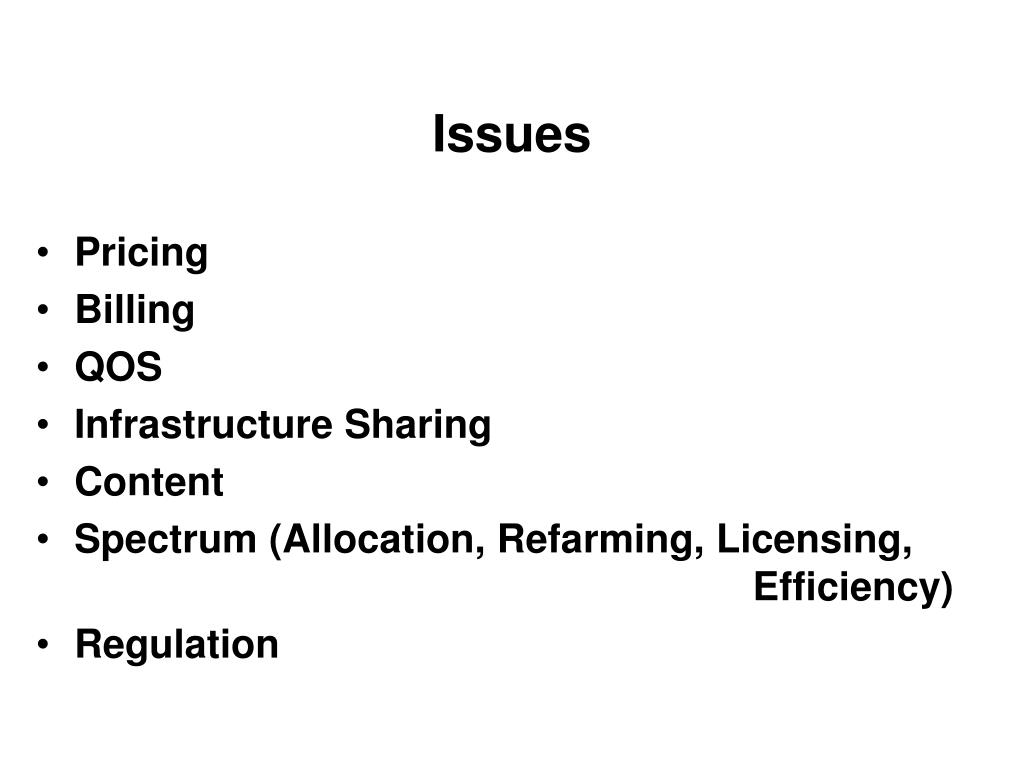

Issues
  • Pricing
  • Billing
  • QOS
  • Infrastructure Sharing
  • Content
  • Spectrum (Allocation, Refarming, Licensing, Efficiency)
  • Regulation
