Presentation Transcript
Data entry devices l.jpg
Data Entry Devices

  • Introduction

    • Keyboard entry devices are superior to other devices such as knobs, levers, and thumb wheels.

    • Speed and accuracy are dependent on the quality of data given to the operator, based on the following criteria:

    • Messages of the 10 numbers presented in random order are not entered more rapidly than those of the full 26 letters

  • The operator is familiar with the format of the information to be entered

  • Upper- and lowercase characters are used for written text

  • Long messages or strings of digits are entered as chunks


Keyboards l.jpg
Keyboards

  • Chord versus Sequential Keyboards

    • Chord keyboards require activation of one or more keys simultaneously (stenotype machines or pianos)

    • Sequential keyboards are the standard type, where there is a specific key for for each character

    • Chord keyboards are very good for one-handed data entry

    • Chord keyboards are much harder to learn, but tend to be faster.

    • There is no particular need for general-purpose chord keyboards, as sequential keyboards fulfill most requirements

    • For special situations, chord keyboards can be superior


Keyboards3 l.jpg
Keyboards

  • Alphabetic Keyboards

    • QWERTY keyboards were designed to slow the typing process

    • The best alternative was the Dvorak keyboard (Figure 11-19)

    • QWERTY is entrenched in our present society, and is unlikely to change

  • Numeric Keyboards

    • There are two primary numeric keypads in use today:

    • The only differences between the two is for occasional users, who will do better with the telephone layout

  • Calculator Layout

  • Telephone Layout

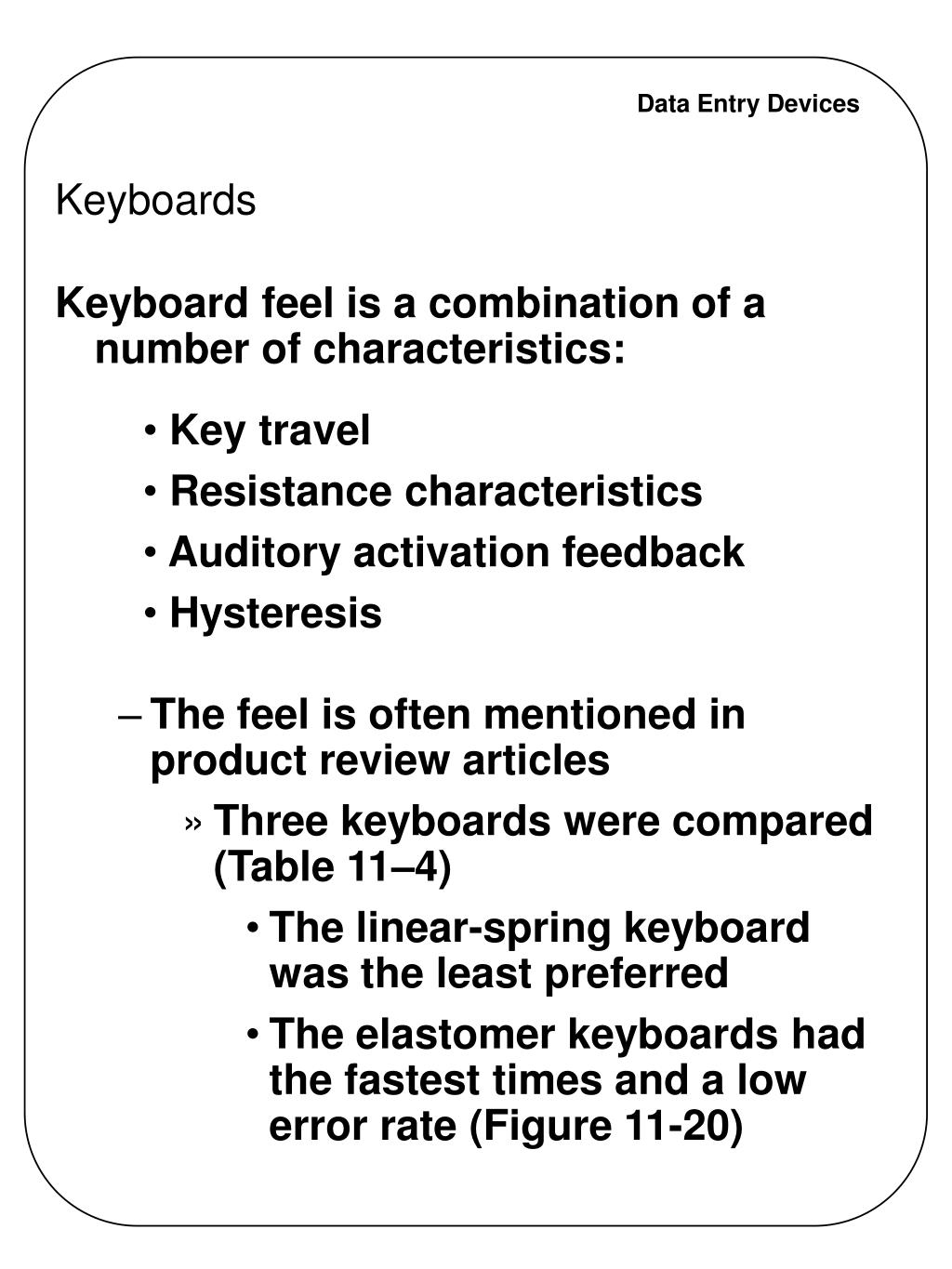

Keyboards4 l.jpg
Keyboards

  • Keyboard feel is a combination of a number of characteristics:

    • The feel is often mentioned in product review articles

      • Three keyboards were compared (Table 11–4)

        • The linear-spring keyboard was the least preferred

        • The elastomer keyboards had the fastest times and a low error rate (Figure 11-20)

  • Key travel

  • Resistance characteristics

  • Auditory activation feedback

  • Hysteresis


Keyboards5 l.jpg
Keyboards

  • Membrane Keypads

    • Used in the consumer market, in microwaves, for example

    • Consist of contacts separated by a thin non-conductive layer

    • Key travel is virtually nonexistent

    • To reduce accidental activation, often more force is required

    • The contact areas are often difficult to locate

    • With practice, the keypads become easier to use

    • Three feedback procedures were used to aid the user:

  • Auditory tone, for activation

  • Embossing, for finger-position

  • Snap domes, to provide both forms of feedback


Keyboards6 l.jpg
Keyboards

  • Split and tilted keyboards

    • Normal keyboards require the hands bend outward (Figure 11-22)

    • This can lead to tenosynovitis and eventually CTS

    • People become accustomed to the designs quickly, and prefer them

  • Handwritten and Gestural Data Entry

    • The technology has become possible for computers to translate handwriting into computer text

    • At present, it is slow and more error-prone

    • Gestural inputs have been used for text-editing tasks

    • Figure 11- 24

    • When successfully implemented, gestural inputs are faster than those with a keyboard

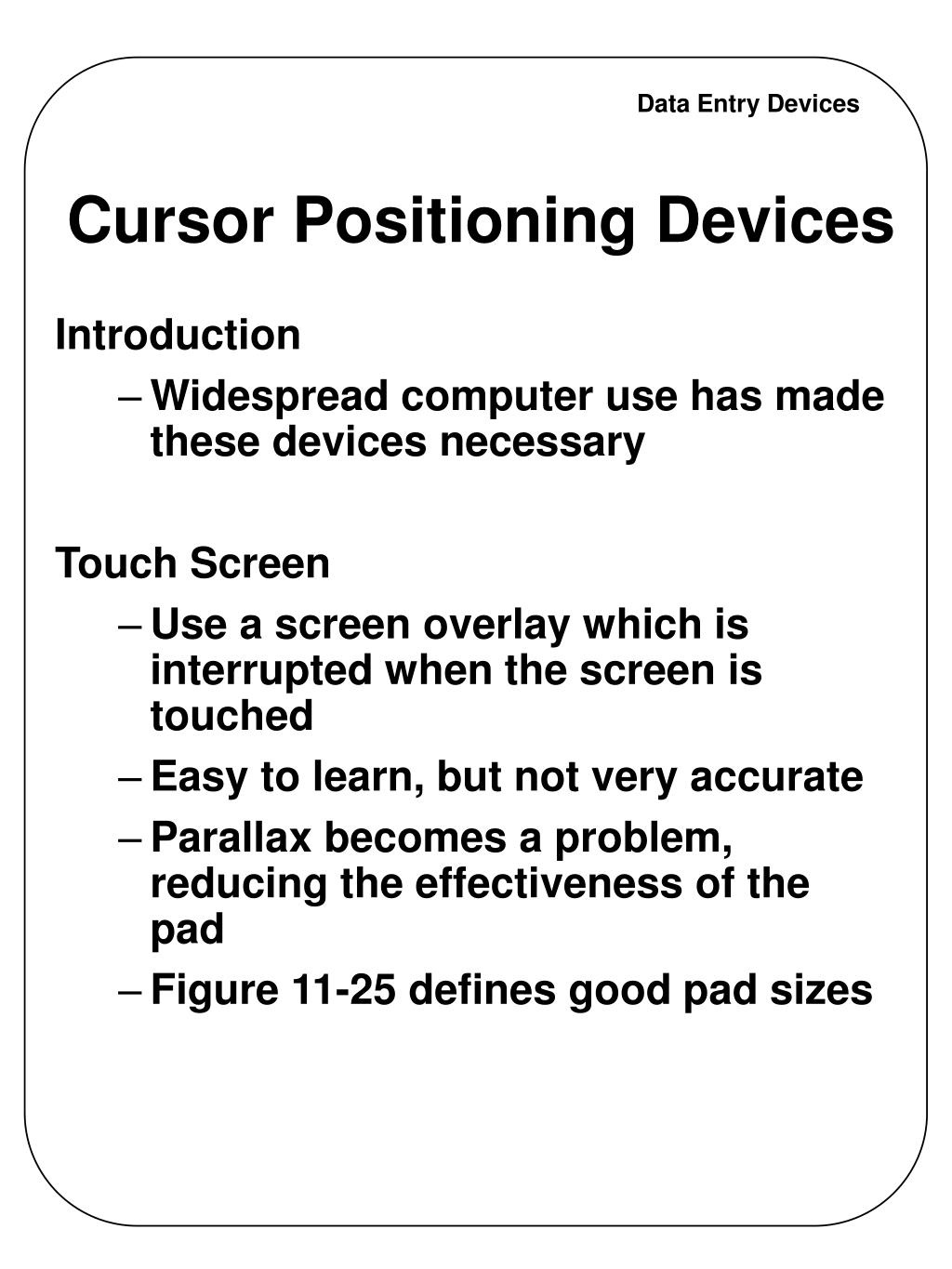

Cursor positioning devices l.jpg
Cursor Positioning Devices

  • Introduction

    • Widespread computer use has made these devices necessary

  • Touch Screen

    • Use a screen overlay which is interrupted when the screen is touched

    • Easy to learn, but not very accurate

    • Parallax becomes a problem, reducing the effectiveness of the pad

    • Figure 11-25 defines good pad sizes

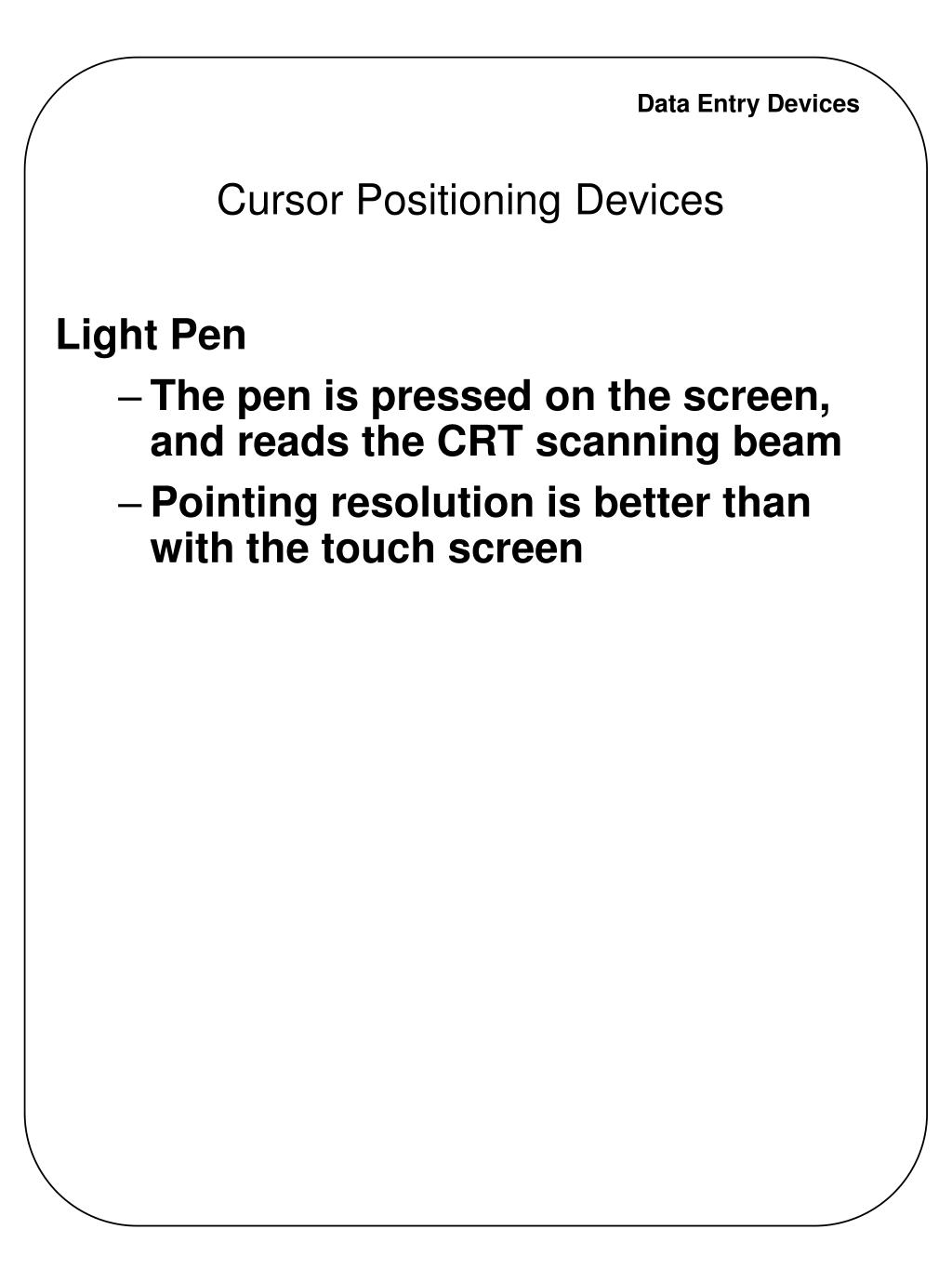

Cursor positioning devices8 l.jpg
Cursor Positioning Devices

  • Light Pen

    • The pen is pressed on the screen, and reads the CRT scanning beam

    • Pointing resolution is better than with the touch screen


Cursor positioning devices9 l.jpg
Cursor Positioning Devices

  • Graphics Tablet

    • Position of tablet reduces arm fatigue over a touch screen

    • Digitizing Tablets offer the benefits of a light pen without the fatigue problem

    • Two types of positioning:

    • Absolute positioning is faster and more accurate with a small gain

    • Figure 11-26 shows this relationship

    • A lead-lag compensation system gives better speeds with only slightly higher error rates

  • Relative positioning

  • Absolute positioning


Cursor positioning devices10 l.jpg
Cursor Positioning Devices

  • Mouse

    • A mouse is easy and fast to use, and it is a relative positioning system

    • A clear space near the computer is required to operate it

  • Other Cursor Positioning Devices

    • Keyboards

    • Joysticks

    • Trackballs


Cursor positioning devices11 l.jpg
Cursor Positioning Devices

  • Comparison of Cursor Positioning Devices

    • There is a tradeoff between accuracy and speed (Table 11-5)

    • The selection of the best device must take into account the relative importance between speed and accuracy

    • The mouse was found to be the fastest and most accurate in a text-editing task

    • In another task, the mouse and trackball were found to be the best

    • Such features as C/R ratio, physical size, and feedback have not yet been systematically investigated


Special control devices l.jpg
Special Control Devices

  • Introduction

    • New devices are replacing standard control devices

  • Teleoperators

    • Teleoperators are remotely controlled devices that augment the physical skills of the operator

    • Today they are used for handling dangerous materials or working in hostile environments

    • Human Factors considerations

  • Lack of physical feedback

  • Deny visual access

  • Often lack binocular vision

  • Time delays for large separations

  • Design of controls for complex effector


Special control devices13 l.jpg
Special Control Devices

  • Speech-Activated Control

    • Advantages:

    • Applications for Speech Recognition:

  • Operator not tied to console

  • Hands are free

  • Data entry occurs simultaneously with other tasks

  • Operator moves around while entering data

  • Well suited for use by the handicapped


Special control devices14 l.jpg
Special Control Devices

  • Types of Speech Recognition Systems

  • Speaker independent systems are classed as follows:

  • These systems are limited, with small vocabularies

  • Speaker dependent

  • Speaker independent

  • isolated-word

  • connected-word

  • continuous-speech


Special control devices15 l.jpg
Special Control Devices

  • Speaker dependent, isolated-word systems

  • Performance of Speech Recognition Systems

    • Performance of a good system is as good or better than keyboard data entry, although error rates may be higher

  • 20 to 200 word vocabularies

  • Maximally discriminable vocabularies have a great advantage

  • Each word must be set off with pauses (training required)

  • Systems require 4 repetitions of each word to generate an accurate vocabulary


Special control devices16 l.jpg
Special Control Devices

  • Eye-Activated Control

    • To date, most eye-control applications have been in the military

    • A helmet is used to track eye movements, and a voice activation is used to actuate the command

    • Accuracy of eye positioning has been found to be ±10 min of Visual Angle in the center of the visual field


Special control devices17 l.jpg
Special Control Devices

  • Disadvantages of eye control:

  • Overburdening of the visual system

  • Control is difficult in a vibrating or accelerating environment

  • Visual distractions can degrade performance

  • Median total activation times of 1.5 to 1.7 seconds

  • Delays inherent in the speech recognition system result in slower times when voice is used to accept the eye-controlled selection
