  1. XMLExtensible Markup Language

  2. XML • The World Wide Web Consortium's (W3C's) XML Working Groupdeveloped XML(Extensible Markup Language), • which is derived from Standard Generalized Markup Language (SGML), • in 1996. • XML is for electronic data exchange and storage. • A widely supported open technology (i.e., nonproprietary) • A language used to create other markup languages to describe data in a structured manner.

  3. What is XML? • XML is the Extensible Markup Language. • Language for creating markup languages • Mathematical formulas • Molecular structure of chemicals • Music • Recipes • Create new tags • Used for Storing Data in structured manner. • Not a Formatting Language. • Describes data of virtually any type. • Not just for Web pages. • Defined by W3C to be application and vender neutral in 1996.

  4. XML describes structure and semantics, not formatting • XML documents contain only data and • Structure markups, • Not formatting. • Formatting can be added with: • a browser that knows how to render these knew marked-up data. • a style sheet (css). • an Extensible Stylesheet Language (XSL).

  5. Element article is the root element. XML declaration. Elements title, date, author, summary and content are child elements of article. 1 <?xml version = "1.0"?> 2 3 <!-- Fig. 20.1: article.xml --> 4 <!-- Article structured with XML --> 5 6 <article> 7 8 <title>Simple XML</title> 9 10 <date>September 19, 2001</date> 11 12 <author> 13 <firstName>Tem</firstName> 14 <lastName>Nieto</lastName> 15 </author> 16 17 <summary>XML is pretty easy.</summary> 18 19 <content>Once you have mastered XHTML, XML is easily 20 learned. You must remember that XML is not for 21 displaying information but for managing information. 22 </content> 23 24 </article> Article.xml

  6. 1 <?xml version = "1.0"?> 2 3 <!-- Fig. 20.1: article.xml --> 4 <!-- Article structured with XML --> 5 <?xml-stylesheet type="text/css" href="article.css"?> 6 <article> 7 8 <title>Simple XML</title> 9 10 <date>September 19, 2001</date> 11 12 <author> 13 <firstName>Tem</firstName> 14 <lastName>Nieto</lastName> 15 </author> 16 17 <summary>XML is pretty easy.</summary> 18 19 <content>Once you have mastered XHTML, XML is easily 20 learned. You must remember that XML is not for 21 displaying information but for managing information. 22 </content> 23 24 </article> Article.xml

  7. Rendering XML documents using CSS“article.css” title { display: block; font-family: Helvetica, Arial, sans; font-size: 32pt; font-weight: bold; text-align: center} date { font-family: New York, Times New Roman, serif; font-size: 24pt; background-color: white; color: green; display: block } author { font-family: New York, Times New Roman, serif; font-size: 14pt; background-color: white; color: black; display: block } content { font-family: courier; font-size: 14pt; background-color: white; color: blue }

  8. 1 <?xml version = "1.0"?> 2 3 <!-- Fig. 20.1: article.xml --> 4 <!-- Article structured with XML --> 5 <?xml-stylesheet type="text/css" href="article.xsl"?> 6 <article> 7 8 <title>Simple XML</title> 9 10 <date>September 19, 2001</date> 11 12 <author> 13 <firstName>Tem</firstName> 14 <lastName>Nieto</lastName> 15 </author> 16 17 <summary>XML is pretty easy.</summary> 18 19 <content>Once you have mastered XHTML, XML is easily 20 learned. You must remember that XML is not for 21 displaying information but for managing information. 22 </content> 23 24 </article> Article.xml

  9. Rendering XML documents using XSL“article.xsl” <?xml version="1.0"?> <xsl:stylesheet xmlns:xsl="http://www.w3.org/TR/WD-xsl"> <xsl:template match="/"> <html> <body> <h1> <font color="RED"> <xsl:value-of select="article"/> </font> </h1> </body> </html> </xsl:template> </xsl:stylesheet>

  10. Create Markup • XML permits document authors to create markup for virtually any type of information. • This extensibility enables document authors to create entirely new markup languages for describing specific types of data, including • mathematical formulas, • chemical molecular structures, • music, recipes, etc. • Some XML-based markup languages include: • XHTML (Chapters 4 and 5), • MathML (for mathematics), • VoiceXMLTM (for speech), • SMILTM (Synchronous Multimedia Integration Language-for multimedia presentations), • CML (Chemical Markup Language-for chemistry) and • XBRL (Extensible Business Reporting Language-for financial data exchange).

  11. Rendering: http://www.xml.com/style/ IE Amaya FO

  12. XML Parser • Processing an XML document requires a software program called an XML parser(or an XML processor). • Most XML parsers are available at no charge and for a variety of programming languages (such as Java, python, C++, etc.). • Parsers check an XML document's syntax and enable software programs to process marked-up data. • XML parsers can support • the Document Object Model (DOM) or • the Simple API for XML (SAX).

  13. DOM-basedparsers • DOM-based parsers build tree structures containing XML document data in memory. • DOM-based parsers enable software programs to manipulate data in an XML document.

  14. SAX-basedparsers • SAX-based parsers process XML documents and generate events when the parser encounters tags, text, comments, etc. • These events contain data from the XML document. • Software programs can "listen" for these events to obtain data from the XML document. • Several Independent Software Vendors have developed XML parsers, which can be found at www.xml.com/xml/pub/Guide/XML_Parsers

  15. XML document's structure • An XML document optionally can reference a document that defines that XML document's structure. • This document is either a Document Type Definition (DTD)or a schema. • When an XML document references a DTD or schema, some parsers (called validating parsers) can read the DTD/schema and check that the XML document follows the structure that the DTD/schema defines. • Parsers that cannot check for document conformity against DTD/schemas are nonvalidating parsers.

  16. valid , nonvalid, well formed • If the XML document conforms to the DTD/schema (i.e., the document has the appropriate structure), the XML document is valid. • If the XML document does not conform to the DTD/schema, the XML document is nonvalid. • If an XML parser (validating or non-validating) can process an XML document successfully, that XML document is well formed(i.e., it is syntactically correct). • By definition, a valid XML document also is well-formed.

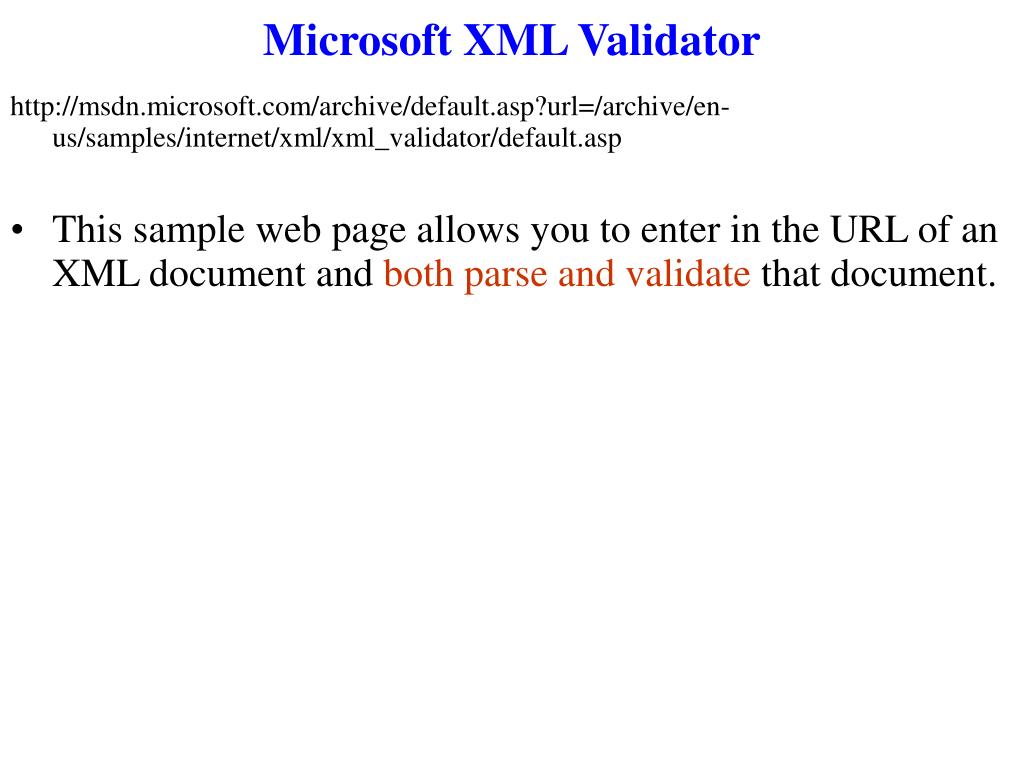

  17. Microsoft XML Validator http://msdn.microsoft.com/archive/default.asp?url=/archive/en-us/samples/internet/xml/xml_validator/default.asp • This sample web page allows you to enter in the URL of an XML document and both parse and validate that document.

  18. CML • CML Web based application – CML Molecules Viewer: http://www.xml-cml.org/jumbo3/jumbo3-JS/jumbo.html http://www.xml-cml.org/ http://www.xml-cml.org/jumbo3/jumbo3-JS/

  19. SVG • Scalable Vector Graphics (SVG) is an exciting new XML-based language for Web graphics from the World Wide Web Consortium (W3C). http://www.adobe.com/svg/ http://www.adobe.com/svg/demos/samples.html

  20. XML Basics http://www.ibiblio.org/xml/slides/sd99east/basics/ • XML FAQ: http://www.ucc.ie/xml/
