Digital type (4wires) diagram

Digital type (4wires) diagram. 10 wires 9 wires + DC 24V adaptor (+) wire is added. CONEXION (CABLEADO). PB-500. 2 CABLES (Amarillo-azul, Rojo-Rojo). 4 CABLES. 4 CABLES. JNS-4CS. JNS-4CS. JNS-3000C. 2 CABLES (Amarillo-azul, Rojo-Rojo). 2 CABLES (Azul-Azul, Rojo - Rojo). 2 CABLES

jamuna
Download Presentation

Digital type (4wires) diagram

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Digital type (4wires) diagram 10 wires 9 wires + DC 24V adaptor (+) wire is added

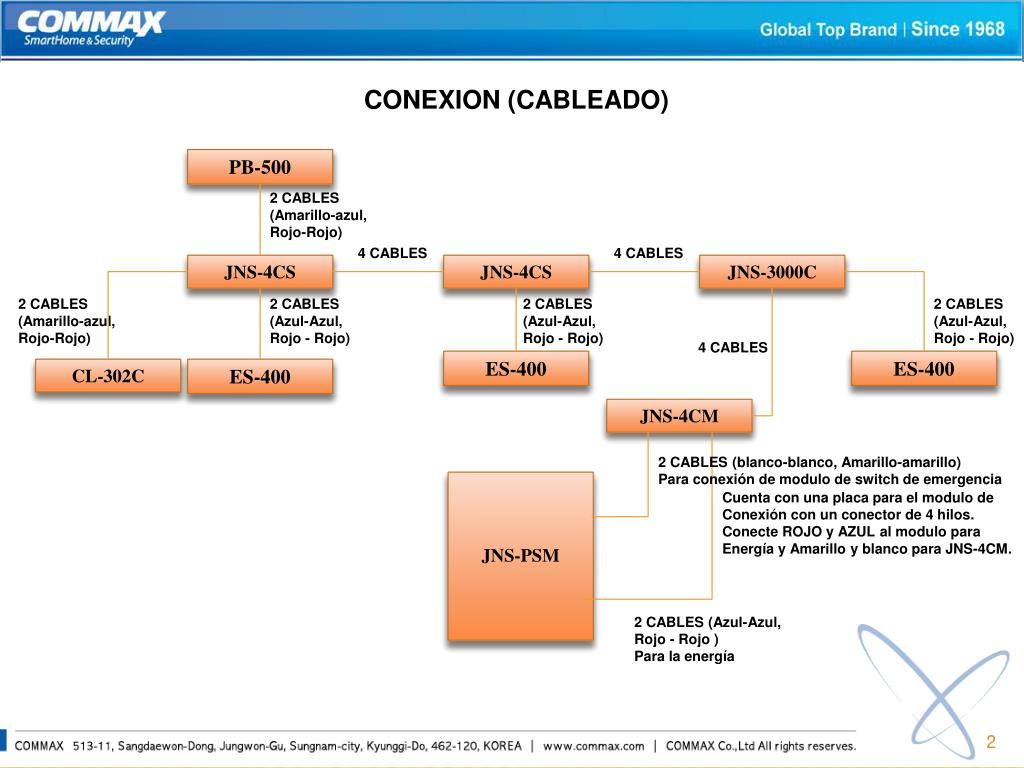

  2. CONEXION (CABLEADO) PB-500 2 CABLES (Amarillo-azul, Rojo-Rojo) 4 CABLES 4 CABLES JNS-4CS JNS-4CS JNS-3000C 2 CABLES (Amarillo-azul, Rojo-Rojo) 2 CABLES (Azul-Azul, Rojo - Rojo) 2 CABLES (Azul-Azul, Rojo - Rojo) 2 CABLES (Azul-Azul, Rojo - Rojo) 4 CABLES ES-400 ES-400 CL-302C ES-400 JNS-4CM 2 CABLES (blanco-blanco, Amarillo-amarillo) Para conexión de modulo de switch de emergencia JNS-PSM Cuenta con una placa para el modulo de Conexión con un conector de 4 hilos. Conecte ROJO y AZUL al modulo para Energía y Amarillo y blanco para JNS-4CM. 2 CABLES (Azul-Azul, Rojo - Rojo ) Para la energía
