  1. Image Gallery NanoDynamics Systems Lab Iowa State University

  2. Yeast on Agar

  3. Square Gratings: 20nm Height Probe Loss: ‘Dead Zones’ of AFM Imaging

  4. Dynamic Gain Adjustment for dead zones Improvement in probe loss without sacrificing on sample behavior

  5. Graphite Surface Atomic Terraces on graphite surface Step heights: Multiples of 3.4 Angstrom

  6. Atomic Structures on Mica Surface • 4nm x 4nm image of mica surface • Average particle size: 4 angstrom

  7. Nano Particles: Comparable to size of Virus

  8. Lambda DNA: Tapping Mode (Air)

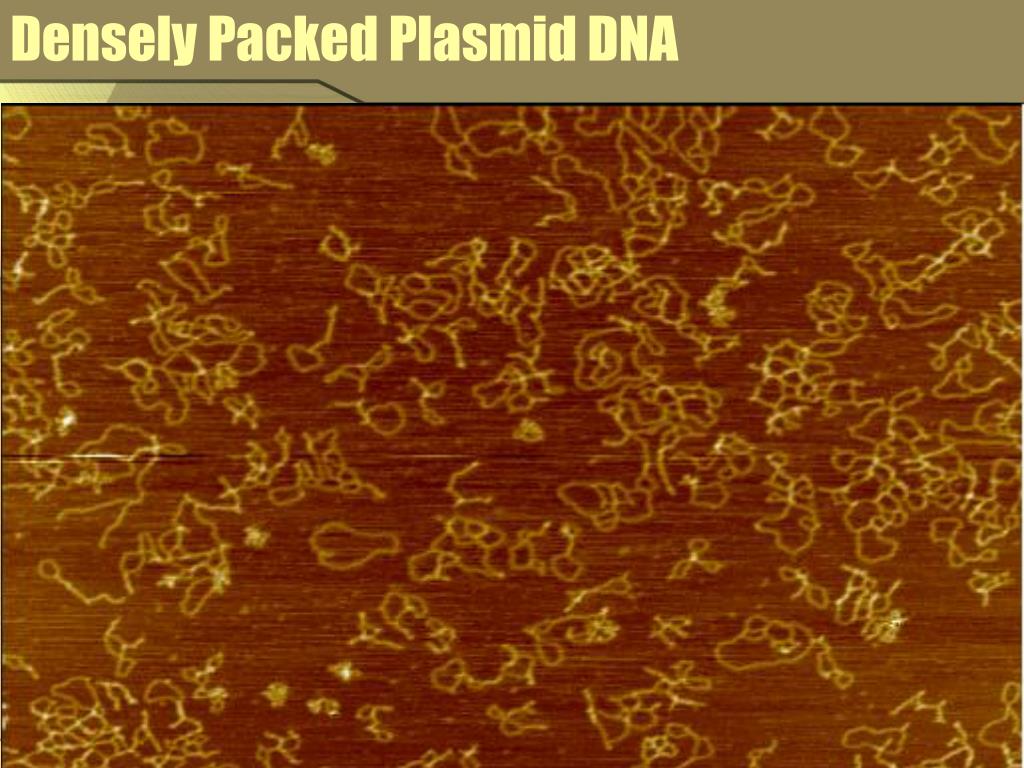

  9. Densely Packed Plasmid DNA

  10. Plasmid DNA Plasmid DNA: Amplitude image

  11. The End
