Electrical Safety. References. National Electric Code. 29 CFR 1910 Subpart S. References. 29 CFR 1910.137. Terms used. NEC - National Electric Code CFR - Codes of Federal Regulations 3M Program - Material Maintenance Management GFCI - Ground Fault Circuit Interrupter

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Electrical Safety' - jamar


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
slide2

References

National Electric Code

29 CFR 1910 Subpart S

slide3

References

29 CFR 1910.137

terms used

Terms used

NEC - National Electric Code

CFR - Codes of Federal Regulations

3M Program - Material Maintenance Management

GFCI - Ground Fault Circuit Interrupter

BMS - Building Maintenance Supervisor

national electric code 29 cfr 1910 subpart s

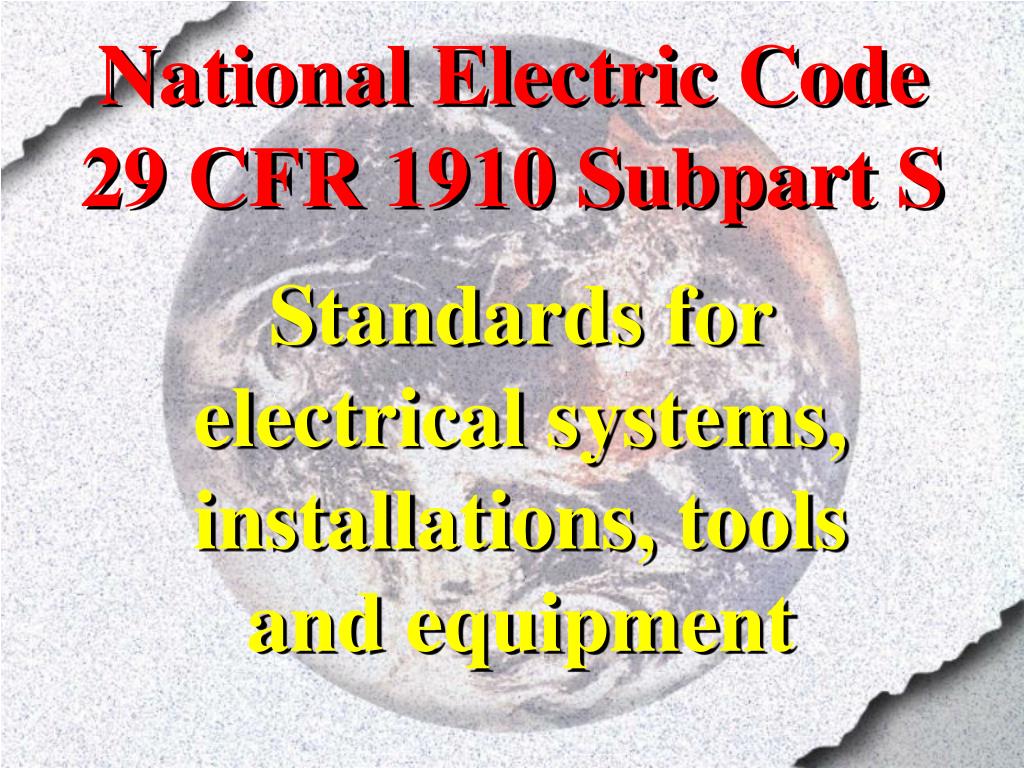

National Electric Code29 CFR 1910 Subpart S

Standards for electrical systems, installations, tools and equipment

opnavinst 5100 23 series opnavinst 5100 19 series

OPNAVINST 5100.23 seriesOPNAVINST 5100.19 series

Shore and afloat safety program manuals

29 cfr 1910 137

29 CFR 1910.137

Testing and inspection of electrically insulated gloves.

spawarinst 5100 9 series

SPAWARINST 5100.9 series

Maintenance and repair of electronic equipment ashore

policy

Policy

A command supported electrical safety program shall be established. Activities are required to comply with Material Maintenance Management (3M) provisions, if applicable. Additionally, classroom spaces which are directly related to fleet training evolutions must comply with applicable provisions of OPNAVINST 5100.19 (series) and NSTM chapter 300, as applicable.

continued

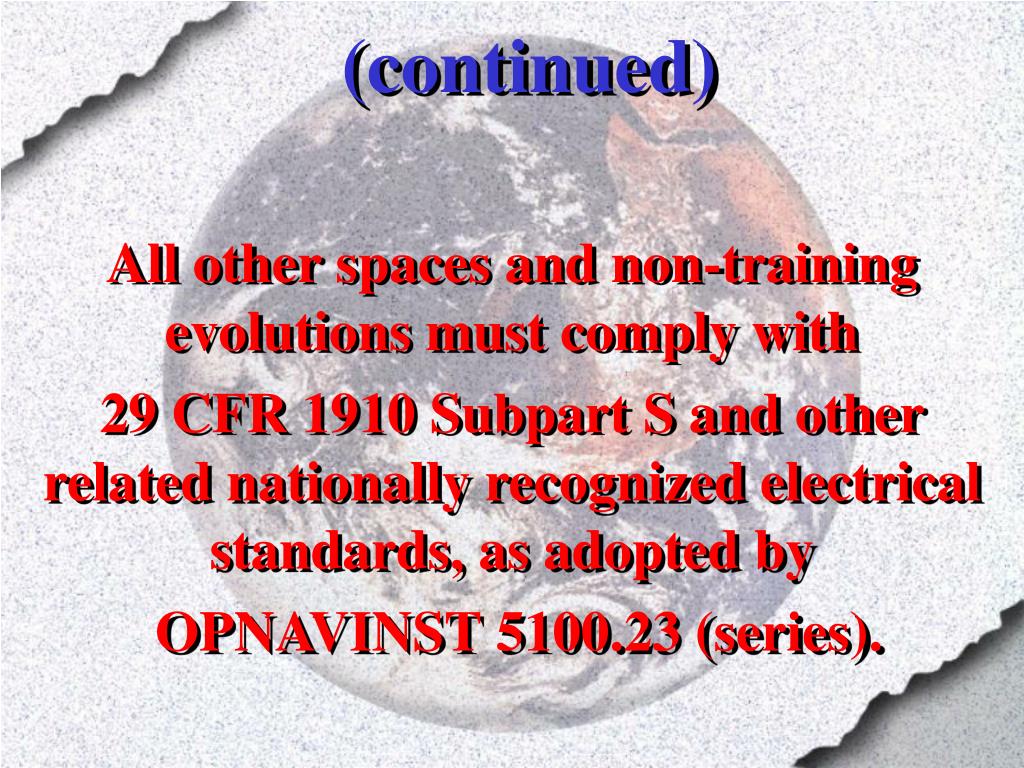

(continued)

All other spaces and non-training evolutions must comply with

29 CFR 1910 Subpart S and other related nationally recognized electrical standards, as adopted by

OPNAVINST 5100.23 (series).

continued11

(continued)

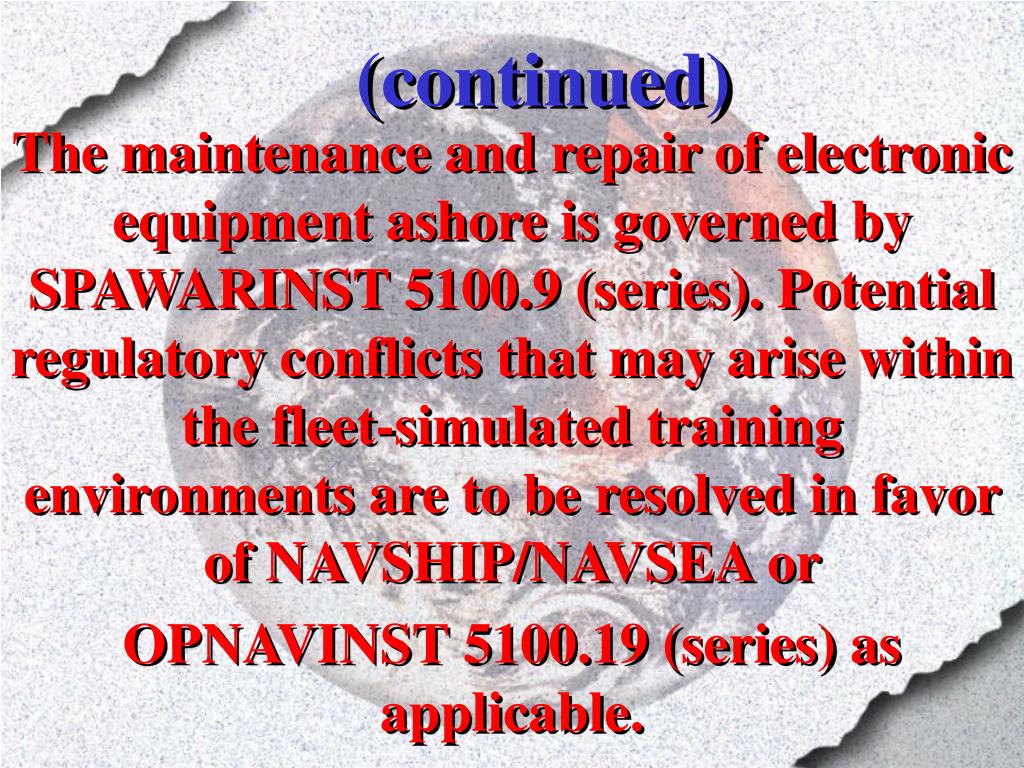

The maintenance and repair of electronic equipment ashore is governed by SPAWARINST 5100.9 (series). Potential regulatory conflicts that may arise within the fleet-simulated training environments are to be resolved in favor of NAVSHIP/NAVSEA or

OPNAVINST 5100.19 (series) as applicable.

a electrical safety program is

A Electrical Safety program is…...

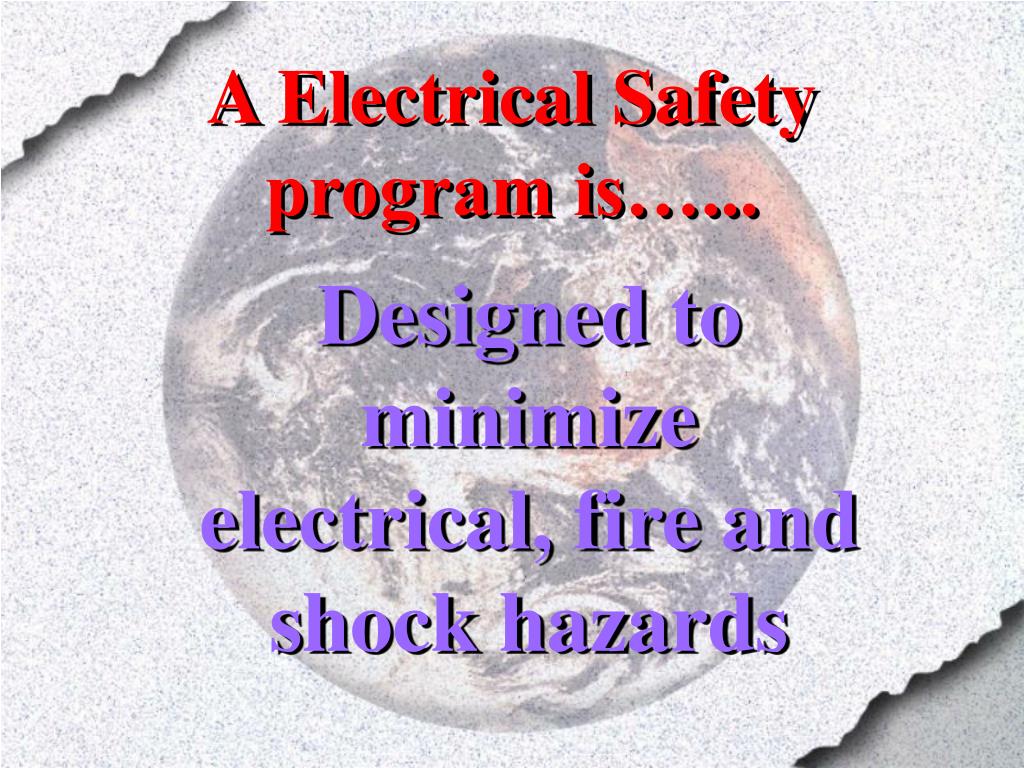

Designed to minimize electrical, fire and shock hazards

poor tension

Poor Tension…...

Electrical receptacles that have poor tension increases resistance which eventually results in an electrical arc or fire.

slide14
To protect personnel against short circuits, the grounding contact tension must be maintained so the grounding path is not breached.
slide15

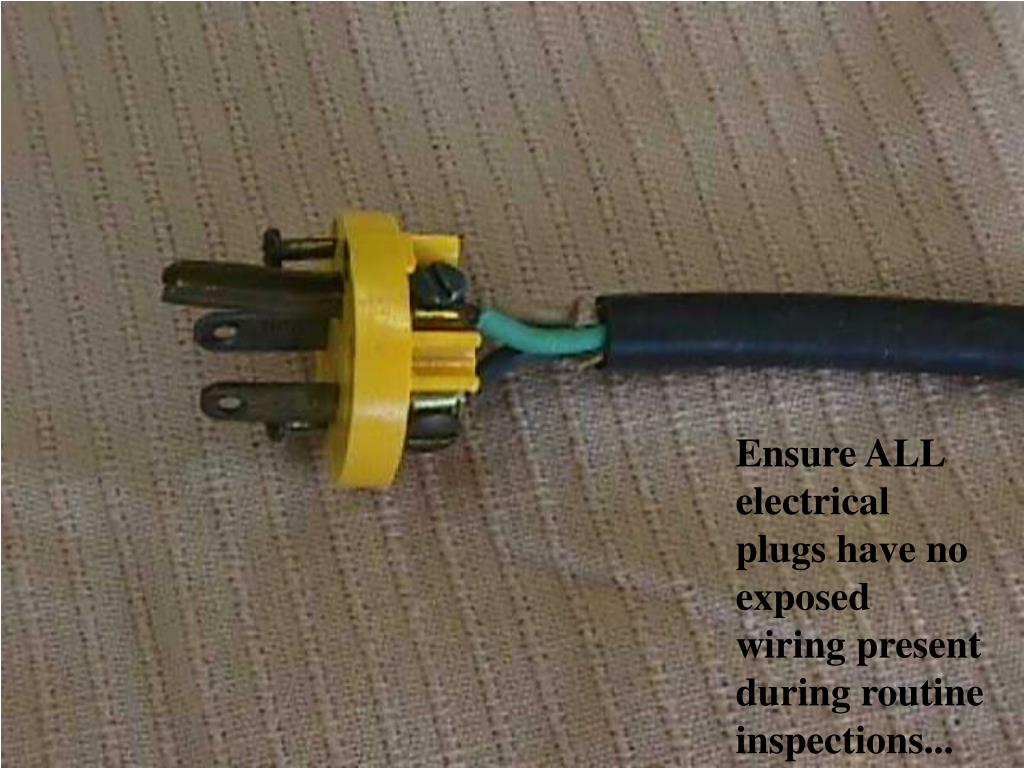

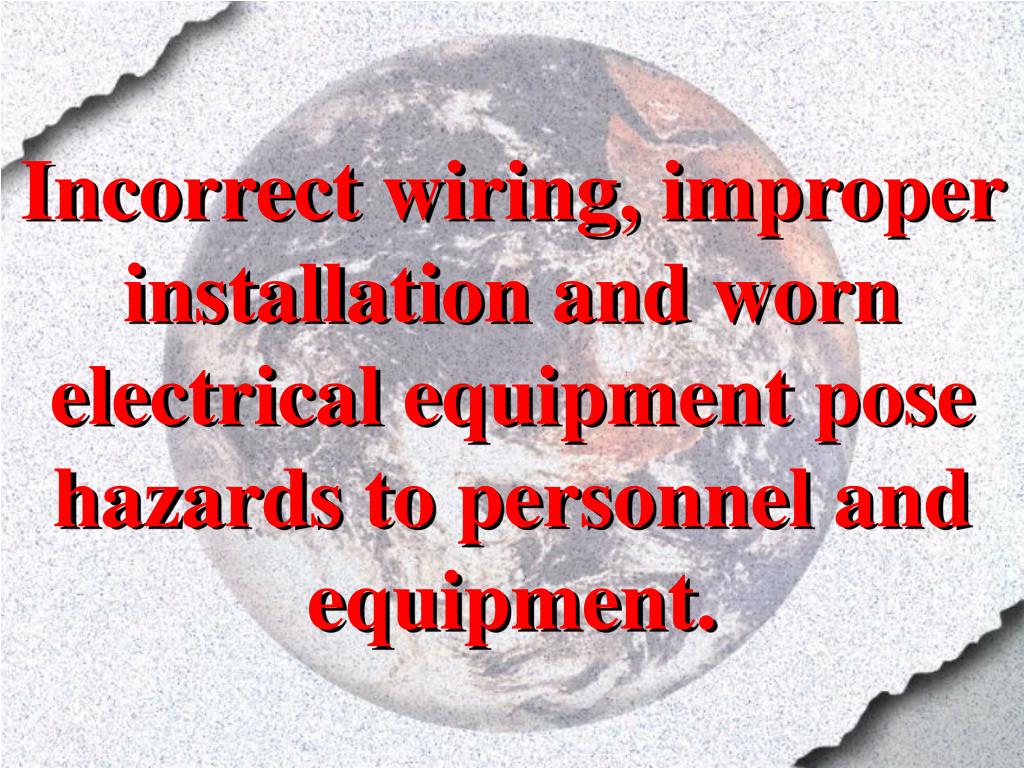

Incorrect wiring, improper installation and worn electrical equipment pose hazards to personnel and equipment.

electrical receptacle requirements

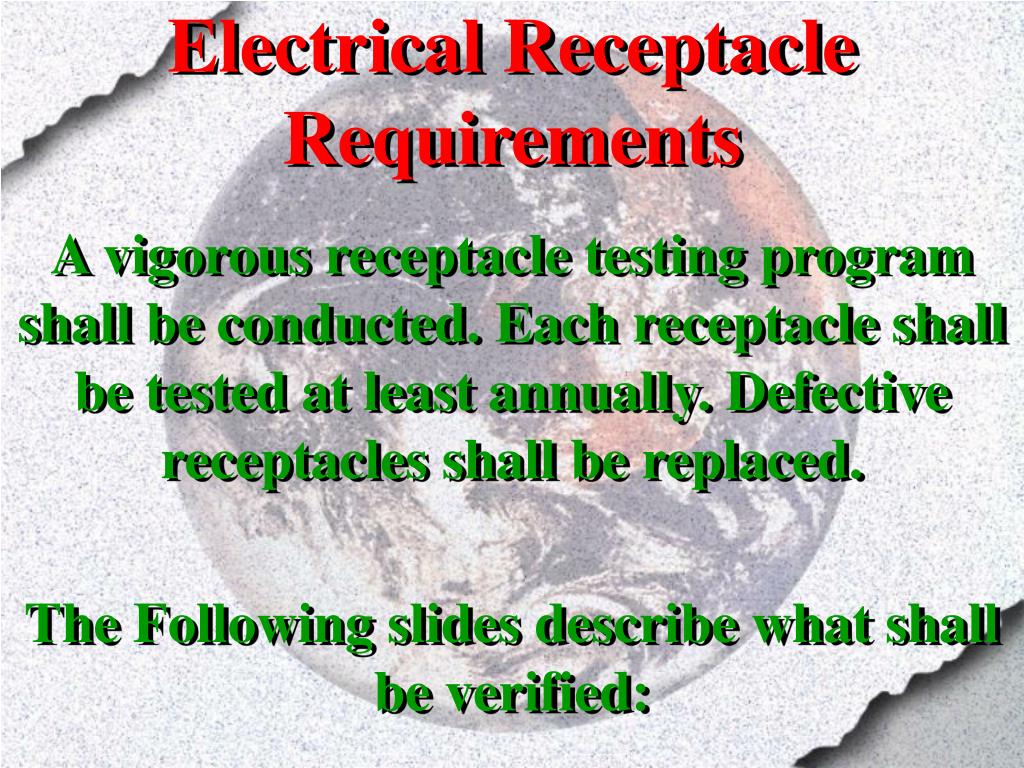

Electrical Receptacle Requirements

A vigorous receptacle testing program shall be conducted. Each receptacle shall be tested at least annually. Defective receptacles shall be replaced.

The Following slides describe what shall be verified:

slide24
The physical integrity (NOT CRACKED OR BROKEN) for each receptacle shall be confirmed by visual inspection.
slide26

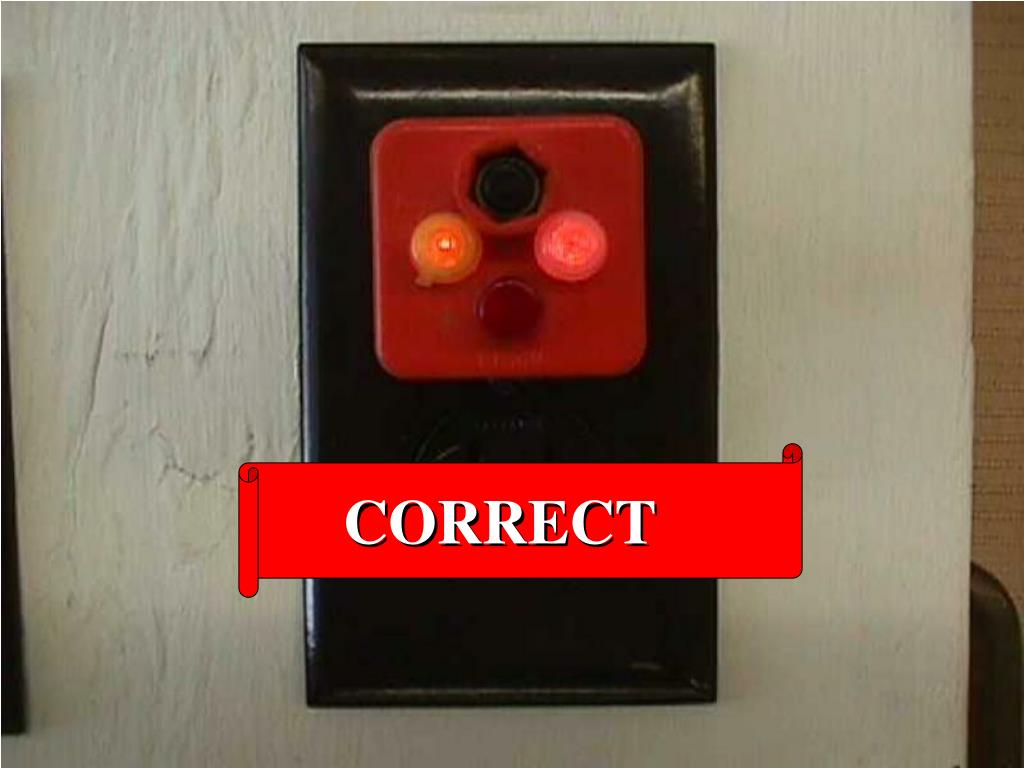

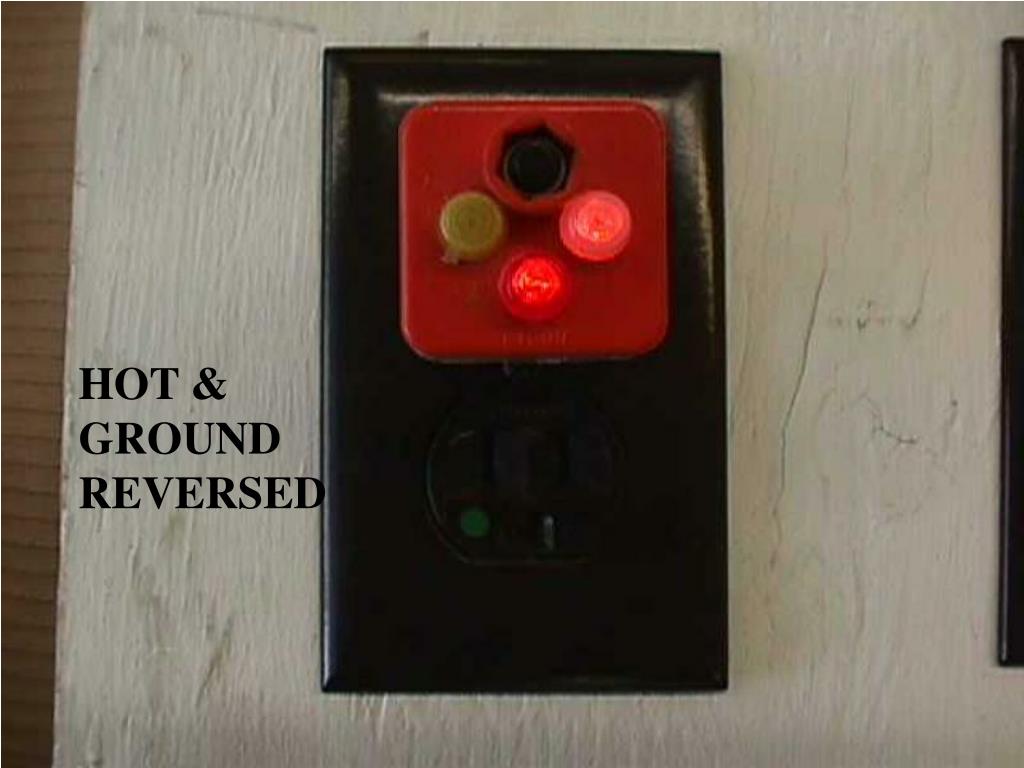

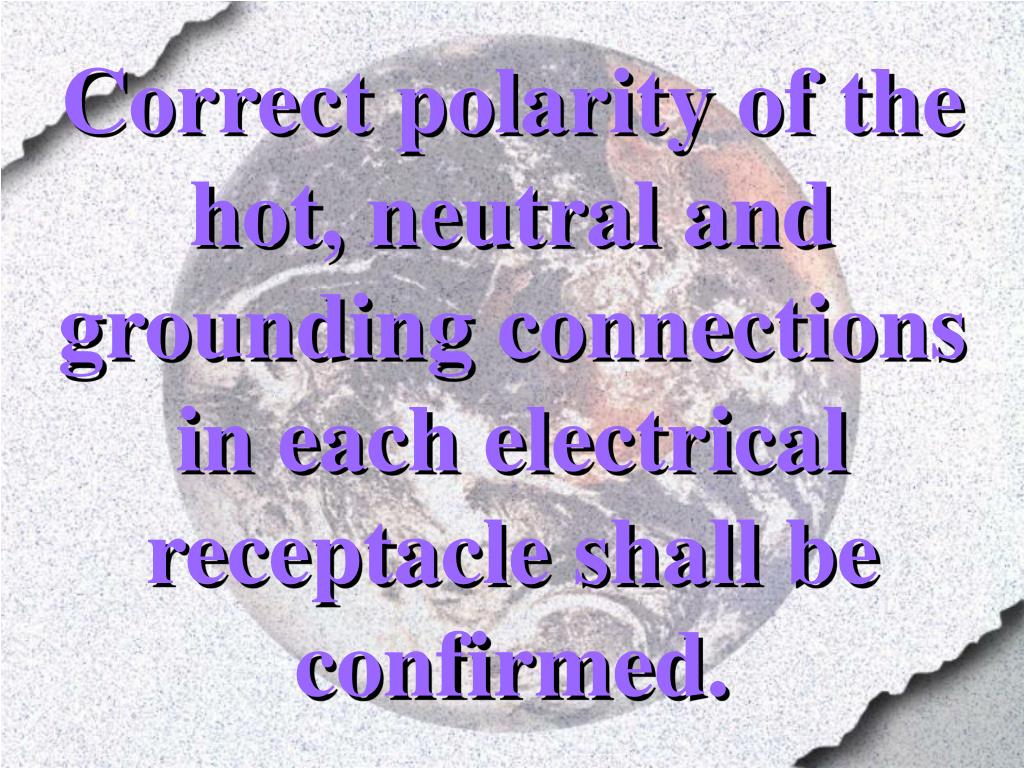

Correct polarity of the hot, neutral and grounding connections in each electrical receptacle shall be confirmed.
slide27

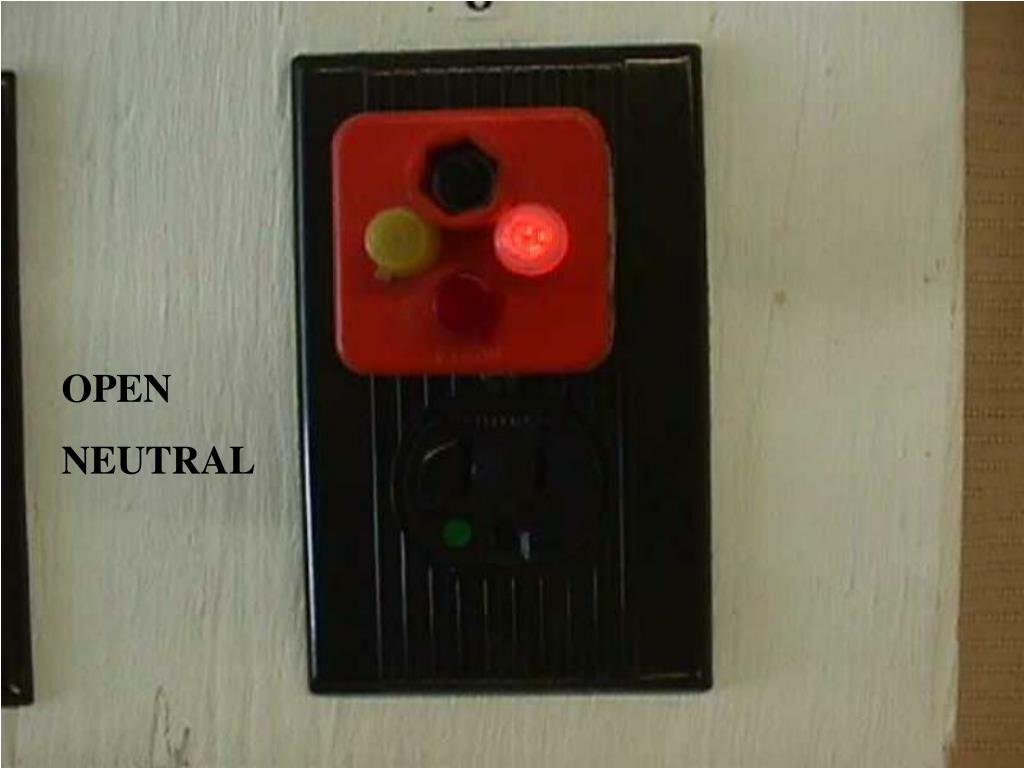

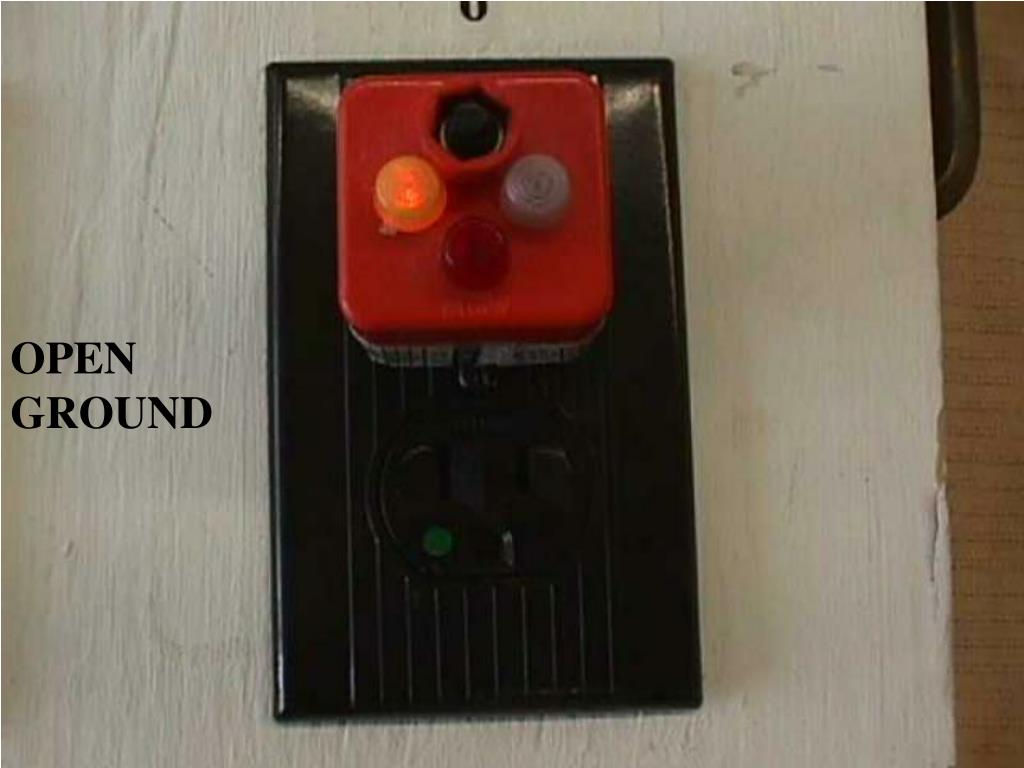

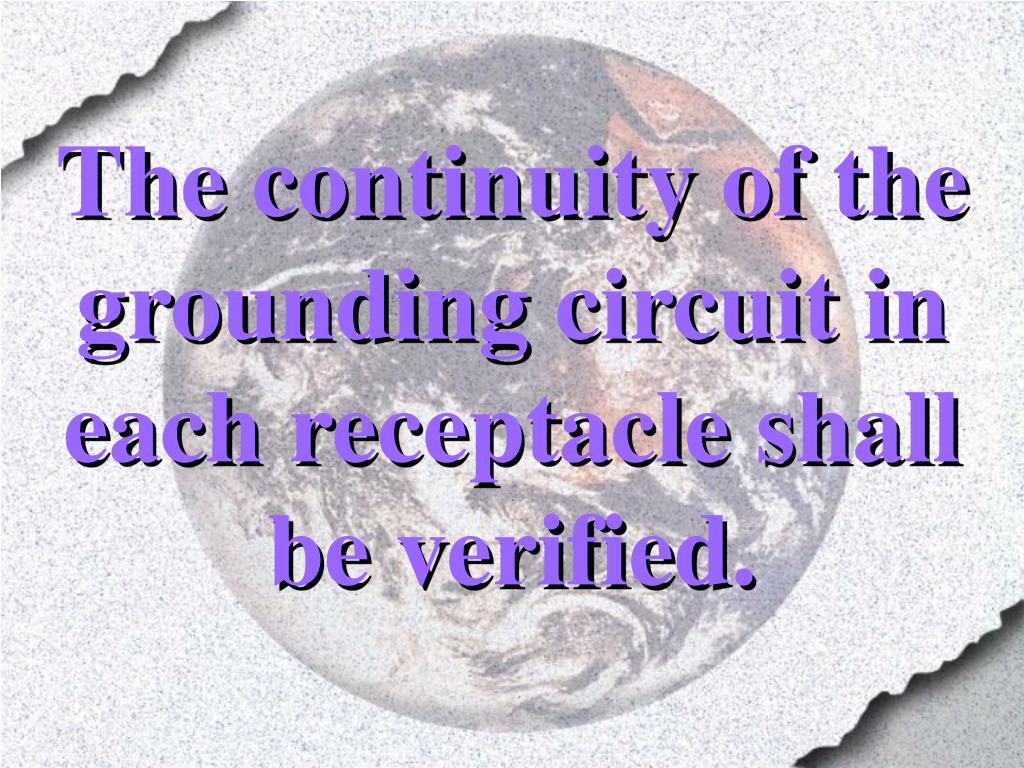

OPEN

NEUTRAL

slide31

The retention force of each connection (hot, neutral and grounding) of each receptacle (except locking type receptacles) shall not be LESS than four ounces.

slide32

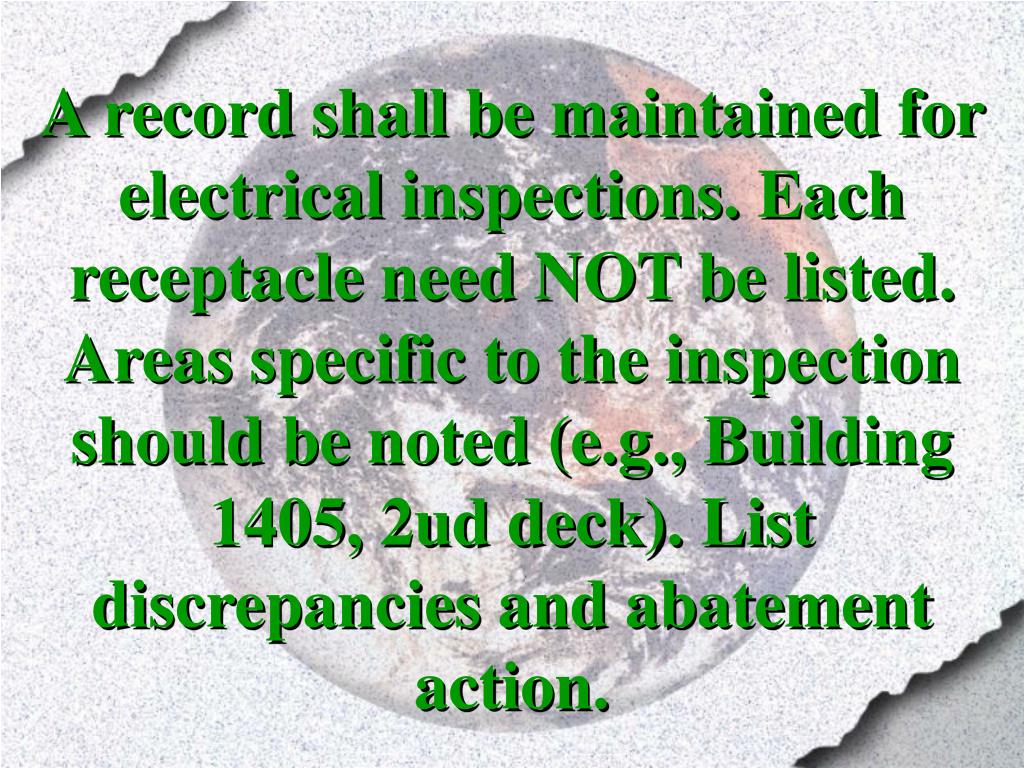

A record shall be maintained for electrical inspections. Each receptacle need NOT be listed. Areas specific to the inspection should be noted (e.g., Building 1405, 2ud deck). List discrepancies and abatement action.

gfci receptacles shall be tested both receptacles of a duplex gfci receptacle shall be tested

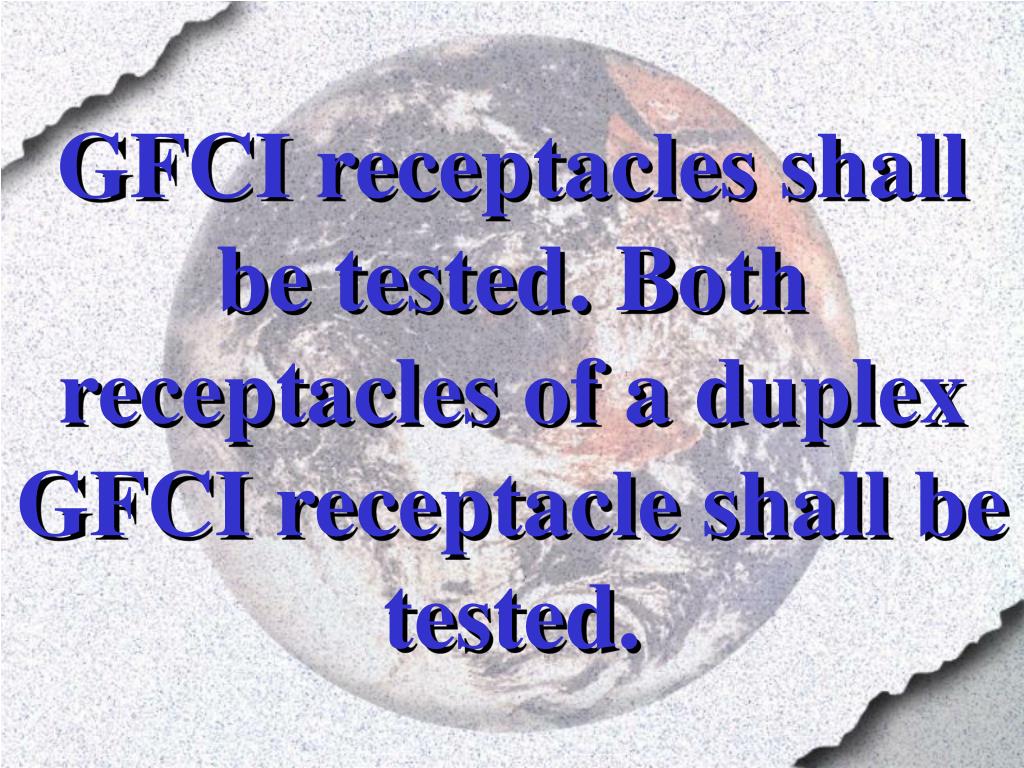

GFCI receptacles shall be tested. Both receptacles of a duplex GFCI receptacle shall be tested.
slide34

A program of regular (at least annually) inspection of electrical equipment including receptacles to detect and correct unsafe conditions in all buildings, barracks, etc.

slide35

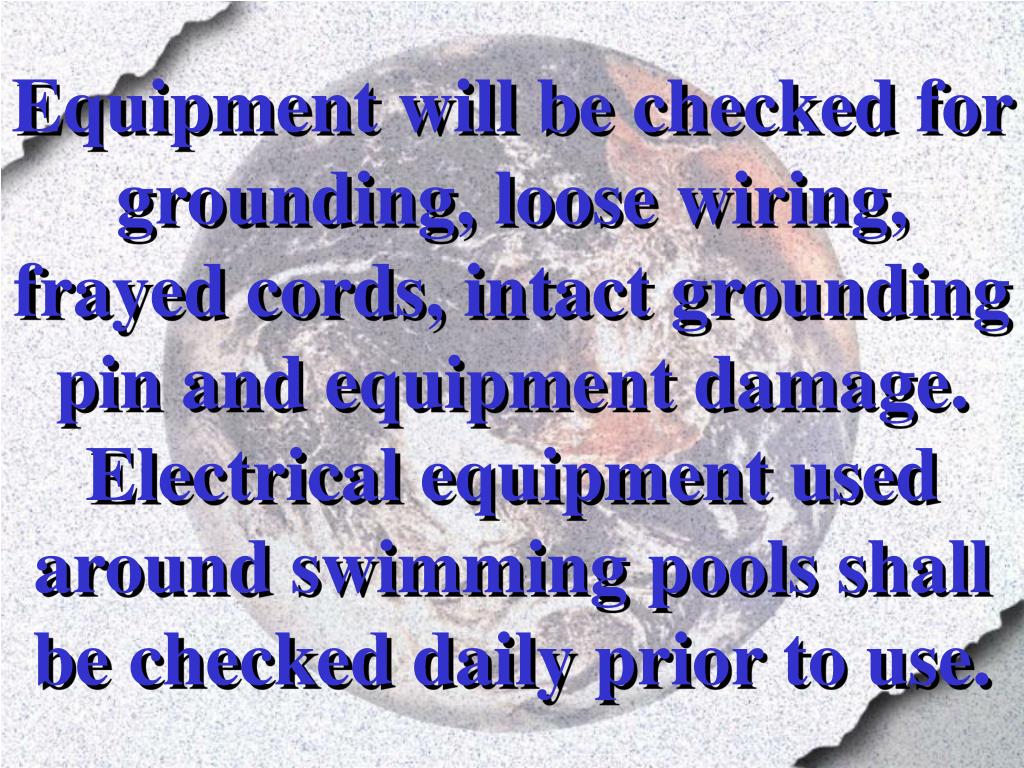

Equipment will be checked for grounding, loose wiring, frayed cords, intact grounding pin and equipment damage. Electrical equipment used around swimming pools shall be checked daily prior to use.

slide36

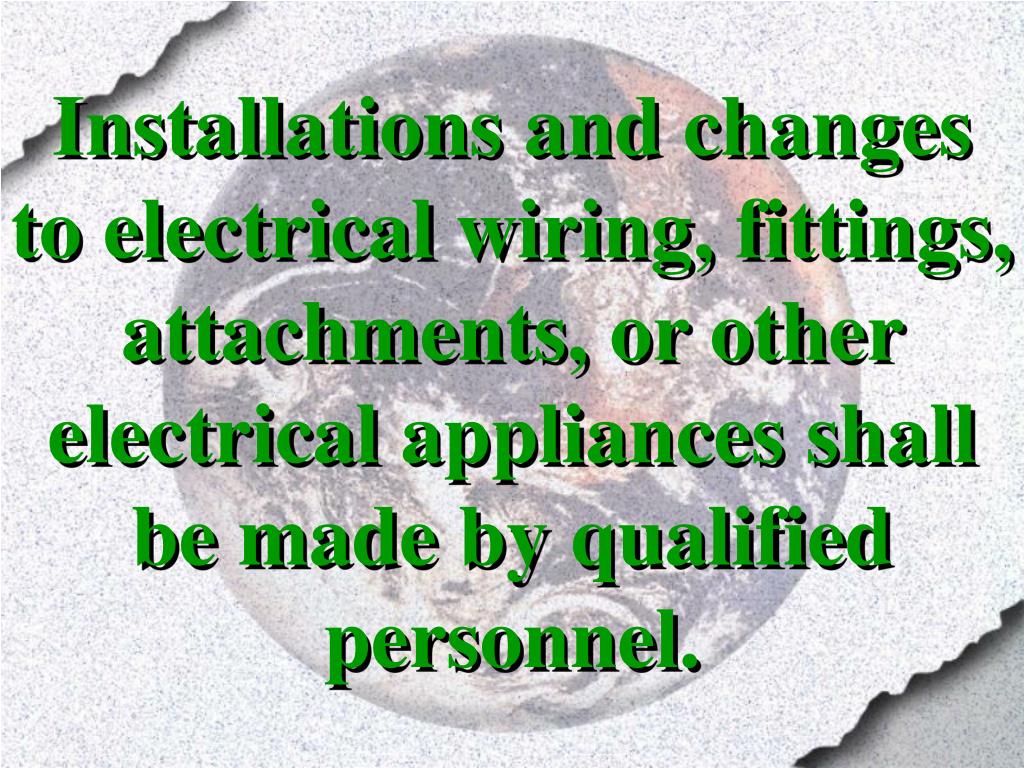

Installations and changes to electrical wiring, fittings, attachments, or other electrical appliances shall be made by qualified personnel.
slide37

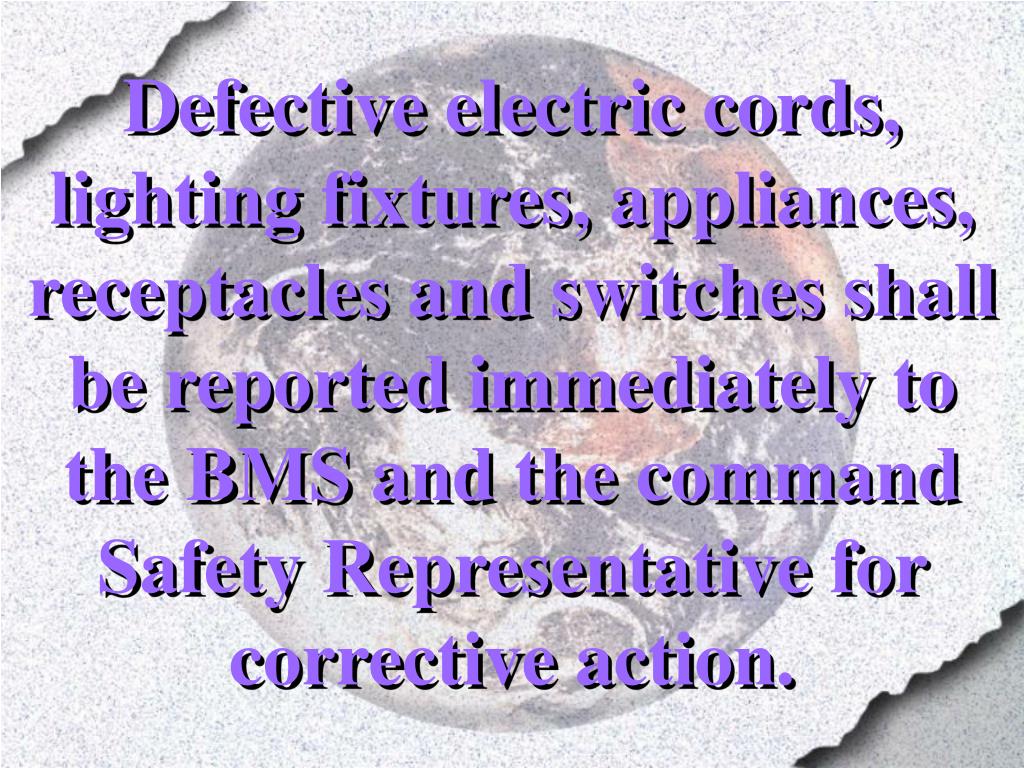

Defective electric cords, lighting fixtures, appliances, receptacles and switches shall be reported immediately to the BMS and the command Safety Representative for corrective action.

slide38

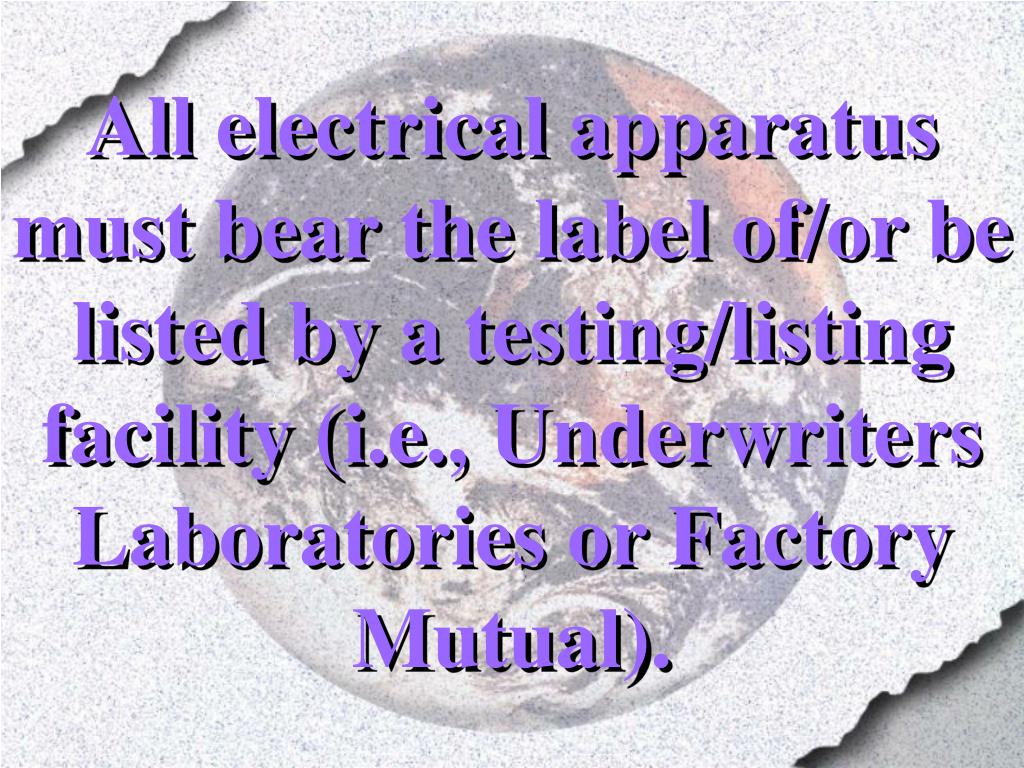

All electrical apparatus must bear the label of/or be listed by a testing/listing facility (i.e., Underwriters Laboratories or Factory Mutual).

slide46

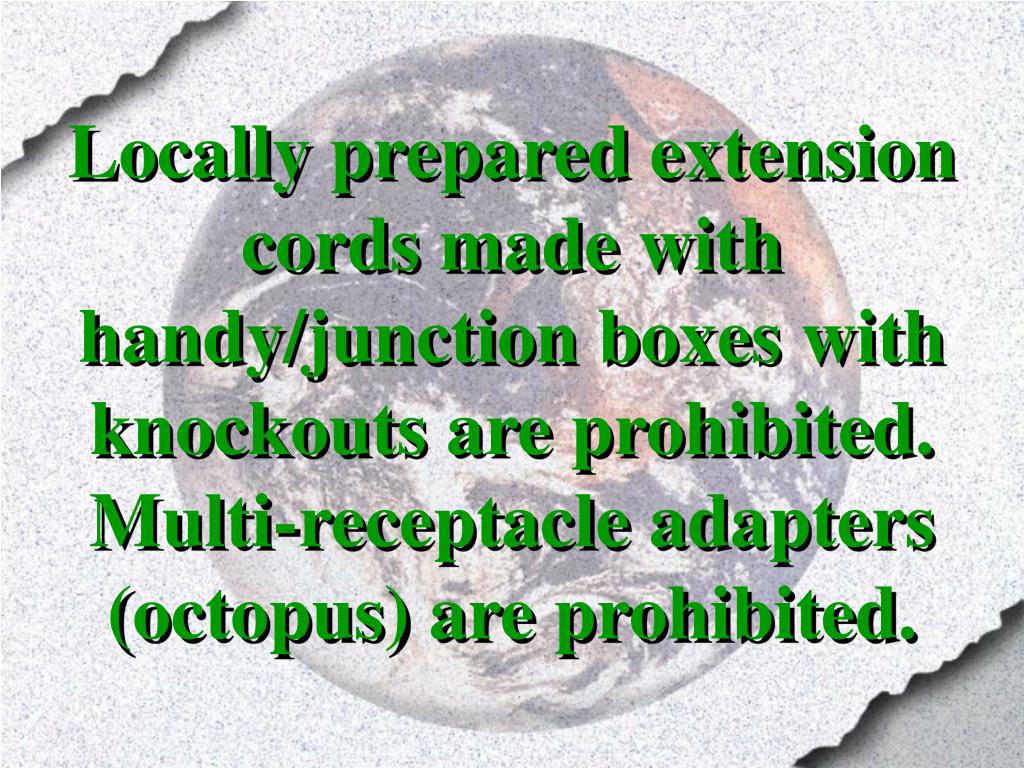

Locally prepared extension cords made with handy/junction boxes with knockouts are prohibited. Multi-receptacle adapters (octopus) are prohibited.

slide55

An electrical tool issue, testing and repair program shall be instituted. Procedures governing tool control, safety and use should be promulgated at the command level.

gfci protection that is 125 volt single phase 15 20 amperage shall be present for the following
GFCI protection that is 125 volt, single phase, 15-20 amperage shall be present for the following...

Outdoors where there is direct grade level access (located not more than 6 feet 6 inches above the ground) to the receptacles.

In bathrooms, kitchens and deep sink rooms where receptacles are within six feet of sinks.

In garages

slide57

A record will be maintained and a durable tag affixed to floor buffers certifying serviceability and date of last inspection. For all other equipment, either a tag or a system of colored tape attached to the cord may be used.

slide58
Test and inspection of electrical insulated gloves will be in accordance with 29 CFR 1910.137 with records of tests being maintained.
slide59
Audio Visual personnel are responsible for maintenance and repair of government owned training aid equipment.
