Threads and Critical Sections

1. Threads and Critical Sections Vivek Pai / Kai Li Princeton University

2. Gedankenthreads • What happens during fork? • We need particular mechanisms, but do we have options about what to do?

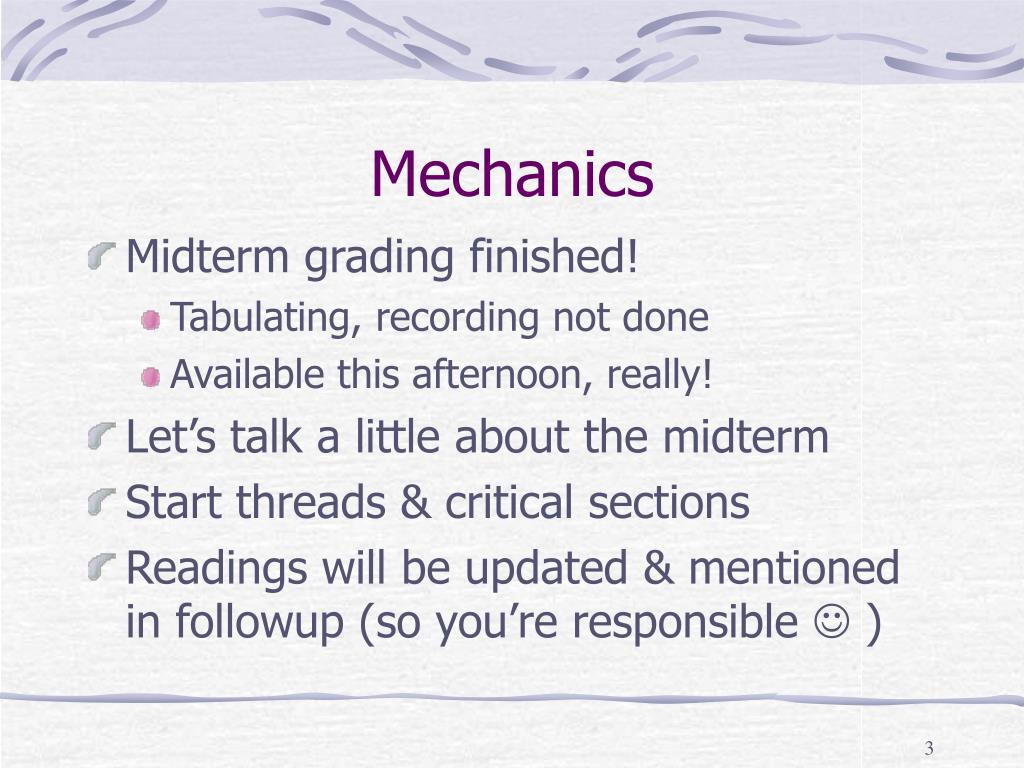

3. Mechanics • Midterm grading finished! • Tabulating, recording not done • Available this afternoon, really! • Let’s talk a little about the midterm • Start threads & critical sections • Readings will be updated & mentioned in followup (so you’re responsible  )

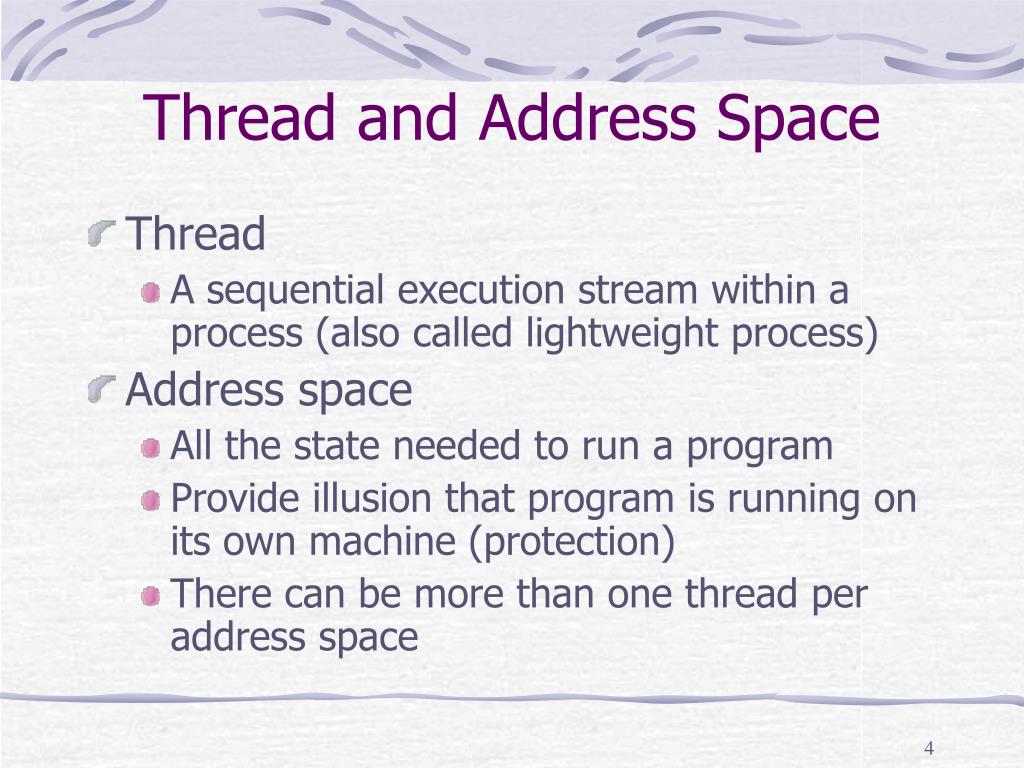

4. Thread and Address Space • Thread • A sequential execution stream within a process (also called lightweight process) • Address space • All the state needed to run a program • Provide illusion that program is running on its own machine (protection) • There can be more than one thread per address space

5. Concurrency and Threads • I/O devices • Overlap I/Os with I/Os and computation (modern OS approach) • Human users • Doing multiple things to the machine: Web browser • Distributed systems • Client/server computing: NFS file server • Multiprocessors • Multiple CPUs sharing the same memory: parallel program

6. Typical Thread API • Creation • Fork, Join • Mutual exclusion • Acquire (lock), Release (unlock) • Condition variables • Wait, Signal, Broadcast • Alert • Alert, AlertWait, TestAlert

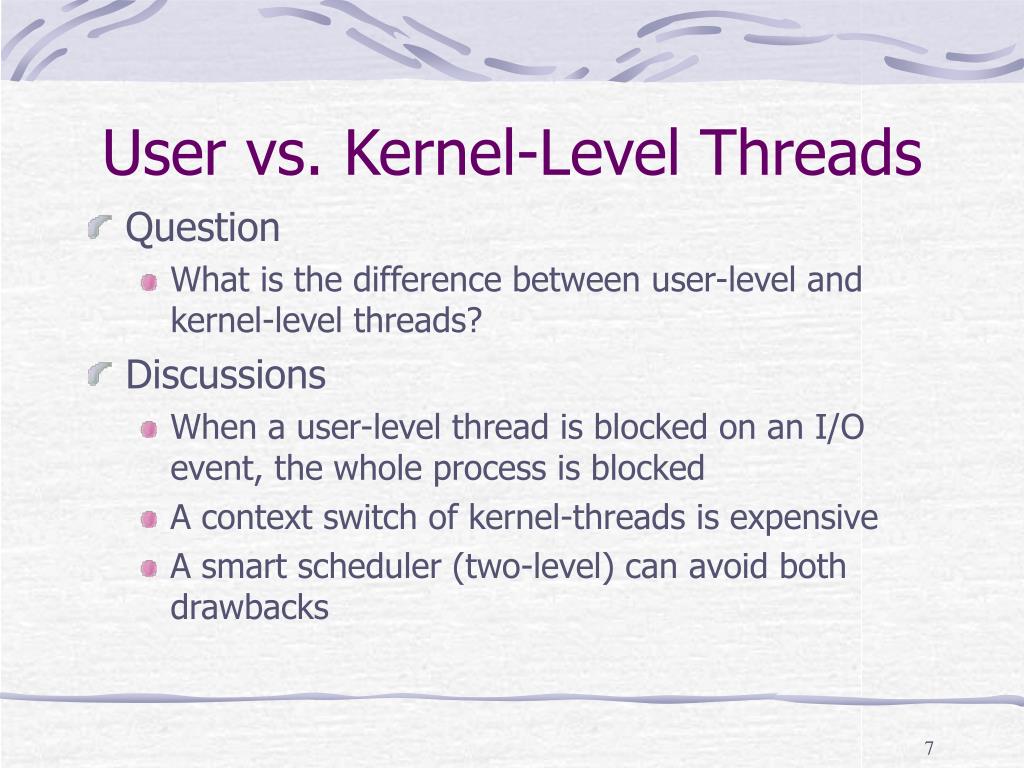

7. User vs. Kernel-Level Threads • Question • What is the difference between user-level and kernel-level threads? • Discussions • When a user-level thread is blocked on an I/O event, the whole process is blocked • A context switch of kernel-threads is expensive • A smart scheduler (two-level) can avoid both drawbacks

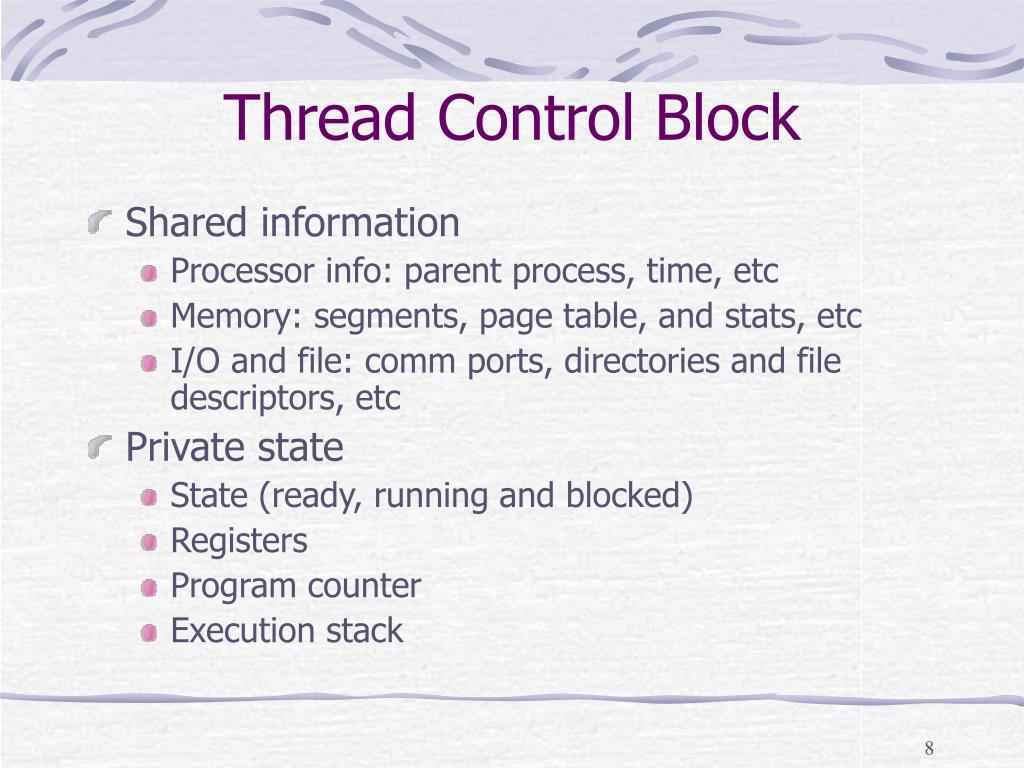

8. Thread Control Block • Shared information • Processor info: parent process, time, etc • Memory: segments, page table, and stats, etc • I/O and file: comm ports, directories and file descriptors, etc • Private state • State (ready, running and blocked) • Registers • Program counter • Execution stack

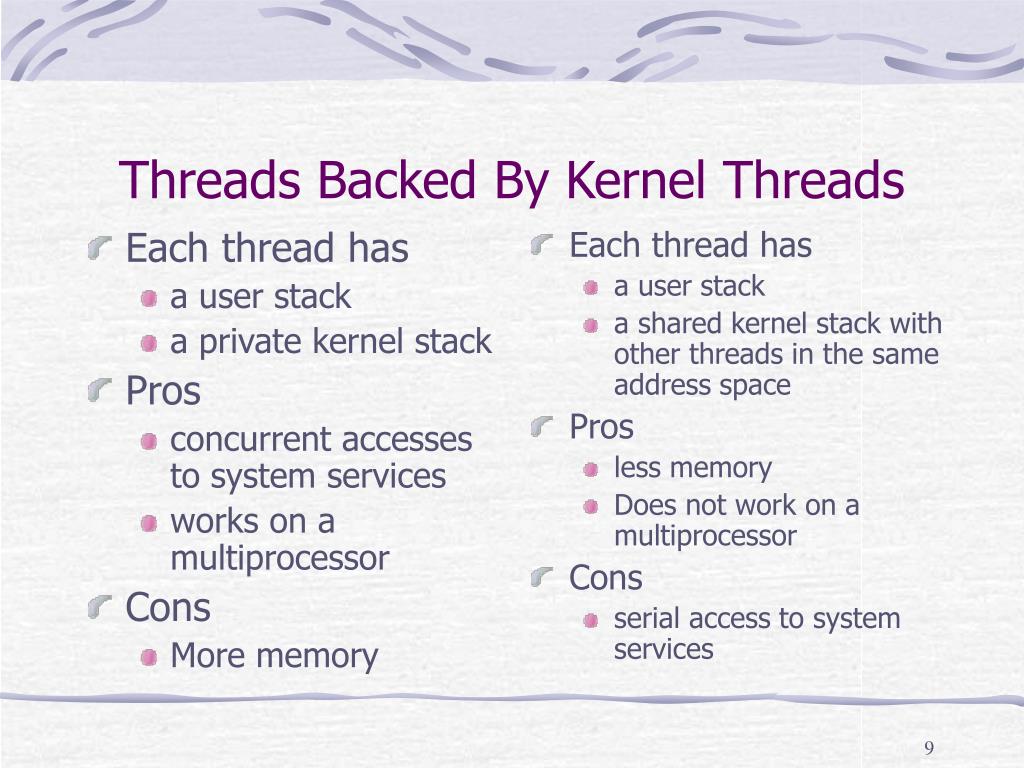

9. Each thread has a user stack a private kernel stack Pros concurrent accesses to system services works on a multiprocessor Cons More memory Each thread has a user stack a shared kernel stack with other threads in the same address space Pros less memory Does not work on a multiprocessor Cons serial access to system services Threads Backed By Kernel Threads

10. “Too Much Milk” Problem Person A Person B • Don’t buy too much milk • Any person can be distracted at any point Look in fridge: out of milk Leave for Wawa Arrive at Wawa Buy milk Arrive home Look in fridge: out of milk Leave for Wawa Arrive at Wawa Buy milk Arrive home

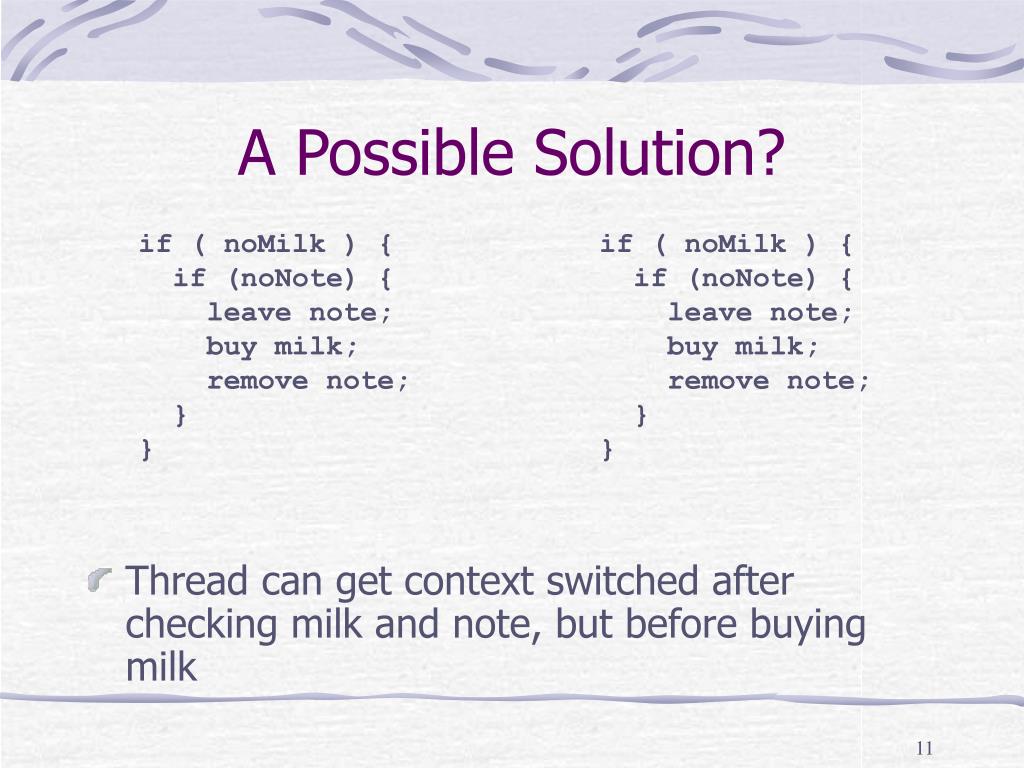

11. A Possible Solution? • Thread can get context switched after checking milk and note, but before buying milk if ( noMilk ) { if (noNote) { leave note; buy milk; remove note; } } if ( noMilk ) { if (noNote) { leave note; buy milk; remove note; } }

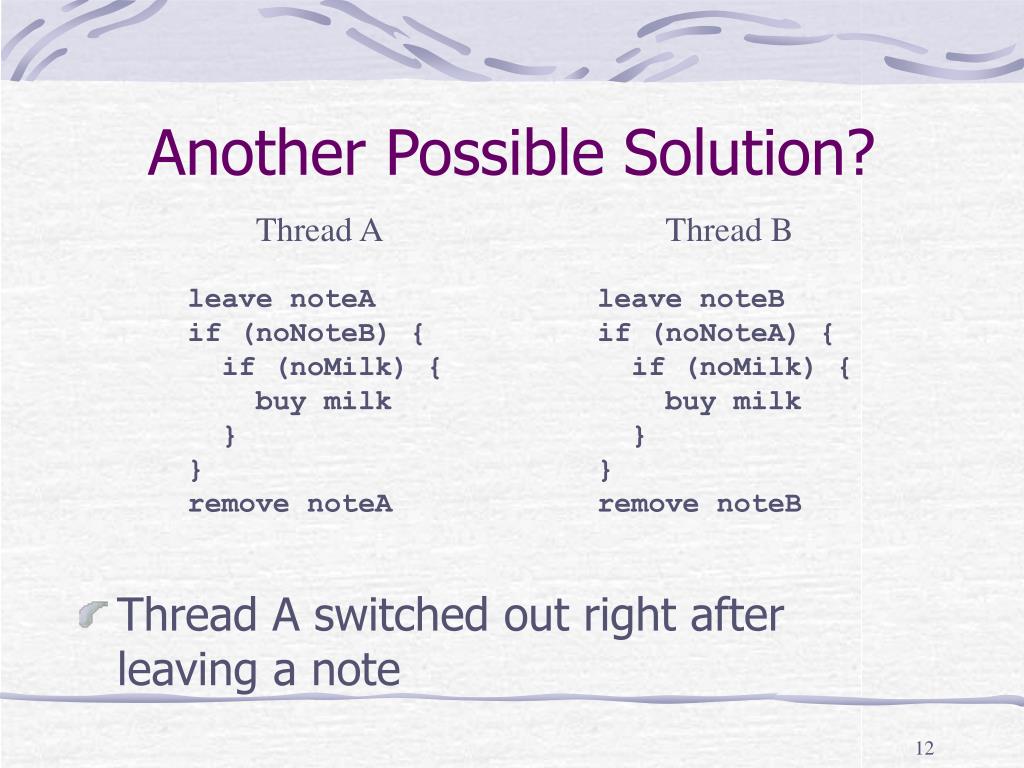

12. Another Possible Solution? Thread A Thread B • Thread A switched out right after leaving a note leave noteA if (noNoteB) { if (noMilk) { buy milk } } remove noteA leave noteB if (noNoteA) { if (noMilk) { buy milk } } remove noteB

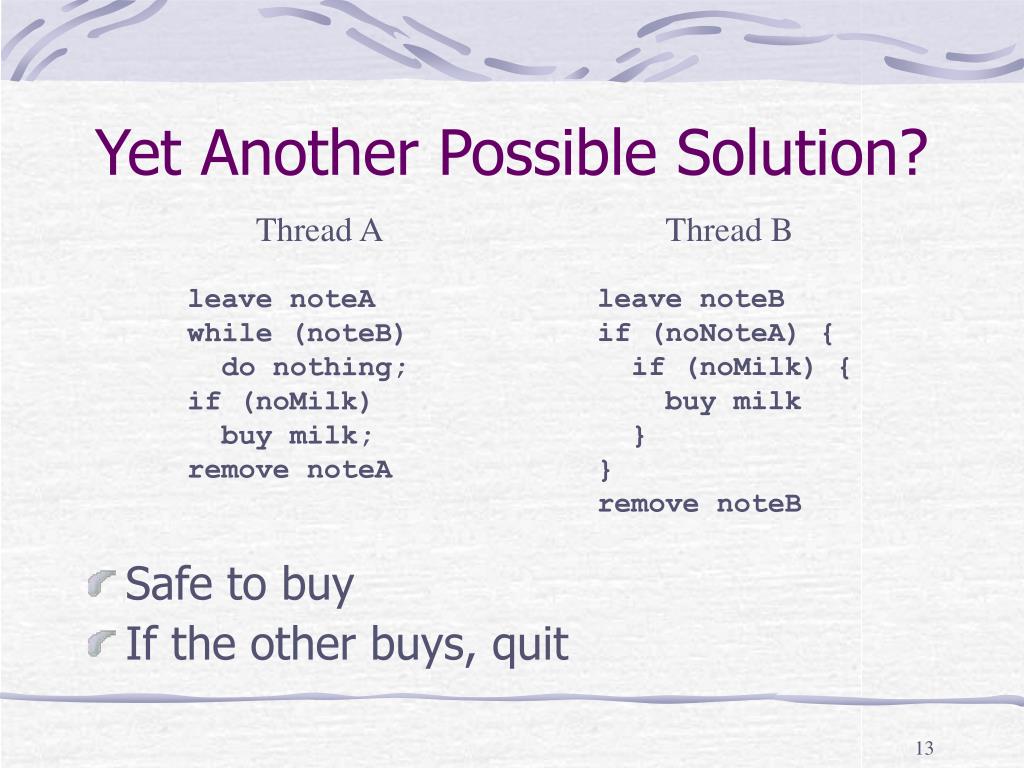

13. Yet Another Possible Solution? Thread A Thread B • Safe to buy • If the other buys, quit leave noteB if (noNoteA) { if (noMilk) { buy milk } } remove noteB leave noteA while (noteB) do nothing; if (noMilk) buy milk; remove noteA

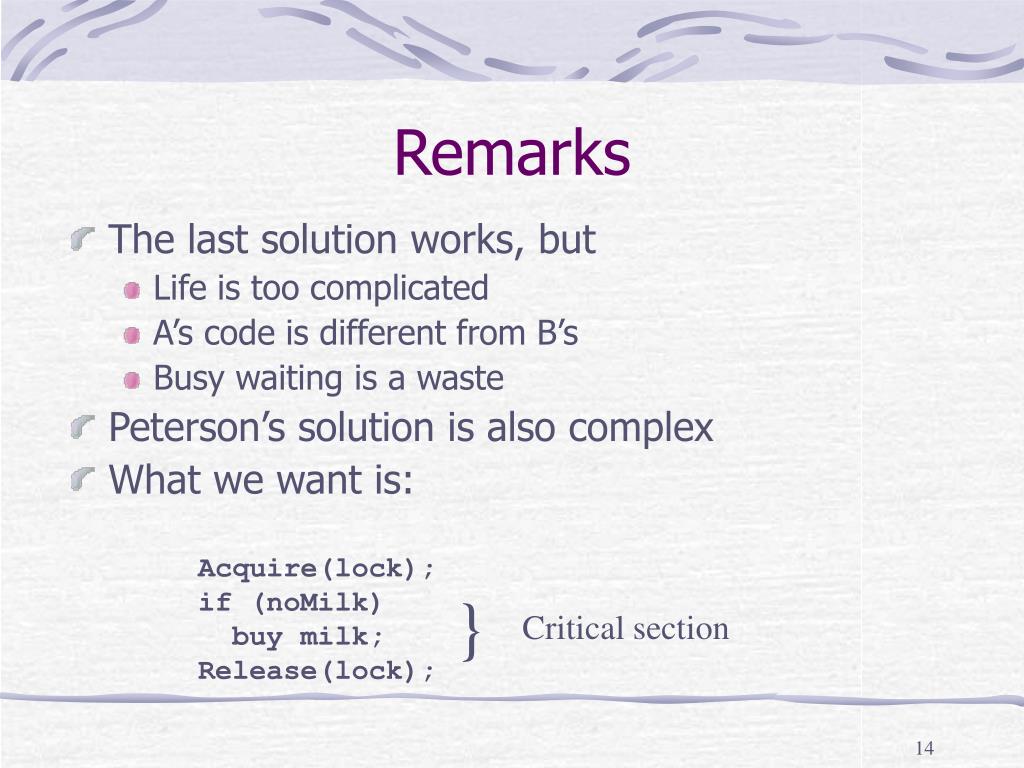

14. Remarks • The last solution works, but • Life is too complicated • A’s code is different from B’s • Busy waiting is a waste • Peterson’s solution is also complex • What we want is: Acquire(lock); if (noMilk) buy milk; Release(lock); } Critical section

15. What Is A Good Solution • Only one process inside a critical section • No assumption about CPU speeds • Processes outside of critical section should not block other processes • No one waits forever • Works for multiprocessors

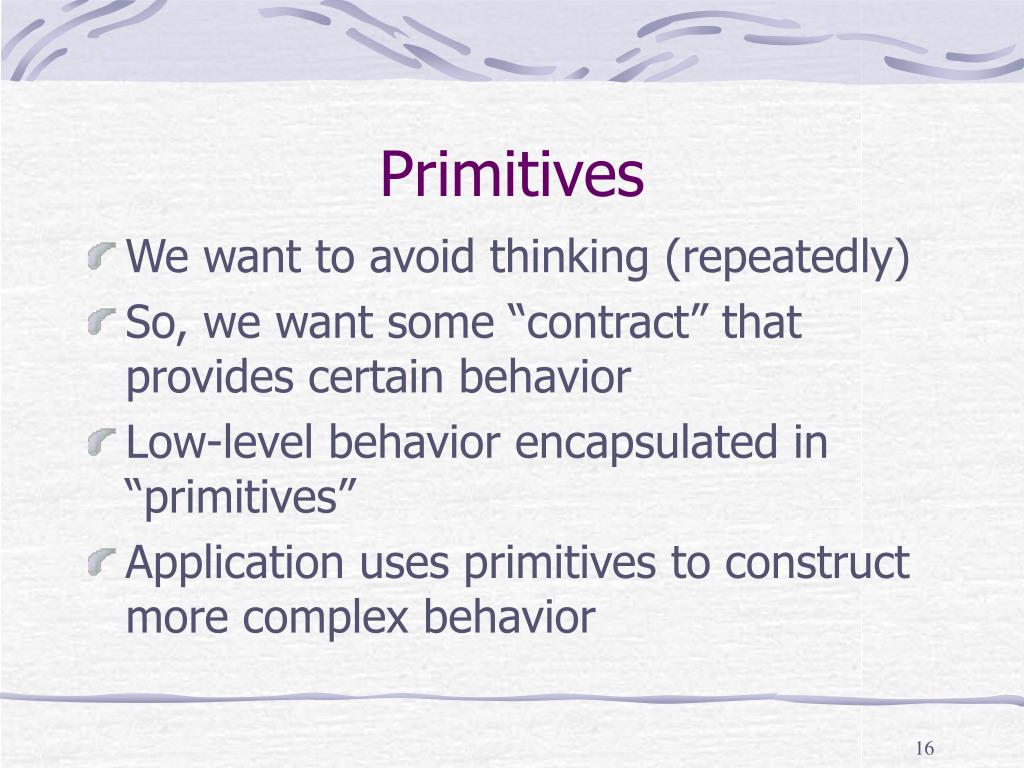

16. Primitives • We want to avoid thinking (repeatedly) • So, we want some “contract” that provides certain behavior • Low-level behavior encapsulated in “primitives” • Application uses primitives to construct more complex behavior

17. The Simplistic Acquire/Release Acquire() { disable interrupts; } • Kernel cannot let users disable interrupts • Critical sections can be arbitrarily long • Used on uniprocessors, but won’t work on multiprocessors Release() { enable interrupts; }

18. Disabling Interrupts • Done right, serializes activity • People think sequentially – easier to reason • Guarantees code executes without interruption • Delays handling of external events Used throughout the kernel

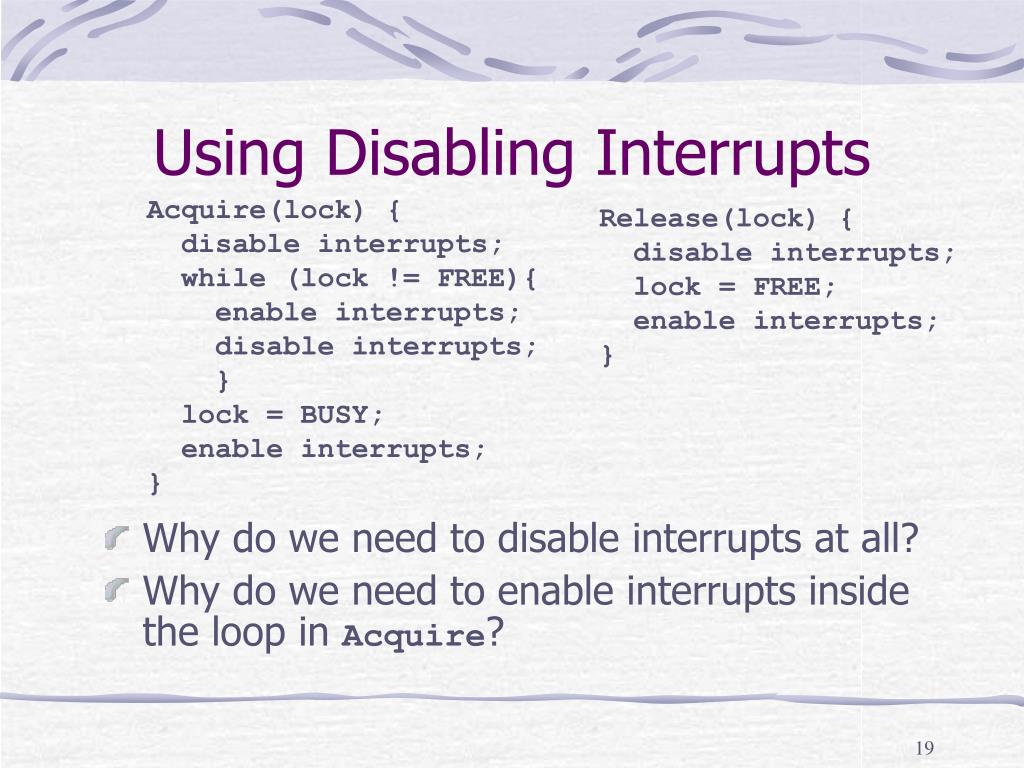

19. Using Disabling Interrupts Acquire(lock) { disable interrupts; while (lock != FREE){ enable interrupts; disable interrupts; } lock = BUSY; enable interrupts; } Release(lock) { disable interrupts; lock = FREE; enable interrupts; } • Why do we need to disable interrupts at all? • Why do we need to enable interrupts inside the loop in Acquire?

20. Using Disabling Interrupts Acquire(lock) { disable interrupts; while (lock == BUSY) { enqueue me for lock; block; } else lock = BUSY; enable interrupts; } Release(lock) { disable interrupts; if (anyone in queue) { dequeue a thread; make it ready; } lock = FREE; enable interrupts; } • When does Acquire re-enable interrupts in going to sleep? • Before enqueue? • After enqueue but before block?

21. Hardware Support for Mutex • Mutex = mutual exclusion • Early software-only approaches limited • Hardware support became common • Various approaches: • Disabling interrupts • Atomic memory load and store • Atomic read-modify-write • L. Lamport, “A Fast Mutual Exclusion Algorithm,” ACM Trans. on Computer Systems, 5(1):1-11, Feb 1987. – use Google to find

22. The Big Picture Concurrent Applications High-Level Atomic API Locks Semaphores Monitors Send/Receive Low-Level Atomic Ops Load/Store Interrupt disable Test&Set Interrupt (timer or I/O completion), Scheduling, Multiprocessor

23. Atomic Read-Modify-Write Instructions • Test&Set: Read value and write 1 back to memory • Exchange (xchg, x86 architecture) • Swap register and memory • Compare and Exchange (cmpxchg, 486+) • If Dest = (al,ax,eax), Dest = SRC; else (al,ax,eax) = Dest • LOCK prefix in x86 • Load link and conditional store (MIPS, Alpha) • Read value in one instruction, do some operations • When store, check if value has been modified. If not, ok; otherwise, jump back to start

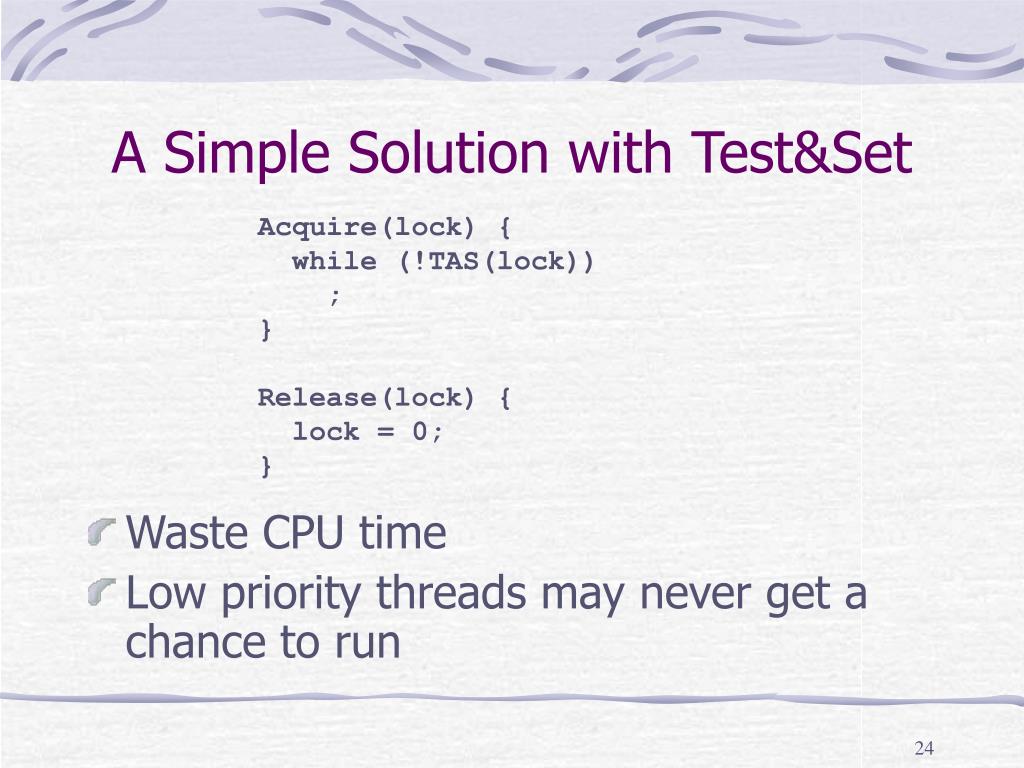

24. A Simple Solution with Test&Set Acquire(lock) { while (!TAS(lock)) ; } Release(lock) { lock = 0; } • Waste CPU time • Low priority threads may never get a chance to run
