3. Oracle Parallel Server Cache Fusion Delivers Scalability Oracle9i

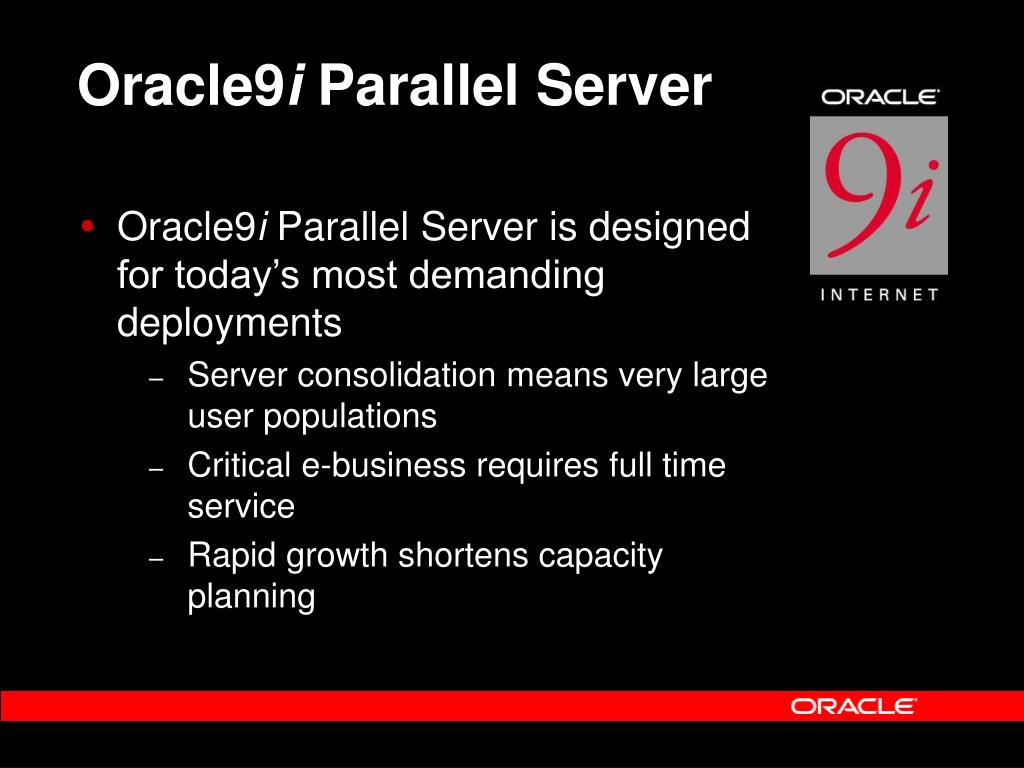

4. Oracle9i Parallel Server • Oracle9i Parallel Server is designed for today’s most demanding deployments • Server consolidation means very large user populations • Critical e-business requires full time service • Rapid growth shortens capacity planning

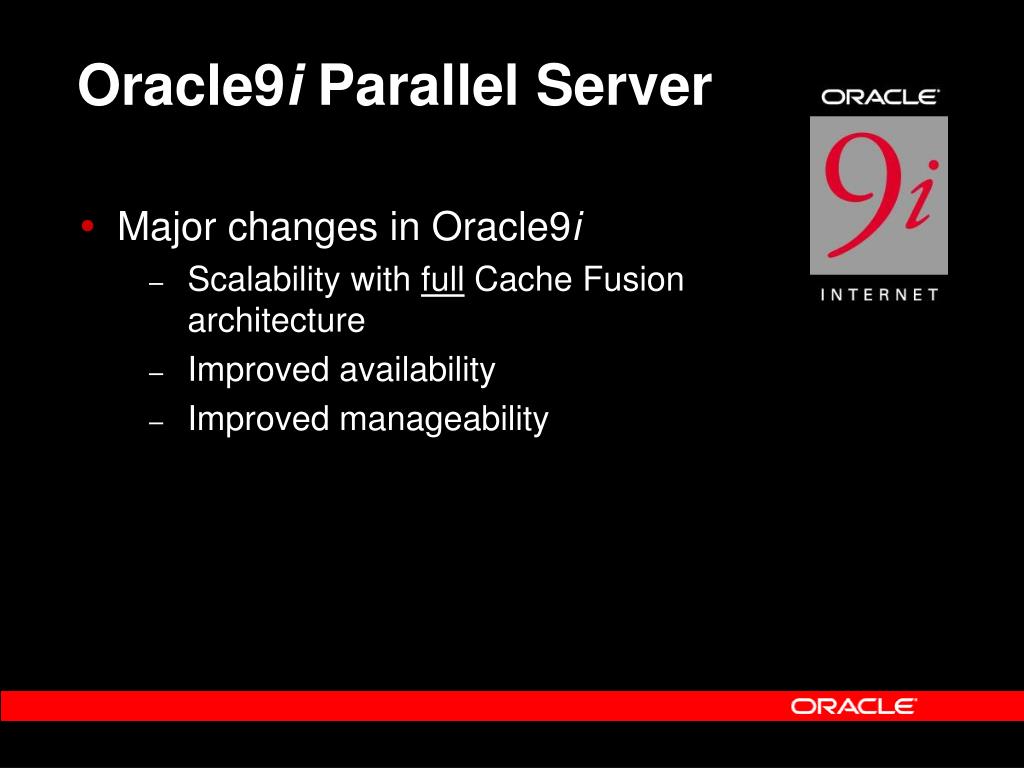

5. Oracle9i Parallel Server • Major changes in Oracle9i • Scalability with full Cache Fusion architecture • Improved availability • Improved manageability

6. Oracle Parallel Server Architecture Users Network Centralized Management Console No Single Point Of Failure Low Latency Interconnect VIA or Proprietary High Speed Switch or Interconnect ClusteredDatabase Servers Hub or Switch Fabric Storage Area Network Drive and Exploit Industry Advances in Clustering Mirrored Disk Subsystem

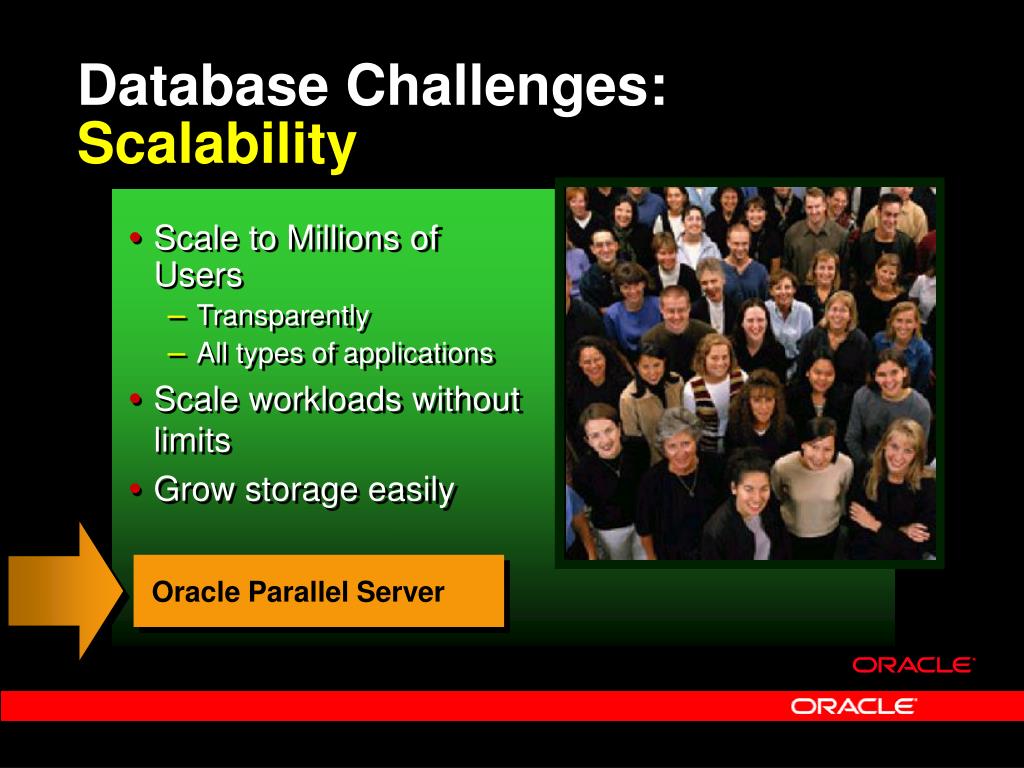

7. Database Challenges: Scalability • Scale to Millions of Users • Transparently • All types of applications • Scale workloads without limits • Grow storage easily Oracle Parallel Server

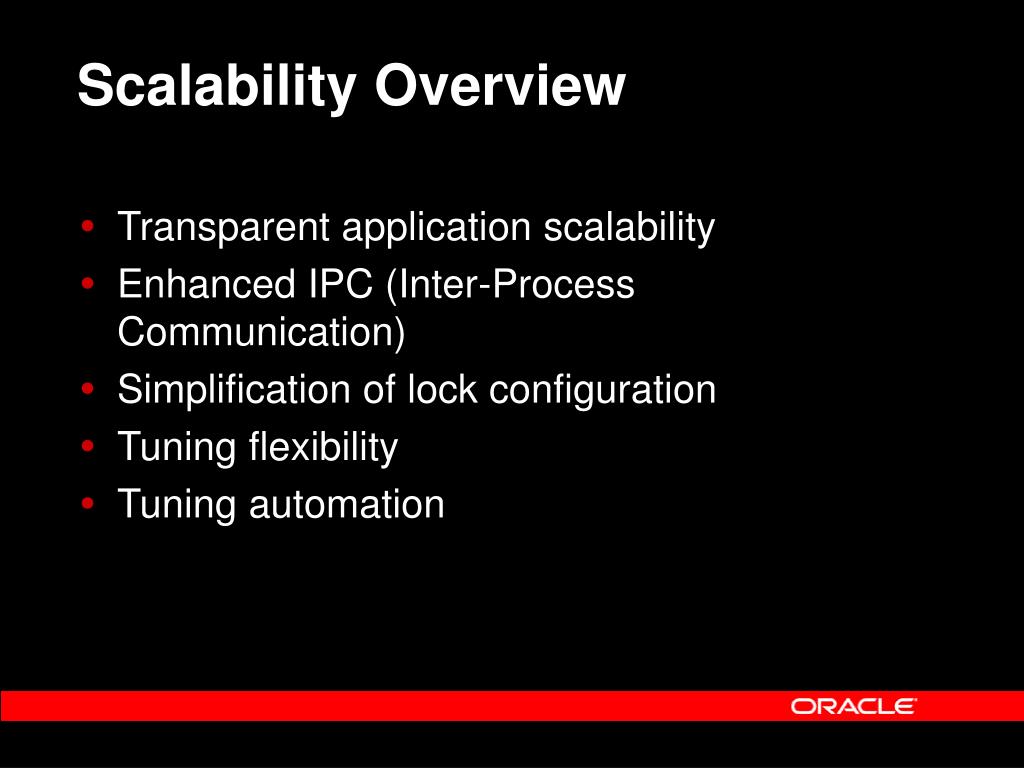

8. Scalability Overview • Transparent application scalability • Enhanced IPC (Inter-Process Communication) • Simplification of lock configuration • Tuning flexibility • Tuning automation

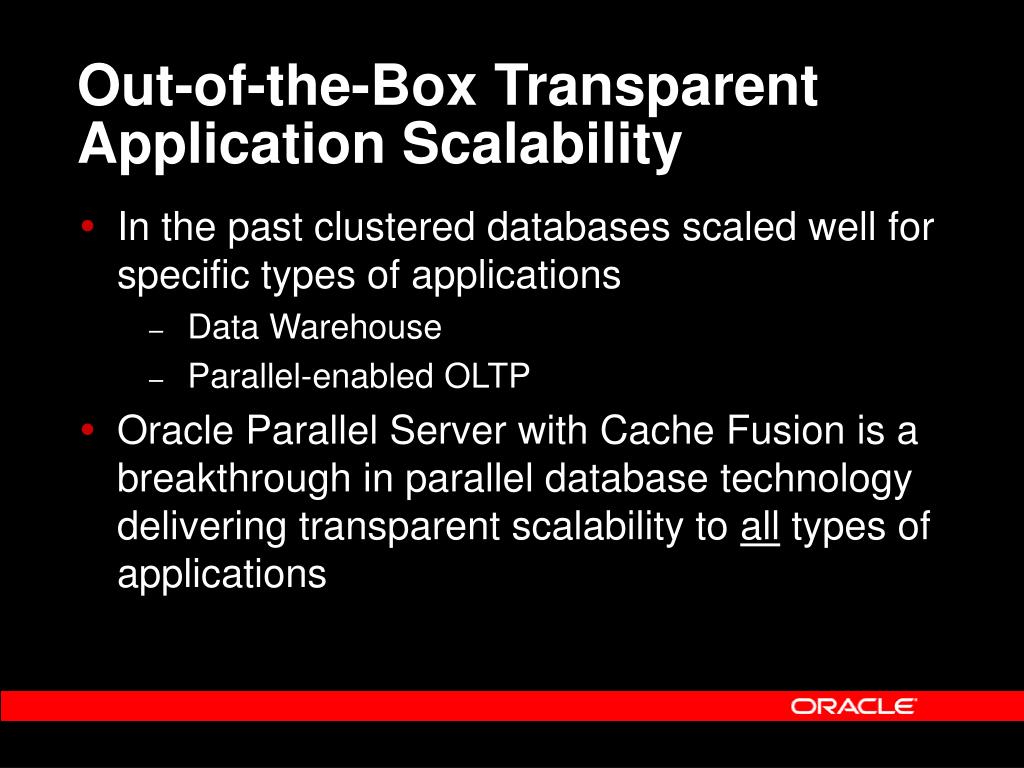

9. Out-of-the-Box Transparent Application Scalability • In the past clustered databases scaled well for specific types of applications • Data Warehouse • Parallel-enabled OLTP • Oracle Parallel Server with Cache Fusion is a breakthrough in parallel database technology delivering transparent scalability to all types of applications

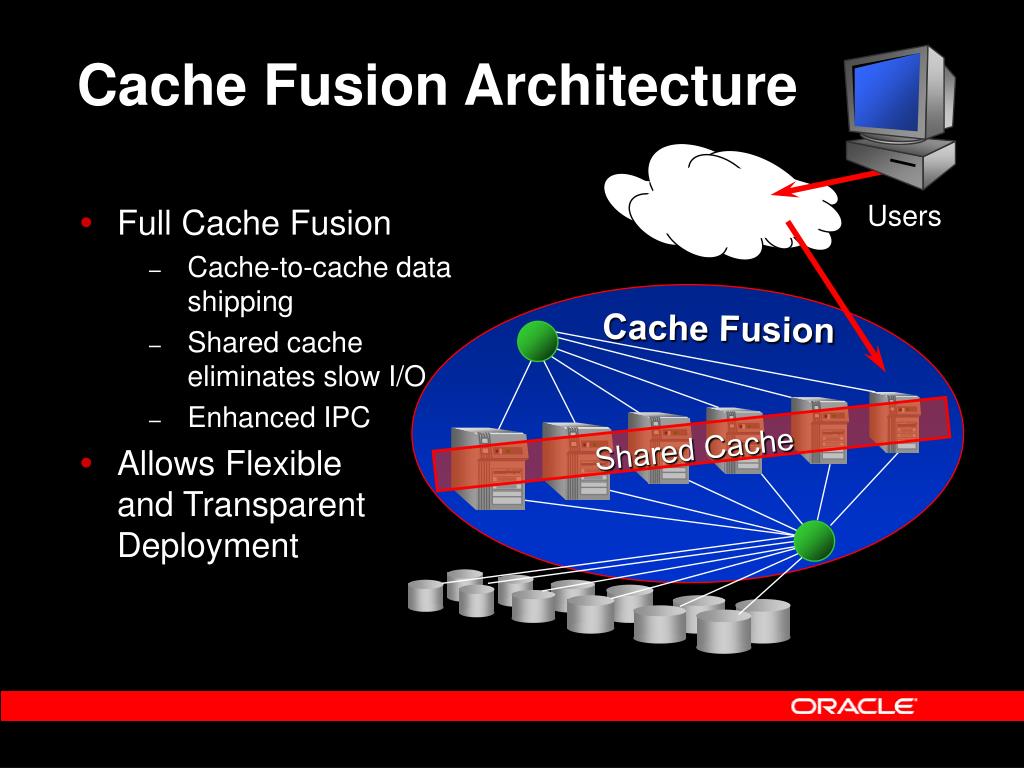

10. Cache Fusion Shared Cache Cache Fusion Architecture Users • Full Cache Fusion • Cache-to-cache data shipping • Shared cache eliminates slow I/O • Enhanced IPC • Allows Flexibleand Transparent Deployment

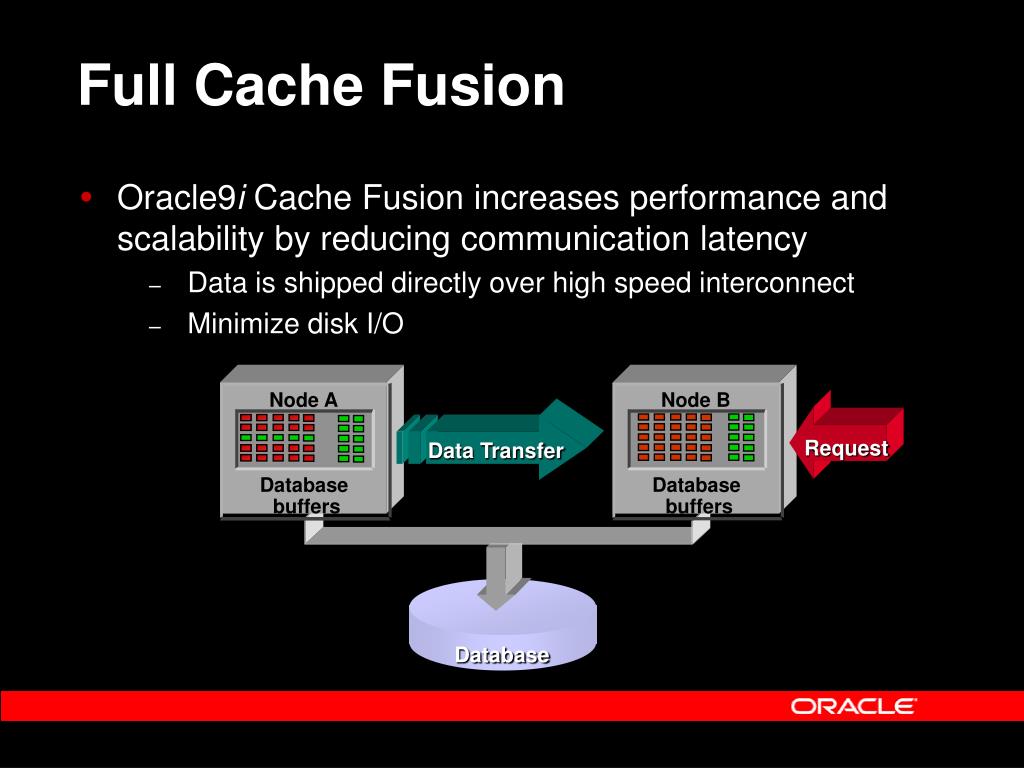

11. Node A Node B Request Data Transfer Database buffers Database buffers Database Full Cache Fusion • Oracle9i Cache Fusion increases performance and scalability by reducing communication latency • Data is shipped directly over high speed interconnect • Minimize disk I/O

12. Cache Fusion ManagesInter Instance Requests • Readers and writers accessing instance A gain access to blocks in instance B’s buffer cache • Four types of block contention • Coordination by Distributed Lock Manager Lock StatusBlock inCache B Request for BlockCache A Read Read Read Write Write Read Write Write

13. Transparent Scaling • Scalable Instance Coordination • Multiple LMDs (Lock Manager Daemon) • Intelligent message batching • Enhanced flow control and buffer handling • Faster, concurrent cross instance calls using IPC instead of multiple DLM operations • Enhanced asynchronous IPC

14. Distributed Lock Manager LMD SGA Inter-instance lock processing Shared Pool LMON LockDatabase LCK DLM

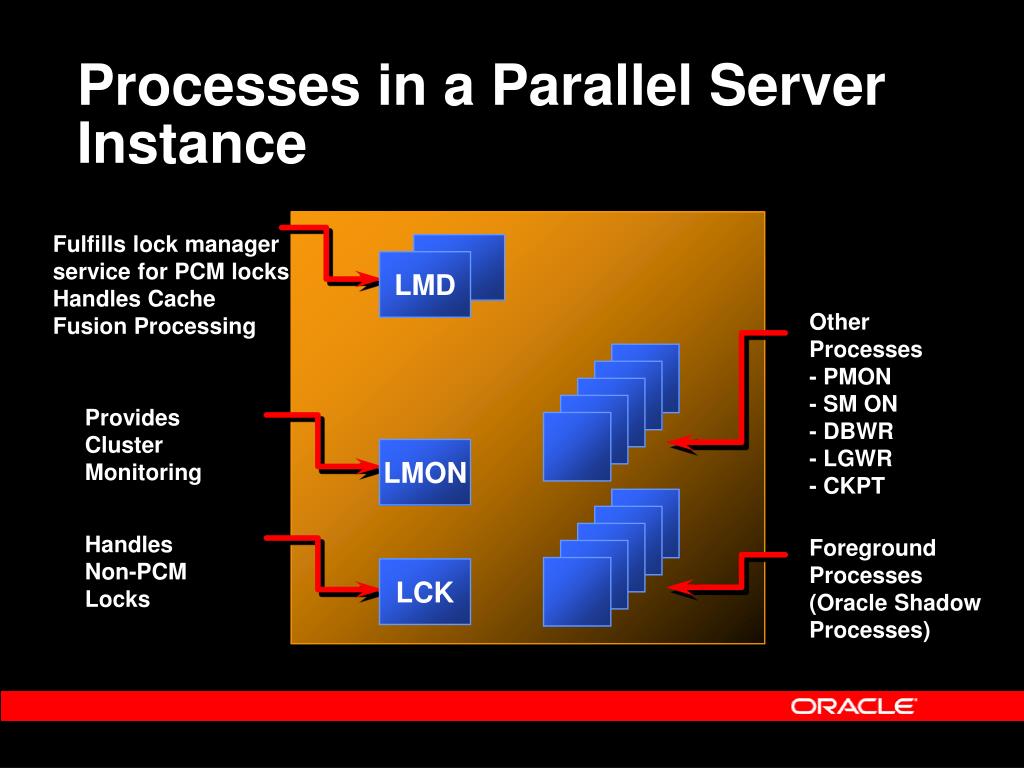

15. Processes in a Parallel Server Instance Fulfills lock manager service for PCM locks Handles CacheFusion Processing LMD Other Processes - PMON - SM ON - DBWR - LGWR - CKPT Provides Cluster Monitoring LMON HandlesNon-PCMLocks Foreground Processes (Oracle Shadow Processes) LCK

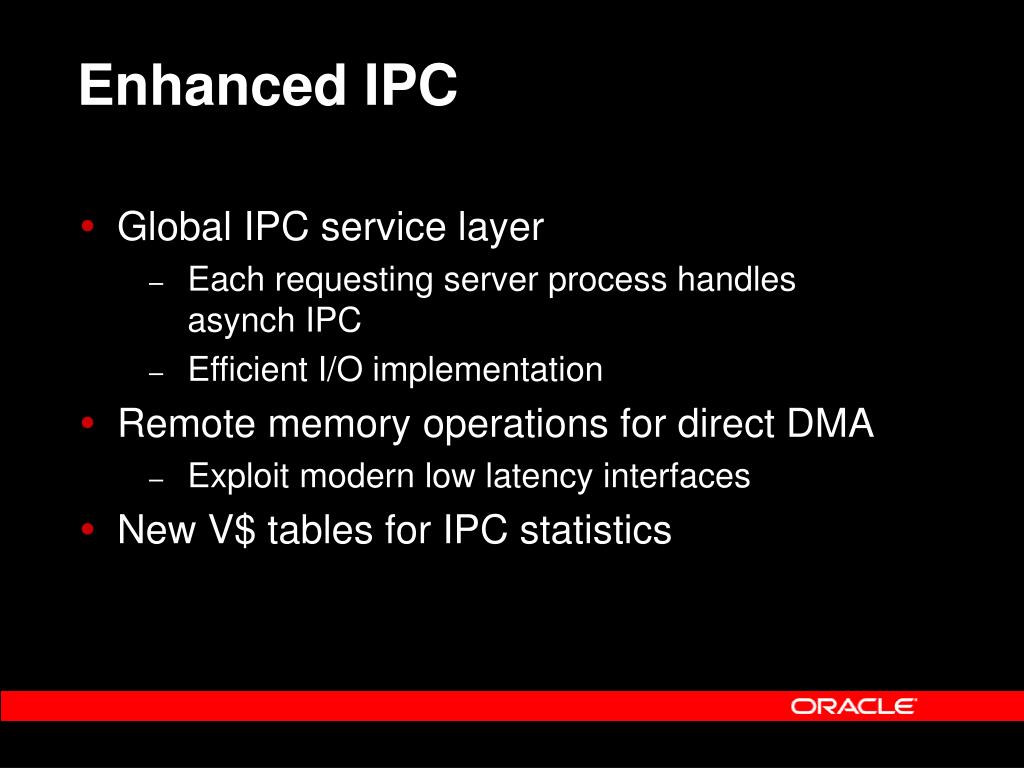

16. Enhanced IPC • Global IPC service layer • Each requesting server process handles asynch IPC • Efficient I/O implementation • Remote memory operations for direct DMA • Exploit modern low latency interfaces • New V$ tables for IPC statistics

17. Lock Simplification and Automation • Automatic DLM configuration • Automatic derivation of DLM configuration • No INIT.ORA lock parameters required • Improved lock efficiency and memory management • Dynamic lock affinity • DLM locks dynamically remastered reducing locking overhead • Cache layer determines policy for remastering

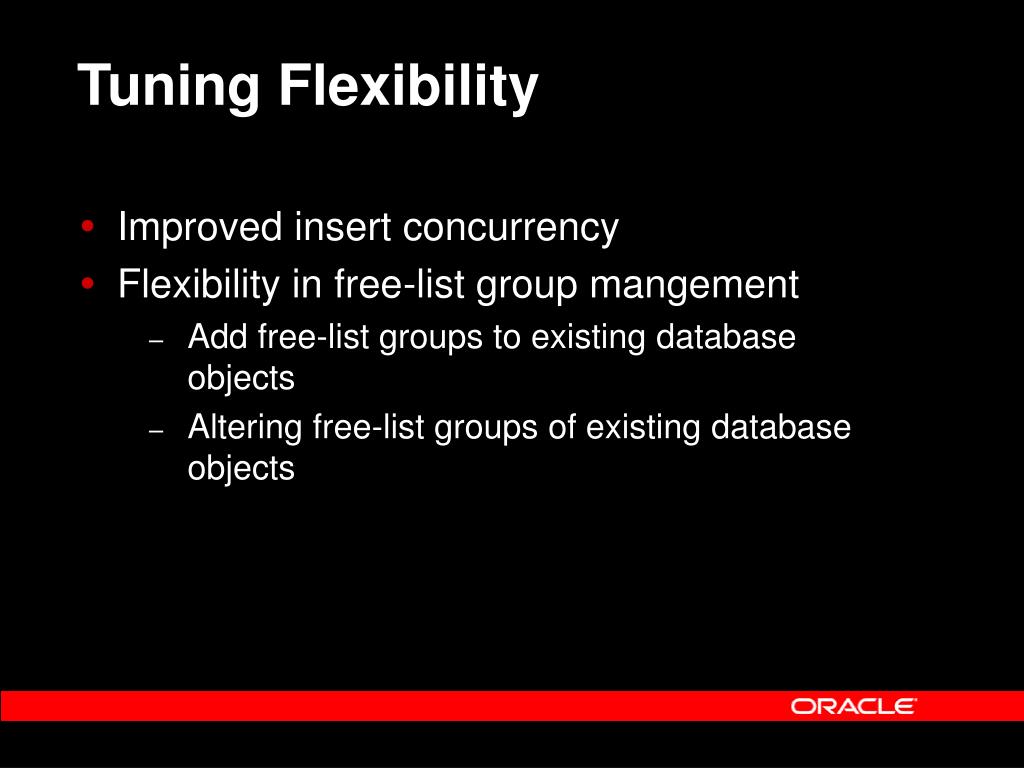

18. Tuning Flexibility • Improved insert concurrency • Flexibility in free-list group mangement • Add free-list groups to existing database objects • Altering free-list groups of existing database objects

19. Database Challenges:Availability • Be available all the time • design for fault tolerance • provide fast andreliable fault recovery • eliminate maintenance downtime • Support mission-critical business operations Oracle Parallel Server

20. No Single Point of Failure • Parallel Server • Exploits clusters for very high availability • Overcomes the limitations of traditional failover solutions by providing: • Concurrent processing • Load Balancing • Fast time to recovery • No single point of failure • Network, Storage • CPU, OS

21. NEW in Oracle9i: Availability Features • Reduced time to recovery • Concurrent lock reconfiguration and instance (cache) recovery • Lock replay only for dead masters/locks • Deferred/lazy lock remastering • Batching of reconfiguration messages • Parallel replay processing by multiple LMDs • Optimal lock invalidation • Optimized special reconfiguration case (e.g. 2->1) • Fast/reliable detection of node/network failure

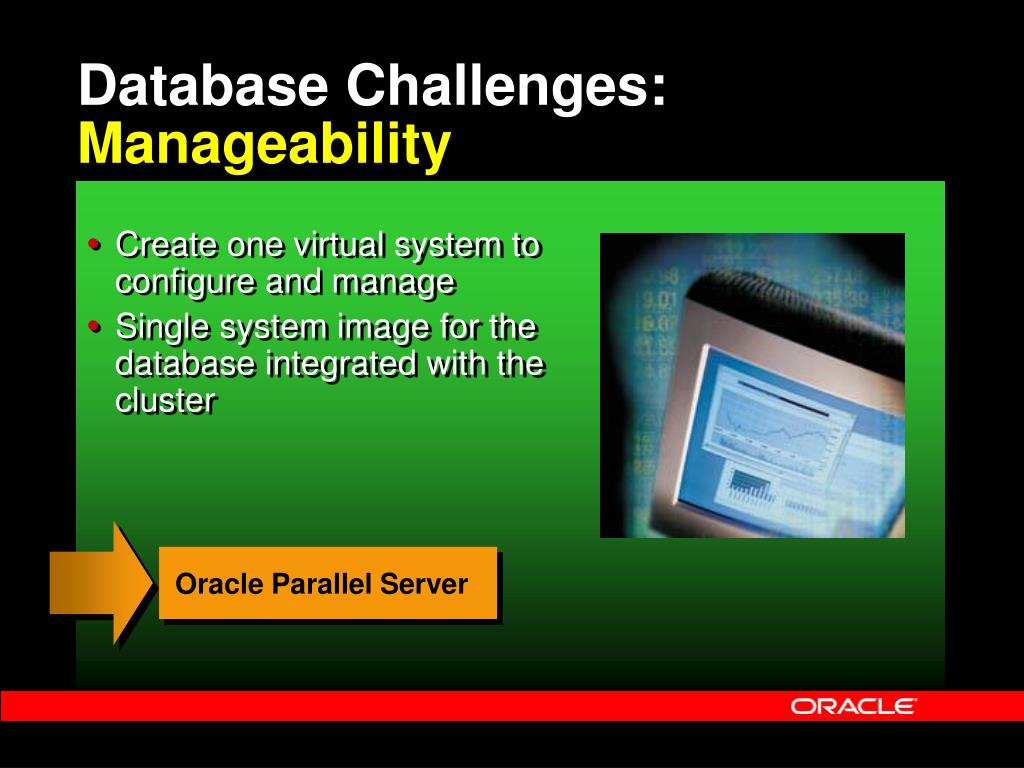

22. Database Challenges:Manageability • Create one virtual system to configure and manage • Single system image for the database integrated with the cluster Oracle Parallel Server

23. Oracle Parallel Server Manageability • Single system Image • Single Oracle Database • One virtual system to configure and manage • Single management console • Cluster-wide Monitoring & Diagnostics

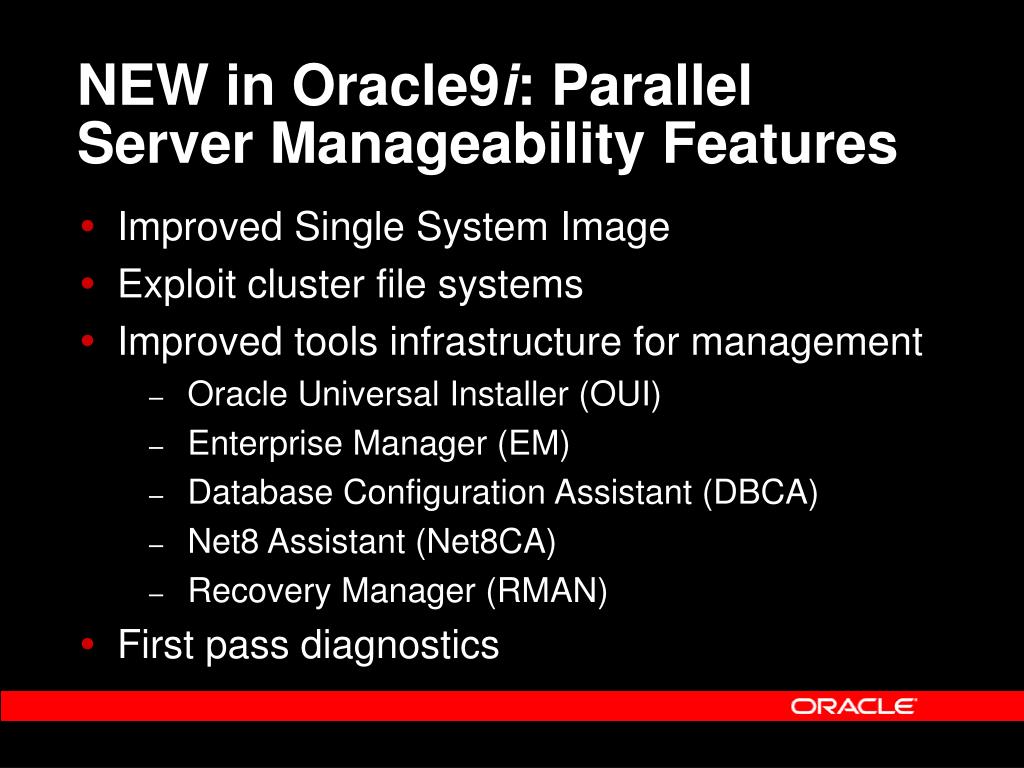

24. NEW in Oracle9i: Parallel Server Manageability Features • Improved Single System Image • Exploit cluster file systems • Improved tools infrastructure for management • Oracle Universal Installer (OUI) • Enterprise Manager (EM) • Database Configuration Assistant (DBCA) • Net8 Assistant (Net8CA) • Recovery Manager (RMAN) • First pass diagnostics

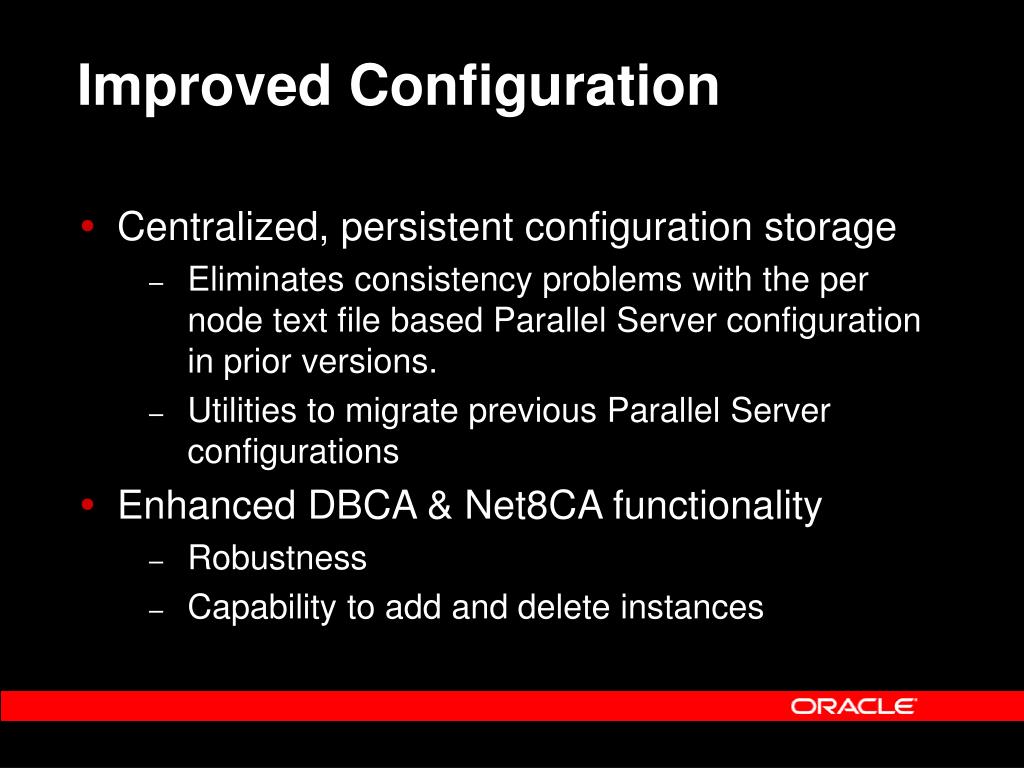

25. Improved Configuration • Centralized, persistent configuration storage • Eliminates consistency problems with the per node text file based Parallel Server configuration in prior versions. • Utilities to migrate previous Parallel Server configurations • Enhanced DBCA & Net8CA functionality • Robustness • Capability to add and delete instances

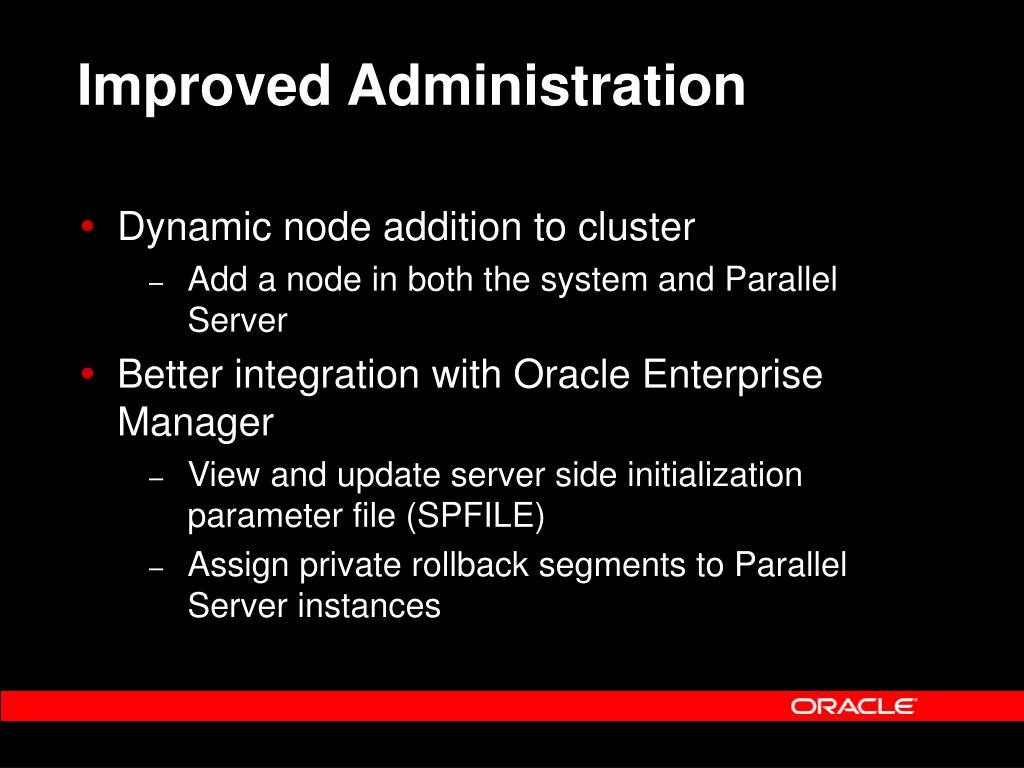

26. Improved Administration • Dynamic node addition to cluster • Add a node in both the system and Parallel Server • Better integration with Oracle Enterprise Manager • View and update server side initialization parameter file (SPFILE) • Assign private rollback segments to Parallel Server instances

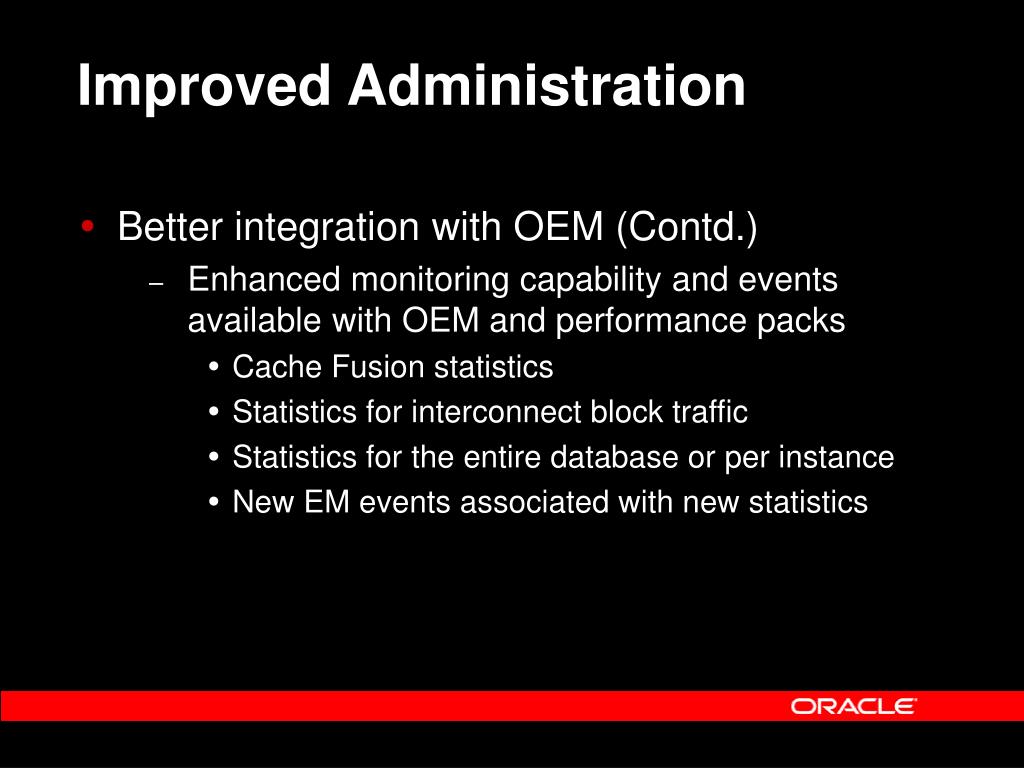

27. Improved Administration • Better integration with OEM (Contd.) • Enhanced monitoring capability and events available with OEM and performance packs • Cache Fusion statistics • Statistics for interconnect block traffic • Statistics for the entire database or per instance • New EM events associated with new statistics

28. Improved Diagnosibility • Server side capability • First pass analysis on problems • Reduces the turnaround time to resolve bugs • Enables analysis of intermittent, hard to reproduce problems • Reduces need for diagnostic patches

29. Microsoft Windows Platform Integration • Integration with Microsoft Cluster Server • Cluster Pre-install Tool • Disk diagnostics • Extensive consistency checks across nodes • Multi-Instance Capability • Enable multiple instances on a single node • Multi-Database Capability • Support multiple databases on the same cluster

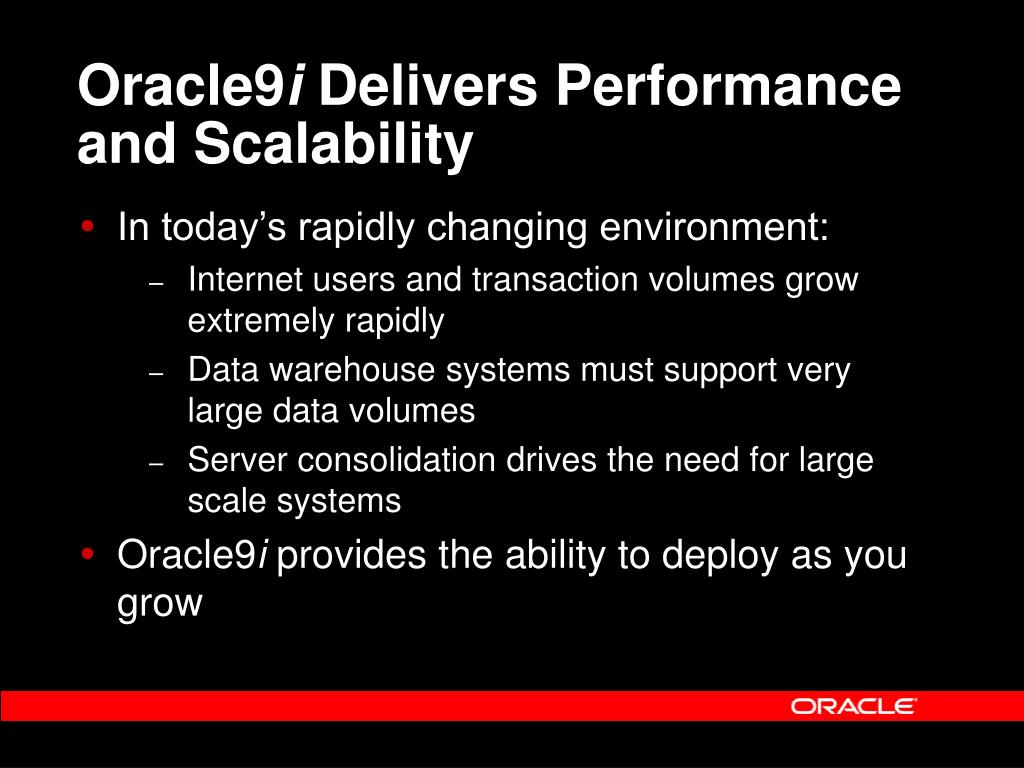

30. Oracle9i Delivers Performance and Scalability • In today’s rapidly changing environment: • Internet users and transaction volumes grow extremely rapidly • Data warehouse systems must support very large data volumes • Server consolidation drives the need for large scale systems • Oracle9i provides the ability to deploy as you grow
