Lattice Verilog Training Part I Jimmy Gao

Lattice Verilog Training Part I Jimmy Gao. Verilog Basic Modeling Structure. Verilog Design Description. Verilog language describes a digital system as a set of modules module counter(…); module module_name ( port_list ) ; … … declares endmodule module_items

jamal-hines
Download Presentation

Lattice Verilog Training Part I Jimmy Gao

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Lattice Verilog Training Part I Jimmy Gao

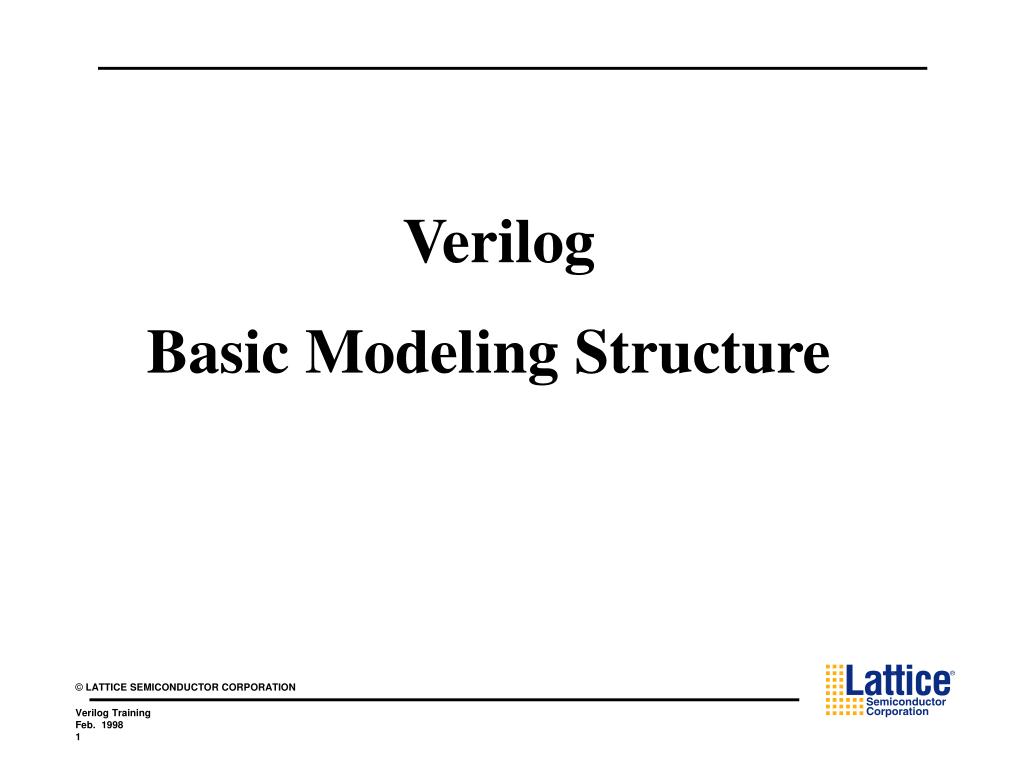

  2. Verilog Basic Modeling Structure

  3. Verilog Design Description • Verilog language describes a digital system as a set of modules module counter(…); module module_name (port_list); … … declares endmodule module_items modulet_ff(…);endmodule ... ... endmodule module dff(…); … … endmodule module inv(…); … … endmodule Ripple Carry Counter T_FF (tff0) T_FF (tff1) T_FF (tff2) T_FF (tff3) DFF INV DFF INV DFF INV DFF INV

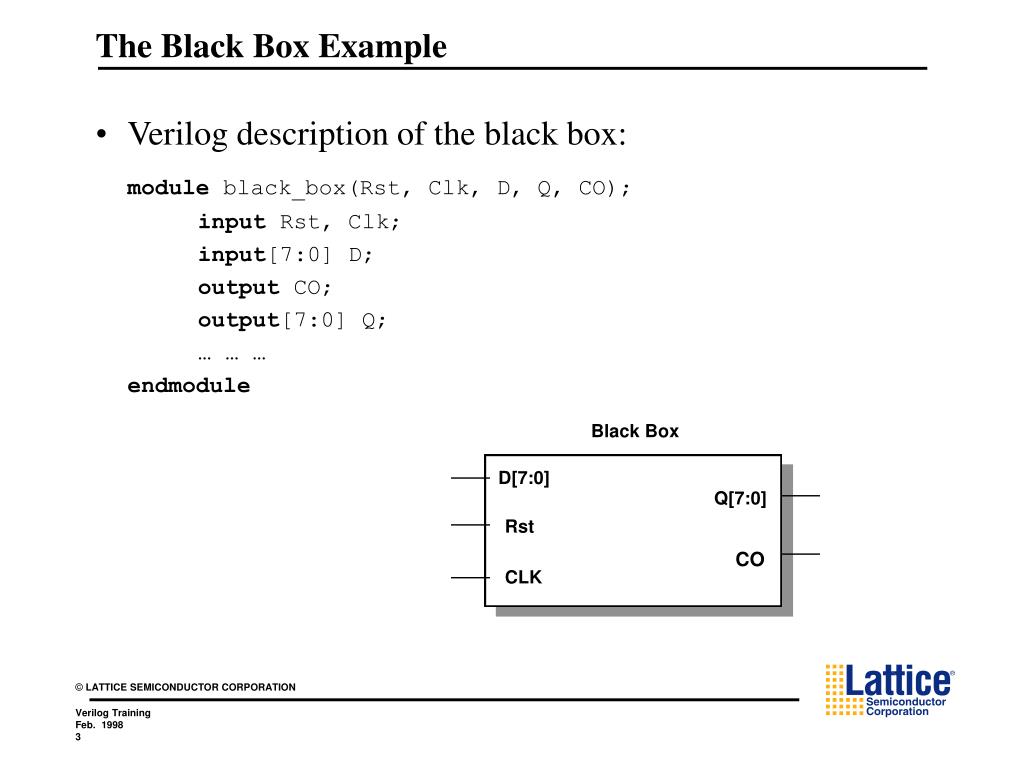

  4. The Black Box Example • Verilog description of the black box: module black_box(Rst, Clk, D, Q, CO); input Rst, Clk; input[7:0] D; output CO; output[7:0] Q; … … … endmodule

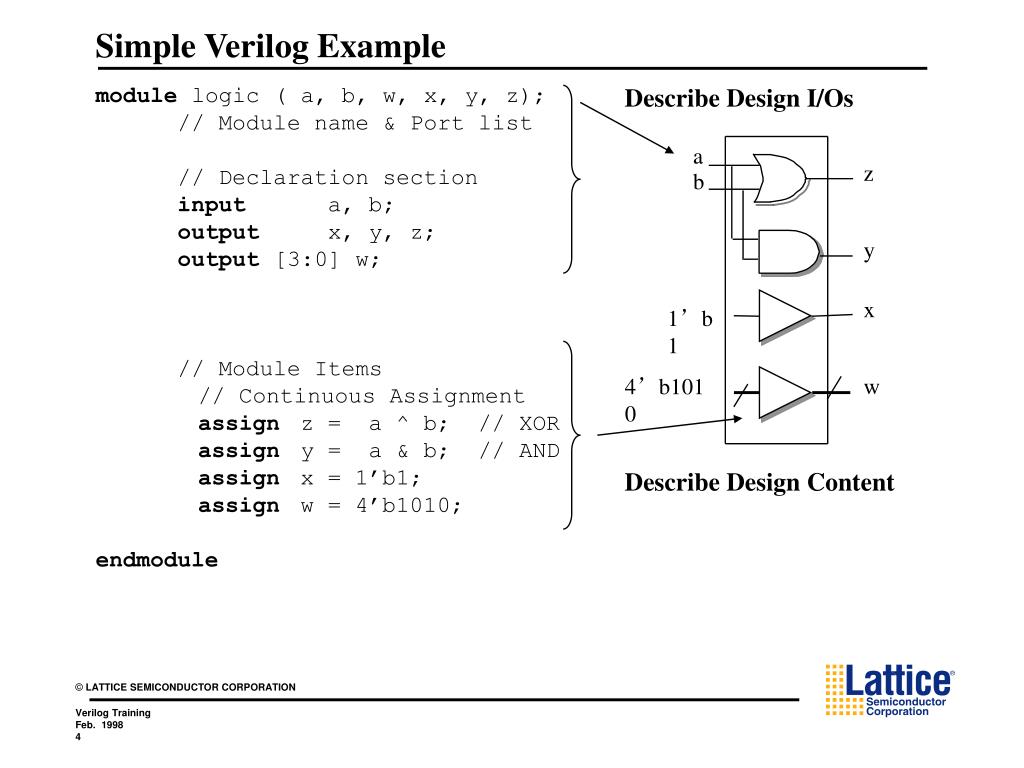

  5. Simple Verilog Example Describe Design I/Os module logic ( a, b, w, x, y, z); // Module name & Port list // Declaration section input a, b; output x, y, z; output [3:0] w; // Module Items // Continuous Assignment assign z = a ^ b; // XOR assign y = a & b; // AND assign x = 1’b1; assign w = 4’b1010; endmodule a z b y x 1’b1 4’b1010 w Describe Design Content

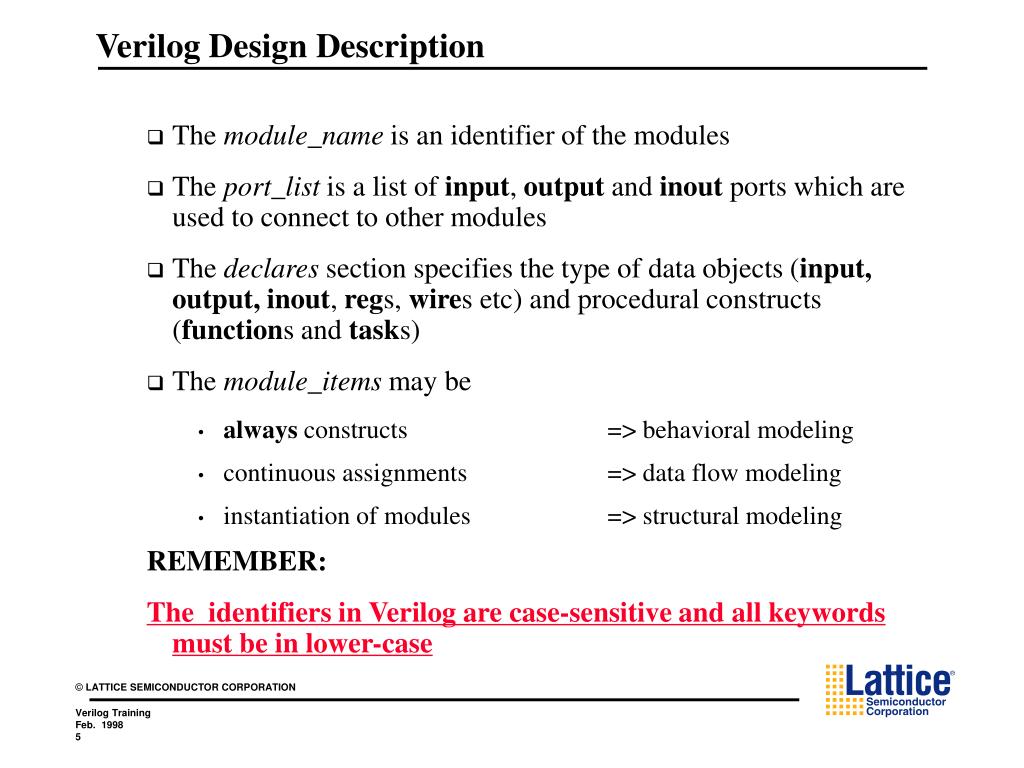

  6. Verilog Design Description • The module_name is an identifier of the modules • The port_list is a list of input, output and inout ports which are used to connect to other modules • The declares section specifies the type of data objects (input, output, inout, regs, wires etc) and procedural constructs (functions and tasks) • The module_items may be • always constructs => behavioral modeling • continuous assignments => data flow modeling • instantiation of modules => structural modeling REMEMBER: The identifiers in Verilog are case-sensitive and all keywords must be in lower-case

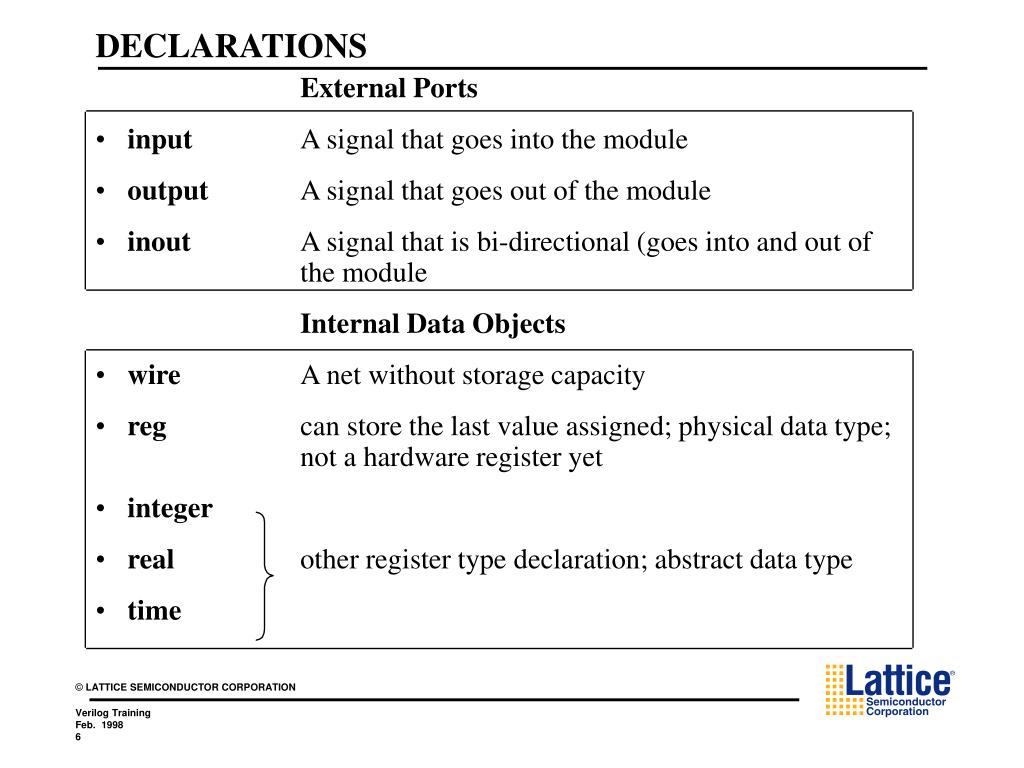

  7. DECLARATIONS External Ports • input A signal that goes into the module • output A signal that goes out of the module • inout A signal that is bi-directional (goes into and out of the module Internal Data Objects • wire A net without storage capacity • reg can store the last value assigned; physical data type; not a hardware register yet • integer • real other register type declaration; abstract data type • time

  8. DECLARATIONS • Declaration Format Class Width Data-Object Example input [4:0] a; 5’b10001 inout b; 1’b1 output [3:0] c; 4’hF reg [0:2] d; 3’b001 wire e; 1’b0 integer f; -40 real g; 3.12 time h; 6 Physical Data Type Abstract Data Type `timescale 1ns / 0.1ns time h; assign h = 6 ; 6ns

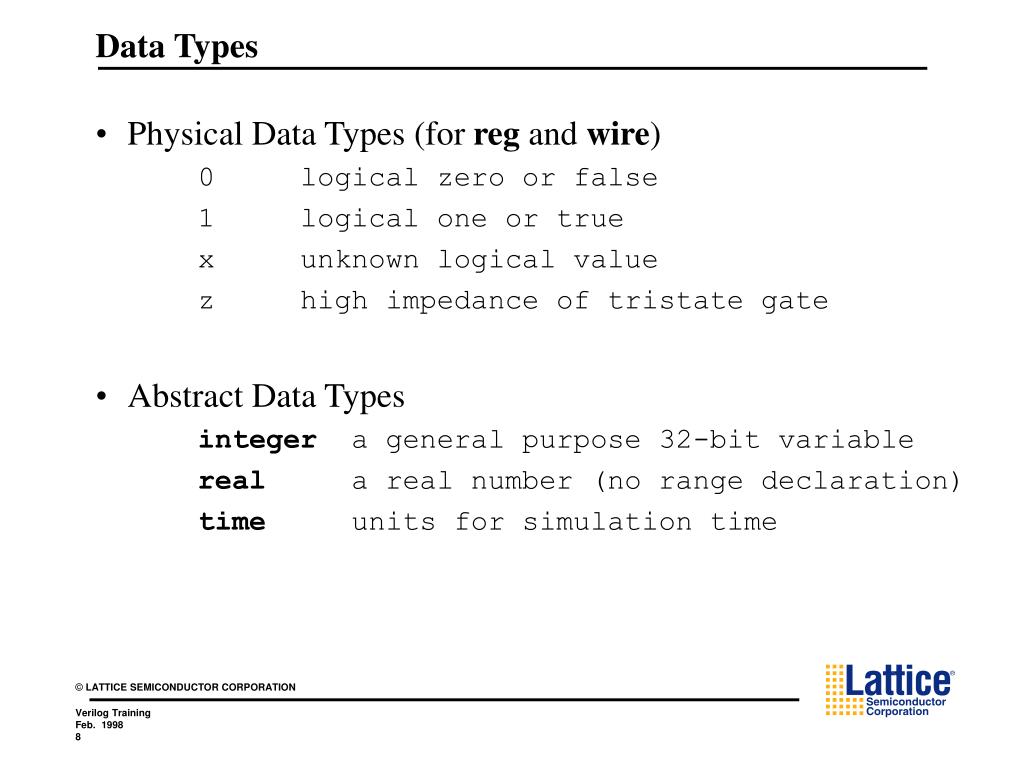

  9. Data Types • Physical Data Types (for reg and wire) 0 logical zero or false 1 logical one or true x unknown logical value z high impedance of tristate gate • Abstract Data Types integer a general purpose 32-bit variable real a real number (no range declaration) time units for simulation time

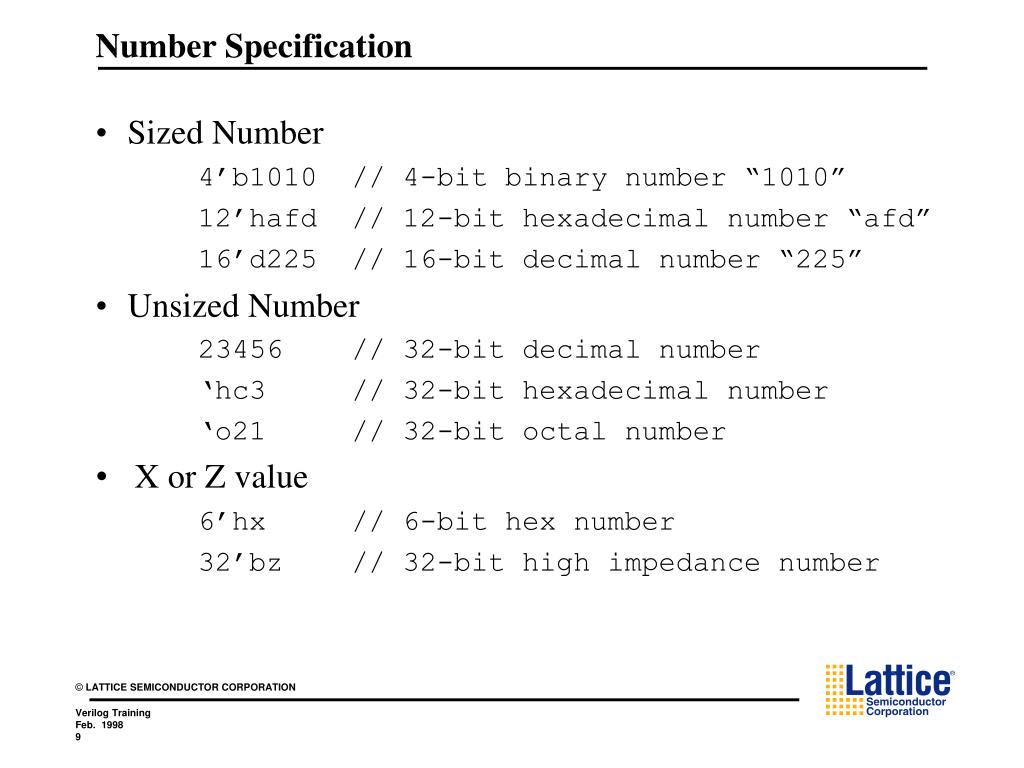

  10. Number Specification • Sized Number 4’b1010 // 4-bit binary number “1010” 12’hafd // 12-bit hexadecimal number “afd” 16’d225 // 16-bit decimal number “225” • Unsized Number 23456 // 32-bit decimal number ‘hc3 // 32-bit hexadecimal number ‘o21 // 32-bit octal number • X or Z value 6’hx // 6-bit hex number 32’bz // 32-bit high impedance number

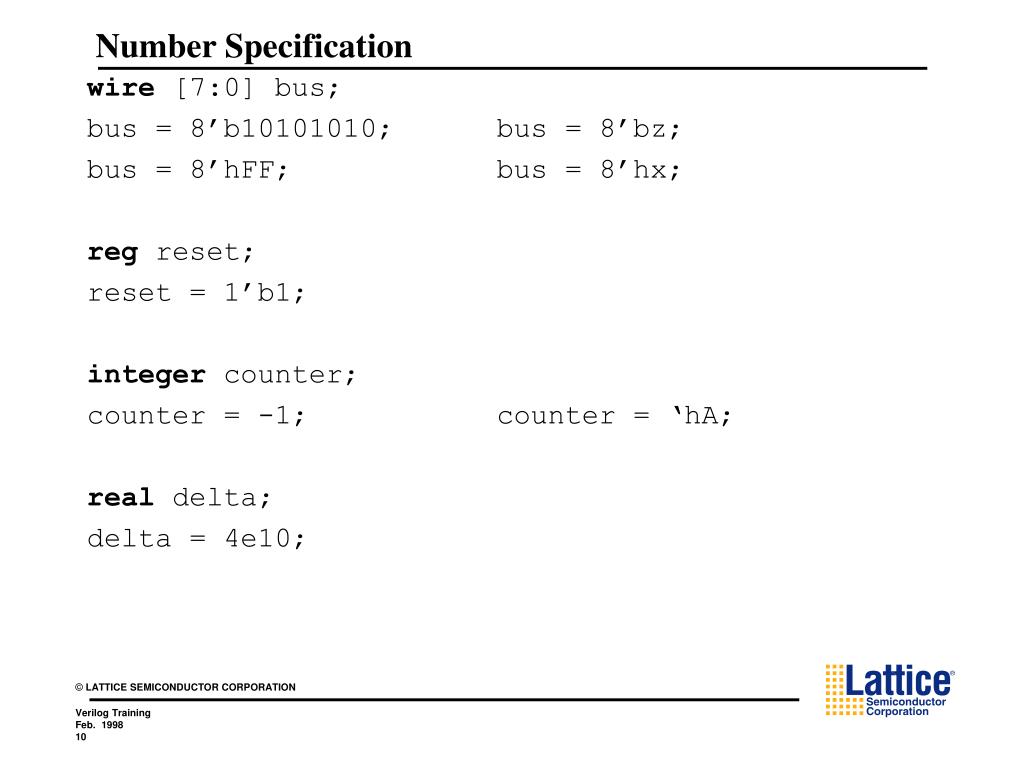

  11. Number Specification wire [7:0] bus; bus = 8’b10101010; bus = 8’bz; bus = 8’hFF; bus = 8’hx; reg reset; reset = 1’b1; integer counter; counter = -1; counter = ‘hA; real delta; delta = 4e10;

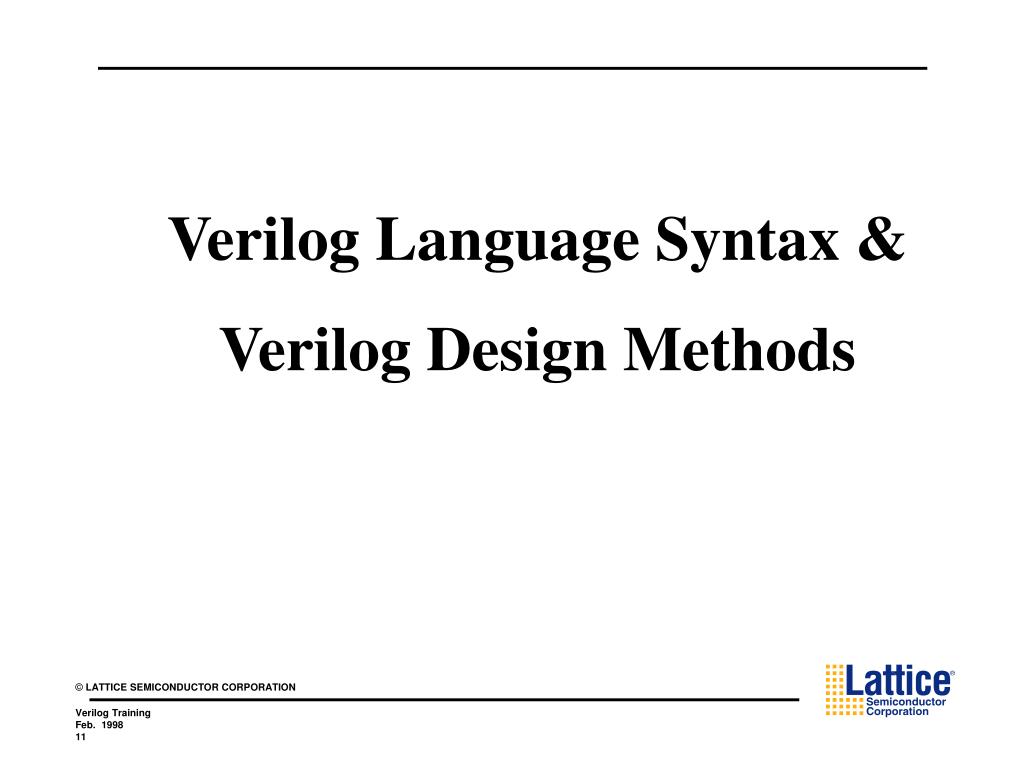

  12. Verilog Language Syntax & Verilog Design Methods

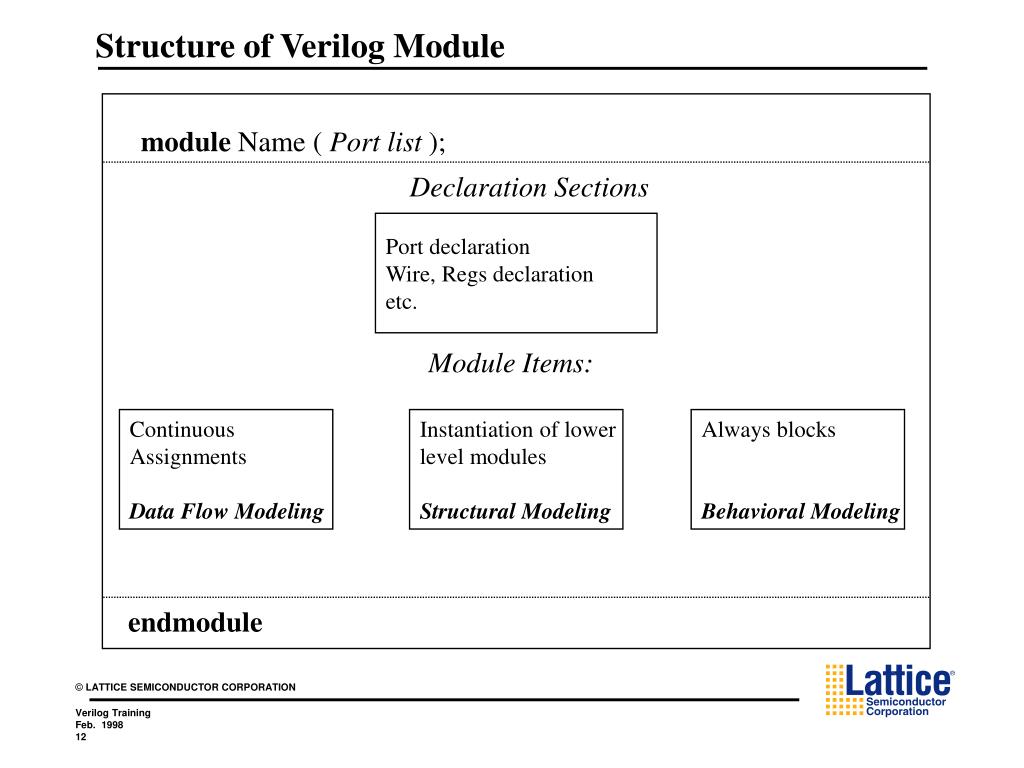

  13. Structure of Verilog Module module Name ( Port list ); Declaration Sections Port declaration Wire, Regs declaration etc. Module Items: Continuous Assignments Data Flow Modeling Instantiation of lower level modules Structural Modeling Always blocks Behavioral Modeling endmodule

  14. Structural Modeling module one_bit_full_adder ( sum, cout, a, b, cin ); // Declaration section input a, b, cin; output sum, cout; wire s1, s2, c1; // Structural Modeling Method - Instantiation of modules XOR2 X1(.Z0(s1), .A0(a), .A1(b)); AND2 A1(.Z0(c1), .A0(a), .A1(b)); XOR2 O1(.Z0(cout), .A0(s2), .A1(c1)); XOR2 X2(sum, s1, cin); AND2 A2(s2, s1, cin); endmodule Library Symbol: AND2 A0 Z0 A1 module AND2 (Z0, A0, A1); input A0, A1; output Z0; endmodule a s1 sum X1 b X2 A0 c1 s2 A1 A2 cout Z0 O1 A1 AND2 cin

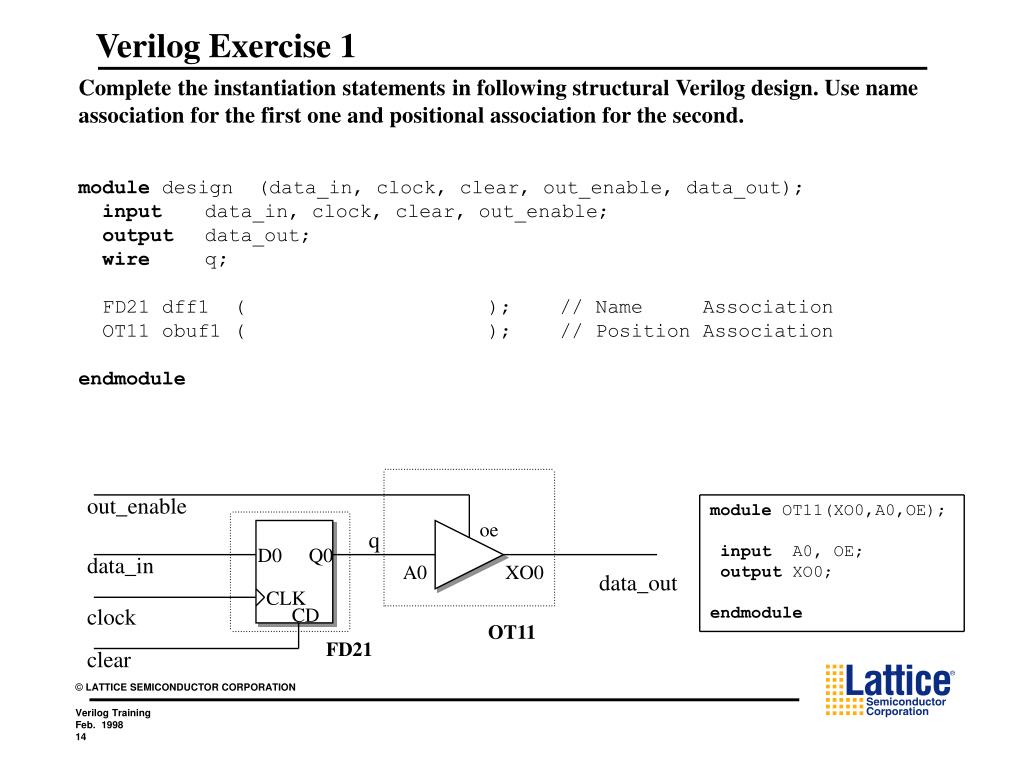

  15. Verilog Exercise 1 Complete the instantiation statements in following structural Verilog design. Use name association for the first one and positional association for the second. module design (data_in, clock, clear, out_enable, data_out); input data_in, clock, clear, out_enable; output data_out; wire q; FD21 dff1 ( ); // Name Association OT11 obuf1 ( ); // Position Association endmodule out_enable module OT11(XO0,A0,OE); input A0, OE; output XO0; endmodule oe q D0 Q0 data_in A0 XO0 data_out CLK clock CD OT11 FD21 clear

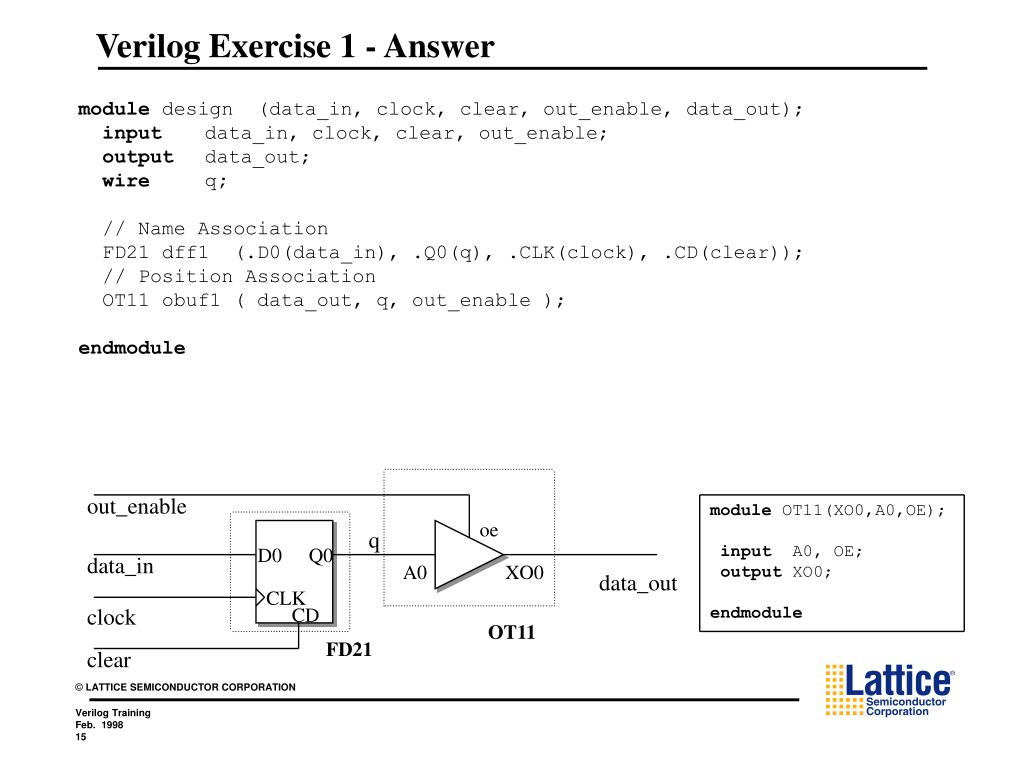

  16. Verilog Exercise 1 - Answer module design (data_in, clock, clear, out_enable, data_out); input data_in, clock, clear, out_enable; output data_out; wire q; // Name Association FD21 dff1 (.D0(data_in), .Q0(q), .CLK(clock), .CD(clear)); // Position Association OT11 obuf1 ( data_out, q, out_enable ); endmodule out_enable module OT11(XO0,A0,OE); input A0, OE; output XO0; endmodule oe q D0 Q0 data_in A0 XO0 data_out CLK clock CD OT11 FD21 clear

  17. Data Flow Modeling - Continuous Assignment • Continuous assignment • Use assign key word; Execute concurrently assign out = i1 & i2; // AND assign addr[15:0] = addr1_bits[15:0] ^ addr2_bits[15:0]; // XOR • Implicit Continuous Assignment // Regular continuous assignment wire out; assign out = in1 & in2; // Implicit continuous assignment wire out = in1 & in2; • Continuous Assignment with conditional operator assign x = y ? b + a : b; NOTE: Variable = (Test Condition) ? (True logic) : (False Logic)

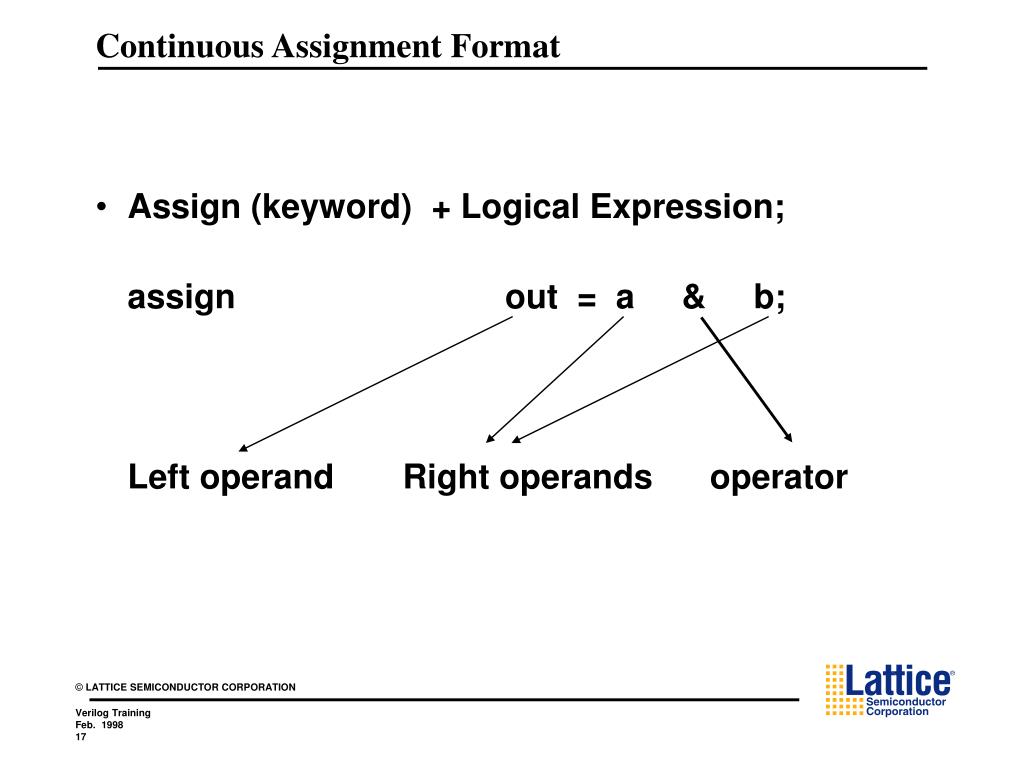

  18. Continuous Assignment Format • Assign (keyword) + Logical Expression; assign out = a & b; Left operand Right operands operator

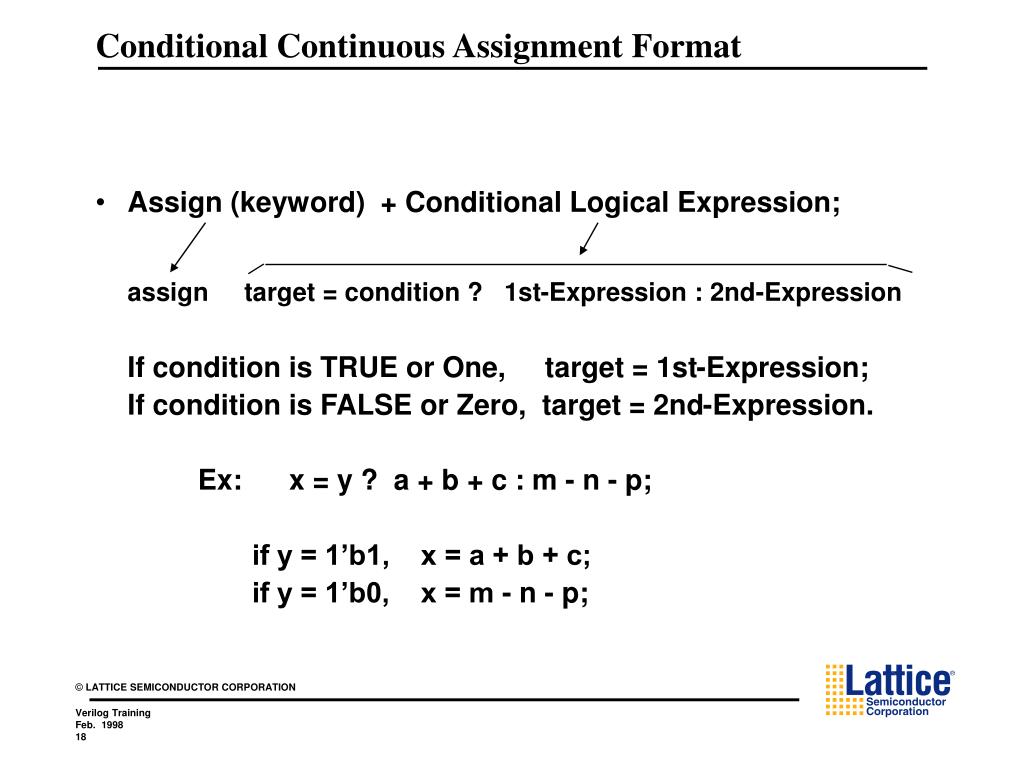

  19. Conditional Continuous Assignment Format • Assign (keyword) + Conditional Logical Expression; assign target = condition ? 1st-Expression : 2nd-Expression If condition is TRUE or One, target = 1st-Expression; If condition is FALSE or Zero, target = 2nd-Expression. Ex: x = y ? a + b + c : m - n - p; if y = 1’b1, x = a + b + c; if y = 1’b0, x = m - n - p;

  20. Operators • Binary Arithmetic Operators operate on two operands Operator Name Comments + Addition - Subtraction * Multiplication / Division divide by zero produces an x. % Modulus • Logical Operators operate on logical operands and return a logical value Operator Name ! Logical Negation && Logical AND || Logical OR

  21. Operators • Relational Operators compare two operands and return a logical value. Operator Name Comments > Greater than < Less than >= Greater than or equal to <= Less than or equal to • Equality Operators compare two operands and return a logical value. Operator Name Comments == Equality result unknown if including x or z != Inequality result unknown if including x or z === Case Equality equal including x or z !== Case Inequality unequal including x or z

  22. Operators • Bitwise Operators operate on the bits of operands Operator Name ~ Bitwise negation & Bitwise AND | Bitwise OR ^ Bitwise XOR ~& Bitwise NAND ~| Bitwise NOR ~^ or ^~ Bitwise NOT XOR

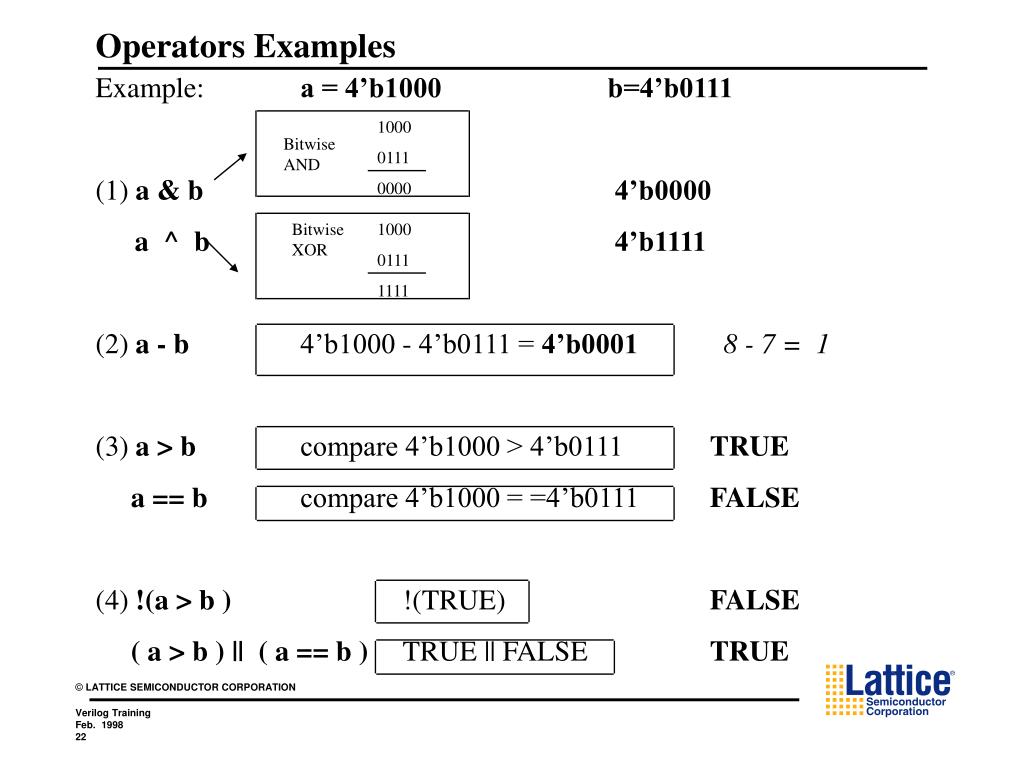

  23. Operators Examples Example: a = 4’b1000 b=4’b0111 (1) a & b 4’b0000 a ^ b 4’b1111 (2) a - b 4’b1000 - 4’b0111 = 4’b00018 - 7 = 1 (3) a > b compare 4’b1000 > 4’b0111 TRUE a == b compare 4’b1000 = =4’b0111 FALSE (4) !(a > b ) !(TRUE) FALSE ( a > b ) || ( a == b ) TRUE || FALSE TRUE 1000 0111 0000 Bitwise AND Bitwise XOR 1000 0111 1111

  24. Operators • Shift Operators Operator Name << Shift Left >> Shift Right // A = 4’b1010; Y = A << 1; // Y = 4’b0100; Y = A >> 2; // Y = 4’b0010; • Concatenation Operator {,} // A = 2’b00; B = 2’b10; Y = {A, B}; // Y = 4’b0010; Y = {2{A}, 3{B}}; // Y = 10’b0000101010; Add Zero at the end while left shifting Add Zero at the beginning while right shifting

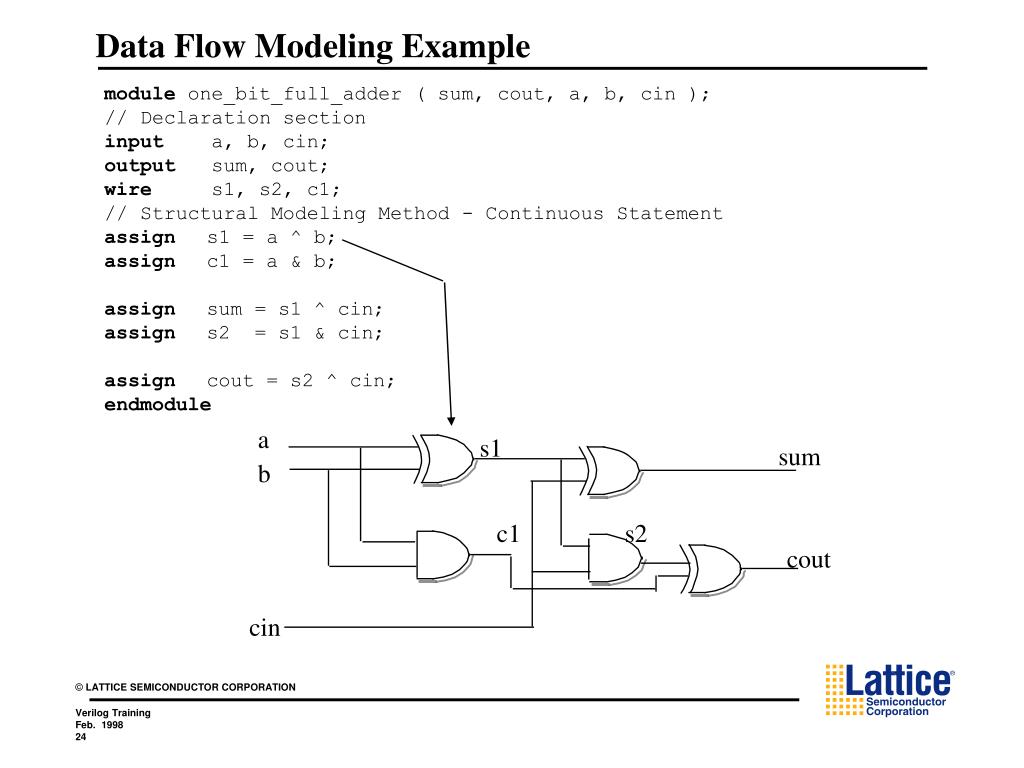

  25. Data Flow Modeling Example module one_bit_full_adder ( sum, cout, a, b, cin ); // Declaration section input a, b, cin; output sum, cout; wire s1, s2, c1; // Structural Modeling Method - Continuous Statement assign s1 = a ^ b; assign c1 = a & b; assign sum = s1 ^ cin; assign s2 = s1 & cin; assign cout = s2 ^ cin; endmodule a s1 sum b c1 s2 cout cin

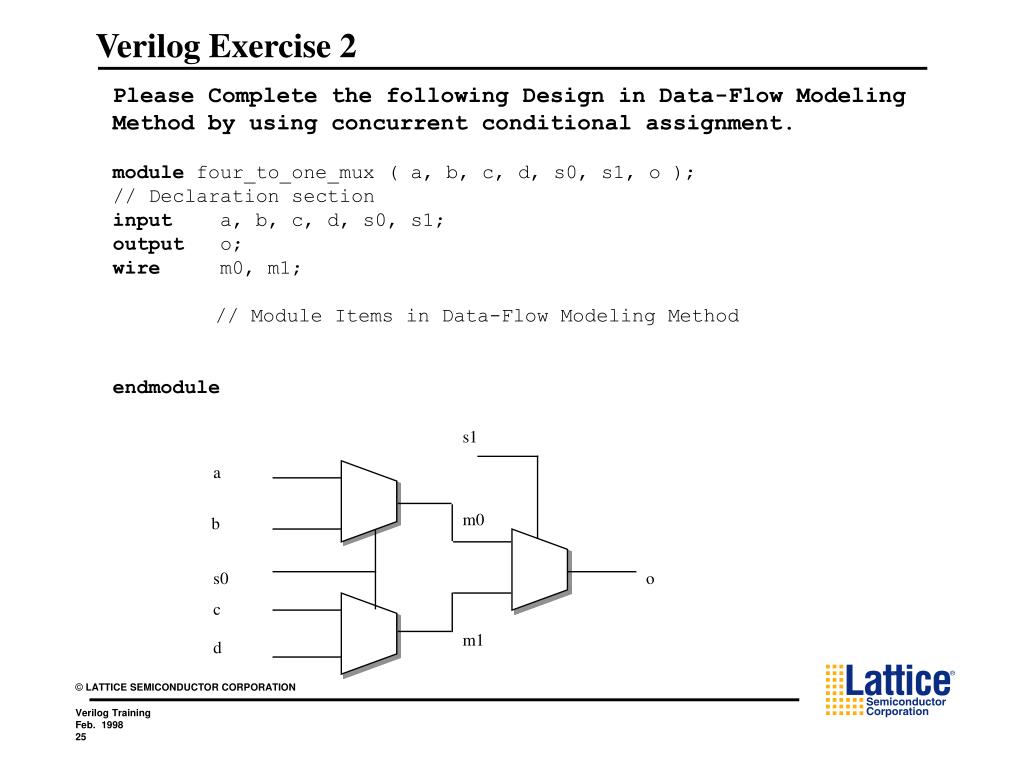

  26. Verilog Exercise 2 Please Complete the following Design in Data-Flow Modeling Method by using concurrent conditional assignment. module four_to_one_mux ( a, b, c, d, s0, s1, o ); // Declaration section input a, b, c, d, s0, s1; output o; wire m0, m1; // Module Items in Data-Flow Modeling Method endmodule s1 a m0 b s0 o c m1 d

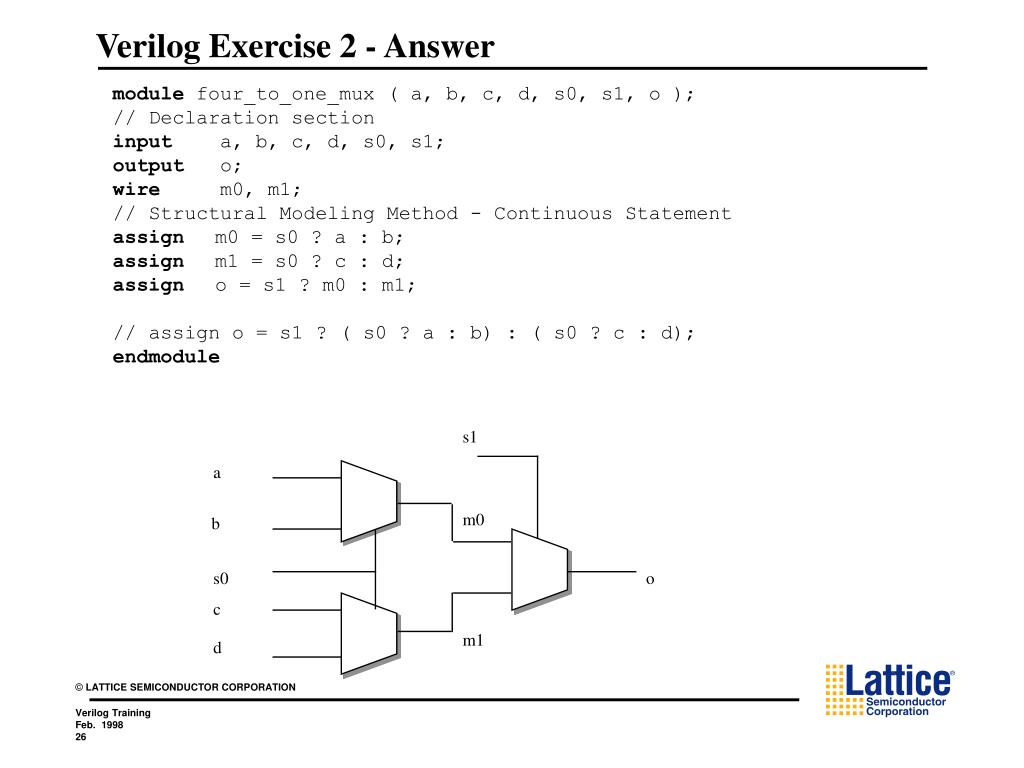

  27. Verilog Exercise 2 - Answer module four_to_one_mux ( a, b, c, d, s0, s1, o ); // Declaration section input a, b, c, d, s0, s1; output o; wire m0, m1; // Structural Modeling Method - Continuous Statement assign m0 = s0 ? a : b; assign m1 = s0 ? c : d; assign o = s1 ? m0 : m1; // assign o = s1 ? ( s0 ? a : b) : ( s0 ? c : d); endmodule s1 a m0 b s0 o c m1 d

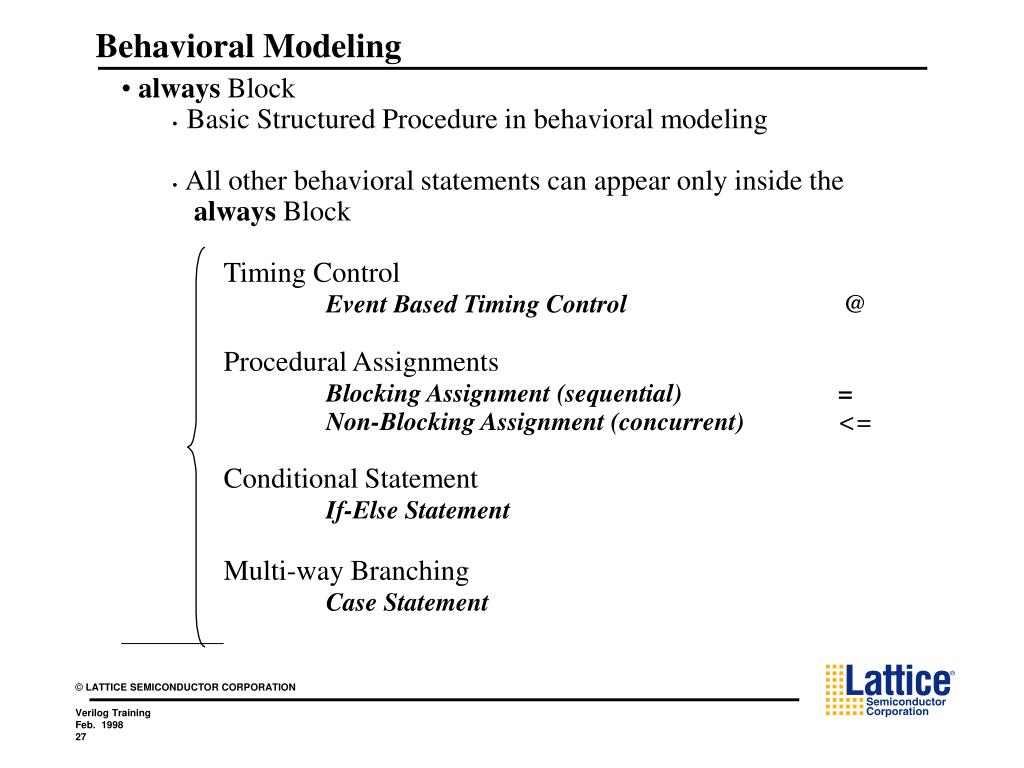

  28. Behavioral Modeling • always Block • Basic Structured Procedure in behavioral modeling • All other behavioral statements can appear only inside the • always Block • Timing Control • Event Based Timing Control @ • Procedural Assignments • Blocking Assignment (sequential) = • Non-Blocking Assignment (concurrent) <= • Conditional Statement • If-Else Statement • Multi-way Branching • Case Statement

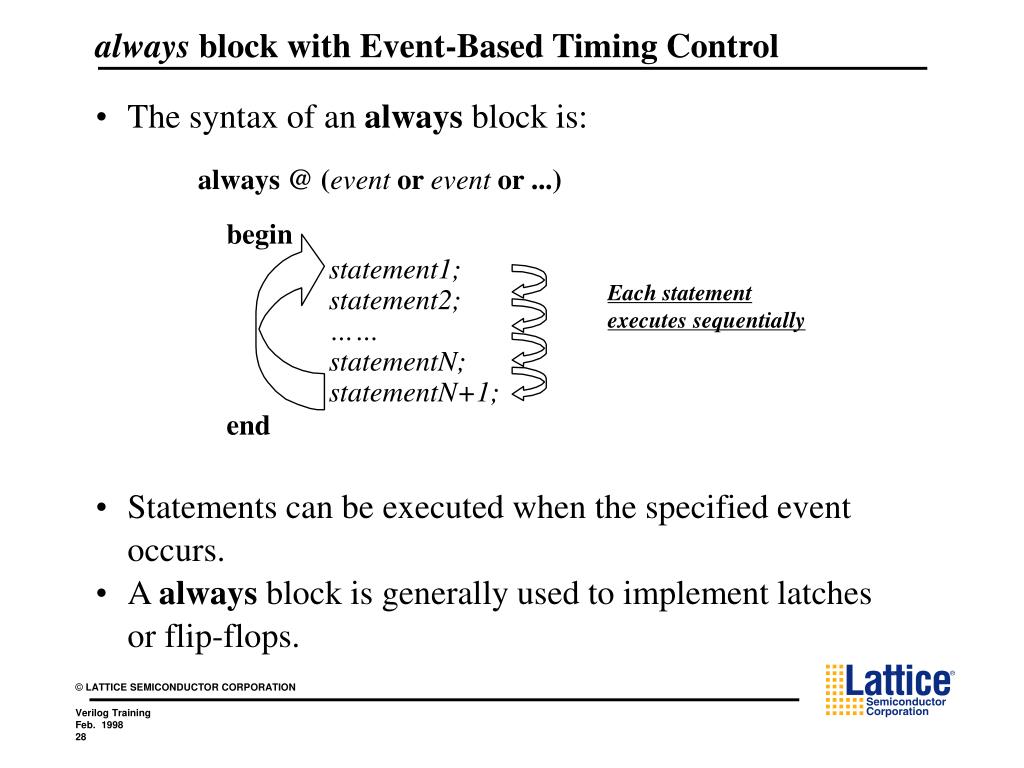

  29. always block with Event-Based Timing Control • The syntax of an always block is: always @ (event or event or ...) begin statement1; statement2; …… statementN; statementN+1; end • Statements can be executed when the specified event occurs. • A always block is generally used to implement latches or flip-flops. Each statement executes sequentially

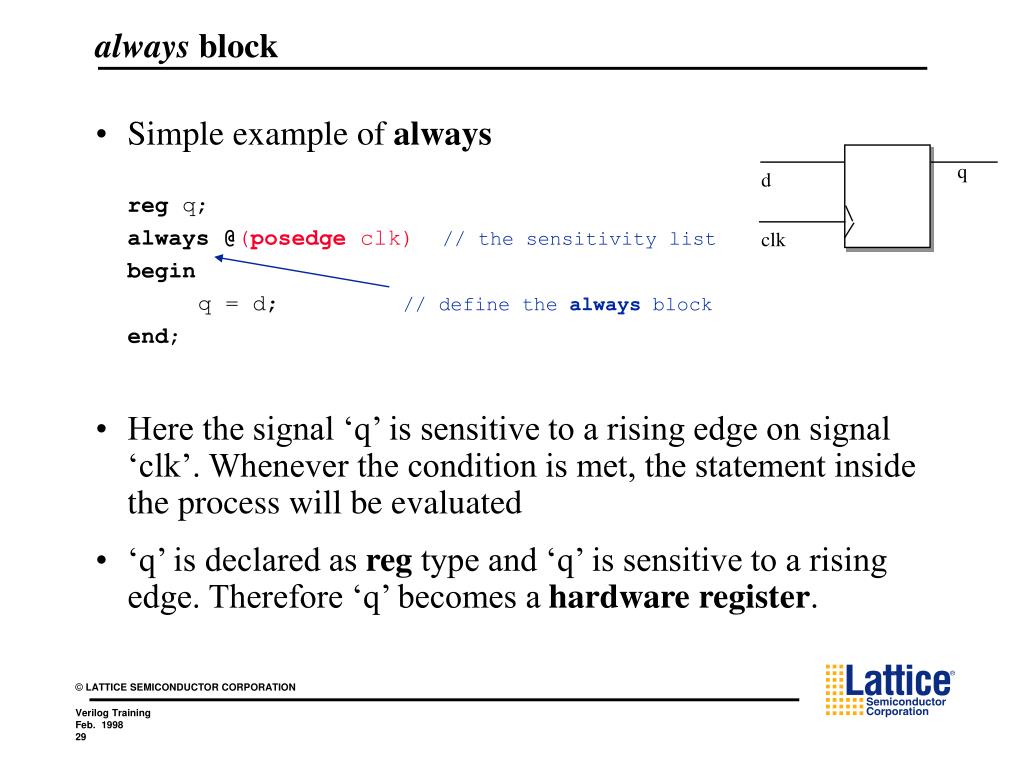

  30. always block • Simple example of always reg q; always @(posedge clk) // the sensitivity list begin q = d; // define the always block end; • Here the signal ‘q’ is sensitive to a rising edge on signal ‘clk’. Whenever the condition is met, the statement inside the process will be evaluated • ‘q’ is declared as reg type and ‘q’ is sensitive to a rising edge. Therefore ‘q’ becomes a hardware register. q d clk

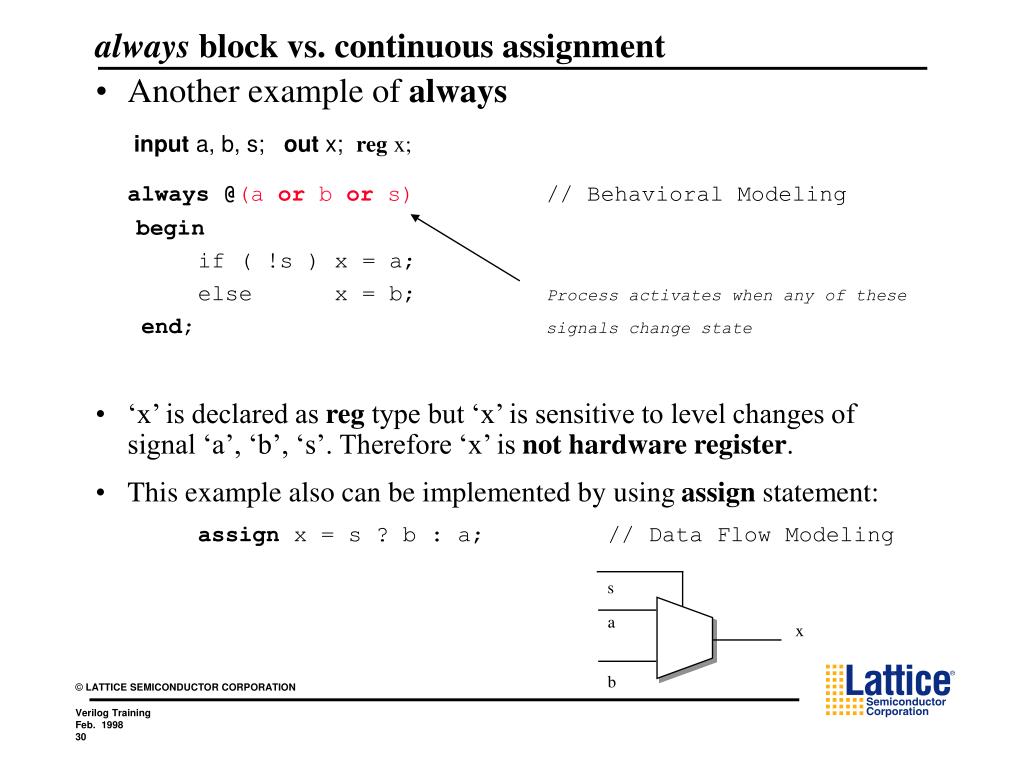

  31. always block vs. continuous assignment • Another example of always input a, b, s; out x; regx; always @(a or b or s) // Behavioral Modeling begin if ( !s ) x = a; else x = b; Process activates when any of these end; signals change state • ‘x’ is declared as reg type but ‘x’ is sensitive to level changes of signal ‘a’, ‘b’, ‘s’. Therefore ‘x’ is not hardware register. • This example also can be implemented by using assign statement: assign x = s ? b : a; // Data Flow Modeling s a x b

  32. Procedural Assignments - Blocking Assignments • Procedural assignments - Blocking Assignments • Procedural blocking assignments are sequential; Statements inside the block execute in sequence, one after another. • Example // breg, creg, dreg are related. reg breg, creg, dreg; always @( posedge clk ) begin breg = areg; creg = breg; dreg = creg; end breg areg creg clk dreg

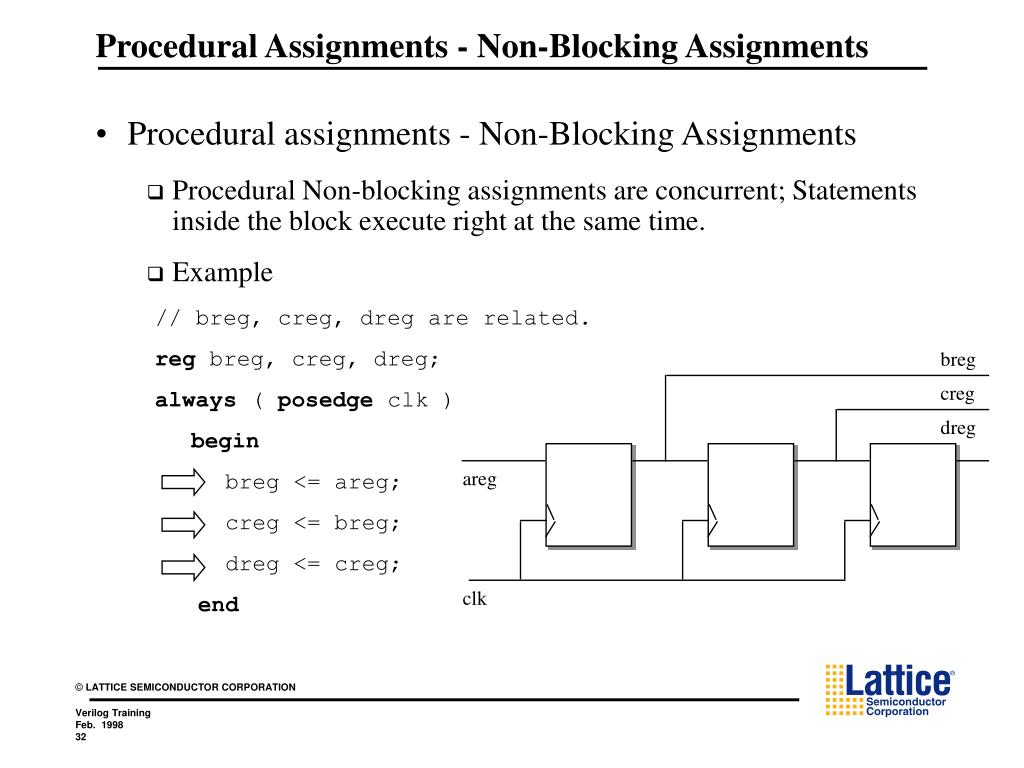

  33. Procedural Assignments - Non-Blocking Assignments • Procedural assignments - Non-Blocking Assignments • Procedural Non-blocking assignments are concurrent; Statements inside the block execute right at the same time. • Example // breg, creg, dreg are related. reg breg, creg, dreg; always ( posedge clk ) begin breg <= areg; creg <= breg; dreg <= creg; end breg creg dreg areg clk

  34. Blocking Assignments vs. Non-Blocking Assignments always@( a ) begin #10 b = a; // AT TIME UNIT 10 #10 c = b; // AT TIME UNIT 20 #10 d = c; // AT TIME UNIT 30 #10 o = d; // AT TIME UNIT 40 end always @( a ) begin #10 b <= a; // AT TIME UNIT 10 #10 c <= b; // AT TIME UNIT 10 #10 d <= c; // AT TIME UNIT 10 #10 o <= d; // AT TIME UNIT 10 end

  35. Procedural Assignments - Blocking/Non-Blocking Assignments module regs (a, b, c, clk, q1, q2, q3); output q1, q2, q3; input a, b, c, clk; reg q1, q2, q3; always @( posedge clk ) begin q1 = a; q2 = b; q3 = c; end endmodule module regs (a, b, c, clk, q1, q2, q3); output q1, q2, q3; input a, b, c, clk; reg q1, q2, q3; always @( posedge clk ) begin q1 <= a; q2 <= b; q3 <= c; end endmodule a q1 clk q1 = a b q2 q2 = a clk q3 = a c q3 clk t t a q1 clk q1 = a b q2 q2 = a clk q3 = a c q3 clk

  36. Procedural Assignment Format always @ ( sensitive event list ) begin // Procedural Assignments xyz <= m & n; // non-blocking assignment out = a ^ b; // blocking assignment Logical Expression xyz <= m ^ n; out = a & b; Left operand Right operands operator end

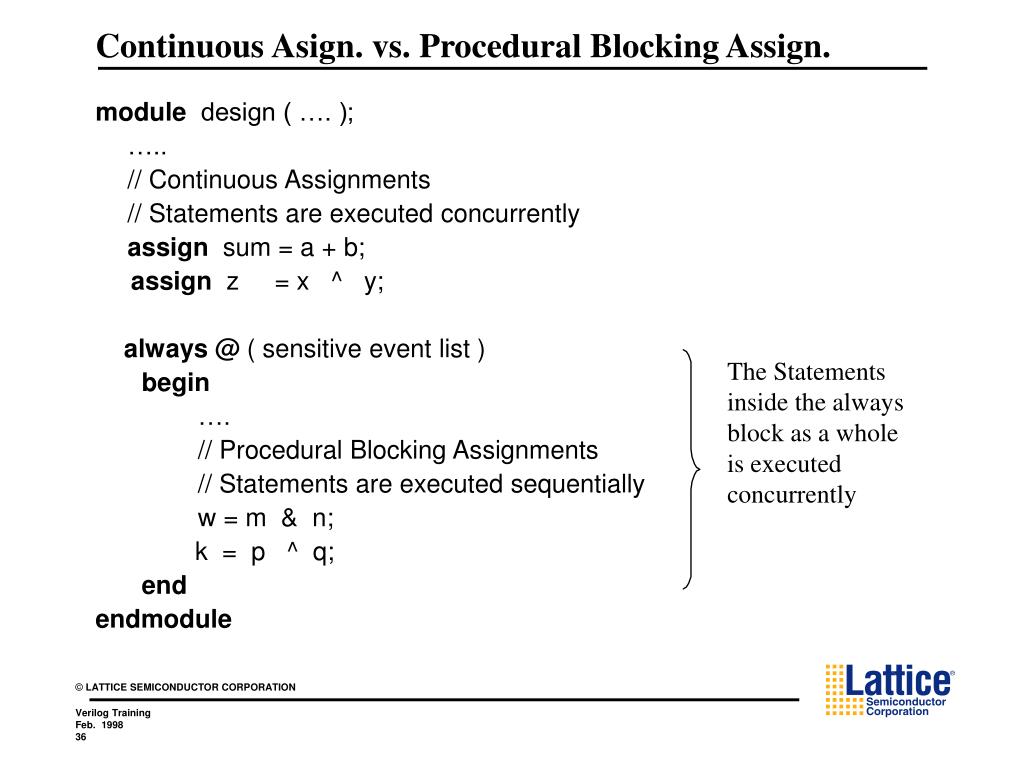

  37. Continuous Asign. vs. Procedural Blocking Assign. module design ( …. ); ….. // Continuous Assignments // Statements are executed concurrently assign sum = a + b; assign z = x ^ y; always @ ( sensitive event list ) begin …. // Procedural Blocking Assignments // Statements are executed sequentially w = m & n; k = p ^ q; end endmodule The Statements inside the always block as a whole is executed concurrently

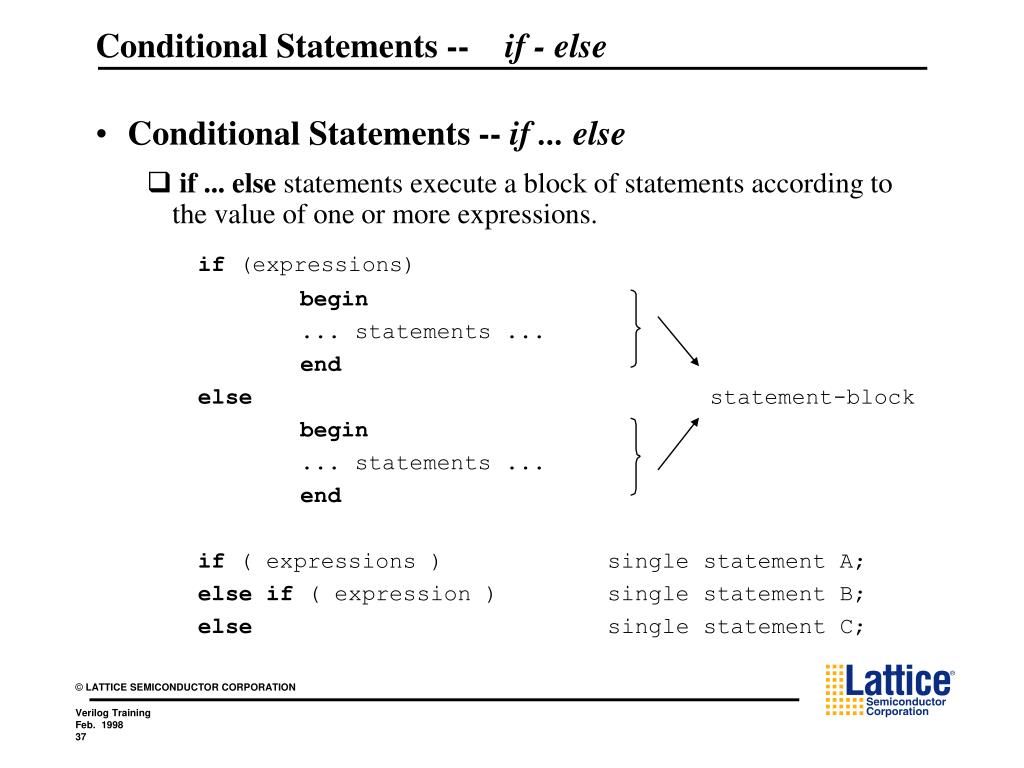

  38. Conditional Statements -- if - else • Conditional Statements -- if ... else • if ... else statements execute a block of statements according to the value of one or more expressions. if (expressions) begin ... statements ... end else statement-block begin ... statements ... end if ( expressions ) single statement A; else if ( expression ) single statement B; else single statement C;

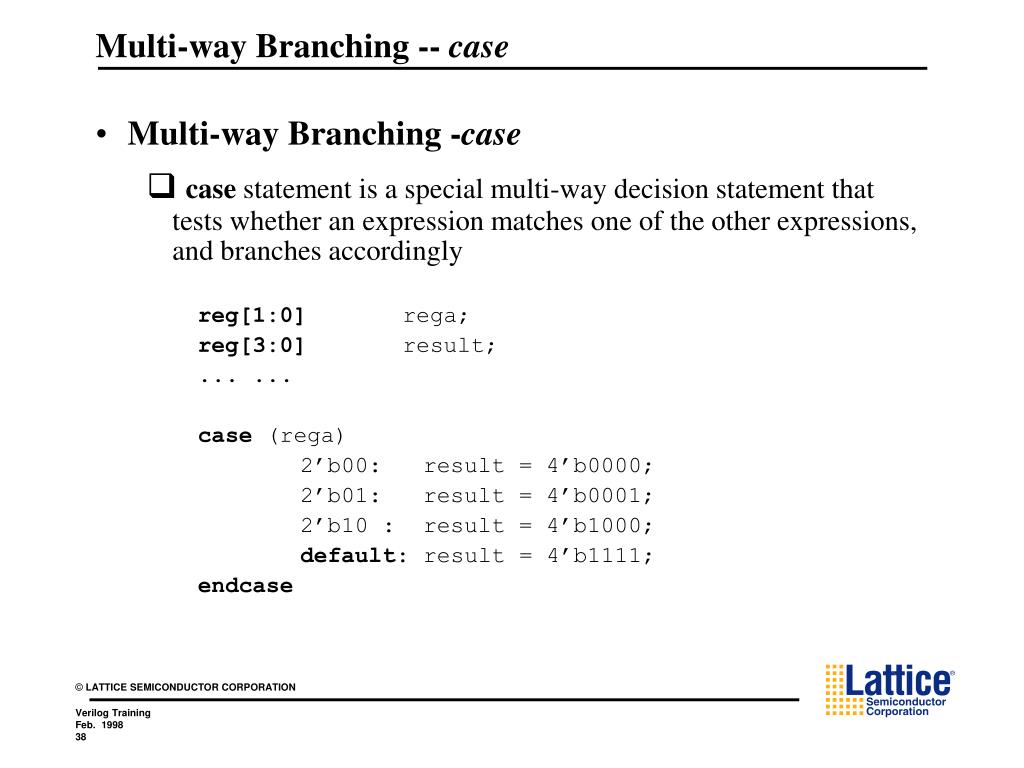

  39. Multi-way Branching -- case • Multi-way Branching -case • case statement is a special multi-way decision statement that tests whether an expression matches one of the other expressions, and branches accordingly reg[1:0] rega; reg[3:0] result; ... ... case (rega) 2’b00: result = 4’b0000; 2’b01: result = 4’b0001; 2’b10 : result = 4’b1000; default: result = 4’b1111; endcase

  40. Verilog Review s a module Example (a, b, c, d, s, o ); // port declaration section input a, b, c, d, s; output o; // wire & reg declaration section wire m0, m1; reg temp1, temp2, o; // continuous assignment assign m0 = a ^ b; // instantiation statement AND2 A1(.Z0( m1 ), .A0( c ), .A1( d )); // always block always @(m0 or m1 or s) begin temp1 = m0; temp2 = m1; if ( s == 1’b0 ) o = temp1; else o = temp2; end endmodule m0 b o c m1 d statements outside always block executed currently always block as a whole is executed concurrently Statements inside always block executed sequentially

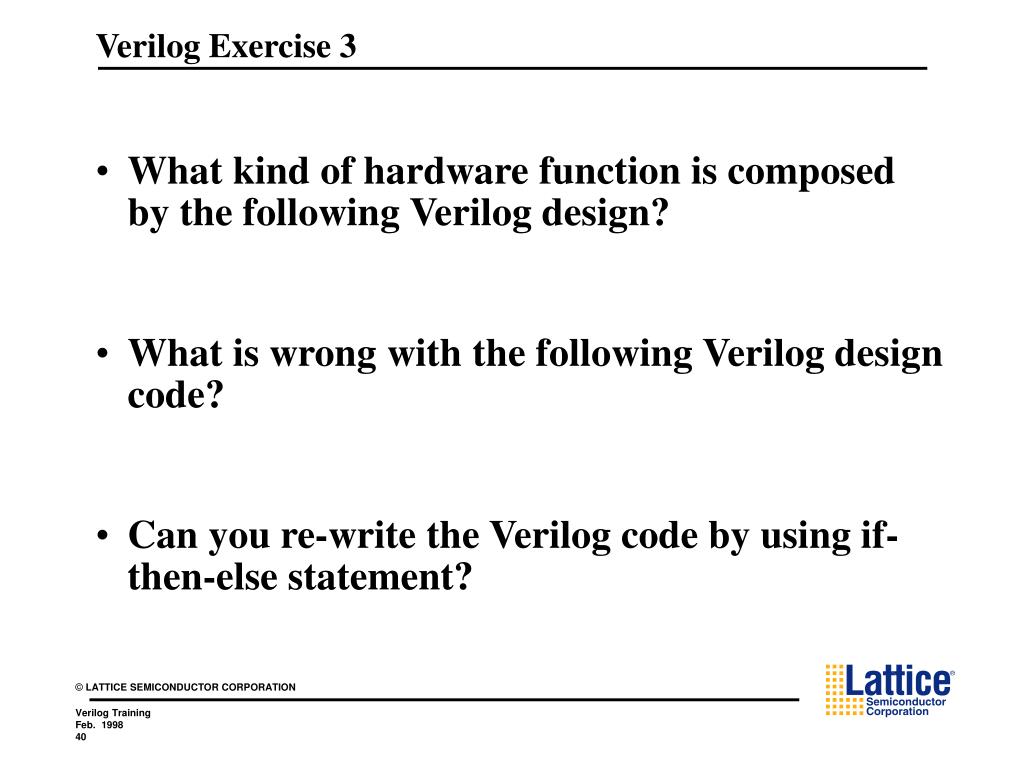

  41. Verilog Exercise 3 • What kind of hardware function is composed by the following Verilog design? • What is wrong with the following Verilog design code? • Can you re-write the Verilog code by using if-then-else statement?

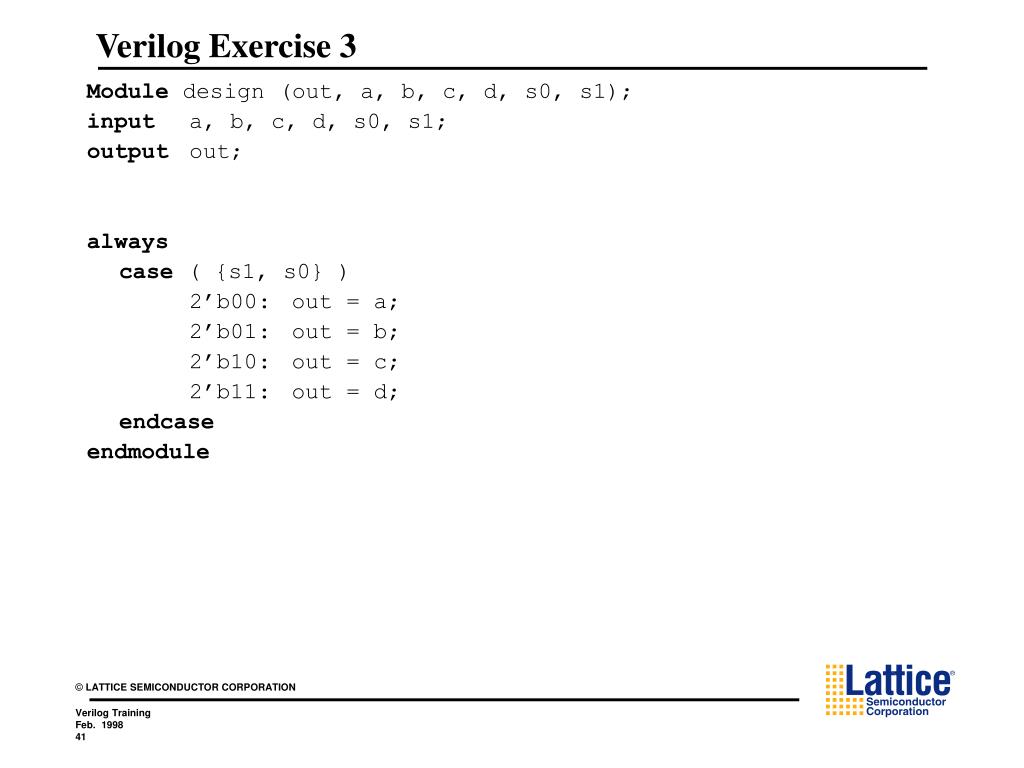

  42. Verilog Exercise 3 Module design (out, a, b, c, d, s0, s1); input a, b, c, d, s0, s1; output out; always case ( {s1, s0} ) 2’b00: out = a; 2’b01: out = b; 2’b10: out = c; 2’b11: out = d; endcase endmodule

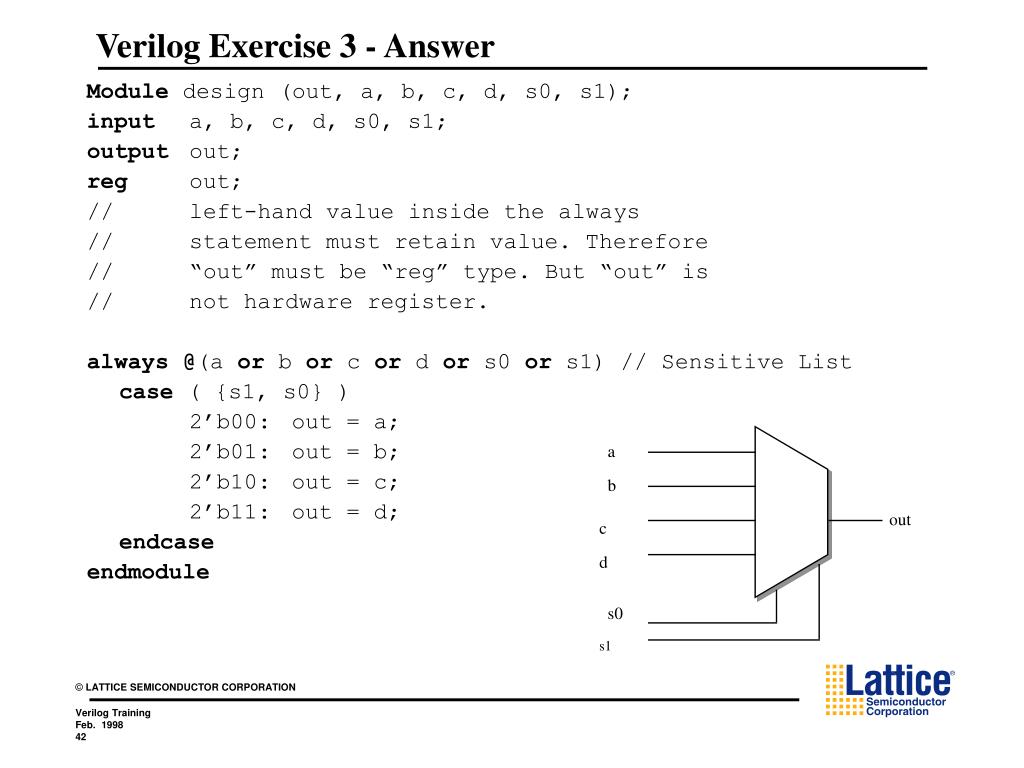

  43. Verilog Exercise 3 - Answer Module design (out, a, b, c, d, s0, s1); input a, b, c, d, s0, s1; output out; reg out; // left-hand value inside the always // statement must retain value. Therefore // “out” must be “reg” type. But “out” is // not hardware register. always@(a or b or c or d or s0 or s1) // Sensitive List case ( {s1, s0} ) 2’b00: out = a; 2’b01: out = b; 2’b10: out = c; 2’b11: out = d; endcase endmodule a b out c d s0 s1

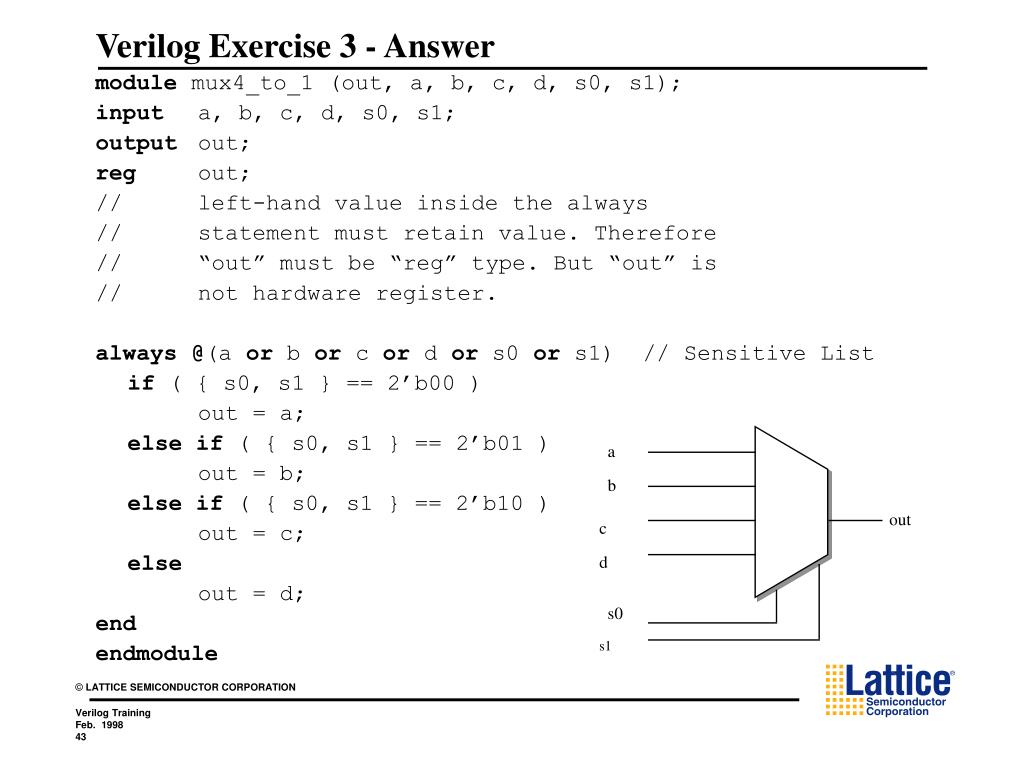

  44. Verilog Exercise 3 - Answer module mux4_to_1 (out, a, b, c, d, s0, s1); input a, b, c, d, s0, s1; output out; reg out; // left-hand value inside the always // statement must retain value. Therefore // “out” must be “reg” type. But “out” is // not hardware register. always@(a or b or c or d or s0 or s1) // Sensitive List if ( { s0, s1 } == 2’b00 ) out = a; else if ( { s0, s1 } == 2’b01 ) out = b; else if ( { s0, s1 } == 2’b10 ) out = c; else out = d; end endmodule a b out c d s0 s1

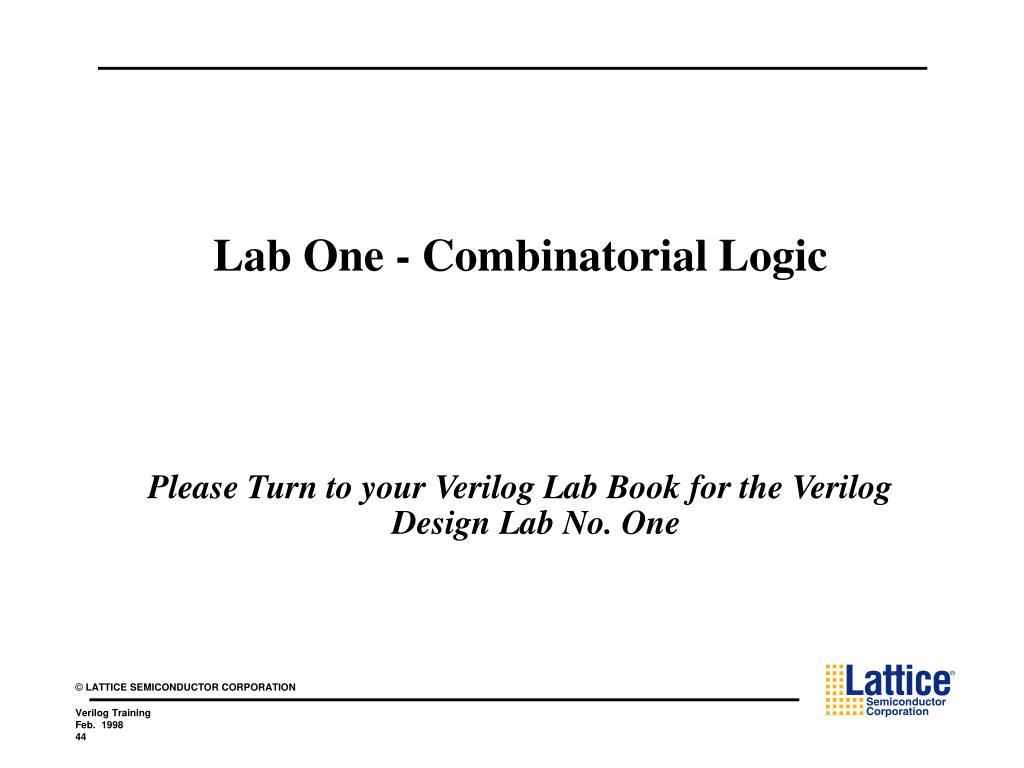

  45. Lab One - Combinatorial Logic Please Turn to your Verilog Lab Book for the Verilog Design Lab No. One

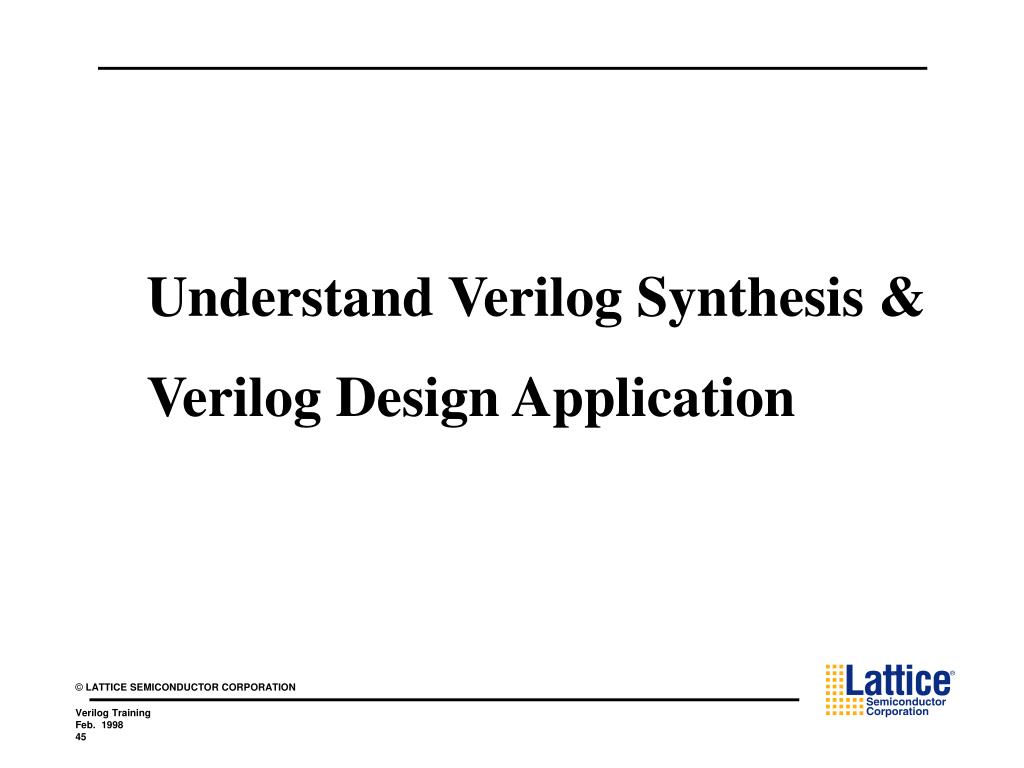

  46. Understand Verilog Synthesis & Verilog Design Application

  47. Registers in Verilog • Registers -- declarations and triggers • declares: input clk, x_in; input data1, data2, data3; input [4:0] q_in; reg x; // single bit reg a, b, c; // three single-bit registers reg[4:0] q; // a 5-bit vector • triggers: always @(posedge clk) begin q = q_in; end always @(negedge clk) begin x = x_in; a =data1; b =data2; c =data3; end q q_in 1 clk 0 x x_in clk 1 0

  48. Registers in Verilog -- asynchronous reset • Registers -- Asynchronous Reset module async_reset(d, clk, rst, q); input d, clk, rst; output q; reg q; always @(posedge clk or posedge rst) begin if (rst) q = 0; // asynchronous reset else if ( clk ) q = d; end endmodule d q clk rst

  49. Registers in Verilog -- synchronous reset • Registers -- synchronous Reset module sync_reset(d, clk, rst, q); input d, clk, rst; output q; reg q; always @(posedge clk) begin if (clk) begin if ( rst ) q = 0; // synchronous reset else q = d; end end endmodule rst d q 1’b0 clk

  50. Registers in Verilog -- Short Format rst • Register -- synchronous Reset module sync_reset(d, clk, rst, q); input d, clk, rst; output q; reg q; always @(posedge clk) if ( rst ) q = 0; // synchronous reset else q = d; endmodule • Register -- Asynchronous Reset module asyn_reset(d, clk, rst, q); input d, clk, rst; output q; reg q; always @(posedge clk or posedge rst) if ( rst ) q = 0; // asynchronous reset else q = d; endmodule d q 1’b0 clk q d clk rst
