Male Connector Overmold Cable 1/2" OD 14/3 SJOOW Orange Loom 120VAC

This male connector with overmold mates to the orange split loom, designed for 120VAC applications. It features a 1/2" OD 14/3 SJOOW cable and comes with additional cable tie accessories for secure connections.

jaimin
Download Presentation

Male Connector Overmold Cable 1/2" OD 14/3 SJOOW Orange Loom 120VAC

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

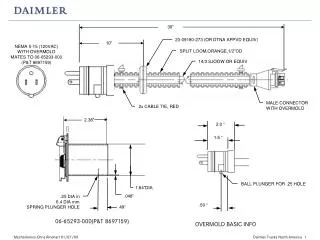

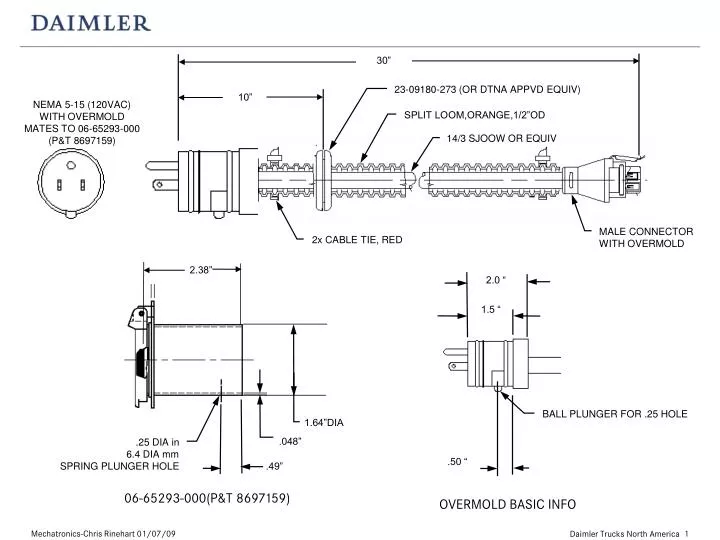

  1. 30” 23-09180-273 (OR DTNA APPVD EQUIV) 10” NEMA 5-15 (120VAC) WITH OVERMOLD MATES TO 06-65293-000 (P&T 8697159) SPLIT LOOM,ORANGE,1/2”OD 14/3 SJOOW OR EQUIV 2.0 “ 1.5 “ MALE CONNECTOR WITH OVERMOLD 2x CABLE TIE, RED 2.38” .50 “ BALL PLUNGER FOR .25 HOLE 1.64”DIA .048” .25 DIA in 6.4 DIA mm SPRING PLUNGER HOLE .49” 06-65293-000(P&T 8697159) OVERMOLD BASIC INFO Mechatronics-Chris Rinehart 01/07/09
