  1. Erik Jonsson School of Engineering and Computer Science CS5349-001 (CS 4384– HON001) Automata Theory http://www.utdallas.edu/~pervin Tuesday: Start Chapter 2 Look at Ullman’s Lectures 2 & 3 Thursday 8-28-14 FEARLESS Engineering www.utdallas.edu/~pervin

  2. SYLLABUS SYLLABUS

  3. CS 4384 26 August 2013 HOMEWORK 0 Due 28 August 2013 Keep copies of your homework; they probably will not be returned but instead submitted to ABET/SACS for accreditation

  4. A palindrome can be defined as a string that reads the same backward and forward, or by the following definition: • 1) e is a palindrome. • 2) If a is any symbol, then the string a is a palindrome. • 3) If a is a symbol and x is a palindrome, then axa is a palindrome. • 4) Nothing else is a palindrome unless it follows from 1) through 3). Palindrome Note: We will prove later that no FA accepts Palindrome.

  5. CS 5349/4384 26/28 August 2014 HOMEWORK 1Due: 2 September 2014 Written carefully on 8.5x11 white paper as for your boss!

  6. A = {w : w is a binary string containing an odd number of 1s} • B = {w: w is a binary string containing 101 as a substring} • C = {we {0,1}* : w has a 1 in the third position from the right} M&S Examples 2.2.1 p.26; 2.2.2 p.28; 2.2.3 p.29

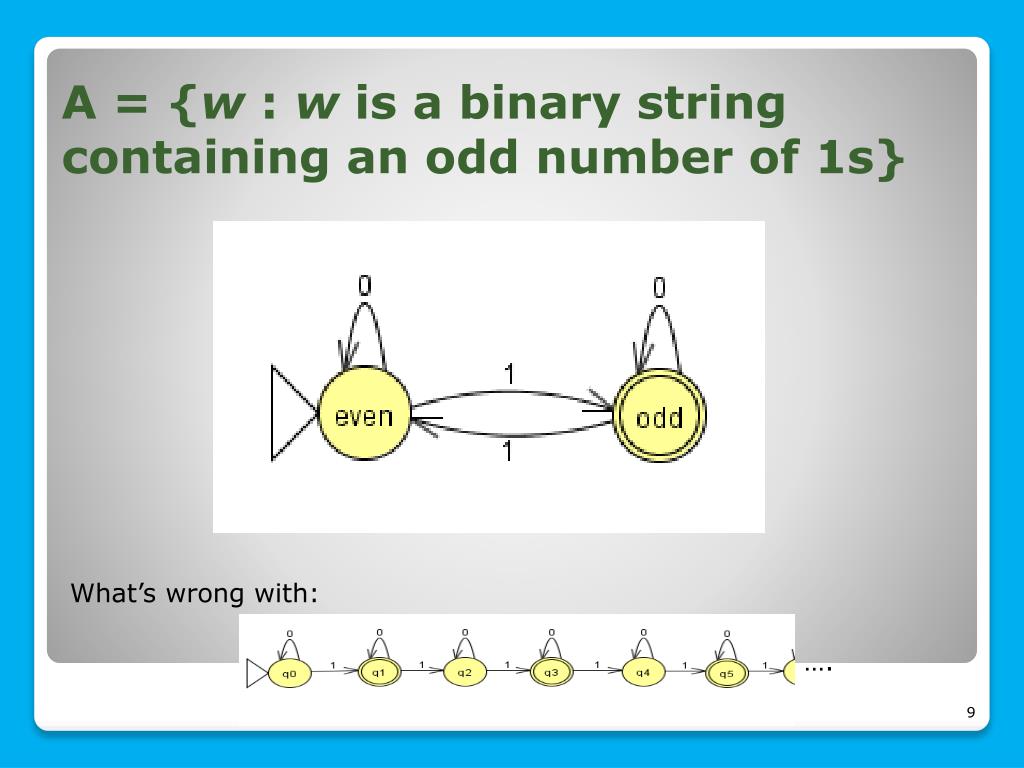

  7. A = {w : w is a binary string containing an odd number of 1s} What’s wrong with: ….

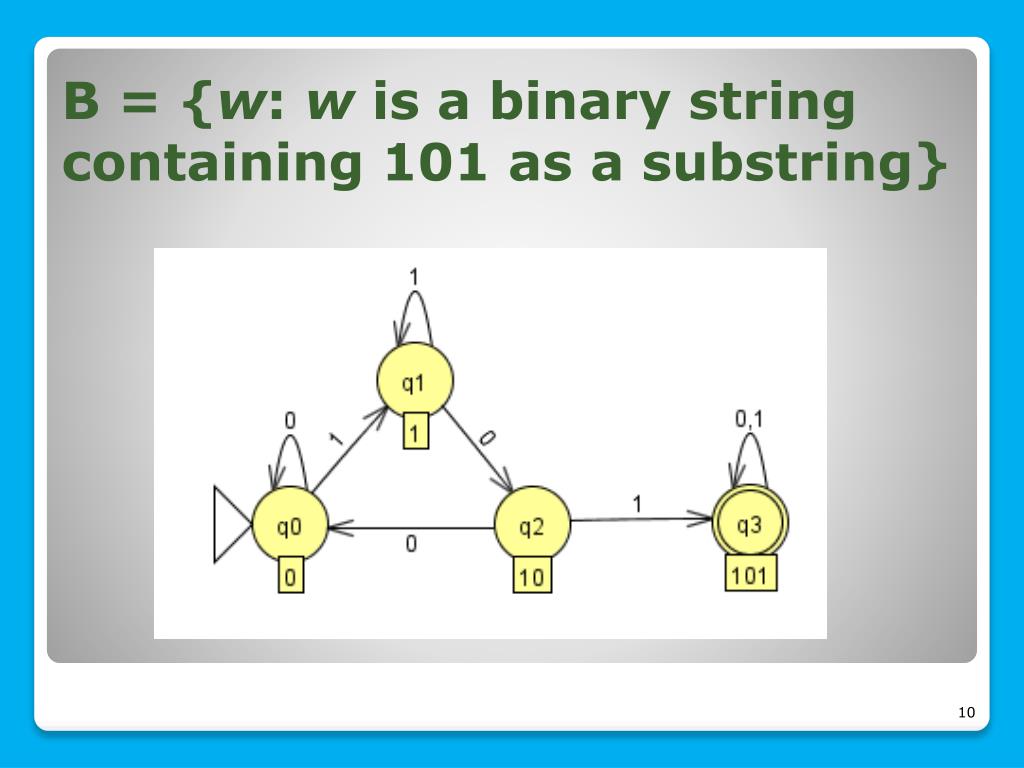

  8. B = {w: w is a binary string containing 101 as a substring}

  9. C = {we {0,1}* : w has a 1 in the third position from the right}Just remember the last three symbols

  10. C = {we {0,1}* : w has a 1 in the third position from the right}Just remember the last three symbols

  11. Language • A language is a set of strings. For example, {0, 1}, {all English words}, {0, 0, 0, ...} are all languages. • The following are operations on sets and hence also on languages. Union: A U B Intersection: A ∩ B Difference: A \ B (A - B when B A) Complement: A = Σ* - A where Σ* is the set of all strings on alphabet Σ. 0 1 2 _ Du

  12. Concatenation: • For example, {0, 1}{1, 2} = {01, 02, 11, 12}. • Especially, we denote A = A, A = AA, ..., and define A = {ε}. 2 1 0 Concatenation of Languages Du

  13. Kleene Star

  14. The set of regular languages is closed under the union operation Theorem 2.3.1 M&S p. 32

  15. Proof:

  16. The set of regular languages is closed under the intersection operation Theorem 2.3.1 Addendum M&S p. 32

  17. Proof:

  18. The set of regular languages is closed under the complement operation Theorem 2.3.1 Addendum M&S p. 32

  19. Proof:

  20. The set of regular languages is closed under the Kleene star and concatenation operations To be proved later: M&S p. 32

  21. CS 5349/4384 28 August 2014 HOMEWORK 2 Due 2 September 2014 Keep copies of your homework; they probably will not be returned but instead submitted to ABET/SACS for accreditation

  22. Du p.15

  23. Binary expansion of positive integers congruent to zero mod 5

  24. Binary expansion of positive integers congruent to zero mod 5

  25. Binary expansion of non-negative integers congruent to 0 mod 5

  26. What is L(M)?

  27. Recursive Definition

  28. Another Recursive Definition

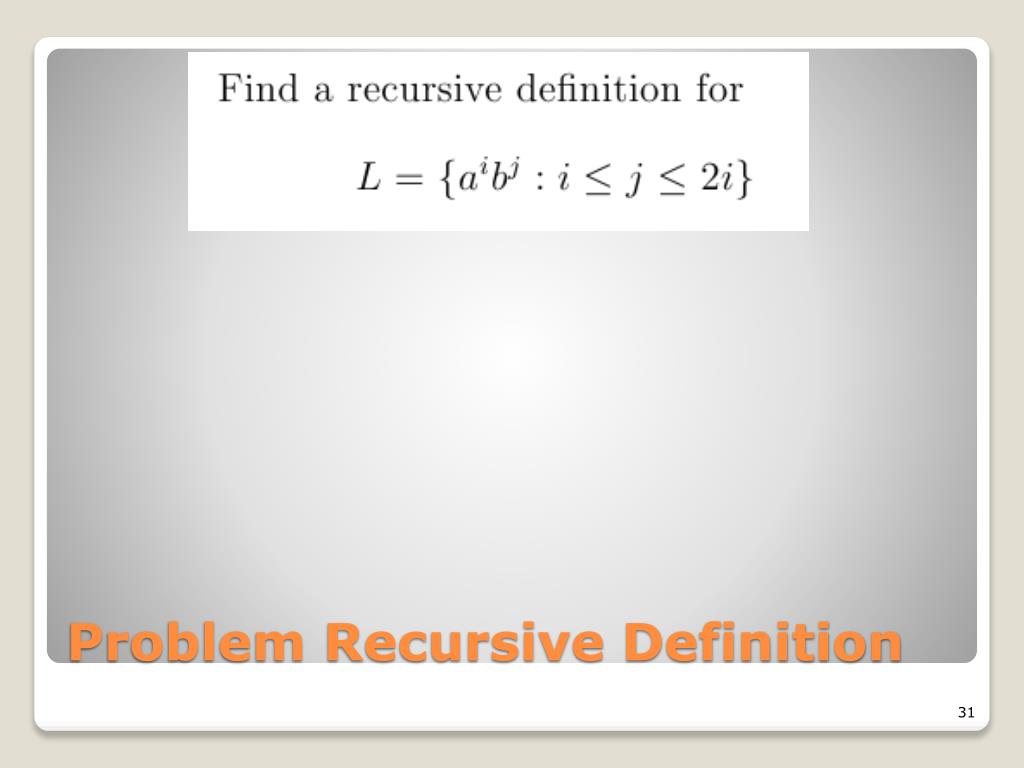

  29. Problem Recursive Definition
