Presentation Transcript

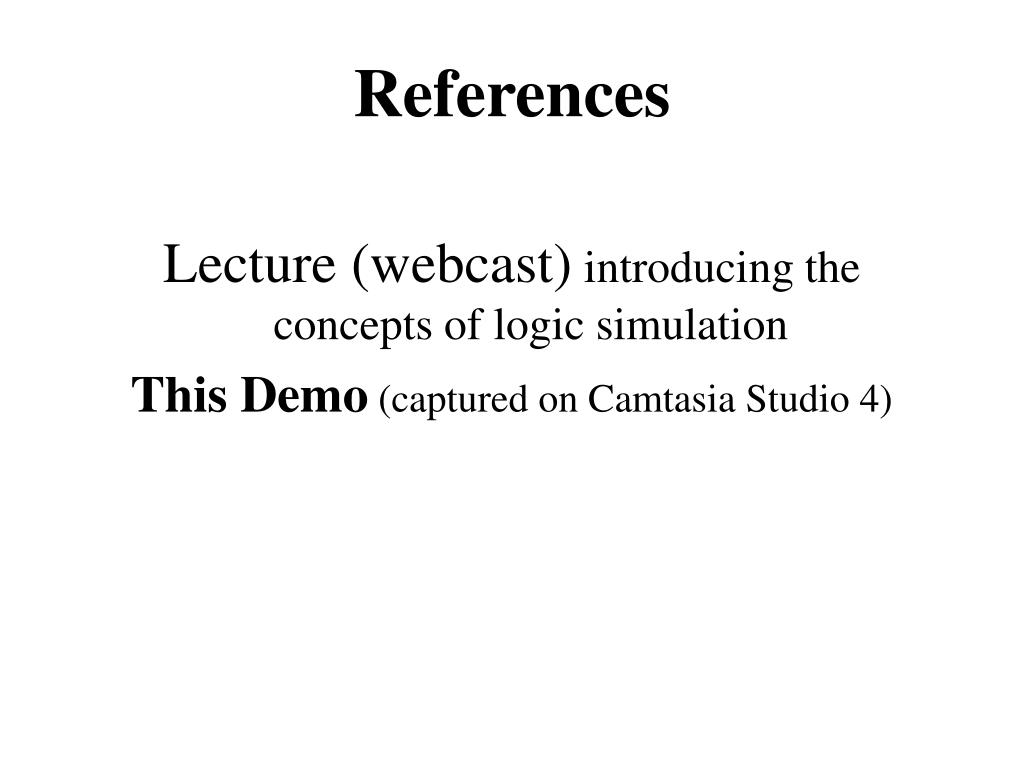

references
References

Lecture (webcast) introducing the concepts of logic simulation

This Demo (captured on Camtasia Studio 4)

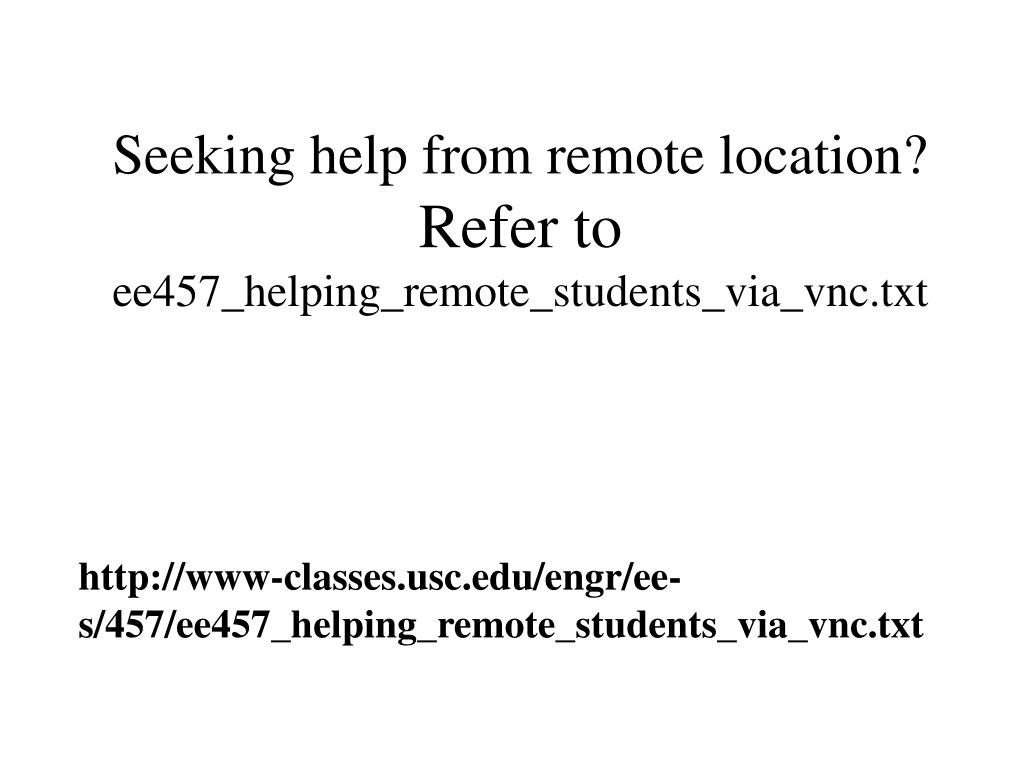

seeking help from remote location refer to ee457 helping remote students via vnc txt
Seeking help from remote location?Refer to ee457_helping_remote_students_via_vnc.txt

http://www-classes.usc.edu/engr/ee-s/457/ee457_helping_remote_students_via_vnc.txt

slide4

Bookmark this:http://www-classes.usc.edu/engr/ee-s/457/ePD_problems.html

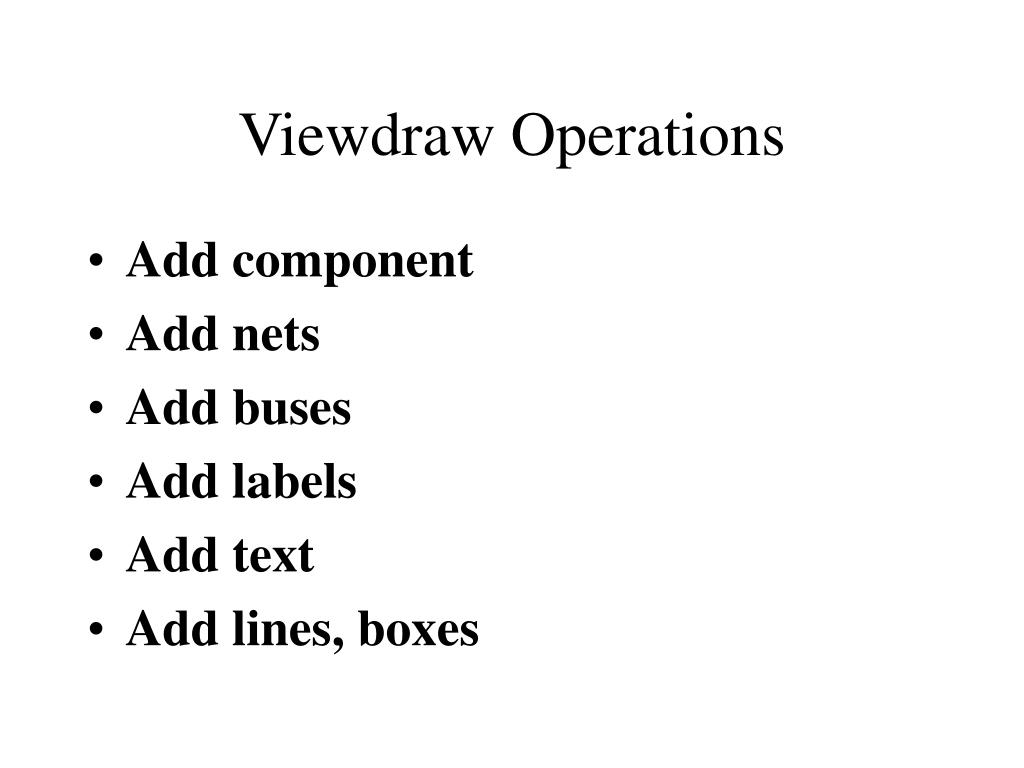

viewdraw operations
Viewdraw Operations
  • Add component
  • Add nets
  • Add buses
  • Add labels
  • Add text
  • Add lines, boxes
fusion operations
Fusion Operations
  • Command file examplepat, v, radix, wave, watch stepsize,clock,
  • Restart
  • Multiple command files

FUSION window dies often due to a bug in the tool. It will be frustrating, but please bear with the tool.

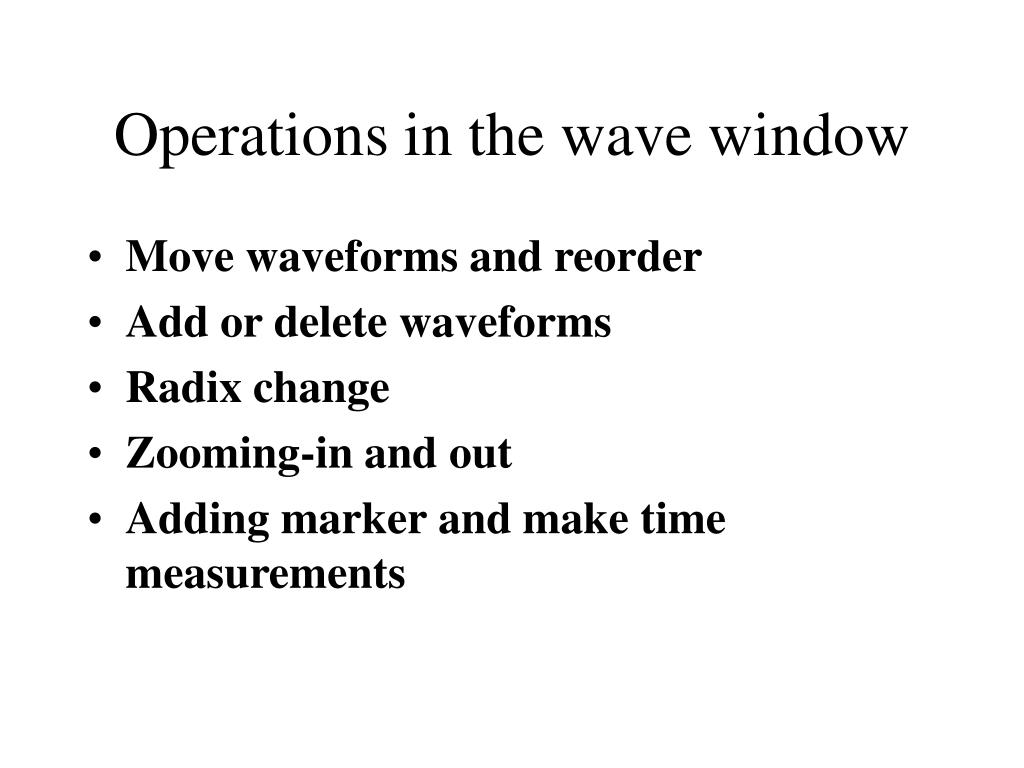

operations in the wave window
Operations in the wave window
  • Move waveforms and reorder
  • Add or delete waveforms
  • Radix change
  • Zooming-in and out
  • Adding marker and make time measurements
