Presentation Transcript
slide1

OAIS

RathachaiChawuthai

rathachai.chawuthai@live.com

Information Management

CSIM / AIT

agenda
Agenda
  • Preface
  • Overview
  • Data Model
  • Function Model
  • Architecture Model
  • OAIS in use
starter
Starter

I want to build own restaurant.

What should I do?

starter1
Starter

What you should have

starter2
Starter

What you should plan

starter3
Starter

How you should run

starter4
Starter

I don’t tell you a blueprint or concrete model for running a restaurant.

But I guideyou WHAT and HOW that you have to considerwhen plan to run a restaurant business.

introduction
Introduction

I want to build

an archival information system.

What should I do?

introduction1
Introduction

Understand

OAIS

reference model

overview
Overview
  • Open Archival Information System
  • In 2000 the Research Libraries Group (RLG) and Online Computer Library Center (OCLC) discussed how both organizations build an infrastructure for purposes of archiving digital objects.
  • It guides you to build archival information system

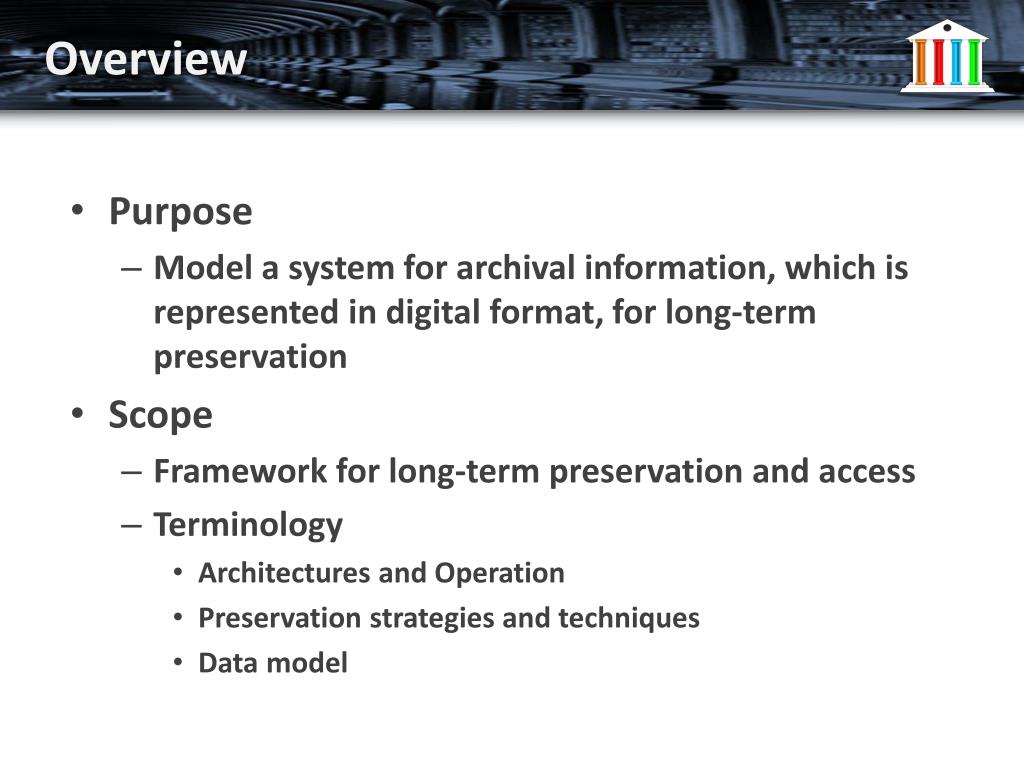

overview1
Overview
  • Purpose
    • Model a system for archival information, which is represented in digital format, for long-term preservation
  • Scope
    • Framework for long-term preservation and access
    • Terminology
      • Architectures and Operation
      • Preservation strategies and techniques
      • Data model

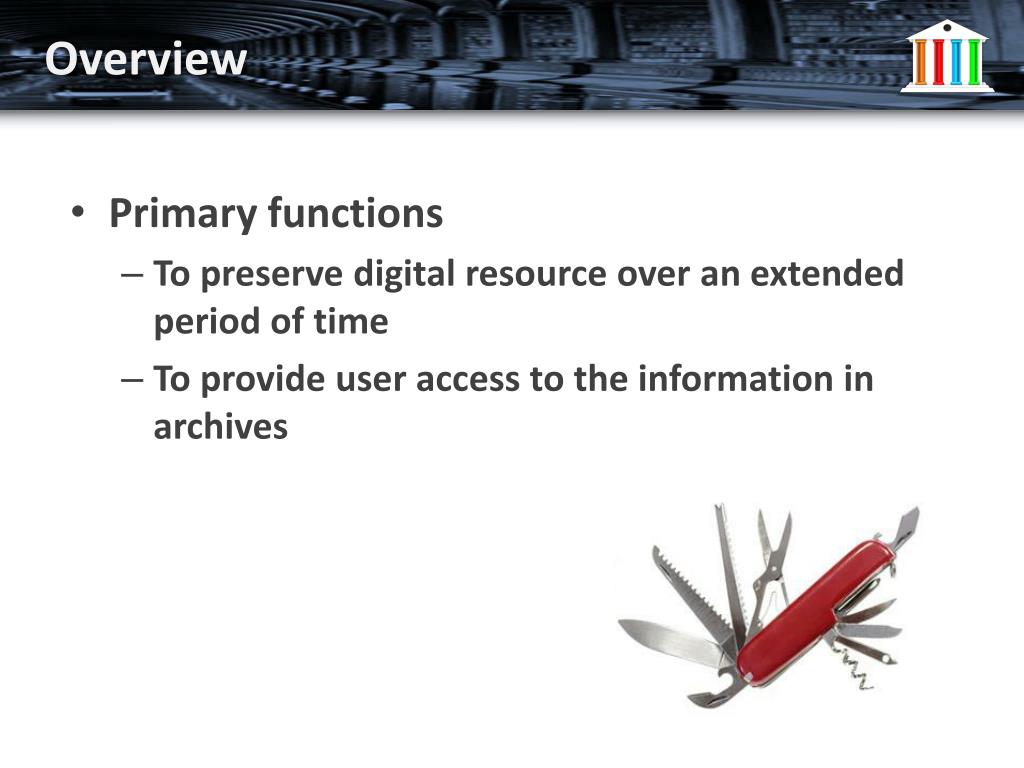

overview2
Overview
  • Primary functions
    • To preserve digital resource over an extended period of time
    • To provide user access to the information in archives
high level concept

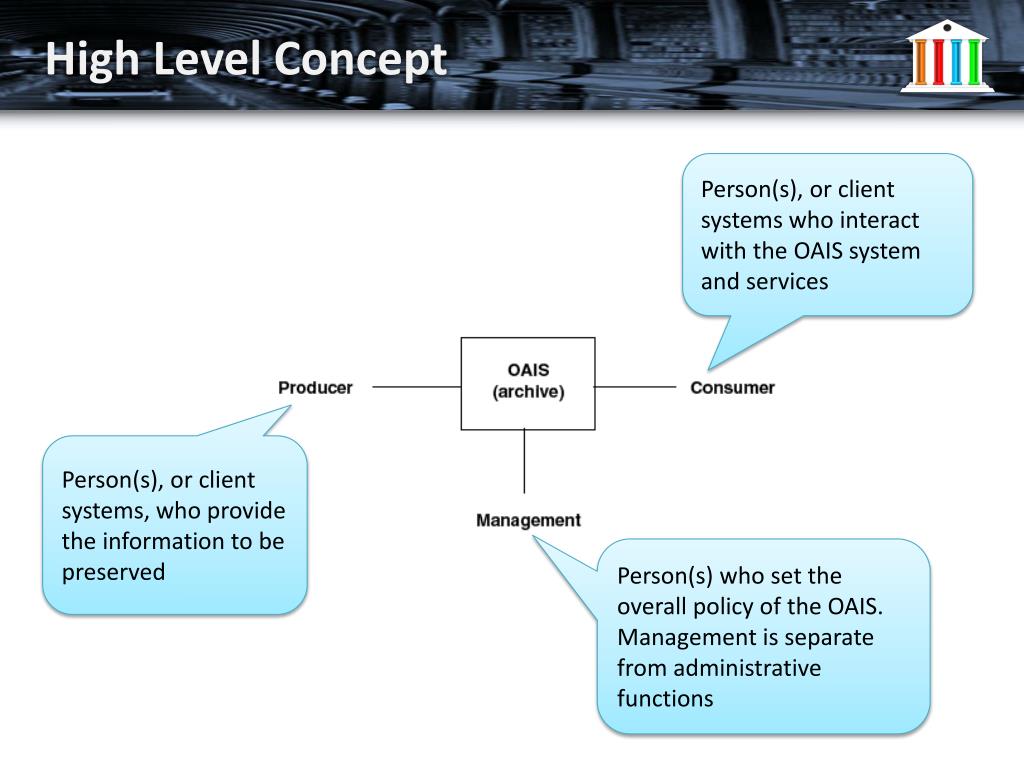

High Level Concept

Person(s), or client systems who interact with the OAIS system and services

Person(s), or client systems, who provide the information to be preserved

Person(s) who set the overall policy of the OAIS. Management is separate

from administrative functions

archive external data workflow1

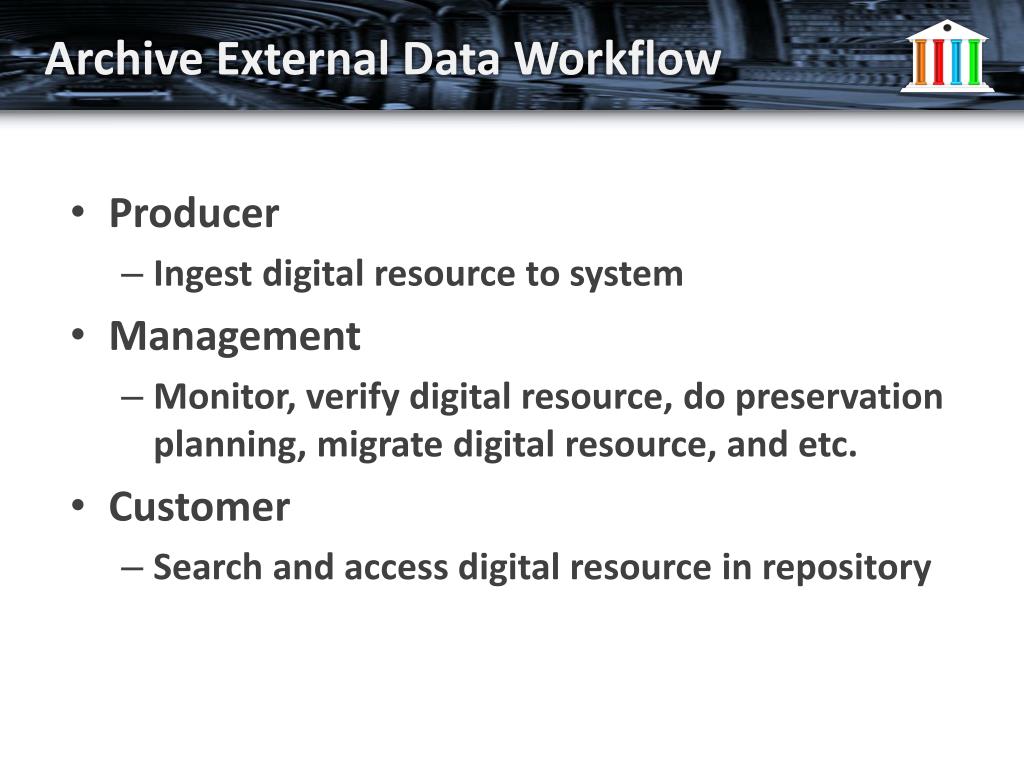

Archive External Data Workflow
  • Producer
    • Ingest digital resource to system
  • Management
    • Monitor, verify digital resource, do preservation planning, migrate digital resource, and etc.
  • Customer
    • Search and access digital resource in repository
package model
Package model
  • 4 Simple information concepts
  • Content Info
    • A digital resource that need to preservee.g. text, image, video, sound, …
  • Preservation Description Info (PDI)
    • Contain preservation metadata that informs humans or machines to know what they should concern when they want to access, render or other actions to the digital resource.
  • Archive Packaging Info
    • A package that enwraps both Content Info (1) and PDI (2) to store as one object
  • Info of Archive Package
    • It performs as a metadata of Archive Packaging Info (3).
    • It helps search engine that does not need to costly extract Archive Package Info to query Content Info or PDI directly
package model1

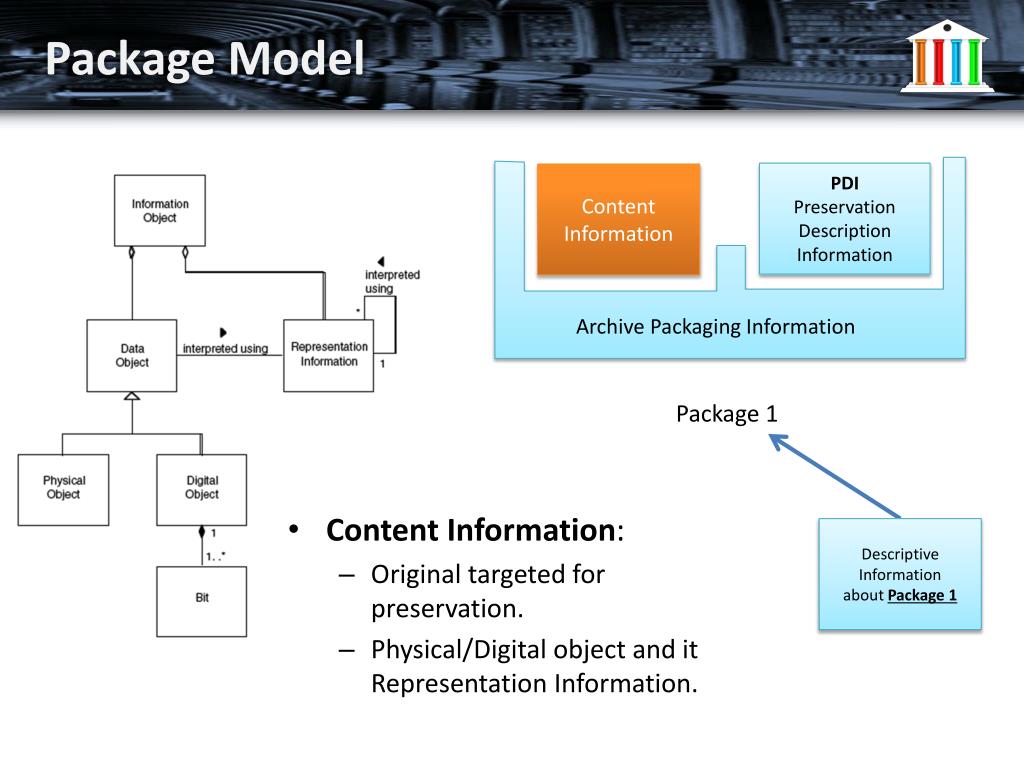

Package Model

PDI

Preservation

Description

Information

Content

Information

  • Content Information:
    • Original targeted for preservation.
    • Physical/Digitalobject and it RepresentationInformation.

Archive Packaging Information

Package 1

Descriptive

Information

about Package 1

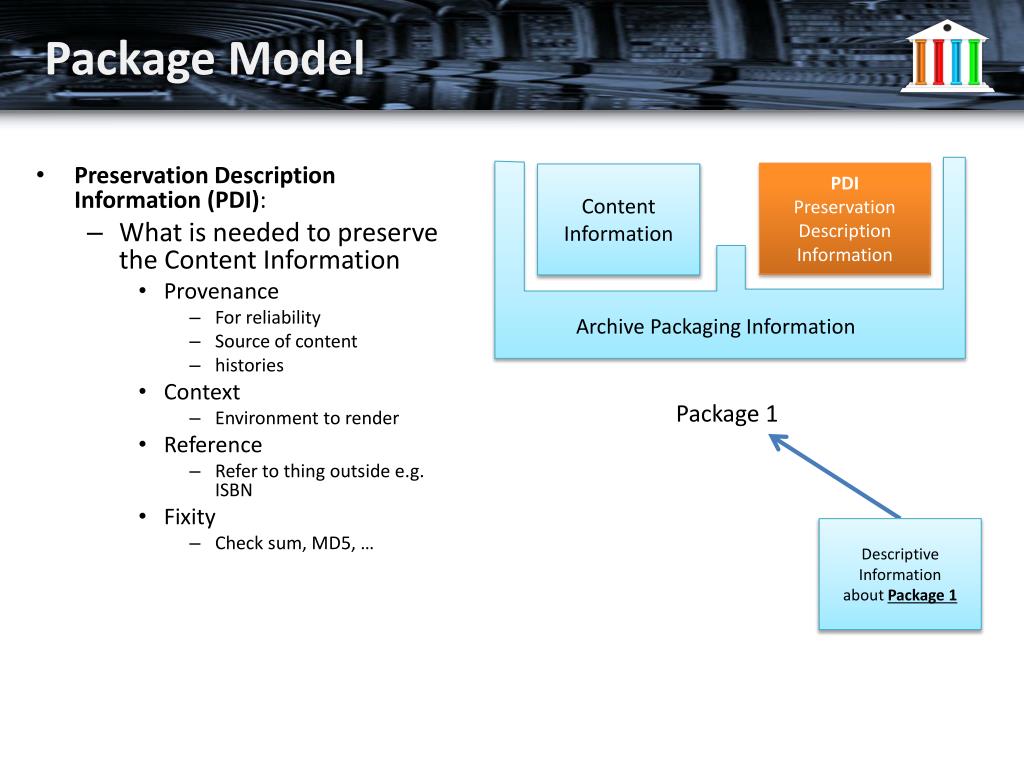

package model2
Package Model

PDI

Preservation

Description

Information

Content

Information

  • Preservation Description Information (PDI):
    • What is needed to preserve the Content Information
      • Provenance
        • For reliability
        • Source of content
        • histories
      • Context
        • Environment to render
      • Reference
        • Refer to thing outside e.g. ISBN
      • Fixity
        • Check sum, MD5, …

Archive Packaging Information

Package 1

Descriptive

Information

about Package 1

package model3

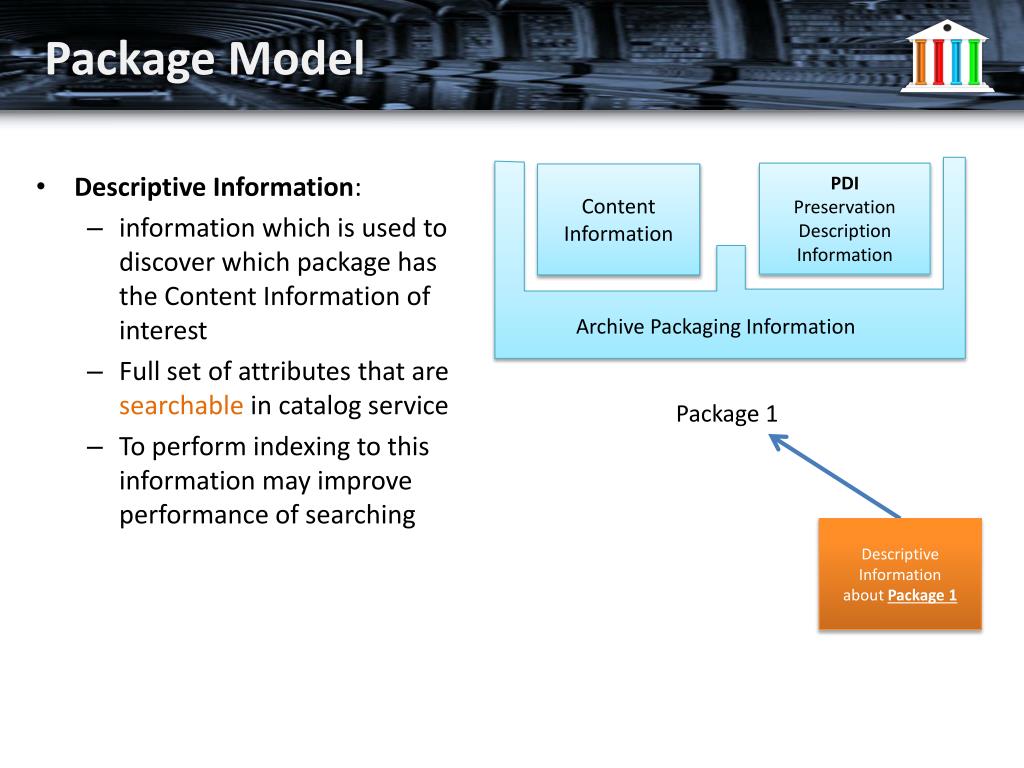

Package Model

PDI

Preservation

Description

Information

Content

Information

  • Descriptive Information:
    • information which is used to discover which package has the Content Information of interest
    • Full set of attributes that are searchable in catalog service
    • To perform indexing to this information may improve performance of searching

Archive Packaging Information

Package 1

Descriptive

Information

about Package 1

package model4
Package Model

Descriptive

Information

about Package 1

Package 1

information model
Information Model
  • Content Information
    • A basic concept of information that contain data and its representation information.
    • For example, it can be “Thailand Map”

Content

Information

information model1

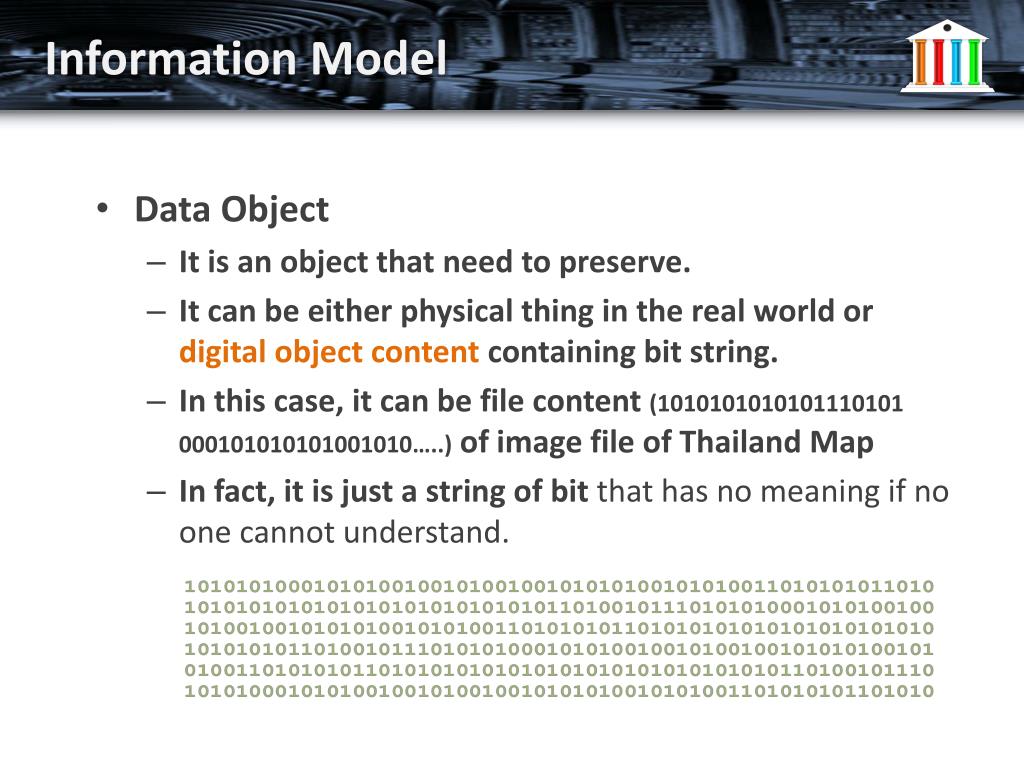

Information Model
  • Data Object
    • It is an object that need to preserve.
    • It can be either physical thing in the real world or digital object content containing bit string.
    • In this case, it can be file content (1010101010101110101 000101010101001010…..) of image file of Thailand Map
    • In fact, it is just a string of bit that has no meaning if no one cannot understand.
information model2
Information Model
  • Representation Information
    • A bit string(100111010…) may be useless if no one knows its meaning. The representation Information inform what structure of “100111010…”is and how to interpret it.
    • It may has representation of representation if the data object content has complex structure or encode by many level

Format in byte form

Raw

bit string

Construct JPEG

format structure

Interpret to

color of pixels

to be a picture

information model3
Information Model
  • PDI contains
    • Reference Info
      • Identifier that link to thing outside system or real world resource; such as ISBN
    • Provenance Info
      • To record why the digital resource born, where it born, why, and how.
      • Including software and environment that created it.
    • Context Info
      • To inform how reliable of the digital resource
      • To inform original or source of content
      • To inform history of change
      • To inform migration process
  • Fixity Info
    • To provide necessary information to access and verify digital resource
    • E.g. keyword, Checksum, MD5, and etc

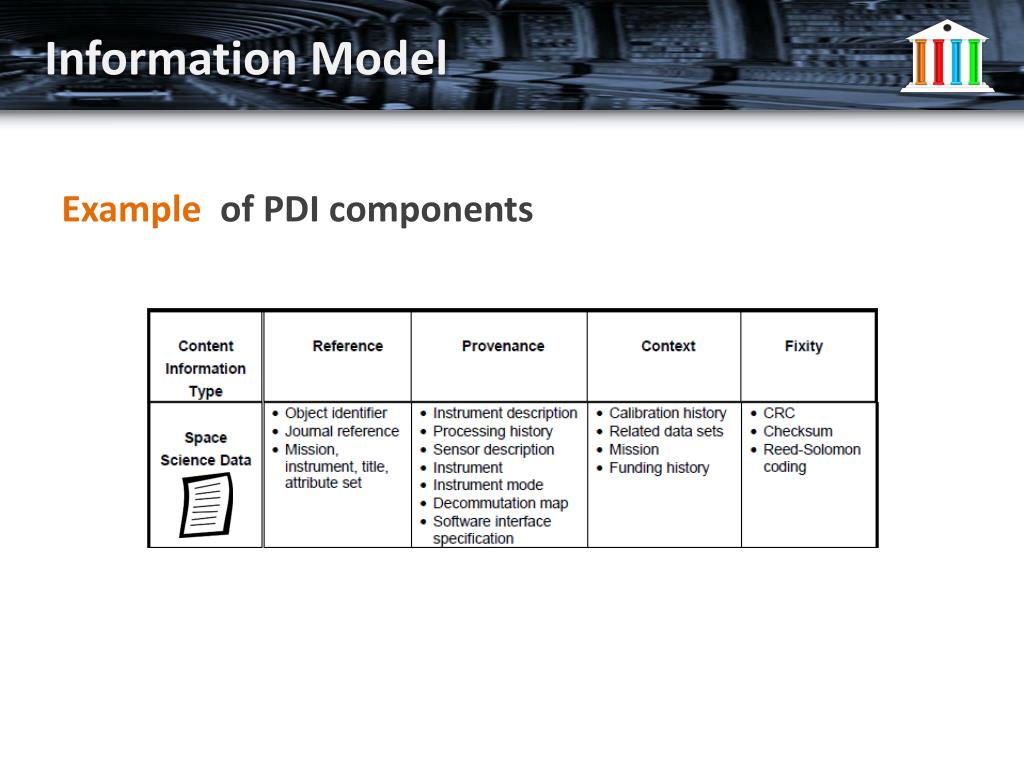

information model4
Information Model

Example of PDI components

information model5
Information Model

Example of PDI components

information model6

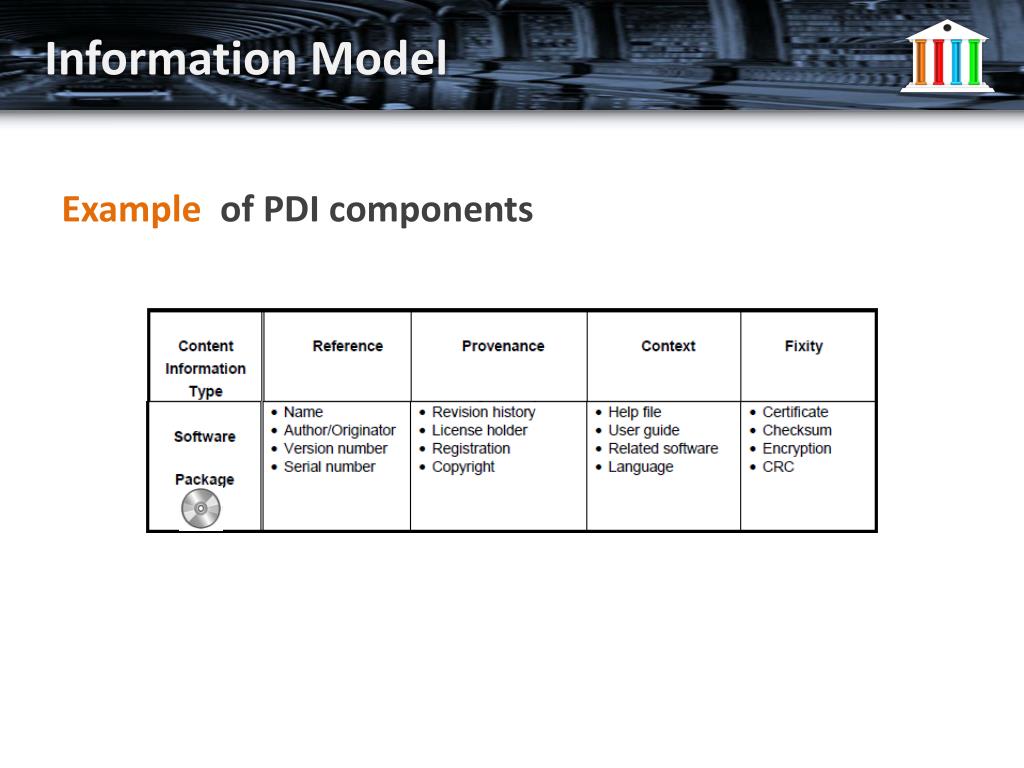

Information Model

Example of PDI components

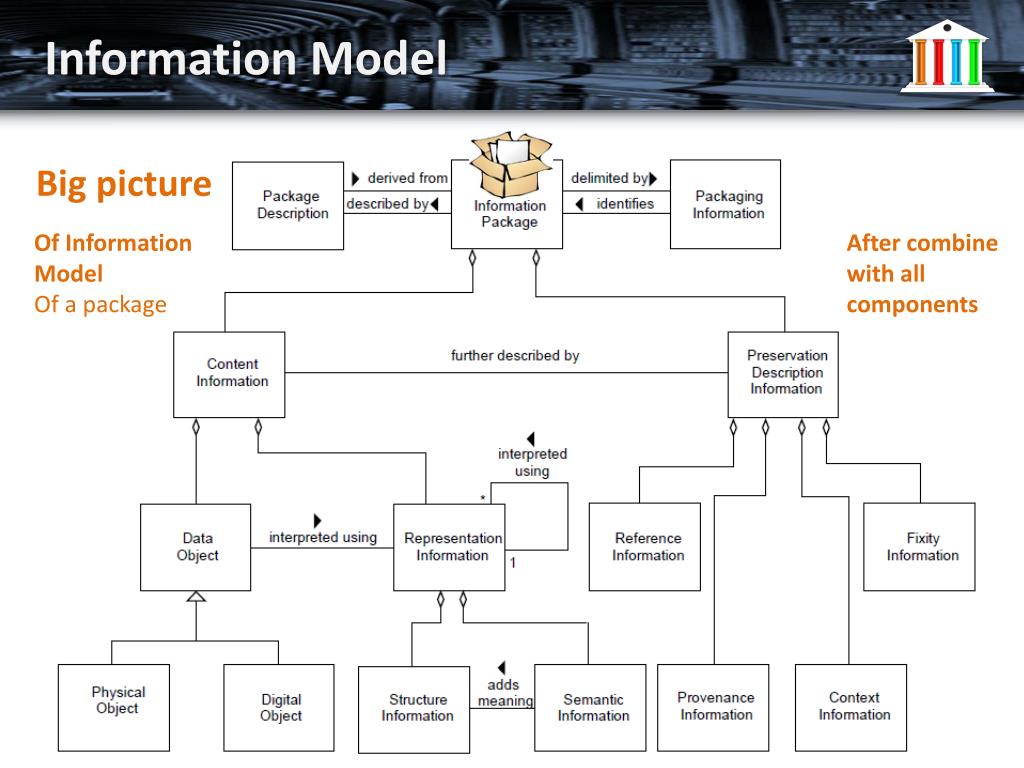

information model7
Information Model

Big picture

Of Information

Model

Of a package

After combine

with all

components

information package

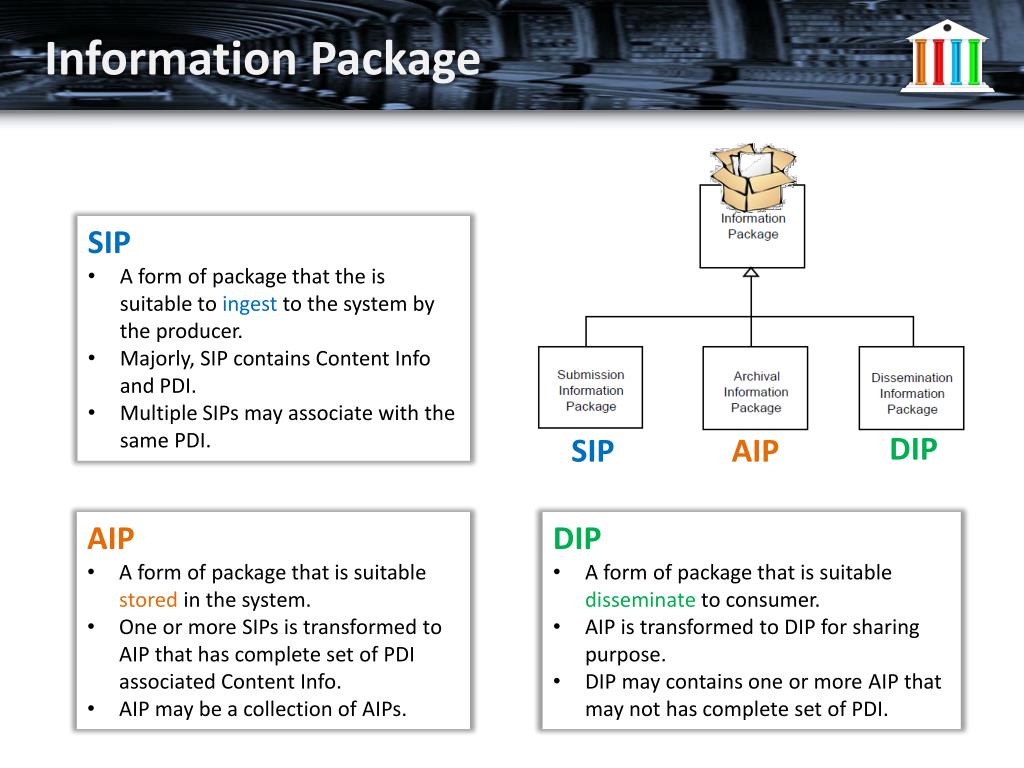

Information Package
  • SIP
  • A form of package that the is suitable to ingest to the system by the producer.
  • Majorly, SIP contains Content Info and PDI.
  • Multiple SIPs may associate with the same PDI.

DIP

AIP

SIP

  • AIP
  • A form of package that is suitable stored in the system.
  • One or more SIPs is transformed to AIP that has complete set of PDI associated Content Info.
  • AIP may be a collection of AIPs.
  • DIP
  • A form of package that is suitable disseminateto consumer.
  • AIP is transformed to DIP for sharing purpose.
  • DIP may contains one or more AIP that may not has complete set of PDI.

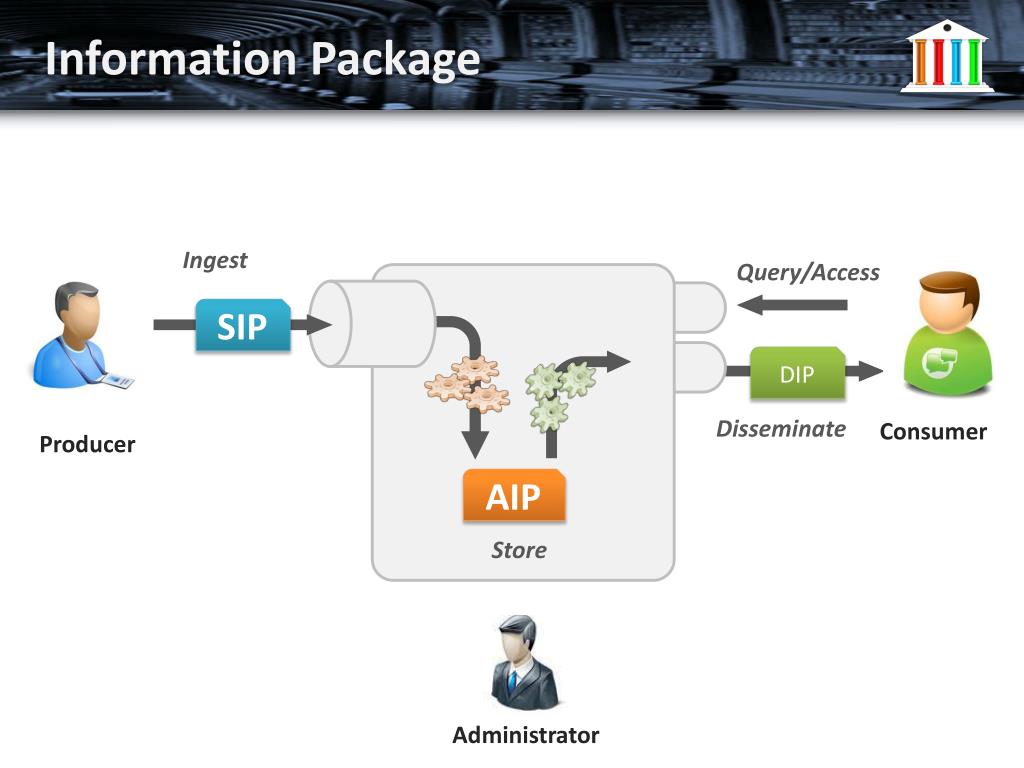

information package1
Information Package

Ingest

Query/Access

SIP

DIP

Disseminate

Consumer

Producer

AIP

Store

Administrator

1 ingest
1) Ingest
  • Accept SIPs from Producers
    • or from internal elements under Administration control
  • Prepare the AIPs for archive storage
2 archival storage
2) Archival Storage
  • Storage of AIP
  • Maintenance of AIP
  • Retrieval of AIPs.

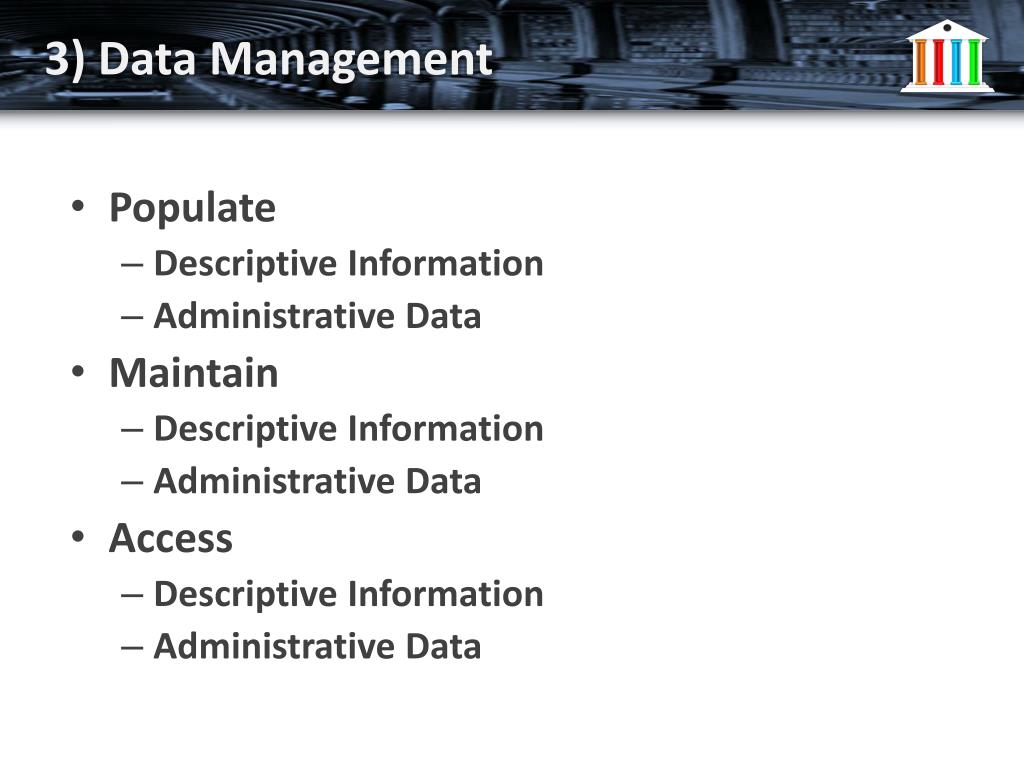

3 data management
3) Data Management
  • Populate
    • Descriptive Information
    • Administrative Data
  • Maintain
    • Descriptive Information
    • Administrative Data
  • Access
    • Descriptive Information
    • Administrative Data
4 administration
4) Administration
  • Solicit and negotiate submission agreement
    • With producer
  • Audit submission
    • To ensure that they meet standard
  • Maintain Configuration Management of
    • System hardware
    • Software
  • Day-to-day governance of the other OAIS functional entities
5 preservation planning
5) Preservation Planning
  • Monitor environment of OAIS
  • Provide recommendations
    • Still accessible?
    • Long-term?
    • If original computing environment becomes obsolete?
6 access
6) Access
  • Determine
    • Existence
    • Description
    • Location
    • Availability

Of information in OAIS

  • Allow Consumer
    • Request
    • Retrieve

Information of Products

summary
Summary

What you should have

summary1
Summary

What you should plan

summary2
Summary

How you should run

references
References
  • http://www.oclc.org
  • http://www.oclc.org/research/pmwg/pm_framework.pdf
