Presentation Transcript
Slide1 l.jpg

Part Design and Rapid Prototyping for BMC

Reducing the Time to Market for New BMC Applications

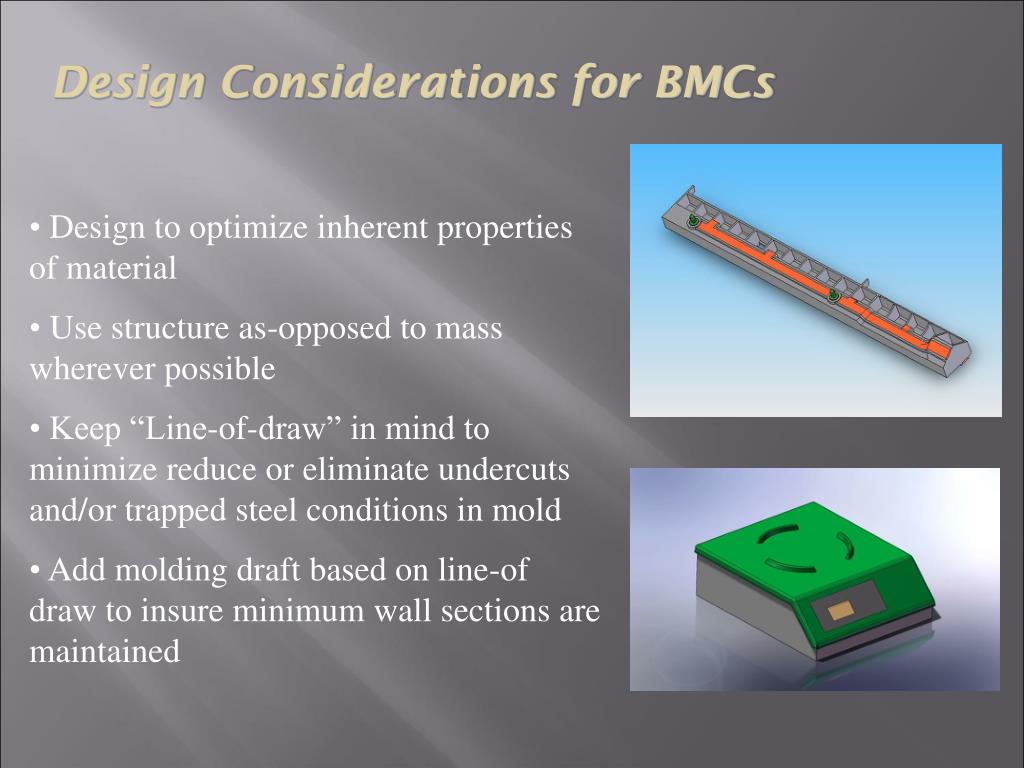

Slide3 l.jpg

Design Considerations for BMCs

  • Design to optimize inherent properties of material

  • Use structure as-opposed to mass wherever possible

  • Keep “Line-of-draw” in mind to minimize reduce or eliminate undercuts and/or trapped steel conditions in mold

  • Add molding draft based on line-of draw to insure minimum wall sections are maintained


Slide4 l.jpg

Wall Stock for BMCs

  • Maintain nominal wall stock as consistently as possible.

  • Use structure wherever possible to increase directional strength and/or combine part features


Slide5 l.jpg

Wall Stock for BMCs

Wall Stock Recommendations:

  • Minimum recommended wall stock 2mm

  • Thicker nominal walls required for larger parts with extended flow lengths

  • Wall stock for small parts can be as low as .5mm

  • Dependent on part configuration and material selection


Slide6 l.jpg

Wall Stock for BMCs

Parts with Varying Wall Stock

Parts with significant variances in

wall stock can be successfully molded

in BMC.

  • Avoid multiple thick-to-thin transitions

  • Avoid thin-to thick gate placement

  • Minimize or eliminate wall stock variations near dimensionally critical features


Slide7 l.jpg

Molding Draft

Draft: Angle or taper added to vertical surfaces on a part

to allow for release from mold during ejection.

  • Line-of-draw draft angle required on all vertical part surfaces

  • Minimum recommended draft 1-degree P/S

  • The more draft the better!

  • Add draft where possible to small vertical walls

  • Linear distance vs. angular draft

  • Draft vs. tolerances ( + draft / - draft)


Slide8 l.jpg

Molding Draft

No-draft Requirements

  • Can be successfully molded on BMC

  • Eliminates secondary machining

  • Commonly used for bearing bores & brush-box applications.

  • Use only where necessary

  • Minimal length-of-draw

  • Ejector pins surfaces adjacent to feature


Slide9 l.jpg

Undercut Features in BMC Part Designs

  • Common in today’s BMC part designs

  • Complex shapes not a problem

  • Multiple undercuts common

  • Tooling technology capable

  • Linear or rotary (unscrewing)

  • Avoid “trapped steel” conditions

  • Consolidate multiple undercuts where possible into same line-of-draw


Slide10 l.jpg

Fillet Radii

Blend intersections with fillet radii wherever possible.

  • Increases part strength

  • Improves material flow

  • Mold construction benefits

  • Mold integrity / maintenance benefits


Slide11 l.jpg

Molded In Inserts

  • Injection, transfer or compression process capable

  • Configuration dependent

  • Large inserts my require pre-heating

Commonly utilized in automotive and electrical switch-gear applications


Slide12 l.jpg

Mounting Hardware for BMCs

BMCs are hardware-friendly materials that are capable of accepting a number of common types of mounting hardware


Slide13 l.jpg

Mounting Hardware for BMCs

Self-Tapping Screws

  • Widely used method of mounting to BMC

  • BT-style thread cutting screws recommended

  • Thread-forming screws not recommended

  • High torque values

  • Excellent torque retention


Slide14 l.jpg

Mounting Hardware for BMCs

Mounting Boss Sizing for Self-Tapping Screws

  • Wall stock (not boss diameter) to be a minimum of 1 1/2-times the screw diameter

  • Thread engagement to be a minimum of 2 1/2-times the screw diameter

  • Pilot hole to be .002” P/S larger than root-diameter of screw

  • Minimal draft in mounting holes

  • Blind holes to be 25% deeper than installed screw engagement


Slide15 l.jpg

Mounting Hardware for BMCs

Rivets

  • Commonly used to attach non-stressed components onto BMC parts

  • Used in assembly of household circuit breaker housings

  • Refer to hardware manufacturers recommendations for mounting geometry


Slide16 l.jpg

Mounting Hardware for BMCs

Insert-Molded & Secondary-Installed Threaded Inserts

Commonly used in BMC applications where service or installation requires multiple assembly / disassembly

  • Insert-molded

  • Secondary installation

  • Excellent retention in BMCs

Refer to hardware manufacturers specifications for hole sizing & application-specific information


Slide17 l.jpg

Snap Features in BMC Part Designs

Given the range of flex modulus achievable in BMCs, snap details are possible provided that they can be designed with an interference that can operate within the flex-range of the material grade selected.

Feel free to contact BMCI’s Technical Group if you have a proposed snap design and would like to review it for feasibility in BMC.


Slide18 l.jpg

Direct Conversion from Metal Design

  • Common in BMC

  • Configuration dependent

  • May require design modifications to accommodate molding of features previously formed by secondary machining operations

  • Significant savings potential associated with elimination of costly secondary machining operations


Slide19 l.jpg

Direct Conversion from Metal Design

Vacuum Gearbox Housing

  • Direct conversion from metal

  • Eliminated nine-(9) secondary machining operations

  • Implementing as running change

  • Minimal design changes

  • Annual volume 600K

  • Annual savings : $690K



Slide21 l.jpg

Part Consolidation Through Conversion

  • Incorporation of multiple part features into one design

  • Part count reduction

  • Lower assembly tooling costs

  • Reduced assembly labor

  • Elimination of secondary machining operations

  • Overall lower assembly cost


Slide22 l.jpg

Surface Finishes & Appearance Treatments

As Molded Finishes

  • High gloss

  • Satin

  • Textured

  • Colors

  • Faux finishes (as molded)

  • Paintable

  • Platable



Slide24 l.jpg

Rapid Prototyping for BMC Materials

Overview:

The ability to quickly provide customers with prototype parts in our materials has proven to be both a valuable sales tool, and an effective method of shrinking product development lead times. Since BMC thermosets do not lend themselves to traditional “Rapid Prototyping” processes such as SLA (Stereo Lithography) of SLS (Selective Laser Sintering), we have developed our own prototyping process for providing net-shapes to our customers for evaluation.


Slide25 l.jpg

Rapid Prototyping for BMC Materials

Process:

Our process first involves the pre-molding of plaques, or blocks of the BMC formulation selected for the application. These “Billets” of material are then laminated together using epoxy adhesives, or parent resin to form a “Blank” that is roughly the size and shape of the part. Lastly, the blank is 3D machined in our mold shop from the customer part file to produce a net-shape prototype part. We have used this process to produce parts as small as a plumbing fitting, and as large as a stove top frame.


Slide26 l.jpg

Rapid Prototyping for BMC Materials

BMCI In-House Tooling / Prototyping

  • Part / product design assistance

  • Mold design

  • Prototype / production tooling

  • Prototype part construction

  • Tooling conversion for BMC materials


Slide27 l.jpg

Rapid Prototyping for BMC Materials

BMCI In-House Tooling / Prototyping

Contact Information:

Mark Bieberstein

Technical Sales Engineer

(630) 377-1065

(630) 377-7395

Mark_B@Bulkmolding.com
