How to match mRNA to DNA?

How to match mRNA to DNA?. DNA. TF. mRNA. Find a partial match for beginning. DNA. TF. mRNA. Find match for end. Intron. DNA. TF. mRNA. Exons on coding s trand only. Intron. DNA. TF. Exon 1. Exon 2. Find the correct reading frame. template. TF. c oding. Exon 1. Exon 2.

jaeger
Download Presentation

How to match mRNA to DNA?

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

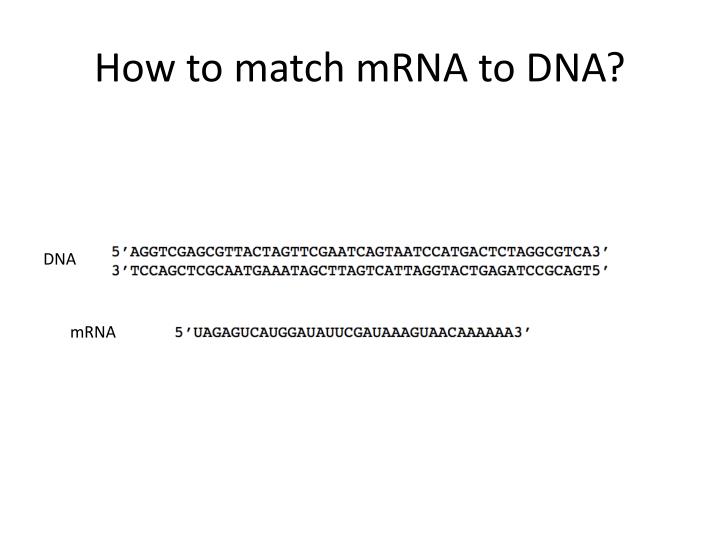

  1. How to match mRNA to DNA? DNA TF mRNA

  2. Find a partial match for beginning DNA TF mRNA

  3. Find match for end Intron DNA TF mRNA

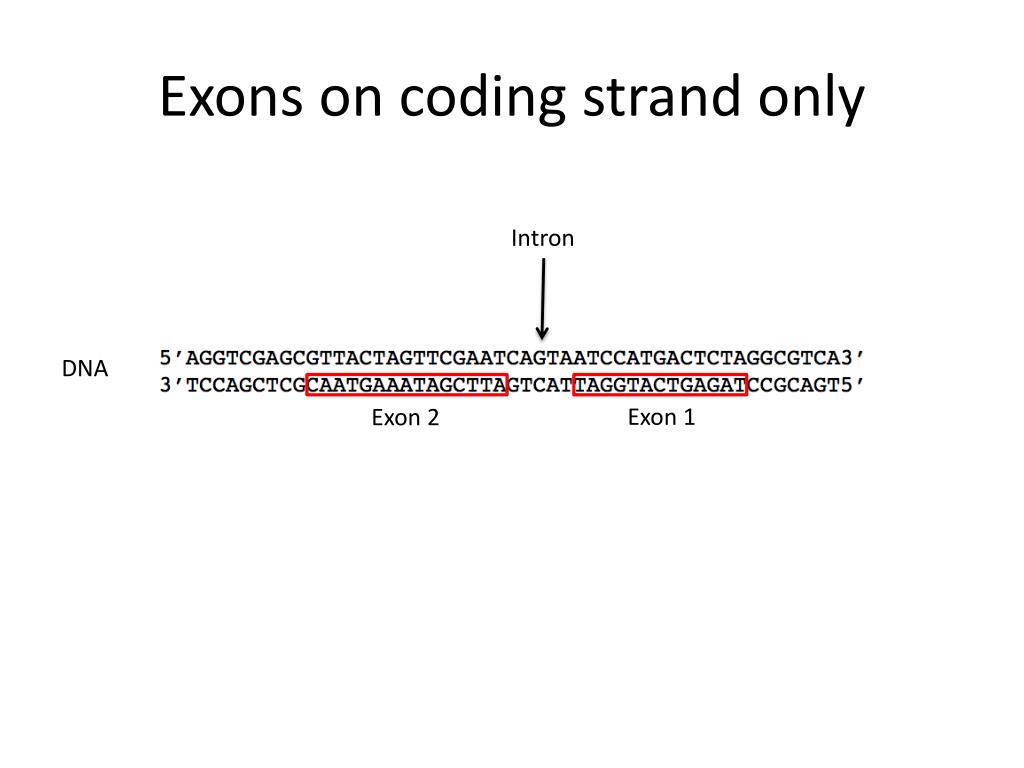

  4. Exons on coding strand only Intron DNA TF Exon 1 Exon 2

  5. Find the correct reading frame template TF coding Exon 1 Exon 2 Terminator Promoter mRNA possible codons V1 stop SER LEU GLY CYS SER ILE LYS stop GLN LYS V2 ARG VAL MET ASP ILE ARG stop SER ASN LYS LYS V3 GLU SER stop ILE PHE ASP LYS VAL THR LYS

  6. Translation begins at start codon template TF coding Exon 1 Exon 2 Terminator Promoter mRNA possible codons V1 stop SER LEU GLY CYS SER ILE LYS stop GLN LYS V2 ARG VAL MET ASP ILE ARG stop SER ASN LYS LYS V3 GLU SER stop ILE PHE ASP LYS VAL THR LYS

  7. Translation begins at start codon template TF coding Exon 1 Exon 2 Terminator Promoter mRNA possible codons V1 stop SER LEU GLY CYS SER ILE LYS stop GLN LYS V2 ARG VAL MET ASP ILE ARG stop SER ASN LYS LYS V3 GLU SER stop ILE PHE ASP LYS VAL THR LYS

  8. Translation ends at stop codon template TF coding Exon 1 Exon 2 Terminator Promoter mRNA MET ASP ILE ARG stop protein
