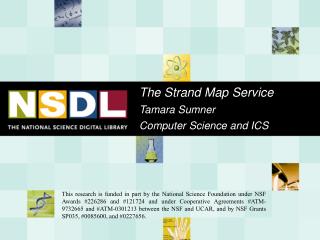

  1. The Strand Map ServiceTamara Sumner Computer Science and ICS This research is funded in part by the National Science Foundation under NSF Awards #226286 and #121724 and under Cooperative Agreements #ATM-9732665 and #ATM-0301213 between the NSF and UCAR, and by NSF Grants SP035, #0085600, and #0227656.

  2. Educational Digital Libraries: Objectives • New models for the production, distribution, and sharing of learning resources and best practices, with traditional and new partners • Open and interoperable library infrastructure enabling third parties to create new apps and services • Content-rich and adaptive learning environments that build on library collections and infrastructure to positively impact student learning Approach: Contextualization Services Architecture

  3. Contextualization Services Learning Environments DLESE Teaching Box Knowledge Organization Services Adaptive Strand Map Service Characterization and Filtering Services Content-Rich Discovery Service

  4. The Strand Map Service • Motivation • Harsh Realities: No Child Left Behind Legislation – 2014, Standards as ‘checklists’ to be covered (Atlas for Science Literacy, AAAS, 2001), Connections between ideas are lost (How People Learn, NRC,2000) • Opportunities: Standards embody reform agenda, integral to perspective of curriculum reform as a ‘design by assembly’ problem (AAAS, Designs for Science Literacy, 2001) • Partners: UCB, Project 2061 – AAAS, DLESE, UCSB • Goals • ‘Rich representations’ of learning goals and means to visualize relationships between goals • Representations and visualizations available throughout distributed library network

  5. AAAS Benchmarks and Strand Maps • Benchmarks: Describe what learners should know, or be able to do, at key stages in their education across the STEM disciplines • Strand maps: Node-link diagrams illustrating how student understanding changes over time

  6. What is a Benchmark? Research on the cognitive and scientific basis Research on student (mis-)conceptions Strategies to check student understanding Assessment activities When warmer things are put with cooler ones, the warm ones lose heat and the cool ones gain it until they are all the same temperature. 3-5 The sun warms the air, land and water. K-2

  7. Flow of Matter in Ecosystems Map plants making food matter cycle food web

  8. Service components Visualization interfaces Web service protocol AAAS information model User constituency K-12 teachers and students Library developers AAAS staff Approach: Knowledge Organization Service Related Work: • Concept Maps (Hall et al; O’Donnell et al) • Snap-together Visualizations (North and Schneiderman) • Knowledge Organization Systems (Binding and Tudhope)

  9. Visualization requirements AAAS Info Space Visualization Algorithm Concept Space Interchange Protocol Benchmarks Repository Research Methodology • Pilot User Study • Deployment Cases

  10. Strand Map Service:How it works

  11. The Strand Map Service in DLESE

  12. CSIP Web Service Protocol • Representational State Transfer (REST) • Protocol consists of three services • Service Description • Submit Resource • Query • Balance expressiveness with facility • expressiveness -> visual components • facility -> programming walkthrough

  13. The Strand Map Service in the Harvard-Smithsonian Digital Video Library

  14. Reflections and Outcomes • Illustrates educational Cyberinfrastructure • Learning environment based entirely on web services • SMS makes visual components available to developers • Impact on the mindset and practices of our CI partners • Evaluation results – a useful cognitive tool • Controlled study examined influence of interface on cognitive processes of undergraduates • Compared visual interface and keyword-based interface • Students focused on science content, twice as much using visual interface, as opposed to query construction and surface features

  15. Evaluation Study Methodology • Compared cognitive strategies using Strand Map Service versus DLESE search interface • 12 participants – undergraduate psychology students • 4 Tasks – teachers using DLESE to find educational resources in order to teach a topic in class • Self-explanation with tasks – coded and analyzed verbal protocols “…I’m reading the different little boxes to find out which one sounds more related to why earthquakes occur…this one talks about .. how the core of the earth is hot and that’s what makes earthquakes and volcanic eruptions but .. this one says that they also occur along boundaries with colliding plates, so I’m going to try this one first .. “ “.. I guess the first thing I do is probably the most basic thing, just type in rock cycle into the search engine…And it yielded no results so I’ll go back .. right now I’m just clicking on the options I have here, seeing if I can narrow down the search.. “

  16. Examples of Coded Verbal Protocols

  17. Results a b c Mean number of search processes performed during a) formulation, b) performance, and c) evaluation phases

  18. Advance Knowledge Sharing (“Concept” only so far!) The Integrative Data Viewer (IDV) and other such tools can access multiple datasets served by GEON and save and share the view using a “Bundle”. An advanced application could allow the user not only to share this visualization bundle of integrated data and model files, but also the concepts that led the user to create a particular bundle. Since each individual dataset is registered to an ontology(ies) at GEON, the user could in principle create a new cross-cutting ontology with associated concepts. An ambitious user could also register the new concept for educational purposes to a strand map. (C. Meertens, 20 April 2005) Educator Point of View: User saves IDV xmlbundle, creates associated material that is registered to a strand map GEON Portal IDV user grabs data from several data ontologies (perhaps unrelated as shown) IDV User views all three data sources together and comes to a brilliant integrative science thought! Scientist Point of View: User saves IDV xmlbundle, creates a new integrated knowledge concept space, and saves thought in “my GEON”
