square pegs and round holes on the nosql world

Square Pegs and Round Holes on the NOSQL World

Jim Webber

Chief Scientist, Neo Technology

@jimwebber

koans a free tutorial that gets you up to speed with neo4j through hacking

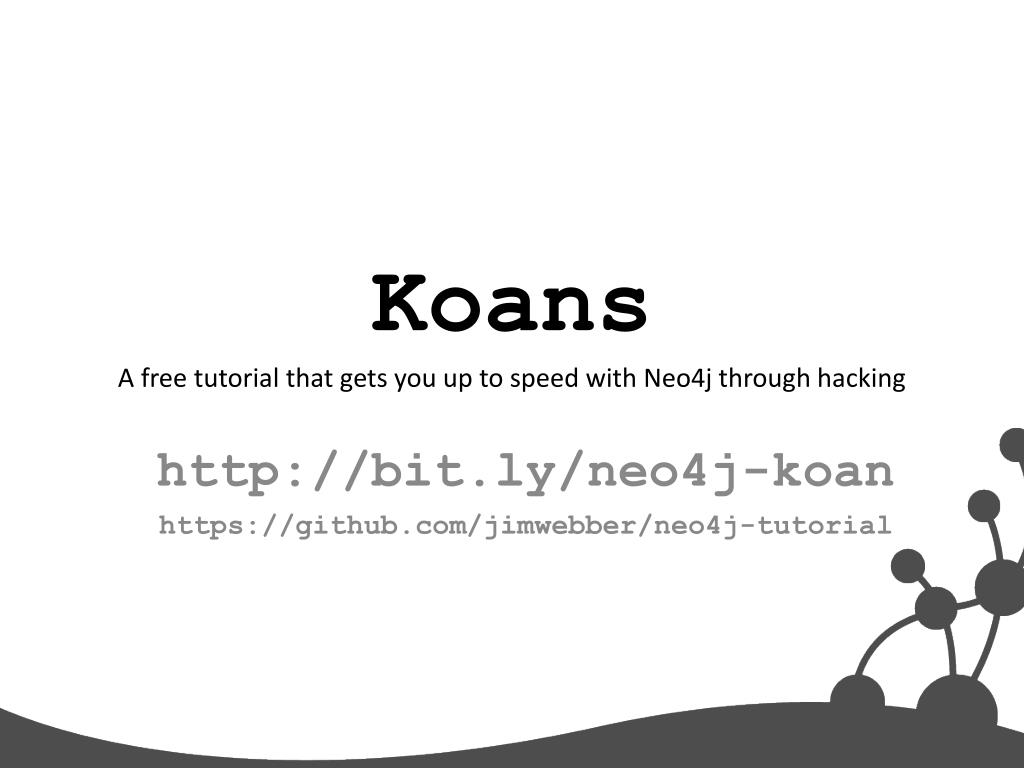

KoansA free tutorial that gets you up to speed with Neo4j through hacking

http://bit.ly/neo4j-koan

https://github.com/jimwebber/neo4j-tutorial

n ot o nly s ql

Not OnlySQL

Remember that NOSQL means

slide7

http://www.xtranormal.com/watch/6995033/mongo-db-is-web-scalehttp://www.xtranormal.com/watch/6995033/mongo-db-is-web-scale

slide8

http://www.orangesmile.com/destinations/img/berlin-map-metro-big.gifhttp://www.orangesmile.com/destinations/img/berlin-map-metro-big.gif

creating nodes

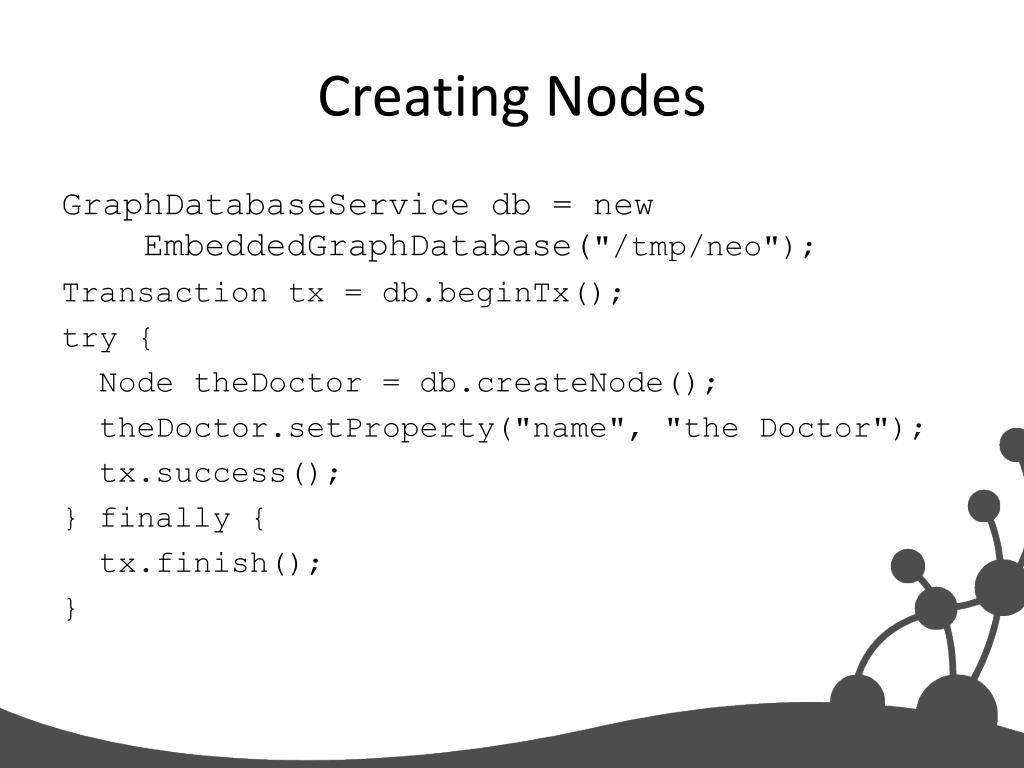

Creating Nodes

GraphDatabaseServicedb = new EmbeddedGraphDatabase("/tmp/neo");

Transaction tx = db.beginTx();

try {

Node theDoctor = db.createNode();

theDoctor.setProperty("name", "the Doctor");

tx.success();

} finally {

tx.finish();

}

creating relationships

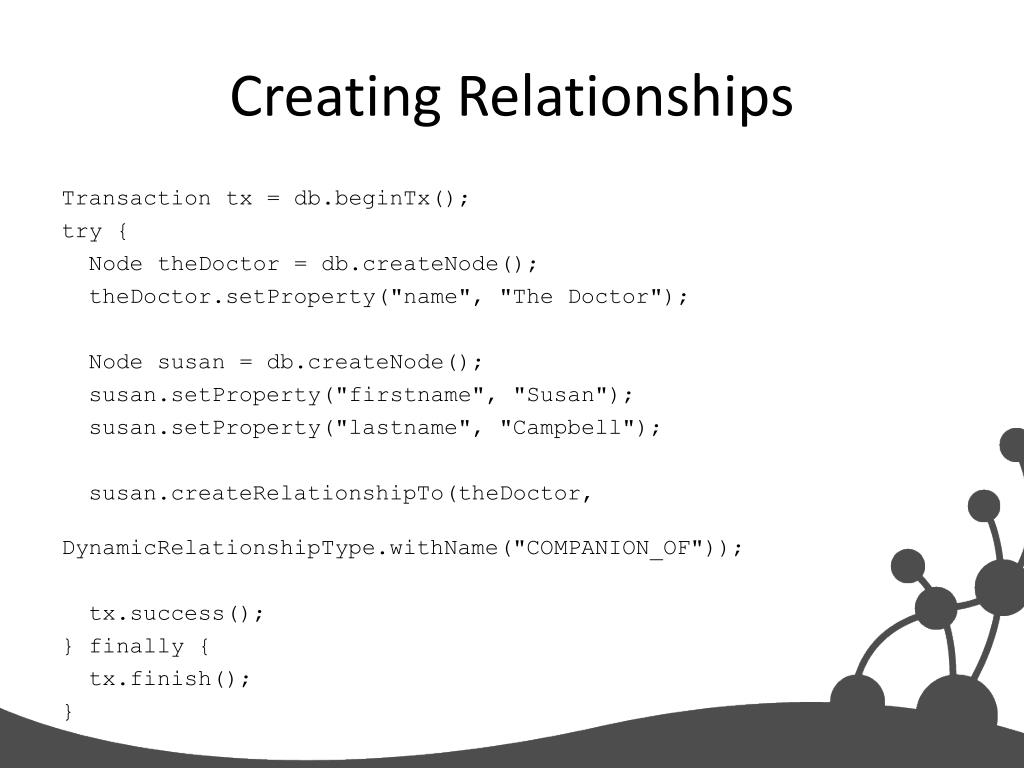

Creating Relationships

Transaction tx = db.beginTx();

try {

Node theDoctor= db.createNode();

theDoctor.setProperty("name", "The Doctor");

Node susan= db.createNode();

susan.setProperty("firstname", "Susan");

susan.setProperty("lastname", "Campbell");

susan.createRelationshipTo(theDoctor, DynamicRelationshipType.withName("COMPANION_OF"));

tx.success();

} finally {

tx.finish();

}

slide12

http://easystreetdiscount.auctivacommerce.com/Nirvana-Smiley-Face-Music-Band-Decal-Sticker-P188162.aspxhttp://easystreetdiscount.auctivacommerce.com/Nirvana-Smiley-Face-Music-Band-Decal-Sticker-P188162.aspx

slide13

http://www.tolkienlibrary.com/press/922-Isildur_Poker_Champion.phphttp://www.tolkienlibrary.com/press/922-Isildur_Poker_Champion.php

slide14

http://www.vaccinetimes.com/wp-content/uploads/2010/12/microscope.jpghttp://www.vaccinetimes.com/wp-content/uploads/2010/12/microscope.jpg

slide15

Document Database

username: Jeff1986

age: 25

friend : SallyDJ

friend : Gazza

username: SallyDJ

age: 28

friend : Jeff1986

friend: FunkySam

username: FunkySam

age: 24

friend : SallyDJ

username: Gazza

age: 32

friend : Jeff1986

slide16

Application Layer

username: SallyDJ

age: 28

username: Jeff1986

age: 25

username: FunkySam

age: 24

username: Gazza

age: 32

Reify

Document Database

username: Jeff1986

age: 25

friend : SallyDJ

friend : Gazza

username: SallyDJ

age: 28

friend : Jeff1986

friend: FunkySam

username: FunkySam

age: 24

friend : SallyDJ

username: Gazza

age: 32

friend : Jeff1986

slide17

Graph Database

username: SallyDJ

age: 28

FRIEND

FRIEND

username: Jeff1986

age: 25

username: FunkySam

age: 24

FRIEND

username: Gazza

age: 32

slide19

Graph Database

username: Gazza

age: 32

username: SallyDJ

age: 28

PURCHASED

PURCHASED

PURCHASED

product: SuperCans

manufacturer : Acme

price : 150

product: CoolDecks

manufacturer : Acme

price : 599

Document Database

product: SuperCans

manufacturer : Acme

price : 150

product: CoolDecks

manufacturer : Acme

price : 599

username: SallyDJ

age: 28

purchased : CoolDecks

purchased : SuperCans

username: Gazza

age: 32

purchased : SuperCans

slide21

Graph Database

username: Jeff1986

age: 25

username: FunkySam

age: 24

FRIEND

username: Gazza

age: 32

FRIEND

FRIEND

username: SallyDJ

age: 28

PURCHASED

PURCHASED

PURCHASED

product: SuperCans

manufacturer : Acme

price : 150

product: CoolDecks

manufacturer : Acme

price : 599

graph algorithms

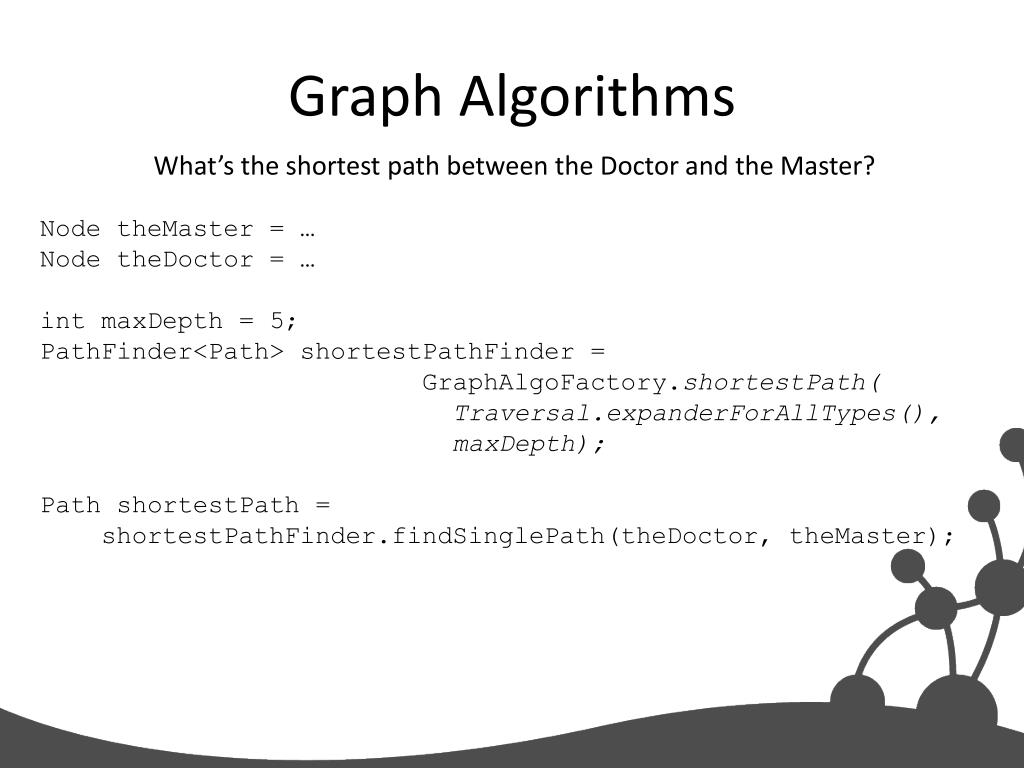

Graph Algorithms

What’s the shortest path between the Doctor and the Master?

Node theMaster = …

Node theDoctor = …

intmaxDepth = 5;

PathFinder<Path> shortestPathFinder = GraphAlgoFactory.shortestPath(Traversal.expanderForAllTypes(), maxDepth);

Path shortestPath=

shortestPathFinder.findSinglePath(theDoctor, theMaster);

path finding

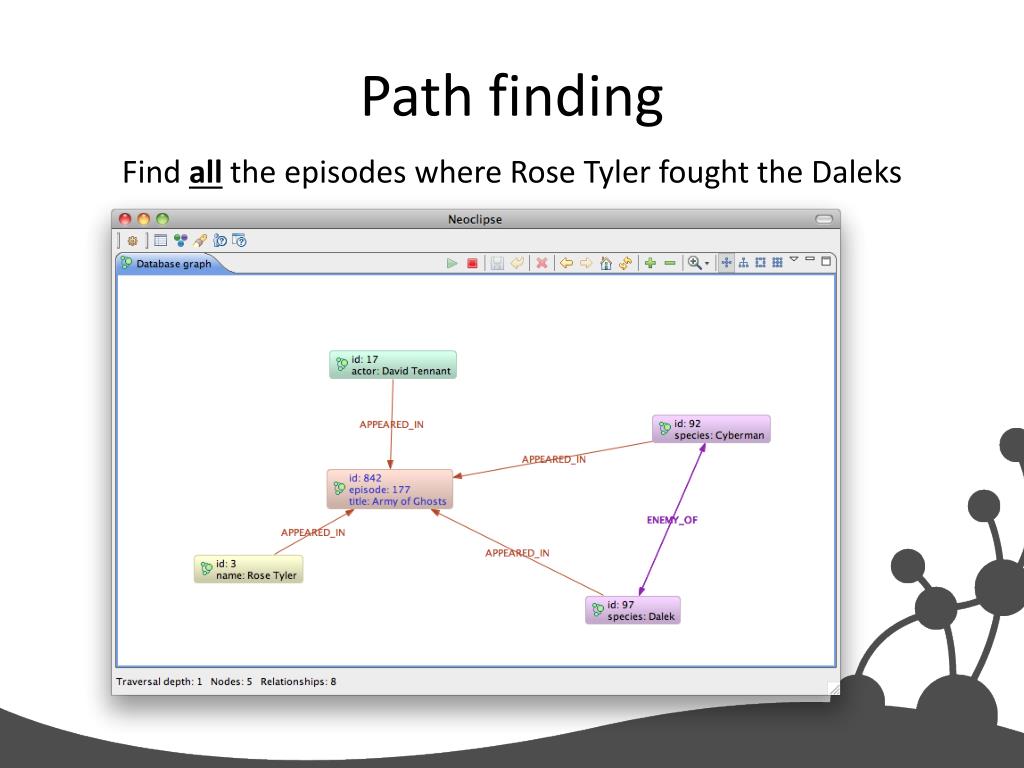

Path finding

Find all the episodes where Rose Tyler fought the Daleks

path finder code
Path finder code

algo

Node rose = ...

Node daleks = ...

PathFinder<Path> pathFinder = GraphAlgoFactory.pathsWithLength(Traversal.expanderForTypes(DoctorWhoUniverse.APPEARED_IN, Direction.BOTH), 2);

Iterable<Path> paths = pathFinder.findAllPaths(rose, daleks);

constraints

fixed path length

slide26

!PURCHASED

product: CoolDecks

manufacturer : Acme

age: < 40

PURCHASED

product: SuperCans

manufacturer : Acme

why graph matching

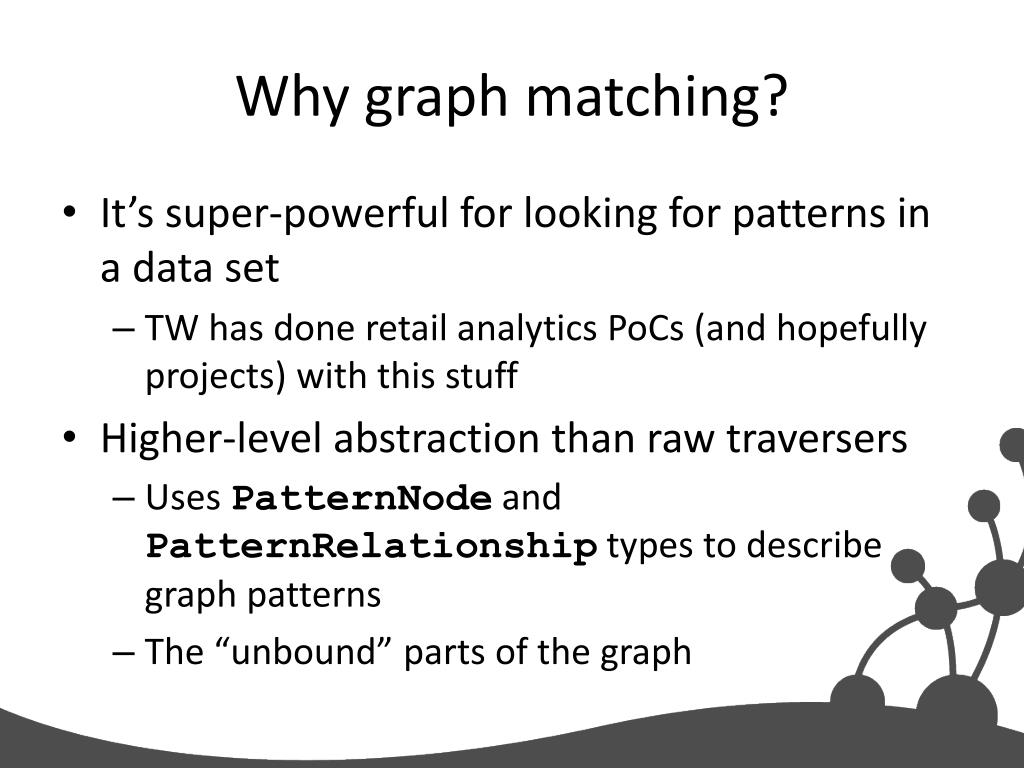

Why graph matching?
  • It’s super-powerful for looking for patterns in a data set
    • TW has done retail analytics PoCs (and hopefully projects) with this stuff
  • Higher-level abstraction than raw traversers
    • Uses PatternNode and PatternRelationship types to describe graph patterns
    • The “unbound” parts of the graph
setting up and matching a pattern

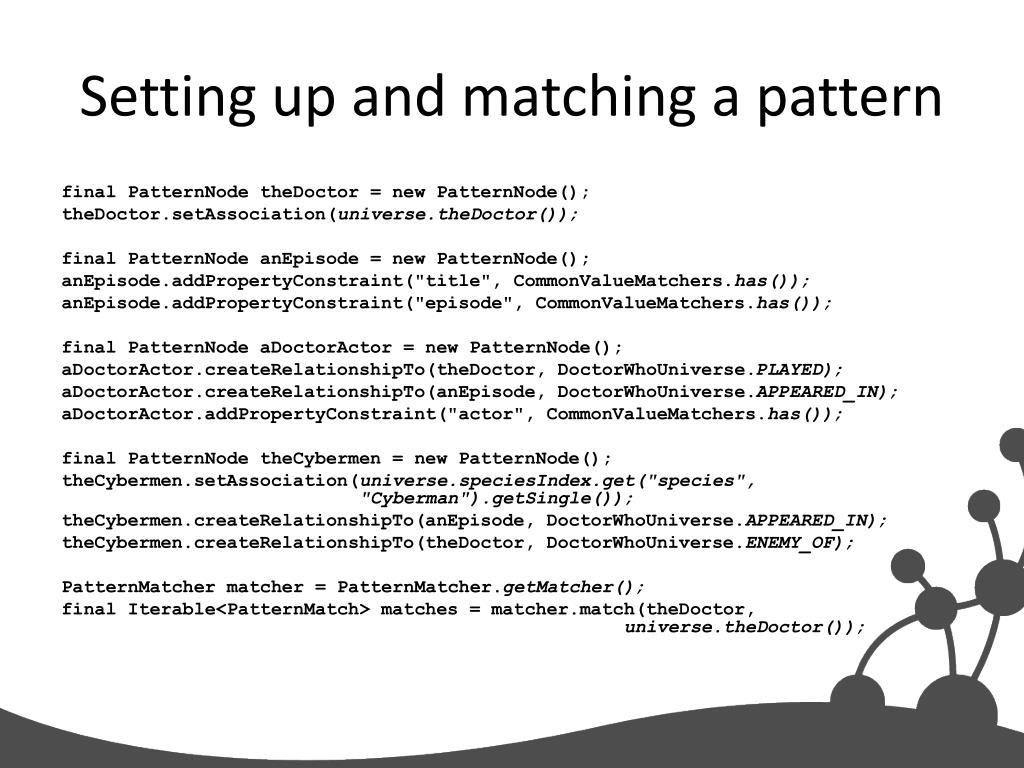

Setting up and matching a pattern

final PatternNodetheDoctor = new PatternNode();

theDoctor.setAssociation(universe.theDoctor());

final PatternNodeanEpisode = new PatternNode();

anEpisode.addPropertyConstraint("title", CommonValueMatchers.has());

anEpisode.addPropertyConstraint("episode", CommonValueMatchers.has());

final PatternNodeaDoctorActor = new PatternNode();

aDoctorActor.createRelationshipTo(theDoctor, DoctorWhoUniverse.PLAYED);

aDoctorActor.createRelationshipTo(anEpisode, DoctorWhoUniverse.APPEARED_IN);

aDoctorActor.addPropertyConstraint("actor", CommonValueMatchers.has());

final PatternNodetheCybermen = new PatternNode();

theCybermen.setAssociation(universe.speciesIndex.get("species", "Cyberman").getSingle());

theCybermen.createRelationshipTo(anEpisode, DoctorWhoUniverse.APPEARED_IN);

theCybermen.createRelationshipTo(theDoctor, DoctorWhoUniverse.ENEMY_OF);

PatternMatchermatcher = PatternMatcher.getMatcher();

final Iterable<PatternMatch> matches = matcher.match(theDoctor, universe.theDoctor());

slide31

http://www.561studios.com/blog/wp-content/uploads/2010/07/commonsense.jpghttp://www.561studios.com/blog/wp-content/uploads/2010/07/commonsense.jpg

questions

Questions?

Community: http://neo4j.org

Koans: https://github.com/jimwebber/neo4j-tutorial

Me: @jimwebber, jim@neotechnology.com
