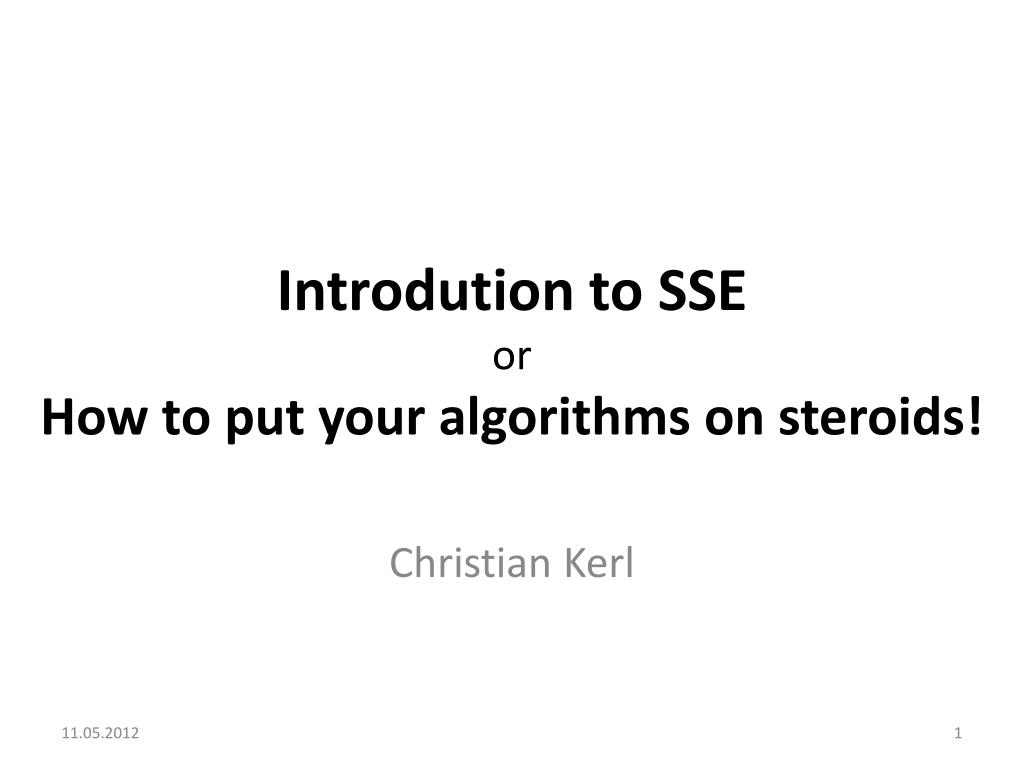

  1. Introdution to SSEorHow to put your algorithms on steroids! Christian Kerl

  2. Outline • What is SSE? • Basic Operations • Example: Image Pyramid • Summary • Further Resources

  3. What is SSE? • SSE = Streaming SIMD Extensions • SIMD = Single Instruction, Multiple Data • Developed by Intel in 1999 • Further extensions SSE2, SSE3 (SSSE3, SSE4) • Allows parallel processing of multiple integer or floating point values

  4. What is SSE? • 8 XMM registers (special CPU registers, 16 on 64 bit) • Each XMM register is 128 bits wide • 2 int64 / doubles • 4 int32 / floats • 8 int16 • 16 int8

  5. What is SSE? • Special instructions working on XMM registers • SSE 70, SSE2 144, SSE3 13 instructions • Different instructions for each data type • Usable in • Assembly • C/C++ through SSE “intrinsics”

  6. Basic Operations • Load / Store • Arithmetic • Comparison / Logical • Type conversion • …

  7. Basic Operations • Requirements on memory layout for loading and storing data • Memory addresses (pointers) need to be 16 byte aligned!

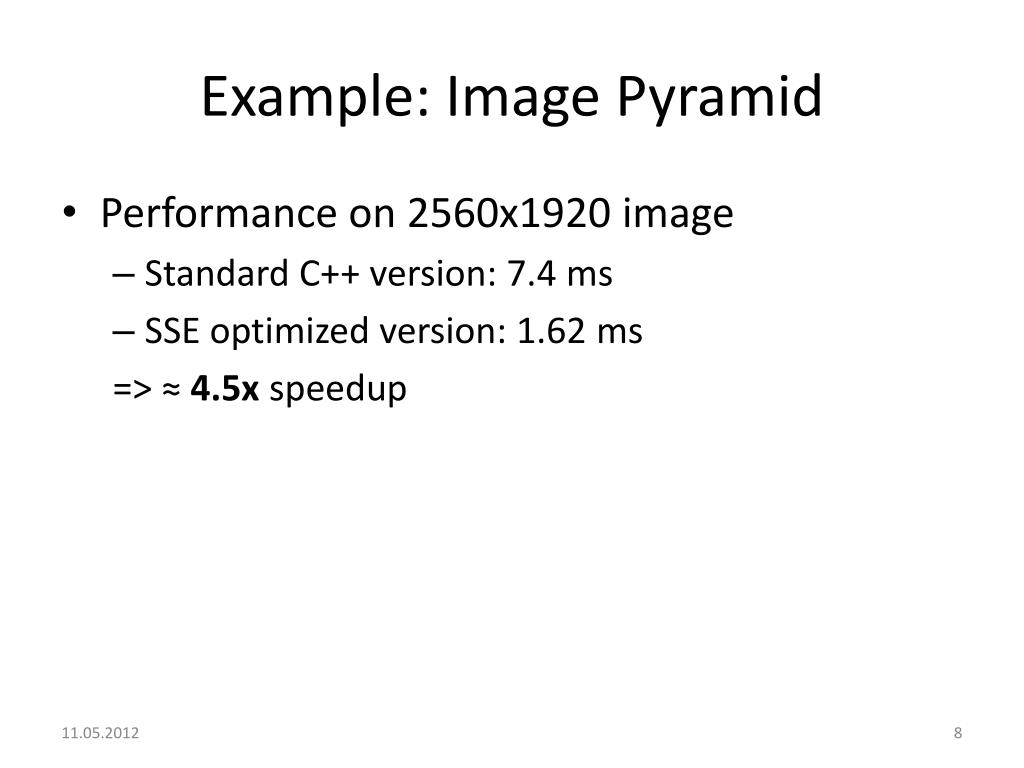

  8. Example: Image Pyramid • Performance on 2560x1920 image • Standard C++ version: 7.4 ms • SSE optimized version: 1.62 ms => ≈ 4.5x speedup

  9. Summary • SSE available on all modern x86 CPUs • Good for sequential data processing • Provides considerable speedups (2-4x) • SSE intrinsic code harder to program and read => Use wrapper library, e.g. EasySSE, ut-sse • Need to evaluate / extend / write one

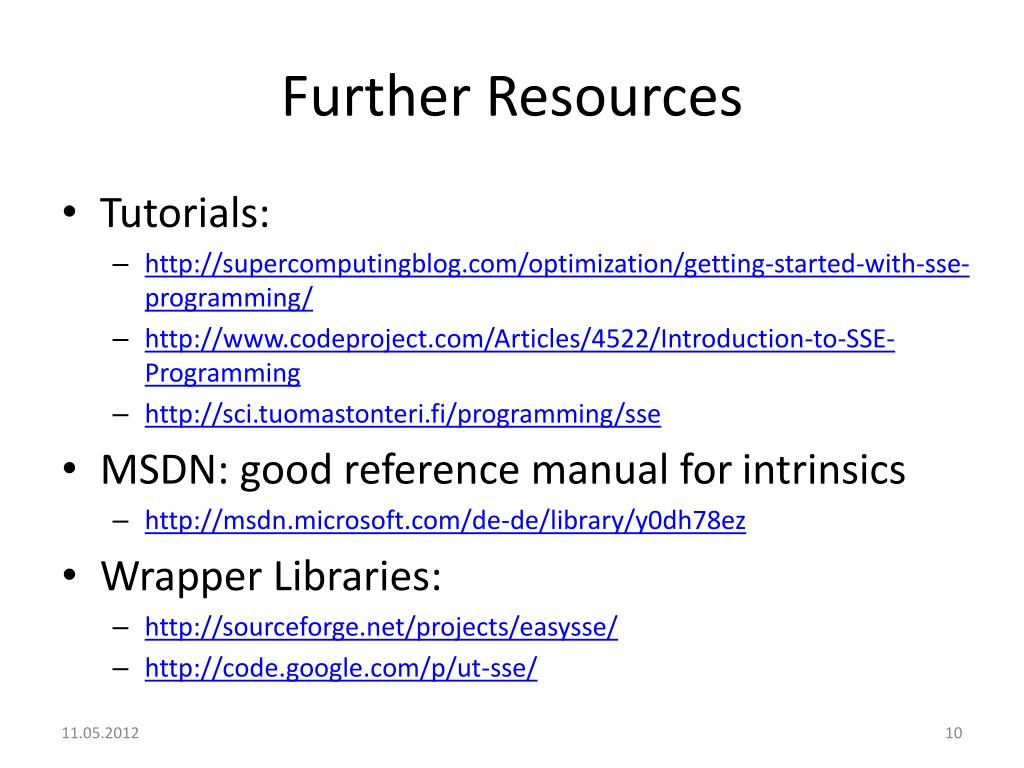

  10. Further Resources • Tutorials: • http://supercomputingblog.com/optimization/getting-started-with-sse-programming/ • http://www.codeproject.com/Articles/4522/Introduction-to-SSE-Programming • http://sci.tuomastonteri.fi/programming/sse • MSDN: good reference manual for intrinsics • http://msdn.microsoft.com/de-de/library/y0dh78ez • Wrapper Libraries: • http://sourceforge.net/projects/easysse/ • http://code.google.com/p/ut-sse/
