  1. End-to-end Anomalous Event Detection in Production Networks Les Cottrell, Connie Logg, Felipe Haro, Mahesh Chhaparia (SLAC), Maxim Grigoriev (FNAL), Mark Sandford (Loughborough University) ESCC Meeting, Salt Lake City February, 2005 http://www.slac.stanford.edu/grp/scs/net/talk05/escc-feb05.ppt Partially funded by DOE/MICS for Internet End-to-end Performance Monitoring (IEPM)

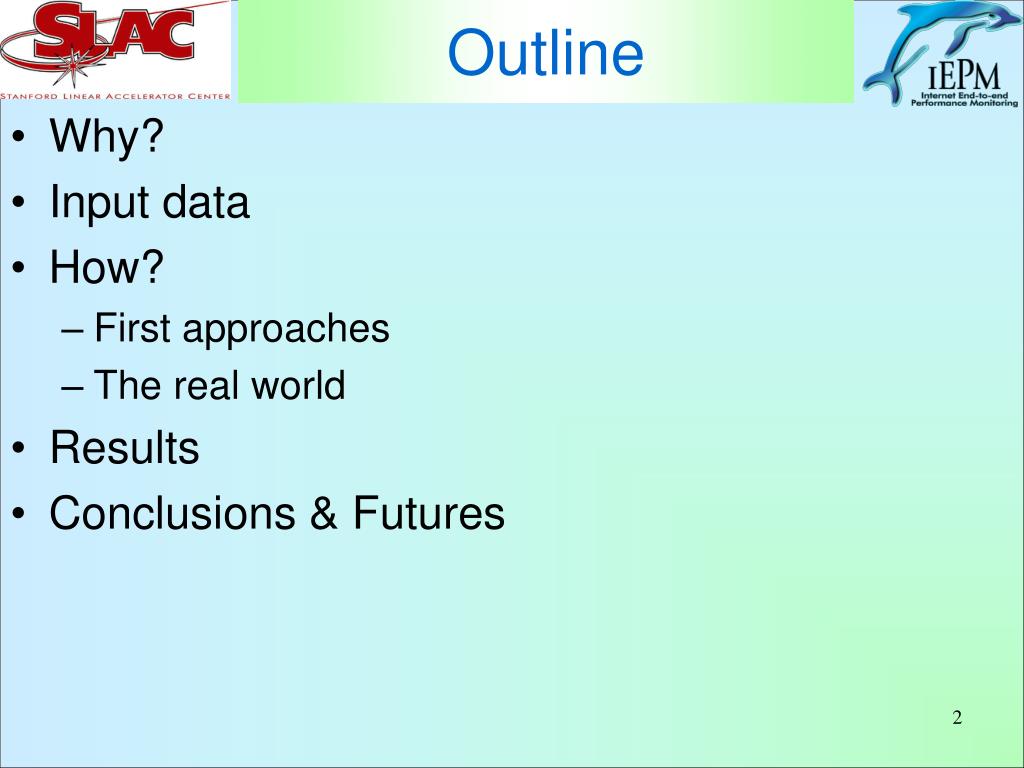

  2. Outline • Why? • Input data • How? • First approaches • The real world • Results • Conclusions & Futures

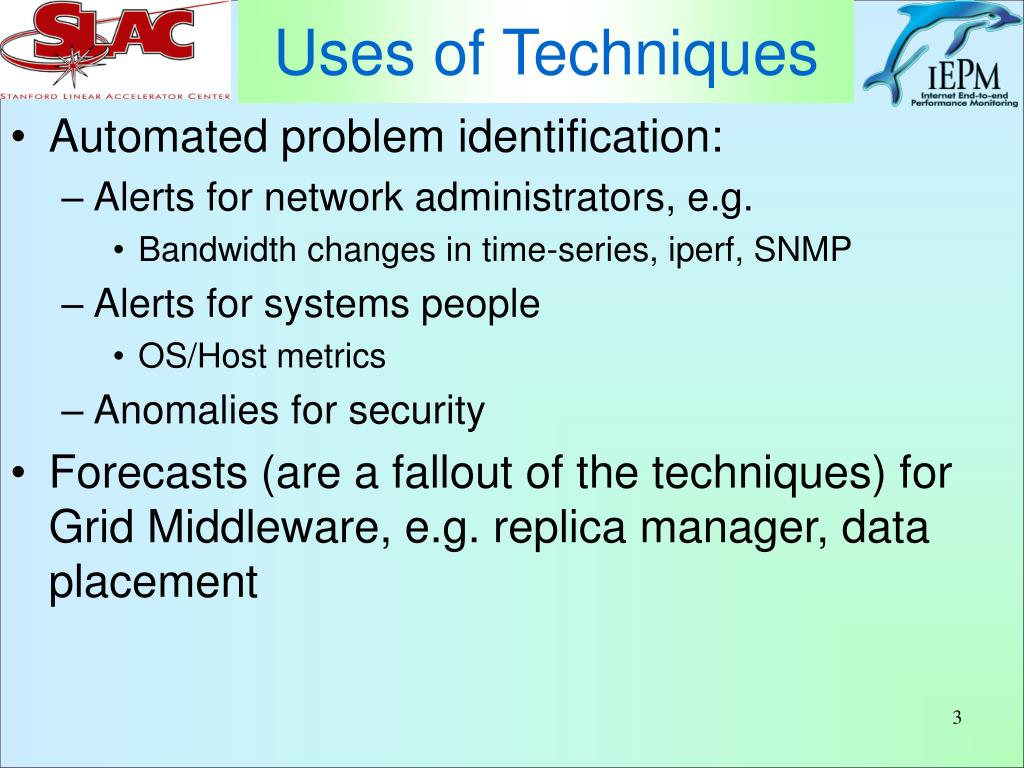

  3. Uses of Techniques • Automated problem identification: • Alerts for network administrators, e.g. • Bandwidth changes in time-series, iperf, SNMP • Alerts for systems people • OS/Host metrics • Anomalies for security • Forecasts (are a fallout of the techniques) for Grid Middleware, e.g. replica manager, data placement

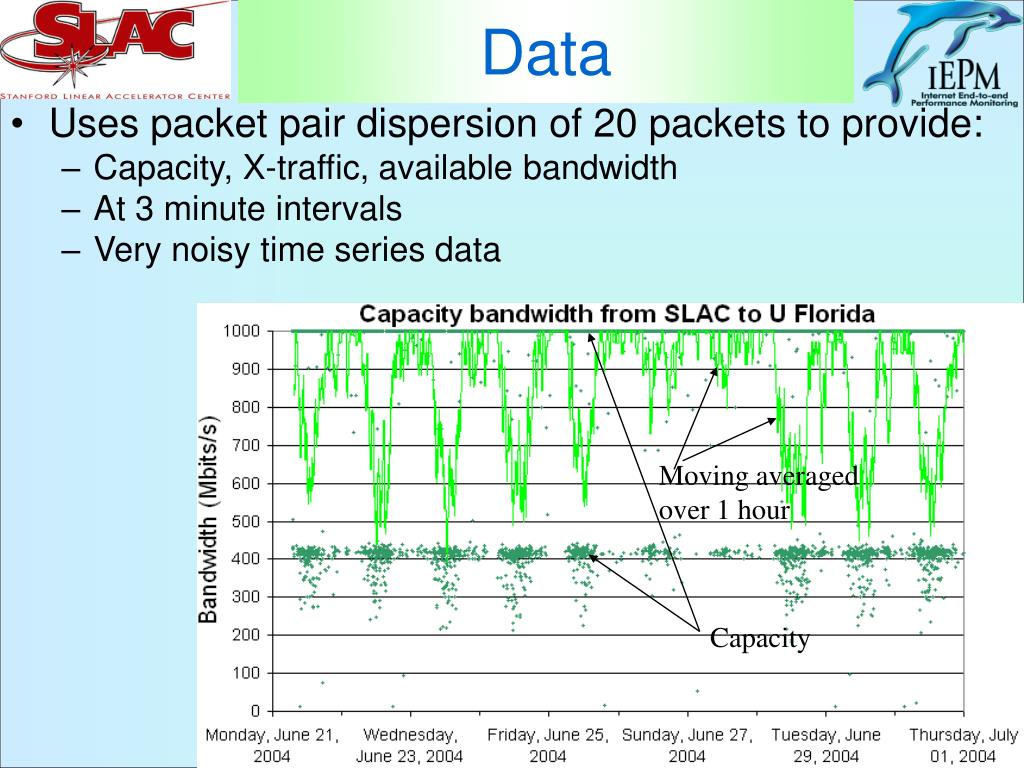

  4. Data • Uses packet pair dispersion of 20 packets to provide: • Capacity, X-traffic, available bandwidth • At 3 minute intervals • Very noisy time series data Moving averaged over 1 hour Capacity

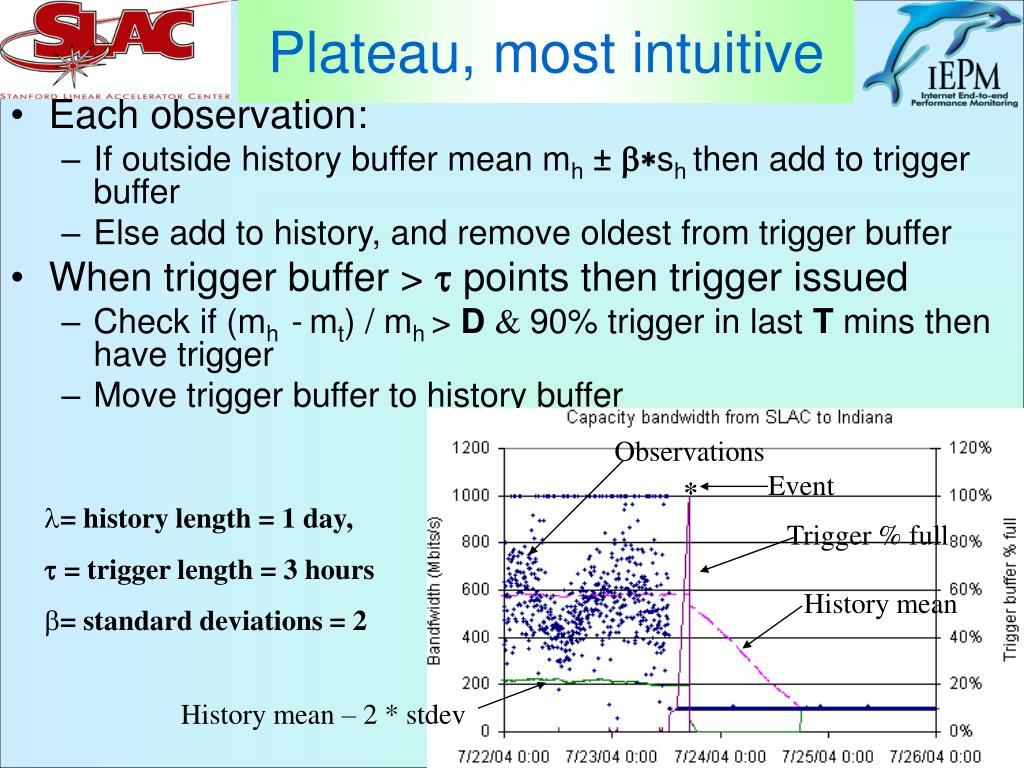

  5. Plateau, most intuitive • Each observation: • If outside history buffer mean mh±b*sh then add to trigger buffer • Else add to history, and remove oldest from trigger buffer • When trigger buffer > t points then trigger issued • Check if (mh -mt) / mh > D& 90% trigger in last T mins then have trigger • Move trigger buffer to history buffer Observations Event * • = history length = 1 day, t = trigger length = 3 hours • = standard deviations = 2 Trigger % full History mean History mean – 2 * stdev

  6. K-S (Kolmogorov-Smirnov) • For each observation: for the previous 100 observations with next 100 observations • Compare the vertical difference in CDFs • How does it differ from random CDFs • Expressed as % difference Compare K-S with Plateau

  7. Compare • Results between K-S & plateau very similar, using K-S threshold = 70% • Current plateau only finds negative changes • Useful to see when condition returns to normal • K-S implemented in C and executes faster than Plateau (in Perl), depends on parameters • K-S more formalized • Plateau and K-S work well for non seasonal observations (e.g. small changes day/night)

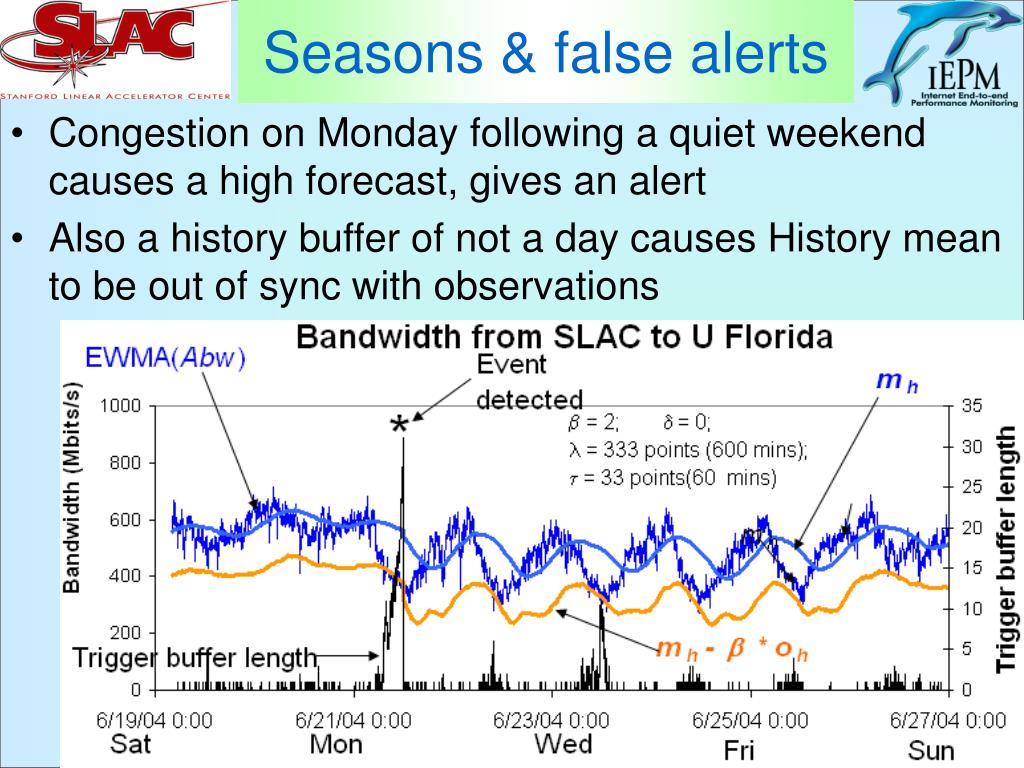

  8. Seasons & false alerts • Congestion on Monday following a quiet weekend causes a high forecast, gives an alert • Also a history buffer of not a day causes History mean to be out of sync with observations

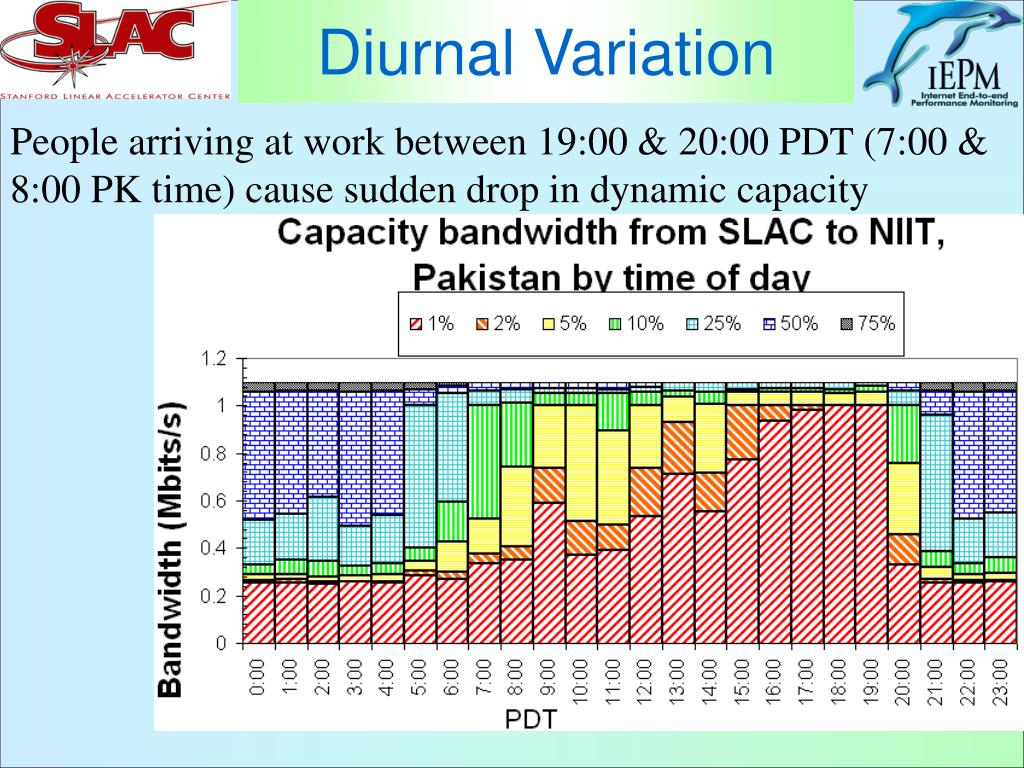

  9. Diurnal Variation People arriving at work between 19:00 & 20:00 PDT (7:00 & 8:00 PK time) cause sudden drop in dynamic capacity

  10. Effect on events • Change in bandwidth (drops) between 19:00 & 20:00 causes more anomalous events around this time

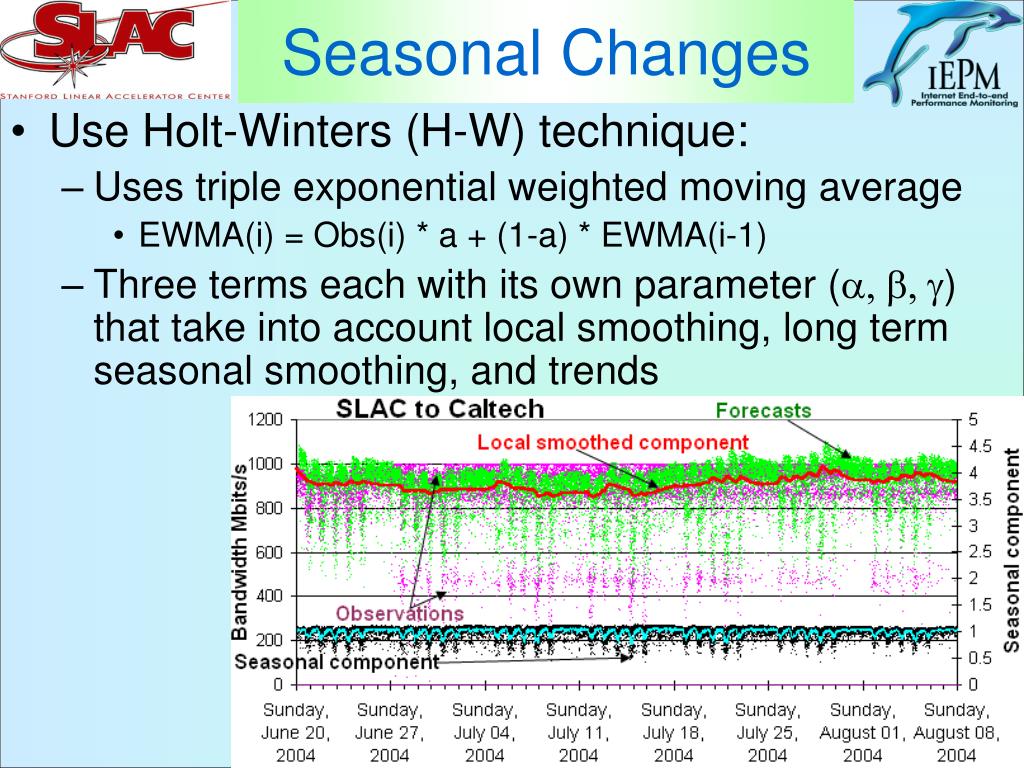

  11. Seasonal Changes • Use Holt-Winters (H-W) technique: • Uses triple exponential weighted moving average • EWMA(i) = Obs(i) * a + (1-a) * EWMA(i-1) • Three terms each with its own parameter (a, b, ) that take into account local smoothing, long term seasonal smoothing, and trends

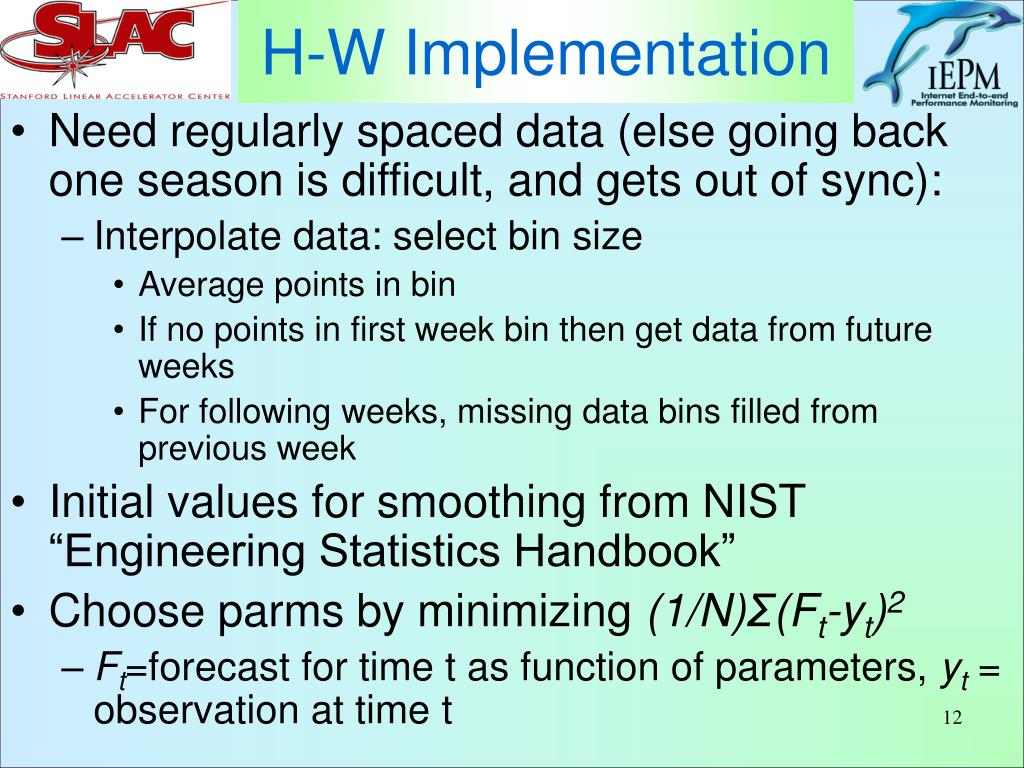

  12. H-W Implementation • Need regularly spaced data (else going back one season is difficult, and gets out of sync): • Interpolate data: select bin size • Average points in bin • If no points in first week bin then get data from future weeks • For following weeks, missing data bins filled from previous week • Initial values for smoothing from NIST “Engineering Statistics Handbook” • Choose parms by minimizing (1/N)Σ(Ft-yt)2 • Ft=forecast for time t as function of parameters, yt= observation at time t

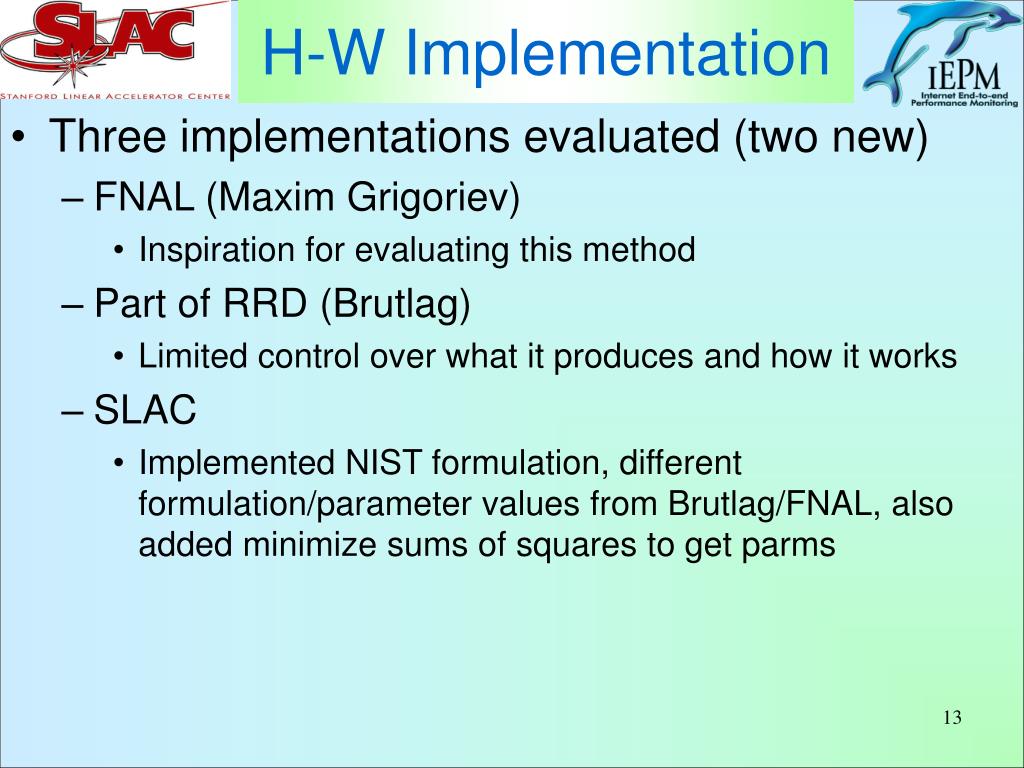

  13. H-W Implementation • Three implementations evaluated (two new) • FNAL (Maxim Grigoriev) • Inspiration for evaluating this method • Part of RRD (Brutlag) • Limited control over what it produces and how it works • SLAC • Implemented NIST formulation, different formulation/parameter values from Brutlag/FNAL, also added minimize sums of squares to get parms

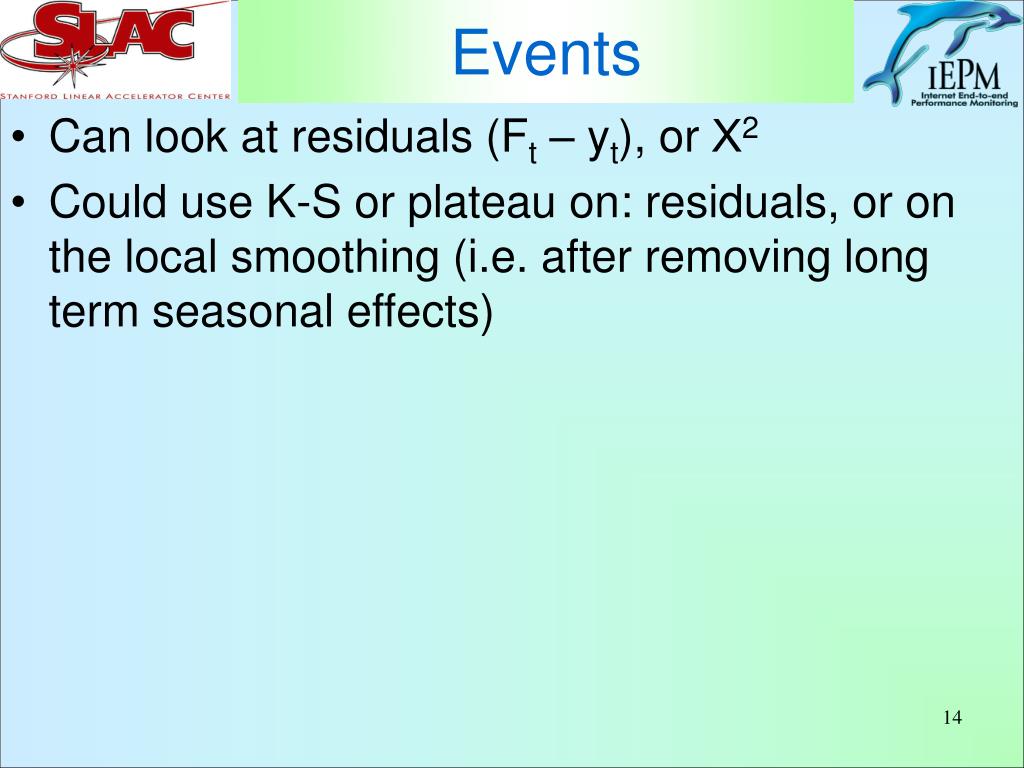

  14. Events • Can look at residuals (Ft – yt), or Χ2 • Could use K-S or plateau on: residuals, or on the local smoothing (i.e. after removing long term seasonal effects)

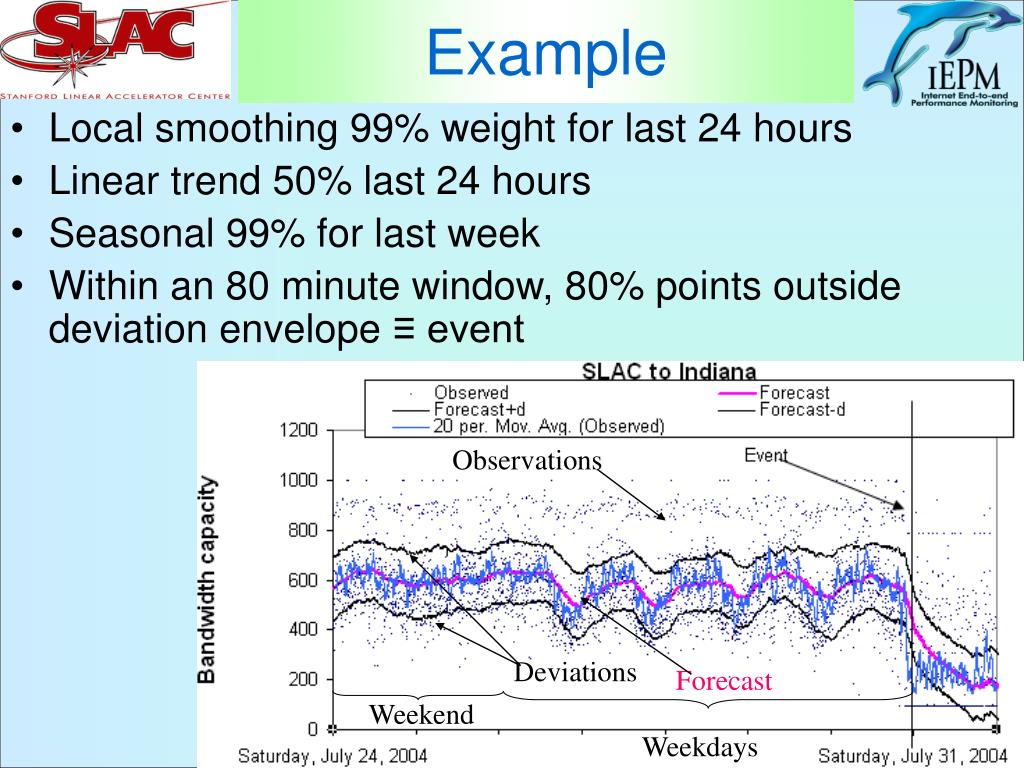

  15. Example • Local smoothing 99% weight for last 24 hours • Linear trend 50% last 24 hours • Seasonal 99% for last week • Within an 80 minute window, 80% points outside deviation envelope ≡ event Observations Deviations Forecast Weekend Weekdays

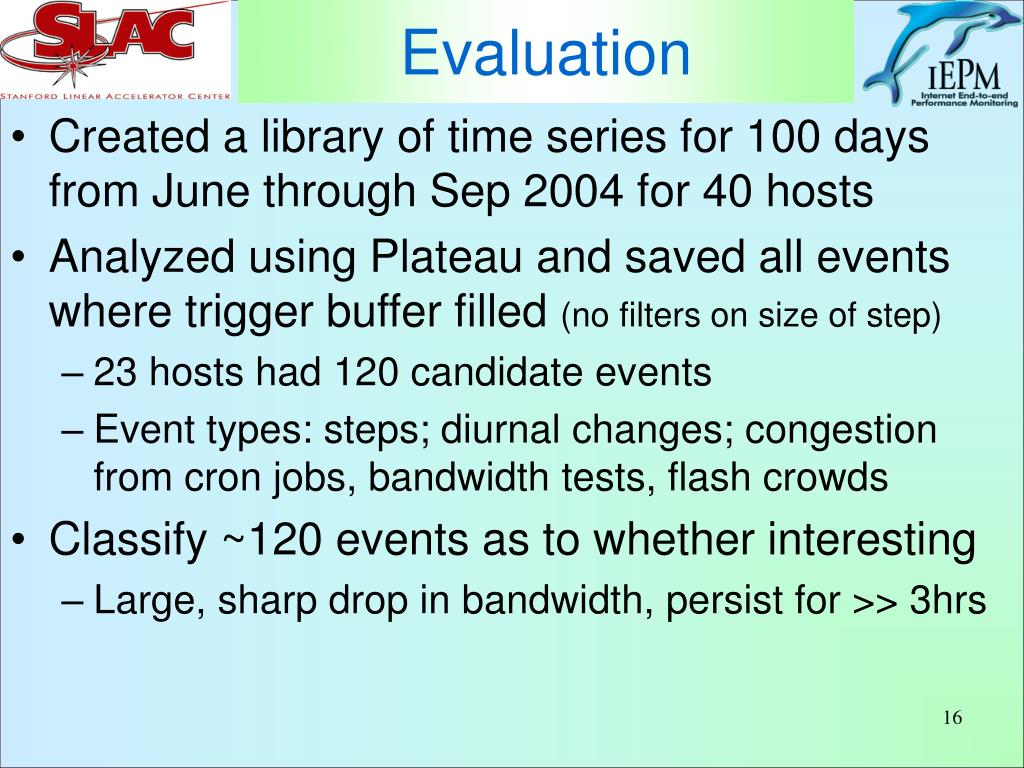

  16. Evaluation • Created a library of time series for 100 days from June through Sep 2004 for 40 hosts • Analyzed using Plateau and saved all events where trigger buffer filled (no filters on size of step) • 23 hosts had 120 candidate events • Event types: steps; diurnal changes; congestion from cron jobs, bandwidth tests, flash crowds • Classify ~120 events as to whether interesting • Large, sharp drop in bandwidth, persist for >> 3hrs

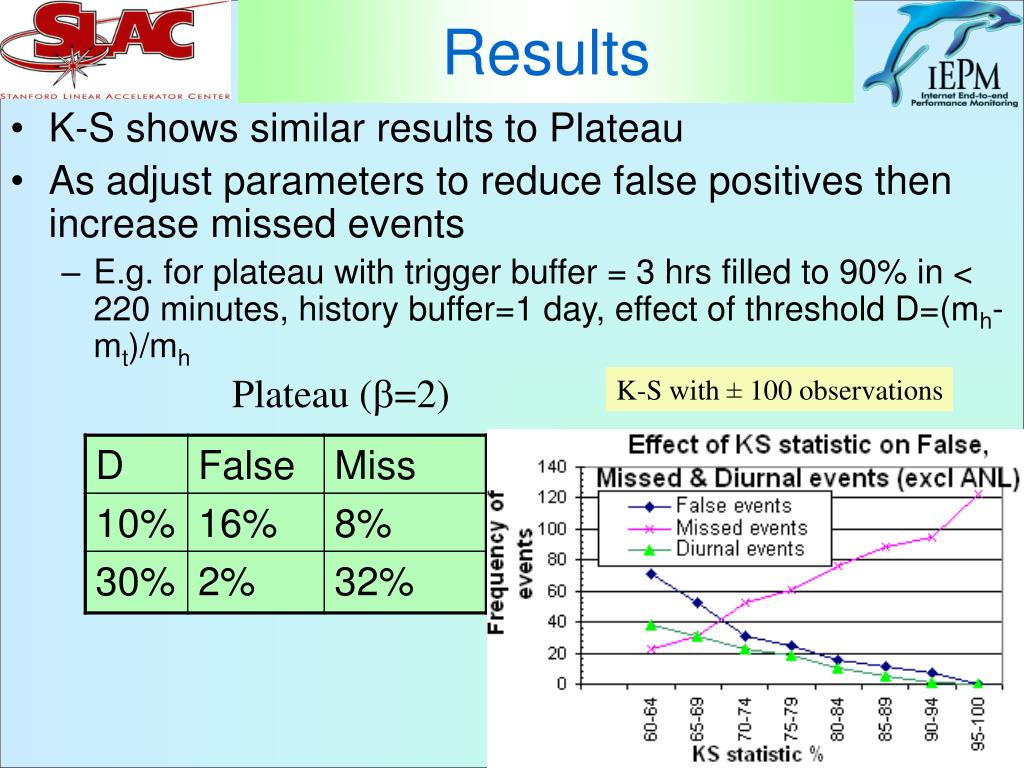

  17. Results • K-S shows similar results to Plateau • As adjust parameters to reduce false positives then increase missed events • E.g. for plateau with trigger buffer = 3 hrs filled to 90% in < 220 minutes, history buffer=1 day, effect of threshold D=(mh-mt)/mh Plateau (b=2) K-S with ± 100 observations

  18. Conclusions • A few paths (10%) have strong seasonal effects • Plateau & K-S work well if only weak seasonal effects • K-S detects both step downs & up, also gives accurate time estimate of event (good for correlations) • H-W promising for seasonal effects, but • Is more complex, and requires more parameters which may not be easy to estimate • Requires regular data (interpolation step) • CPU time can depend critically on parameters chosen, e.g. increasing K-S range from ±100 to say ±400 increases CPU time by factor 14 • H-W works, still need to quantify its effectiveness • Looking at PCA to evaluate multiple metrics simultaneously (e.g. fwd & bwd traffic, RTT, multiple paths)

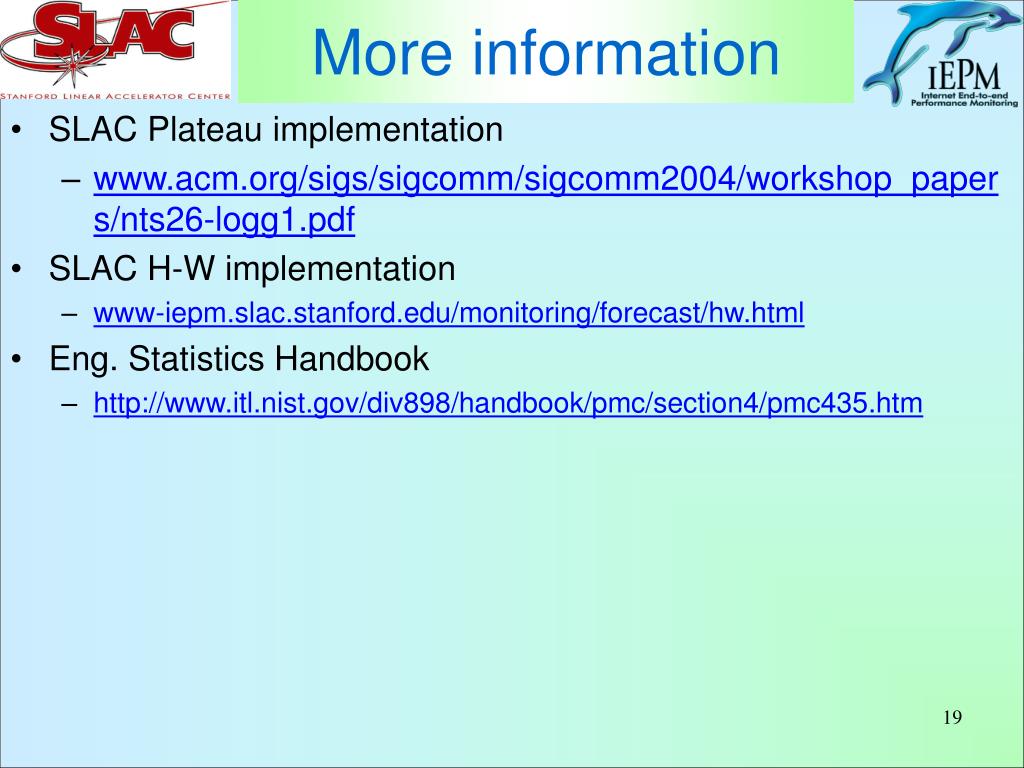

  19. More information • SLAC Plateau implementation • www.acm.org/sigs/sigcomm/sigcomm2004/workshop_papers/nts26-logg1.pdf • SLAC H-W implementation • www-iepm.slac.stanford.edu/monitoring/forecast/hw.html • Eng. Statistics Handbook • http://www.itl.nist.gov/div898/handbook/pmc/section4/pmc435.htm
