Advanced Wireless CCTV Solution for Remote Surveillance Project in Mongolia

This project involves connecting 27 IP speed dome cameras at different sites to a center site, ranging from 5.36km to 10.67km away. The design includes wireless bridge systems, backhaul bridges, and two-way signal for PTZ control without internet. The ALCON Wireless System allows fast deployment, expandable range, flexible camera locations, and robust outdoor design.

jadzia
Download Presentation

Advanced Wireless CCTV Solution for Remote Surveillance Project in Mongolia

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Wireless CCTV Solution 2011.6.28

  2. Project Description and Requirement • 27 IP speed dome camera located at 27 different sites need to connect to Center Site • The nearest camera site is 5.36km away from center site • The farthest camera site is 10.67km away from center site • Require to connect all the speed dome camera to center site with PTZ controlling

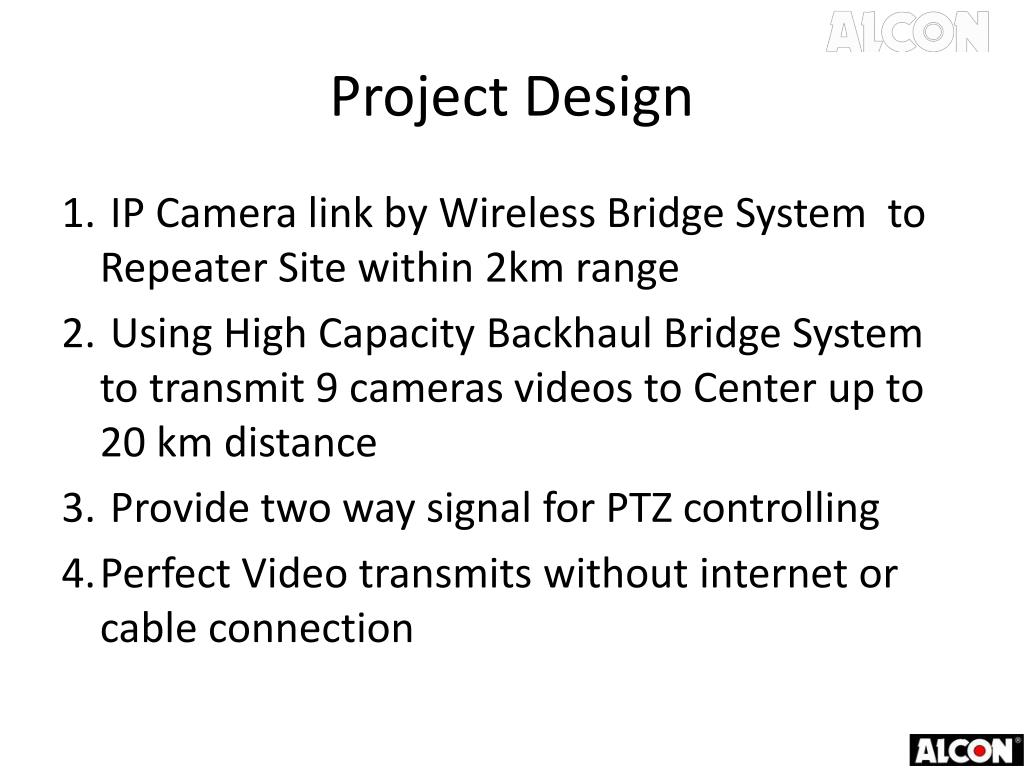

  3. Project Design • IP Camera link by Wireless Bridge System to Repeater Site within 2km range • Using High Capacity Backhaul Bridge System to transmit 9 cameras videos to Center up to 20 km distance • Provide two way signal for PTZ controlling • Perfect Video transmits without internet or cable connection

  4. Mongolia WCCTV

  5. Benefit of ALCON Wireless System • Fast Deployment • Range expandable • Flexible of camera location changing • Video / Audio transmitting • Sensor /Alarm compatible • Heavy Duty & All Weather Outdoor Design

  6. (01) (07) (02) (08) (Site 03) (05) (04) (06) (12) (Center Site ) (Site 23) (Site 14)

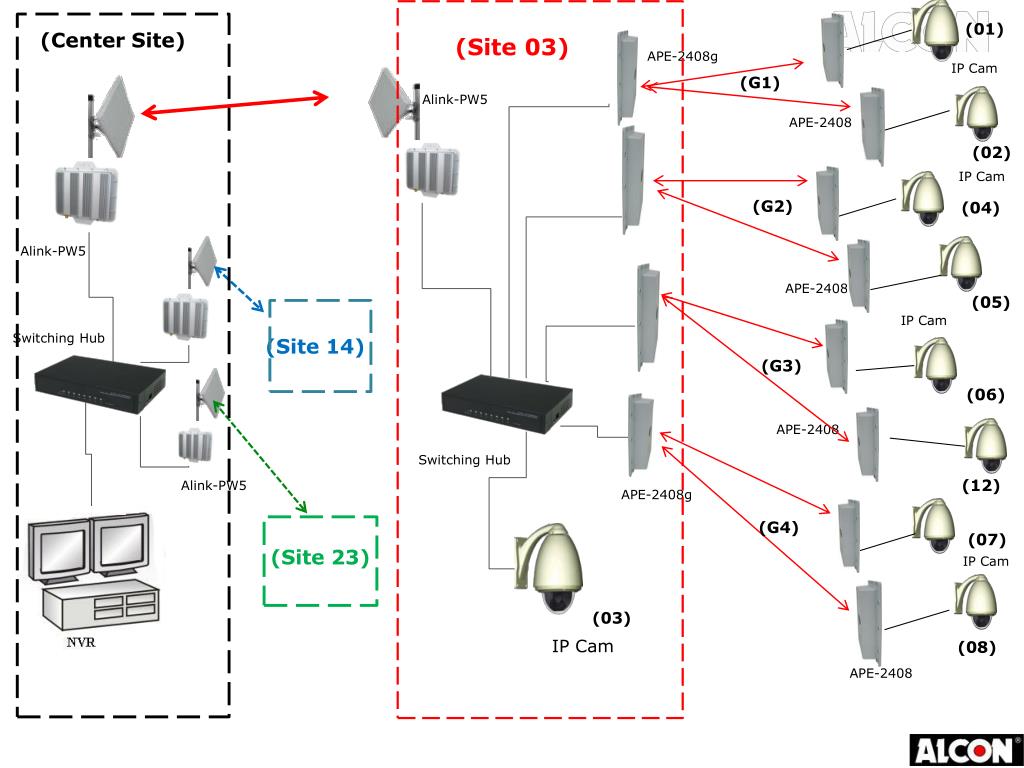

  7. (01) (Center Site) (Site 03) APE-2408g IP Cam (G1) Alink-PW5 APE-2408 (02) IP Cam (G2) (04) Alink-PW5 APE-2408 (05) IP Cam Switching Hub (Site 14) (G3) (06) APE-2408 Switching Hub (12) Alink-PW5 APE-2408g (G4) (07) (Site 23) IP Cam (03) IP Cam (08) APE-2408

  8. Equipment Description Wireless: • Alink-PW5: Professional 5GHz High Capacity Backhaul Bridge System for 15km • APE-2408g : Professional 2.4Ghz Outdoor Wireless Bridge System for 2km Range.
