introduction to bittorrent

AlexeyZagalsky

Introduction to BitTorrent

Based on data from Wikipedia

slides from “Introduction to BitTorent” by ArvidNorberg

slides from”BitTorrent Background” by Hilel

what is bittorrent

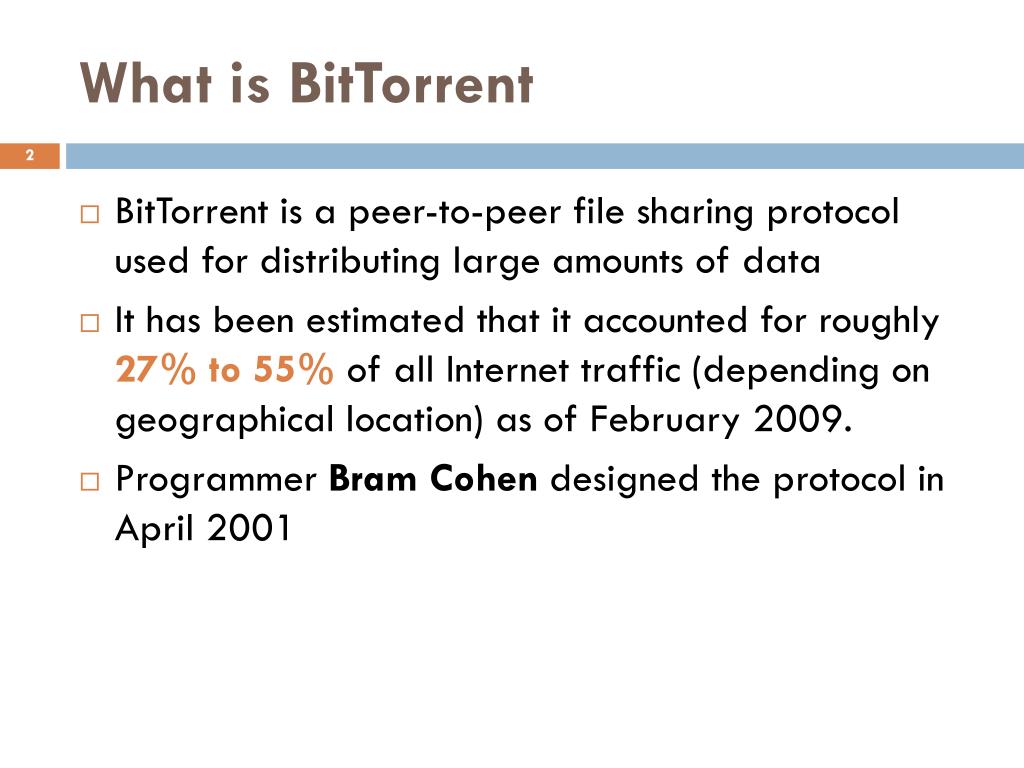

What is BitTorrent
  • BitTorrent is a peer-to-peer file sharing protocol used for distributing large amounts of data
  • It has been estimated that it accounted for roughly 27% to 55% of all Internet traffic (depending on geographical location) as of February 2009.
  • Programmer Bram Cohen designed the protocol in April 2001
reasons for adoption
Reasons for Adoption
  • Better performance through “pull-based” transfer
    • Slow nodes don’t bog down other nodes
  • Allows uploading from hosts that have downloaded parts of a file
  • Practical Reasons (perhaps more important!)
    • Working implementation with simple well-defined interfaces for plugging-in new content
    • Many recent competitors got sued / shut down
      • Napster, Kazaa
how it works

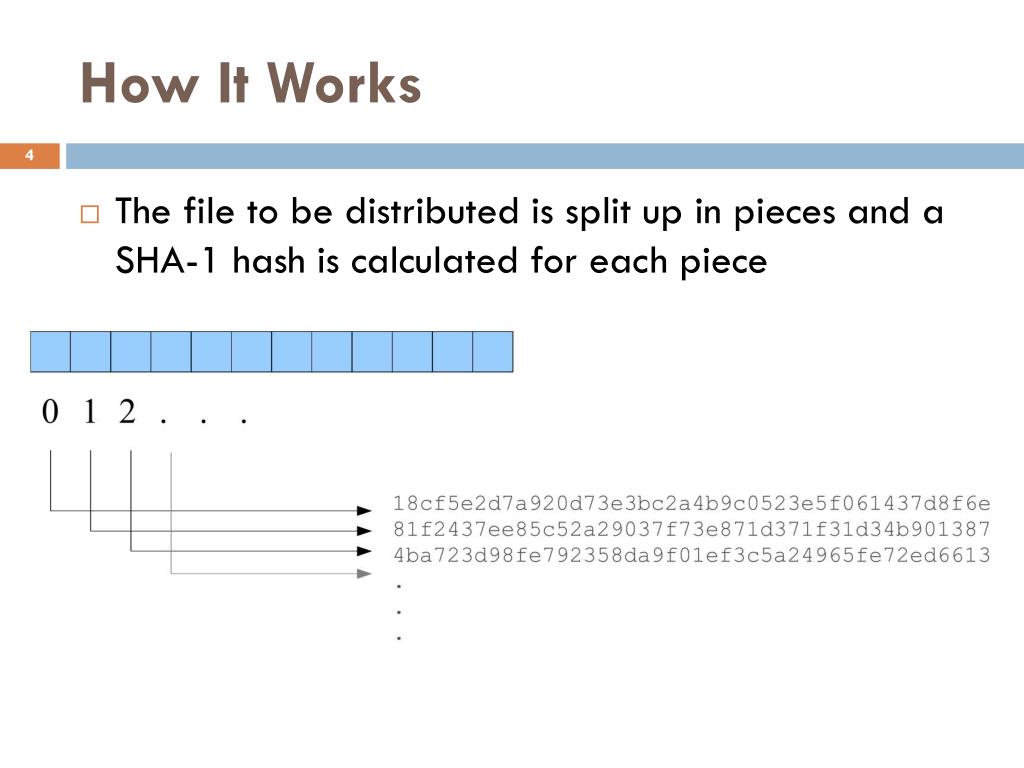

How It Works
  • The file to be distributed is split up in pieces and a SHA-1 hash is calculated for each piece
how it works1

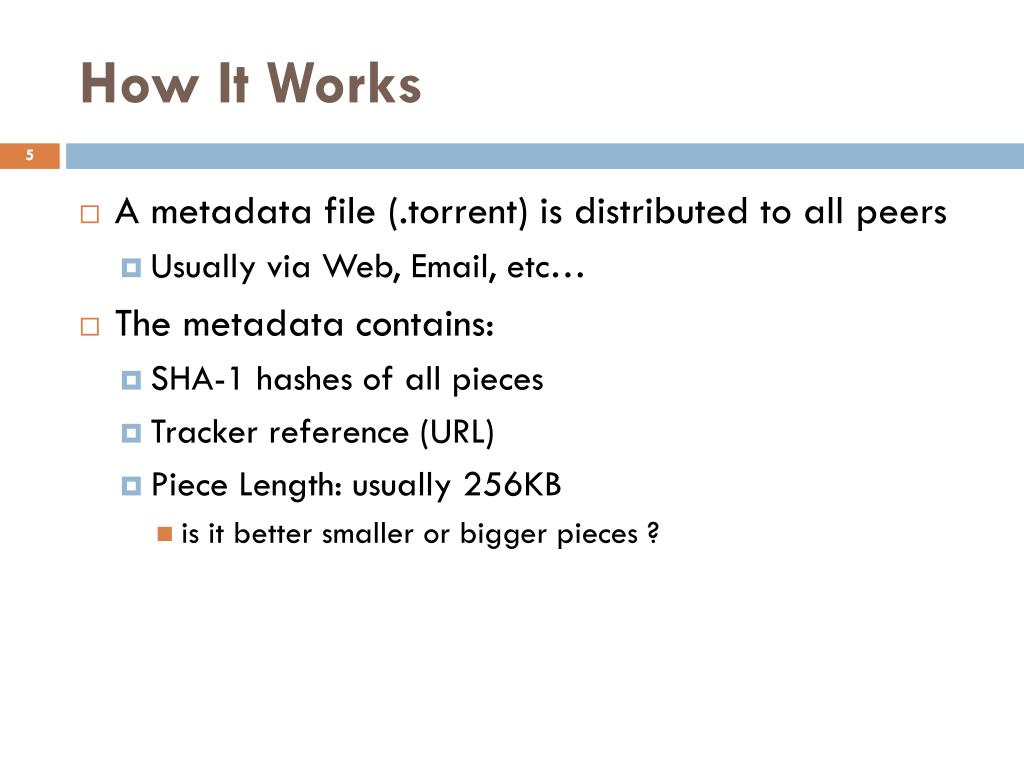

How It Works
  • A metadata file (.torrent) is distributed to all peers
    • Usually via Web, Email, etc…
  • The metadata contains:
    • SHA-1 hashes of all pieces
    • Tracker reference (URL)
    • Piece Length: usually 256KB
      • is it better smaller or bigger pieces ?
how it works2

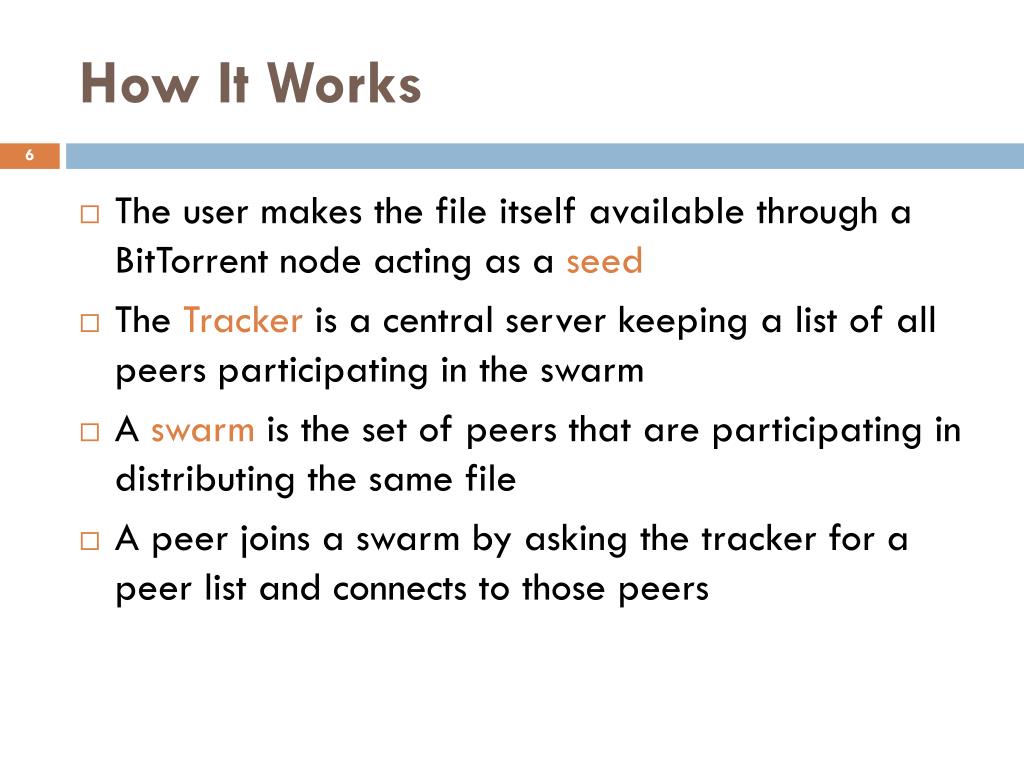

How It Works
  • The user makes the file itself available through a BitTorrent node acting as a seed
  • The Tracker is a central server keeping a list of all peers participating in the swarm
  • A swarm is the set of peers that are participating in distributing the same file
  • A peer joins a swarm by asking the tracker for a peer list and connects to those peers
terminology
Terminology
  • A downloader is any peer that does not have the entire file and is downloading the file
  • A leecher is:
    • A peer who has a negative effect on the swarm by having a very poor share ratio
    • A downloader
  • A seeder is a peer that has an entire copy of the torrent and offers it for upload
goals
Goals
  • Efficiency
    • Ability to download from many peers yields fast downloads
    • Minimize piece overlap among peers
      • Download random pieces
      • Rarest Firstalgorithm
  • Reliability
    • Tolerant to dropping peers
    • Ability to verify data integrity (SHA-1 hashes)
rarest first

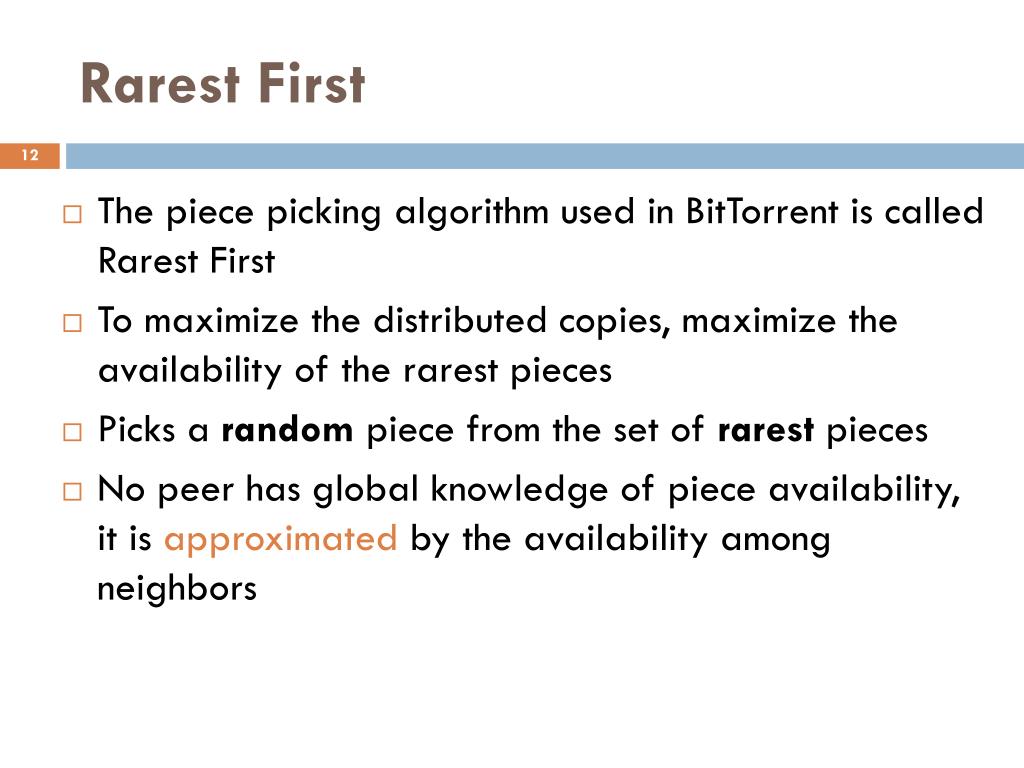

Rarest First
  • The piece picking algorithm used in BitTorrent is called Rarest First
  • To maximize the distributed copies, maximize the availability of the rarest pieces
  • Picks a random piece from the set of rarest pieces
  • No peer has global knowledge of piece availability, it is approximated by the availability among neighbors
incentive to share
Incentive to Share

Policies to determine to whom to send data:

  • Tit-for-Tat
    • Upload to whoever uploads the most to you
    • "Survival of the fittest“
    • Theoretically increases performance by encouraging fast peers to upload to you and giving them even more pieces to upload to others
    • May result in suboptimal situations
  • Optimistic Unchoking
    • In hope of discovering better partners
    • To ensure that newcomers get a chance to join the swarm
tit for tat as incentive to upload

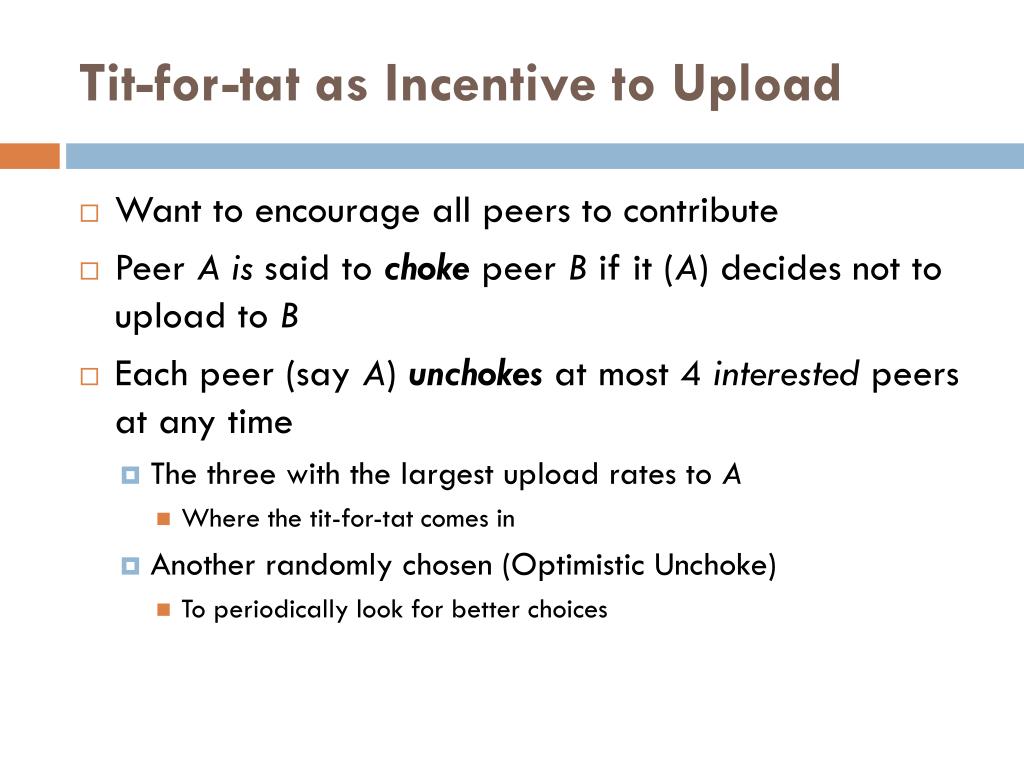

Tit-for-tat as Incentive to Upload
  • Want to encourage all peers to contribute
  • Peer A is said to choke peer B if it (A) decides not to upload to B
  • Each peer (say A) unchokes at most 4 interested peers at any time
    • The three with the largest upload rates to A
      • Where the tit-for-tat comes in
    • Another randomly chosen (Optimistic Unchoke)
      • To periodically look for better choices
limitations
Limitations
  • Content unavailability
    • Although swarming scales well to tolerate flash crowds for popular content, it is less useful for unpopular content
  • The leech problem
    • A user may often choose to leave the swarm as soon as they have a complete copy of the file they are downloading
  • Pieces not downloaded in sequential order (think VOD)
trackerless torrents
Trackerless Torrents
  • Common problems with Trackers:
    • Single point of failure
  • Solutions:
    • Multiple Trackers (splits swarms)
    • DHT
distributed hash table

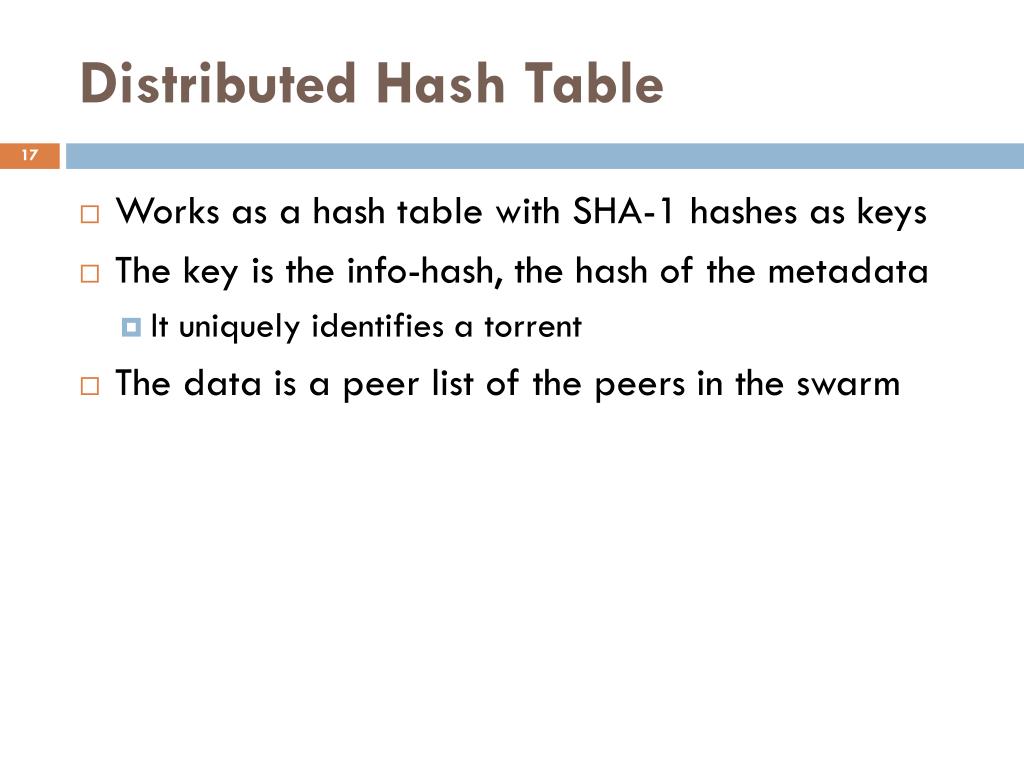

Distributed Hash Table
  • Works as a hash table with SHA-1 hashes as keys
  • The key is the info-hash, the hash of the metadata
    • It uniquely identifies a torrent
  • The data is a peer list of the peers in the swarm
