Presentation Transcript
Slide1 l.jpg

CADASTRAL UPGRADE PROJECTS

for

LOCAL GOVERNMENT

A Possible Upgrade Path

© Geodata Australia


Geodata process l.jpg
Geodata Process

The Geodata process using

software developed by Michael Elfick with Mike Fletcher and Mimaka Pty Ltd and now represented by Geodata allows the creation of a coordinated digital cadastral database from original survey data thus preserving the mathematical integrity of the original survey observations

© Geodata Australia


It is unique l.jpg
It is Unique

  • The traditional method for surveying land is to measure a precise control network and then use this to fix the position of the land parcel.

  • Geodata has followed the Elfick approach and adopted the inverse of this concept in that the land parcels are captured, joined and assembled and then analyzed to determine the amount and location of the control required.

© Geodata Australia


The background l.jpg
The Background

  • The process was developed as a result of investigations and a trial conducted by the NSW Lands Department together with the Association of Consulting Surveyors and University of Newcastle to determine whether a reasonable and cost effective alternative existed to creating a DCDB from digitised topographical maps.

  • The decision was taken following the investigations to implement proposals to digitise topographical maps.

  • Michael Elfick continued developing his cadastral software – CADP in the belief that it presented a better Cadastral Database

© Geodata Australia


The background5 l.jpg
The Background

  • CADP as the program was then known has been used to create and manage the NCDB in the ACT and the NT (NCDB is used to differentiate between the spatially accurate Geodata cadastre from the DCDB derived from digitised topographical maps.

  • CADP has also been used in NZ, USA and The Philippines for cadastral management projects and has been successfully trialed and demonstrated in a number of Australian jurisdictions CADP has been licensed to Geodata and renamed GeoCadastre

© Geodata Australia


The esri connection l.jpg
The ESRI Connection

  • Geodata and ESRI have worked collaboratively to incorporate GeoCadastre into ArcMap as an extension to Survey Analyst which will be released to international markets circa Q1 2007, in ArcGIS 9.2

  • The Survey Analyst 9.2 will allow the storage of cadastral data in a geodatabase without any loss of mathematical integrity to the survey data.

  • SurveyXML™ has been jointly developed with ESRI as an interchange format to transport cadastral data to the geodatabase.

© Geodata Australia


Slide7 l.jpg

Maps, Plats

Field Books

Other survey

and engineering

file formats

Field

Measurements

Geodatabase

Applications

  • - Data automation

  • and maintenance

  • GIS analysis

  • Enterprise

  • mapping

  • requirements

  • - Land records

  • Surveys Information

  • System

  • Measurement-based

  • Cadastre

The ESRI Model for Application of GeoCadastre within Survey Analyst

Survey Data

(measurements)

Imagery

GIS data

Text and Paper

Documents

CAD data

© Geodata Australia


Slide8 l.jpg

Step by Step Geodata Approach to Cadastral Upgrade

Step 1 – Collate source Deposited Plans and machine readable survey data

Step 2 – Capture and convert source data – data entry from survey plans and or electronic files

Step 3 – Identify irregularities and misclose

Step 4 – Rectify errors

Step 5 – Incorporate base cadastre with client GIS systems

Step 6 – Move Asset Layers to the Accurate Cadastre

Step 7 – Consult on maintenance of cadastral dataset

© Geodata Australia


Slide9 l.jpg

Survey

Record

N

C

D

B

Web Delivery

Possible

Survey Plans

Built Environment

Data Delivery

to Clients

GeoCadastre Process

Data Entry

Fabric Adjusted

Parcels Joined

& Assembled

© Geodata Australia


Conversion stage 1 parcel data entry l.jpg
Conversion Stage 1 - Parcel Data Entry

  • Keyboard operation

  • Screen will display the lines as they are entered

  • Enter bearings distances and areas – in the plan units of measurement : calculation of close and accuracy applied by the software

  • Supervisor would check errors on regular basis and rectify as needed

© Geodata Australia


Conversion stage 1 parcel data entry11 l.jpg

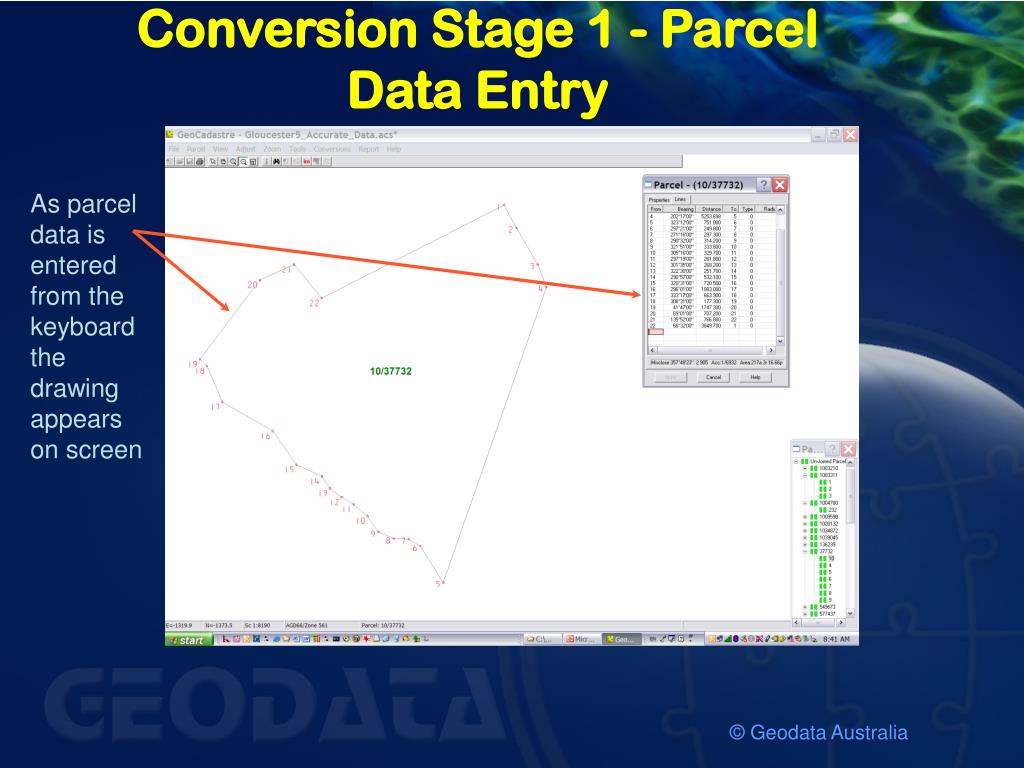

Conversion Stage 1 - Parcel Data Entry

As parcel data is entered from the keyboard the drawing appears on screen

© Geodata Australia


Conversion stage 2 parcel joining l.jpg
Conversion Stage 2 - Parcel Joining

  • Achieved by mouse operation

  • Parcels joined together by clicking on matching points

  • Operator checks rotation and scale precision and notes errors for supervisor rectification

© Geodata Australia


Conversion stage 2 parcel joining13 l.jpg
Conversion Stage 2 - Parcel Joining

Parcel to be joined to the fabric is selected and common points of connection are selected

Common points on the parcel and the existing fabric are selected

Joining – Check scale, then type ‘y’.

© Geodata Australia


Common points selected parcel is added into the cadastral fabric l.jpg
Common Points Selected & Parcel is Added into the Cadastral Fabric

The joined parcel is added to the fabric and now appears in the parcel explorer window as joined

© Geodata Australia


Conversion stage 3 adjustment assembly l.jpg
Conversion Stage 3 FabricAdjustment & Assembly

  • Select known co-ordinate control points to adjust an area

  • Choose geodetic system, zone and acceptable tolerance for the adjustment based on precision of survey plans

  • Run the co-ordinate adjustment process

© Geodata Australia


Conversion stage 3 co ordinate adjustment l.jpg
Conversion Stage 3 – Co-ordinate Adjustment Fabric

Tolerances set

Listing file location nominated

Adjustment summary detailed

© Geodata Australia


Cadastre display parameters l.jpg
Cadastre – Display Parameters Fabric

Easements Roads and Parcel Lines are shown in different colours and various display parameters can be turned on and off

© Geodata Australia


Plan shaded to show plan accuracies l.jpg

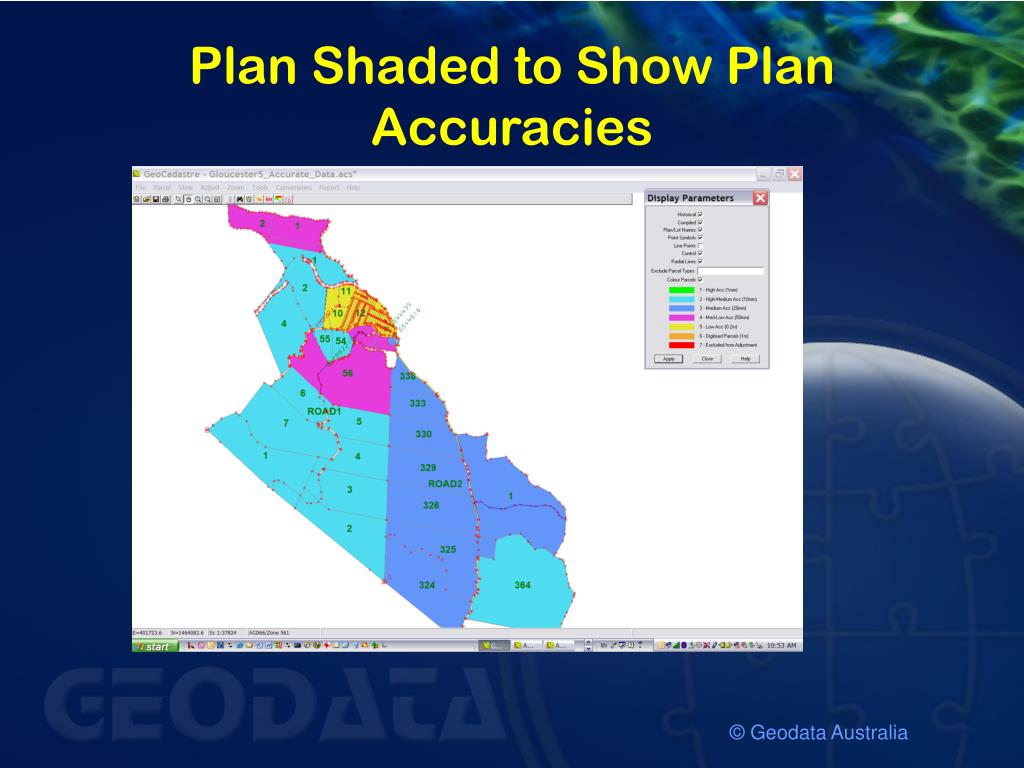

Plan Shaded to Show Plan Accuracies Fabric

© Geodata Australia


The outcome l.jpg
The Outcome Fabric

  • A complete parcel network;

  • A correct cadastral dataset;

  • Co-ordinate precision

  • The cadastral base layer for GIS

© Geodata Australia



Slide21 l.jpg

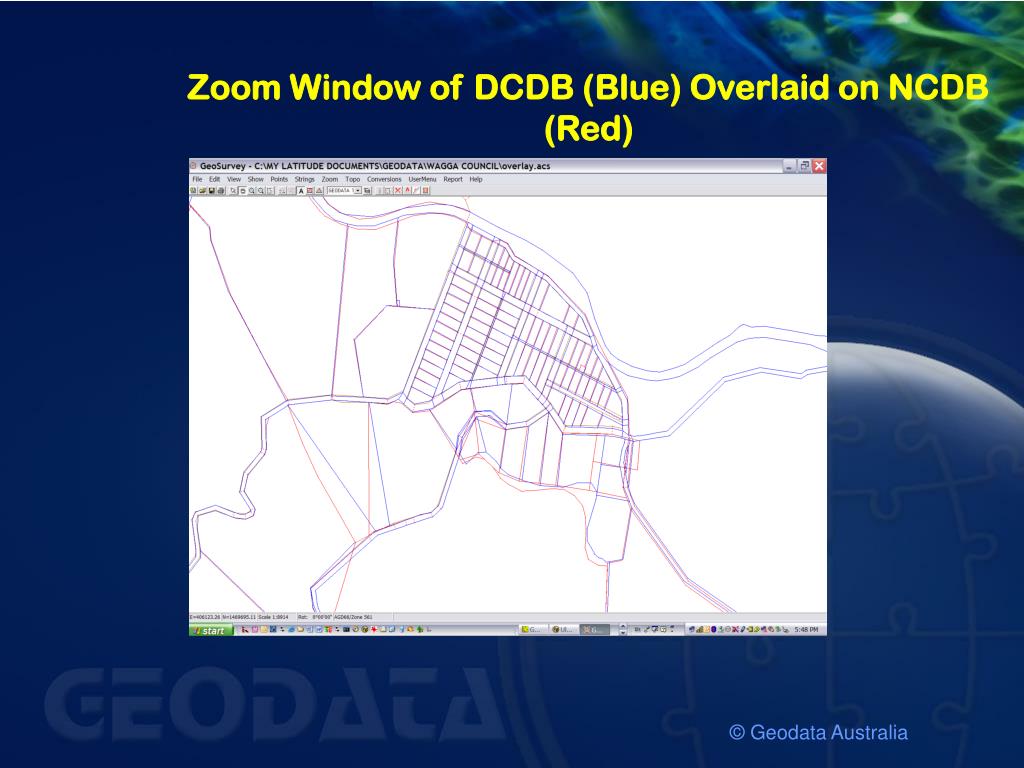

Differences between NCDB and DCDB Fabric

Gross error here of 101.6m but typically in this dataset the errors are circa 8 metres

© Geodata Australia


Benefits of an ncdb l.jpg
Benefits of an NCDB Fabric

  • Complete, correct and precise position based cadastre

  • One common cadastre for all users

  • Elimination of duplication

  • Reduced delays for update

  • Provisional layer for planning purposes is possible

  • Unification of GIS with GPS

  • Interchangeable datasets between users

  • Reduction in labour intensive GIS conversions

© Geodata Australia


Alternative gradual upgrade l.jpg
Alternative – Gradual Upgrade Fabric

  • The cost of re-building a cadastre to NCDB standards from scratch is often greater than Councils are prepared and able to meet.

  • Geodata is able to assist in the alternative process of gradual upgrade to numeric standards

© Geodata Australia


Progressive upgrade l.jpg

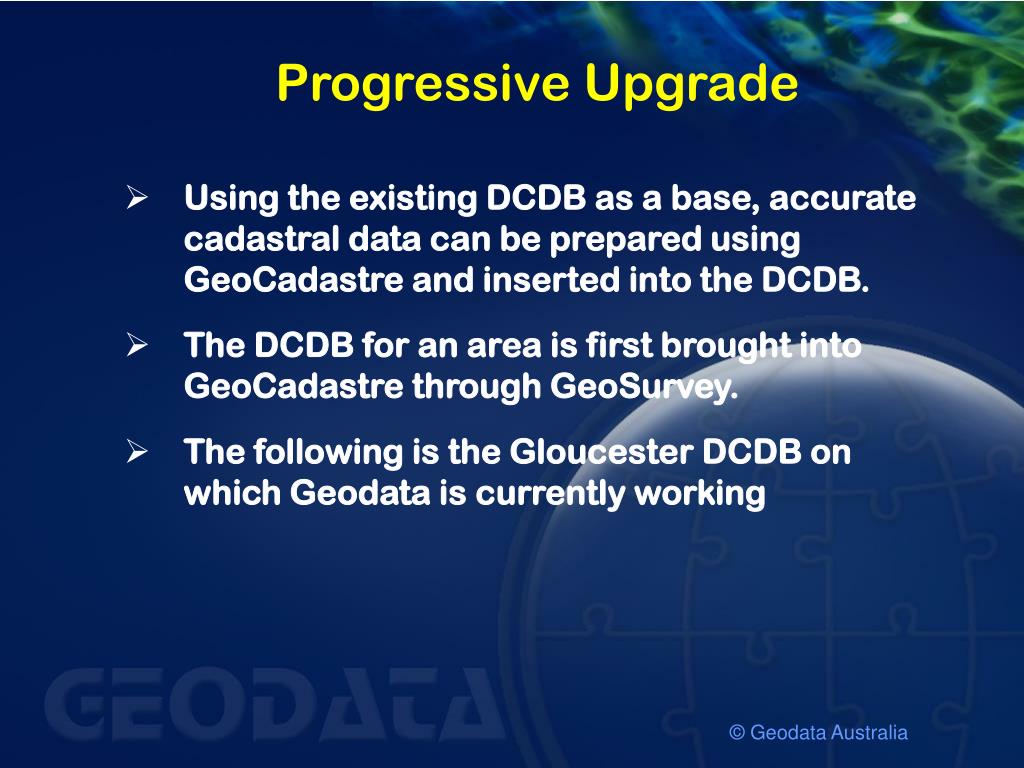

Progressive Upgrade Fabric

  • Using the existing DCDB as a base, accurate cadastral data can be prepared using GeoCadastre and inserted into the DCDB.

  • The DCDB for an area is first brought into GeoCadastre through GeoSurvey.

  • The following is the Gloucester DCDB on which Geodata is currently working

© Geodata Australia


Area 5 within the dcdb l.jpg
Area 5 within the DCDB Fabric

© Geodata Australia


Progressive upgrade26 l.jpg

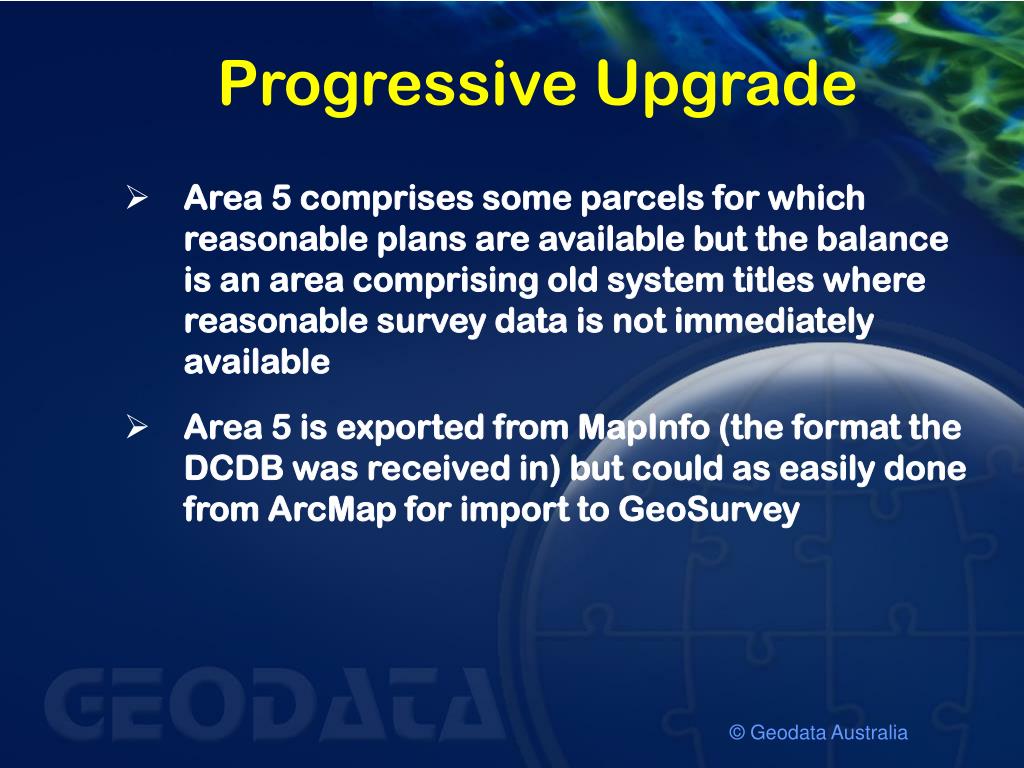

Progressive Upgrade Fabric

  • Area 5 comprises some parcels for which reasonable plans are available but the balance is an area comprising old system titles where reasonable survey data is not immediately available

  • Area 5 is exported from MapInfo (the format the DCDB was received in) but could as easily done from ArcMap for import to GeoSurvey

© Geodata Australia


Area 5 l.jpg
Area 5 Fabric

Export from MapInfo (or ESRI ArcMap)

© Geodata Australia


Converting strings to parcels in geosurvey l.jpg
Converting Strings to Parcels in GeoSurvey Fabric

Inversing the DCDB parcels

© Geodata Australia


Area 5 in geocadastre l.jpg
Area 5 in GeoCadastre Fabric

The DCDB Converted to GeoCadastre format

© Geodata Australia


Adjustment of area 5 l.jpg
Adjustment of Area 5 Fabric

Control is applied and the cadastre adjusted without any attempt to improve accuracy

© Geodata Australia


Accurate data to be appended l.jpg
Accurate data to be appended Fabric

Cadastral data recorded in GeoCadastre from survey plans

© Geodata Australia


Unjoining parcels ready for appending l.jpg
Unjoining parcels ready for appending Fabric

Parcels comprising the accurate data are unjoined from the DCDB dataset

© Geodata Australia


Appending accurate data l.jpg
Appending accurate data Fabric

The survey accurate GeoCadastre dataset is appended and joined to the DCDB

© Geodata Australia


Accurate data joined with digitised dcdb l.jpg
Accurate data joined with digitised DCDB Fabric

© Geodata Australia


Whole dataset shaded to show relative accuracy age of plans l.jpg
Whole Dataset Shaded to Show Relative Accuracy (Age of Plans)

Weighting of data in the adjustment process is reflected in age of plans.

Digitized DCDB is Orange

© Geodata Australia


Progressive upgrade36 l.jpg
Progressive Upgrade Plans)

  • It can be seen from the last group of slides how a progressive update of cadastral data can be achieved using Geodata software and process

  • The process can be dictated and controlled by Council to it’s own timetable and requirements

  • Relatively unskilled (in Survey of GIS disciplines) personnel can be used for this process

© Geodata Australia


Progressive upgrade37 l.jpg
Progressive Upgrade Plans)

  • To enable a Council to proceed immediately with a progressive update of it’s cadastre it would need to purchase at least one seat each of GeoCadastre and GeoSurvey

  • The cost of GeoCadastre and GeoSurvey is $3,750 each per seat plus annual maintenance (optional) of $500 each which carries with it free technical support and upgrades.

  • Discounts are available for multiple purchases.

© Geodata Australia


Progressive upgrade38 l.jpg
Progressive Upgrade Plans)

  • Geodata is also able to offer consultancy services on cadastral upgrade and management

  • Consultancy services are available from Geodata at negotiated per diem rates

© Geodata Australia


Slide39 l.jpg

Inquiries: Plans)

  • Roger Lee

    Address:

    P.O. Box 574

    East Maitland

    N.S.W. 2323.

  • Email: lee@geodata.com.au

  • Tel: 02 4922 5088

  • Fax: 02 4964 4789

  • Mobile: 0407 333 078

© Geodata Australia
