Presentation Transcript

R efreshment r eplenishing r obot l.jpg

RefreshmentReplenishingRobot

Acquiring and Delivering


Objectives l.jpg

RRR

Objectives

  • Build a line following robot that eliminates the need of a microcontroller;

  • Digitally control the activation of the robot’s movements;

  • Minimize human intervention;

  • Adapt the mechanical aspect of the robot so it can be integrated with the base (Team B10);

  • Solder all components into a single circuit;

  • Minimize the use of pre-manufactured and pre-programmed circuits.


Slide4 l.jpg

RRR

Our Circuit!



Light sensor l.jpg

RRR

Light Sensor



4066 quad bilateral analog switch l.jpg

RRR

4066 Quad Bilateral Analog Switch

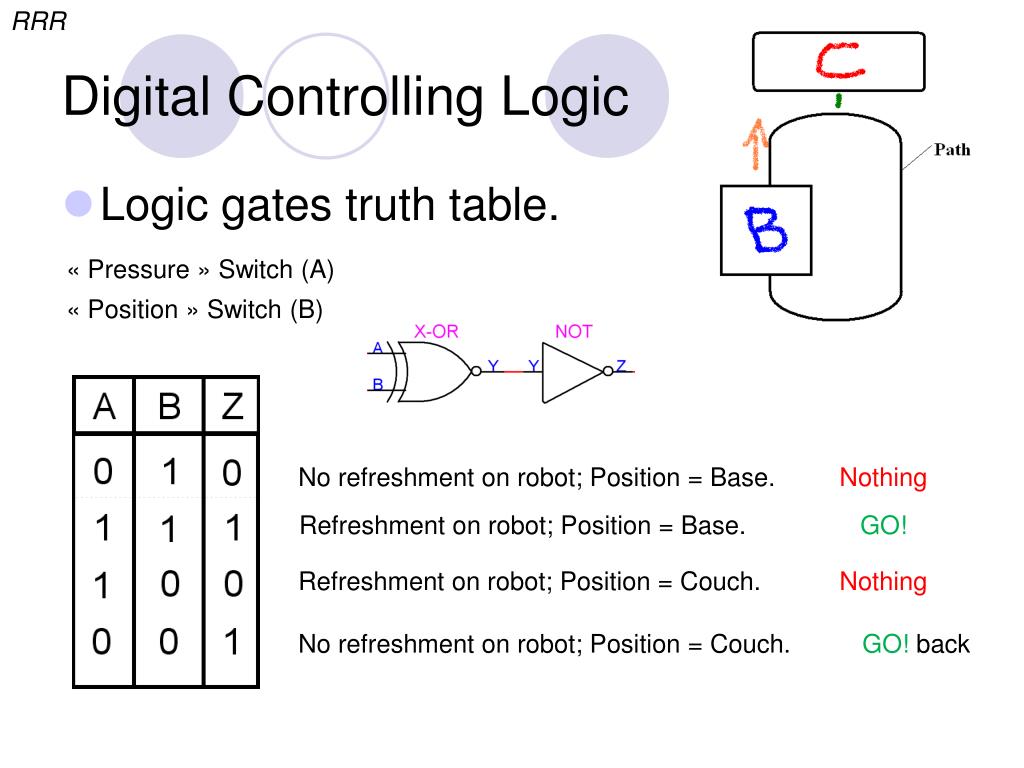

Digital controlling logic l.jpg

RRR

Digital Controlling Logic

  • Logic gates truth table.

« Pressure » Switch (A)

« Position » Switch (B)

No refreshment on robot; Position = Base. Nothing

Refreshment on robot; Position = Base. GO!

Refreshment on robot; Position = Couch. Nothing

No refreshment on robot; Position = Couch. GO! back



Problems challenges encountered l.jpg

RRR

Problems/Challenges Encountered

  • Triggering of circuit at specific moments;

  • Integration of digital circuit without use of DAC and ADC;

  • Minimizing total size of circuit for soldering.


Progress l.jpg

RRR

Progress

Completed

  • Entire robot circuit;

  • Most of robot enclosure.

    To do

  • Finish enclosure;

  • Make path and calibrate robot with it.

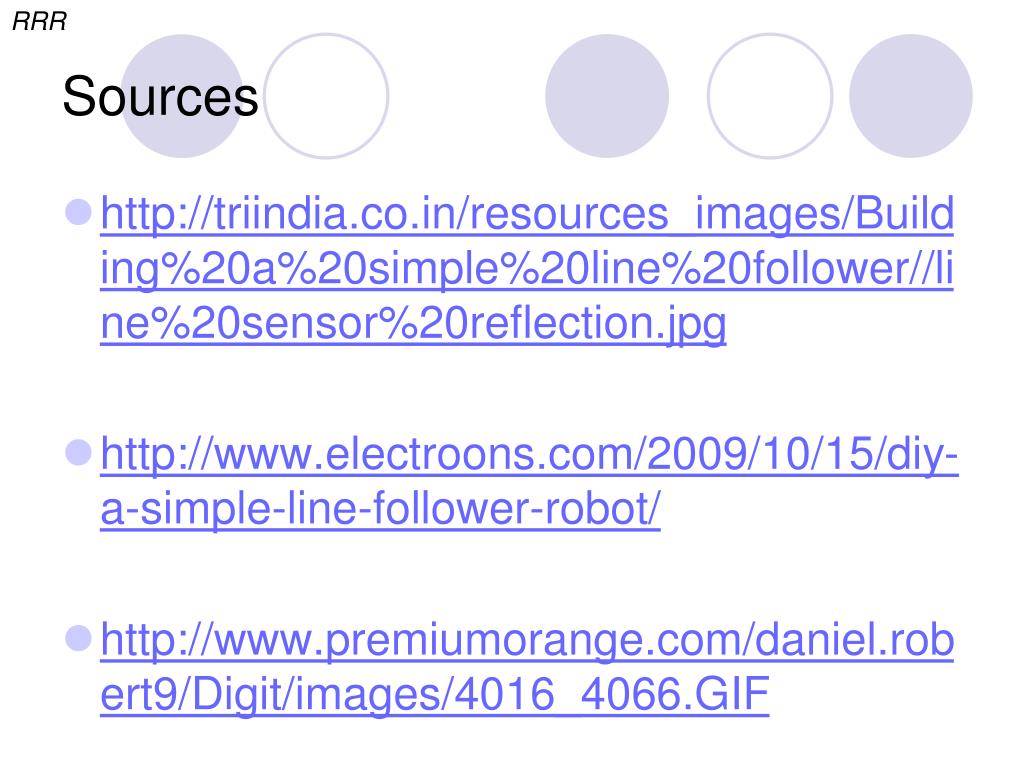

Sources l.jpg

RRR

Sources

  • http://triindia.co.in/resources_images/Building%20a%20simple%20line%20follower//line%20sensor%20reflection.jpg

  • http://www.electroons.com/2009/10/15/diy-a-simple-line-follower-robot/

  • http://www.premiumorange.com/daniel.robert9/Digit/images/4016_4066.GIF
