Presentation Transcript

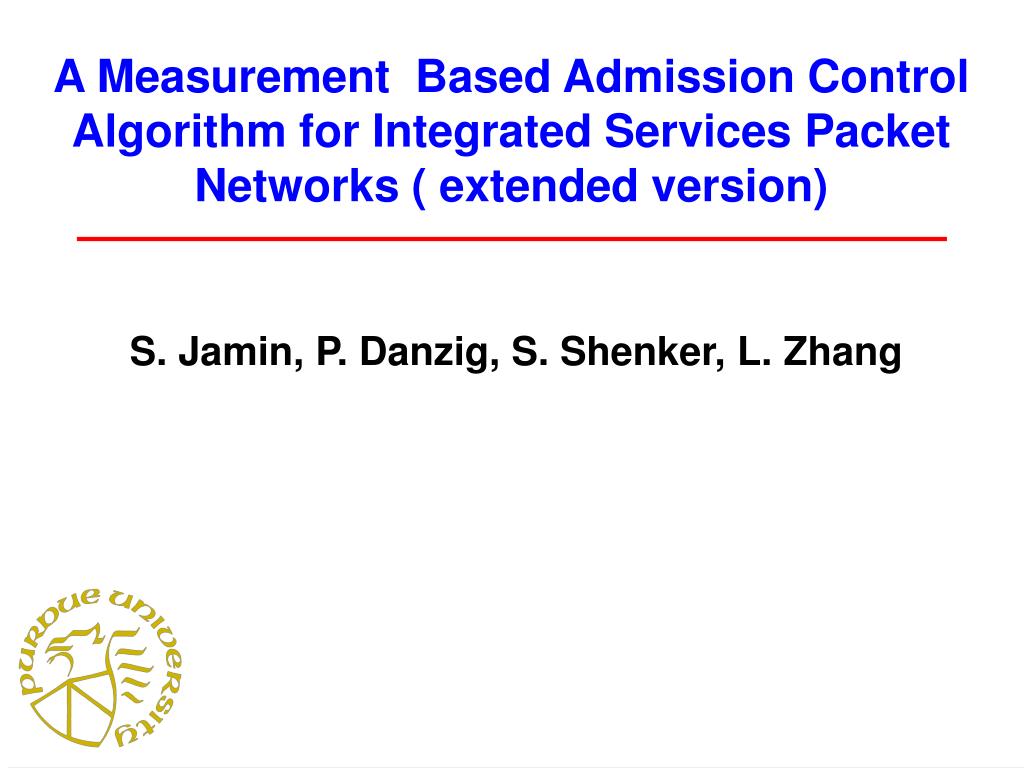

Slide1 l.jpg

A Measurement Based Admission Control Algorithm for Integrated Services Packet Networks ( extended version)

S. Jamin, P. Danzig, S. Shenker, L. Zhang


Types of services l.jpg
Types of Services Integrated Services Packet Networks ( extended version)

  • Guaranteed service

    • a absolute bound on delay of every packet is provided

  • Predictive service

    • a fair but not absolute bound on delay of every packet is provided


Slide3 l.jpg

Guaranteed service Integrated Services Packet Networks ( extended version)

  • Provides hard or absolute bound on delay of every packet

  • Sources are described by either peak or average rates or filter like token bucket

  • Descriptions provide upper bounds on traffic generated by source

  • Admission control algorithms use these a priori characterizations to calculate worst case behavior of flows

  • Network utilization low when flows are bursty

  • Network utilization acceptable when flows are smooth


Slide4 l.jpg

Predictive Service Integrated Services Packet Networks ( extended version)

  • Does not provide absolute bound on delay

  • service commitment is somewhat less reliable

  • sources characterized by token bucket filters at admission time

  • behavior of existing flows determined by measurement rather than a priori characterizations

  • when only few flows present, unpredictability of individual flows causes measurement based approach to be conservative

  • delivers significant gain in utilization only when there is high degree of statistical multiplexing


Objective of paper l.jpg
Objective of paper Integrated Services Packet Networks ( extended version)

  • Describes a measurement based admission control algorithm for predictive service

  • To answer the following questions

    • can reliable delay bounds be provided for measurement based admission control algorithm

    • does predictive service increase network utilization


Measurement based admission control l.jpg
Measurement Based Admission Control Integrated Services Packet Networks ( extended version)

  • Set of criteria controlling whether to admit a new flow

    • based on approximate model of traffic flows

    • uses measured quantities as inputs

  • Measurement process to measure the inputs

  • set of criteria used in this case

    • delay bound as a result of admitting the new flow

    • link utilization as a result of admitting the new flow

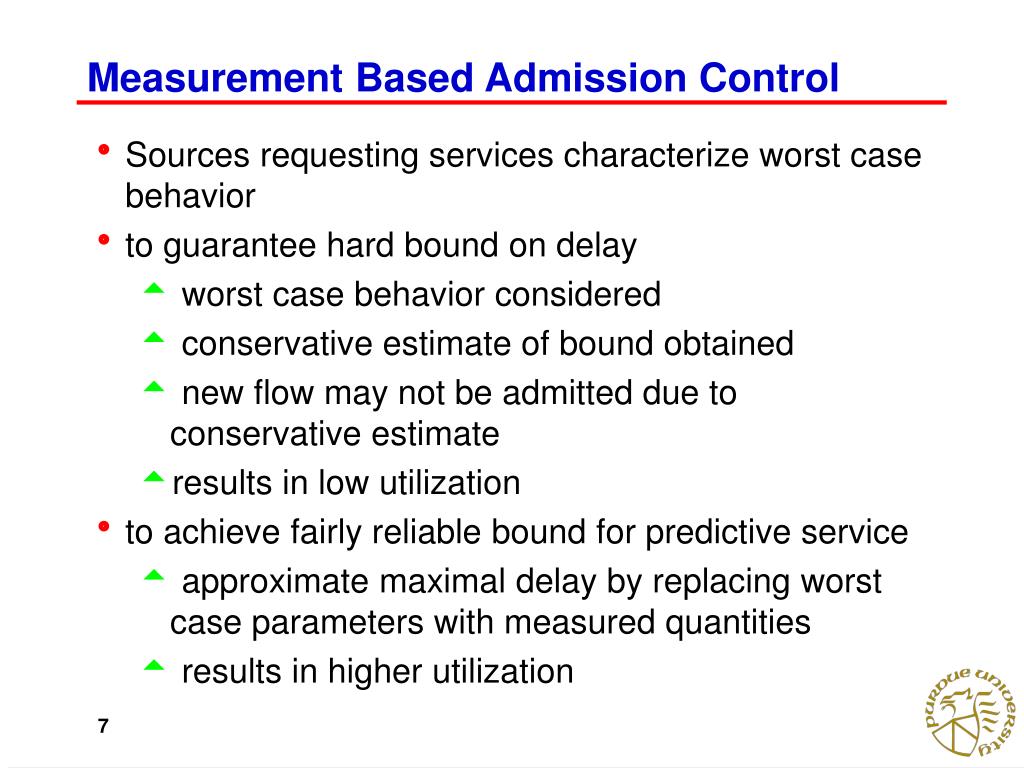

Measurement based admission control7 l.jpg
Measurement Based Admission Control Integrated Services Packet Networks ( extended version)

  • Sources requesting services characterize worst case behavior

  • to guarantee hard bound on delay

    • worst case behavior considered

    • conservative estimate of bound obtained

    • new flow may not be admitted due to conservative estimate

    • results in low utilization

  • to achieve fairly reliable bound for predictive service

    • approximate maximal delay by replacing worst case parameters with measured quantities

    • results in higher utilization


Worst case delay l.jpg
Worst case delay Integrated Services Packet Networks ( extended version)

  • Theorem by Parekh says the delay bound for a class j is the one time delay burst that accrues if the aggregate bucket of all classes 1 through j flows are simultaneously dumped into the switch and all classes 1 through j-1 sources continue to send at their reserved rates with j having lowest priority

  • this worst case delay can change

    • when flow of same class is admitted

    • when flow of higher priority class is admitted

    • when guaranteed flow is admitted

  • classes classified according to the delay bounds tolerated by that class


Computation of new delay bound l.jpg
Computation of new delay bound Integrated Services Packet Networks ( extended version)

  • The delay bounds as a result of admitting the new flow is computed

  • for e.g.,

  • When new predictive flow a of same class is admitted

    • new delay bound = old delay bound + k( bucket size of a)

  • similarly new delay bounds are calculated for the case

    • When new predictive flow a of lower class is admitted

    • When new guaranteed flow a is admitted


Equivalent token bucket filter l.jpg
Equivalent Token bucket filter Integrated Services Packet Networks ( extended version)

  • In equations replace worst case values by measured values

    • substitute the reserved rates by the measured rates

    • substitute the worst case delays by the measured delays

  • this results in describing the existing aggregate traffic by an equivalent token bucket filter with parameters determined from traffic measurement

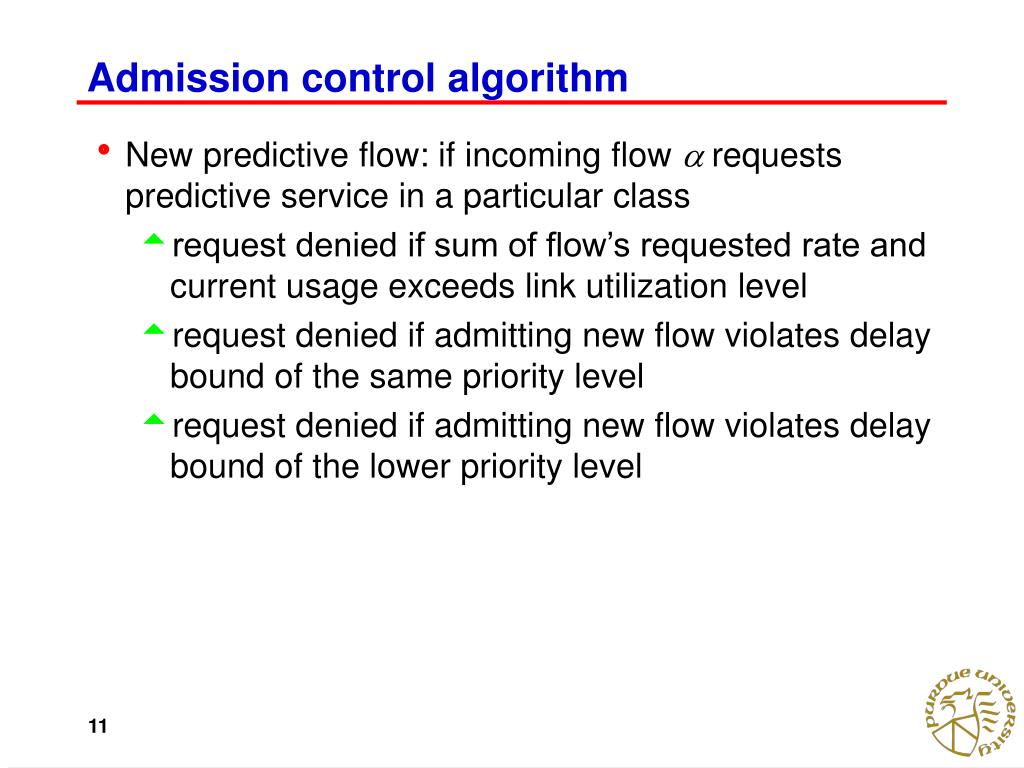

Admission control algorithm l.jpg
Admission control algorithm Integrated Services Packet Networks ( extended version)

  • New predictive flow: if incoming flow a requests predictive service in a particular class

    • request denied if sum of flow’s requested rate and current usage exceeds link utilization level

    • request denied if admitting new flow violates delay bound of the same priority level

    • request denied if admitting new flow violates delay bound of the lower priority level


Admission control algorithm12 l.jpg
Admission control algorithm Integrated Services Packet Networks ( extended version)

  • New guaranteed flow: if incoming flow a requests guaranteed service

    • request denied if total bandwidth of the flows including new flow exceeds link utilization level

    • request denied if admitting new guaranteed flow violates delay bound of predictive services

    • this is due to the decrease in the bandwidth available for predictive flows due to admission of a guaranteed flow

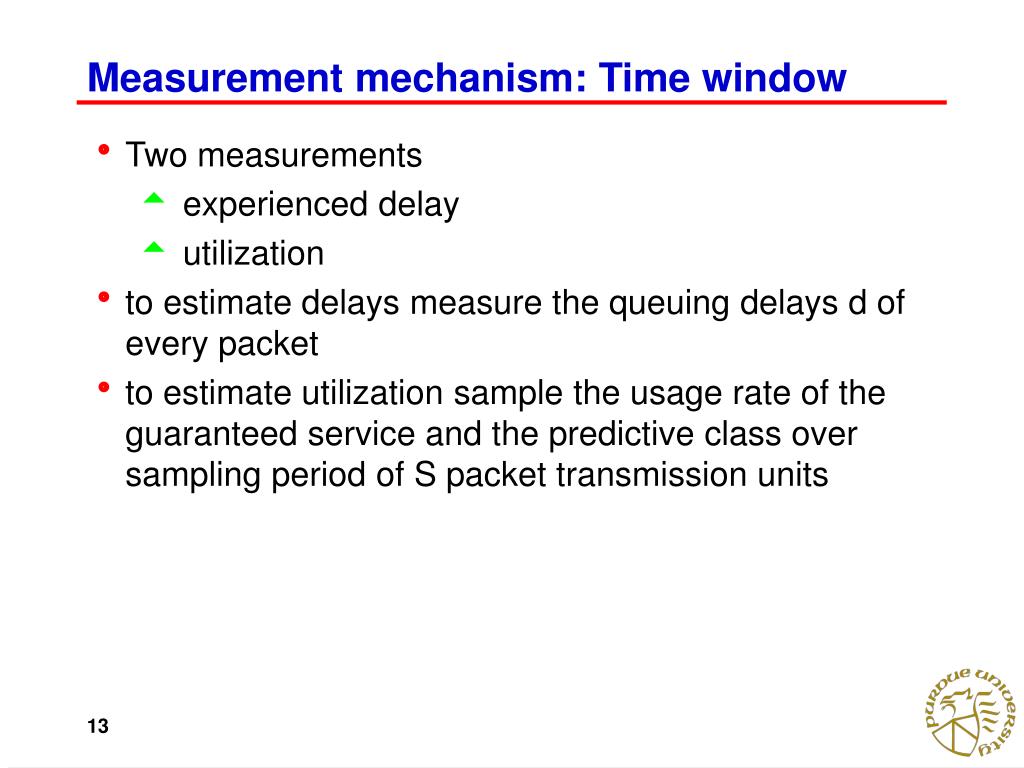

Measurement mechanism time window l.jpg
Measurement mechanism: Time window Integrated Services Packet Networks ( extended version)

  • Two measurements

    • experienced delay

    • utilization

  • to estimate delays measure the queuing delays d of every packet

  • to estimate utilization sample the usage rate of the guaranteed service and the predictive class over sampling period of S packet transmission units


Measuring delay l.jpg
Measuring delay Integrated Services Packet Networks ( extended version)

  • Measurement variable to estimate queuing delay is D

  • Measurement window of T packet transmission units used as basic measurement block

  • value of D updated on three occasions

    • at end of measurement block D updated to reflect maximal packet delay seen in previous block

    • when individual delay measurement exceeds estimated maximum queuing delay D is updated to times the sampled delay

    • whenever a new flow is admitted D is updated to the value of projected delay from equation


Measuring rate l.jpg
Measuring rate Integrated Services Packet Networks ( extended version)

  • Measurement variable to estimate queuing delay is V

  • Measurement window of T packet transmission units used as basic measurement block

  • value of V updated on three occasions

    • at end of measurement block V updated to reflect maximal sampled utilization seen in previous block

    • when individual utilization measurement exceeds estimated V, V is updated to the sampled value

    • whenever a new flow is admitted V is updated


Performance tuning l.jpg
Performance Tuning Integrated Services Packet Networks ( extended version)

  • Parameters , S, T can be varied for better performance

  • smaller S, more sensitive to bursts , larger S smoother traffic

  • smaller T means more adaptability to changes in traffic load, larger T results in more stability

  • larger T results in fewer delay violations and lower link utilization

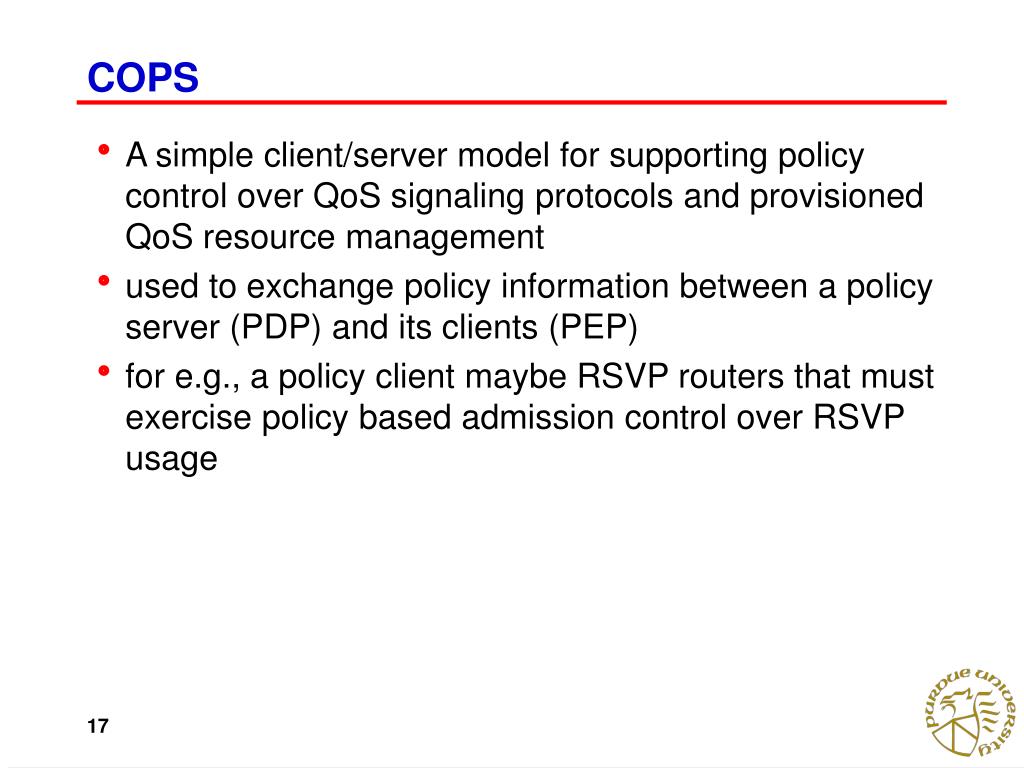

Slide17 l.jpg
COPS Integrated Services Packet Networks ( extended version)

  • A simple client/server model for supporting policy control over QoS signaling protocols and provisioned QoS resource management

  • used to exchange policy information between a policy server (PDP) and its clients (PEP)

  • for e.g., a policy client maybe RSVP routers that must exercise policy based admission control over RSVP usage


Slide18 l.jpg
COPS Integrated Services Packet Networks ( extended version)

  • A simple client/server model for supporting policy control over QoS signaling protocols and provisioned QoS resource management

  • used to exchange policy information between a policy server (PDP) and its clients (PEP)

  • for e.g., a policy client maybe RSVP routers that must exercise policy based admission control over RSVP usage
