Presentation Transcript
evolutionary clustering and analysis of bibliographic networks

Evolutionary Clustering and Analysis of BibliographicNetworks

Manish Gupta (UIUC)

Charu C. Aggarwal (IBM)

Jiawei Han (UIUC)

Yizhou Sun (UIUC)

ASONAM 2011

introduction
Introduction
  • Information networks are everywhere: social networks, web, academic networks, biological networks.
  • Heterogeneous information networks
    • Contain multi-typed nodes.
    • Richer representation compared to homogeneous networks.
  • We study clustering and evolution diagnosis in massive heterogeneous information networks.
contributions
Contributions
  • We present an evolutionary clustering algorithm for heterogeneous information networks (ENetClus)
  • We define metrics to characterize clustering behavior
  • We perform study of evolution in a bibliographic heterogeneous network: DBLP
enetclus features
ENetClus features

Evolution metrics

  • Multi-typed
  • Evolutionary
  • Temporal smoothness
  • Agglomerative
  • Multiple granularities
  • Based on NetClus
  • Consistency
  • Quality
  • Cluster Sizes
  • Evolution rate
  • Cluster appearance/ disappearance
  • Stability of objects
  • Sociability of objects
  • Social influence

Study over DBLP

problem formulation
Problem Formulation
  • Net-Cluster
  • Net-Cluster tree
  • Net-Cluster tree sequence
  • Problem: Given a graph sequence GS, generate a net-cluster tree sequence CTS such that the trees are consistent and represent high-quality clusters.

Level 1

K=3

Level 2

. . .

Level 3

CT1

CT2

CTN

CTS

slide6

Level 1

nc

K=3

nc

nc

nc

Level 2

Level 3

nc

nc

nc

nc

nc

nc

nc

nc

nc

slide7

. . .

CT1

CT2

CTN

approaches
Approaches
  • Problem: Perform evolutionary clustering over a sequence of heterogeneous network snapshots
  • Approaches
    • Use homogeneous clustering techniques
      • Does not exploit rich typed information in network
      • Objects related to same entity may get clustered into different clusters.
    • Use some heterogeneous network clustering algorithm
      • May provide high snapshot clustering quality
      • But may not provide good consistency between clusterings across snapshots
netclus
NetClus
  • NetClus is an algorithm to perform clustering over heterogeneous network.
  • It performs iterative ranking of clustering of objects.
  • A probabilistic generative model is used to model the probability of generation of different objects from each cluster.
  • A maximum likelihood technique is used to evaluate the posterior probability of presence of an object in a cluster.
netclus10
NetClus
  • Priors: Initialize prior probabilities
  • Initialize: Generate initial net-clusters.
  • Rank: Build probabilistic generative model for each net-cluster, i.e.,
  • Cluster-target: Compute p for target objects and adjust their cluster assignments.
  • Iterate: Repeat steps 3 and 4 until the clusters don’t change significantly.
  • Cluster-attribute: Calculate p for each attribute object in each net-cluster.
  • Returnp
enetclus
ENetClus
  • For the first time instant, initialization of priors and net clusters is similar to NetClus
  • For other time instants
    • The prior probability of an object o belonging to cluster ck is defined as its representativeness in the corresponding cluster within the net-cluster tree for the previous time instant.
    • A target object o is assigned to cluster ck with probability pk where pk is the normalized sum of the prior probabilities of neighboring attribute type objects.
  • Ranking is similar to NetClus except that prior probabilities are also used along with the authority based ranking. Prior weight controls the effect of priors and hence the temporal smoothness.
how is enetclus better than netclus
How is ENetClus better than NetClus?

NetClus: Inconsistent clusters

ENetClus: Consistent clusters

Snapshot2

Snapshot3

Snapshot1

Snapshot2

Snapshot3

Snapshot1

metrics
Metrics
  • Membership probability of object o to cluster ci is denoted by
  • Consistency:
  • Chained path consistency: product of consistency over each interval in the sequence
metrics14
Metrics
  • Snapshot Quality
    • Compactness
    • Entropy
metrics15
Metrics

O’: Objects at time y but not at y-1

O’’: Objects at time y

O’’’: Objects at time y but not at y+1

metrics16

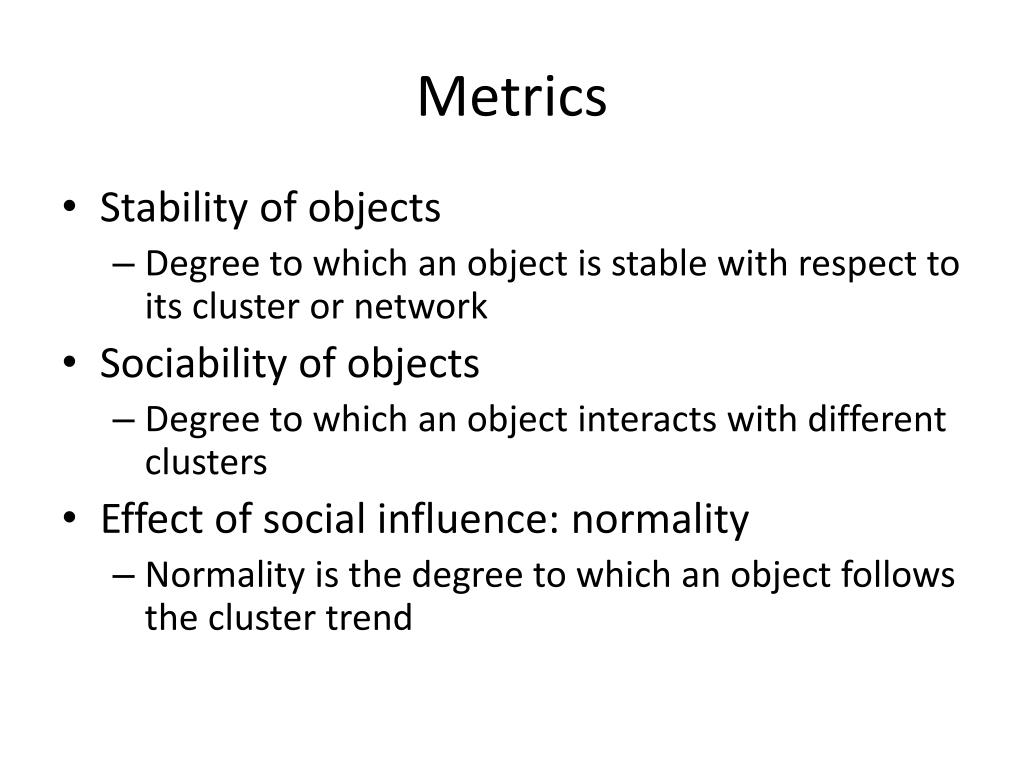

Metrics
  • Stability of objects
    • Degree to which an object is stable with respect to its cluster or network
  • Sociability of objects
    • Degree to which an object interacts with different clusters
  • Effect of social influence: normality
    • Normality is the degree to which an object follows the cluster trend
experiments
Experiments
  • Dataset
    • DBLP
      • 1993 to 2008, 654K papers, 484K authors, 107K title terms and 3900 conferences
      • Number of clusters = 4
      • Levels of net Cluster tree = 4
      • Prior weight varied from 0 to 1
    • Four_area
      • DM, DB, IR, ML papers
      • 1993 to 2008, 29K papers, 28K authors, 20 conferences
related work
Related work
  • Clustering graphs: Mincut, Min-max cut, Spectral, density-based, RankClus [Sun EDBT 09], NetClus [Sun KDD 09]
  • Evolutionary clustering: k-means [Chak KDD06], spectral [Chi KDD07], text streams [Mei KDD05], social network structure [Kuma KDD06]
  • Evolutionary graph studies: GraphScope [Sun KDD07], density-based [Kim VLDB09], analysis [Back KDD06, Lesk KDD05, Lesk KDD08], communities using FacetNet [Lin WWW08], individual objects [Asur KDD07]
conclusion

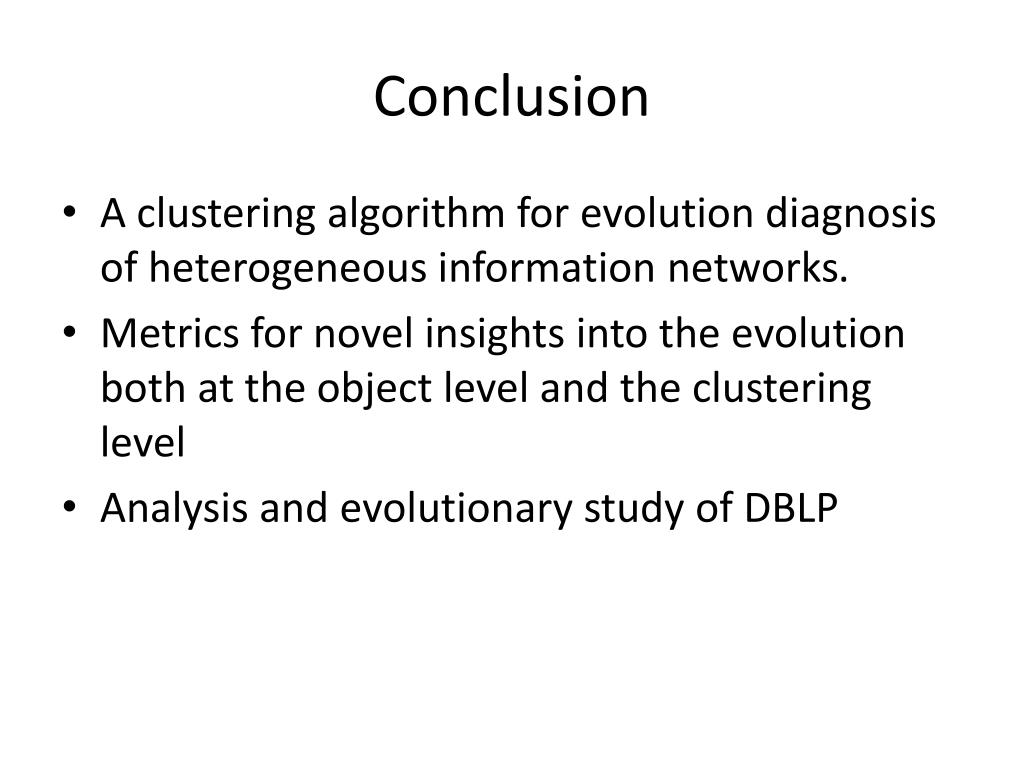

Conclusion
  • A clustering algorithm for evolution diagnosis of heterogeneous information networks.
  • Metrics for novel insights into the evolution both at the object level and the clustering level
  • Analysis and evolutionary study of DBLP
acknowledgements
Acknowledgements

Research was sponsored in part by the U.S. National Science Foundation under grant IIS-09-05215, and by the Army Research Laboratory under Cooperative Agreement Number W911NF-09-2-0053 (NS-CTA). The views and conclusions contained in this document are those of the authors and should not be interpreted as representing the official policies, either expressed or implied, of the Army Research Laboratory or the U.S. Government. The U.S. Government is authorized to reproduce and distribute reprints for Government purposes notwithstanding any copyright notation here on.
