digital spread spectrum systems

DIGITAL SPREAD SPECTRUM SYSTEMS

ENG-737

Wright State University

James P. Stephens

autocorrelation of pn sequences
AUTOCORRELATION OF PN SEQUENCES
  • A very important property of PN sequences is the periodic auto correlation function
  • Recall that autocorrelation is defined as:
  • Simply stated, it is a comparison of a sequence to a time-shifted version of itself
  • The equation asks “For an offset of m chips, how similar is the sequence to inself?”
slide3

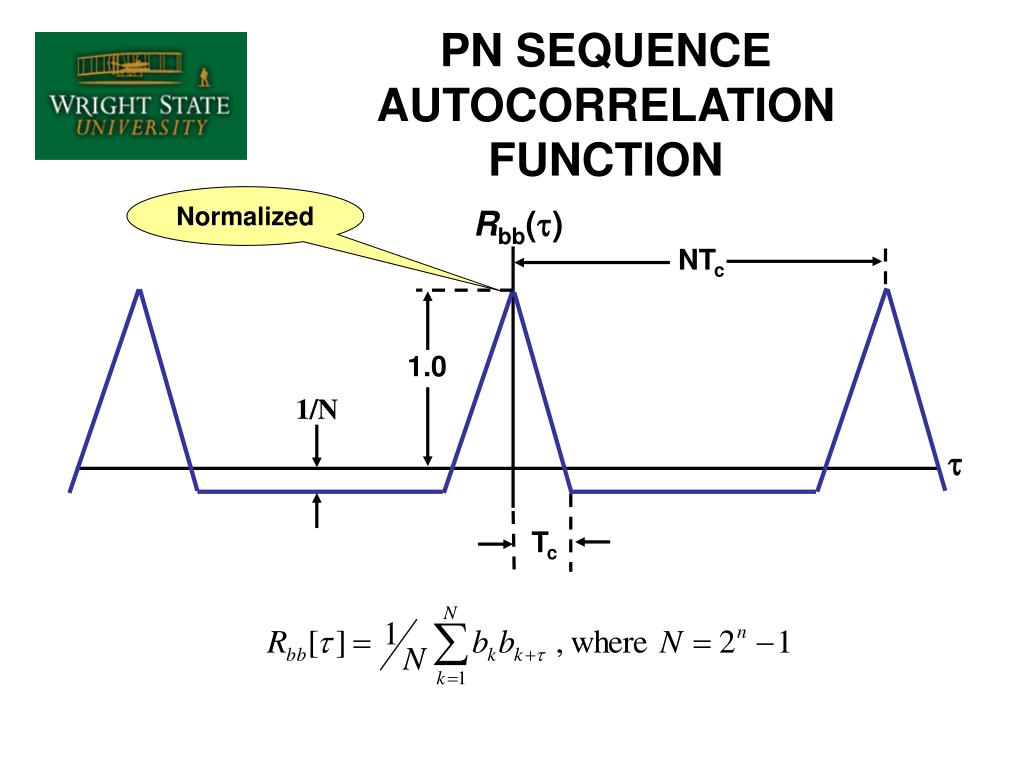

PN SEQUENCE AUTOCORRELATION FUNCTION

Normalized

Rbb()

NTc

1.0

1/N

Tc

slide4

Sc(f)

N + 1

sinc2(f Tc)

N2

1/NTc

f

2/Tc

-1/Tc

1/Tc

-2/Tc

POWER SPECTRAL DENSITY FOR M-SEQUENCE

Chip Duration Tc and Period NTc

discrete autocorrelation example

+

DISCRETE AUTOCORRELATION Example

n = 3

N = 2n – 1 = 7

Initial Fill = 0 0 1

The periodic autocorrelation:

. . . 1 -1 -1 1 -1 1 1 1 -1 -1 1 -1 1 1 1 -1 -1 1 -1 1 1 1 -1 -1 1 -1 1 1 . .

1 -1 -1 1 -1 1 1 m=0

1 1 1 1 1 1 1 = 7

1 -1 -1 1 -1 1 1 m=1

-1 1 -1-1 -1 1 1 = -1

and so on . . . . . . .

Sequence  1 0 0 1 0 1 1

Convert to {-1, 1}  1 -1 -1 1 -1 1 1

discrete autocorrelation example6
DISCRETE AUTOCORRELATION Example

Discrete Time Plots

In the limit as m  

Approaches that of White Noise

binary symbol conversion
BINARY SYMBOL CONVERSION
  • Consider an m-sequence [ck]

Where, ck {0, 1} for all k

  • Now define the m-sequence [bk]  {-1, 1}
  • By letting bk = 2ck -1, this translates 0  -1 and 1  1
  • This is a useful MatLab conversion necessary for many MatLab computations:

Note: In GF(2) arithmetic, multiplication of 1 and -1 is the same as addition of 0 and 1.

Example:

Exclusive OR

Multiplication

matlab implementation

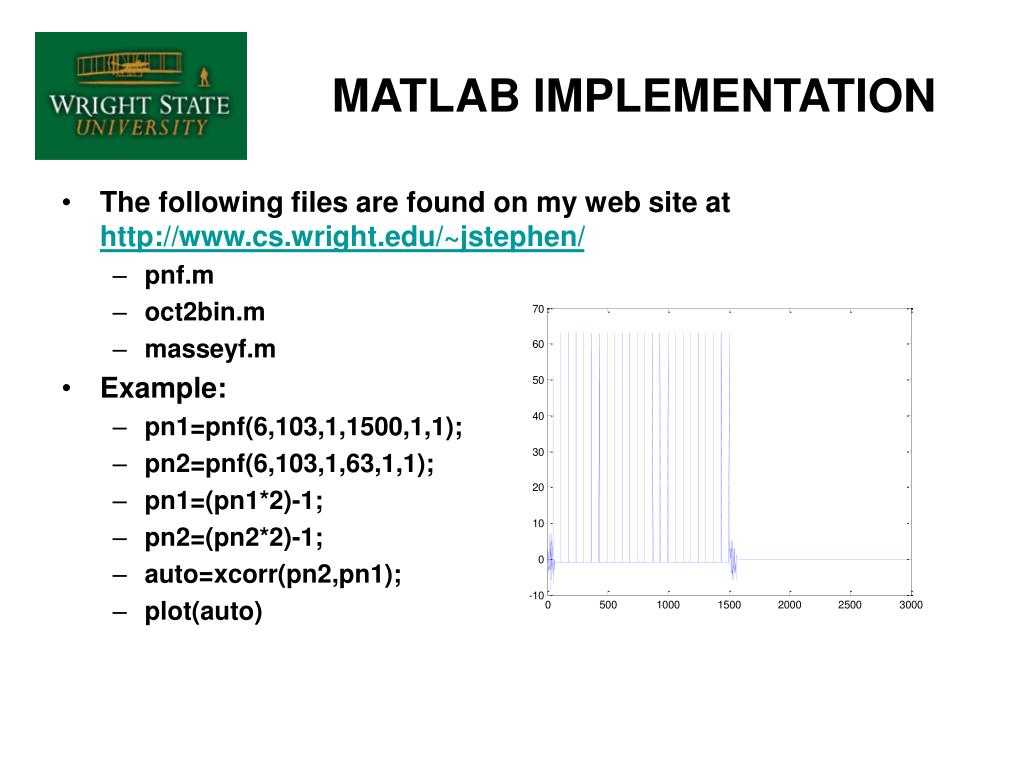

MATLAB IMPLEMENTATION
  • The following files are found on my web site at http://www.cs.wright.edu/~jstephen/
    • pnf.m
    • oct2bin.m
    • masseyf.m
  • Example:
    • pn1=pnf(6,103,1,1500,1,1);
    • pn2=pnf(6,103,1,63,1,1);
    • pn1=(pn1*2)-1;
    • pn2=(pn2*2)-1;
    • auto=xcorr(pn2,pn1);
    • plot(auto)
slide9

MATLAB IMPLEMENTATION (Cont.)

  • auto=auto(100:400);
  • plot(auto)
m sequence security issues
M-SEQUENCE SECURITY ISSUES
  • How secure are m-sequences? Even if they do not repeat for years?
  • Massey’s Algorithm can determine the generating polynomial, at most, in ‘2 times n’ error free chips
  • Example:
    • Generate m-sequence where N=7, i.e. n=3
    • Fill up matrix using only 2*n = 6 chips
    • Obtain system of equations that can be solved simultaneously
  • Thus, a code that uses 89 stages that will not repeat for 73,000 years (1 Mcps chip rate) can be determined by only processing 2 * 89 = 178 chips
code sequence determination

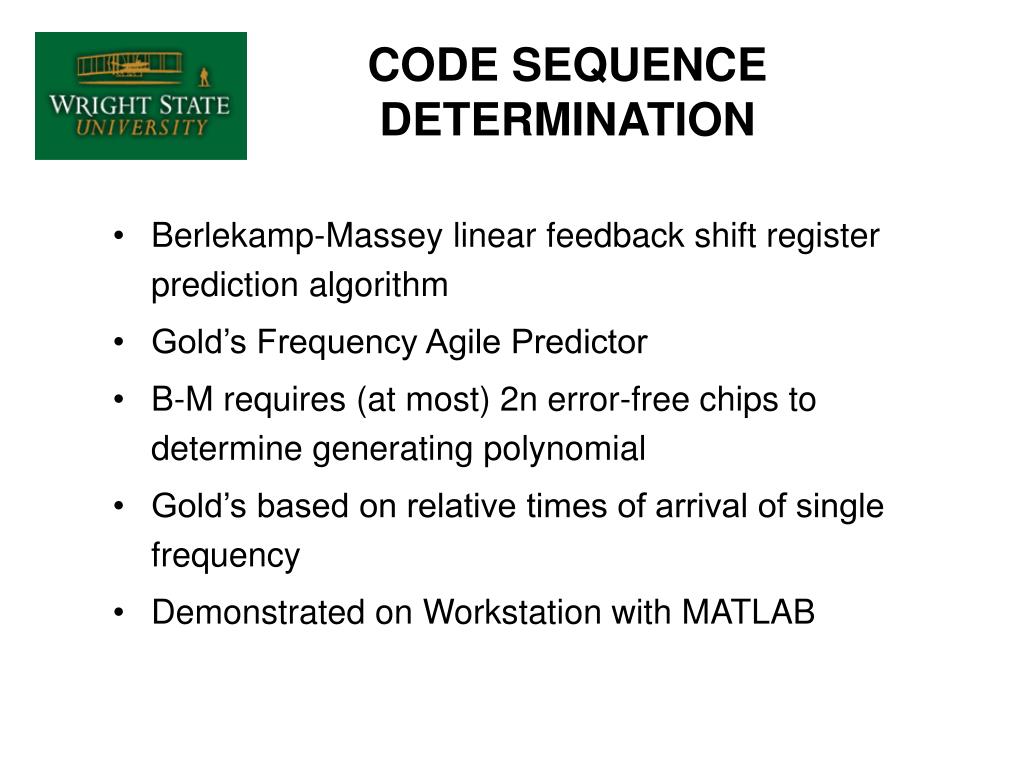

CODE SEQUENCE DETERMINATION
  • Berlekamp-Massey linear feedback shift register prediction algorithm
  • Gold’s Frequency Agile Predictor
  • B-M requires (at most) 2n error-free chips to determine generating polynomial
  • Gold’s based on relative times of arrival of single frequency
  • Demonstrated on Workstation with MATLAB
massey algorithm example
MASSEY ALGORITHM EXAMPLE

a(k)

Code sequence of period N=7 (n=3):

a = a(0), a(1), a(2), a(3), a(4), a(5), . . . .

a = 1 1 1 0 1 0 0 1 1 1 0 1 0 0 (14 chips)

a(k) = C1 a(k-1) + C2 a(k-2) + C3 a(k-3)

a(3) a(2) a(1) a(0) = 0 1 1 1

a(4) a(3) a(2) a(1) = 1 0 1 1

a(5) a(4) a(3) a(2) = 0 1 0 1

We obtain the system of equations:

(1) 0 = 1 C1 + 1 C2 + 1 C3

(2) 1 = 0 C1 + 1 C2 + 1 C3

(3) 0 = 1 C1 + 0 C2 + 1 C3

massey algorithm example13
MASSEY ALGORITHM EXAMPLE

Add equations (1) and (2)

1 = 1 C1 + 0 C2 + 0 C3

C1 = 1

Substitute in equation (3)

0 = 1 (1) + 0 C2 + 1 C3

C3 = 1

Substitute C1 = 1, C3 = 1, into (1) gives

0 = 1(1) + 1 C2 + 1(1)

C2 = 0

Solution is: X3 + X + 1

model frequency hopper

Frequency Taps

Feedback Taps

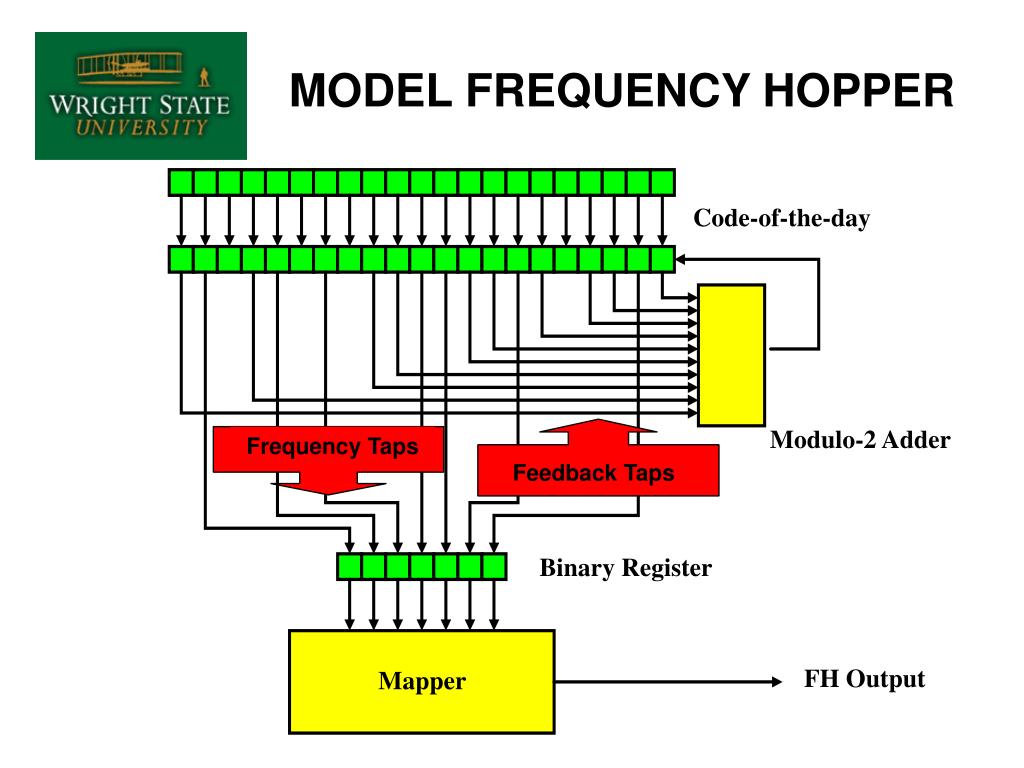

MODEL FREQUENCY HOPPER

Code-of-the-day

Modulo-2 Adder

Binary Register

FH Output

Mapper

golds time of arrival algorithm

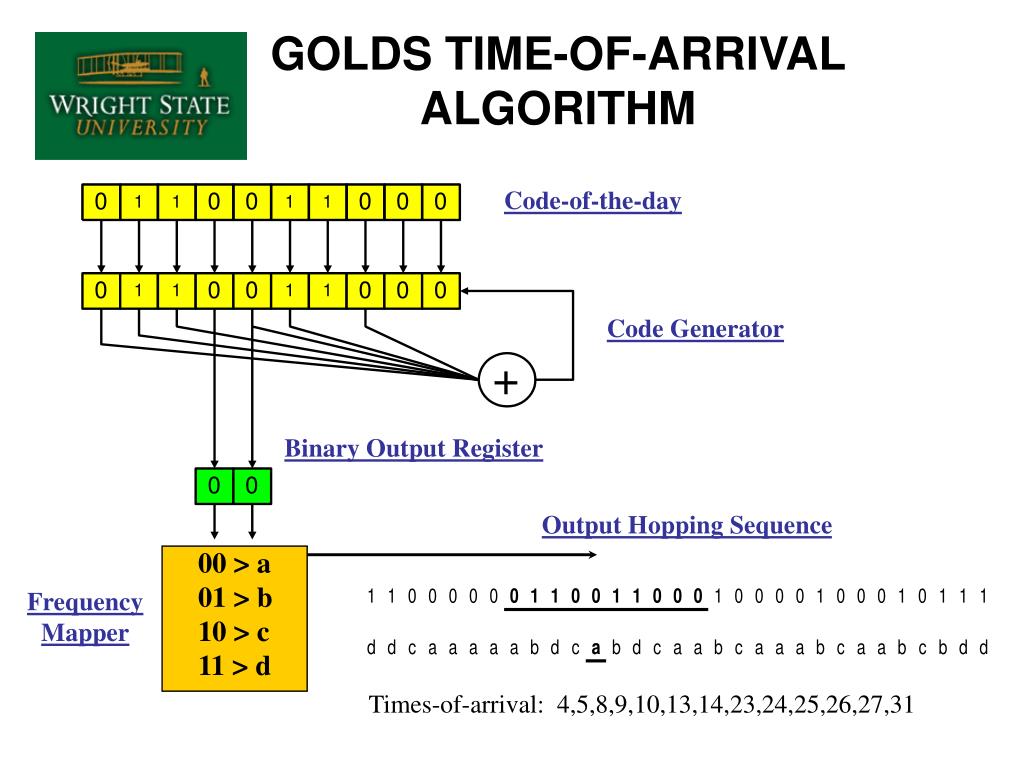

GOLDS TIME-OF-ARRIVAL ALGORITHM

Code-of-the-day

Code Generator

Binary Output Register

Output Hopping Sequence

00 > a

01 > b

10 > c

11 > d

Frequency Mapper

Times-of-arrival: 4,5,8,9,10,13,14,23,24,25,26,27,31

performance
PERFORMANCE
  • Importance of real-time implementation:
    • Rapidly changing battle scenario
    • Typically short message bursts
    • Ability to change code-of-the-day
  • Data collection time
  • Probability of correct synchronization
  • Prediction algorithm run time
data collection time

For 64-stage register and 128 hop frequencies a sequence of 64 X 128 = 8192 hops need to be collected

  • At 100K hops/sec this will take 8192/100K = 0.08192 seconds
DATA COLLECTION TIME
probability of correct synchronization

31 correct detections of key frequency

  • 31-stage register
  • 128 hop frequencies
  • SNR - 12 dB
  • Prob correct sync = .9
PROBABILITY OF CORRECT SYNCHRONIZATION
algorithm time
ALGORITHM TIME

Based on 32-stage shift register

partial correlation

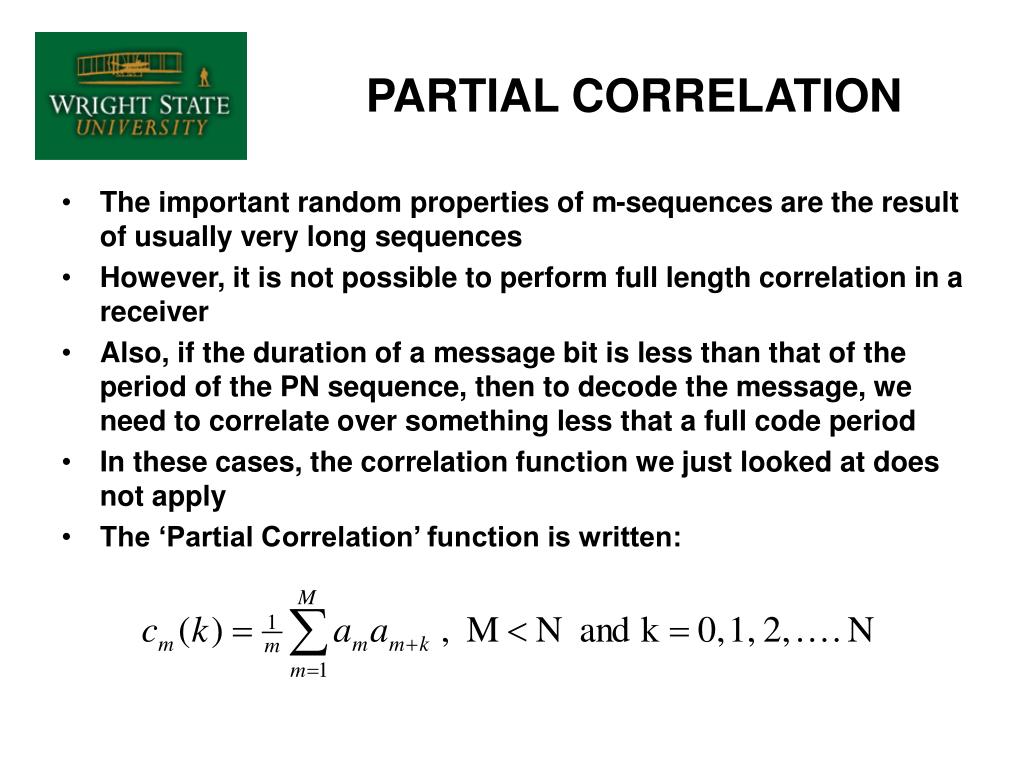

PARTIAL CORRELATION
  • The important random properties of m-sequences are the result of usually very long sequences
  • However, it is not possible to perform full length correlation in a receiver
  • Also, if the duration of a message bit is less than that of the period of the PN sequence, then to decode the message, we need to correlate over something less that a full code period
  • In these cases, the correlation function we just looked at does not apply
  • The ‘Partial Correlation’ function is written:
slide22

PARTIAL CORRELATION (Cont.)

  • We can treat the am’s as random variables { 1}

So,

  • The variance is:
slide23

PARTIAL CORRELATION

M-sequence Autocorrelation

M-sequence Partial Correlation

63 chips

50 chips

slide24

PARTIAL CORRELATION (Cont.)

50 chips

40 chips

30 chips

20 chips

matlab implementation of partial correlation

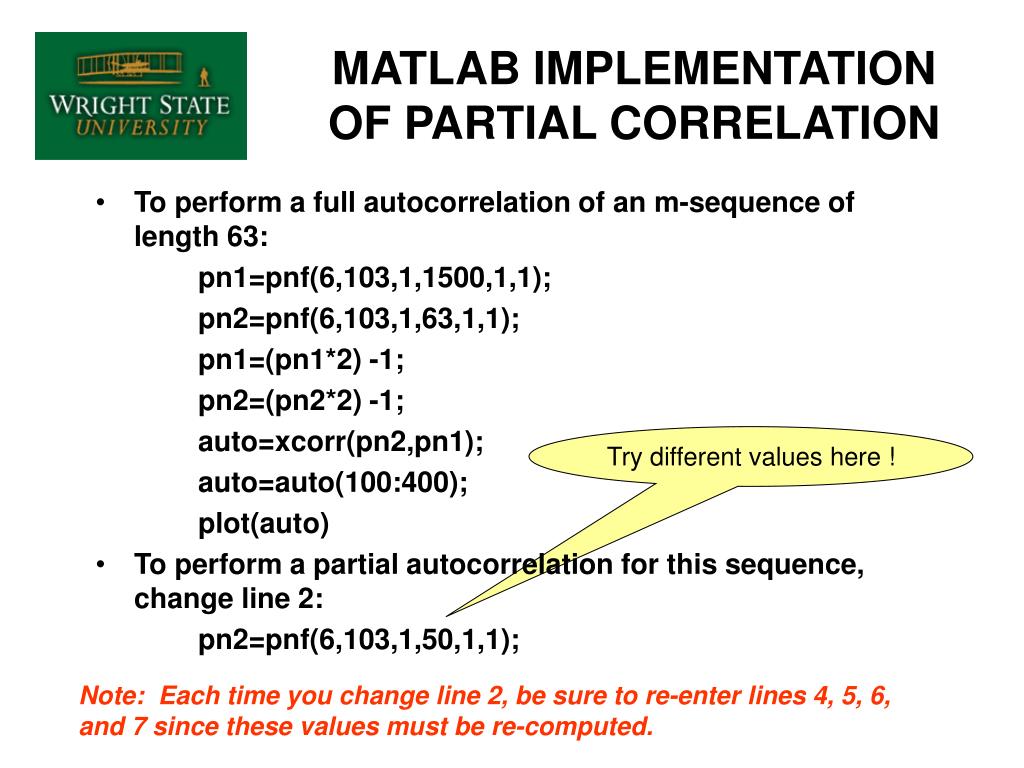

MATLAB IMPLEMENTATION OF PARTIAL CORRELATION
  • To perform a full autocorrelation of an m-sequence of length 63:

pn1=pnf(6,103,1,1500,1,1);

pn2=pnf(6,103,1,63,1,1);

pn1=(pn1*2) -1;

pn2=(pn2*2) -1;

auto=xcorr(pn2,pn1);

auto=auto(100:400);

plot(auto)

  • To perform a partial autocorrelation for this sequence, change line 2:

pn2=pnf(6,103,1,50,1,1);

Try different values here !

Note: Each time you change line 2, be sure to re-enter lines 4, 5, 6, and 7 since these values must be re-computed.

periodic vs aperiodic correlation
PERIODIC VS. APERIODIC CORRELATION

1

4

2

3

PN Code Reference

Periodic

1

PN Code Reference

Aperiodic

aperiodic autocorrelation of an m sequence
APERIODIC AUTOCORRELATION OF AN M-SEQUENCE

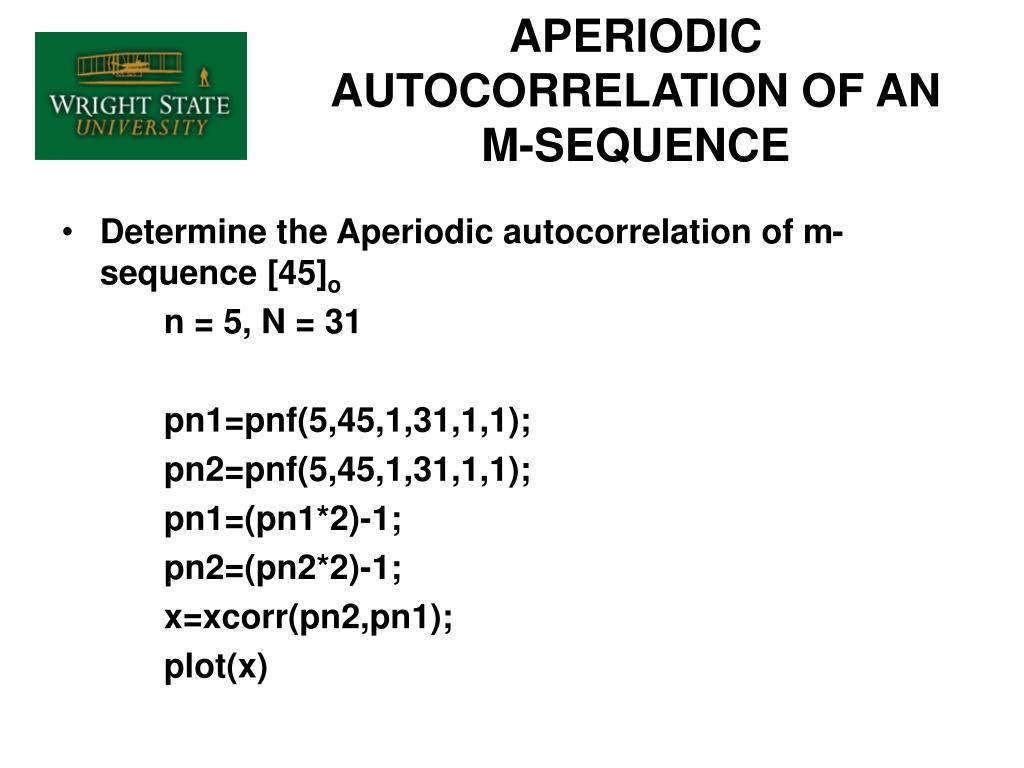

  • Determine the Aperiodic autocorrelation of m-sequence [45]o

n = 5, N = 31

pn1=pnf(5,45,1,31,1,1);

pn2=pnf(5,45,1,31,1,1);

pn1=(pn1*2)-1;

pn2=(pn2*2)-1;

x=xcorr(pn2,pn1);

plot(x)

aperiodic autocorrelation

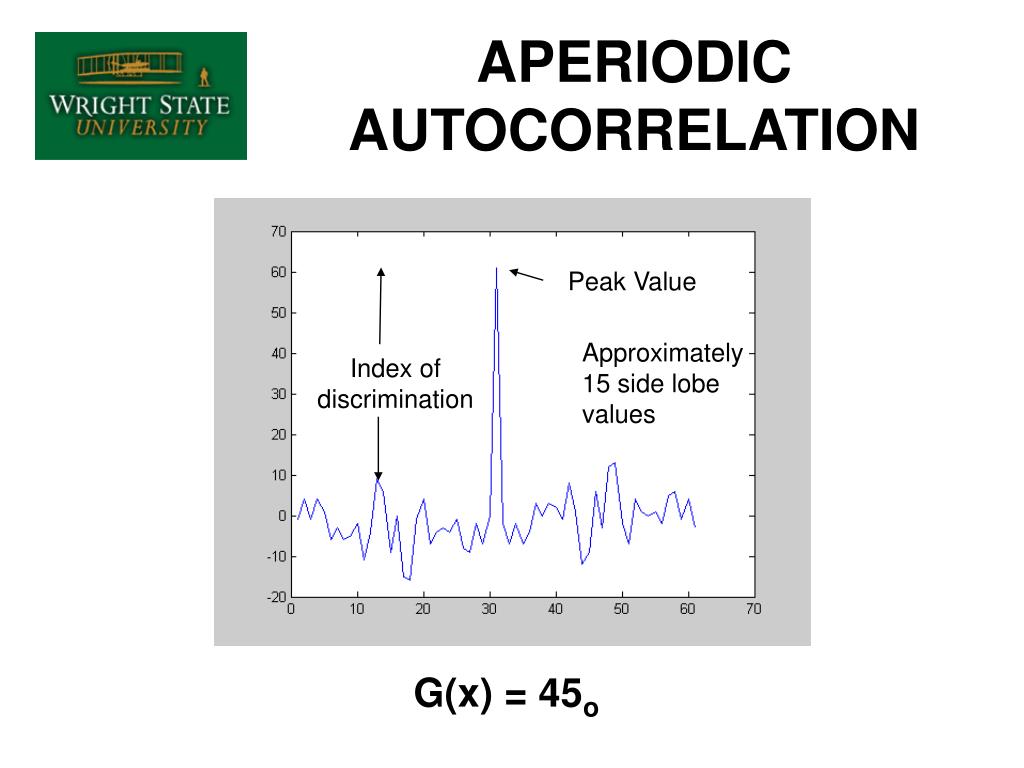

APERIODIC AUTOCORRELATION

Peak Value

Approximately 15 side lobe values

Index of discrimination

G(x) = 45o

crosscorrelation
CROSSCORRELATION

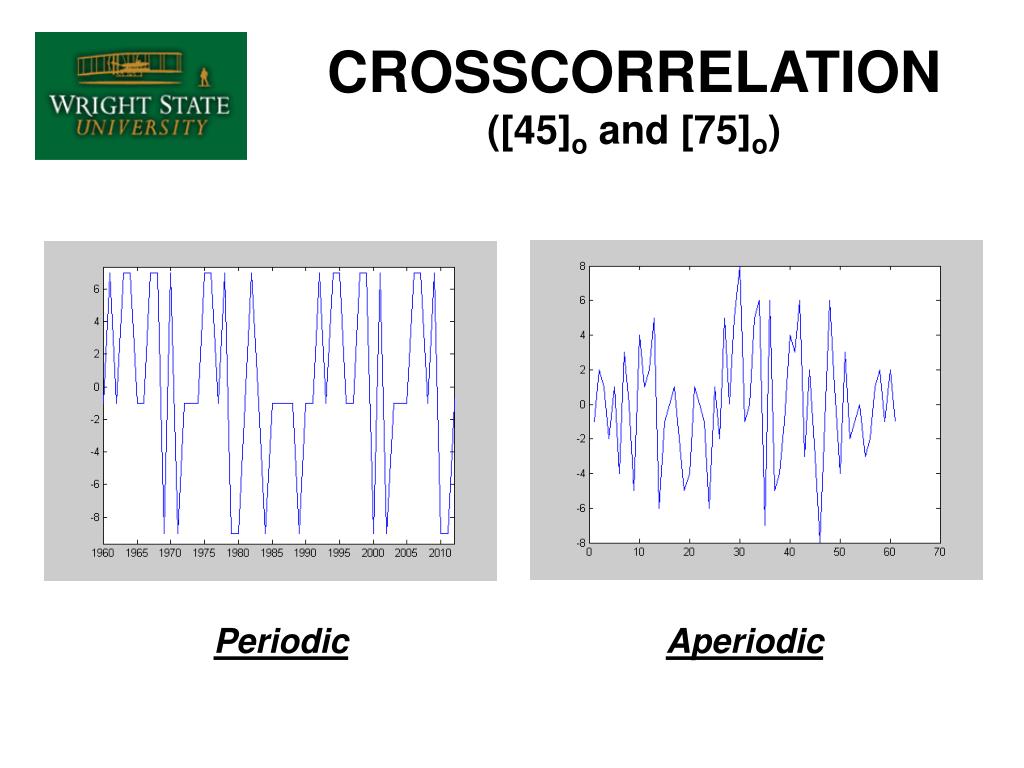

  • Whereas autocorrelation compares a code with itself, ‘crosscorrelation’ compares one code to another
  • Example: Determine the periodic and aperiodic crosscorrelation of [45]o and [75]o
    • Note the number of sidelobe values
    • Periodic sidelobes are 3-valued
    • Aperiodic is very random looking
    • Refer to the handout from Robert Gold’s publication on Linear Code Sequences
composite codes
COMPOSITE CODES
  • Although m-sequences are quite desirable for many applications, there is considerable research in finding new codes that offer improved performance in area
  • Composite codes are generated by a combination of linear maximal sequences
  • The following are examples of composite codes:
    • Gold Codes CDMA Applications
    • JPL Codes Rapid synchronization
    • Kasami Codes Length construction and CDMA Applications
gold codes
GOLD CODES
  • Many details regarding Gold Codes are explained in Appendix 7 of Dixon text
  • To be assured of good performance in CDMA applications, a system must have:
    • Low crosscorrelation properties among codes
    • Low partial crosscorrelation properties among codes
  • From Gold’s report:

Length 25 – 1 = 31 Fixed Polynomial [45]o

Bound N Spectrum Polynomial

31 1 31(1) -1(30) 45

11 1 7(5) 3(10) 51

-1(5) -5(5)

-9(5)

9 4 7(10) -1(15) 75

-9(6) 67

53 73

regarding m sequences for cdma applications

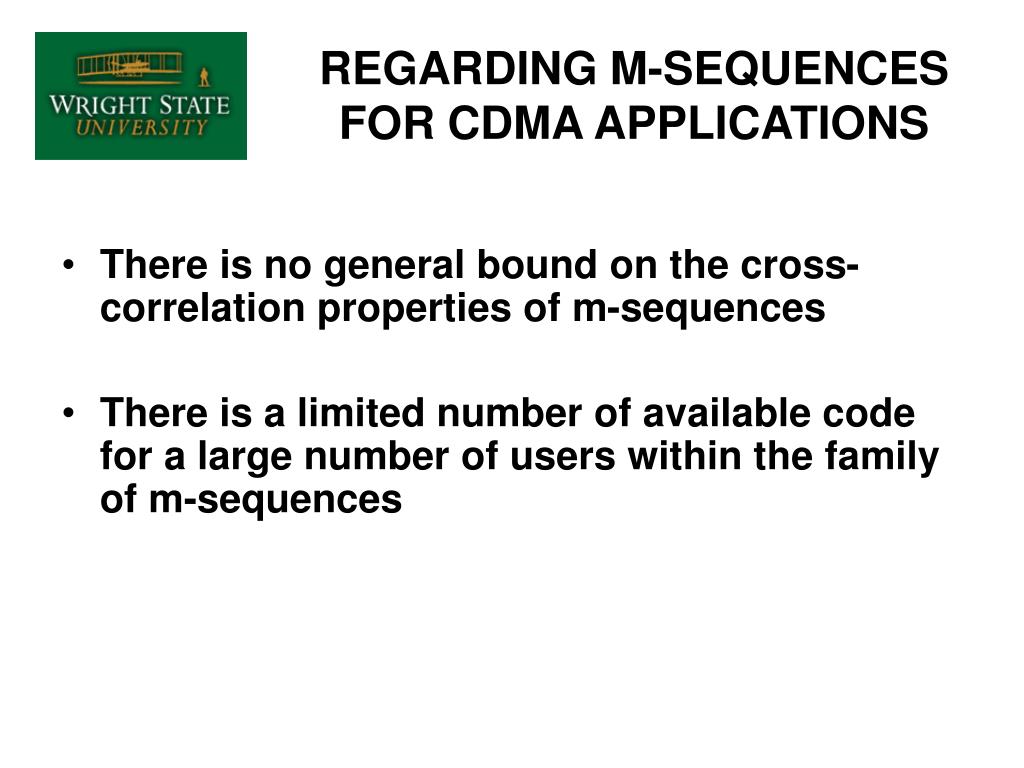

REGARDING M-SEQUENCES FOR CDMA APPLICATIONS
  • There is no general bound on the cross-correlation properties of m-sequences
  • There is a limited number of available code for a large number of users within the family of m-sequences
gold code construction
GOLD CODE CONSTRUCTION

LRS 1 and LRA 2 must have same length

Code 1

LRS 1

+

Clock

LRS 2

Code 2

Output = Gold Code ( Code 1 xor Code 2)

gold code construction36

+

+

+

1

2

3

4

5

1

2

3

4

5

GOLD CODE CONSTRUCTION

x5 + x3 + 1 = [51]o

Gold Code

x5 + x4 + x3 + x2 + 1 = [75]o

gold code construction37
GOLD CODE CONSTRUCTION

[51]o xor [75]o = ( x5 + x3 + 1)(x5 + x4 + x3 + x2 + 1)

= x10 + x9 + x8 + x7 + x5

x8 + x7 + x6 + x5 + x3

+ x5 + x4 + x3+ x2 + 1

= x10 + x9 + x6 + x5 + x4 + x2 + 1

= [3165]o non-maximal

maximum number of gold codes
MAXIMUM NUMBER OF GOLD CODES
  • Normally, you fix one register and change the fill of the other to generate a family of Gold Codes
  • Since there are 2n – 1 initial fills, you can generate 2n – 1 Gold Codes from each configuration
  • The code length will be N = 2n – 1, where n is the length of the individual registers which must be of equal size
  • For the 5-stage registers shown in the previous chart, N = 31
  • Since the generating polynomial for the Gold Code is degree-10, an m-sequence would be 210 – 1 = 1023
  • 1023 / 31 = 33 codes
  • This comes from 31 initial fills plus the m-sequence generated from each separate register alone
  • Recall from Table 3.3 in Dixon’s text, the number of possible m-sequences given n is tabulated in the next chart
maximum number of gold codes39
MAXIMUM NUMBER OF GOLD CODES

n # of m-sequences. # of Gold Codes

5 6 31 + 2

6 4 63 + 2

7 18 127 + 2

8 16 255 + 2

9 48 511 + 2

. . .

. . .

. . .

15 1800 32767 + 2

Not only do Gold Codes provide a larger ensemble of codes, but they provide uniformly low-cross correlation properties while exhibiting good autocorrelation properties

chosing a set of preferred pairs

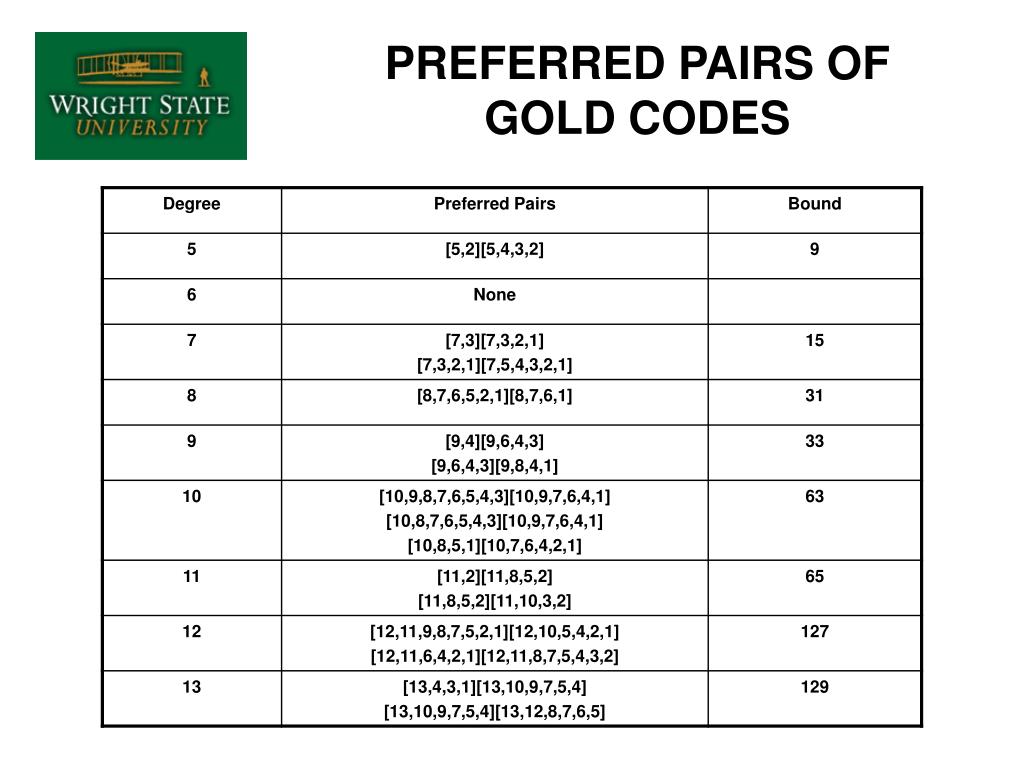

CHOSING A SET OF ‘PREFERRED PAIRS’
  • M-sequences used to generate Gold Codes must be of the same length and chosen according to a process of “preferred pairs” selection (Details are in Appendix 7 of Dixon text)
  • Table A7.3 says there are no preferred pairs for n=6. Not true! [103]o and [147]o are a preferred pair
  • Arbitrary selection of code pairs can result in very poor correlation performance

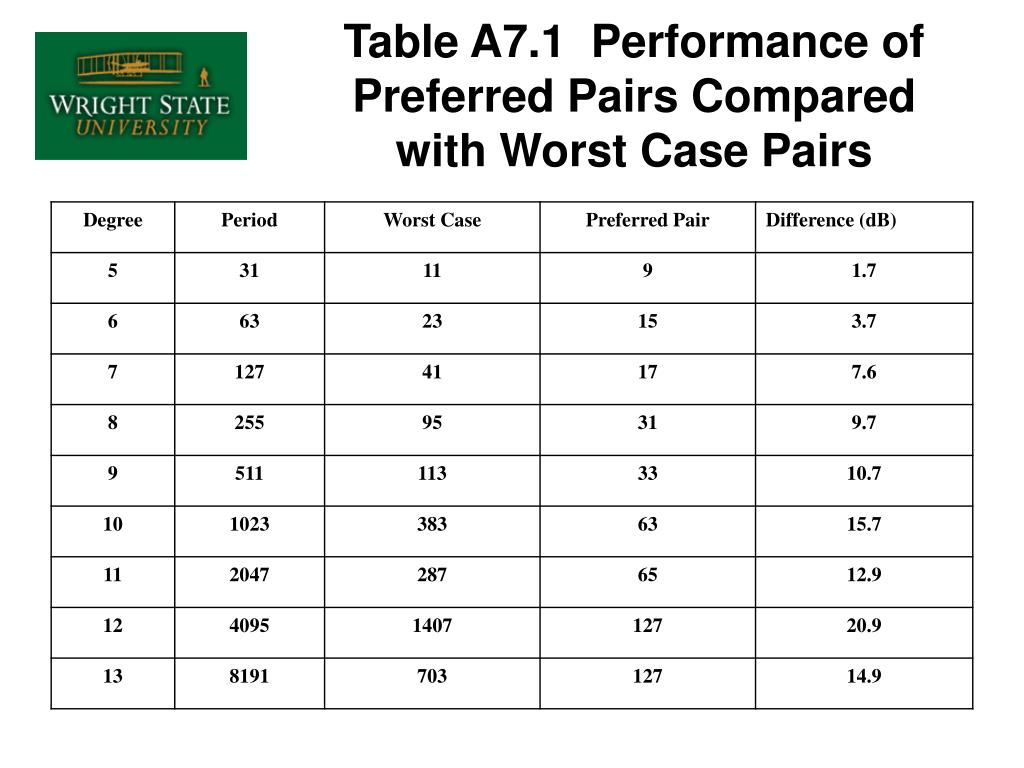

  • Table A7.1, page 501, shows that for n=5, a ‘preferred pair’ yields a peak value of cross correlation of 9 for a preferred pair, but 11 for a non-preferred pair
  • The selection of ‘preferred pairs’ will always give 3-valued autocorrelation which will bound the correlation to:
chosing a set of preferred pairs43
CHOSING A SET OF ‘PREFERRED PAIRS’

The algorithm for choosing ‘preferred pairs’ is as follows:

  • Select n and a polynomial
  • Find k associated with the polynomial (polynomial root)
  • If n is odd, then calculate 2k + 1, if n is even then calculate 2(n+2)/2 + k
  • The number calculated is the polynomial root (k) associated with the second code that completes a ‘preferred pair’
slide44

CHOSING A SET OF ‘PREFERRED PAIRS’

Example:

  • Let n=8, then choose 435(1)
  • k=1
  • n is even therefore, 2(8+2)/2 + 1 = 33

None listed

  • Try n=8, then choose 747(11)
  • k=11
  • N is even therefore, 2(8+2)/2 + 11 = 43  [703]o
jpl ranging codes
JPL RANGING CODES
  • JPL Codes are constructed by modulo-2 addition of 2 or more m-sequences whose lengths are relatively prime to one another
  • Advantages of JPL Codes:
    • Very long codes can be generated which are useful for unambiguous ranging over long distances
    • May be generated easily with a small number of short registers
    • Synchronization can be more easily accomplished by separate operation on each of the component codes
  • Relatively prime means no common factors among numbers
jpl code construction

2m - 1

2n - 1

2p - 1

JPL CODE CONSTRUCTION

a

a xor b xor c

b

c
