ar unix archiver

ar: Unix Archiver

Lecturer: Prof. Andrzej (AJ) Bieszczad

Email: andrzej@csun.edu

Phone: 818-677-4954

“UNIX for Programmers and Users”

Third Edition, Prentice-Hall, GRAHAM GLASS, KING ABLES

Slides partially adapted from Kumoh National University of Technology (Korea) and NYU

slide2

 THE UNIX ARCHIVE SYSTEM: AR

- When a set of object modules is stored in an archive file,

it may be accessed from the cc compiler and the ld loader

by simply supplying the name of the archive file as an argument.

- Any object modules that are needed from the archive file

are automatically linked as necessary.

- Creating an Archive

An archive is automatically created when the first file is added.

- Adding a File

To add a file to a named archive,

use the ar utility with the “r” option as follows:

ar r archiveName { fileName }+

Prof. Andrzej (AJ) Bieszczad Email: andrzej@csun.edu Phone: 818-677-4954

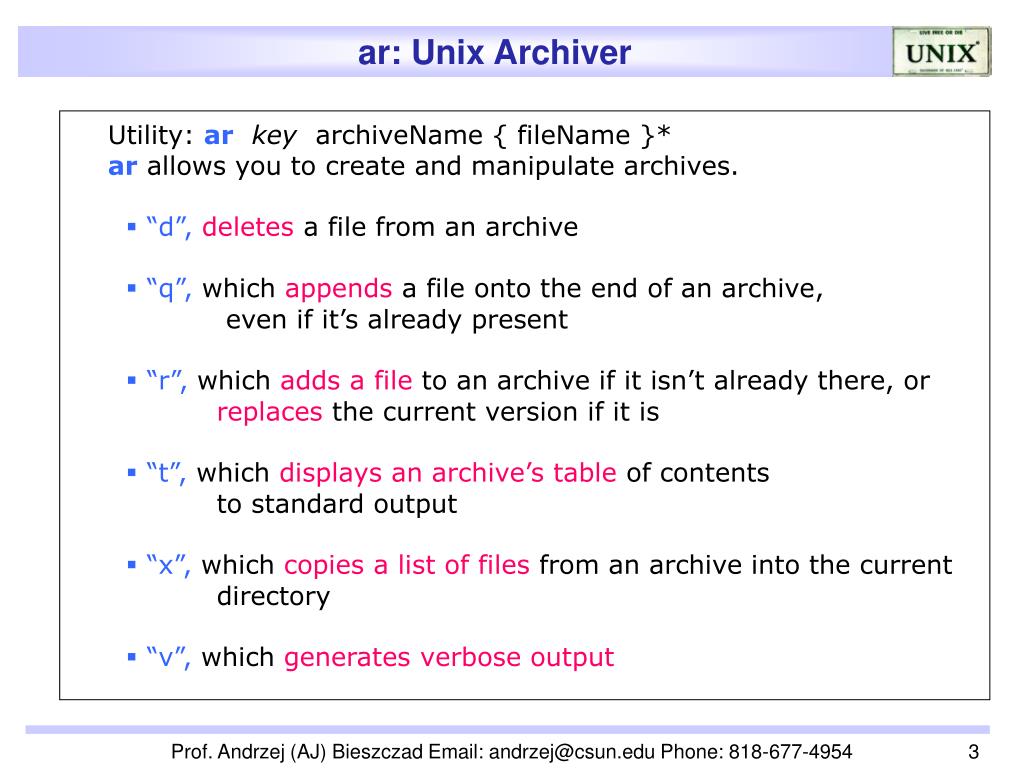

slide3

Utility: arkey archiveName { fileName }*

ar allows you to create and manipulate archives.

 “d”, deletes a file from an archive

 “q”, which appends a file onto the end of an archive,

even if it’s already present

 “r”, which adds a file to an archive if it isn’t already there, or

replaces the current version if it is

 “t”, which displays an archive’s table of contents

to standard output

 “x”, which copies a list of files from an archive into the current

directory

 “v”, which generates verbose output

Prof. Andrzej (AJ) Bieszczad Email: andrzej@csun.edu Phone: 818-677-4954

slide4

 THE UNIX ARCHIVE SYSTEM: AR

- Appending a File

ar q archiveName { fileName }+

appends all of the specified files to the archive file archiveName,

regardless of whether they already exist.

- Obtaining a Table of Contents

To obtain a table of contents of an archive,

ar t archiveName

Prof. Andrzej (AJ) Bieszczad Email: andrzej@csun.edu Phone: 818-677-4954

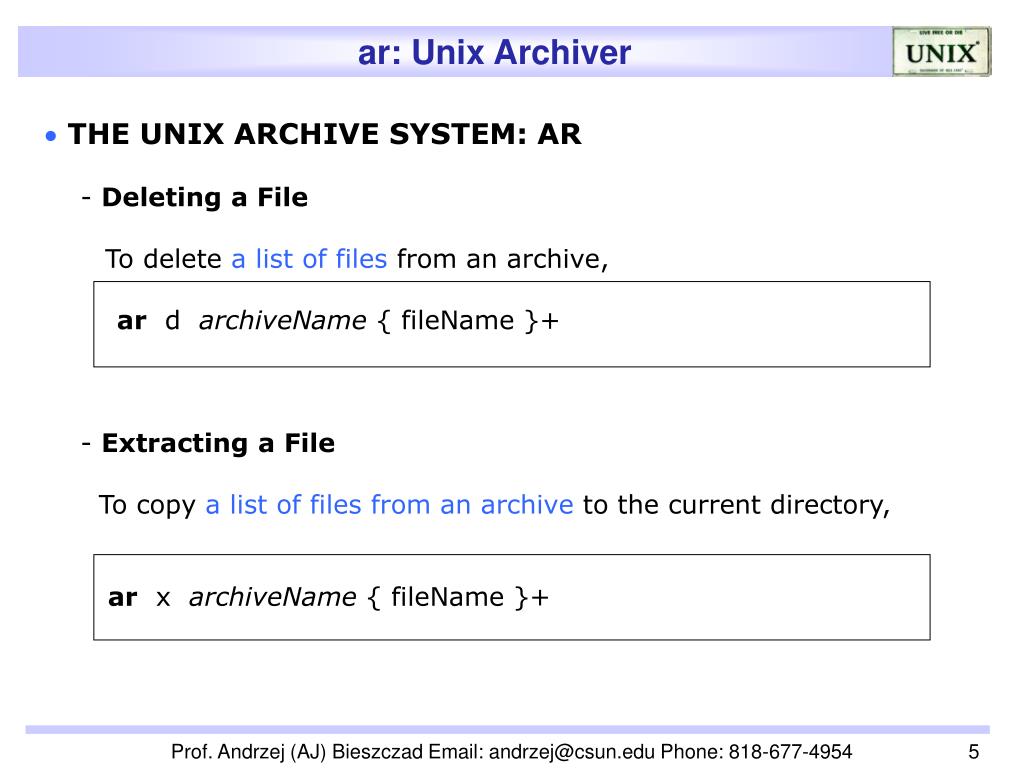

slide5

 THE UNIX ARCHIVE SYSTEM: AR

- Deleting a File

To delete a list of files from an archive,

ar d archiveName { fileName }+

- Extracting a File

To copy a list of files from an archive to the current directory,

ar x archiveName { fileName }+

Prof. Andrzej (AJ) Bieszczad Email: andrzej@csun.edu Phone: 818-677-4954

slide6

 Maintaining an Archive from the Command Line

- an example that illustrates how an archive may be built and

manipulated from the command line.

$ cc -c reverse.c palindrome.c main2.c---> creates object modules.

$ ls *.o

main2.o palindrome.o reverse.o

$ ar r string.a reverse.o palindrome.o ---> add them to an archive

ar: creating string.a

$ ar t string.a---> obtain a table of contents.

reverse.o

palindrome.o

$ cc main2.o string.a -o main2---> link the object modules.

$ main2---> execute the program.

palindrome(“cat”)=0

palindrome(“noon”)=1

Prof. Andrzej (AJ) Bieszczad Email: andrzej@csun.edu Phone: 818-677-4954

slide7

 Maintaining an Archive from the Command Line

$ ar d string.a reverse.o---> delete a module.

$ ar t string.a---> confirm deletion.

palindrome.o

$ ar r string.a reverse.o---> put it back again.

$ ar t string.a---> confirm addition.

palindrome.o

reverse.o

$ rm palindrome.o reverse.o---> delete originals.

$ ls *.o---> confirm

main2.o

$ ar x string.a palindrome.o reverse.o---> copy them back again.

$ ls *.o---> confirm

main2.o palindrome.o reverse.o

$ _

Prof. Andrzej (AJ) Bieszczad Email: andrzej@csun.edu Phone: 818-677-4954

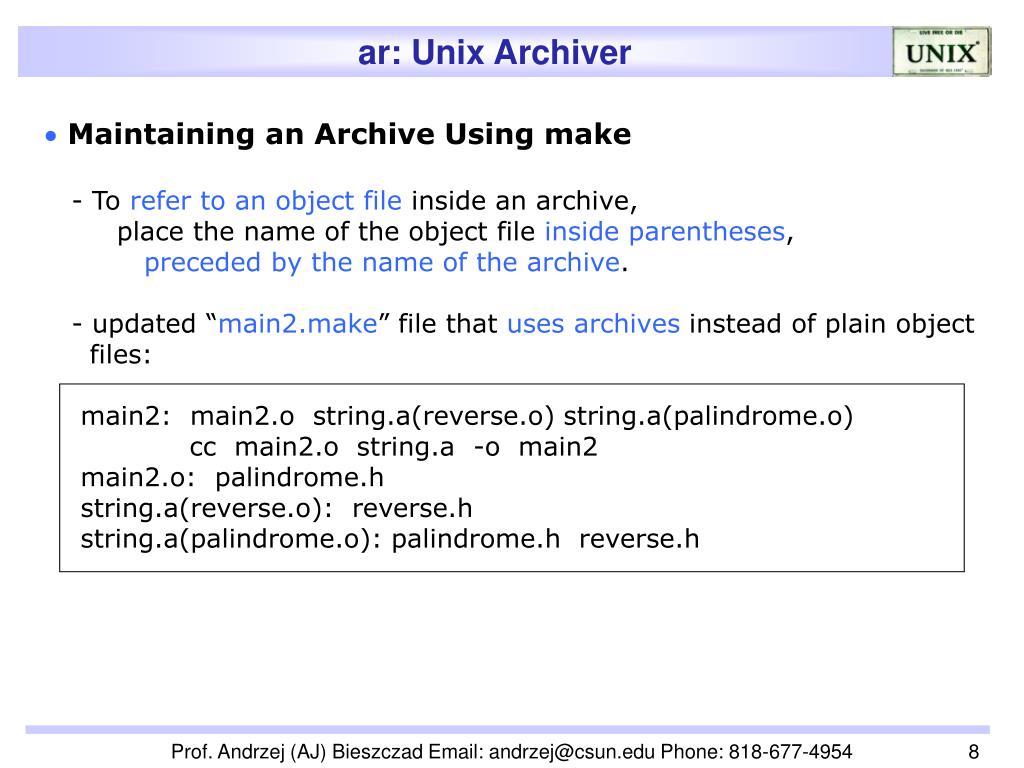

slide8

 Maintaining an Archive Using make

- To refer to an object file inside an archive,

place the name of the object file inside parentheses,

preceded by the name of the archive.

- updated “main2.make” file that uses archives instead of plain object

files:

main2: main2.o string.a(reverse.o) string.a(palindrome.o)

cc main2.o string.a -o main2

main2.o: palindrome.h

string.a(reverse.o): reverse.h

string.a(palindrome.o): palindrome.h reverse.h

Prof. Andrzej (AJ) Bieszczad Email: andrzej@csun.edu Phone: 818-677-4954

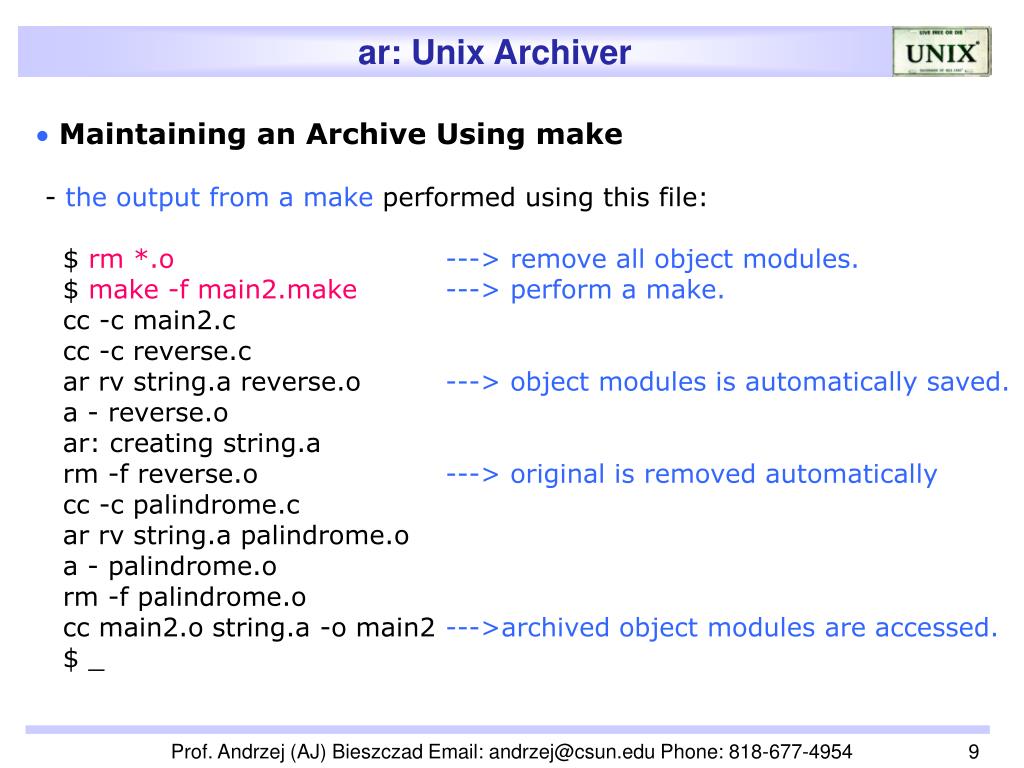

slide9

 Maintaining an Archive Using make

- the output from a make performed using this file:

$ rm *.o---> remove all object modules.

$ make -f main2.make---> perform a make.

cc -c main2.c

cc -c reverse.c

ar rv string.a reverse.o ---> object modules is automatically saved.

a - reverse.o

ar: creating string.a

rm -f reverse.o ---> original is removed automatically

cc -c palindrome.c

ar rv string.a palindrome.o

a - palindrome.o

rm -f palindrome.o

cc main2.o string.a -o main2 --->archived object modules are accessed.

$ _

Prof. Andrzej (AJ) Bieszczad Email: andrzej@csun.edu Phone: 818-677-4954

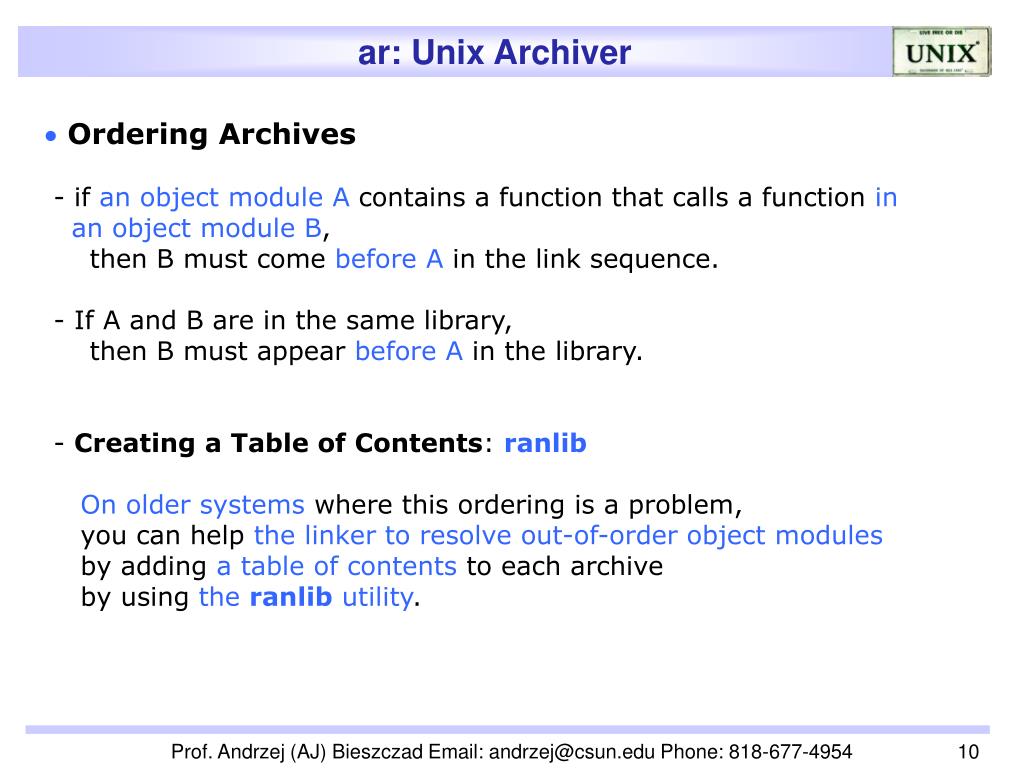

slide10

 Ordering Archives

- if an object module A contains a function that calls a function in

an object module B,

then B must come before A in the link sequence.

- If A and B are in the same library,

then B must appear before A in the library.

- Creating a Table of Contents: ranlib

On older systems where this ordering is a problem,

you can help the linker to resolve out-of-order object modules

by adding a table of contents to each archive

by using the ranlib utility.

Prof. Andrzej (AJ) Bieszczad Email: andrzej@csun.edu Phone: 818-677-4954

slide11

 Ordering Archives

Utility : ranlib { archive }+

ranlib adds a table of contents to each specified archive.

It does so by inserting an entry called “_.SYMDEF” into the archive.

- the unresolved reference error

due to an out-of-order sequence of object modules

in the “string.a” archive.

$ ar r string.a reverse.o palindrome.o---> this order causes problems.

ar: creating string.a

$ cc main2.o string.a -o main2---> compile fails.

ld: string.a : warning: archive has no table of contents; add one using

ranlib(1)

ld: Undefined symbol

_reverse

$ranlib string.a---> add a table of contents.

Prof. Andrzej (AJ) Bieszczad Email: andrzej@csun.edu Phone: 818-677-4954

slide12

 Ordering Archives

$ranlib string.a---> add a table of contents.

$ cc main2.o string.a -o main2---> no problem now.

$ main2

palindrome (“cat”) = 0

palindrome (“noon”) = 1

$ _

Prof. Andrzej (AJ) Bieszczad Email: andrzej@csun.edu Phone: 818-677-4954
