Chapter 9

Chapter 9. Chemical Names & Formulas. + 1 cation. – 1 anions. – 2 anions. – 3 anion. Naming Compounds. Naming compounds is essential in chemistry. There are 2 types of chemical compounds Molecular and Ionic You need to know the type of compound before you can name it.

jacqueline-nieves
Download Presentation

Chapter 9

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

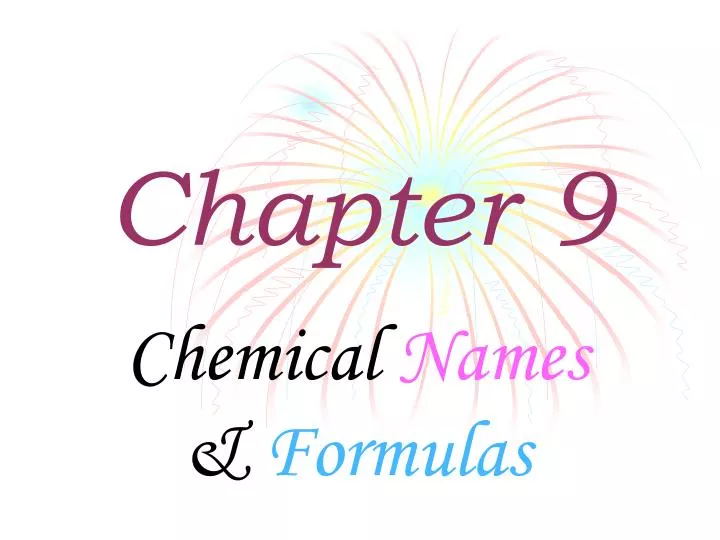

  1. Chapter 9 Chemical Names & Formulas

  2. + 1 cation – 1 anions – 2 anions – 3 anion

  3. Naming Compounds • Naming compounds is essential in chemistry. • There are 2 types of chemical compounds • Molecular and Ionic • You need to know the type of compound before you can name it.

  4. Molecular Compounds • Atoms of differentelements combine to form compounds. • Molecular Compounds—compounds composed of molecules. • Tend to have low melting and boiling points • Many are gases or liquid at room temp. • Are composed of 2 or more nonmetals. • Example: 1 atom of carbon can react with 1 atom of oxygen to produce 1 molecule of Carbon Monoxide (CO)

  5. Molecular Formulas • Molecular Formula—shows the kinds and numbers of atoms present in a molecular compound. • Includes the elements present and the number of each as a subscript. • If there is only 1, the subscript is omitted.

  6. Sec 5: Molecular Compounds • Binary compounds—compounds containing 2 elements. • Binary molecular compounds—contain 2 nonmetal elements. • Composed of molecules—not ions. • 2 nonmetals can combine in more than 1 way! • CO2 is a gas that we breathe out. • CO is a colorless, odorless, & deadly gas • Both are carbon oxides, but it is important to distinguish between them.

  7. 1-mono 2-di 3-tri 4-tetra 5-penta 6-hexa 7-hepta 8-octa 9-nona 10-deca Naming Molecular Compounds • Prefixes distinguish between different compounds • They tell the number of each element present in each molecule. • For the second element, change the ending to -ide Examples: CO2 is carbon dioxide CO is carbon monoxide Notice: the mono prefix is omitted on the first element.

  8. Formulas of Molecular Compounds • Given the name, writing formulas is easy!! • Use the prefixes to tell you the subscript of each element in the formula. • Example: tetraiodine nonoxide • I4O9

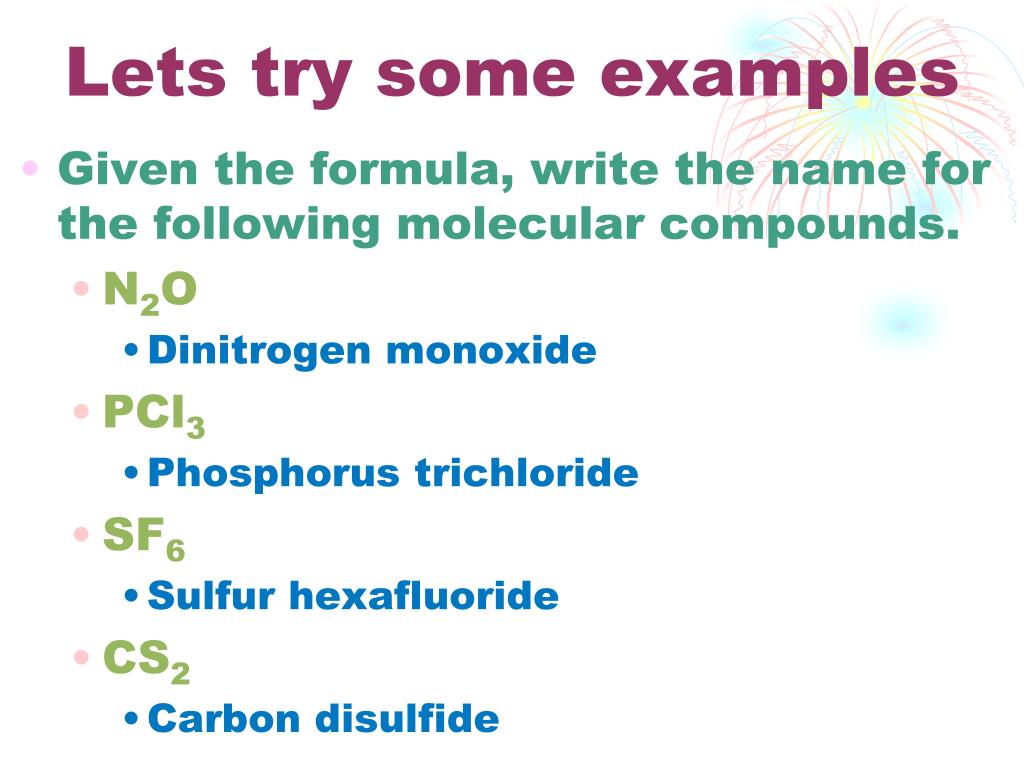

  9. Lets try some examples • Given the formula, write the name for the following molecular compounds. • N2O • Dinitrogen monoxide • PCl3 • Phosphorus trichloride • SF6 • Sulfur hexafluoride • CS2 • Carbon disulfide

  10. More examples • Given the name, write the formula for the following molecular compounds. • Nitrogen trifluoride • NF3 • Disulfur dichloride • S2Cl2 • Dinitrogen tetroxide • N2O4 • Phosphorus pentafluoride • PF5
