Mass Relationships in Chemical Reactions

Mass Relationships in Chemical Reactions. Chapter 3. Micro World atoms & molecules. Macro World grams. Atomic mass is the mass of an atom in atomic mass units (amu). By definition: 1 atom 12 C “weighs” 12 amu. On this scale 1 H = 1.008 amu 16 O = 16.00 amu. 3.1.

jacoba
Download Presentation

Mass Relationships in Chemical Reactions

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

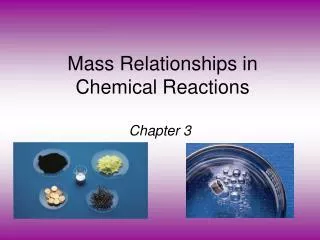

  1. Mass Relationships in Chemical Reactions Chapter 3

  2. Micro World atoms & molecules Macro World grams Atomic mass is the mass of an atom in atomic mass units (amu) By definition: 1 atom 12C “weighs” 12 amu On this scale 1H = 1.008 amu 16O = 16.00 amu 3.1

  3. (7.42% x 6.015) + (92.58% x 7.016) 100 Natural lithium is: 7.42% 6Li (6.015 amu) 92.58% 7Li (7.016 amu) Average atomic mass of lithium: = 6.941 amu 3.1

  4. Dozen = 12 Pair = 2 The mole (mol) is the amount of a substance that contains as many elementary entities as there are atoms in exactly 12.00 grams of 12C 1 mol = NA = 6.0221367 x 1023 Avogadro’s number (NA) 3.2

  5. eggs shoes Molar mass is the mass of 1 mole of in grams marbles atoms 1 mole 12C atoms = 6.022 x 1023 atoms = 12.00 g 1 12C atom = 12.00 amu 1 mole 12C atoms = 12.00 g 12C 1 mole lithium atoms = 6.941 g of Li For any element atomic mass (amu) = molar mass (grams) 3.2

  6. One Mole of: S C Hg Cu Fe 3.2

  7. 1 12C atom 12.00 g 1.66 x 10-24 g = 12.00 amu 6.022 x 102312C atoms 1 amu x 1 amu = 1.66 x 10-24 g or 1 g = 6.022 x 1023 amu = molar mass in g/mol M NA= Avogadro’s number 3.2

  8. Do You Understand Molar Mass? 1 mol K 6.022 x 1023 atoms K x x = 1 mol K 39.10 g K How many atoms are in 0.551 g of potassium (K) ? 1 mol K = 39.10 g K 1 mol K = 6.022 x 1023 atoms K 0.551 g K 8.49 x 1021 atoms K 3.2

  9. 1S 32.07 amu 2O + 2 x 16.00 amu SO2 SO2 64.07 amu Molecular mass (or molecular weight) is the sum of the atomic masses (in amu) in a molecule. For any molecule molecular mass (amu) = molar mass (grams) 1 molecule SO2 = 64.07 amu 1 mole SO2 = 64.07 g SO2 3.3

  10. Do You Understand Molecular Mass? 8 mol H atoms 6.022 x 1023 H atoms 1 mol C3H8O x x x = 1 mol C3H8O 1 mol H atoms 60 g C3H8O How many H atoms are in 72.5 g of C3H8O ? 1 mol C3H8O = (3 x 12) + (8 x 1) + 16 = 60 g C3H8O 1 mol C3H8O molecules = 8 mol H atoms 1 mol H = 6.022 x 1023 atoms H 72.5 g C3H8O 5.82 x 1024 atoms H 3.3

  11. Heavy Heavy Light Light KE = 1/2 x m x v2 v = (2 x KE/m)1/2 F = q x v x B 3.4

  12. 2 x (12.01 g) 6 x (1.008 g) 1 x (16.00 g) n x molar mass of element %C = %H = %O = x 100% = 34.73% x 100% = 13.13% x 100% = 52.14% x 100% 46.07 g 46.07 g 46.07 g molar mass of compound C2H6O Percent composition of an element in a compound = n is the number of moles of the element in 1 mole of the compound 52.14% + 13.13% + 34.73% = 100.0% 3.5

  13. Types of Formulas • Empirical Formula The formula of a compound that expresses the smallest whole number ratio of the atoms present. Ionic formula are always empirical formula • Molecular Formula The formula that states the actual number of each kind of atom found in one molecule of the compound.

  14. To obtain an Empirical Formula 1. Determine the mass in grams of each element present, if necessary. 2. Calculate the number of moles of each element. 3. Divide each by the smallest number of moles to obtain the simplest whole number ratio. • If whole numbers are not obtained* in step 3), multiply through by the smallest number that will give all whole numbers *Be careful! Do not round off numbers prematurely

  15. A sample of a brown gas, a major air pollutant, is found to contain 2.34 g N and 5.34g O. Determine a formula for this substance. require mole ratios so convert grams to moles moles of N = 2.34g of N = 0.167 moles of N 14.01 g/mole moles of O = 5.34 g = 0.334 moles of O 16.00 g/mole Formula: (HONORS only)

  16. Calculation of the Molecular Formula A compound has an empirical formula of NO2. The colourless liquid, used in rocket engines has a molar mass of 92.0 g/mole. What is the molecular formula of this substance? empirical formula mass: 14.01+2 (16.00) = 46.01 g/mol n = molar mass = 92.0 g/mol emp. f. mass 46.01 g/mol n = 2 N2O4

  17. Empirical Formula from % Composition A substance has the following composition by mass: 60.80 % Na ; 28.60 % B ; 10.60 % H What is the empirical formula of the substance? Consider a sample size of 100 grams This will contain: 60.80 grams of Na, 28.60 grams of B, and 10.60 grams H Determine the number of moles of each Determine the simplest whole number ratio

  18. g CO2 g H2O mol CO2 mol H2O mol C mol H g H g C Combust 11.5 g ethanol Collect 22.0 g CO2 and 13.5 g H2O 6.0 g C = 0.5 mol C 1.5 g H = 1.5 mol H g of O = g of sample – (g of C + g of H) 4.0 g O = 0.25 mol O Empirical formula C0.5H1.5O0.25 Divide by smallest subscript (0.25) Empirical formula C2H6O 3.6

  19. Mass Changes in Chemical Reactions • Write balanced chemical equation • Convert quantities of known substances into moles • Use coefficients in balanced equation to calculate the number of moles of the sought quantity • Convert moles of sought quantity into desired units 3.8

  20. Other units • Molarity • Moles solute / L solution • Gases • 22.4 L = 1 mole of ANY GAS at STP

  21. 2CH3OH + 3O2 2CO2 + 4H2O grams CH3OH moles CH3OH moles H2O grams H2O 4 mol H2O 18.0 g H2O 1 mol CH3OH x = x x 2 mol CH3OH 32.0 g CH3OH 1 mol H2O Methanol burns in air according to the equation If 209 g of methanol are used up in the combustion, what mass of water is produced? molar mass CH3OH molar mass H2O coefficients chemical equation 209 g CH3OH 235 g H2O 3.8

  22. 6 green used up 6 red left over Limiting Reagents 3.9

  23. Method 1 • Pick A Product • Try ALL the reactants • The lowest answer will be the correct answer • The reactant that gives the lowest answer will be the limiting reactant

  24. LimitingReactant Limiting Reactant: Method 1 • 10.0g of aluminum reacts with 35.0 grams of chlorine gas to produce aluminum chloride. Which reactant is limiting, which is in excess, and how much product is produced? 2 Al + 3 Cl2 2 AlCl3 • Start with Al: • Now Cl2: 10.0 g Al 1 mol Al 2 mol AlCl3 133.5 g AlCl3 27.0 g Al 2 mol Al 1 mol AlCl3 = 49.4g AlCl3 35.0g Cl2 1 mol Cl2 2 mol AlCl3 133.5 g AlCl3 71.0 g Cl2 3 mol Cl2 1 mol AlCl3 = 43.9g AlCl3

  25. Method 2 • Convert one of the reactants to the other REACTANT • See if there is enough reactant “A” to use up the other reactants • If there is less than the GIVEN amount, it is the limiting reactant • Then, you can find the desired species

  26. Do You Understand Limiting Reagents? 2Al + Fe2O3 Al2O3 + 2Fe g Al mol Al mol Fe2O3 needed g Fe2O3 needed OR g Fe2O3 mol Fe2O3 mol Al needed g Al needed 1 mol Fe2O3 160. g Fe2O3 1 mol Al = x x x 27.0 g Al 2 mol Al 1 mol Fe2O3 Start with 124 g Al need 367 g Fe2O3 In one process, 124 g of Al are reacted with 601 g of Fe2O3 Calculate the mass of Al2O3 formed. 367 g Fe2O3 124 g Al Have more Fe2O3 (601 g) so Al is limiting reagent 3.9

  27. 2Al + Fe2O3 Al2O3 + 2Fe g Al mol Al mol Al2O3 g Al2O3 1 mol Al x 27.0 g Al 1 mol Al2O3 102. g Al2O3 = x x 2 mol Al 1 mol Al2O3 Use limiting reagent (Al) to calculate amount of product that can be formed. 234 g Al2O3 124 g Al 3.9

  28. Finding Excess Practice • 10.0g of aluminum reacts with 35.0 grams of chlorine gas 2 Al + 3 Cl2 2 AlCl3 • We found that chlorine is the limiting reactant, and 43.8 g of aluminum chloride are produced. 35.0 g Cl2 1 mol Cl2 2 mol Al 27.0 g Al 71 g Cl2 3 mol Cl2 1 mol Al = 7.8 g Al USED! 10.0 g Al – 7.8 g Al = 2.2 g Al EXCESS Given amount of excess reactant Amount of excess reactant actually used Note that we started with the limiting reactant! Once you determine the LR, you should only start with it!

  29. % Yield = x 100 Actual Yield Theoretical Yield Theoretical Yield is the amount of product that would result if all the limiting reagent reacted. Actual Yield is the amount of product actually obtained from a reaction. 3.10

  30. 3H2 (g) + N2 (g) 2NH3 (g) NH3 (aq) + HNO3 (aq) NH4NO3 (aq) 2Ca5(PO4)3F (s) + 7H2SO4 (aq) fluorapatite 3Ca(H2PO4)2 (aq) + 7CaSO4 (aq) + 2HF (g) Chemistry In Action: Chemical Fertilizers Plants need: N, P, K, Ca, S, & Mg
