  1. Financial Calculator Fundamentals

  2. Financial Calculator Fundamentals Display Menu Menu Keys Memory Store Previous Menu Backspace Memory Recall Input Scroll Shift On/Clear Display

  3. FIX ^ DSP 4 INPUT SHOW General Information • Controlling the Display Format 1) Select “Display” 2) Press “Fix” 3) Type “4” • Showing Full Precision 1) Select Shift “Show”

  4. 0 STO 0 RCL General Information • Storing A Number in Memory 1) Select “Store” 2) Press “0” 10 Storage Registers (0 – 9) • Recalling A Stored Number 1) Select “Recall” 2) Press “0”

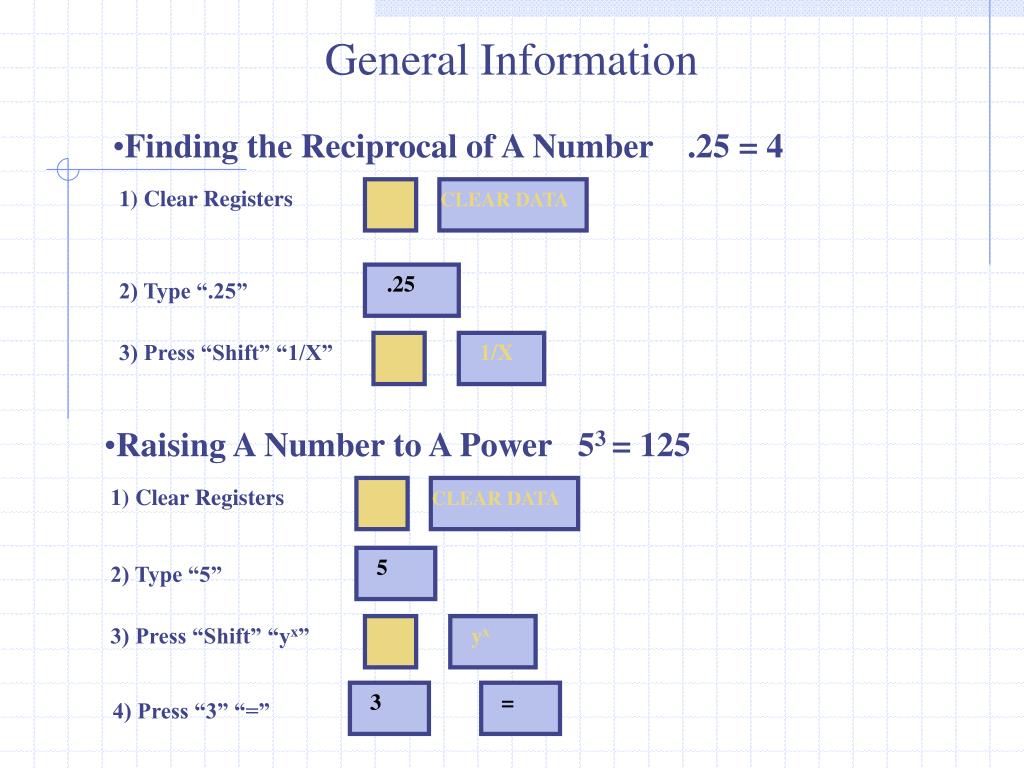

  5. CLEAR DATA CLEAR DATA yx 5 3 = .25 1/X General Information • Finding the Reciprocal of A Number .25 = 4 1) Clear Registers 2) Type “.25” 3) Press “Shift” “1/X” • Raising A Number to A Power 53 = 125 1) Clear Registers 2) Type “5” 3) Press “Shift” “yx” 4) Press “3” “=”

  6. CLEAR DATA 1/X 64 yx 6 = General Information • Finding the “nth” Root of A Number = 2 1) Clear Registers 2) Type “64” 3) Press “Shift” “yx” 4) Type “6” 5) Press “Shift” “1/X” 6) Press “=”

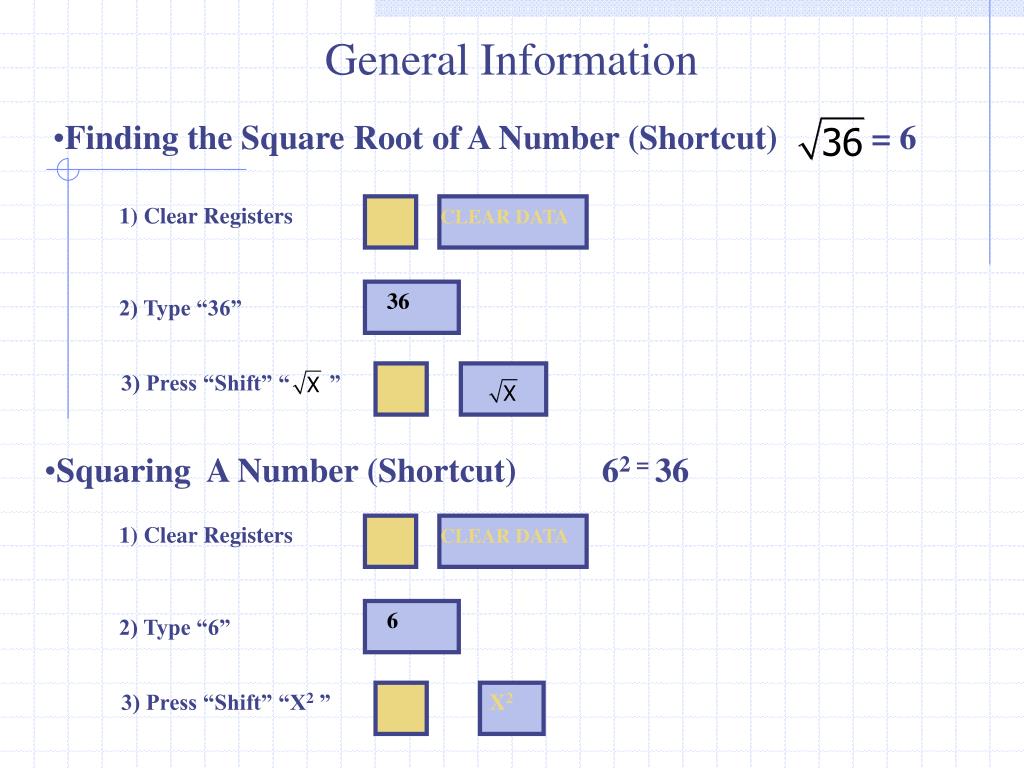

  7. CLEAR DATA CLEAR DATA X2 36 6 General Information • Finding the Square Root of A Number (Shortcut) = 6 1) Clear Registers 2) Type “36” 3) Press “Shift” “ ” • Squaring A Number (Shortcut) 62 = 36 1) Clear Registers 2) Type “6” 3) Press “Shift” “X2 ”

  8. CLEAR DATA + 46 54 = Simple Math • Addition 46 + 54 = 100 1) Clear Registers 2) Type “46” 3) Press “+” 4) Type “54” 5) Press “=”

  9. CLEAR DATA - 641 323 = Simple Math • Subtraction 641 - 323 = 318 1) Clear Registers 2) Type “641” 3) Press “-” 4) Type “323” 5) Press “=”

  10. CLEAR DATA X 93.6 47 = Simple Math • Multiplication 93.6 X 47 = 4,399.2 1) Clear Registers 2) Type “93.6” 3) Press “X” 4) Type “47” 5) Press “=”

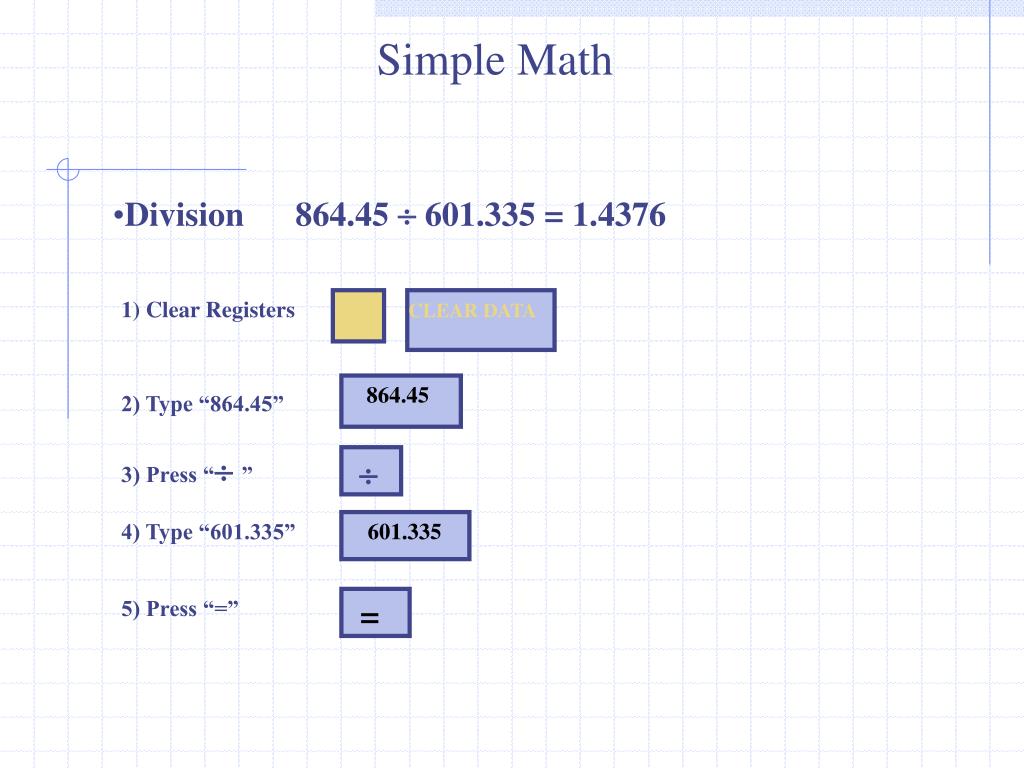

  11. CLEAR DATA  864.45 601.335 = Simple Math • Division 864.45  601.335 = 1.4376 1) Clear Registers 2) Type “864.45” 3) Press “” 4) Type “601.335” 5) Press “=”

  12. CLEAR DATA + + 2 X 38 43 671 261 X  83 = 429 - Simple Math • Chain Math 43 + 261  429 X 83 – 671 + 38 X 2 = -1,148.3683 1) Clear Registers 9) Press “-” 2) Type “43” 10) Type “671” 3) Press “+” 11) Press “+” 4) Type “261” 12) Type “38” 5) Press “ ” 13) Press “X” 6) Type “429” 14) Type “2” 7) Press “X” 15) Press “=” 8) Type “83”

  13. FIN BUS SUM TIME SOLVE TEXT CALC INSR DELET NAME GET Financial Calculator Fundamentals The Menu System TOTAL TOTAL MEAN MEDN STDEV RANGE MORE MIN MAX SORT FRCST MORE

  14. CALC SUM YES Clear Data MEAN ITEM (2)=? 12 ^ ^ ^ 12 ^ INPUT EXIT ITEM (11)=? 19 ITEM (1)=? INPUT INPUT Statistical Calculations What is the mean of the following series of numbers? 12, 19, 24, 3, 18, 66, 12, 27, 31, 41,12 Mean – the average value. 4) Input Value 5) Input Value 1) Select A Menu 6) – 13) Repeat for24, 3, 18, 66, 12, 27, 31,41 2) Clear Registers 14) Input Value 15) Press Exit 3) Clear The List? 16) Press Calc 17) Press Mean

  15. CALC SUM YES Clear Data MEAN ITEM (2)=? 12 ^ ^ ^ 12 ^ INPUT EXIT ITEM (11)=? 19 ITEM (1)=? INPUT INPUT Statistical Calculations What is the mean of the following series of numbers? 12, 19, 24, 3, 18, 66, 12, 27, 31, 41,12 Mean – the average value. = 24.0909 4) Input Value 5) Input Value 1) Select A Menu 6) – 13) Repeat for24, 3, 18, 66, 12, 27, 31,41 2) Clear Registers 14) Input Value 15) Press Exit 3) Clear The List? 16) Press Calc 17) Press Mean

  16. CALC SUM YES Clear Data MEDN ITEM (2)=? 12 ^ ^ ^ 12 ^ INPUT EXIT ITEM (11)=? 19 ITEM (1)=? INPUT INPUT Statistical Calculations What is the median of the following series of numbers? 12, 19, 24, 3, 18, 66, 12, 27, 31, 41,12 Median – the value in the middle when the data are arranged in ascending order. 4) Input Value 5) Input Value 1) Select A Menu 6) – 13) Repeat for24, 3, 18, 66, 12, 27, 31,41 2) Clear Registers 14) Input Value 15) Press Exit 3) Clear The List? 16) Press Calc 17) Press Medn

  17. CALC SUM YES Clear Data MEDN ITEM (2)=? 12 ^ ^ ^ 12 ^ INPUT EXIT ITEM (11)=? 19 ITEM (1)=? INPUT INPUT Statistical Calculations What is the median of the following series of numbers? 3, 12, 12, 12, 18, 19 , 24, 27, 31, 41, 66 Median – the value in the middle when the data are arranged in ascending order. 4) Input Value 5) Input Value 1) Select A Menu 6) – 13) Repeat for24, 3, 18, 66, 12, 27, 31,41 2) Clear Registers 14) Input Value 15) Press Exit 3) Clear The List? 16) Press Calc 17) Press Medn

  18. CALC SUM YES Clear Data MORE ITEM (2)=? 12 ^ ^ ^ 12 ^ INPUT EXIT ITEM (11)=? 19 ITEM (1)=? INPUT INPUT Statistical Calculations What is the mode of the following series of numbers? 12, 19, 24, 3, 18, 66, 12, 27, 31, 41,12 Mode – the data value that occurs with the greatest frequency. 4) Input Value 5) Input Value 1) Select A Menu 6) – 13) Repeat for24, 3, 18, 66, 12, 27, 31,41 2) Clear Registers 14) Input Value 15) Press Exit 3) Clear The List? 16) Press Calc 17) Press More

  19. SORT ITEM (12)=? ^ ITEM (9)=31 ITEM (11)=66 ITEM (10)=41 EXIT Statistical Calculations Mode - continued 18) Press Sort 19) Press Exit 20) Press Scroll 21) Press Scroll 22) Press Scroll 23) Press Scroll 24) – 31) Repeat for27, 24, 19, 18, 12, 12, 12, 3 3, 12, 12, 12, 18, 19, 24, 27, 31, 41, 66

  20. CALC SUM YES Clear Data STDEV ITEM (2)=? 12 ^ ^ ^ 12 ^ INPUT EXIT ITEM (11)=? 19 ITEM (1)=? INPUT INPUT Statistical Calculations What is the standard deviation of the following series of numbers? 12, 19, 24, 3, 18, 66, 12, 27, 31, 41,12 Standard Deviation – the positive square root of the variance 4) Input Value 5) Input Value 1) Select A Menu 6) – 13) Repeat for24, 3, 18, 66, 12, 27, 31,41 2) Clear Registers 14) Input Value 15) Press Exit 3) Clear The List? 16) Press Calc 17) Press Stdev

  21. CALC SUM YES Clear Data STDEV ITEM (2)=? 12 ^ ^ ^ 12 ^ INPUT EXIT ITEM (11)=? 19 ITEM (1)=? INPUT INPUT Statistical Calculations What is the standard deviation of the following series of numbers? 12, 19, 24, 3, 18, 66, 12, 27, 31, 41,12 Standard Deviation – the positive square root of the variance = 17.4497 4) Input Value 5) Input Value 1) Select A Menu 6) – 13) Repeat for24, 3, 18, 66, 12, 27, 31,41 2) Clear Registers 14) Input Value 15) Press Exit 3) Clear The List? 16) Press Calc 17) Press Stdev

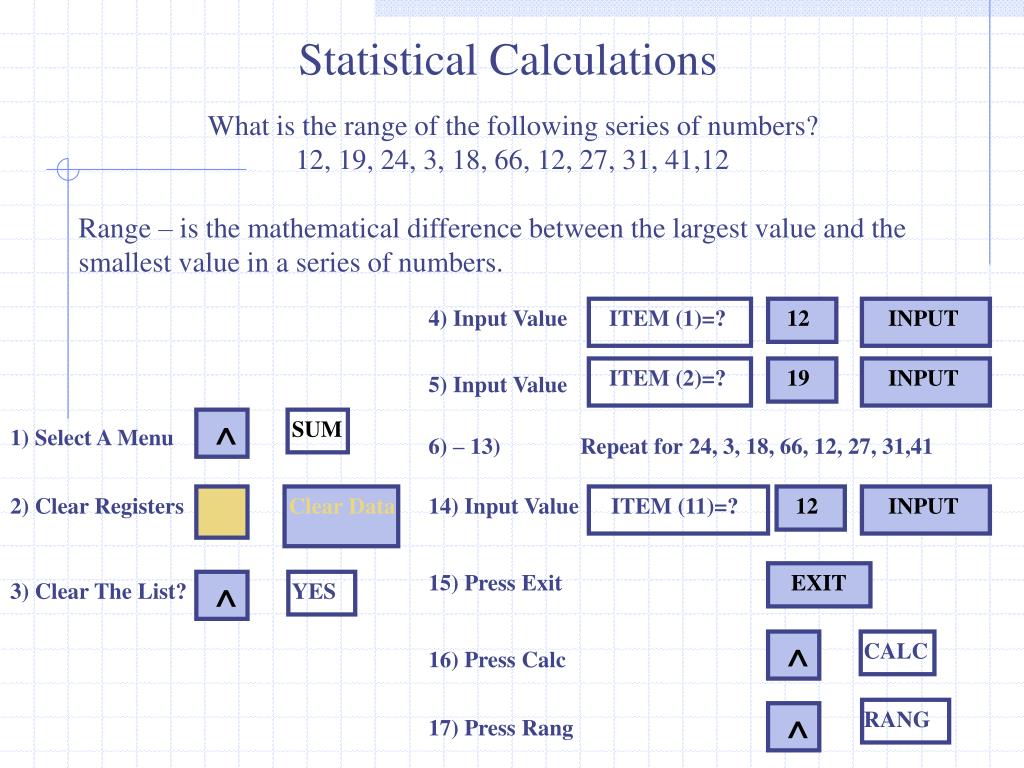

  22. CALC SUM YES Clear Data RANG ITEM (2)=? 12 ^ ^ ^ 12 ^ INPUT EXIT ITEM (11)=? 19 ITEM (1)=? INPUT INPUT Statistical Calculations What is the range of the following series of numbers? 12, 19, 24, 3, 18, 66, 12, 27, 31, 41,12 Range – is the mathematical difference between the largest value and the smallest value in a series of numbers. 4) Input Value 5) Input Value 1) Select A Menu 6) – 13) Repeat for24, 3, 18, 66, 12, 27, 31,41 2) Clear Registers 14) Input Value 15) Press Exit 3) Clear The List? 16) Press Calc 17) Press Rang

  23. CALC SUM YES Clear Data RANG ITEM (2)=? 12 ^ ^ ^ 12 ^ INPUT EXIT ITEM (11)=? 19 ITEM (1)=? INPUT INPUT Statistical Calculations What is the range of the following series of numbers? 3, 12, 12, 12, 18, 19, 24, 27, 31, 41, 66 Range – is the mathematical difference between the largest value and the smallest value in a series of numbers. = 63.0000 4) Input Value 5) Input Value 1) Select A Menu 6) – 13) Repeat for24, 3, 18, 66, 12, 27, 31,41 2) Clear Registers 14) Input Value 15) Press Exit 3) Clear The List? 16) Press Calc 17) Press Rang

  24. MIN SUM YES Clear Data MORE CALC INPUT INPUT ITEM (11)=? ^ ^ ^ 12 ^ ^ ITEM (1)=? 19 12 INPUT ITEM (2)=? EXIT Statistical Calculations What is the minimum value in the following series of numbers? 12, 19, 24, 3, 18, 66, 12, 27, 31, 41,12 Minimum value – is the smallest value in a series of numbers. 4) Input Value 5) Input Value 6) – 13) Repeat for24, 3, 18, 66, 12, 27, 31,41 1) Select A Menu 14) Input Value 2) Clear Registers 15) Press Exit 3) Clear The List? 16) Press Calc 17) Press More 18) Press Min

  25. MIN SUM YES Clear Data MORE CALC INPUT INPUT ITEM (11)=? ^ ^ ^ 12 ^ ^ ITEM (1)=? 19 12 INPUT ITEM (2)=? EXIT Statistical Calculations What is the minimum value in the following series of numbers? 12, 19, 24, 3, 18, 66, 12, 27, 31, 41,12 Minimum value – is the smallest value in a series of numbers. = 3 4) Input Value 5) Input Value 6) – 13) Repeat for24, 3, 18, 66, 12, 27, 31,41 1) Select A Menu 14) Input Value 2) Clear Registers 15) Press Exit 3) Clear The List? 16) Press Calc 17) Press More 18) Press Min

  26. MAX SUM YES Clear Data MORE CALC INPUT INPUT ITEM (11)=? ^ ^ ^ 12 ^ ^ ITEM (1)=? 19 12 INPUT ITEM (2)=? EXIT Statistical Calculations What is the maximum value in the following series of numbers? 12, 19, 24, 3, 18, 66, 12, 27, 31, 41,12 Maximum value – is the largest value in a series of numbers. 4) Input Value 5) Input Value 6) – 13) Repeat for24, 3, 18, 66, 12, 27, 31,41 1) Select A Menu 14) Input Value 2) Clear Registers 15) Press Exit 3) Clear The List? 16) Press Calc 17) Press More 18) Press Max

  27. MAX SUM YES Clear Data MORE CALC INPUT INPUT ITEM (11)=? ^ ^ ^ 12 ^ ^ ITEM (1)=? 19 12 INPUT ITEM (2)=? EXIT Statistical Calculations What is the maximum value in the following series of numbers? 12, 19, 24, 3, 18, 66, 12, 27, 31, 41,12 Maximum value – is the largest value in a series of numbers. = 66 4) Input Value 5) Input Value 6) – 13) Repeat for24, 3, 18, 66, 12, 27, 31,41 1) Select A Menu 14) Input Value 2) Clear Registers 15) Press Exit 3) Clear The List? 16) Press Calc 17) Press More 18) Press Max

  28. CALC SUM YES Clear Data MORE 12 12 ^ ^ ^ ITEM (2)=? ^ INPUT EXIT ITEM (1)=? INPUT 19 ITEM (11)=? INPUT Statistical Calculations How do I sort this series of numbers? 12, 19, 24, 3, 18, 66, 12, 27, 31, 41,12 4) Input Value 5) Input Value 1) Select A Menu 6) – 13) Repeat for24, 3, 18, 66, 12, 27, 31,41 2) Clear Registers 14) Input Value 15) Press Exit 3) Clear The List? 16) Press Calc 17) Press More

  29. SORT ITEM (12)=? ^ ITEM (9)=31 ITEM (11)=66 ITEM (10)=41 EXIT Statistical Calculations Sort - continued 18) Press Sort 19) Press Exit 20) Press Scroll 21) Press Scroll 22) Press Scroll 23) Press Scroll 24) – 31) Repeat for27, 24, 19, 18, 12, 12, 12, 3 3, 12, 12, 12, 18, 19, 24, 27, 31, 41, 66

  30. FIN BUS SUM TIME SOLVE TEXT Financial Calculator Fundamentals The Menu System CALC EDIT DELETE NEW

  31. WXYZ F SOLVE RSTUV E OTHER FGHI : ABCDE NEW T ^ ^ ^ ^ ^ ^ ^ ^ ^ ^ ^ Using Equation Solver How do I program the calculator to convert Centigrade Temperatures to Fahrenheit? Formula: Fahrenheit Temp = Centigrade Temp X 9 / 5 + 32 5) Select “E” 6) Type “E” 7) – 13) Repeat forM, P, C, O, N, V 1) Select A Menu 14) Type “:” 2) Select New 15) Select “F” 3) Select “T” 16) Type “F” 4) Type “T”

  32. ABCDE E A C ABCDE ABCDE 9 ^ INPUT 32 ^ = + ^ ^ ^ ^ 5 X  CALC Using Equation Solver Solver - continued 28) Press “X” 17) Select “A” 29) Press “9” 18) Type “A” 30) Press “” 19) – 20) Repeat forH, R 21) Press “=” 31) Press “5” 22) Select “C” 32) Press “+” 23) Type “C” 33) Press “32” 24) Select “E” 34) Press Input 25) Type “E” 35) Press Calc 26) – 27) Repeat forN, T

  33. CENT FAHR FAHR CENT ^ ^ 0 ^ ^ 98.6 36) Type “0” Cent 37) Select Fahr 38) Type “98.6” Fahr 39) Select Cent
