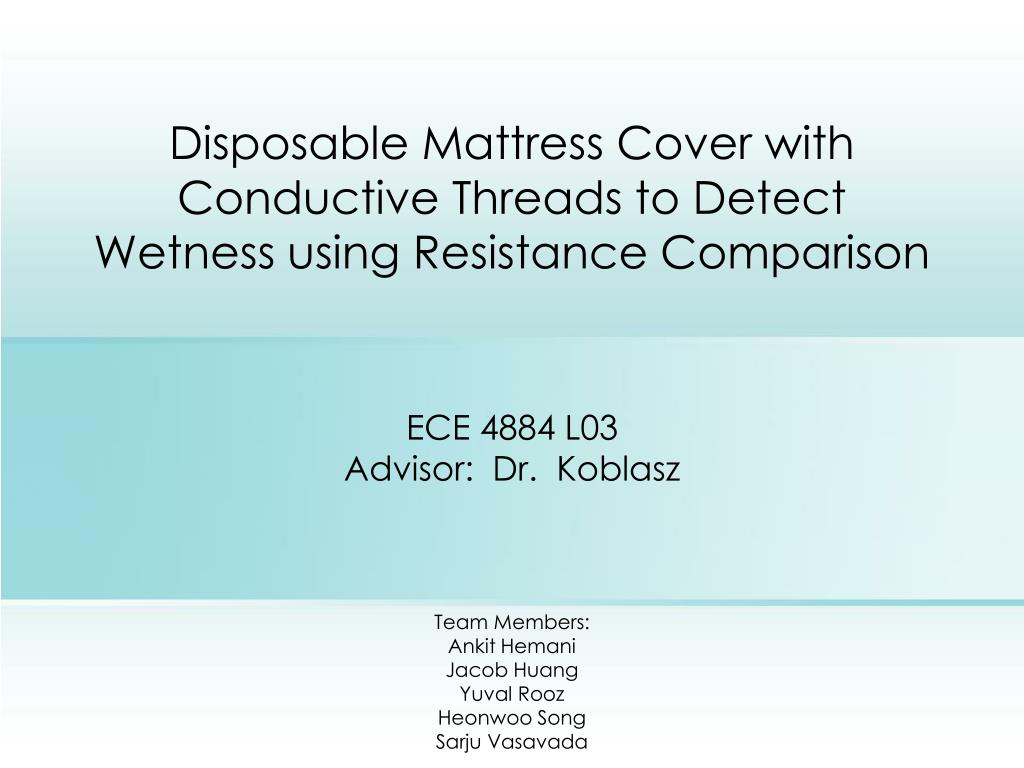

ECE 4884 L03

Advisor: Dr. Koblasz

Disposable Mattress Cover with Conductive Threads to Detect Wetness using Resistance Comparison

Team Members:

Ankit Hemani

Jacob Huang

Yuval Rooz

Heonwoo Song

Sarju Vasavada

slide2

Motivation

  • 2 million cases of nosocomial (hospital-acquired) infections annually (CDC)
  • Wet bedsheets increase risk of infection
design objectives
Design Objectives
  • Use biodegradable plastic and paper
  • Stitching conductive threads on the paper to detect wetness
  • Design a detection unit
  • Detect a break in the circuit
  • Detect wetness
  • Isolate electrical circuitry from patient
layout of mattress cover on hospital bed
Layout Of Mattress Cover On Hospital Bed

Source: http://www.ponsishoes.com/products.asp

mattress cover construction
Mattress Cover Construction
  • Plastic attached to paper using adhesive
  • Plastic on the bottom side, paper on the top
conductive thread stitching
Conductive Thread Stitching
  • Conductive threads laid out on paper in two loops, of 40 ft each
  • Regular threads used to stitch conductive threads on paper
power supply

12V AC/DC Adapter

+ Transformer

Fuse

9V Regulator

Power Supply
  • Transformer and fuse used to protect against voltage spikes
detection unit
Detection Unit

Continuity

detection

Opto-isolator

Output

Reading from

mattress cover

Wetness

detection

communication between pad and detection unit
Communication between Pad and Detection Unit
  • Plastic clip
  • Four metal pads contact the conductive loop on sheet
  • Wires soldered to pads connect the clip to the detection unit
current status
Current Status
  • Stitched a paper bedsheet (has discontinuities)
  • Tested unit with a cotton bedsheet
  • Stitched a (non-working) paper bedsheet
  • Built detection unit
  • Designed a prototype connector
steps for marketable product
Steps for Marketable Product
  • Include clip in connector
  • Casing for detection unit
  • Investigate cheaper conductive threads
  • Implement with full-size hospital bedsheet nor biodegradable polyethylene
  • Optimize resistances in detection unit
slide15

Video

  • If time allows, video of a project demonstration
