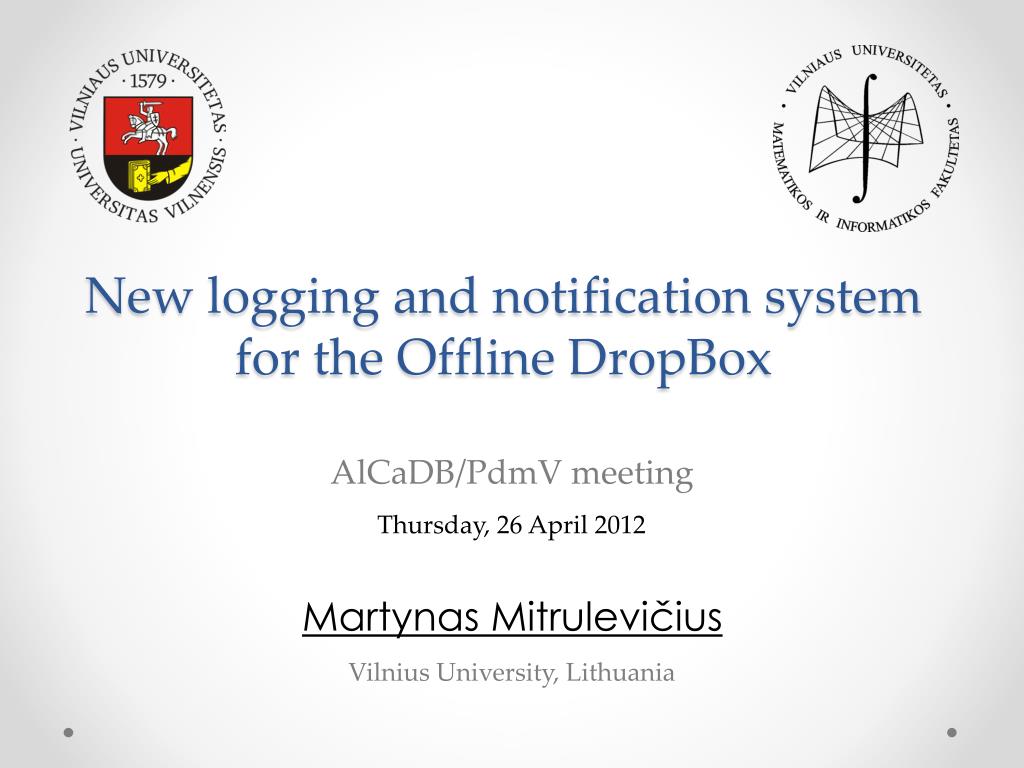

  1. New logging and notification system for the Offline DropBox AlCaDB/PdmVmeeting Thursday, 26 April 2012 MartynasMitrulevičius Vilnius University, Lithuania

  2. Outline • What is Offline DropBox • Motivation • Internship goals • Authentication • SQLite upload • Meta data upload • Meta data structure • Upload workflow • Upload script • Offline DropBox DB schema • Online DropBox DB schema • Workflowin Online DropBox • References Martynas Mitrulevičius

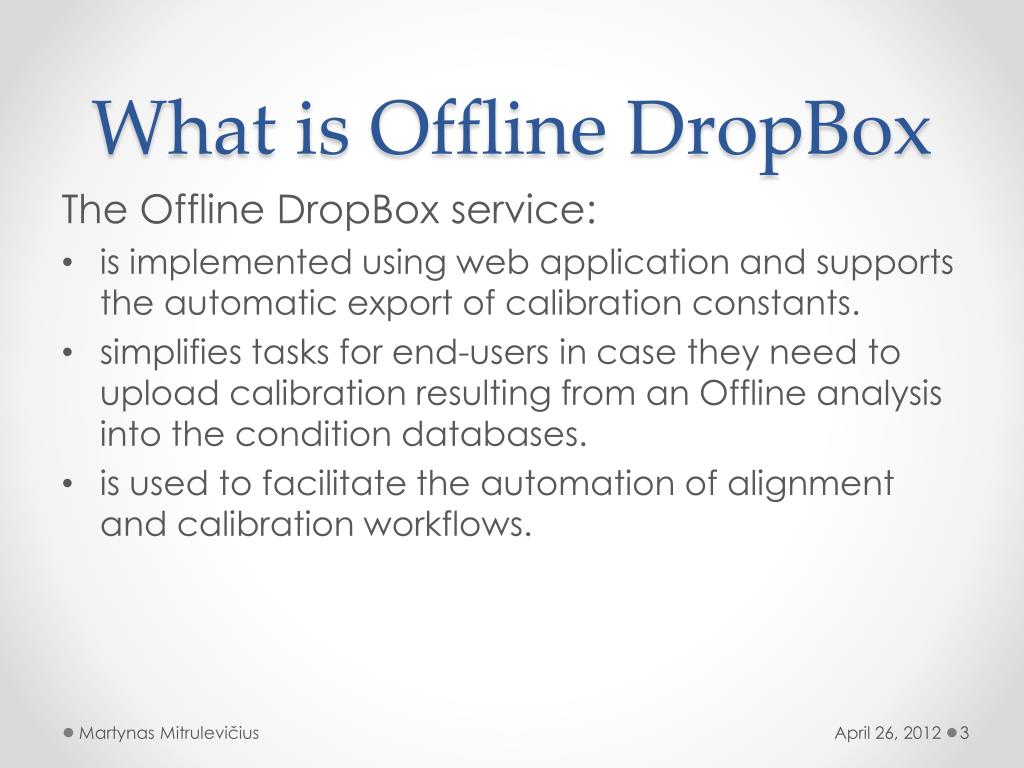

  3. What is Offline DropBox The Offline DropBox service: • is implemented using web application and supports the automaticexport of calibration constants. • simplifies tasksfor end-users in case they need to upload calibration resulting from an Offline analysis intothe condition databases. • is used to facilitate the automation ofalignment and calibration workflows. Martynas Mitrulevičius

  4. Motivation • The current application is working reliably and smoothly, allowing for calibration constants to be exported into production DB, but some consolidation from the development and the operation team is needed, and some features were also requested by end-users • In the Offline part of the DropBox the notification system for the exportation of calibration constants is not implemented. • In the online process, only the logging coming from the CMS Framework libraries (known as PopCon monitoring) is implemented. • Tails of the log file are exported for checking by experts • http://cms-conddb.cern.ch/popcon Martynas Mitrulevičius

  5. Internship goals • Getacquainted to technologiesand frameworks used at CERN andinthe CMS experiment. • Create PdmV database. • Create Offline DropBox server with new logging and notification system. • Create a Web pageallowing for calibration dataset upload. • Create CLI for the automatic exportation of calibration constants. Martynas Mitrulevičius

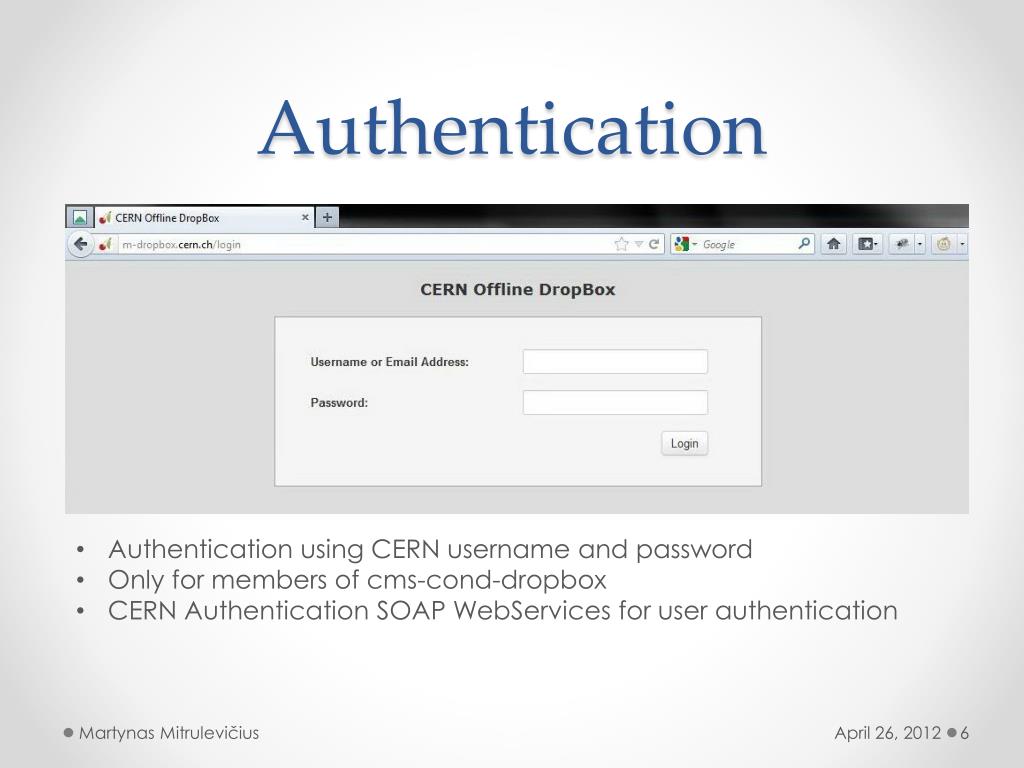

  6. Authentication • Authentication using CERN username and password • Only for members of cms-cond-dropbox • CERN Authentication SOAP WebServices for user authentication Martynas Mitrulevičius

  7. SQLite upload • Necessary tables in SQLite file: • ORA_DB • ORA_NAMING_SERVICE • ORA_C_COND_IOVSEQUENCE • ORA_C_COND_IOVSEQU_A0 Martynas Mitrulevičius

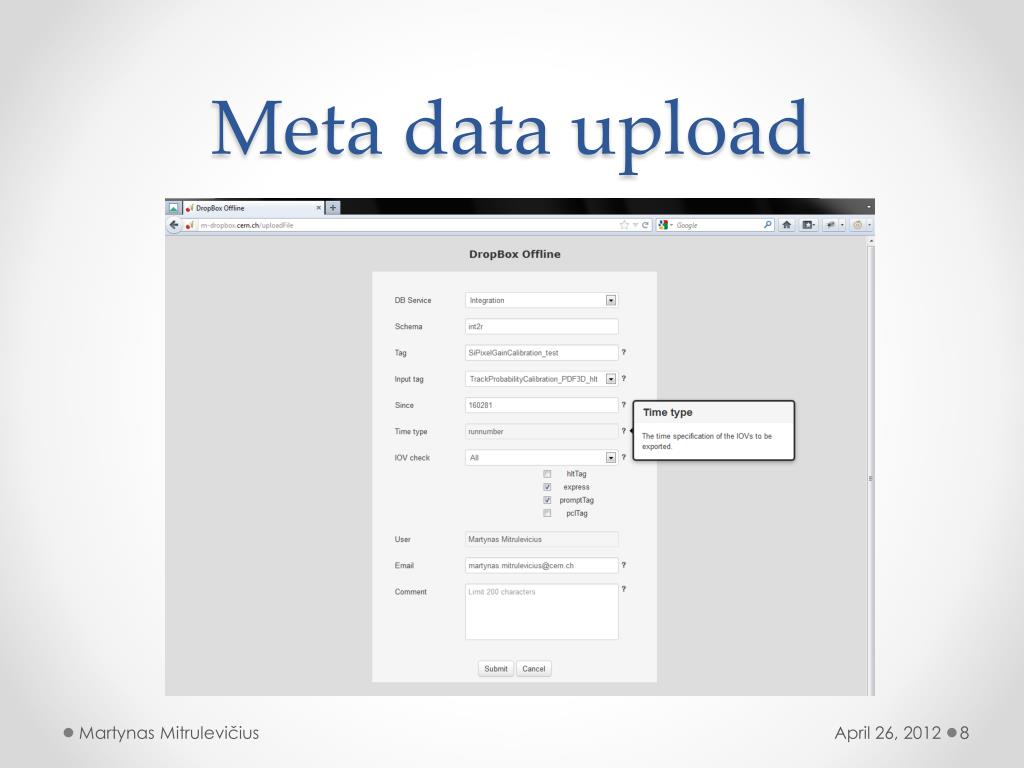

  8. Meta data upload Martynas Mitrulevičius

  9. Meta data structure destDBconnectionstring tagtagname inputtaginputtagname sincebegin TimetypetimeSpec IOVCheckchecker DuplicateTagHLThltTag DuplicateTagEXPRESSexpressTagDuplicateTagPROMPTpromptTag DuplicateTagPCLpclTag usertextuserlog checksum sqlitechecksum username user Martynas Mitrulevičius

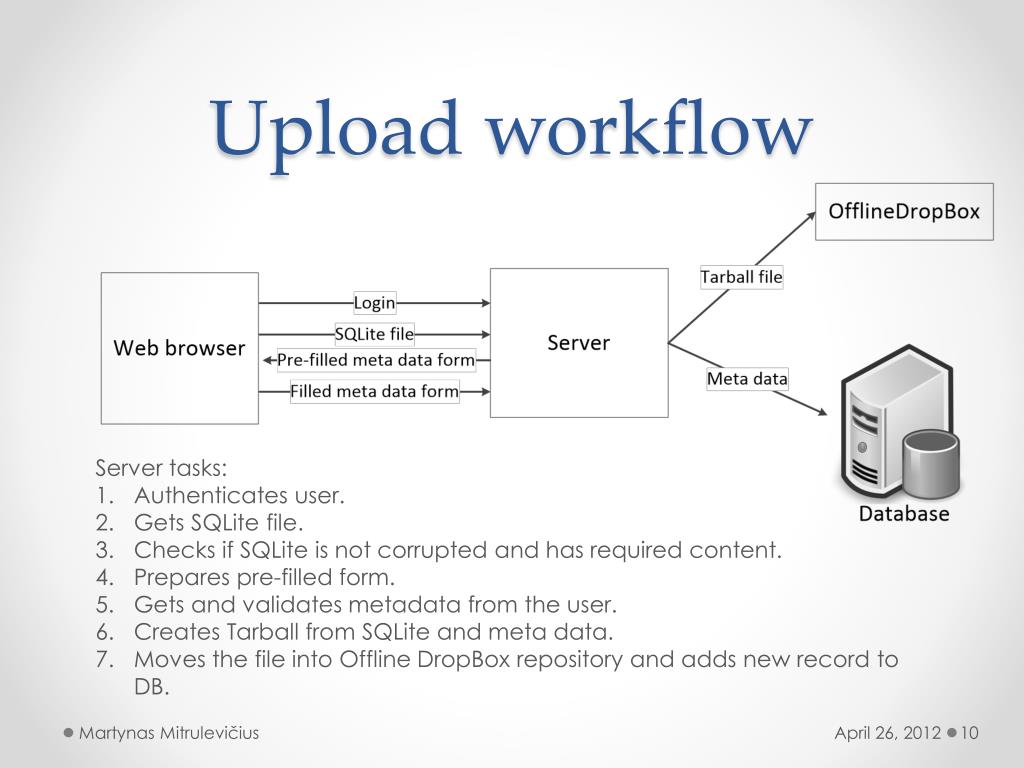

  10. Upload workflow Server tasks: Authenticates user. Gets SQLite file. Checks if SQLite is not corrupted and has required content. Prepares pre-filled form. Gets and validates metadata from the user. Creates Tarball from SQLite and meta data. Movesthe file into Offline DropBox repository and adds new record to DB. Martynas Mitrulevičius

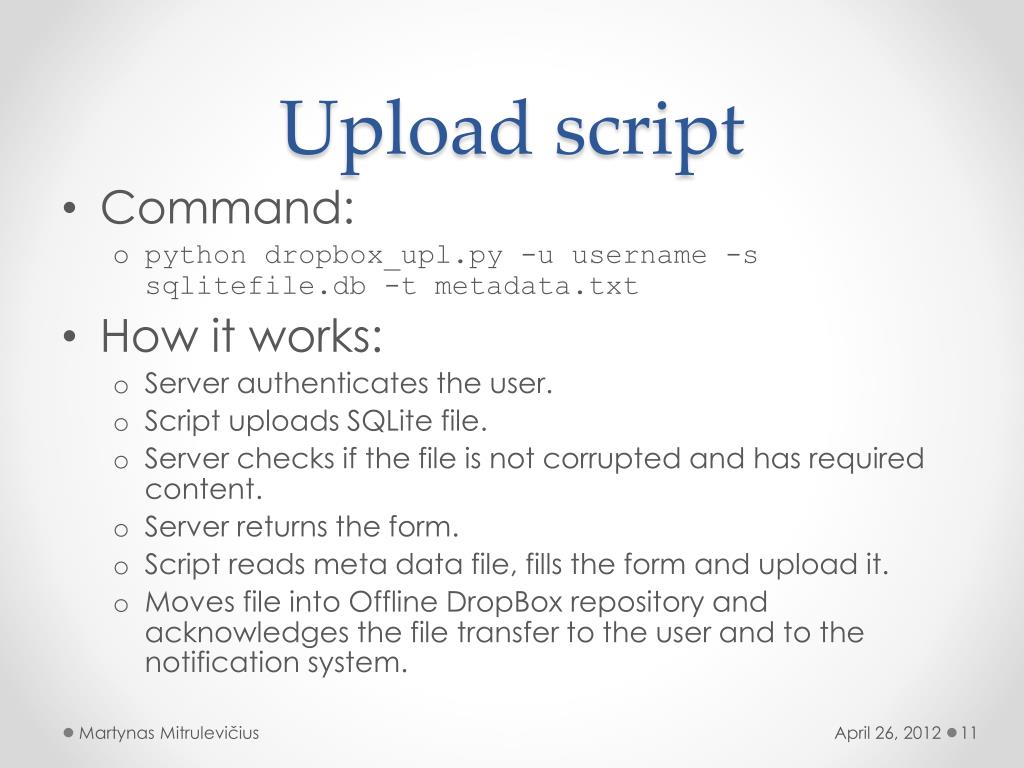

  11. Upload script • Command: • python dropbox_upl.py -u username -s sqlitefile.db -t metadata.txt • How it works: • Server authenticatestheuser. • Script uploads SQLite file. • Server checks if the file is not corrupted and has required content. • Server returns the form. • Script reads meta data file, fills the form and upload it. • Moves file into Offline DropBox repository andacknowledges the file transfer to the user and to thenotification system. Martynas Mitrulevičius

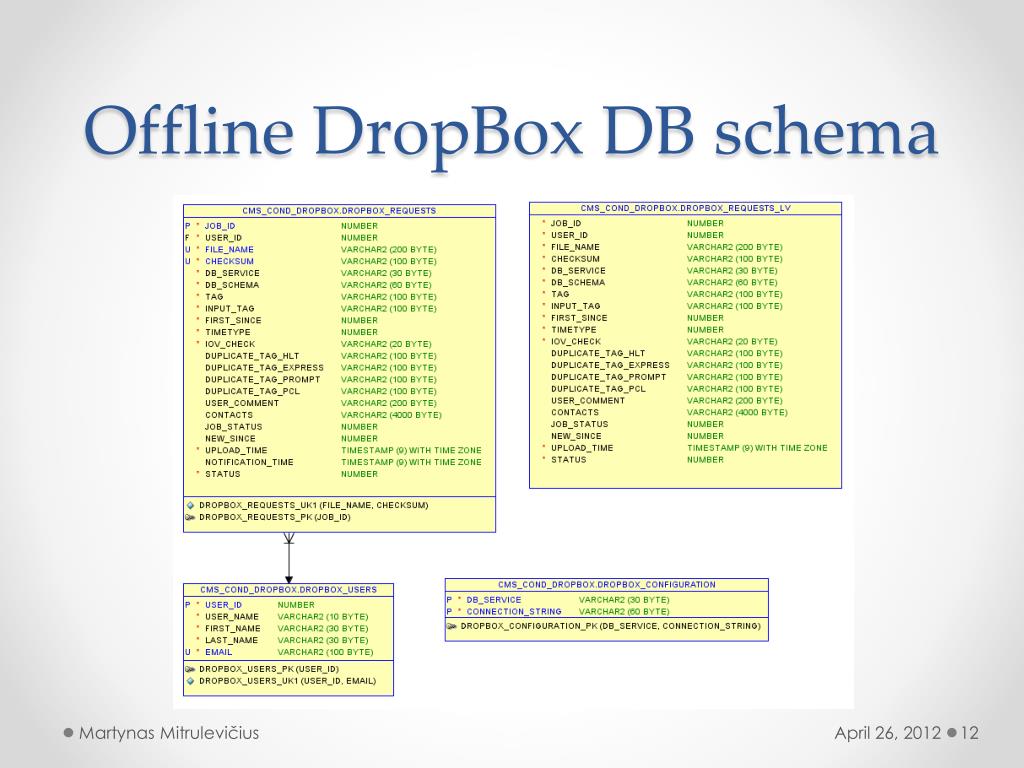

  12. Offline DropBox DB schema Martynas Mitrulevičius

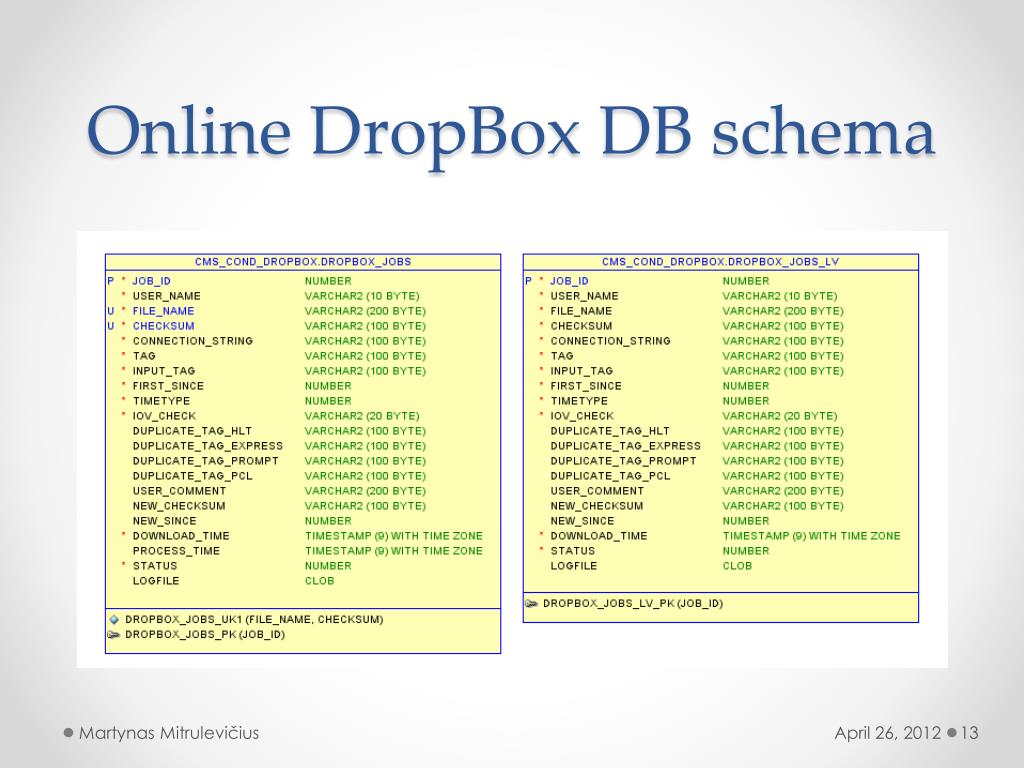

  13. Online DropBox DB schema Martynas Mitrulevičius

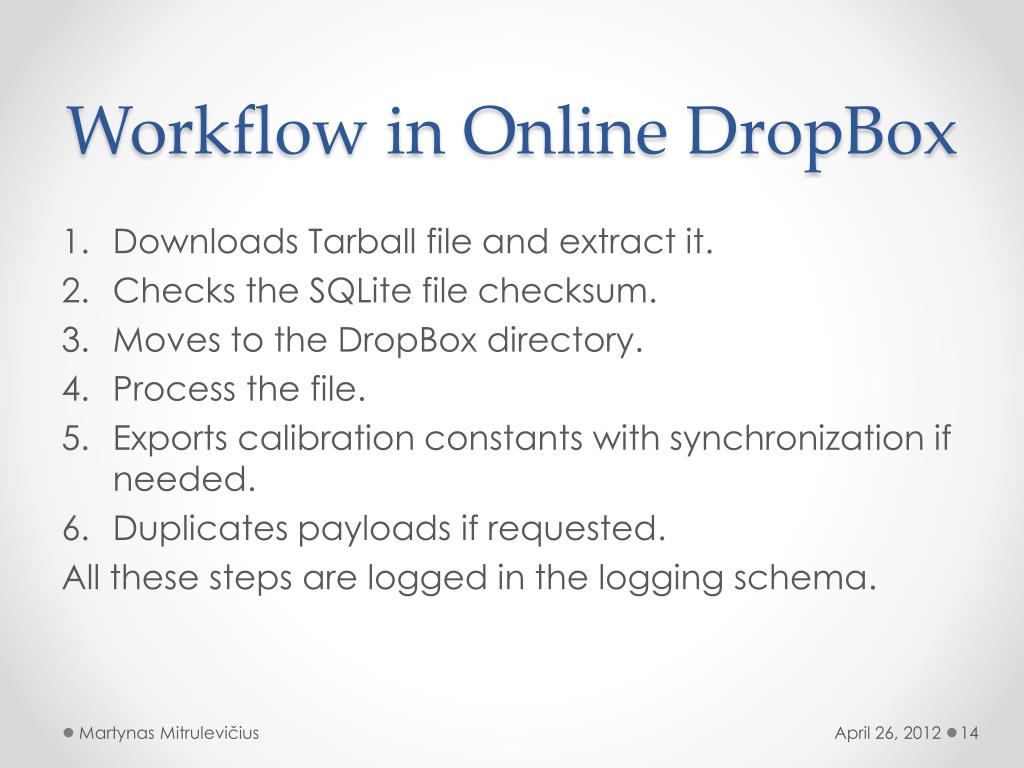

  14. Workflow in Online DropBox • Downloads Tarball file and extract it. • Checks the SQLite file checksum. • Moves to the DropBox directory. • Process the file. • Exports calibration constants with synchronization if needed. • Duplicates payloads if requested. All these steps are logged in the logging schema. Martynas Mitrulevičius

  15. References • Upload file: • http://m-dropbox.cern.ch/uploadSQLiteFile • Get tarball list: • http://m-dropbox.cern.ch/getTarList • Get tarball file: • http://m-dropbox.cern.ch/getTarFile?file=FILENAME • Project files: • https://svnweb.cern.ch/cern/wsvn/cmsconddbweb/OfflineDropBox • Documentation: • https://twiki.cern.ch/twiki/bin/edit/CMS/OfflineDropBox Martynas Mitrulevičius

  16. Thank you Martynas Mitrulevičius
