  1. Increasing Concurrency in Databases using Program Analysis Roman Vitenberg, Kristian Kvilekval and Ambuj Singh University of California, Santa Barbara Ecoop June 15-18 Oslo, Norway

  2. Outline • Motivation • Shape graphs and prediction • Predictive scheduler optimizations • Results • Conclusions Ecoop June 15-18 Oslo, Norway

  3. Transactional Schedulers • Most fundamental problem of concurrency control [Pap86][BHG87]… • Little has been done on predictive schedulers • Difficult to extract future usage • Difficult to use it (Optimal Scheduling NP-complete) Ecoop June 15-18 Oslo, Norway

  4. Program analysis for better concurrency • OODB’s increasingly integrated (JDO) • Shape analysis makes predicting data accesses more feasible • Transactional code is known in advance • Rich type structure available to analysis • Enhance schedulers with specific optimizations based on the extracted info • Deadlock handling, early lock release, adaptive preclaiming Ecoop June 15-18 Oslo, Norway

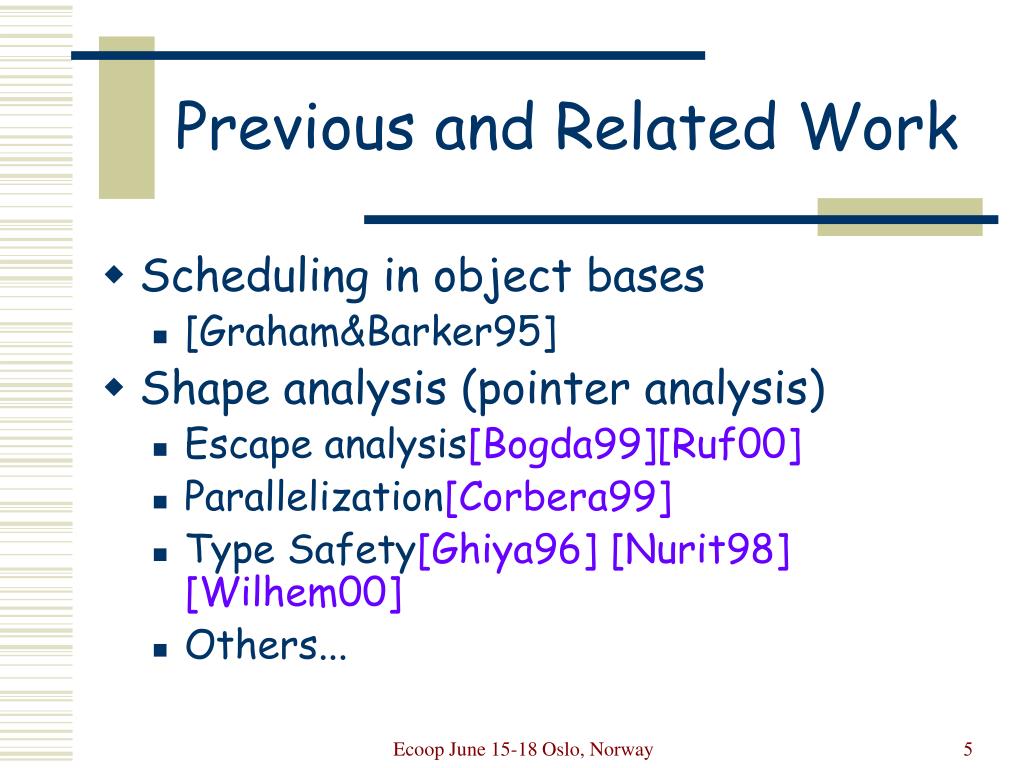

  5. Previous and Related Work • Scheduling in object bases • [Graham&Barker95] • Shape analysis (pointer analysis) • Escape analysis[Bogda99][Ruf00] • Parallelization[Corbera99] • Type Safety[Ghiya96] [Nurit98] [Wilhem00] • Others... Ecoop June 15-18 Oslo, Norway

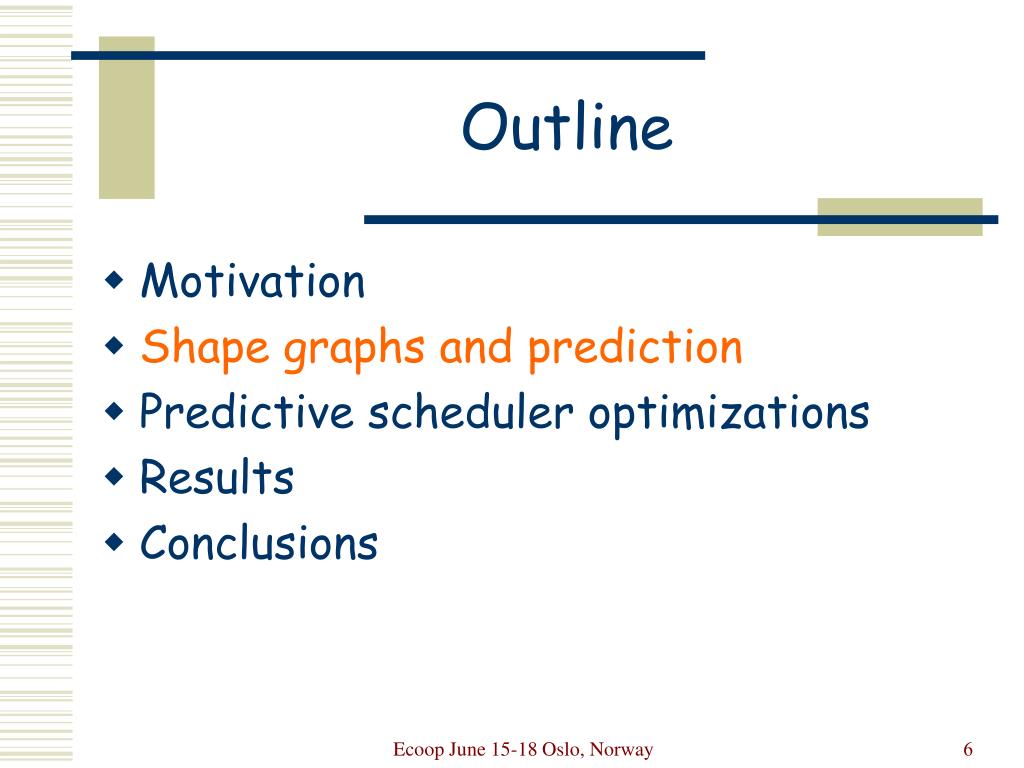

  6. Outline • Motivation • Shape graphs and prediction • Predictive scheduler optimizations • Results • Conclusions Ecoop June 15-18 Oslo, Norway

  7. Overview of Prediction • Predict locking based on program code • Extract program summary in shape graph • Provide runtime system with future accesses • Advantages • Facilitates integration OODB • Supports complex pointer-based structures • Automatically derived from source code Ecoop June 15-18 Oslo, Norway

  8. part part connector right material Example shape classConnector{ Part a,b; } class Part { Connector left,right,up,down; Material m Supplier s; … int volume(); } weight=0; while (part) { weight+=(part.material.density *part.volume()); part=part.right.b; } Ecoop June 15-18 Oslo, Norway

  9. Basic Shape Analysis • Graph • Abstract locations (heap cells) • Edges labeled with with field names • Abstract interpretation • Extend graph through field references • Combine graphs when heap location is shared • Merge shapes bottom up through static call graph Ecoop June 15-18 Oslo, Norway

  10. Predicting with shape graphs • Compile Time • Generate shapes for method references • Self, arguments, and global variables • Label shape edges with earliest access • Annotate programs to pass visible references and shapes to transaction scheduler • Runtime • Interpret shape graph on the actual object graph generating expected object set Ecoop June 15-18 Oslo, Norway

  11. Predicting with Shape Graphs Object Graph N:5 a1 N N o1:0 o4:5 o6:10 J:10 F:10 F J J o2:10 o5:15 a2 a4 K G:5 K:10 o3:20 a3 a5 Shape Graph (o1,a1) » (o4,a1) » (o2,a2) » (o6,a1) » (o5,a4) » (o3,a5) Ecoop June 15-18 Oslo, Norway

  12. Outline • Motivation • Shape graphs and prediction • Predictive scheduler optimizations • Results • Conclusions Ecoop June 15-18 Oslo, Norway

  13. Deadlock Handling: Background • Deadlock detection • Wait-for-graph (WFG) • Nodes are active transactions • Edge (ti,tj) indicates that ti waits for tj to release a lock • Maintaining throughout execution is expensive • Deadlock prevention • Heuristic-based techniques (wound-wait) • Cheaper but causing unnecessary transaction aborts • Resource allocation graph (infeasible w/o future knowledge) Ecoop June 15-18 Oslo, Norway

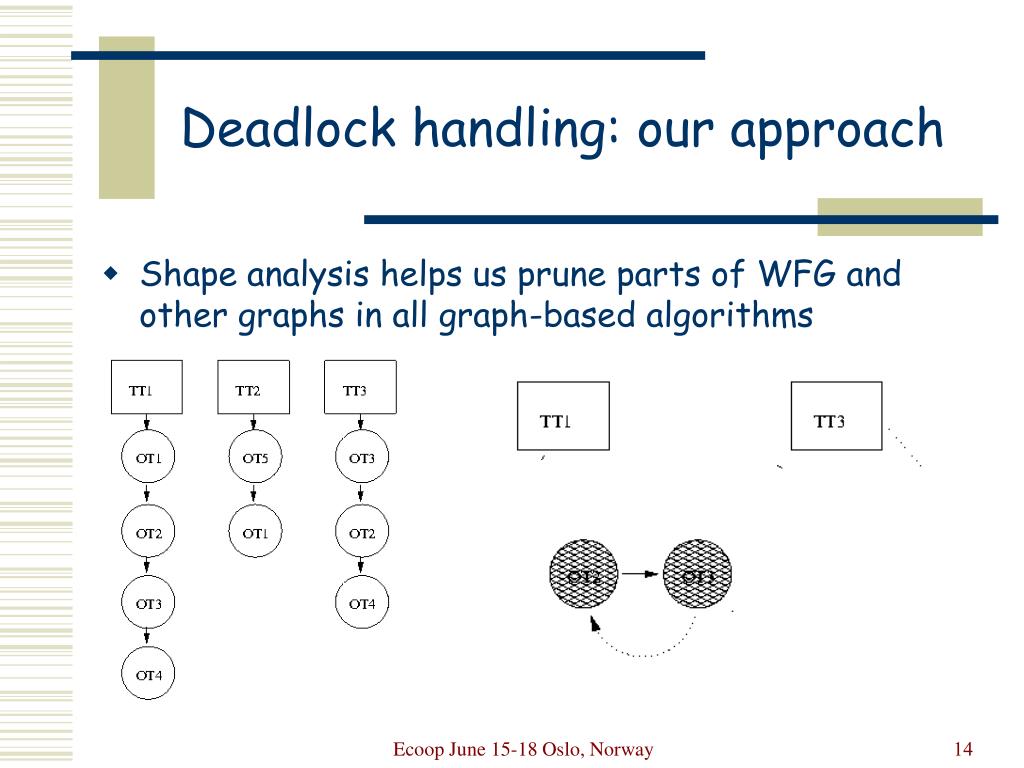

  14. Deadlock handling: our approach • Shape analysis helps us prune parts of WFG and other graphs in all graph-based algorithms Ecoop June 15-18 Oslo, Norway

  15. Early lock release: background • Strict 2PL: all locks are held till the end of transaction • Non-strict 2PL: read locks are released after the last access to the object • Non-strict allows greater concurrency but • Difficult to determine the last access • Allows non-serializable execution Ecoop June 15-18 Oslo, Norway

  16. Early lock release: non-searializable execution T1 : Acq(o1) T2: read(o1) Rel (o1) Acq(o1) write(o1) Acq(o2) write(o2) Rel(o1,o2) Acq(o2) read(o2) Rel(o2) Ecoop June 15-18 Oslo, Norway

  17. Early lock release: our approach • Estimate the last access to an object in order to release early • Causality-aware scheduler • T1 causally precedes T2 (T1c T2) if either • T2 is initiated after T1 by the same client, or • T2 acquires a lock that T1 has released, or • There is T3 such that T1c T3 and T3c T2 • If T1c T2 the scheduler blocks T2.A(O) if T1 may access O in the future. Ecoop June 15-18 Oslo, Norway

  18. Early lock release: Causality-aware scheduling T1 : Acq(o1) T2: read(o1) Rel (o1) Acq(o1) write(o1) Acq(o2) <- Blocks write(o2) Rel(o1,o2) Acq(o2) read(o2) Rel(o2) Ecoop June 15-18 Oslo, Norway

  19. Lock preclaiming: background • Standard 2PL acquires locks gradually • Conservative 2PL preclaims all the locks • Fewer aborts upon high contention & long transactions • Shorter wait-for chains T1.A(O2) T2.A(O1)T2.A(O2) T3.A(O1) • Requires apriori knowledge of locks Ecoop June 15-18 Oslo, Norway

  20. Lock preclaiming: our approach • Predict the set of objects to be preclaimed automatically • Adaptive hybrid schemes • Preclaim when expected contention level is high across executing transactions • Preclaim locks only for short transaction Ecoop June 15-18 Oslo, Norway

  21. Outline • Motivation • Shape graphs and prediction • Predictive scheduler optimizations • Results • Conclusions Ecoop June 15-18 Oslo, Norway

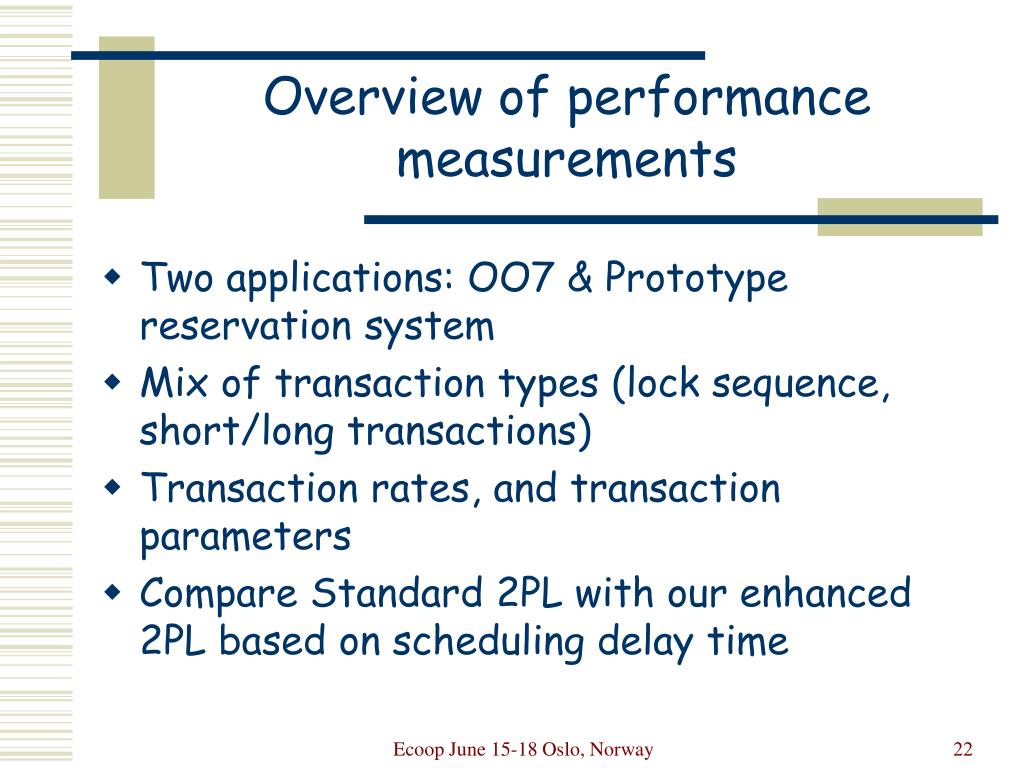

  22. Overview of performance measurements • Two applications: OO7 & Prototype reservation system • Mix of transaction types (lock sequence, short/long transactions) • Transaction rates, and transaction parameters • Compare Standard 2PL with our enhanced 2PL based on scheduling delay time Ecoop June 15-18 Oslo, Norway

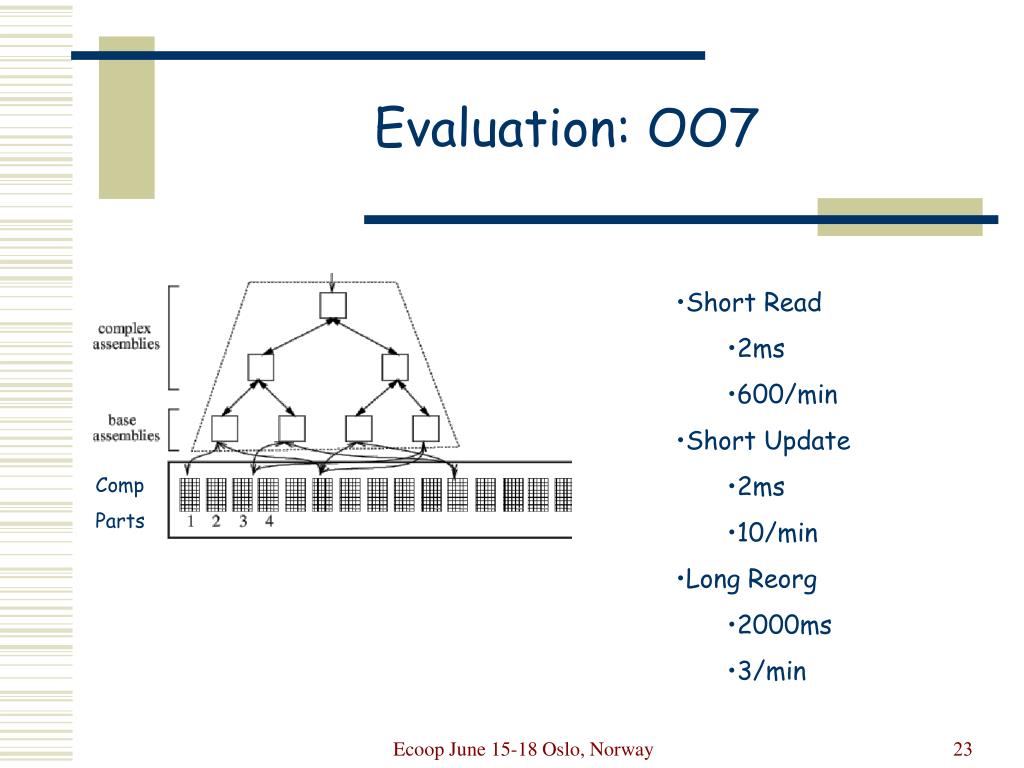

  23. Evaluation: OO7 • Short Read • 2ms • 600/min • Short Update • 2ms • 10/min • Long Reorg • 2000ms • 3/min Comp Parts Ecoop June 15-18 Oslo, Norway

  24. OO7 Results Relative delay by scheduler Ecoop June 15-18 Oslo, Norway

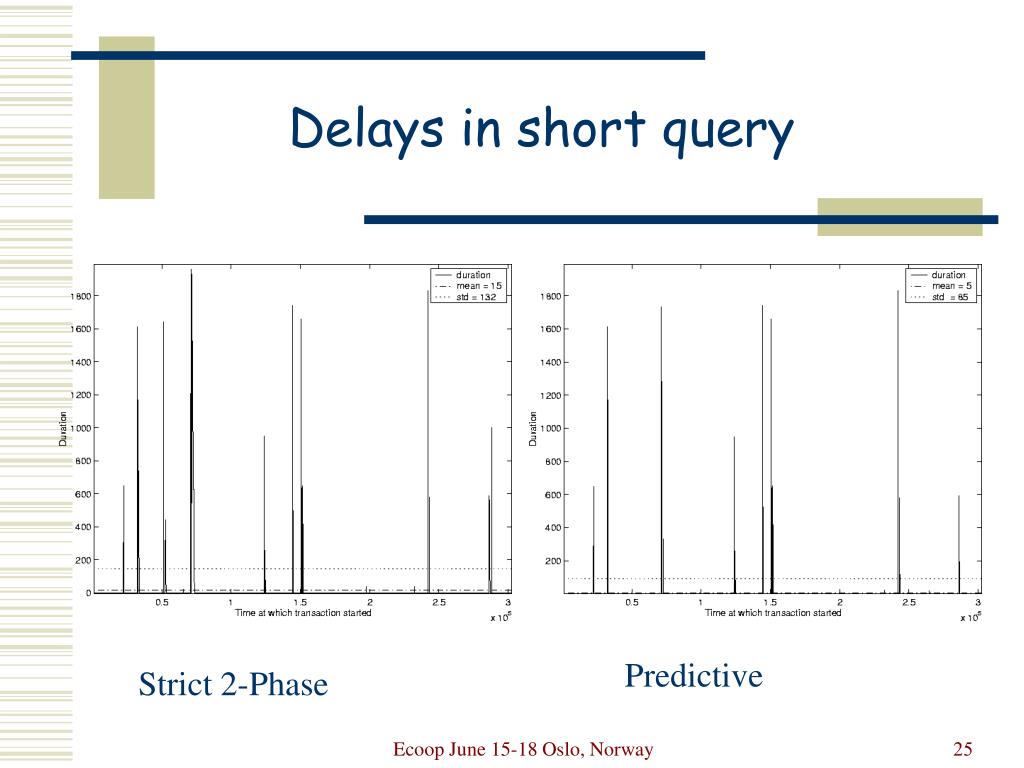

  25. Delays in short query Predictive Strict 2-Phase Ecoop June 15-18 Oslo, Norway

  26. Conclusions & future directions • Runtime use of shape graph can generate object use prediction (even without prior statistics) • Transaction scheduler improved by • Better deadlock handling (smaller WFG) • Early read lock release • Lock preclaiming • Future: lease prediction Ecoop June 15-18 Oslo, Norway

  27. End Questions? Ecoop June 15-18 Oslo, Norway

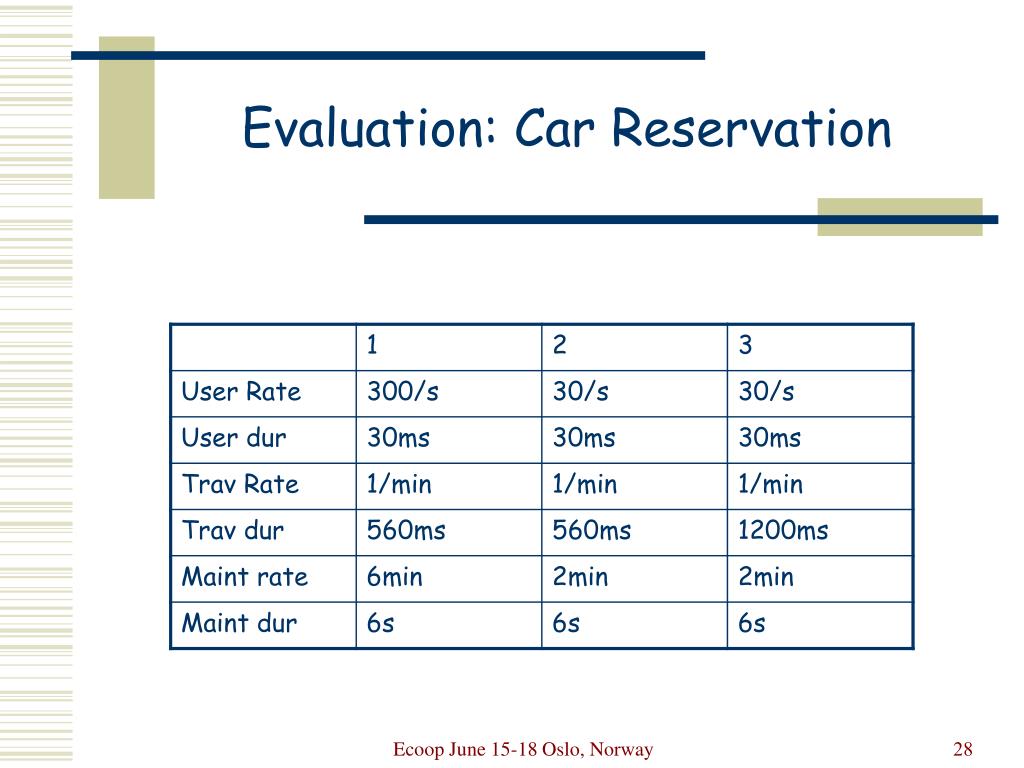

  28. Evaluation: Car Reservation Ecoop June 15-18 Oslo, Norway

  29. 3423 Evaluation: car reservation Query Traversal Starved Starved Ecoop June 15-18 Oslo, Norway

  30. Construction of Shape Graphs x Ecoop June 15-18 Oslo, Norway

  31. Construction of Shape Graphs x.f = s; F Ecoop June 15-18 Oslo, Norway

  32. Construction of Shape Graphs x.f = s; t = x.f.g; F G Ecoop June 15-18 Oslo, Norway

  33. Construction of Shape Graphs x.f = s; x.f.g = t; x = x.n; N F ? G Ecoop June 15-18 Oslo, Norway

  34. N F G Construction of Shape Graphs x.f = s; x.f.g = t; if (x != null) x = x.n; Ecoop June 15-18 Oslo, Norway

  35. N F J F G K Combining Shape Graphs x = y; Ecoop June 15-18 Oslo, Norway

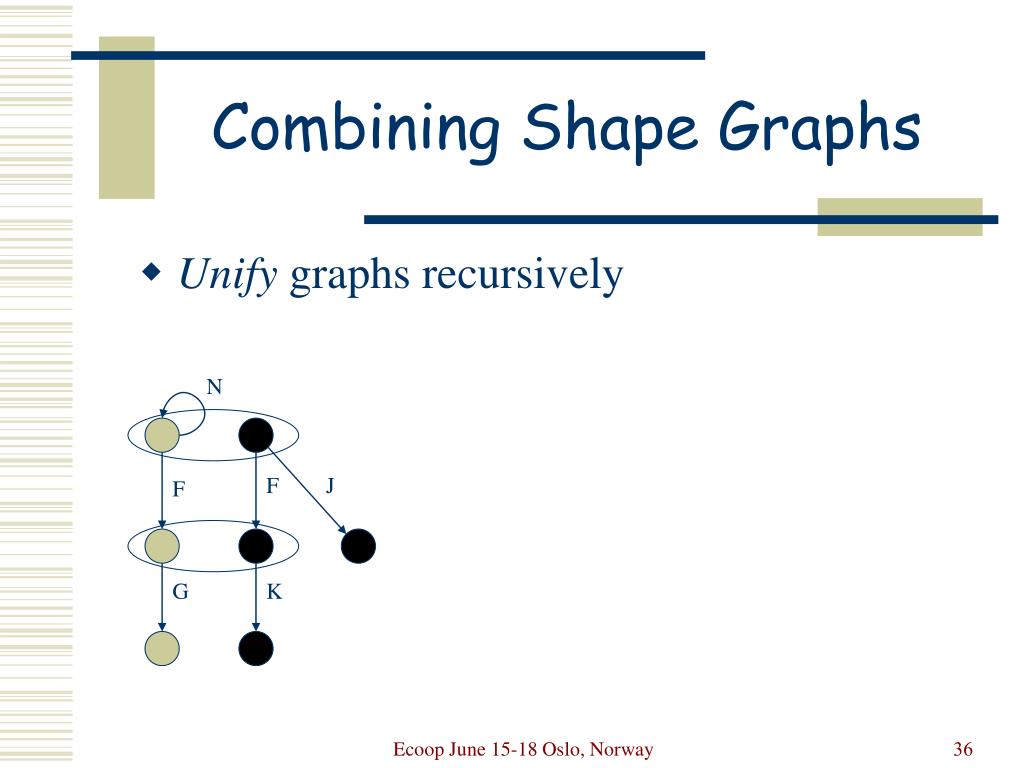

  36. N F J F G K Combining Shape Graphs • Unify graphs recursively Ecoop June 15-18 Oslo, Norway

  37. N F J F G K Unification of Shape Graphs • Unify graphs recursively N F J G K Ecoop June 15-18 Oslo, Norway

  38. Shape Analysis Algorithm •  methods Interpret basic blocks • Create shapes for basic blocks • Run until fixed-point is reached • Propagate in static callgraph Ecoop June 15-18 Oslo, Norway

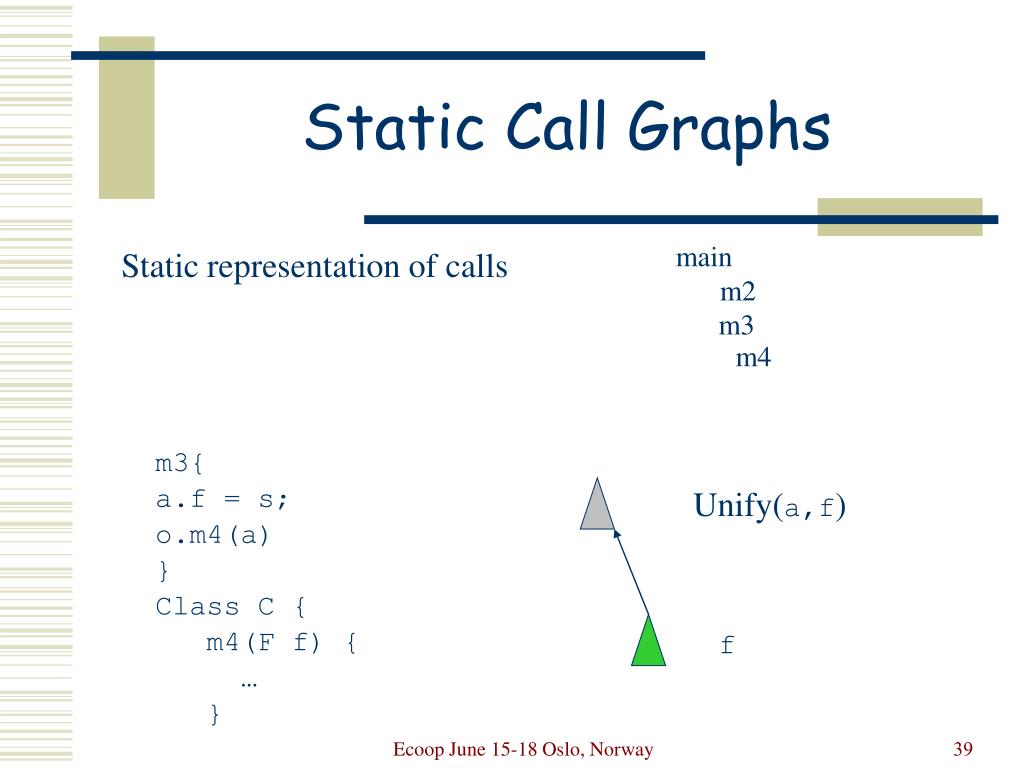

  39. Static Call Graphs main Static representation of calls m2 m3 m4 m3{ a.f = s; o.m4(a) } Class C { m4(F f) { … } Unify(a,f) f Ecoop June 15-18 Oslo, Norway

  40. Call Graphs m1 • Propagate bottom up • Merge polymorphic calls • Recursive Calls • Fixed point • Merge SCC[Ruf00] m2 B.m4 m3 m4 D1.m4 D2.m4 m1 m2 m1 Ecoop June 15-18 Oslo, Norway

  41. Overview of scheduler enhancements • Better Deadlock handling • Smaller WFG based on type information • Conservative Resource Allocation Graph • Early Lock Release • Read locks released after last use • Lock Preclaiming • Better throughput in high contention Ecoop June 15-18 Oslo, Norway
