Presentation Transcript
slide1

Biometrics4U

ELSYS Corp. presents a new Research&Development:

Vestibular-Emotional Reflex

or

VibraImage technology discovers Physiology of Movements

physiology of movements

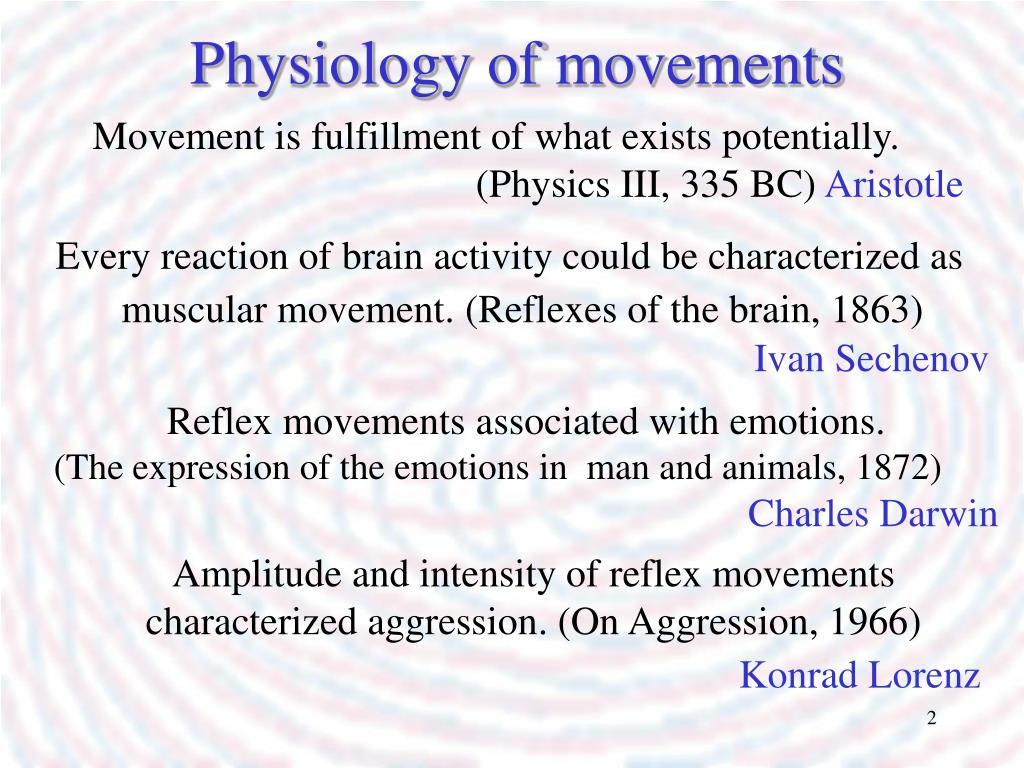

Physiology of movements

Movement is fulfillment of what exists potentially.

(Physics III, 335 BC) Aristotle

Every reaction of brain activity could be characterized as

muscular movement.(Reflexes of the brain, 1863)

Ivan Sechenov

Reflex movements associated with emotions.

(The expression of the emotions in man and animals, 1872)

Charles Darwin

Amplitude and intensity of reflex movements

characterized aggression. (On Aggression, 1966)

Konrad Lorenz

vestibular reflexes and tests
Vestibular reflexes and tests

Active head rotation testing

Rotatory chair testing

Vestibular-ocular reflex (VOR)

Vestibular tests

vibration and vestibular emotional reflex

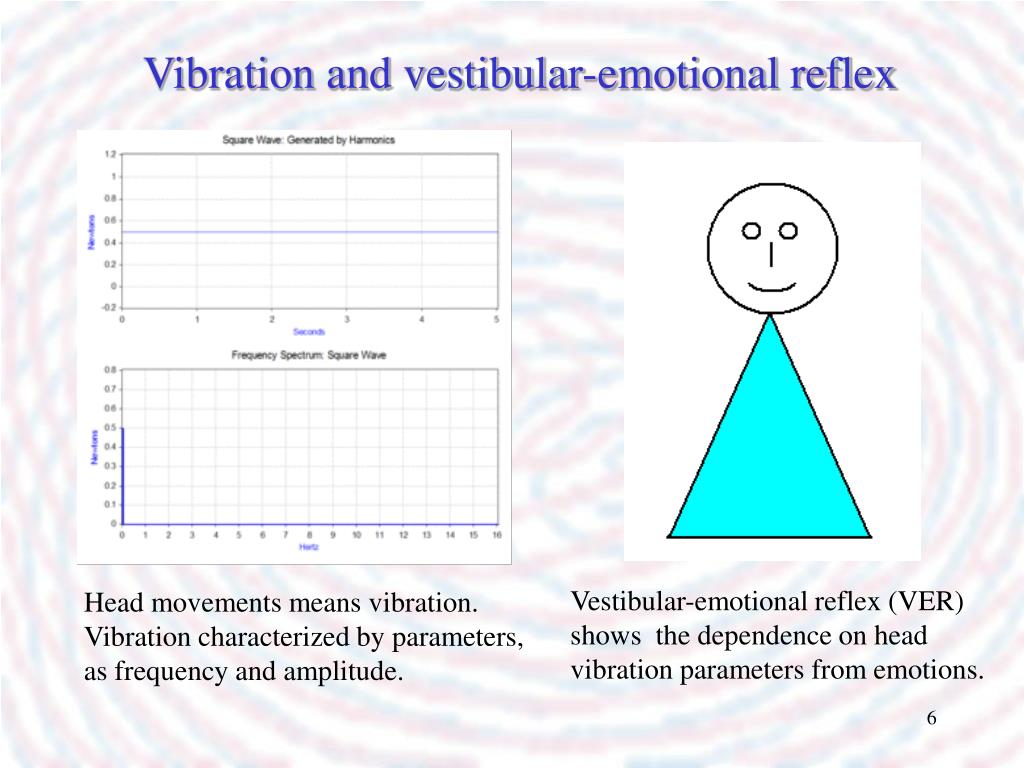

Vibration and vestibular-emotional reflex

Vestibular-emotional reflex (VER) shows the dependence on head vibration parameters from emotions.

Head movements means vibration.

Vibration characterized by parameters, as frequency and amplitude.

frame difference as movement measure

Frame sequence

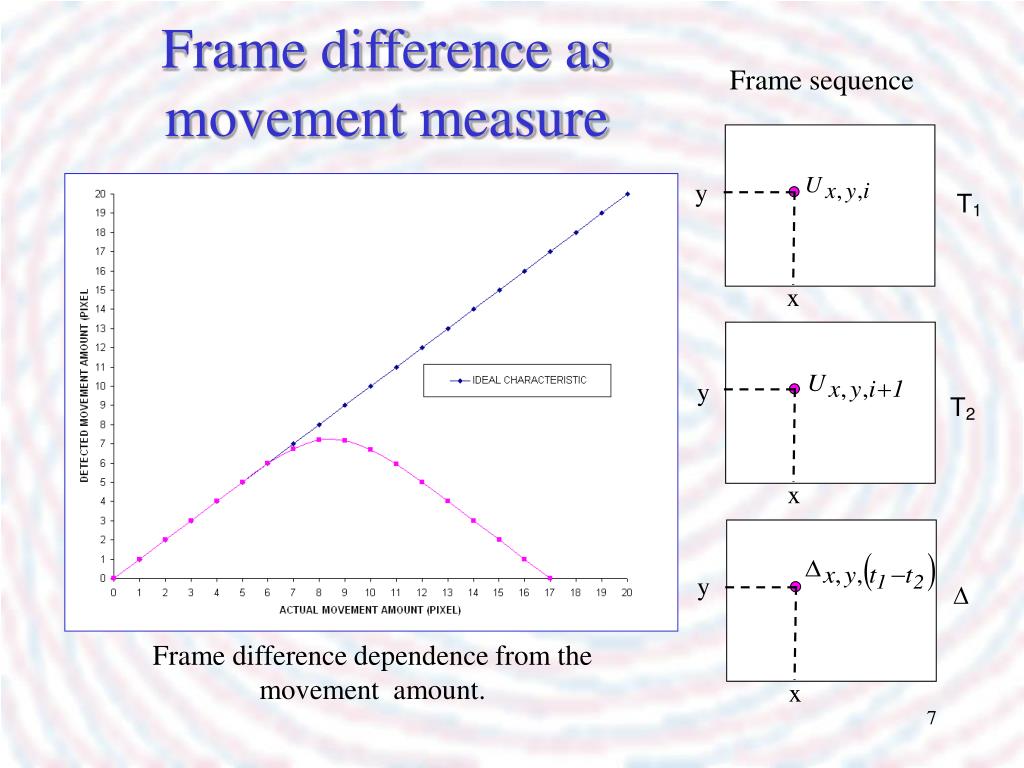

Frame difference as movement measure

y

T1

x

y

T2

x

y

Frame difference dependence from the movement amount.

x

vibraimage

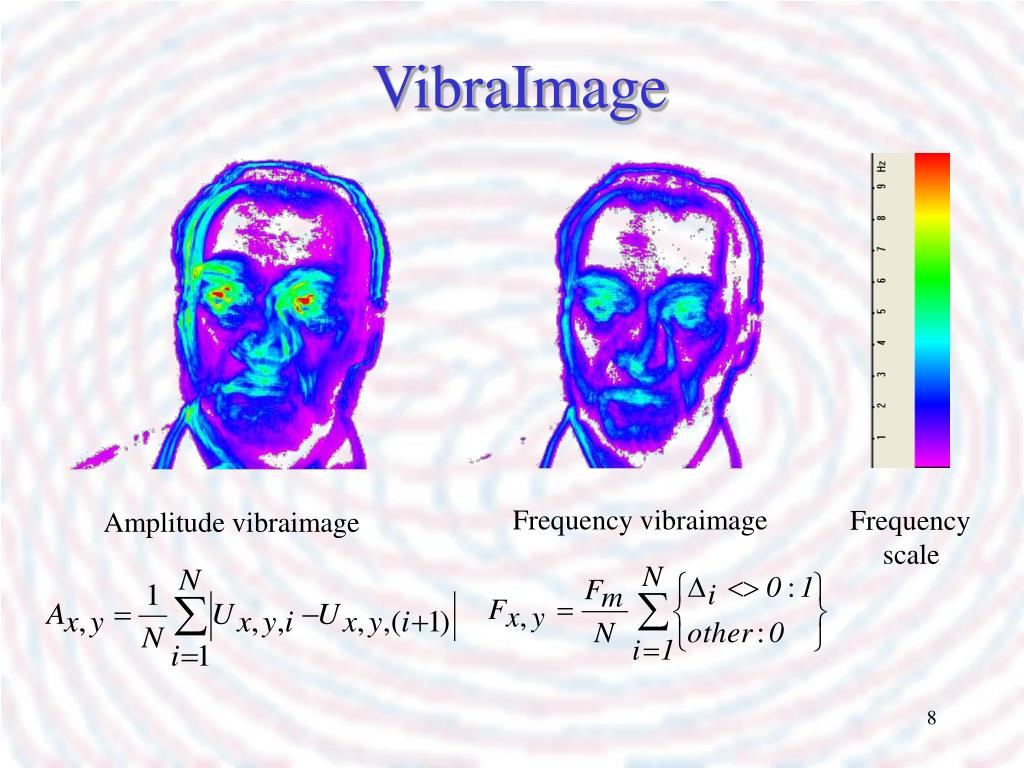

VibraImage

Frequency vibraimage

Frequency

scale

Amplitude vibraimage

vibraimage and eeg
Vibraimage and EEG

Cross correlation signal links for

anger

normal

EEG and vibraimage signals

synchronizedrecord

multiple vibraimage
Multiple vibraimage

T= 10c

T= 1c

T= 0,1c

Vibraimages with different accumulation time

histogram frequency distribution
Histogram frequency distribution

P(f)

P(f)

f,

f,

Vibraimage frequency distribution histogram for tired (up) and anger (down) person.

Vibraimage frequency distribution histogram for disease (up) and normal (down) person.

power spectrum of frequency vibration
Power spectrum of frequency vibration

S (f)

S (f)

f,

f,

Vibraimage signal power spectrum for normal state (up) and tension state (down) person.

Vibraimage signal power spectrum for normal state (up) and tension state (down) person.

aura and vibraimage
Aura and vibraimage

Normal state vibraimage and aura

Anger state vibraimage and aura

security airport requests

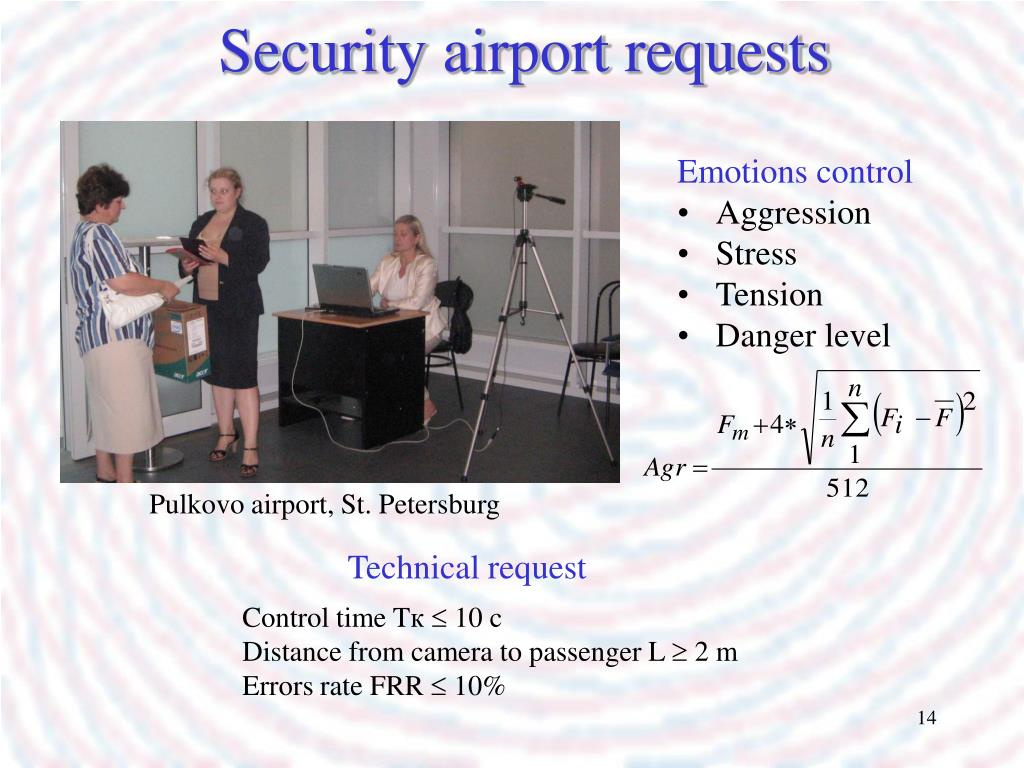

Security airport requests

Emotions control

  • Aggression
  • Stress
  • Tension
  • Danger level

Pulkovo airport, St. Petersburg

Technical request

Control time Tк  10 c

Distance from camera to passenger L 2 m

Errors rate FRR 10%

macromovements analyze
Macromovements analyze

More intensive moved person is visible by technical profiling

vibraimage challenges
Vibraimage challenges
  • Low noise digital cameras
  • Stable and uniform illumination
  • Low levels external vibration and movements
  • Law undetermined
system structure
System structure

10 – Local module for emotion control (ELSYS Corp):

11 – monitor

12 – software

13 – local computer

14 – dongle

15 – digital camera

20 – server:

21 – server monitor

22 – server software

23 – server terminal

26 – net concentrator

30 – local modules

slide18

Optical TV systems

VibraImage

FASI project, Russia

Emotion and minds control reality

Thermo vision systems

Hostile Intentions,

Homeland Security project, USA

vibraimage applications
Vibraimage applications
  • Security
  • Biometrics
  • Medicine
  • Psychology
  • Sport
  • Computers
  • Electronics
  • Games
contacts questions
CONTACTS&QUESTIONS

Viktor Minkin

e-mail: minkin@elsys.ru

www.elsys.ru
