1 / 8

TPG digitization

Abingdon 30/10 -03 Rikard Sandström Geneva University. TPG digitization. A particle going through the detector generates a hit at each gas slice ( i.e. sensitive detector).

jackson-acosta
Download Presentation

TPG digitization

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Abingdon 30/10 -03 Rikard Sandström Geneva University TPG digitization

  2. A particle going through the detector generates a hit at each gas slice ( i.e. sensitive detector). • All hits are written to file (Sim.out) together with information about slice number of the hit, 3D-coordinates of the hit etc. Simulation=> hits

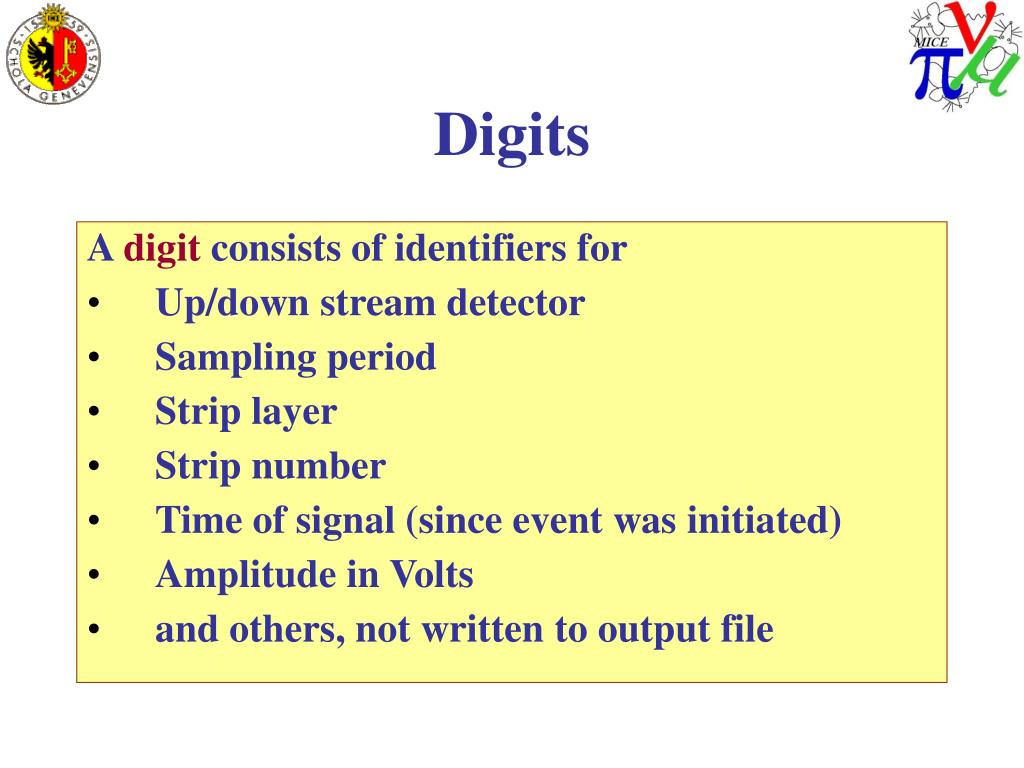

  3. Digits A digit consists of identifiers for • Up/down stream detector • Sampling period • Strip layer • Strip number • Time of signal (since event was initiated) • Amplitude in Volts • and others, not written to output file

  4. Digitization #1starting from hits… For every hit: • A certain number of empty digits are created, corresponding to area covered by 3 sigma transversal of drifting. • The number of electrons in the hit is computed. • A Poisson distributed number of clusters in the hit is randomly chosen. • The electrons per cluster parameter is used for setting the total number of electrons in the hit. The digits resulting from the hit know this value.

  5. Digitization #2… to digits … Processing the digits involves • Longitudinal & transversal diffusion (drift) • Diffusion from GEMs • Amplification fluctuation • The charge on each strip is given by a sum of products (due to multiple Gaussian distributions from GEMs etc) of probabilities like P(x1<X<x2)=1/2((1+erf((x2-X)/sqrt(2)sigma))-(1+erf((x1-X)/sqrt(2)sigma))) in effect giving 2nd rank BesselK functions. Hence, the digit is assigned an amplified number of electrons that hit its strip.

  6. voltage t Digitization #3… signals are sampled and written to file • The electrons on the strip gives a signal shape of voltage vs time. Several digits after the first arriving electron from the hit are created, and their amplitude is computed. • Noise is added. • By sampling every 500ns from the first electrons of the event reach the hexaboard, several digits originating from different hits are sampled into a one signal each for a specific sample. • Digits that beat threshold are not rejected and written to output file (Digits.out). samplings

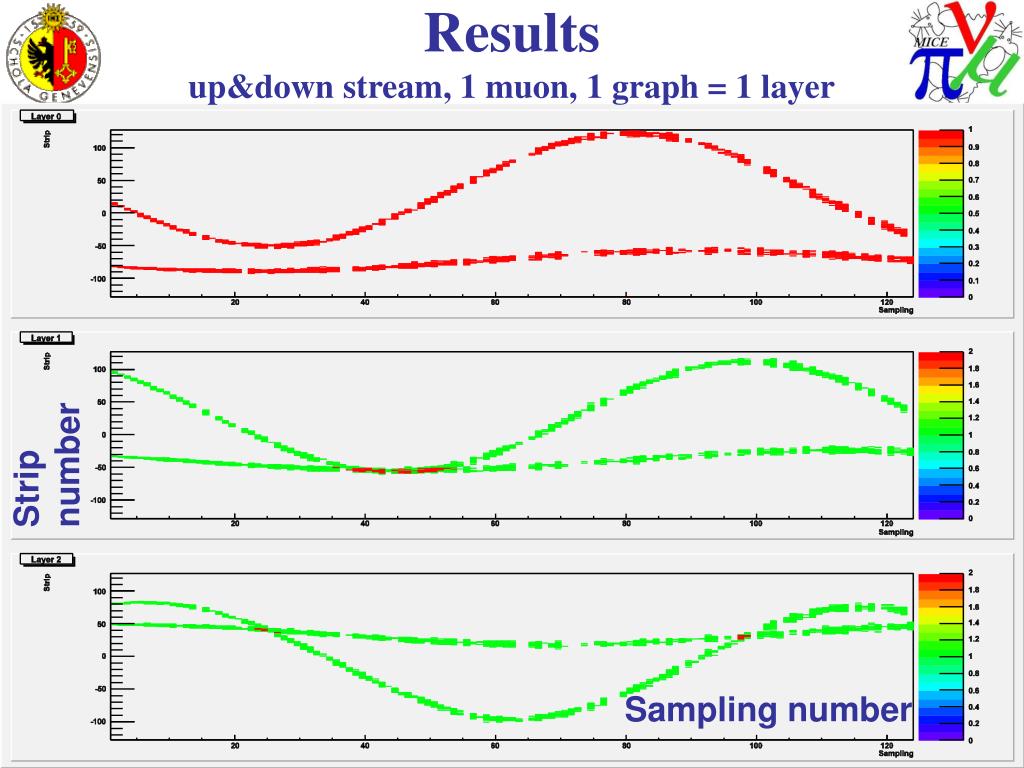

  7. Resultsup&down stream, 1 muon, 1 graph = 1 layer Stripnumber Sampling number

  8. Future plans • Feed output to reconstruction, w/wo background • Using special input files that give a very accurate description of number of electrons per cluster (Garfield). • Compare probability distributions for electron on strip with experiments. • Increase speed

More Related
