portable vibration shaker demonstration advance analysis presentation

Portable Vibration Shaker Demonstration & Advance Analysis Presentation

AF Condition Monitoring Sdn. Bhd.

15-1, JalanKenanga SD 9/4, Bandar Sri Damansara 52200 Kuala Lumpur, Malaysia.

W: www.afcm.com.my | E. admin@afcm.com.my | T: +603-62734078 | Fax: +603-62734080

speaker presenter

#1: Ahmad Fawzal M. Noor

#2: Ahmad Syahid A. Fawzal

  • Managing Director
  • MSc. Condition Monitoring (Southampton, UK)
  • Vibration Analyst Category III
  • Infrared Thermography Level II
  • Ultrasound Level I
  • Partial Discharge Level I
  • Certified Mobius Institute (Australia) Trainer
  • Head of Mechanical Department
  • MSc. Computational Fluid Dynamics (Cranfield, UK)
  • Vibration Analyst Category II
  • Certified SolidWorks Associate Certificate (CSWA)

Speaker/Presenter

about us

Established in 1994 and ISO QMS 9001:2008 qualified since 2009

  • Appointed as a vendor under Vendor Development Program TNB since 1997, to implement condition monitoring for their generation, transmission and distribution divisions.
  • Approved Training Partner for Mobius Institute, Australia – Certified Vibration Analyst
  • More than 20 years experience in condition monitoring disciplines:
    • Pre & Post Overhaul Vibration Analysis
    • Vibration Sensor and System Verification
    • Root Cause Machinery Failure Analysis
    • Evaluating Machine Condition and Performance
  • Dedicated to R&D in order to continuously improve our analysis, simulation and test method.

ABOUT US

CLIENTS

AIM: To provide our client with consistent condition monitoring services and training for enhancing their plant efficiency and reliability.

Water Utility

JabatanBekalanAir N.Sembilan

JabatanBekalan Air Melaka

Electrical & Power Generation

TNB Generation

TNB Distribution

Kapar Energy Ventures

JimahEnergy Ventures

Pahlawan Power

Panglima Power

Oil & Gas

Petronas Gas

PetronasPenapisan

Petlin

Manufacturing Industry

CIMA

LAFARGE

ANSELL

Pulp & Paper

Pascorp Industry

GentingSanyen

vibration shaker

Motivation

Vibration Shaker

  • Check sensor sensitivity
  • Verify sensor linearity
  • Test alarm and trip limit
  • Evaluate vibration system integrity
overview

We are always expending our speciality! And now, we are offering several other services that will help your plant reliability program works.

Overview

overview1

We are always expending our speciality! And now, we are offering several other services that will help your plant reliability program works.

Advance Service

Overview

  • Advance Vibration Analysis
  • Structure Analysis
    • Operational Defection Shape (ODS)
    • Modal Analysis
  • Valve Leak Detection
    • Detection
    • Detection and Quantify
  • Piping Dynamic Vibration
    • Flow Induced Vibration (FIV) Analysis
    • Acoustic Induced Vibration (AIV) Analysis
    • Pulsation Induced Vibration (PIV) Analysis
  • Finite Element Analysis (FEA)
    • Structural Analysis (Static)
    • Non-Linear Stress Analysis
    • Buckling Analysis
    • Vibration Analysis (Frequency)
  • Computational Fluid Dynamics (CFD)
    • Ventilation & Gas Dispersion
    • Flow Assurance
    • Heat Exchangers & Heat Dissipation
    • Fire & Combustion Modeling
advance vibration analysis

Our advance vibration analysis allows in-depth understanding on machine behaviour.

  • With years of experience in vibration field, AFCM also provide a wide range of advance analysis services such as:
    • Structure vibration analysis.
    • Diagnostic analysis of reciprocating and turbo machinery
    • Synchronous vibrations and balancing of rotating machinery
    • Asynchronous vibrations, rotordynamic instabilities and fluid hydrodynamic interactions
  • .

Advance Vibration Analysis

Polar plot

Orbit plot

Bode plot

Shaft Centreline

structure analysis

Now, pointing out the locations and directions of structure excessive motion is easier then before

  • We employ two methods of structure analysis utilising vibration as follow:
    • Operational Defection Shape (ODS)
    • Modal Analysis
  • Operating Deflection Shape (ODS)
    • Provides information on how the machine structure move during operational
    • How?
      • Vibration measurements are collected at several locations on a machine
      • Transfer functions are calculated between reference locations to other sensor locations.
      • Animate

Structure Analysis

ODS of tandem IG fan with high vibration due to combination problem

structure analysis1

Now, pointing out the locations and directions of structure excessive motion is easier then before

  • Modal Analysis
  • Determines the fundamental vibration mode shapes and corresponding frequencies at which vibration naturally occurs analytically.
  • Approach:
    • Operational Modal Analysis (OMA)
    • Experimental Modal Analysis (EMA)
  • This helps us (and our client) to adjust their equipment accordingly in order to reduce system vibration that cause by resonance.

Structure Analysis

APPLICATIONS

Operating machinery

Mechanical structures with/without rotating components (e.g. turbines, engines and gas compressors)

 Large civil engineering structures (e.g. bridges and buildings subjected to ambient loads)

Maritime structures (e.g ships and offshore structures)

Compressor and motor base displacement magnitude

valve leak detection

Find leaking valves long before detection by conventional methods or conservative instrumentation.

  • Detection of erosion damage in the body and trim of a bypass valve.
  • May avoid:
    • the potentially catastrophic loss of containment of hazardous fluid which lead to:
      • emergency shutdown, and
      • subsequent loss of production.
    • product losses to the flare and fugitive emissions
    • excessive valve damage due to prolonged leakage
  • Able to detect and estimate the size of valve leaks during operation.

Valve Leak Detection

APPLICATIONS

Manual Operated Valve

Actuated  Valve

Shut-Down Valve (SDV)

Safety relief valve (PSV)

Ball valve

Plug valve

Gate and globe valves

Slimline Double Block & Bleed (SDBB) and Needle valves

Butterfly valve, wafer and lug type

Check valves, dual plate, piston, swing and non slam type

valve leak detection1

“Search for a peak to detect your leak” - Midasmeter

  • Find the leak (Detection)
    • Scrutiny of all available valve on site to identify through-valve leakage.
    • Equipment is Intrinsically Safe (IS) for use in hazardous/gaseous environments.
  • Measure the leak (Quantify)
    • Quantitative equipment is used to quantify the internal valve leak rate.

Valve Leak Detection

How to determine the valve condition using MidasMeter

piping dynamic vibration

Determine your piping design is subjected to or free from any dynamic vibration force based on your design specification is crucial.

  • Vibration in piping induce cracks and leaks due to fatigue failure of the pipe. May lead to major disaster if lack of mitigation action taken.
  • Under collaboration with VibraTec who is French leader of vibration and acoustics, we are able to predict set of piping vibration as below:
    • Flow Induced Vibration (FIV) – vibration caused by kinetic energy of turbulent fluid
    • Acoustic Induced Vibration (AIV) – vibration caused by restricted orifice such as relief valve, control valve or orifice plate.
    • Pulsation Induced Vibration (PIV) – vibration caused by mechanical equipment transmission.
  • Our set of calculations are from Energy Institute (EI) Guide lines: Guide Lines for the Avoidance of Vibration Induced Fatigue Failure in Process Pipe Work.

Piping Dynamic Vibration

piping dynamic vibration1

Determine your piping design is subjected to or free from any dynamic vibration force based on your design specification is crucial.

  • The main causes of these problems can be:
    • Harmonic piping system response due to:
      • Incorrectly installed supports,
      • Missing supports,
      • Structures too soft to support the pipes.
    • Pulsating flow due to high excitations produced by process machines and:
      • Incorrectly designed pulsation dampers,
      • Missing pulsation dampers or restricted orifices.

Piping Dynamic Vibration

ODS of a gas export line, including the supporting structure

Improvement of piping support to reduce vibration

finite element analysis fea

Evaluate the strength and stiffness of a product/design by calculate the component stress and deformations.

  • Employ finite element method (FEM) to calculate component displacements, strains, and stresses under internal and external loads.
  • Common design goal is excellent product performance and factor of safety (FoS).
  • Finite Element Analysis (FEA) services are:
    • Structural Analysis – constant (static) or dynamic load.
    • Linear and Non-Linear Stress Analysis
    • Vibration Analysis (Frequency)

Finite Element Analysis (FEA)

Structure stress due to machine horizontal motion

Factor of safety of pressure vessel design

computational fluid dynamics cfd

CFD is a powerful engineering tool for predicting real complex-physics process behaviour.

  • CFD provides a detailed understanding of flow distribution, pressure losses, heat transfer, particulate separation, collection efficiency, etc.
  • Typically applied to:
    • Design evaluation, verification and optimization
    • Performance evaluation
    • Problem solving, what-if scenarios
    • Study off-design operating conditions
  • CFD simulation is a guidance and reduce testing cycle but does not a replacement.

Computational Fluid Dynamics (CFD)

Wind loading of offshore structure

computational fluid dynamics cfd1

CFD is a powerful engineering tool for predicting real complex-physics process behaviour.

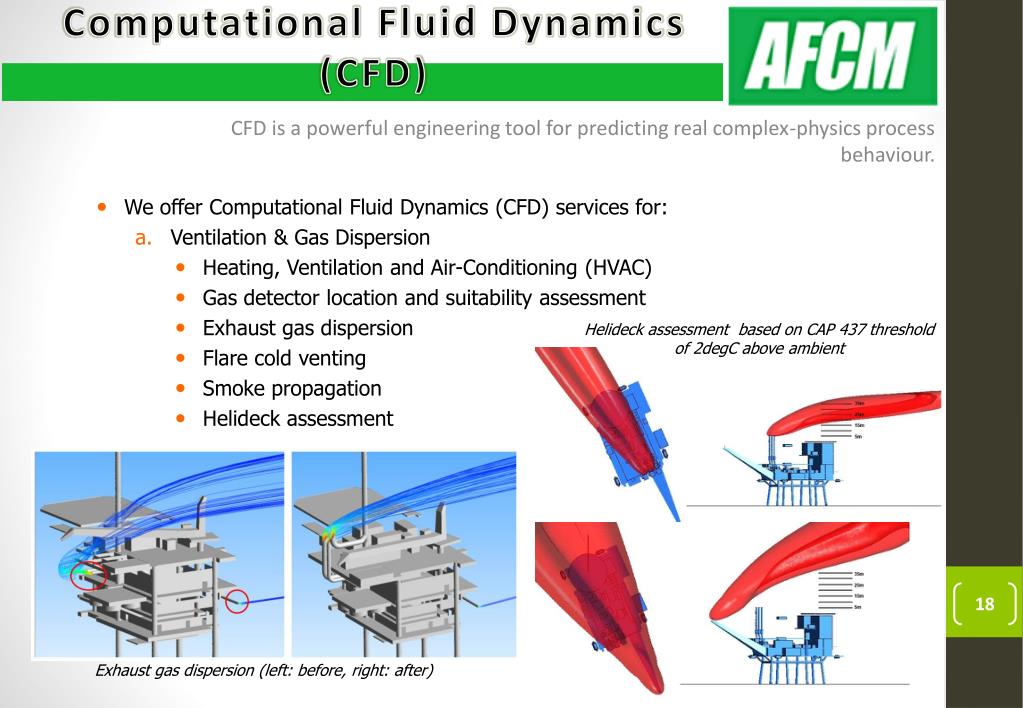

  • We offer Computational Fluid Dynamics (CFD) services for:
    • Ventilation & Gas Dispersion
      • Heating, Ventilation and Air-Conditioning (HVAC)
      • Gas detector location and suitability assessment
      • Exhaust gas dispersion
      • Flare cold venting
      • Smoke propagation
      • Helideck assessment

Computational Fluid Dynamics (CFD)

Helideck assessment based on CAP 437 threshold of 2degC above ambient

Exhaust gas dispersion (left: before, right: after)

computational fluid dynamics cfd2

CFD is a powerful engineering tool for predicting real complex-physics process behaviour.

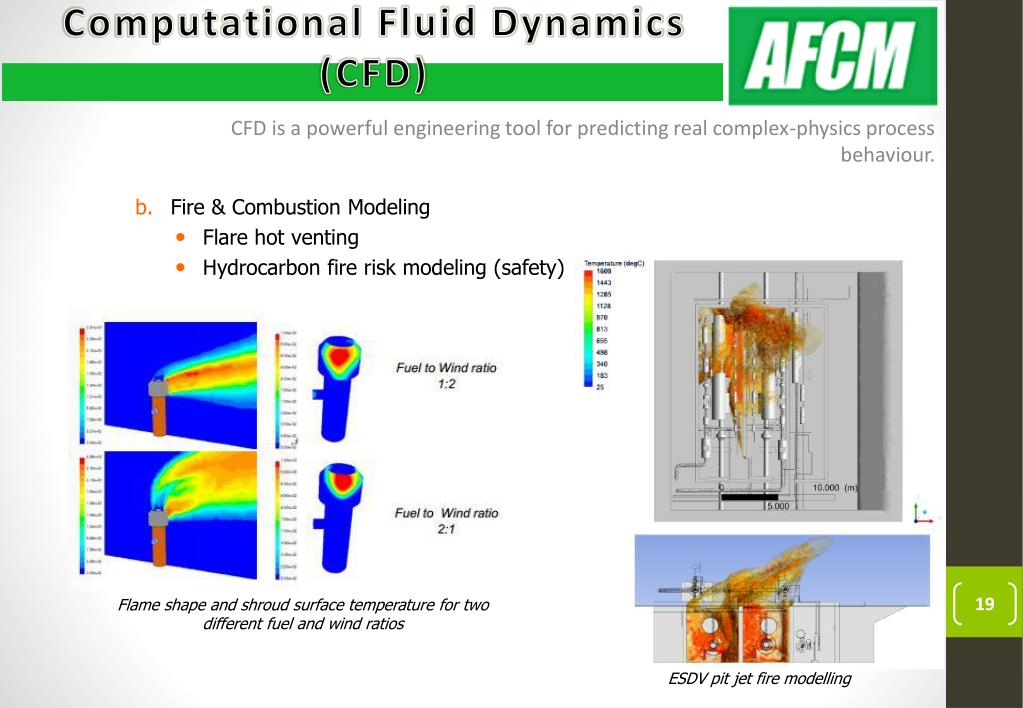

  • Fire & Combustion Modeling
    • Flare hot venting
    • Hydrocarbon fire risk modeling (safety)

Computational Fluid Dynamics (CFD)

Flame shape and shroud surface temperature for two different fuel and wind ratios

ESDV pit jet fire modelling

computational fluid dynamics cfd3

CFD is a powerful engineering tool for predicting real complex-physics process behaviour.

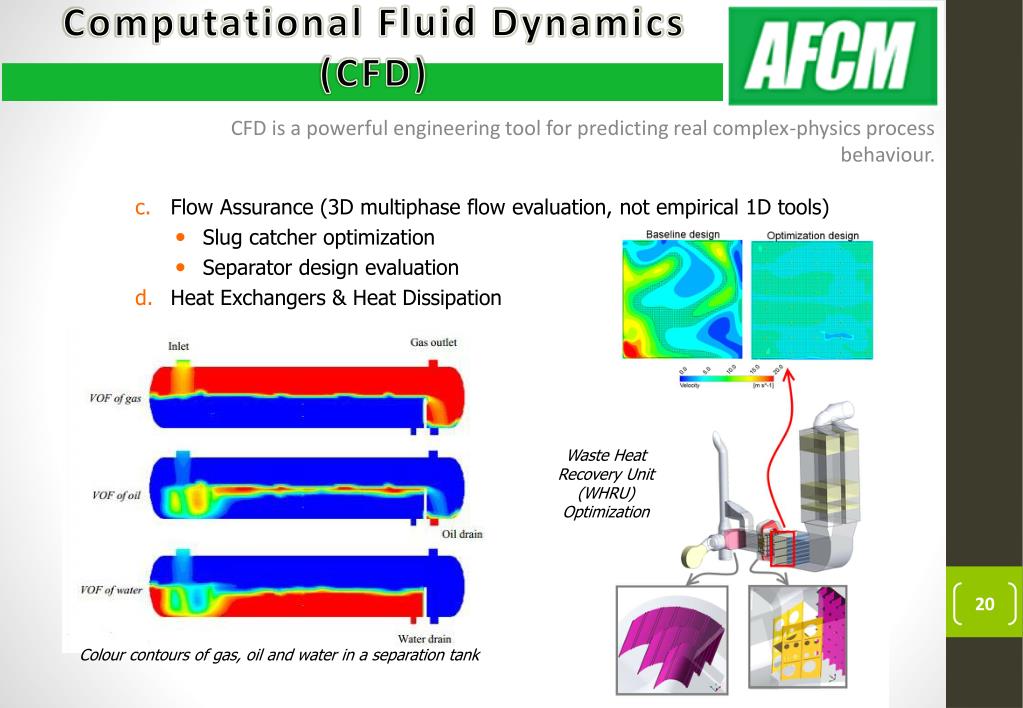

  • Flow Assurance (3D multiphase flow evaluation, not empirical 1D tools)
    • Slug catcher optimization
    • Separator design evaluation
  • Heat Exchangers & Heat Dissipation

Computational Fluid Dynamics (CFD)

Waste Heat Recovery Unit (WHRU) Optimization

Colour contours of gas, oil and water in a separation tank
