  1. Research Achievements Kenji Kaneda

  2. Agenda • Research background and goal • Overview of my research achievements • Phoenix • Virtual Private Grid • Summary and recent activities

  3. Research Background and Goal

  4. Background • Grid computing • Parallel computing with harnessing many widely-distributed resources E.g.) aggregate of PC clusters spread over multiple LANs

  5. Traditional Parallel Computing vs. Grid Computing • Reliable processors • Single-LAN resources Traditional parallel computing Grid computing • Unreliable processors • Multi-LANs resources

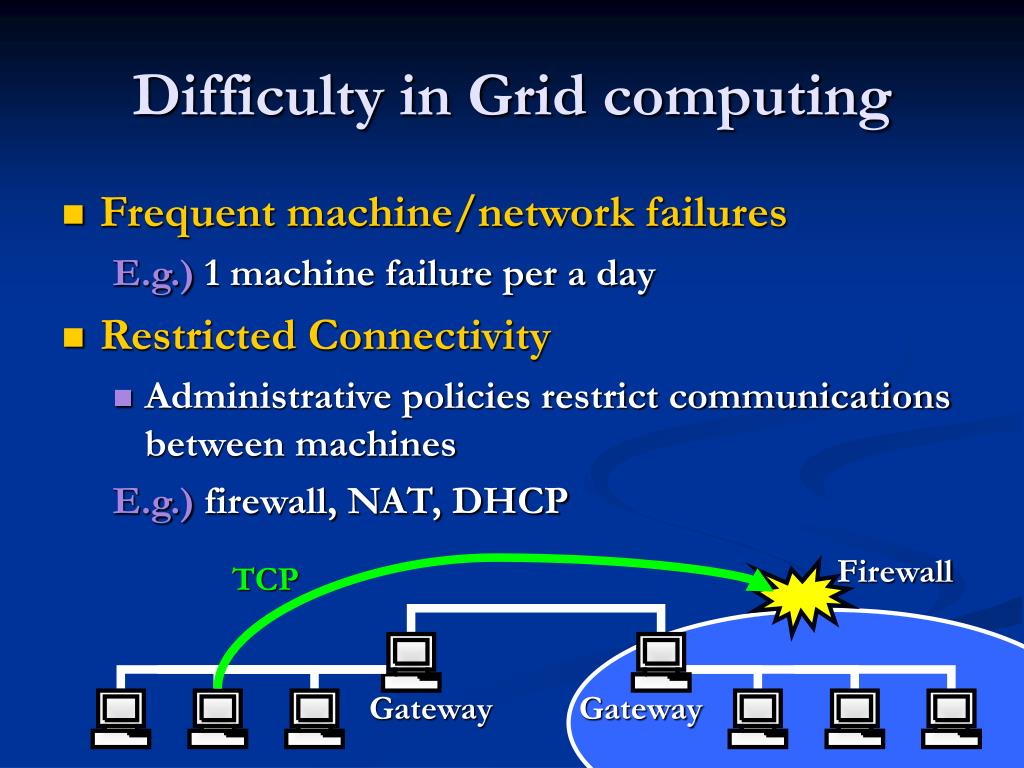

  6. Difficulty in Grid computing • Frequent machine/network failures E.g.) 1 machine failure per a day • Restricted Connectivity • Administrative policies restrict communications between machines E.g.) firewall, NAT, DHCP Firewall TCP Gateway Gateway

  7. Research Goal • Allow a user to harness a computational grid like traditional parallel computing • Fault tolerance • Transparent communication on WANs

  8. My Research Achievements Design/implementation of middlewares • Phoenix • Parallel programming library for accommodating dynamically joining/leaving resources • Virtual Private Grid • Command shell for utilizing hundreds of computers spread over multiple LANs

  9. Phoenix

  10. Phoenix • Parallel programming library for accommodating dynamically joining/leaving resources • Programming model for supporting migration of application states • Transparent communication mechanism for WANs

  11. Programming Model for Supporting Migration of Application States • Subsumes a regular message passing model • Provides a namespace that does not depend on physical machines • Programmer uses this name to specify a message destination • Programmer can write a program without being aware of physical machines

  12. Transparent Communication mechanism for WANs • Overlay network construction • Application-level message routing • Processes can communicate with one another • even if networks are not fully connected • even if connection topologies change dynamically

  13. Demonstration • Boot processes on 3 subnets • Add processes dynamically

  14. Demonstration

  15. Experiments (1/3) • Speedup with fixed resources • POV-Ray: 78 speedup using 104 processors on 3 LANs • LU: comparable to MPICH (on a single LAN)

  16. Experiments (2/3) • Speedup with dynamic resources • POV-Ray takes advantage of dynamically added resources quickly

  17. Experiments (3/3) • Parallel shogi (Japanese chess) program on 720 laptop PCs • 7~8 speedup

  18. Related Work • Grid enabled MPIs E.g.) MPICH-G [G. Bosilca et al. SC’02] • Based on a traditional message passing model • Difficult to support dynamic changes of resources • Communications libraries for Grids E.g.) Ibis [A. Denis et al. HPDC’04] • Static message routing

  19. Summary~ Phoenix ~ • Parallel programming library for dynamically changing resources • Good speedup with a large number of machines on multiple LANs

  20. Virtual Private Grid

  21. Virtual Private Grid (VPG) • Command shell for utilizing hundreds of computers spread over multiple LANs

  22. Features (1/2) • User can submit jobs without caring administrative restrictions E.g.) cmd1@host1 | cmd2@host2 > file3@host3 Write to file3 host3 NAT Firewall Firewall Execute cmd1 Execute cmd2 host1 host2

  23. Features (2/2) • Fault tolerance • VPG can continue to run even if some machines are added/deleted dynamically • No central server is required

  24. Demonstration • Environment • 3 LANs • CPU: Sparc, x86, MIPS, PowerPC • OS: Solaris, Linux, IRIX

  25. Demonstration

  26. Related Work • Grid job submission tools E.g.) Globus, Condor-G • Difficult to submit jobs to machines under administrative restrictions

  27. Summary~ Virtual Private Grid ~ • Command shell for utilizing hundreds of computers spread over multiple LANs • Fast job submission to more than 100 machines

  28. Summary and Recent activities

  29. Summary~ My Research Achievements ~ • Middlewares for Grid computing • Phoenix • Virtual Private Grid

  30. Recent Activities (1/2) • Virtual SMP • Emulates a multi-processor machines on a loosely-coupled computers Virtual dual processor machine on two single processor machines

  31. Recent Activities (2/2) • Virtual SMP • Easy utilization of distributed resources with a common OS (e.g., Windows, Linux)
