  1. SIAE MICROELETTRONICA Company Profile March 2013 siaemic-company presentation-CP.01.13

  2. COMPANY OVERVIEW

  3. Our history today 1952 60 years25 locations1000 employees In-housetechnology 10’000TR/month

  4. World footprint ITALY UNITED KINGDOM IRELAND GERMANY FRANCE SPAIN RUSSIA >DUBAI EGYPT TURKEY SOUTH AFRICA >USA ARGENTINA BRASIL COLOMBIA ECUADOR MEXICO >PERU VENEZUELA CHINA INDONESIA MALAYSIA THAILAND VIETNAM INDIA • Presence in 25 countries • 3 new subsidiary opened in 2012 LATAM • HQ in Italy in the“Microwave valley” EMEA NAR APAC

  5. Company overview Top 15 "dynamic" companies (RANKING NUMBER 6) with a plus for earnings and revenue growth reported by office studies of Mediobanca • Average annual growth of 25% 2007-2011 • Organic Growth Only • 64% revenues from mobile MW market trend SIAE Revenues 8 350 300 6 250 • Complete portfolio: • Split mount, Long haul • Full outdoor • Millimeter wave • Product attached services • Value add services 200 4 150 100 2 50 0 0 2008 2009 2010 2011 2012 2013

  6. Telecommunication systems Complete portfolio • Split mount, Full outdoor Ethernet, Millimetre wave solutions: • - Full in-house developments • Best in class power consumption on the market • Field proven with thousands deployed units • Extremely low return from field (<1% per year!) • Long haul, L2 aggregation platforms and common Network management system: • Element management, network supervision and performance monitoring • L2 Aggregation platform, optionally associated to full outdoor system to expand connectivity AGS series NMS5 ALS series ALFOplus ALFOplus80HD TL

  7. Split Mount Overview SIAE ALS Product Line Split Mount

  8. Microwave Systems IN COMMERCIAL CONFIDENCE SIAE MICROELETTRONICA ALS Series provides Native IP, Native and PseudoWire PDH and SDH connections making it the ideal solution for a wide range of applications. ALS IP / PDH / SDH Available in all frequency bands from 4 to 42 GHz in single or duplicated configuration, with Gbps radio capacity.

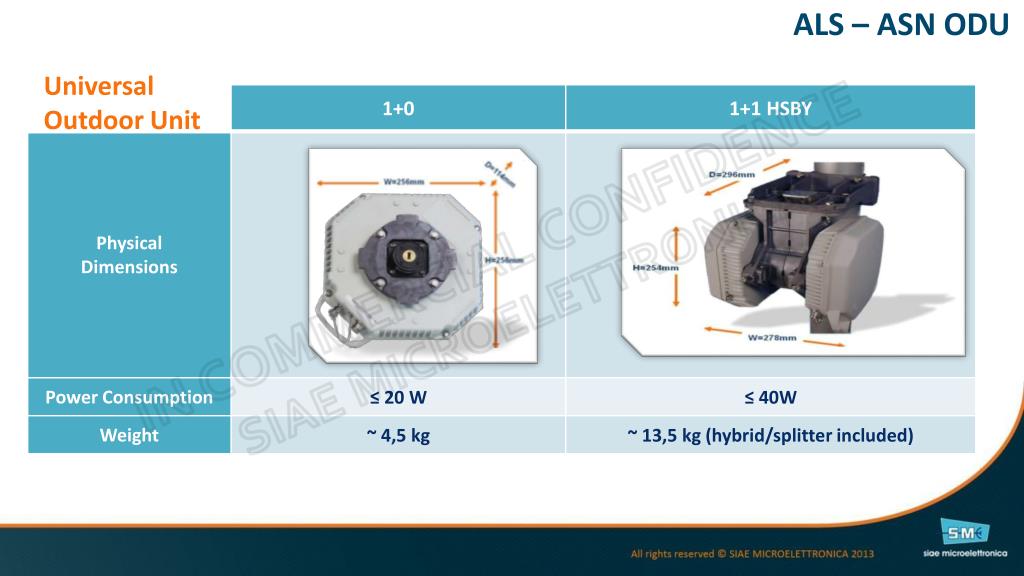

  9. ALS – ASN ODU Universal Outdoor Unit IN COMMERCIAL CONFIDENCE SIAE MICROELETTRONICA

  10. ASN Series – ODU for PDH/SDH/Ethernet Applications ASN ODU (PDH/SDH/Ethernet) IN COMMERCIAL CONFIDENCE SIAE MICROELETTRONICA

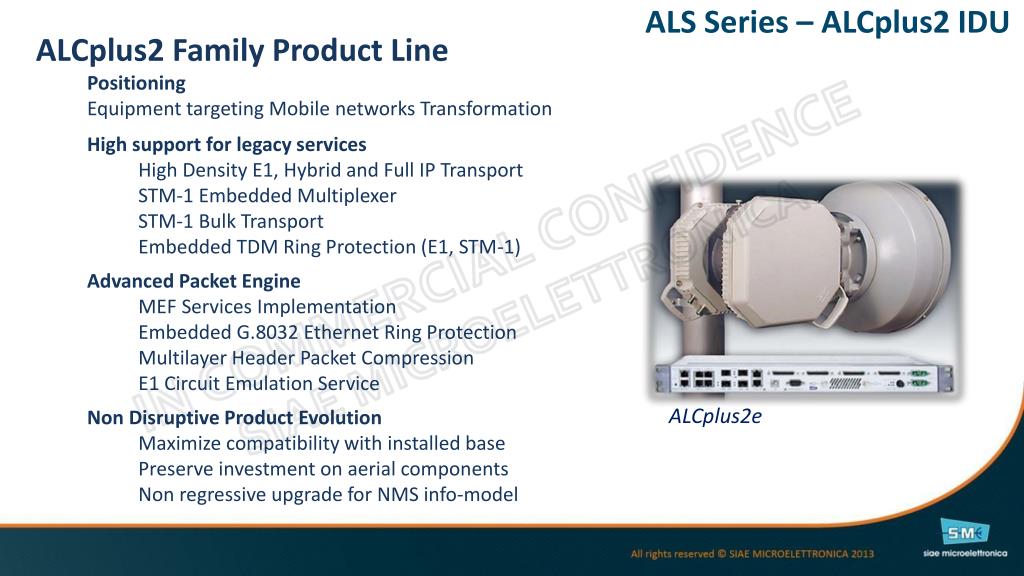

  11. ALS Series – ALCplus2 IDU ALCplus2 Family Product Line Positioning Equipment targeting Mobile networks Transformation High support for legacy services High Density E1, Hybrid and Full IP Transport STM-1 Embedded Multiplexer STM-1 Bulk Transport Embedded TDM Ring Protection (E1, STM-1) Advanced Packet Engine MEF Services Implementation Embedded G.8032 Ethernet Ring Protection Multilayer Header Packet Compression E1 Circuit Emulation Service Non Disruptive Product Evolution Maximize compatibility with installed base Preserve investment on aerial components Non regressive upgrade for NMS info-model IN COMMERCIAL CONFIDENCE SIAE MICROELETTRONICA ALCplus2e

  12. 2xNMS 2xSTM-1 2xE1 TDM EXP Bus 16xE1 tributaries Питание 10/100/1000 электрич. ETH 1000 оптический ETH Карта SD USB Сигнализация IN/OUT Интерфейс ODU (встроенный XPIC) ALS Series – ALCplus2 IDU IDU ALCplus2e– расширяемая компактная версия Расположение: • 4xFE/GE Sync/Async + (2+16)xE1 + 2xSTM1 (2+0/1+1MSP) + узловая шина IN COMMERCIAL CONFIDENCE SIAE MICROELETTRONICA ALCplus2e Усиленная версия

  13. Optimal Adaptive Modulation and Coding ACM Adaptive Code Modulation with 10 profiles Hitless modulation and code selection from 4 to 1024QAM From 7 MHz to 56 MHz with all modulations 4QAM-256 QAM: complete matrix BW/QAM MSE based hitless modulation switch (Quality of Signal based) Fast ACM switch-over (up to 400changes/sec & 100dB/sec guaranteed) IN COMMERCIAL CONFIDENCE SIAE MICROELETTRONICA 4QAMs 256QAM Voice & real time services 128QAM 64QAM 32QAM 16QAM 16QAMs 4QAM Non-real time services

  14. Standard Ethernet features Layer 2 Ethernet switch is embedded in each IDU • MAC switching, learning, aging • Auto negotiation • MDI-MDIX Crossover • Link Loss Forwarding • Flow Control\Back pressure IEEE 802.3x • Rapid spanning tree Protocol IEEE802.1w • Jumbo frame support up to 10K • Ethernet OAM IEEE802.1ag / IEEE802.3ah • VLAN • VLAN (per port/ IEEE 802.1Q) • VLAN Stacking (QinQ) • QoS: • Layer 2: TCIEEE 802.1p Traffic class • Layer 3 : IPv4 ToS (DSCP) / IPv6 TC (DSCP) IN COMMERCIAL CONFIDENCE SIAE MICROELETTRONICA

  15. ALCPlus2 Enhanced Features Additional Features SW Selectable modulation from 4QAM up to 256QAM Fast ACM Adaptive Code and Modulation up to 8 configurable profiles Full featured embedded state of the art Ethernet switch Synchronous ETH support both Electrical and Optical Link aggregation, IEEE 802.3ad, on both radio and physical ports IN COMMERCIAL CONFIDENCE SIAE MICROELETTRONICA

  16. ALCPlus2 Enhanced Features Enhanced Available Features Support of SyncE G.8261/G.8264 SSM IEEE 1588v2 Optimized Transport (Fragment., 9th Queue and constantlatency) Multi Layer Header Compression Admission Control & Bandwidth Profile: CIR/EIR: per UNI, EVC, CoS Congestion Avoidance/Scheduling: Hard Limiting, RED & WRED / WFQ & Strict Priority. G.8032 Ethernet Ring Protection QoS based on IPv4/IPv6 and MPLS "EXP" bits Advanced Monitoring and statistics :ToS + QinQ + VLAN MW Capacity Management (MCM) CISCO-SIAE Extended Buffer for LTE Optimization PWE3: MEF8, IPv4 and IPv6, MPLS STM-1 Bulk Transport Security package: SNMPv3, HTTPS, SFTP, optional AES IN COMMERCIAL CONFIDENCE SIAE MICROELETTRONICA

  17. IEEE 1588v2 PTP ALFOpluscompliance 1588v2 Optimezed Transport over ACM links: • Long frame fragmentation • Additional queue (9th queue) dedicated exclusively to 1588v2 packets • Controlled microwave transmission with constant latency time 4QAMCostantlatency Q8 1588v2 1588v2 Q7 Q6 Q4 QoS Q4 Q3 Q2 Q1 JUMBO Q0 J U M B O O B U M J 4QAM 1024QAM

  18. PseudoWire solution and Dual Engine • Pseudowire circuit emulation based on MEF8, SAToP and MPLS • Multi-Layer Header compression functionality compress PWE3 tacks achieving the highest E1s transport efficiency • Soft migration from legacy to full IP network • Differential, adaptive or synchronous clock recovery function Dual Native Radio (designed and developed by SIAE) based on a Dual Engine solution All the bandwidth capacity not allocated to TDM traffic is automatically used by the Ethernet traffic Without TDM it is a full IP radio IN COMMERCIAL CONFIDENCE SIAE MICROELETTRONICA Layer 2 switch embedded in the IDU Port 1 Port 2 Port 3 Port 4 Header optimization Radio Frame manager Modem PWE3 TDM TDM Ethernet Frames E1 NxE1 1/2xSTM-1 TDM MUX

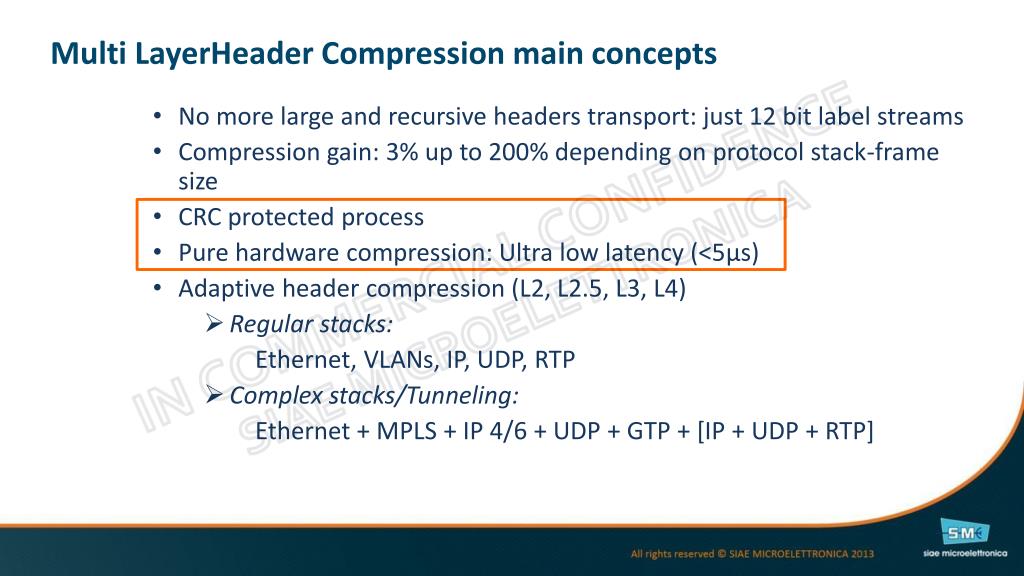

  19. Multi LayerHeader Compression main concepts • No more large and recursive headers transport: just 12 bit label streams • Compression gain: 3% up to 200% depending on protocol stack-frame size • CRC protected process • Pure hardware compression: Ultra low latency (<5μs) • Adaptive header compression (L2, L2.5, L3, L4) • Regular stacks: Ethernet, VLANs, IP, UDP, RTP • Complex stacks/Tunneling: Ethernet + MPLS + IP 4/6 + UDP + GTP + [IP + UDP + RTP] IN COMMERCIAL CONFIDENCE SIAE MICROELETTRONICA

  20. Multi LayerHeader Compression main concepts LBL1 Payload Ethernet Ethernet Multi Layer Packet Header Compression Process Gain (176-58)/58 => 203% MPLS MPLS IPv4 IPv4 UDP UDP GTP-U GTP-U Radio Side !Shannon Domain! IPv6 IPv6 Ethernet Side DSP Domain Ethernet Side DSP Domain UDP UDP RTP RTP Payload Payload 58 bytes 176 bytes 176 bytes

  21. Nodal Application ALCplus2 Series for Nodal Application – Pay as you grow Multi Rack node & zero space IDU interleaving 1+0, 1+1 or 2+0 managed by each 1RU IDU module Single IDU management using nodal configurator option Up to 8 IDU modules for up to 16x(1+0) / 8x(1+1) Lowest power consumption Maximum flexibility with high number of interfaces Distributed Switch Architecture Local STM-1, E1 and GEnterfaces IN COMMERCIAL CONFIDENCE SIAE MICROELETTRONICA nxRU

  22. ALFOplus Overview SIAE ALFOplus Full Outdoor

  23. Microwave Systems IN COMMERCIAL CONFIDENCE SIAE MICROELETTRONICA ALFOplus IP Ethernet Full Outdoor ALFOplus is a Full Outdoor, Full IP Next Generation Microwave Radio. It is a zero footprint solution, fully integral with 3G, 4G and LTE nodes, and ideal for a fast and flexible evolution towards full IP networks with the highest radio capacity and performance.

  24. Full Outdoor - ALFOplus ALFOplus product line Highlights: • Ease of cabling & installationandmaintenance • Integrated Indoor Unit (if required) • Zero footprint • Reducedinstallationmaterial & cost • Powerover Ethernet (PoE) • Low power consumption (<35 W) • High capacity and spectral efficiency • High MTBF ≈ 55 years • Fully compliant with LTE technology(certified MEF9/14) HW Version 3 Evolution ALFOplus2: • 2048 Modulation, Dual Carrier + XPIC in single Unit , MIMO IN COMMERCIAL CONFIDENCE SIAE MICROELETTRONICA

  25. Full Outdoor - ALFOplus ALFOplus highlights Two interface configurations available: • 2x 10/100/1000baseT Ethernet ports and POE+ • 1x1000baseX Optical Ethernet port + 1x100/1000baseT with POE+ Additional features • 4 to 256/512/1024 QAM (+12,5% - +25% payload) • 7, 14, 28, 56 channel bandwidth support • Operating Temperature between -33 °C / + 55 °C • POE+ on electrical Eth port • Packet Header Compression • 500Mbps@ 56MHz (no HeaderCompression) , 1Gbps (withHeaderCompression) • IP65 IN COMMERCIAL CONFIDENCE SIAE MICROELETTRONICA

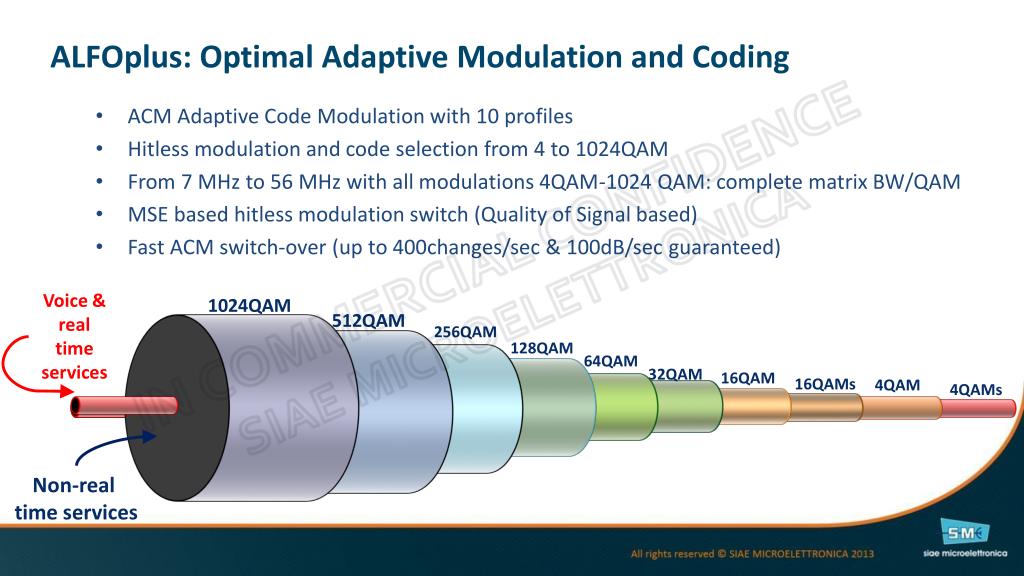

  26. ALFOplus: Optimal Adaptive Modulation and Coding ACM Adaptive Code Modulation with 10 profiles Hitless modulation and code selection from 4 to 1024QAM From 7 MHz to 56 MHz with all modulations 4QAM-1024 QAM: complete matrix BW/QAM MSE based hitless modulation switch (Quality of Signal based) Fast ACM switch-over (up to 400changes/sec & 100dB/sec guaranteed) IN COMMERCIAL CONFIDENCE SIAE MICROELETTRONICA 1024QAM 512QAM 256QAM Voice & real time services 128QAM 64QAM 32QAM 16QAM 16QAMs 4QAM 4QAMs Non-real time services

  27. E-Band Overview SIAE ALFOplus80 (E-Band) Full Outdoor

  28. Microwave Systems ALFOplus80 ALFOplus80 2.5 Gbps E-Band Full Outdoor IN COMMERCIAL CONFIDENCE SIAE MICROELETTRONICA ALFOplus80 is a Full-Outdoor, full IP Next Generation Microwave radio operating in the E-Band. ALFOplus80 is a Full-Outdoor, full IP Next Generation Microwave radio operating in the E-Band. With 2.5 Gbps net throughput and its zero-footprint characteristic, ALFOplus80 is the ideal solution for ultra high capacity wireless links in urban environments for fronthaul and backhaul applications.

  29. Microwave Systems SIAE MICROELETTRONICA millimetric wave solution 100% In-House design is our commitment to this product segment In house RF Design Full SMT technology In house Multi Gigabit wideband modem High performance FDD solution IN COMMERCIAL CONFIDENCE SIAE MICROELETTRONICA

  30. E-Band - ALFOplus80 ALFOplus80 Product Line Positioning Very high capacity wireless link in urban environments for mobile backhaul, enterprise, ISP market Common features Reliable solution with high capacity 1 Gbps capacity with fixed 4QAM 750/1000 MHz bandwidth PoE capable Low power consumption (<20W) Long distance covering Data Plane Ethernet Layer 2 pipe Selective QinQ based on VLAN and 802.1p priority Jumbo frame support SynchE Main points Single board integrated solution, high MTBF level Expansion unit available for additional ports and for legacy services (E1, STM-1) Compact and light equipment, faster installation High power for longer distances IN COMMERCIAL CONFIDENCE SIAE MICROELETTRONICA

  31. ALFOplus80 - Performance IN COMMERCIAL CONFIDENCE SIAE MICROELETTRONICA • Single board integrated solution, high MTBF level • Low power consumption, less than 20W • IP65 class • PoE or separated power feeding • 1Gbps transport guaranteed and totally transparent

  32. E-Band - ALFOplus80HD ALFOplus80HD Product Line Positioning Carrier Ethernet equipment for ultra high capacity wireless link in urban environments for backhaul and fronthaul applications, enterprise, ISP market Common features Fiber like speed up to 2.5 Gbps capacity 250/500 MHz bandwidth Modulation from BPSK to 64QAM ACM and ASR for higher availability PoE capable Long distance covering Data Plane EnhancedLayer 2 Ethernet Switch Control Plane Protocols (RSTP, G.8032, LACP,…) managed through dedicated embedded processor Ethernet ports SynchE capable and 1588v2 HW management of Ethernet OAM and Y.1731 PM Jumbo frame support Extensive QoS parameterizations (802.1p, IPv4/6, MPLS) Main points Ultra high capacity Carrier ethernet solution Single board integrated solution, high MTBF level Expansion unit available for additional ports and legacy services (E1, STM-1) Compact and light equipment, faster installation High power for longer distances IN COMMERCIAL CONFIDENCE SIAE MICROELETTRONICA

  33. ALFOplus80HD - Performance IN COMMERCIAL CONFIDENCE SIAE MICROELETTRONICA

  34. AGS-H AGS-HybridBasebandSolution

  35. AGS-H Indoor Unit IN COMMERCIAL CONFIDENCE SIAE MICROELETTRONICA SIAE MICROELETTRONICA AGS-HYBRID BASEBAND SOLUTION Full set of baseband features, providing additional flexibility to ALFOplus80 Series radio equipment: • Wide set of interfaces: • 4xGE (electrical) • 2xGE (optical) • 2xSTM-1 • 16xE1 • 1xGE(electrical with POE+) • 1xGb optical (Hybrid interface, toward ALFOplus80) • Complete set of baseband features: • Scheduling (8queues, Frame Fragmentation, etc…) • Policing (VLAN, IPv4/IPv6, MPLS) • Synchronism management (1588v2, SyncEthernet, G.8264 SSM) • Single NE if connected with ALFOplus80/80HD

  36. 80 GHz Mixed configuration On air hybrid frame IN COMMERCIAL CONFIDENCE SIAE MICROELETTRONICA Gbps FRAME or PROPRIETARY HYBRID FRAME (BASEBAND) Gbps 2xSTM-1 16xE1 SIAE MICROELETTRONICA – ALFOplus80/80HD + AGS-H SOLUTION Combined with AGS-H, we can provide a full “split mount like” solution in the E-Band domain, also available with TDM native transport:

  37. SIAE NMS5 Network Management System

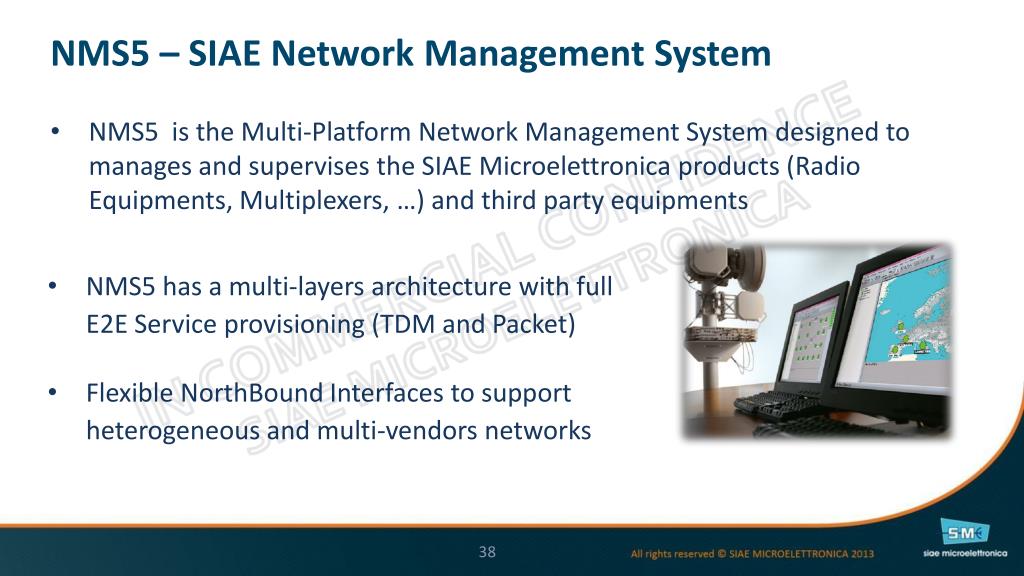

  38. NMS5 – SIAE Network Management System NMS5 is the Multi-PlatformNetwork Management System designed to manages and supervises theSIAE Microelettronica products (Radio Equipments, Multiplexers, …) and third party equipments IN COMMERCIAL CONFIDENCE SIAE MICROELETTRONICA • NMS5 has a multi-layers architecture with full E2E Service provisioning (TDM and Packet) • FlexibleNorthBoundInterfacestosupportheterogeneous and multi-vendorsnetworks

  39. ElementManagment System EMS NMS NBI • Full FCAPS support (Fault, Configuration, Administration, Performance, Security) • Performance Monitoring: G.828/G.784, RMON RFC2819, and Radio Link Counters • Multi-Map management (access according to the user profile) • Manual and Automatic NEs creation • HW and SW Inventory • SW download with scheduling IN COMMERCIAL CONFIDENCE SIAE MICROELETTRONICA Manager Legacy Manager Full Indoor Manager Split Mount Manager Full Outdoor Manager 3rd Party NMS5 (Common SW) OS + Database

  40. Network Managment System EMS NMS NBI • Ring Manager: • E2E TDM path provisioning • VLAN Manager: • E2E Ethernet Services provisioning • E-Line, E-LAN • Ethernet OAM • G. 8032 IN COMMERCIAL CONFIDENCE SIAE MICROELETTRONICA

  41. Membership & Certifications Active membersmall cell working group IN COMMERCIAL CONFIDENCE SIAE MICROELETTRONICA Chairman of the ETSI WG ATTM/TM4
