  1. STORET Data Query, Extraction and Analysis Tools Henry B. Manguerra, Tetra Tech, Inc. Jim Harris, Utah DWQ Vaishal Sheth and John Zatrow, Tetra Tech, Inc. Presented During the 2004 National STORET Users Conference November 15-17, 2004, New Orleans

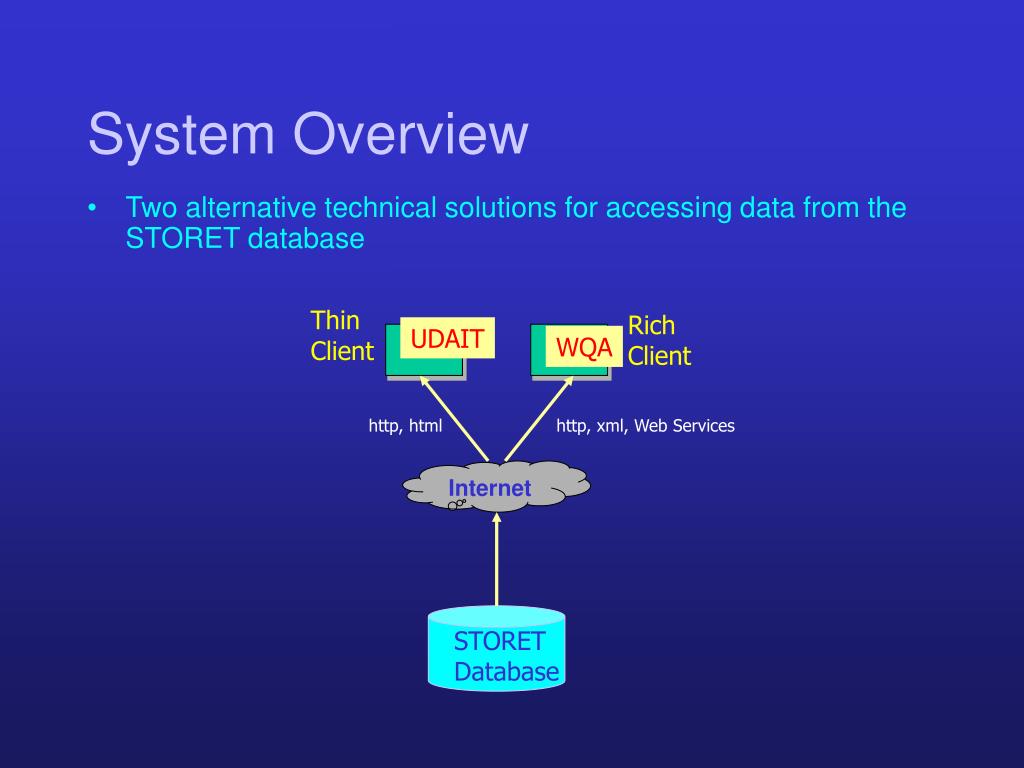

  2. Rich Client http, xml, Web Services System Overview • Two alternative technical solutions for accessing data from the STORET database Thin Client UDAIT WQA http, html Internet STORET Database

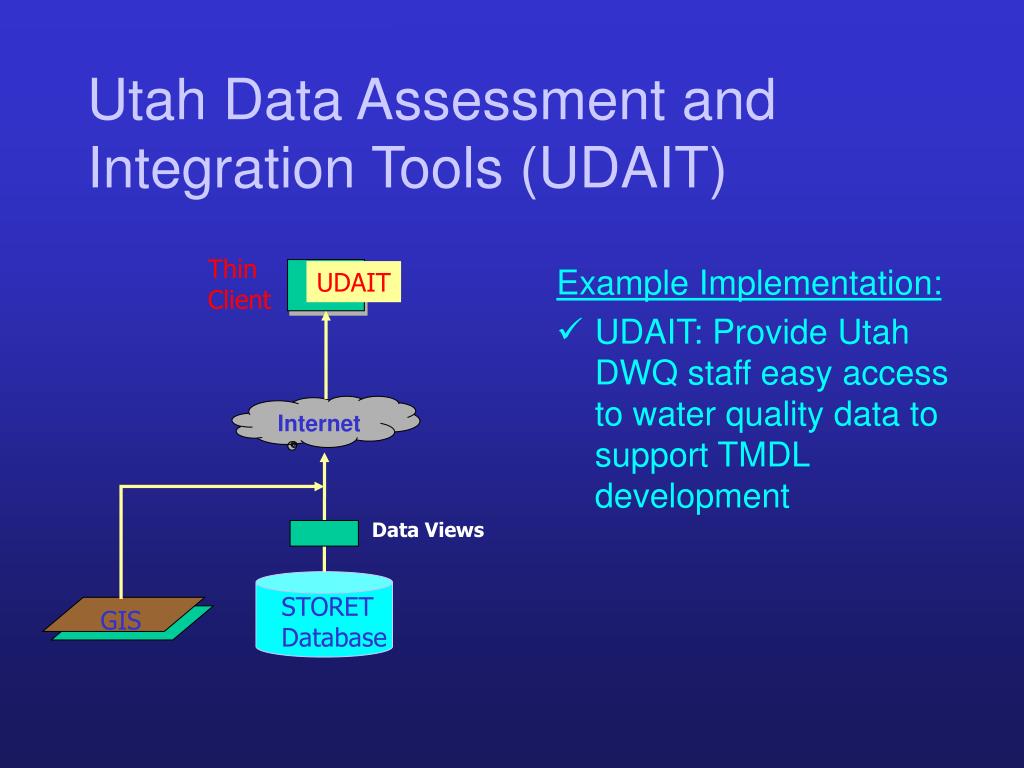

  3. Data Views GIS Utah Data Assessment and Integration Tools (UDAIT) Thin Client Example Implementation: • UDAIT: Provide Utah DWQ staff easy access to water quality data to support TMDL development UDAIT Internet STORET Database

  4. UDAIT - Demo

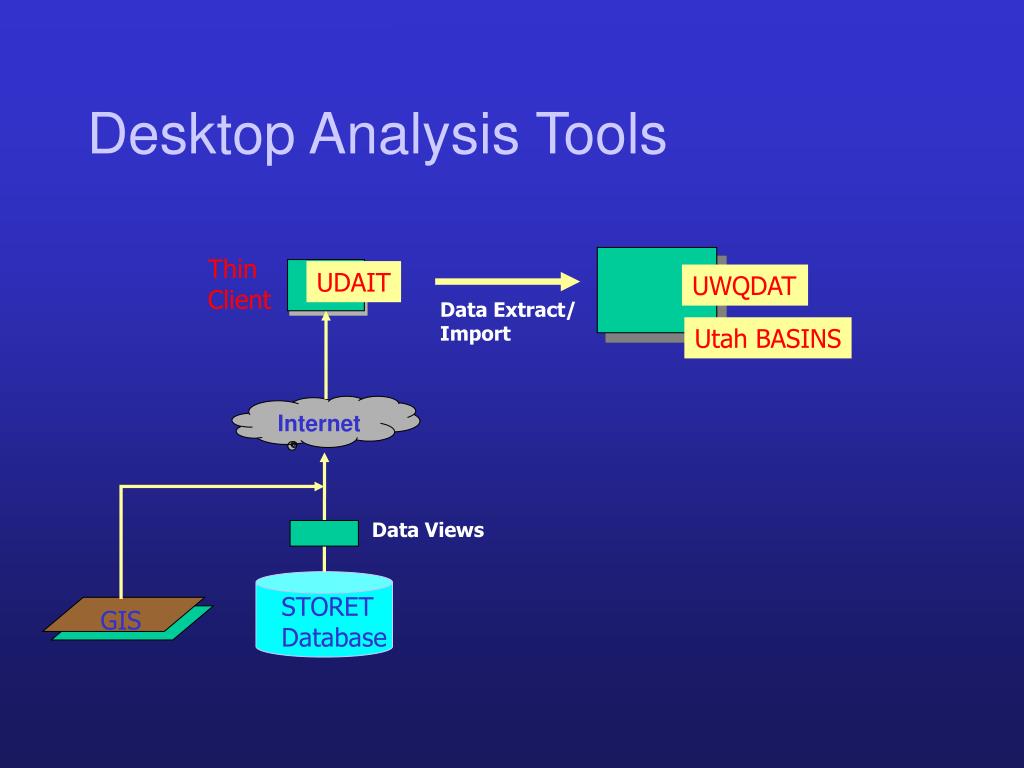

  5. UWQDAT Data Extract/ Import Utah BASINS Desktop Analysis Tools Thin Client UDAIT Internet Data Views STORET Database GIS

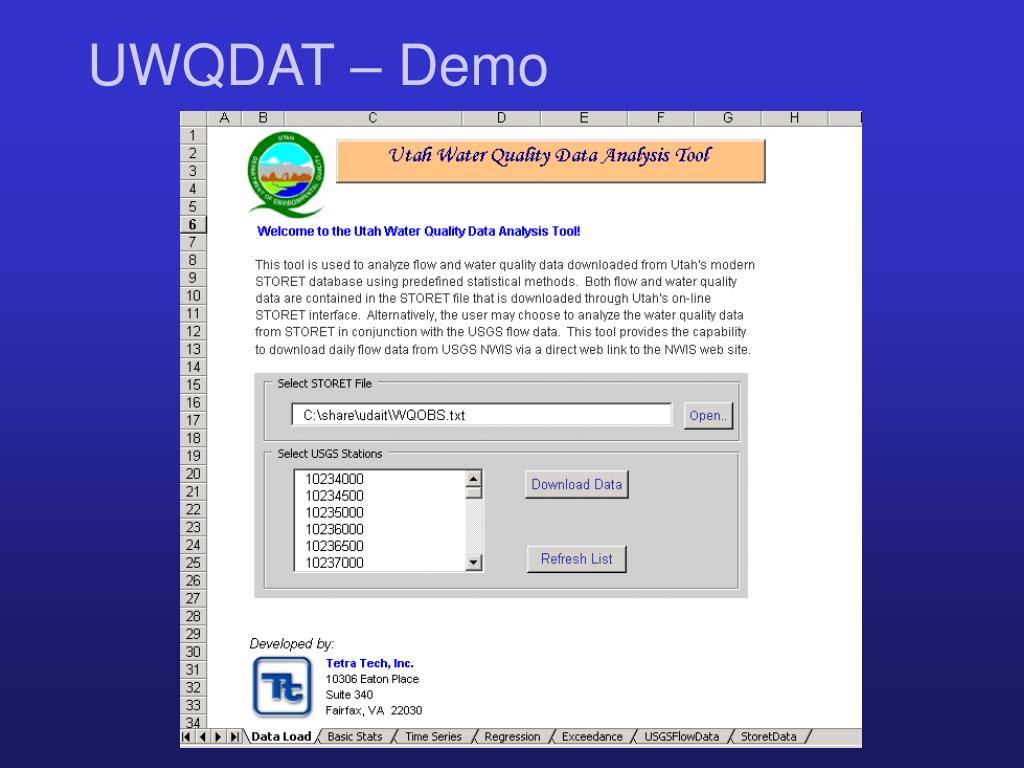

  6. UWQDAT – Demo

  7. Water Quality Analyzer (WQA) – Rich Client Rich Client Example Implementation: • El Paso, Colorado: Provide El Paso County a standalone application that contains their data (gis, wq data, wq standards) and perform analysis. WQA XML, ArcXML Internet XML Files GIS STORET Database

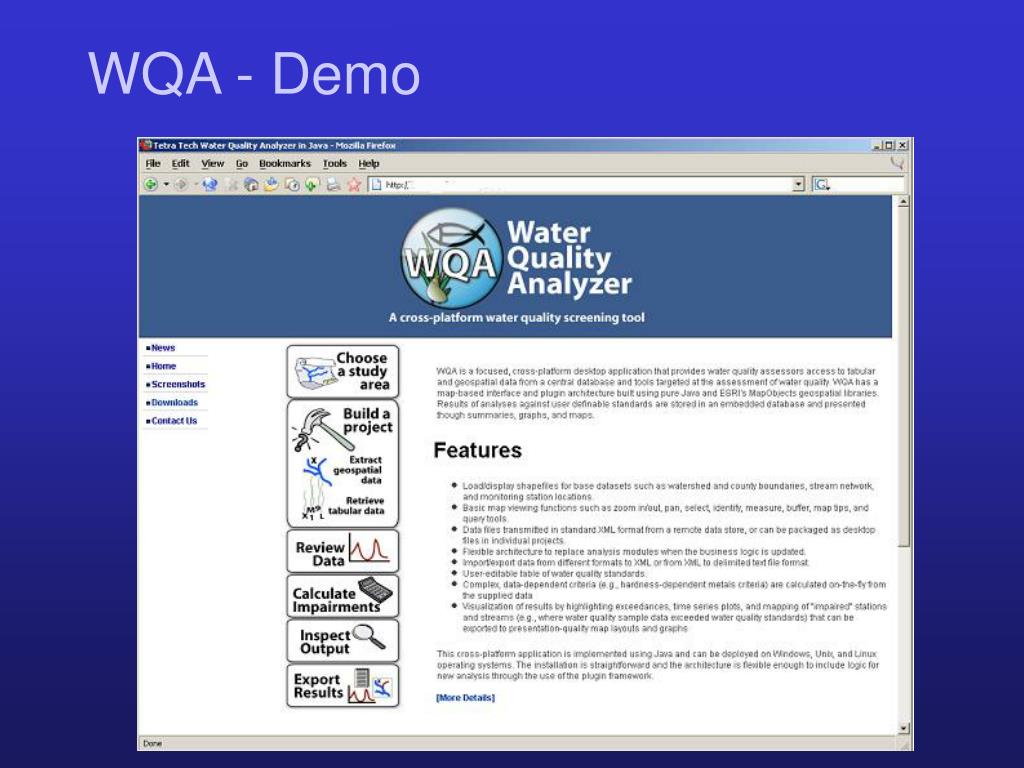

  8. WQA - Demo

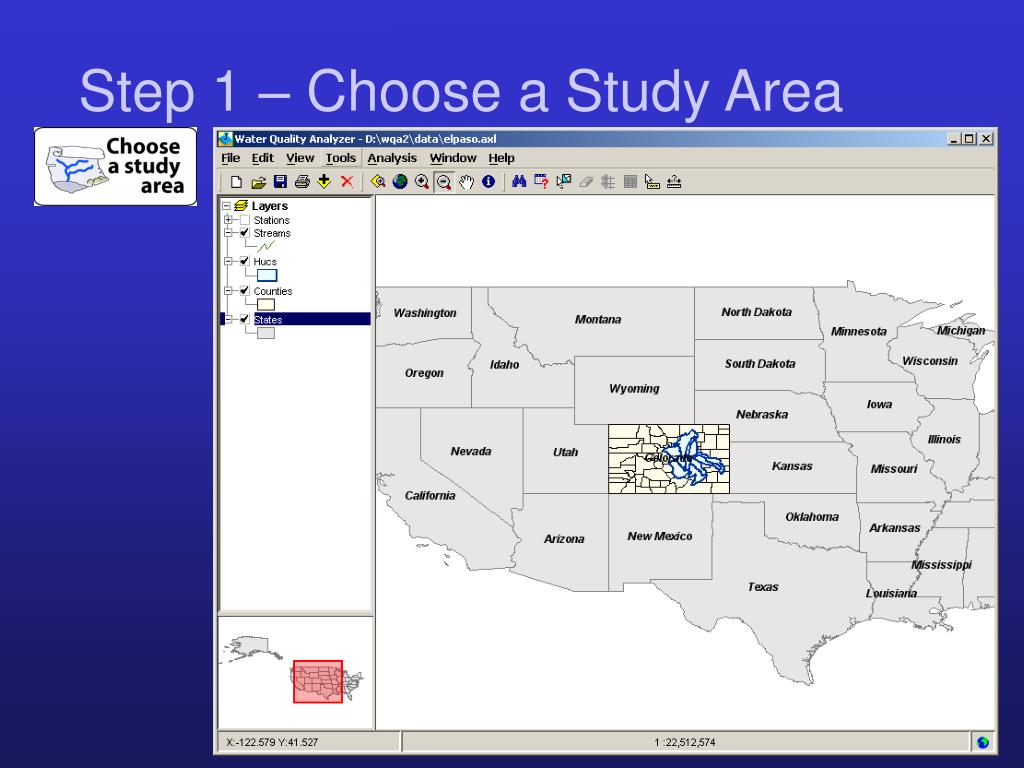

  9. Step 1 – Choose a Study Area

  10. Step 2 – Build a Project

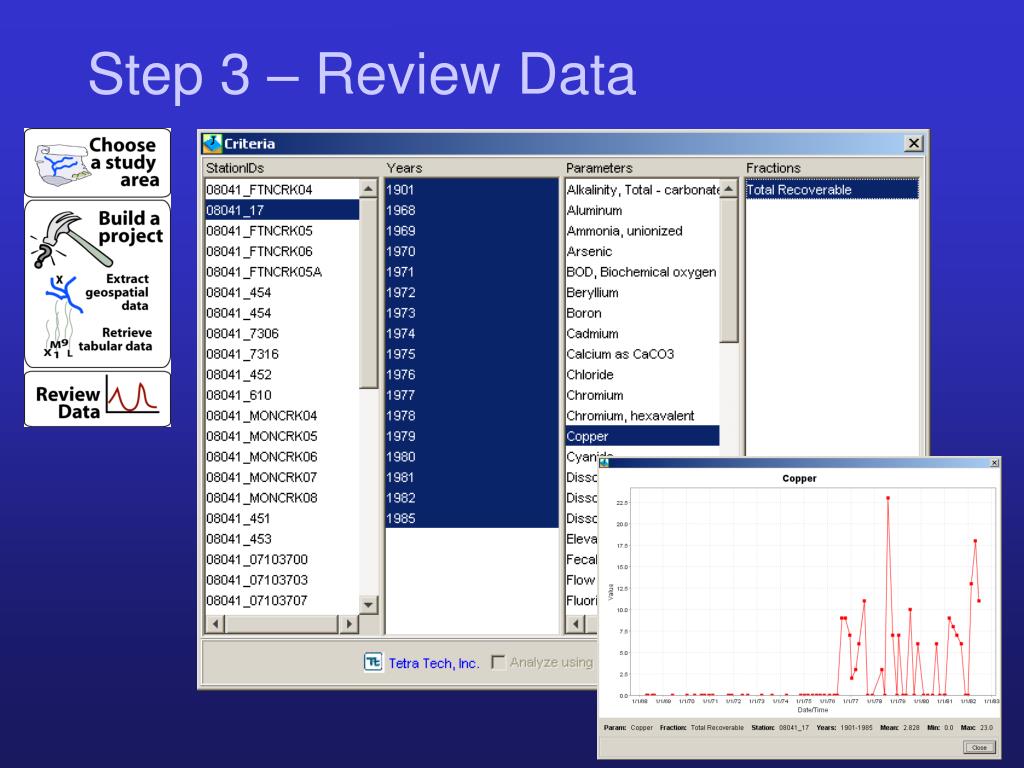

  11. Step 3 – Review Data

  12. Step 4 – Calculate Impairments

  13. Step 5 – Inspect Output

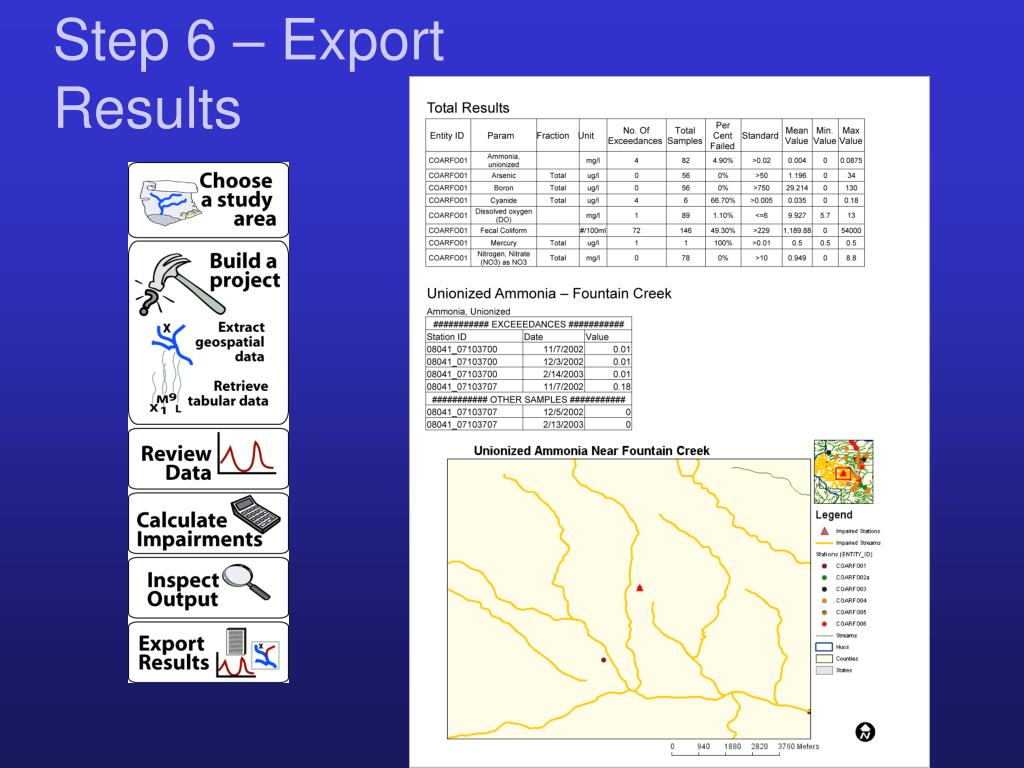

  14. Step 6 – Export Results

  15. Thin Client (UDAIT) Rich Client (WQA) Query/Extract Provided mainly to allow users to quickly identify availability of data before downloading. Data is downloaded as text files. Data is immediately downloaded to the desktop for the selected area of interest. All queries are performed on the local database Analysis May require additional desktop analysis tools (e.g., ArcView, MS Excel) to perform more rigorous analysis not provided by the thin client (i.e., multiple tools) Customized and included in the rich client (i.e., single package) Technology JSP, Java MapObjects (Java Edition), XML Internet Connection Requires continuous access As needed Summary

  16. Thank you Contacts: henry.manguerra@tetratech-ffx.com703-385-6000jamesharris@utah.gov(801) 538-6825
