Motion of the Earth

Motion of the Earth. Orbit? Rotation? Revolution?. What is a Rotation?. Rotation is the spin of a planet. A rotation is the movement of something through one complete spin. The Earth goes through one complete rotation in a day = 24 hours. Orbit? Rotation? Revolution?.

ivan
Download Presentation

Motion of the Earth

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Motion of the Earth

  2. Orbit? Rotation? Revolution? • What is a Rotation? • Rotation is the spin of a planet. • A rotation is the movement of something through one complete spin. • The Earth goes through one complete rotation in a day = 24 hours

  3. Orbit? Rotation? Revolution? • What is a Revolution? • A revolution is the path that a planet follows around the sun. Also known as an orbit. • The Earth completes one revolution around the sun every year.

  4. Orbit? Rotation? Revolution? • What is an Orbit? • An orbit is the curved path in space that is followed by an object going round and round a planet, moon, or star.

  5. What is Earth’s orbit shaped like? • Earth’s orbit is shaped like an ellipse not a circle. Ellipse Circle

  6. Why do we have seasons? • Many uninformed people blame the seasons on the shape of the Earth’s orbit. Stating that it is warmer in the summer because we are closer to the sun. • THIS IS NOT TRUE!!!! • It is Wrong in two ways

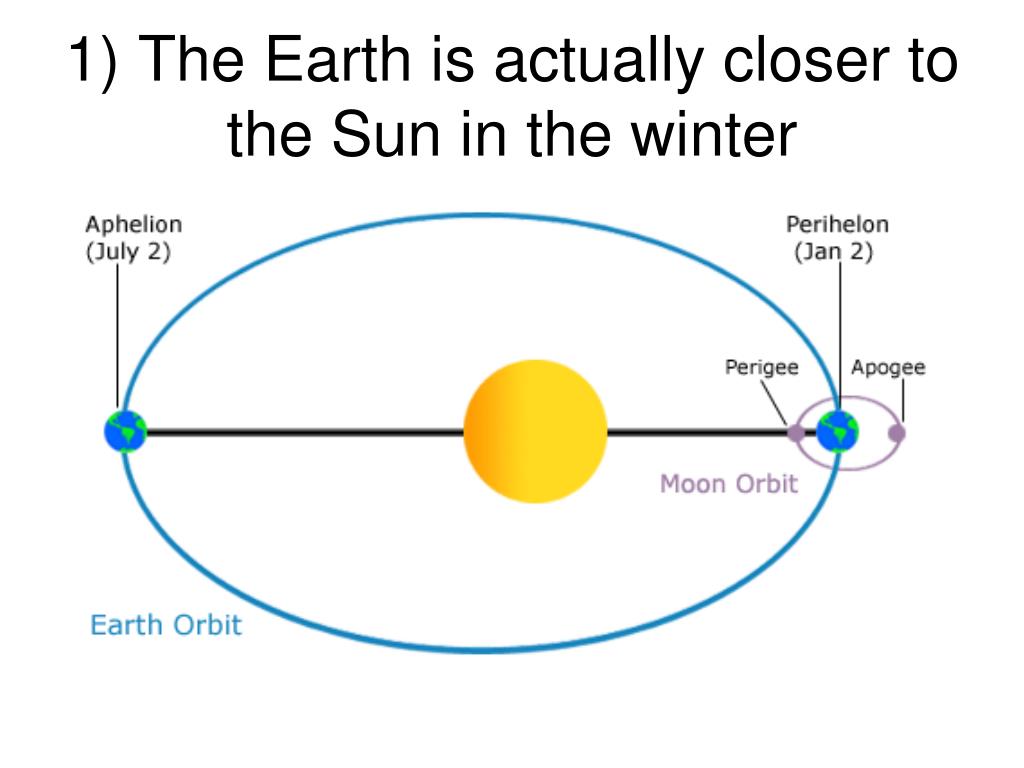

  7. 1) The Earth is actually closer to the Sun in the winter

  8. 2) The real reason we have seasons is due to the tilt of Earth’s axis

  9. Seasons on the Earth

  10. Earth’s Orbit and the Seasons

  11. 1 KW/m2 1 KW/m2 1 m2 2 m2 In winter light is spread over a bigger area than in summer Due to the inclination away from the Sun

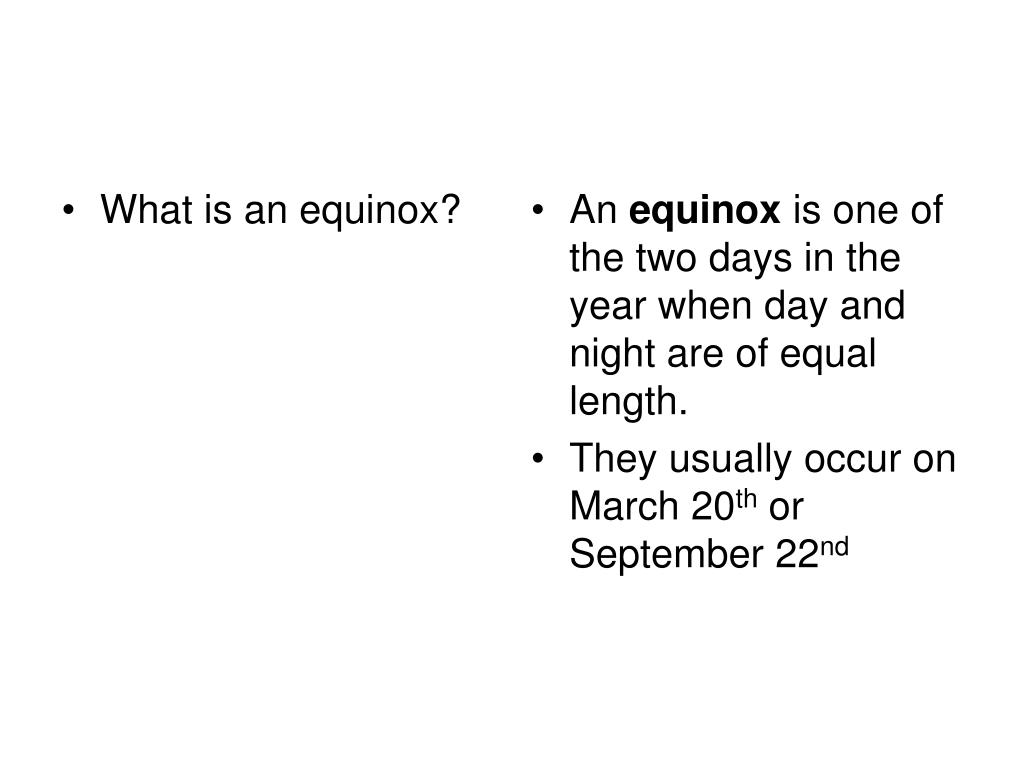

  12. What is an equinox? • An equinox is one of the two days in the year when day and night are of equal length. • They usually occur on March 20th or September 22nd

  13. What is the vernal equinox? • What is the autumnal equinox • The vernal equinox occurs in march. For the northern hemisphere it is the spring equinox • The autumnal equinox occurs in September, or in the fall for the northern hemisphere

  14. Winter and Summer Solstice • What is a solstice? • Thesummer solstice is the day of the year with the most hours of daylight, and thewinter solstice is the day of the year with the fewest hours of daylight.

  15. Draw this Diagram in your notes

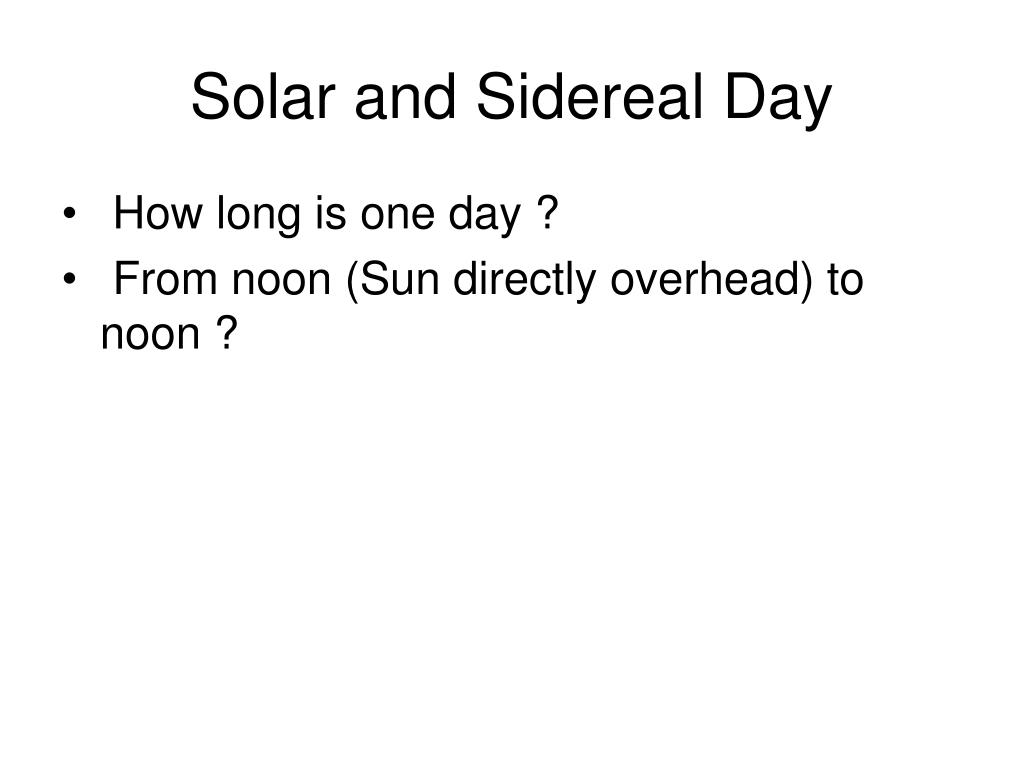

  16. Solar and Sidereal Day • How long is one day ? • From noon (Sun directly overhead) to noon ?

  17. Orbital and angular motion of the Earth

  18. T=24h (Solar day) T=23h 56m 04s (Sidereal Day) Noon Noon Solar & SiderealDays T=0h Not to Scale

  19. Precession of the Earth’s axis • What is the Earth’s axis • The Earth’s axis is the imaginary line going through the Earth that it rotates around

  20. Precession of the Earth’s axis • What is precession? • Precession is a change in the orientation, or direction, of the rotation axis of a rotating body.

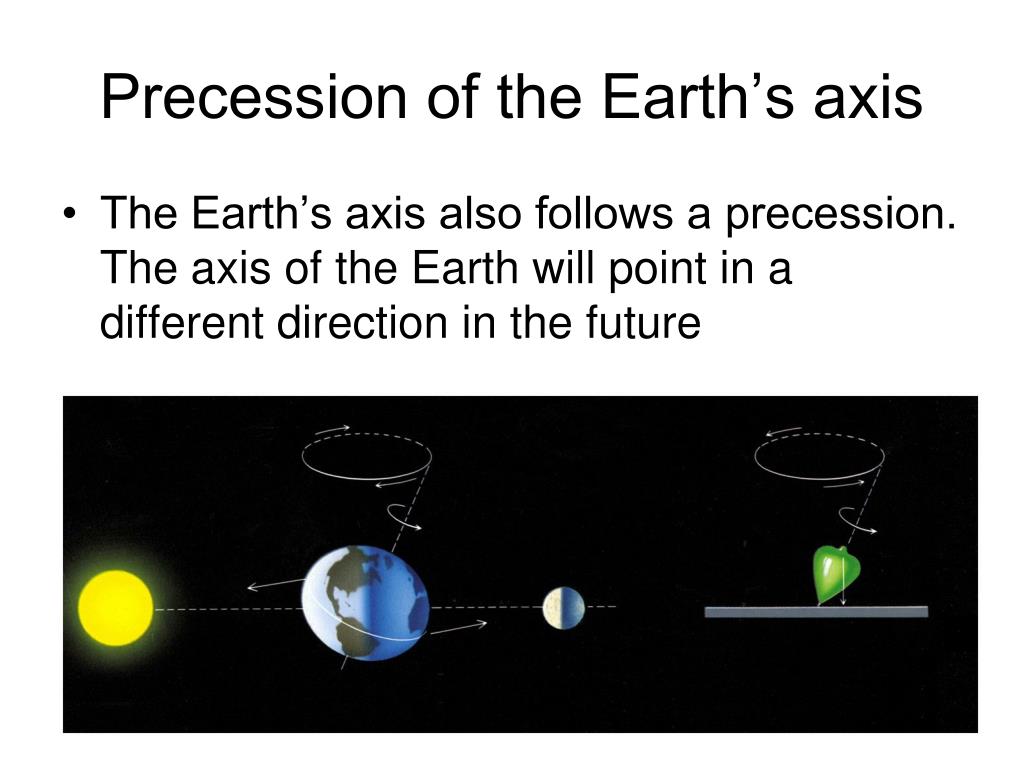

  21. Precession of the Earth’s axis • The Earth’s axis also follows a precession. The axis of the Earth will point in a different direction in the future

  22. The amount of time for one full precession is - 26,000 Yrs
