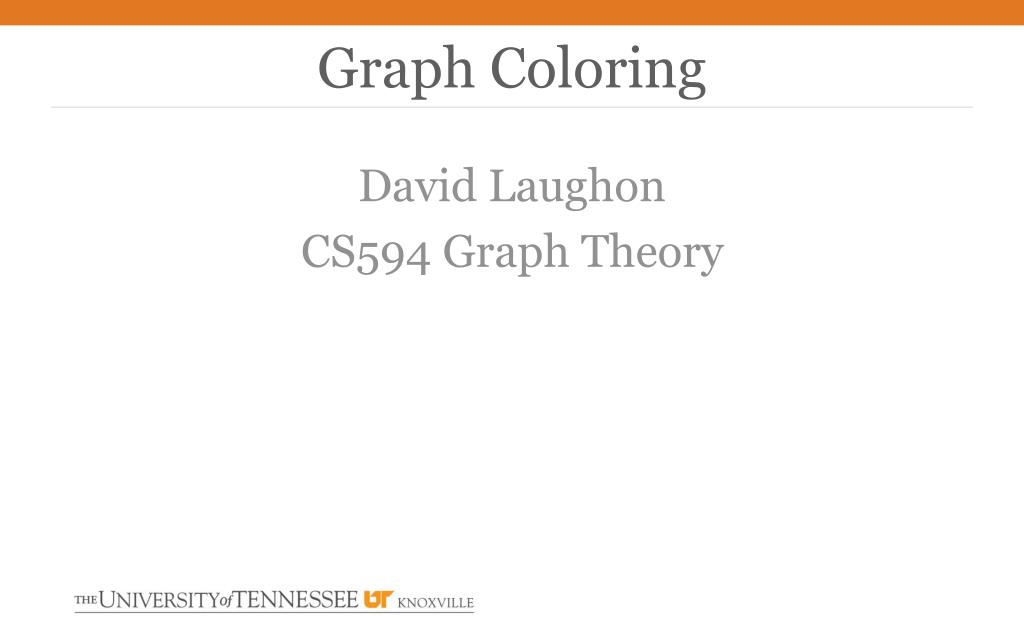

  1. Graph Coloring David Laughon CS594 Graph Theory

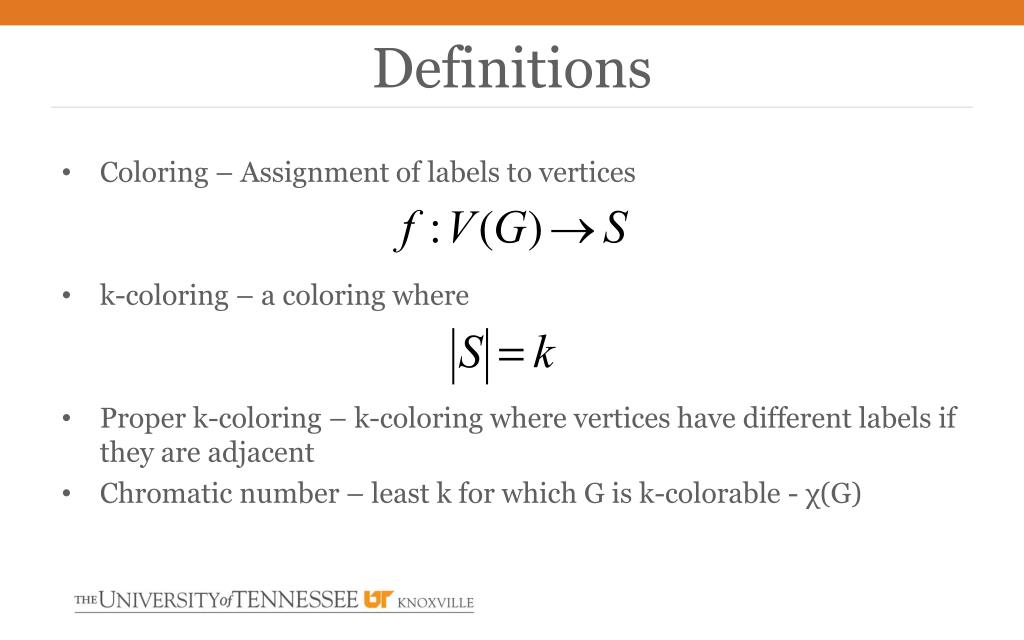

  2. Definitions • Coloring – Assignment of labels to vertices • k-coloring – a coloring where • Proper k-coloring – k-coloring where vertices have different labels if they are adjacent • Chromatic number – least k for which G is k-colorable - χ(G)

  3. Definitions • A Graph is k-chromatic if χ(G) = k • Optimal coloring – proper k-coloring of a k-chromatic graph • Vertex-coloring problems • Is a graph k-colorable for given k? • What is χ(G) / what is the optimal coloring?

  4. History • Four-color conjecture – Francis Guthrie, 1852 (F.G.) • Can any map be colored using at most 4 colors so that adjacent regions are not the same color? • Many incomplete proofs (Kempe) • “Counterexamples” • 5-color theorem proved in 1890 (Heawood) • 4-color theorem finally proved in 1977 (Appel, Haken) • First major computer-based proof • Graph coloring applies to non-planar graphs as well

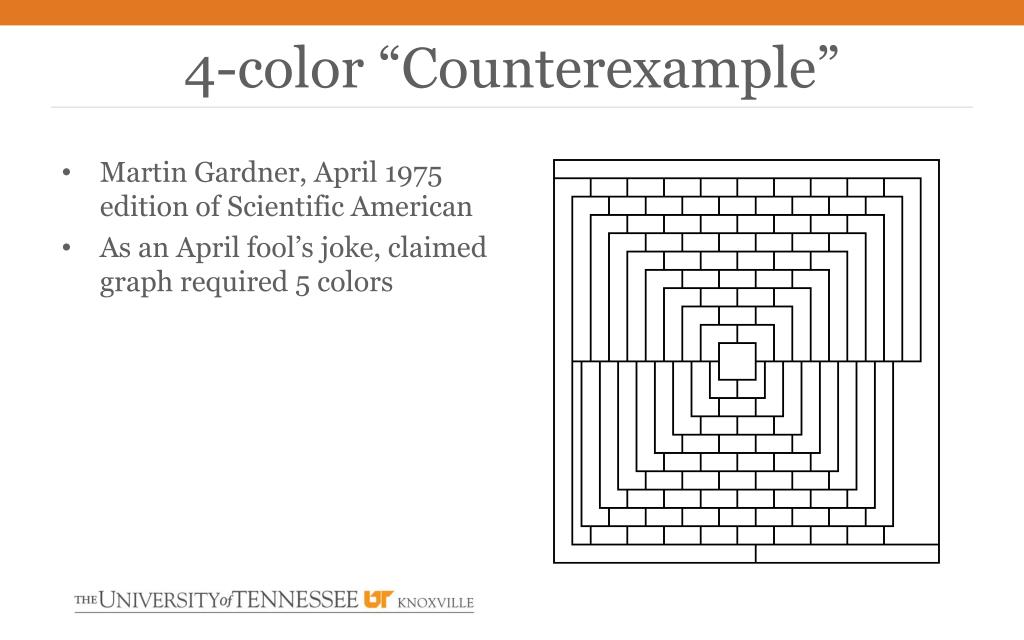

  5. 4-color “Counterexample” • Martin Gardner, April 1975 edition of Scientific American • As an April fool’s joke, claimed graph required 5 colors

  6. Examples Proper 6-coloring Optimal 4-coloring

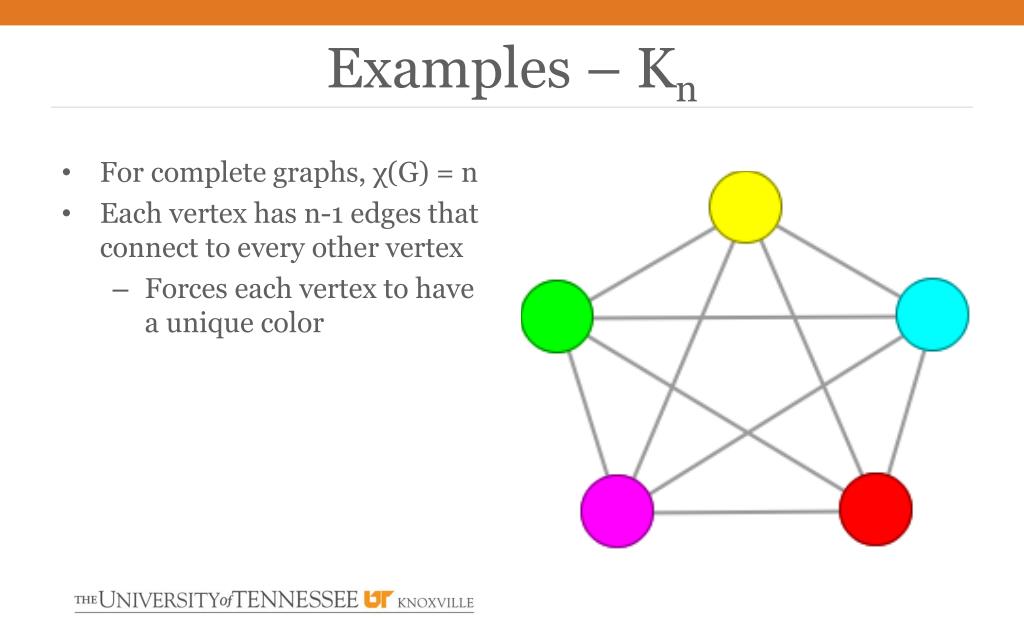

  7. Examples – Kn • For complete graphs, χ(G) = n • Each vertex has n-1 edges that connect to every other vertex • Forces each vertex to have a unique color

  8. Examples • A graph is 2-colorable iff it is bipartite

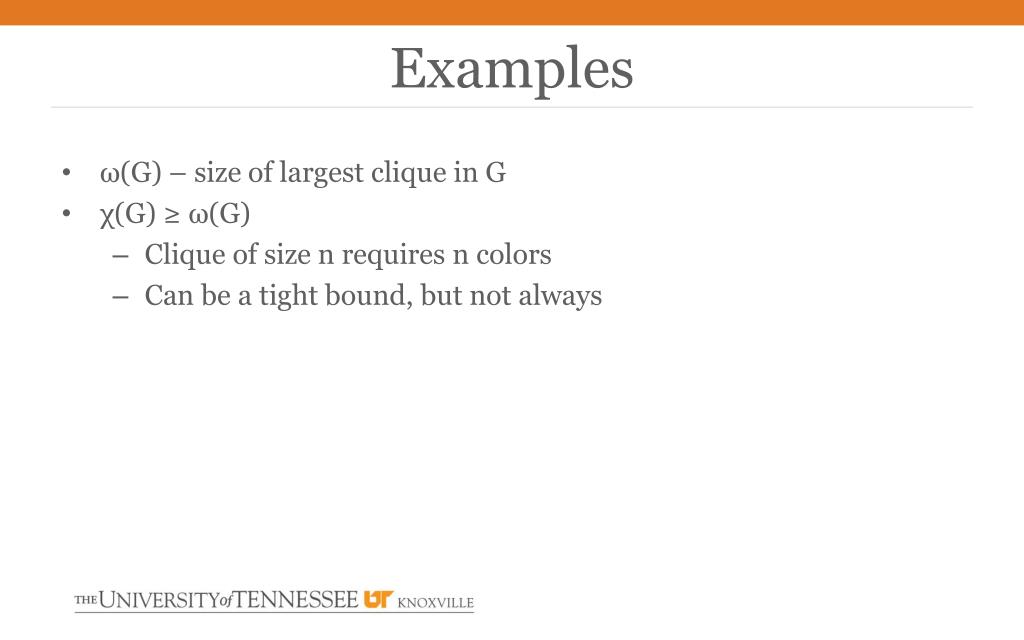

  9. Examples • ω(G) – size of largest clique in G • χ(G) ≥ ω(G) • Clique of size n requires n colors • Can be a tight bound, but not always

  10. Examples χ(G) = 7, ω(G) = 5

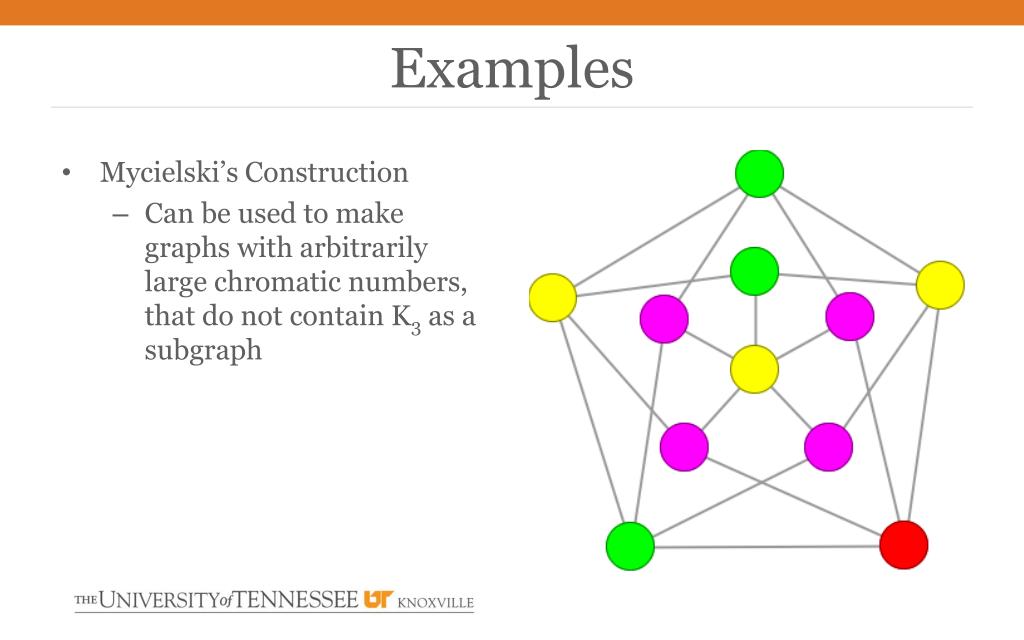

  11. Examples • Mycielski’s Construction • Can be used to make graphs with arbitrarily large chromatic numbers, that do not contain K3 as a subgraph

  12. Greedy Coloring • χ(G) ≤ Δ(G) + 1 • Greedy Algorithm: • Put the vertices of a graph in a sequence • For each vertex in the sequence, assign it the lowest indexed color not already assigned to adjacent vertices • Not guaranteed to be optimal for every possible sequence • Guaranteed optimal for at least one sequence

  13. Greedy Coloring Example

  14. Greedy Coloring Example

  15. Kempe Chains • A path in a graph that alternates between 2 colors • First used by Kempe in his incorrect proof of the 4-color theorem • Used in 5-color theorem and 4-color theorem proofs

  16. 5-color theorem • All planar graphs can be colored with at most 5 colors • Basis step: True for n(G) ≤ 5 • Induction step: n(g) > 5 • There exists a vertex v in G of degree at most 5 (Theorem 6.1.23) • G – v must be 5-colorable by induction hypothesis

  17. 5-color Theorem • If G is 5-colorable, done • If G is not 5 colorable, we have: • Is there a Kempe chain including v1 and v3?

  18. 5-color Theorem There is no Kempe chain There is a Kempe chain

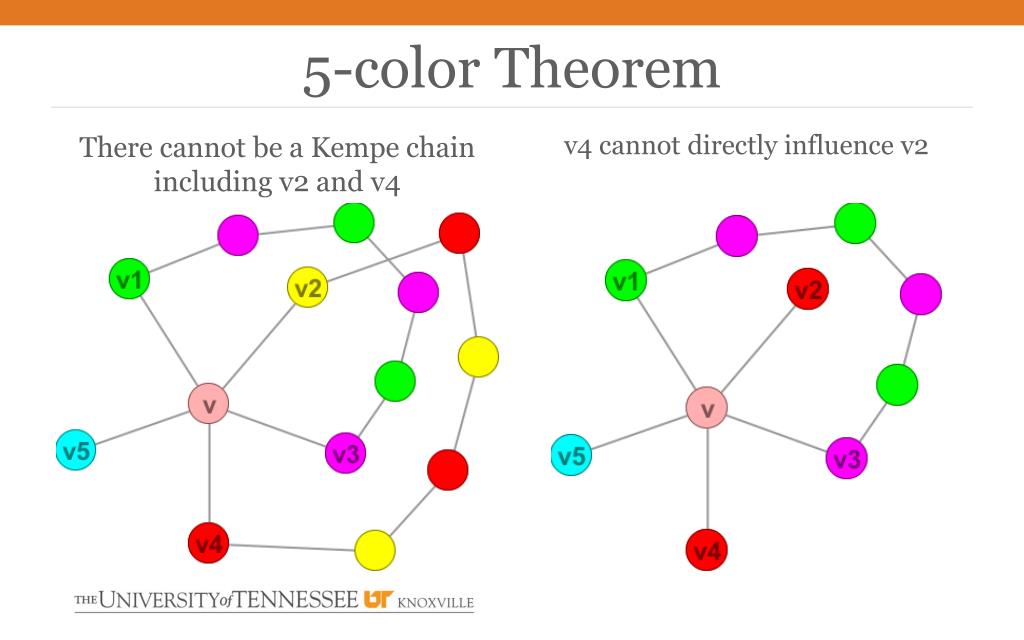

  19. 5-color Theorem There cannot be a Kempe chain including v2 and v4 v4 cannot directly influence v2

  20. Edge Coloring • Similar to vertex coloring, except edges are colored • Adjacent edges have different colors

  21. Edge Coloring • Every edge-coloring problem can be transformed into a vertex-coloring problem • Coloring the edges of graph G is the same as coloring the vertices in L(G) • Not every vertex-coloring problem can be transformed tin an edge-coloring problem • Every graph has a line graph, but not every graph is a line graph of some other graph

  22. Edge Coloring K4 edge-coloring L(K4) vertex-coloring

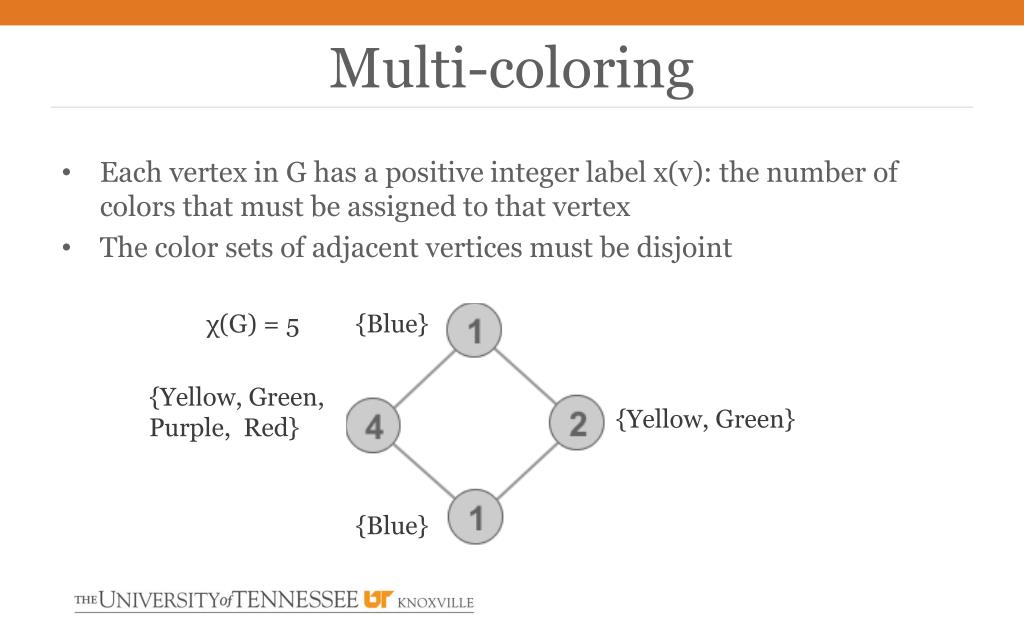

  23. Multi-coloring • Each vertex in G has a positive integer label x(v): the number of colors that must be assigned to that vertex • The color sets of adjacent vertices must be disjoint χ(G) = 5 {Blue} {Yellow, Green, Purple, Red} {Yellow, Green} {Blue}

  24. Multi-coloring • Every multi-coloring problem can be transformed to a vertex-coloring problem • For each vertex with x(v) = n, replace it with a clique of size n. • Add an edge from each vertex in the new clique to every vertex that the original vertex was adjacent to. • Single vertex-coloring now solves the problem

  25. Multi-coloring χ(G) = 5

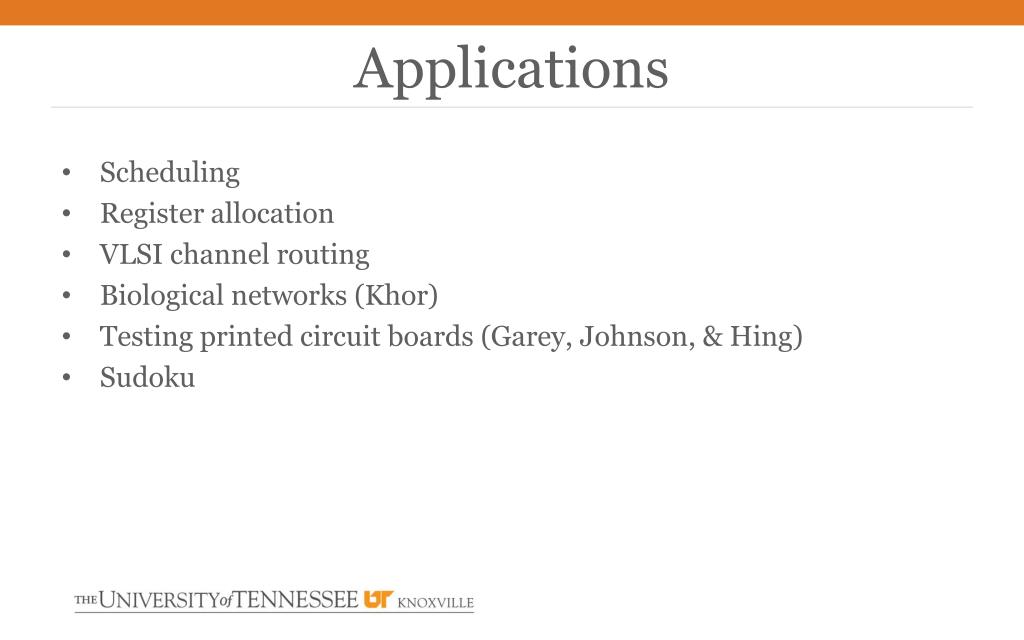

  26. Applications • Scheduling • Register allocation • VLSI channel routing • Biological networks (Khor) • Testing printed circuit boards (Garey, Johnson, & Hing) • Sudoku

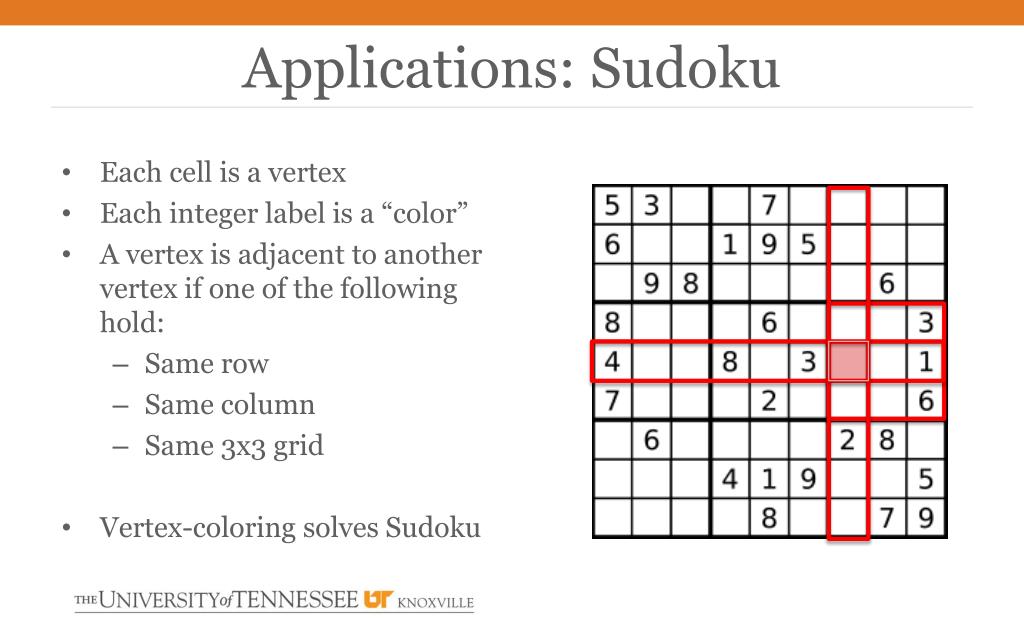

  27. Applications: Sudoku • Each cell is a vertex • Each integer label is a “color” • A vertex is adjacent to another vertex if one of the following hold: • Same row • Same column • Same 3x3 grid • Vertex-coloring solves Sudoku

  28. State of the Art • Decide if a graph is k-colorable is NP-complete • Determining χ(G) is NP-hard • k-colorable – O(2.445^n) (Lawler) • 3-colorable – O(1.3289^n) (Beigel, Eppstein) • 4-colorable – O(1.7272^n) (Fomin, Gaspers, & Saurabh) • Alternative methods of solvinggraph coloring • Swarm intelligence (Dorrigiv, Markib)

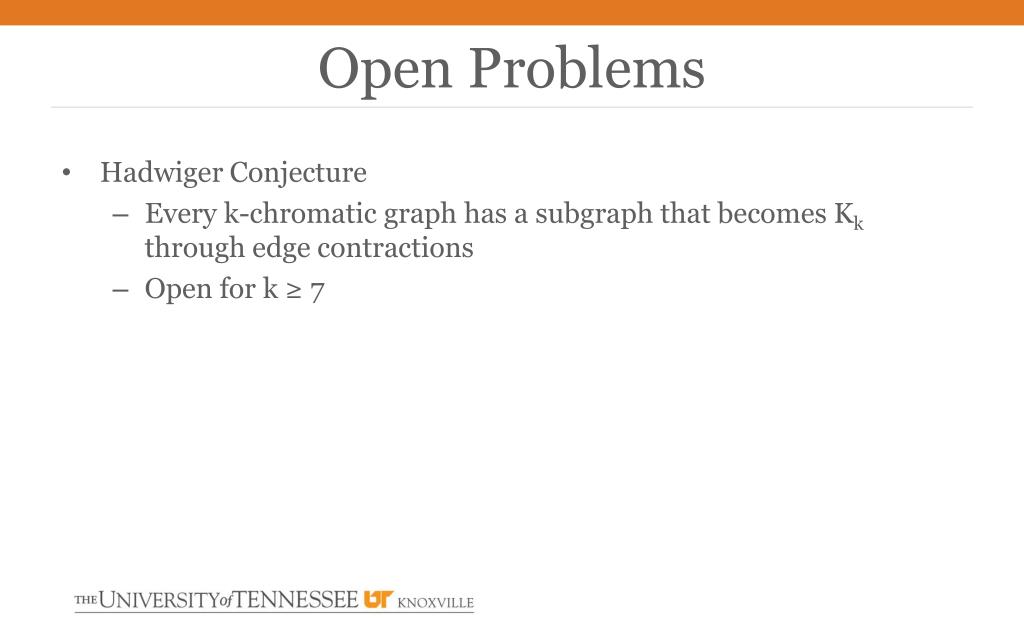

  29. Open Problems • Hadwiger Conjecture • Every k-chromatic graph has a subgraph that becomes Kkthrough edge contractions • Open for k ≥ 7

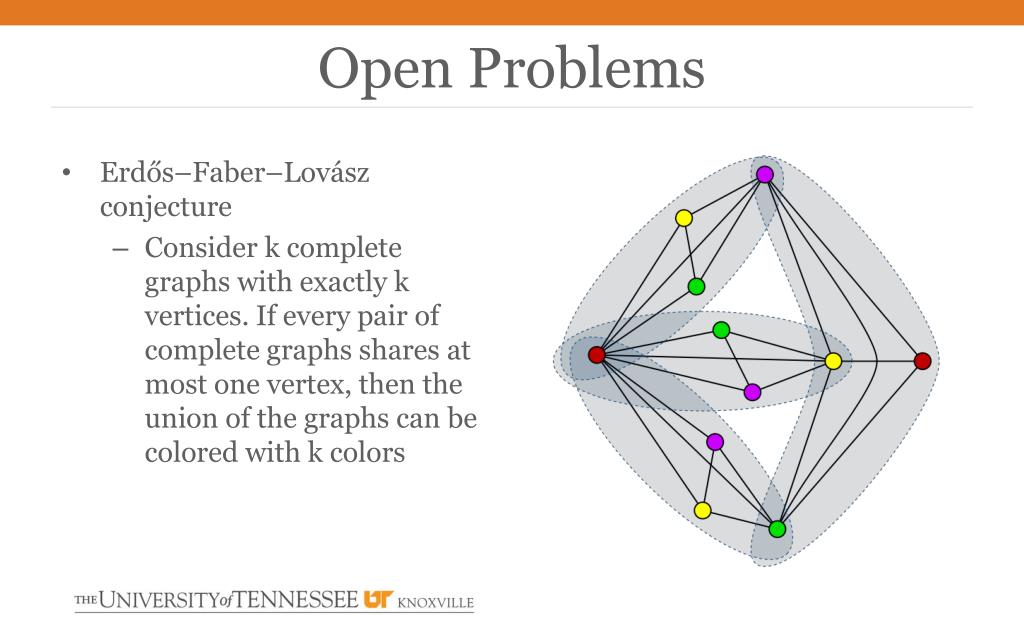

  30. Open Problems • Erdős–Faber–Lovász conjecture • Consider k complete graphs with exactly k vertices. If every pair of complete graphs shares at most one vertex, then the union of the graphs can be colored with k colors

  31. References • F. G. (June 10, 1854), "Tinting Maps", The Athenaeum: 726. • Heawood, P. J. (1890), "Map-Colour Theorems", Quarterly Journal of Mathematics, Oxford24: 332–338 • Appel, Kenneth; Haken, Wolfgang (1977), "Every Planar Map is Four Colorable Part I. Discharging", Illinois Journal of Mathematics21: 429–490 • Appel, Kenneth; Haken, Wolfgang; Koch, John (1977), "Every Planar Map is Four Colorable Part II. Reducibility", Illinois Journal of Mathematics21: 491–567 • Appel, Kenneth; Haken, Wolfgang (October 1977), "Solution of the Four Color Map Problem", Scientific American237 (4): 108–121 • Khor, S., "Application of graph colouring to biological networks," Systems Biology, IET , vol.4, no.3, pp.185,192, May 2010 • Garey, M.R.; Johnson, D.; Hing So, "An application of graph coloring to printed circuit testing," Circuits and Systems, IEEE Transactions on , vol.23, no.10, pp.591,599, Oct 1976

  32. References • Lawler, E.L. (1976), "A note on the complexity of the chromatic number problem", Information Processing Letters5 (3): 66–67 • Beigel, R.; Eppstein, D. (2005), "3-coloring in time O(1.3289n)", Journal of Algorithms54 (2)): 168–204 • Fomin, F.V.; Gaspers, S.; Saurabh, S. (2007), "Improved Exact Algorithms for Counting 3- and 4-Colorings", Proc. 13th Annual International Conference, COCOON 2007, Lecture Notes in Computer Science4598, Springer, pp. 65–74 • Dorrigiv, M.; Markib, H.Y., "Algorithms for the graph coloring problem based on swarm intelligence," Artificial Intelligence and Signal Processing (AISP), 2012 16th CSI International Symposium on , vol., no., pp.473,478, 2-3 May 2012
