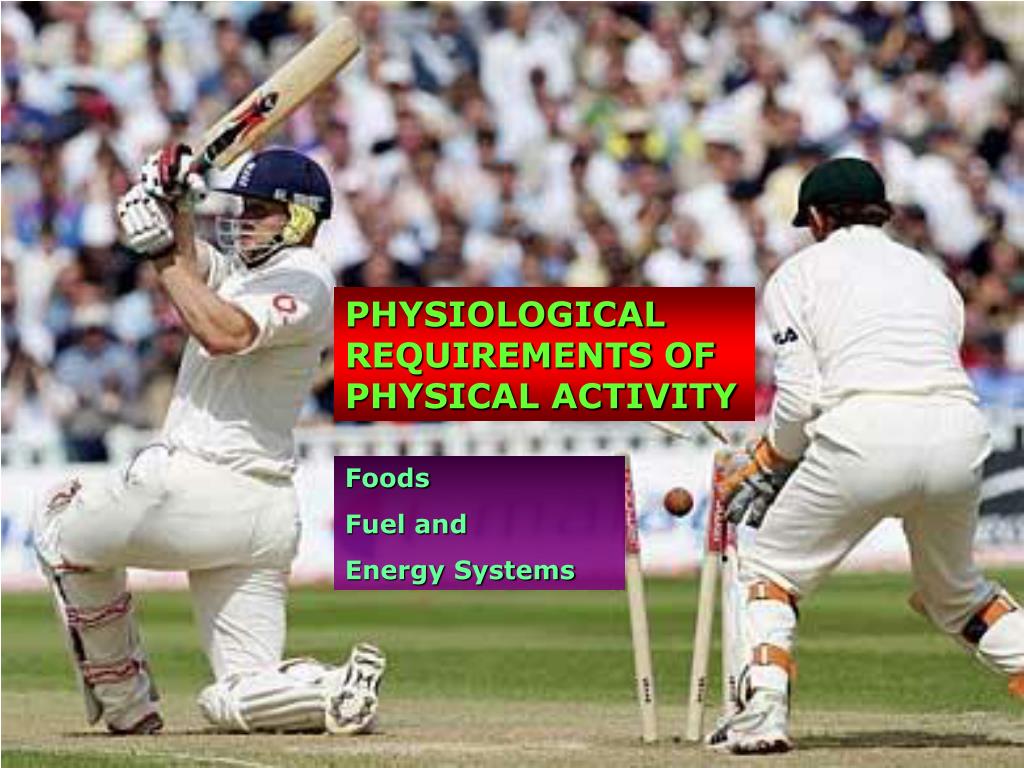

Energy systems. PHYSIOLOGICAL REQUIREMENTS OF PHYSICAL ACTIVITY. Foods Fuel and Energy Systems.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Energy systems.' - issac


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript


Energy systems

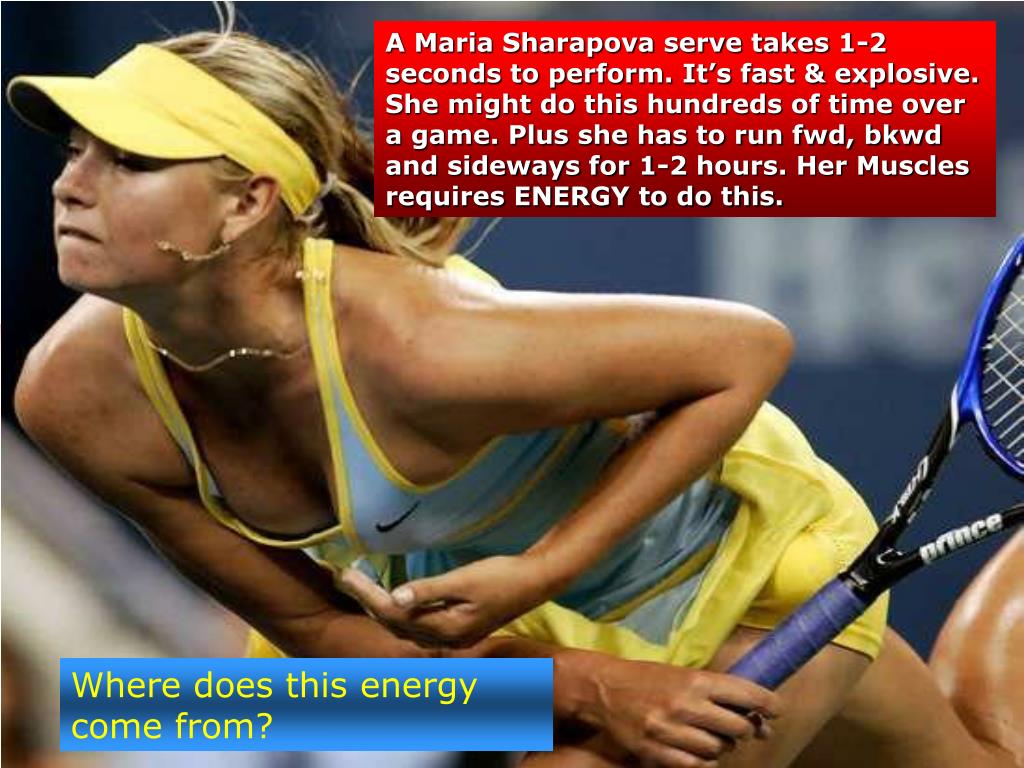

A Maria Sharapova serve takes 1-2 seconds to perform. It’s fast & explosive. She might do this hundreds of time over a game. Plus she has to run fwd, bkwd and sideways for 1-2 hours. Her Muscles requires ENERGY to do this.

Where does this energy come from?


Energy systems

Food Fuels our Body fast & explosive. She might do this hundreds of time over a game. Plus she has to run fwd, bkwd and sideways for 1-2 hours. Her Muscles requires ENERGY to do this.

1. CARBOHYDRATES (Glycogen)

2. PROTEIN

3. FATS


Energy systems

CARBOHYDRATES fast & explosive. She might do this hundreds of time over a game. Plus she has to run fwd, bkwd and sideways for 1-2 hours. Her Muscles requires ENERGY to do this.

Pastas

Cereals

Rice

Fruit/Veges

Breads

Sugar

Carbohydrates are stored as Glycogen in Muscle & Liver

CHO is the body’s preferred fuel during Exercise – breaks down easily, uses little oxygen


Energy systems

PROTEIN fast & explosive. She might do this hundreds of time over a game. Plus she has to run fwd, bkwd and sideways for 1-2 hours. Her Muscles requires ENERGY to do this.

Fish

Red Meat

Poultry

Eggs

Dairy products

GRAINS

Protein is stored as MUSCLE and AMINO ACIDS around the body.

5-10% contribution to endurance events: Mainly used for growth/repair


Energy systems

FATS fast & explosive. She might do this hundreds of time over a game. Plus she has to run fwd, bkwd and sideways for 1-2 hours. Her Muscles requires ENERGY to do this.

Butter

Oils

Margarine

Nuts

Cheese


Energy systems

Food that we ingest is stored and burnt to fuel our muscles fast & explosive. She might do this hundreds of time over a game. Plus she has to run fwd, bkwd and sideways for 1-2 hours. Her Muscles requires ENERGY to do this.

This food must be converted into a chemical compound called ATP

WithoutATP, Muscles cannot contract


A t p
A.T.P. fast & explosive. She might do this hundreds of time over a game. Plus she has to run fwd, bkwd and sideways for 1-2 hours. Her Muscles requires ENERGY to do this.

  • Adenosine triphosphate.

  • This is energy for muscle contraction.

  • Energy for movement of muscle fibres is stored in the muscle as a molecule of ATP.

Adenosine

P

P

P

Adenosine triphosphate


To use the stored atp
To use the stored ATP fast & explosive. She might do this hundreds of time over a game. Plus she has to run fwd, bkwd and sideways for 1-2 hours. Her Muscles requires ENERGY to do this.

  • To release the energy, ATP is broken down into ADP + Pi (Adenosine diphosphate + Phosphate molecule)

  • The energy released allows for a muscle contraction.

+

P

P

Pi

Adenosine

Energy


Resynthesis of atp

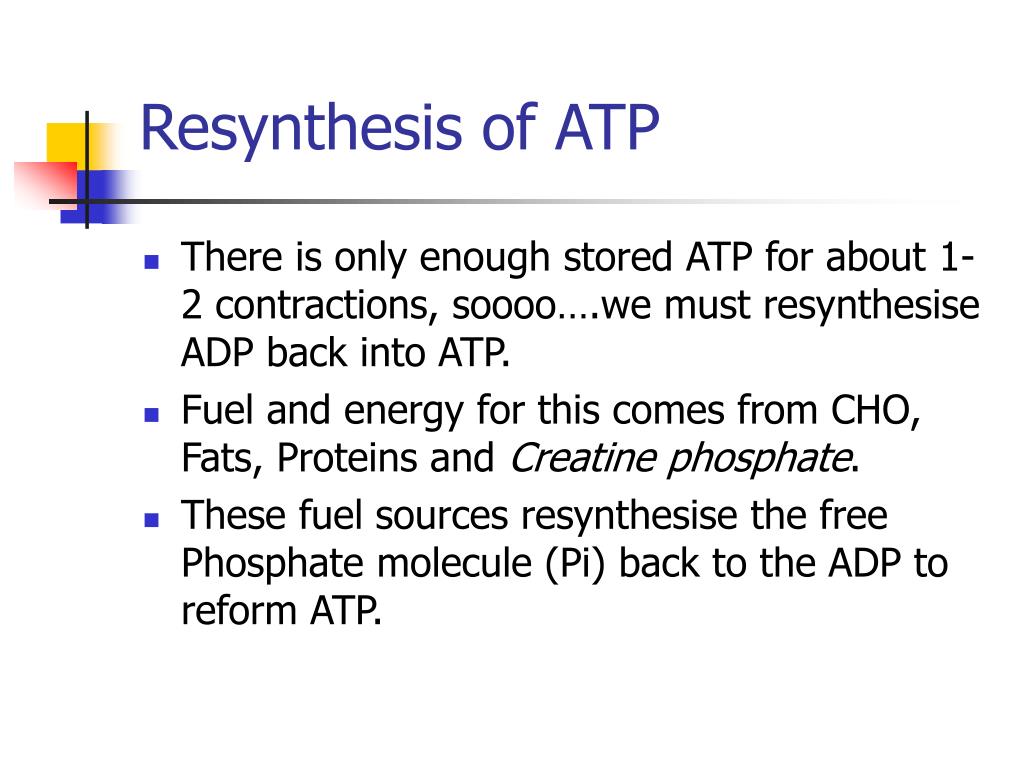

Resynthesis of ATP fast & explosive. She might do this hundreds of time over a game. Plus she has to run fwd, bkwd and sideways for 1-2 hours. Her Muscles requires ENERGY to do this.

  • There is only enough stored ATP for about 1-2 contractions, soooo….we must resynthesise ADP back into ATP.

  • Fuel and energy for this comes from CHO, Fats, Proteins and Creatine phosphate.

  • These fuel sources resynthesise the free Phosphate molecule (Pi) back to the ADP to reform ATP.


Energy systems

CHO, Fats, Proteins, CP fast & explosive. She might do this hundreds of time over a game. Plus she has to run fwd, bkwd and sideways for 1-2 hours. Her Muscles requires ENERGY to do this.

+

P

P

Pi

Adenosine

Resynthesises the ADP back to ATP

P

P

Pi

Adenosine


Atp is used in all 3 energy systems

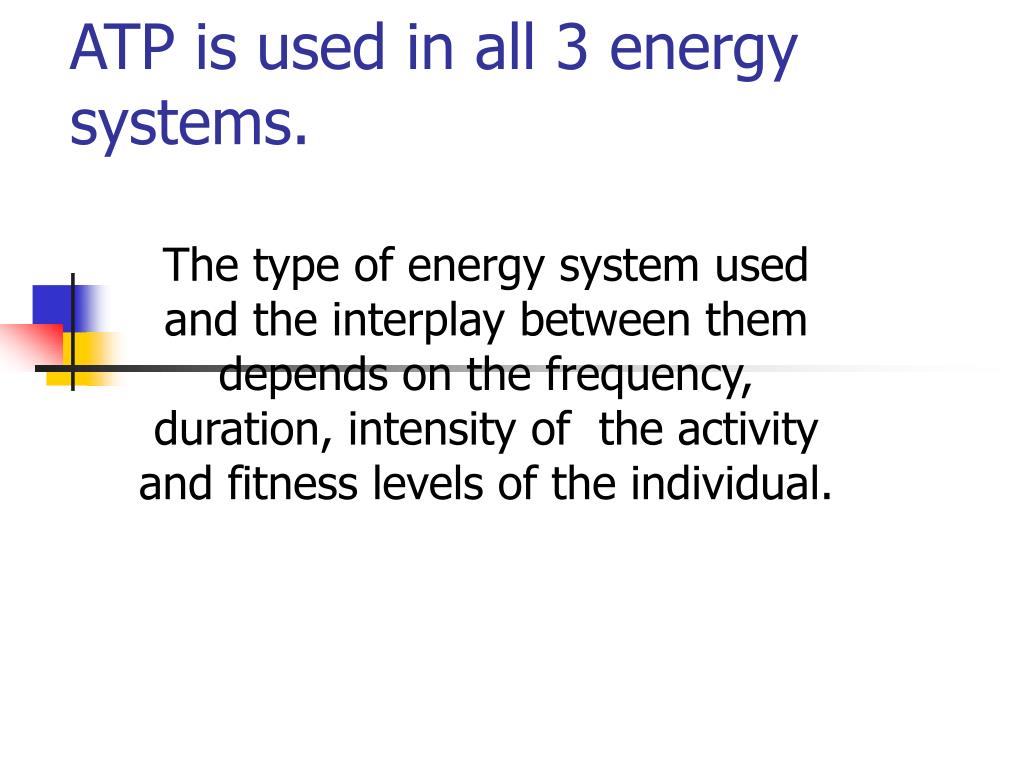

ATP is used in all 3 energy systems. fast & explosive. She might do this hundreds of time over a game. Plus she has to run fwd, bkwd and sideways for 1-2 hours. Her Muscles requires ENERGY to do this.

The type of energy system used and the interplay between them depends on the frequency, duration, intensity of the activity and fitness levels of the individual.


The 3 energy systems
The 3 energy systems fast & explosive. She might do this hundreds of time over a game. Plus she has to run fwd, bkwd and sideways for 1-2 hours. Her Muscles requires ENERGY to do this.

  • The ATP – PC system

    • Alactacid system

    • Creatine phosphate system

    • Phosphagen system.

  • The Lactic Acid Systems

    • Anaerobic glycolysis system

    • Lactacid system

  • Aerobic System

    • Aerobic Glycolysis


Atp pc system

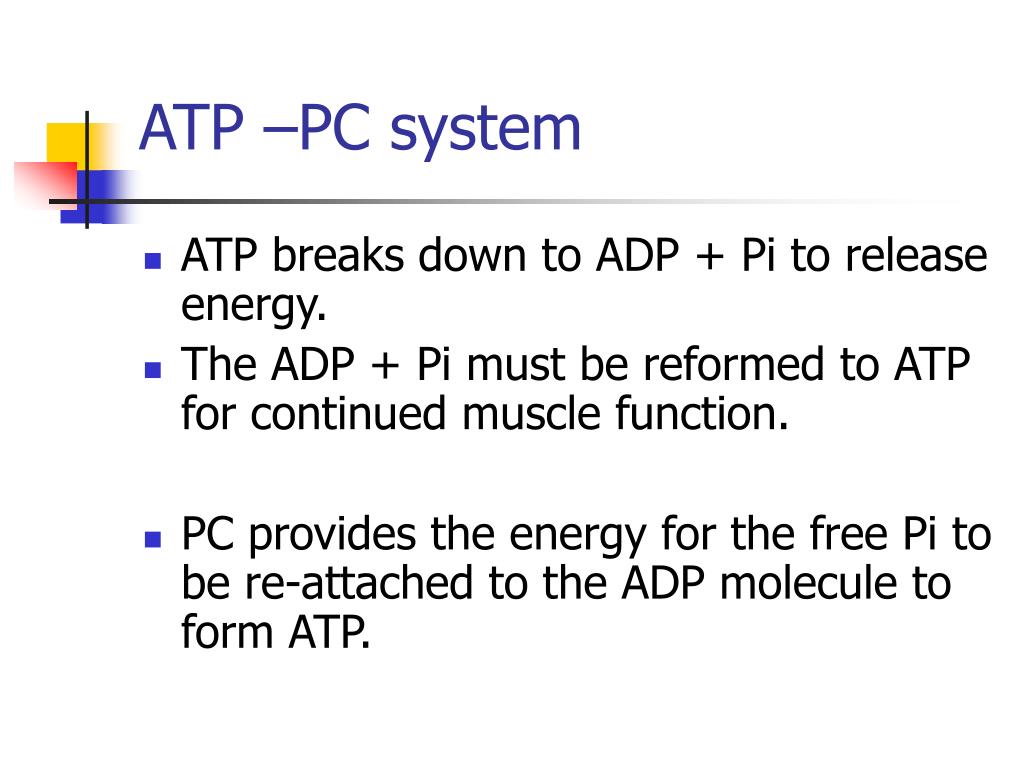

ATP –PC system fast & explosive. She might do this hundreds of time over a game. Plus she has to run fwd, bkwd and sideways for 1-2 hours. Her Muscles requires ENERGY to do this.

  • ATP breaks down to ADP + Pi to release energy.

  • The ADP + Pi must be reformed to ATP for continued muscle function.

  • PC provides the energy for the free Pi to be re-attached to the ADP molecule to form ATP.


Atp pc system cont

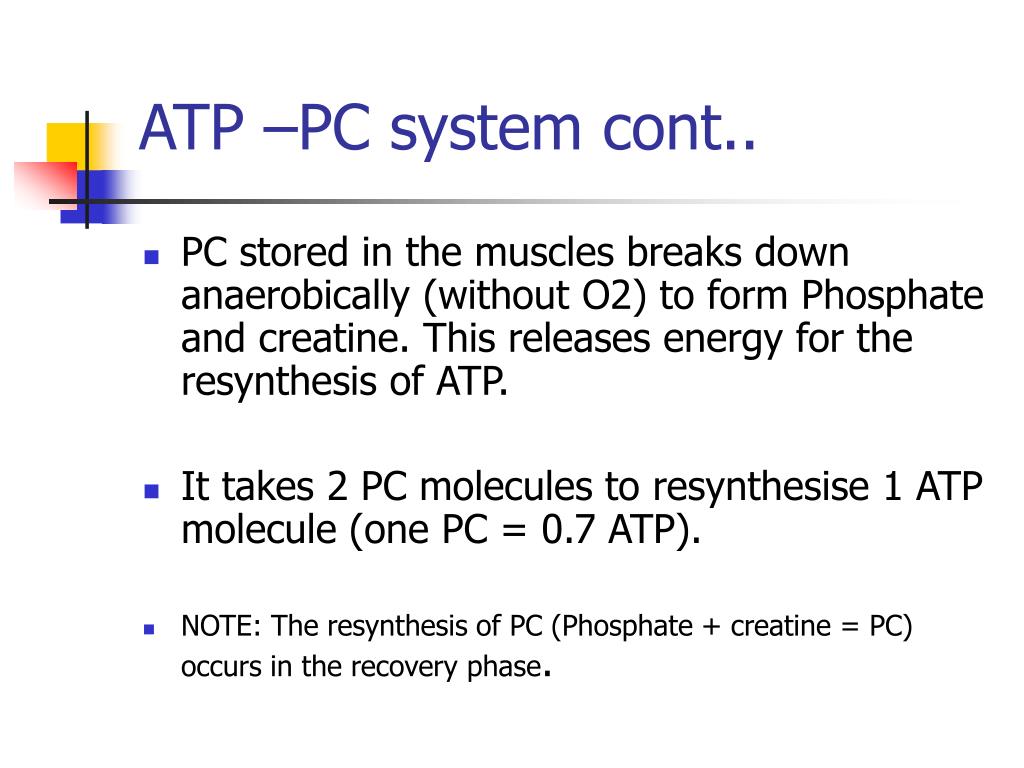

ATP –PC system cont.. fast & explosive. She might do this hundreds of time over a game. Plus she has to run fwd, bkwd and sideways for 1-2 hours. Her Muscles requires ENERGY to do this.

  • PC stored in the muscles breaks down anaerobically (without O2) to form Phosphate and creatine. This releases energy for the resynthesis of ATP.

  • It takes 2 PC molecules to resynthesise 1 ATP molecule (one PC = 0.7 ATP).

  • NOTE: The resynthesis of PC (Phosphate + creatine = PC) occurs in the recovery phase.


Energy systems

For activity lasting: fast & explosive. She might do this hundreds of time over a game. Plus she has to run fwd, bkwd and sideways for 1-2 hours. Her Muscles requires ENERGY to do this.

0-10 SEC

ATP-PC SYSTEM

10-30/40 SEC

LACTIC ACID SYSTEM

30 + SEC- 2MINS

AEROBIC SYSTEM


Energy systems

ATP-PC SYSTEM fast & explosive. She might do this hundreds of time over a game. Plus she has to run fwd, bkwd and sideways for 1-2 hours. Her Muscles requires ENERGY to do this.

CP instantly available, but runs out quickly

Uses stores of CP (Creatine Phosphate) to REMAKE ATP

Used for high intensity Jumps, Throws, Sprints

Only have 10 seconds of CP in muscles

If activity lasts longer than 10 sec, ATP must be REMADE by some other means…..


Summary
Summary fast & explosive. She might do this hundreds of time over a game. Plus she has to run fwd, bkwd and sideways for 1-2 hours. Her Muscles requires ENERGY to do this.

  • Each ATP molecule is made up of an adenosine part and three phosphate groups. When 1 mole(1) of ATP is broken down, 7 to 12 Kcal (2) of energy is released.

  • Besides ATP, there is still another high-energy compound called phosphocreatine (PC) inside the human muscle cells. When PC is broken down, energy is released for the resynthesis of ATP.


Summary cont
Summary Cont… fast & explosive. She might do this hundreds of time over a game. Plus she has to run fwd, bkwd and sideways for 1-2 hours. Her Muscles requires ENERGY to do this.

  • However, the total amount of PC stored in the human body is also extremely limited. There are altogether 450 to 510 mM PC, or 4.5 to 5.1 Kcal of energy in the human body. The energy released from the breaking down of ATP is also required to resynthesize PC. Nevertheless, this process will be carried out when the human body is in the recovery stage.

  • The complete ATP-PC system can only supply 5.7 to 6.9 Kcal of energy, which can maintain about 10 seconds of maximal efforts.


Summary cont1
Summary cont… fast & explosive. She might do this hundreds of time over a game. Plus she has to run fwd, bkwd and sideways for 1-2 hours. Her Muscles requires ENERGY to do this.

  • The importance of the ATP-PC system is that it is the instant energy source in the human body.

  • The ATP-PC system does not require oxygen in the muscles for proper functioning. Besides, the required fuels (ATP and PC) have already been stored in the muscle cells

  • The chemical reactions involved when PC is broken down are fewer than the other two energy systems.

  • The ATP-PC system is particularly important for high-intensity and high- speed activities that need to be completed in a few seconds (e.g., starting, jumping, throwing, and weight lifting).


Energy systems

LACTIC ACID SYSTEM fast & explosive. She might do this hundreds of time over a game. Plus she has to run fwd, bkwd and sideways for 1-2 hours. Her Muscles requires ENERGY to do this.

Body uses stored fuel of GLYCOGEN to REMAKE ATP

Need Oxygen to do this properly

About 2-3 hours of glycogen stored in body.

Downside – by-product called Lactate. Hydrogen Ions also released which inhibit muscle contraction

Happens because of lack of enough Oxygen to break down Glycogen

400m run, 800m at high intensity


Energy systems

AEROBIC SYSTEM fast & explosive. She might do this hundreds of time over a game. Plus she has to run fwd, bkwd and sideways for 1-2 hours. Her Muscles requires ENERGY to do this.

Plenty of Oxygen available to remake ATP . So no LA or H+ is accumulated

Used in longer, sub-max activities. Long run, swim, cycle.

Like the LA system, the Aerobic uses Glycogen to remake ATP.

Oxygen supply meets demand

We use this system at REST (Now!) – except we burn…

Will keep suppling ATP for as long as Fitness levels allow

FAT!!!!


Energy systems

During REST fast & explosive. She might do this hundreds of time over a game. Plus she has to run fwd, bkwd and sideways for 1-2 hours. Her Muscles requires ENERGY to do this.

Any rest, short OR Long, CP is being replenished, so we can ‘sprint’ again.

BUT, need 3 minutes rest to get all CP back!

Any Lactate and Hydrogen Ions are removed from muscles & blood stream too.


Energy systems

Things to remember: fast & explosive. She might do this hundreds of time over a game. Plus she has to run fwd, bkwd and sideways for 1-2 hours. Her Muscles requires ENERGY to do this.

All 3 turn on at once no matter what the activity.

However, depending on intensity and duration of the activity, ONE system will contribute more than the other TWO.

The 3 Energy Systems are not like TRAFFIC LIGHTS. One does not switch off and another goes on.
